RefDura Panle
1 / 5

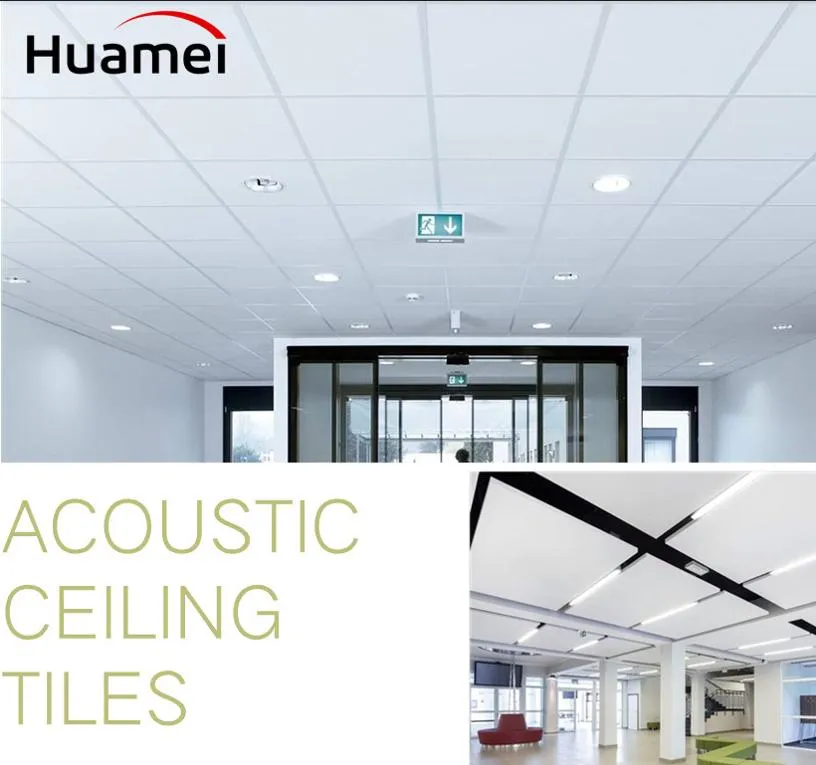

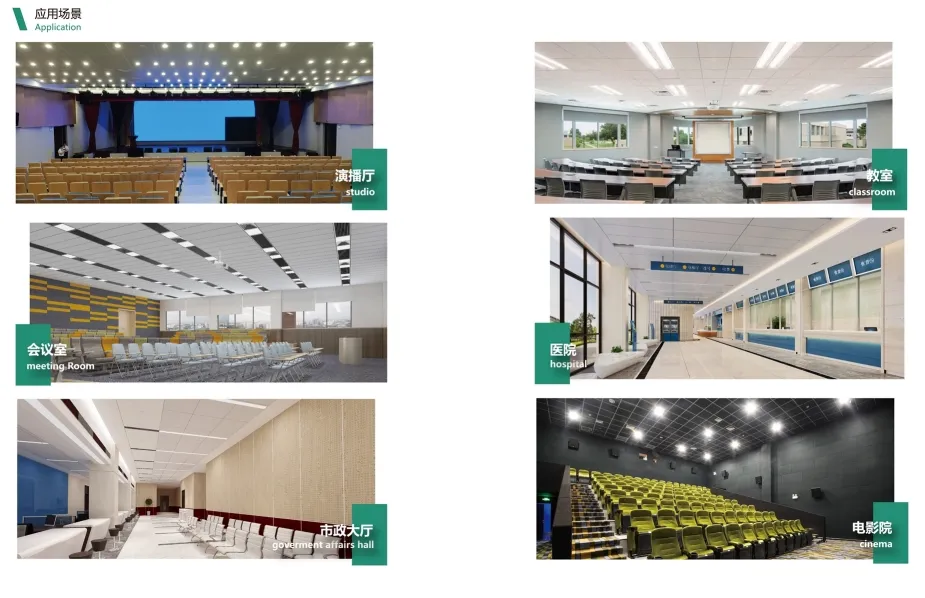

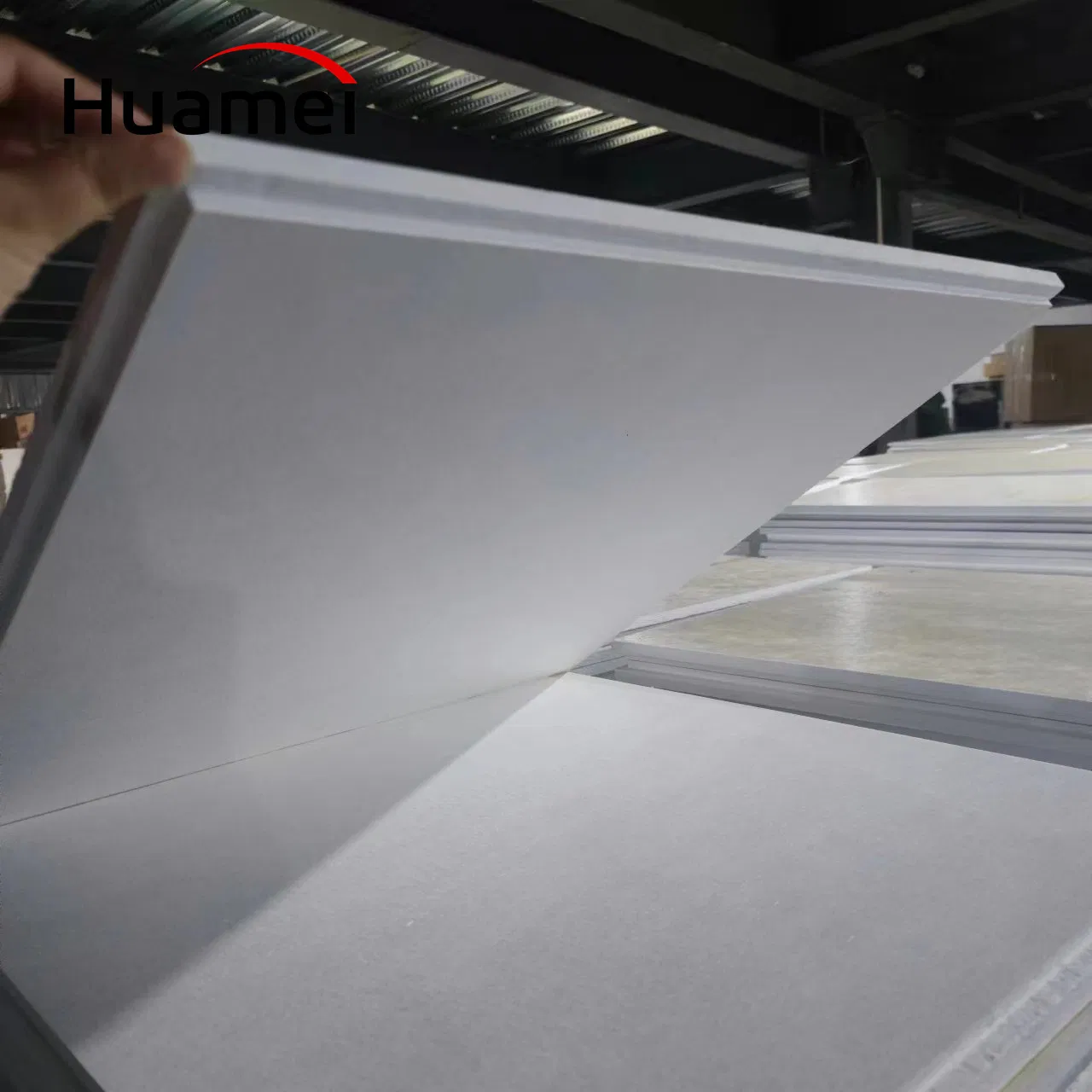

Fire-rated A1 NRC > 0.9 Fiberglass acoustic Ceiling panel offers exceptional fire resistance and sound insulation. It is ideal for environments requiring high sound absorption quality such as radio stations, television studios, schools, gyms, theaters, libraries, conference rooms, and concert halls.

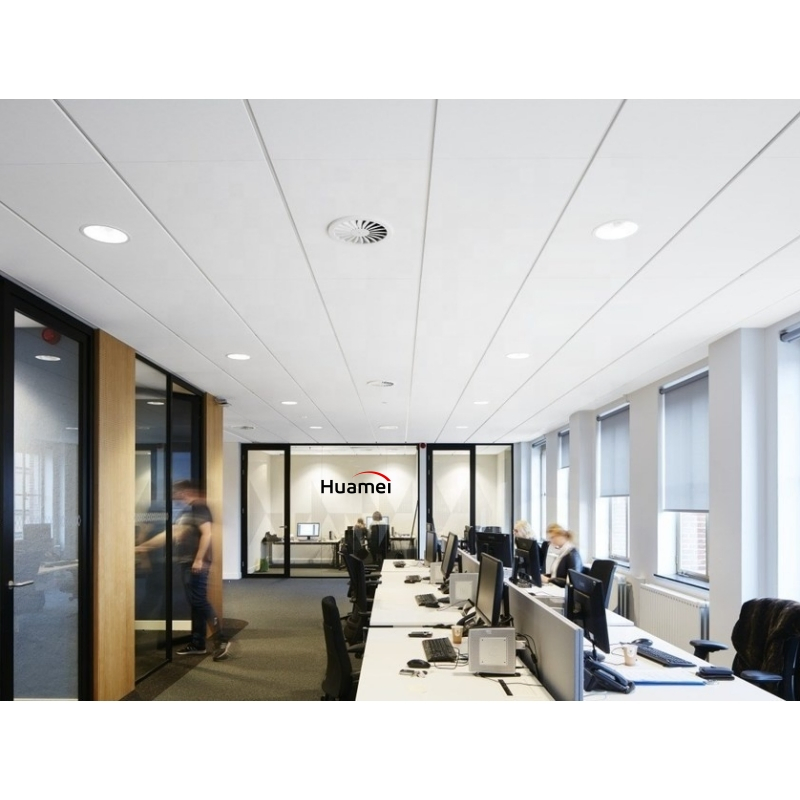

These acoustic panels are designed to control echo and reverberation. They are commonly used for sound dampening in home studios, theaters, music rooms, and commercial areas to improve speech intelligibility.
| Property | Details |
|---|---|

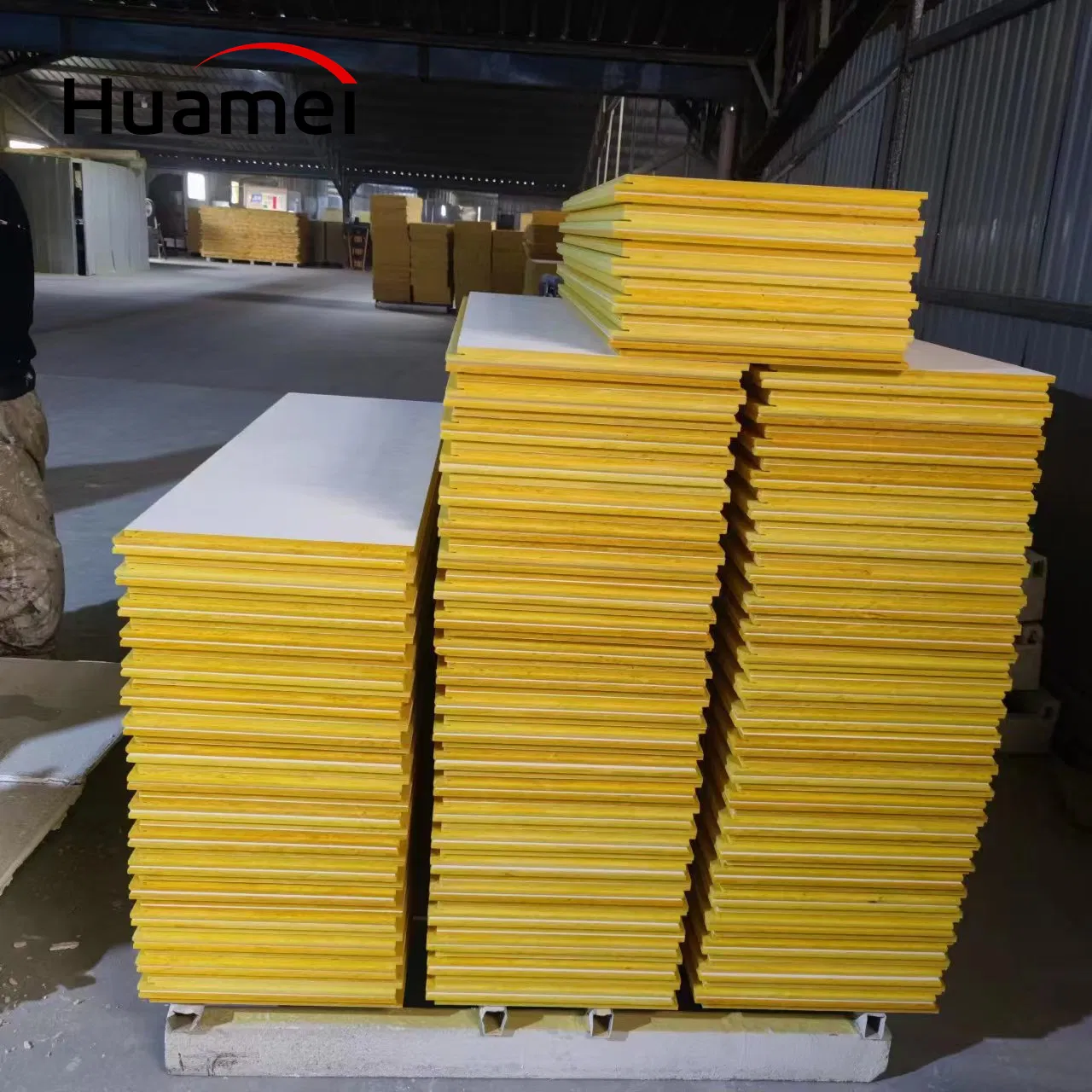

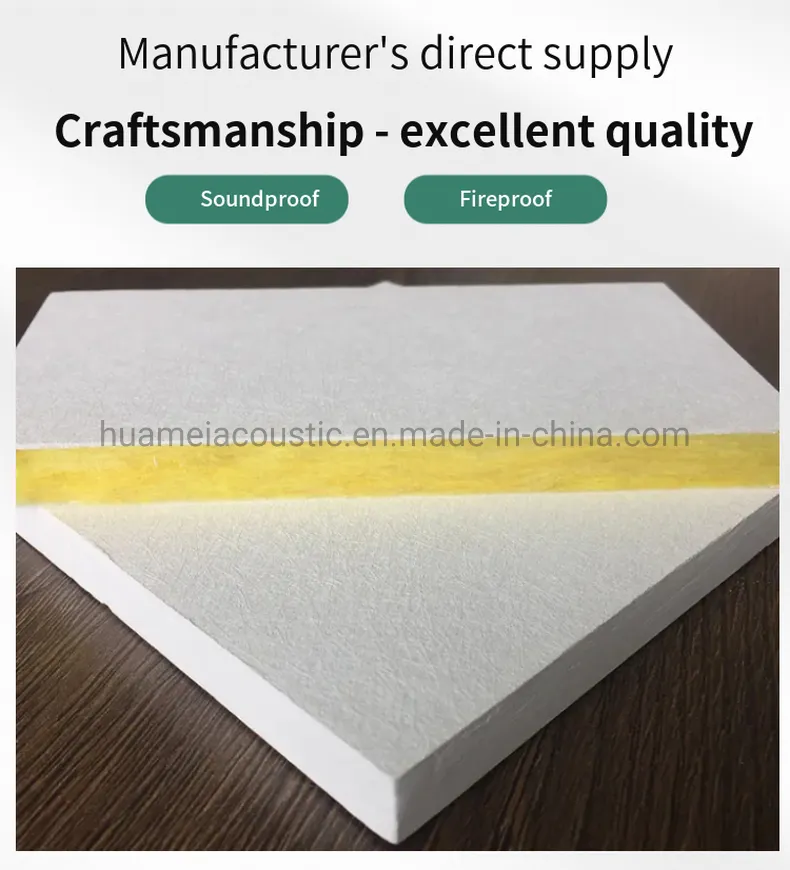

| Main Material | Torrefaction compounded high density fiberglass wool |

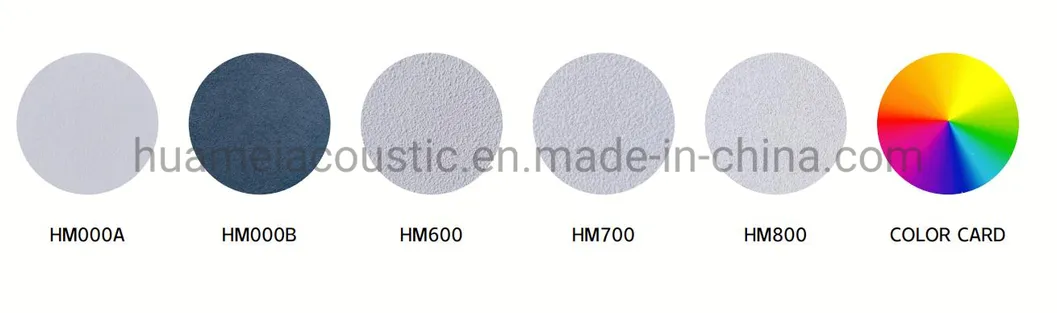

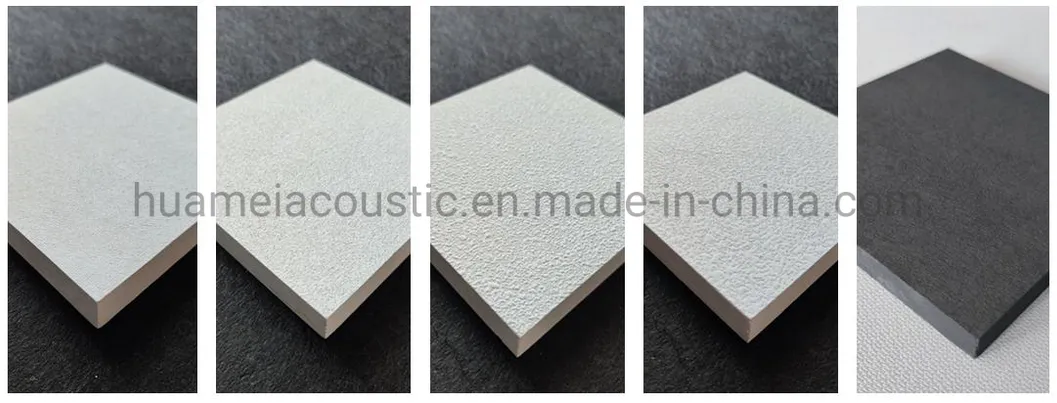

| Face | Special painted laminated with decorative fiberglass tissue |

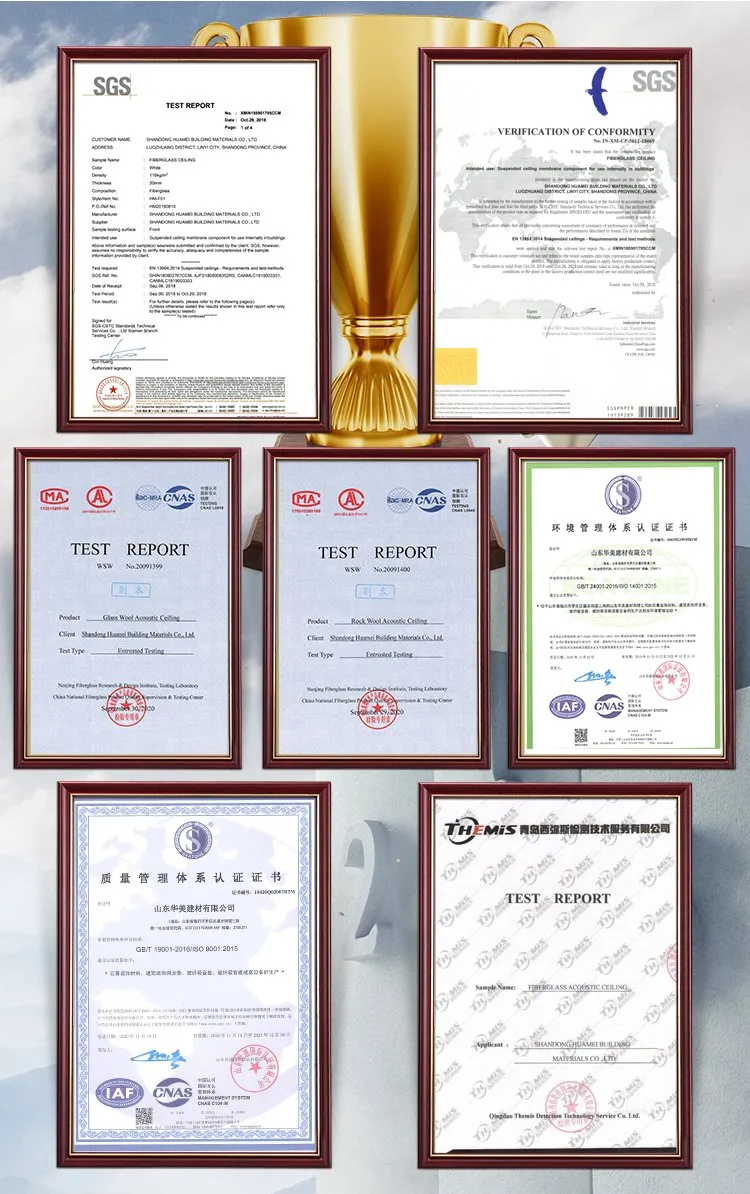

| NRC | 0.8-0.9 (SGS tested); 0.9-1.0 (National authoritative tested) |
| Fire-Resistant | Class A (EN13501-1 / GB8624-2012) |
| Humidity | Stable with RH up to 95% at 40°C, no sagging or warping |
| Thermal-Resistant | ≥0.4(m2.k)/W |
| Density | 100kg/m3 (Special density available) |
| Size (mm) | Thickness (mm) | Packing (pcs/ctn) | Loading Qty (sqm/ctn) |
|---|---|---|---|
| 600*600 / 600*1200 | 12mm | 25 | 4788 SQM |
| 600*600 / 600*1200 | 15mm | 20 | 3830.4 SQM |
| 600*600 / 600*1200 | 20mm | 15 | 2872.8 SQM |
| 600*600 / 600*1200 | 25mm | 12 | 2298.2 SQM |
The facility specializes in the research, development, production, and sales of high-end ceiling and wall decoration products with nearly 20 years of manufacturing history.

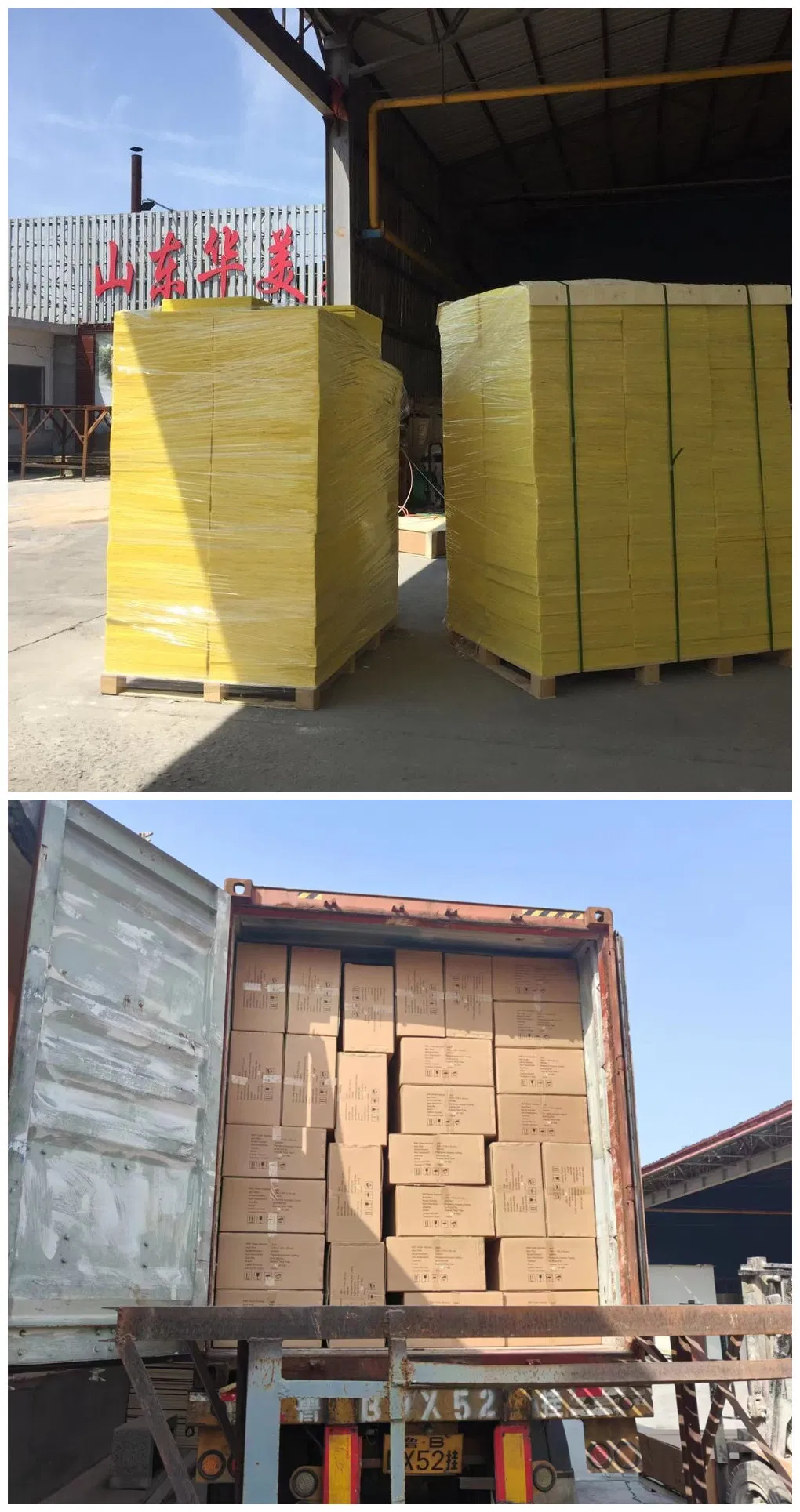

With an annual production capacity of 5 million square meters, over 90% of products are exported globally to Europe, America, the Middle East, and Southeast Asia. We utilize advanced 21st-century production technology to ensure superior sound absorption and appearance quality.

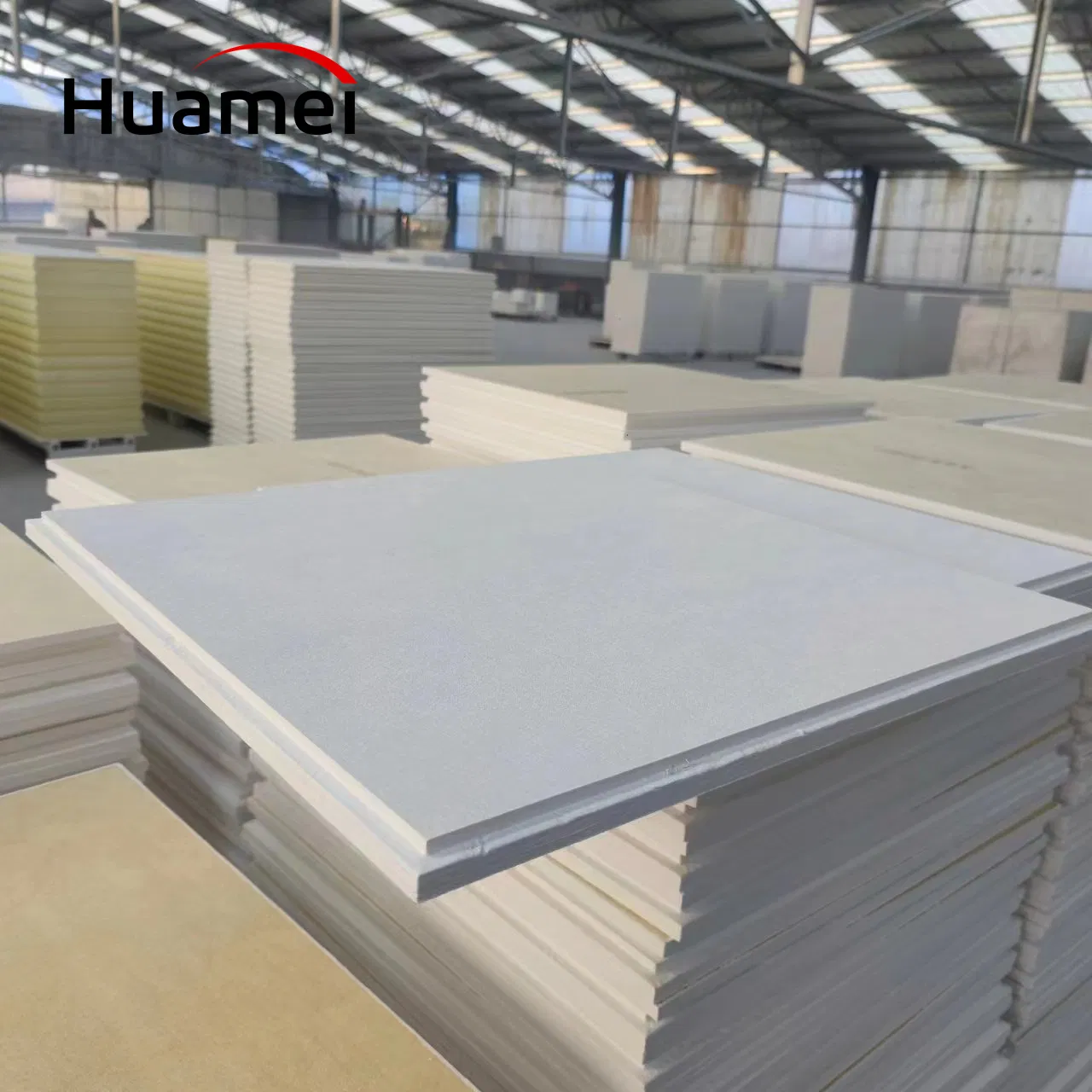

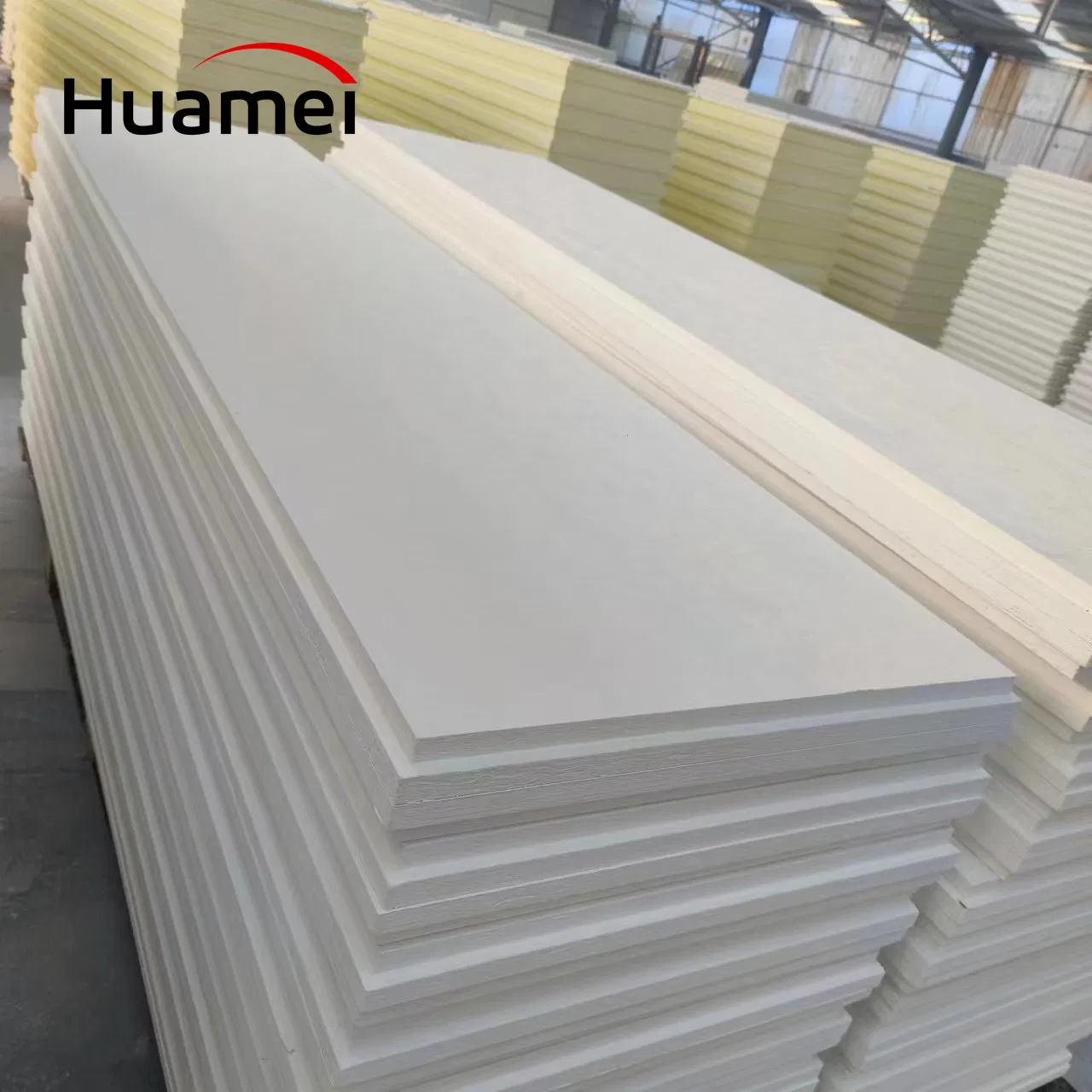

Our independent production lines ensure accurate sizing and consistent finish. We hold over 20 patents for utility models and inventions, demonstrating our commitment to innovation.
