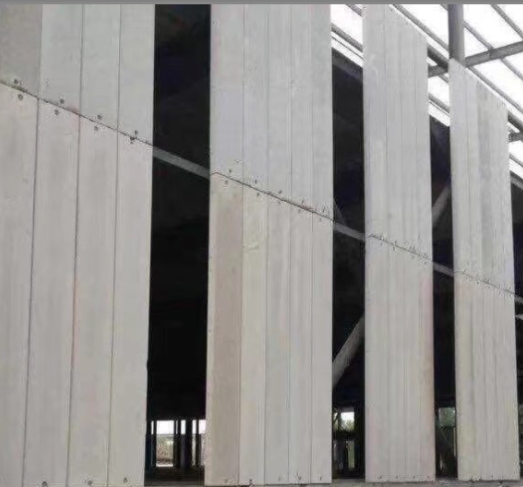

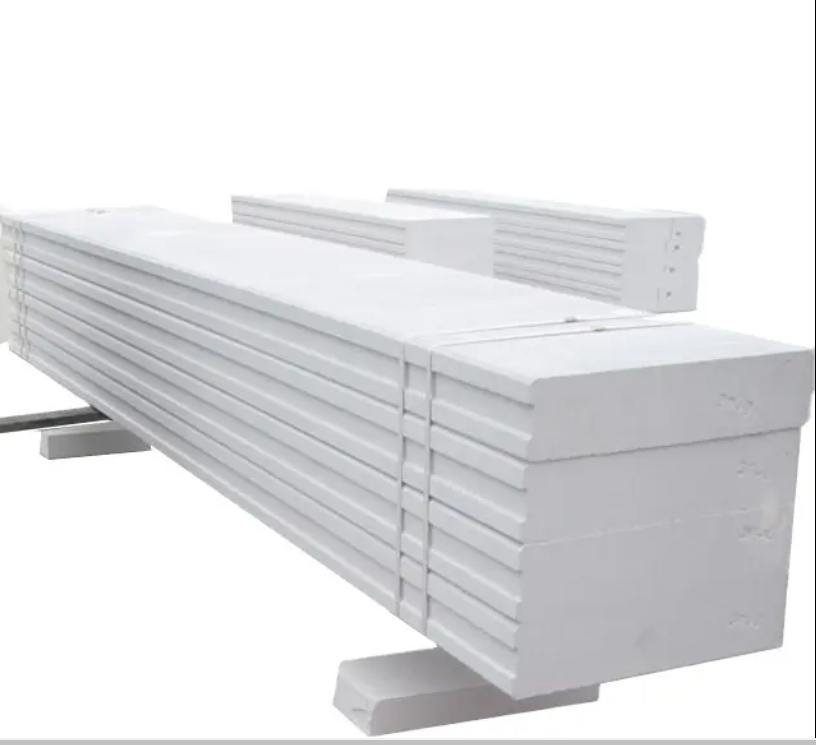

AAC Lightweight Partition Wall Interior and Exterior Cement Wall Panel

Customization: Available
After-sales Service: Online Technical Support
Warranty: More 15 Years

Product Description

Basic Information

Model NO.
AAC Panel
Usage
Exterior Wall, Interior Wall, Floor, Fence, Roof
Standard
AS/NZS, ASTM, En, GB, Code Mark
Features
Light Weight, Sound Insulation, Fireproofing
Raw Material
Silicon Sand, Cement, Lime, Gypsum
Thickness
50, 75, 100, 120, 150, 200, 240, 250, 300mm
Capacity
1,000,000 Cubic Meter Per Year
Specification
Width: 600mm, Length: 1200-6000mm

Product Description

AAC Lightweight Partition Wall

AAC Panel is the shortened form of Autoclaved Aerated Concrete Panel. The main materials are silicon sand, cement, and lime. Reinforced with anti-stain processed steel bars, these concrete panels feature numerous air holes formed after high-temperature and high-pressure steam protection. It is a modern construction material with excellent functional properties.

The complete production process—from mixing raw materials, anti-stain processing of steel bars, frame organization, and pouring to cutting and steaming—is accurately calculated via computer programs with rigid quality control.

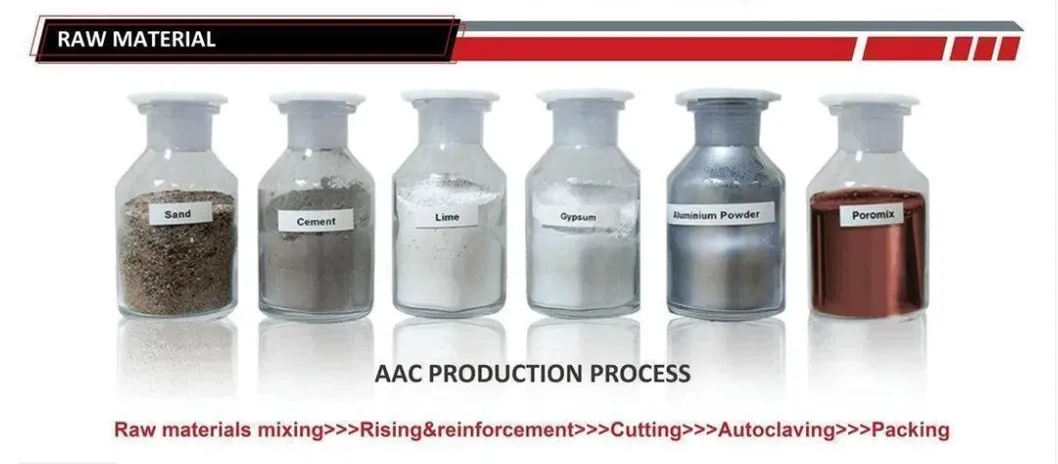

AAC Panel Structure

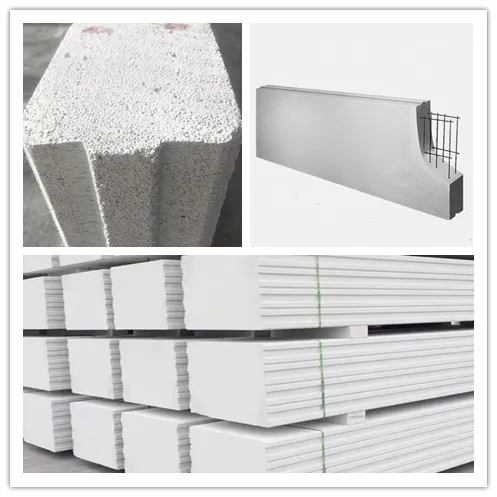

AAC Panel Detail 1

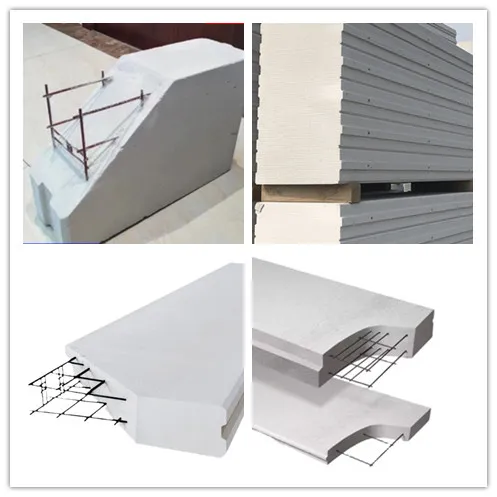

AAC Panel Detail 2

Key Advantages

  • Lightweight: Significantly reduces the structural load of buildings.
  • Sound Insulation: Provides a quiet indoor environment.
  • Heat Insulation: Excellent thermal performance for energy saving.
  • Fireproofing: High resistance to fire for enhanced safety.
  • Loading Ability: Reinforced with steel for structural integrity.

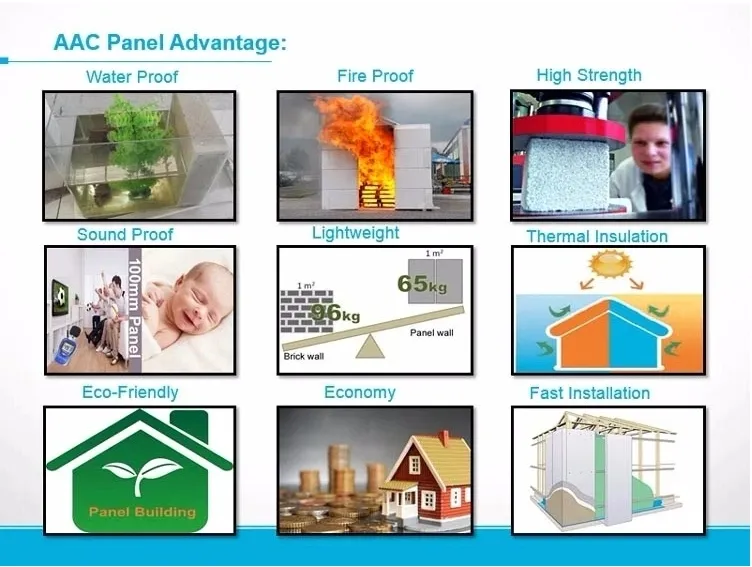

AAC Advantages Illustration

Product Applications

AAC panels are versatile and can be used in various building types, including public facilities, industrial constructions, civil housing, hospitals, hotels, schools, stores, supermarkets, and warehouses. Applications include:

  • External and Internal Wall Panels
  • Floor and Roof Slabs
  • Wall Cladding and Fencing Panels

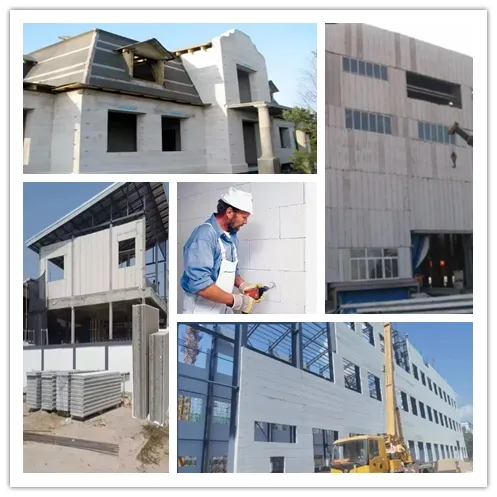

AAC Application 1

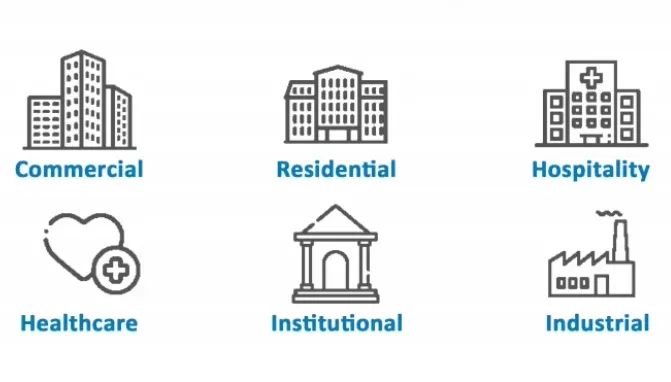

AAC Application 2

Standard Sizes

Product Code Length (mm) Width (mm) Thickness (mm)
Roof Slab ERP ≤ 2700 - 6000 600 100 - 300
Floor Slab EFP ≤ 2100 - 6000 600 50 - 300
External Panel EEP ≤ 3000 - 6000 600 50 - 300
Internal Panel EIP ≤ 3000 - 6000 600 50 - 300

NOTE: Other special sizes can be ordered as per requirements.

Certifications & Exhibition

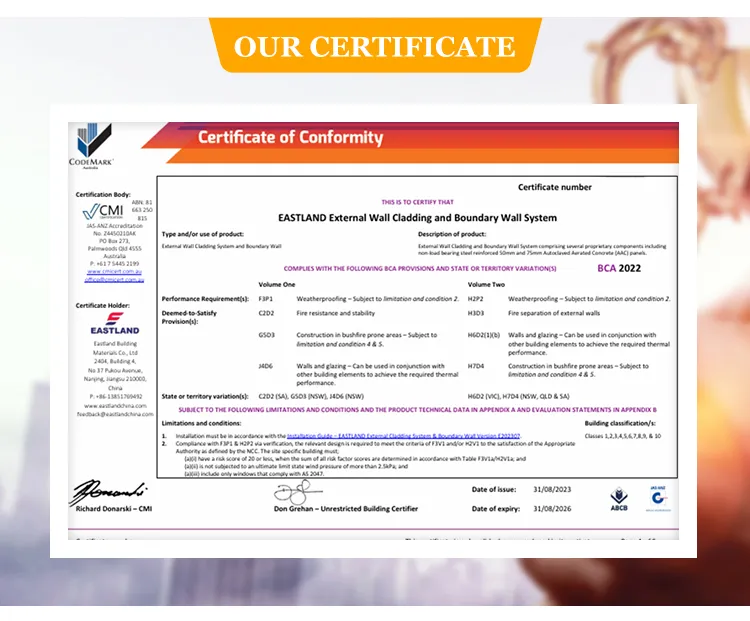

Certifications
Exhibition

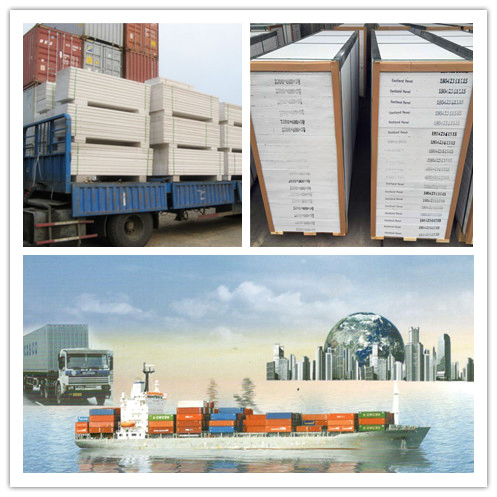

Packaging & Shipping

Packaging and Shipping

Standard wooden pallets and containers or bulkship as per request.

Frequently Asked Questions

Can I cut a window or door opening into the wall?
In most cases, it is possible to retro-fit an opening into the walls. Professional advice must be sought to ensure the structural framing is suitable for this modification.
How do I attach other external items to the walls?
A fixing guide is available to assist you in selecting the appropriate method for the specific object you wish to secure to the panels.
How do I drill penetrations for lights or speakers?
Holes can be drilled using a masonry drill bit with a standard (non-rotary hammer) drill. Gaps should be filled with a reputable flexible sealant like polyurethane sealant.
How long will the coating system last?
The coating systems are designed to be permanent. However, preventative maintenance will keep them looking their best and preserve optimum performance.
Will I ever need to recoat the panels?
Ultimate life-cycle costs are optimized when an Acrylic paint membrane is applied every 10 years. This ensures weatherproofing integrity and maintains visual impact.
What are the main benefits of AAC panels compared to traditional brick?
AAC panels offer superior thermal insulation, faster installation due to their large size, better fire resistance, and significantly lower weight, which reduces foundation costs.
