Advanced Precision PPGI & Gi Cladding Wall Panel System

1 / 5

Advanced Precision PPGI & Gi Cladding Wall Panel System

Customization:	Available
After-sales Service:	All Life Online Support
Warranty:	18 Months

Send Inquiry

Product Description

Basic Information

Model NO.ZS-Wall Panel

Product TypeExterior Wall Decoration Cladding Panel

Automatic GradeAutomatic

Power SourceElectric

CertificationCE, ISO

ApplicationWall Panel

ConditionNew

Thickness0.4-0.6mm

Working MaterialPPGI, Gi

Forming Station18 Steps

Control SystemPLC (Delta/Siemens)

Product Speed15-20m/Min

Main Power5.5kw

OriginChina

Product Description

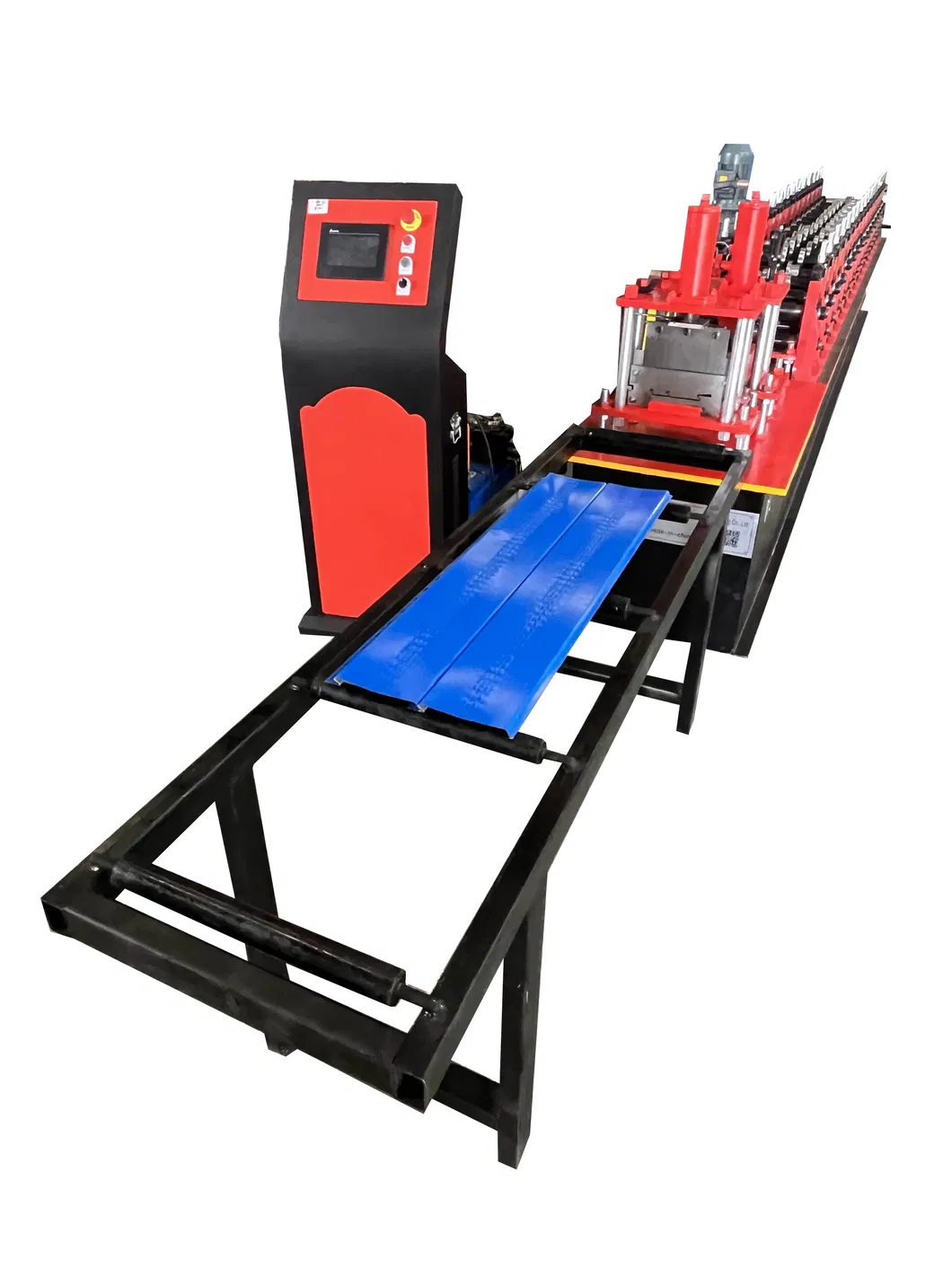

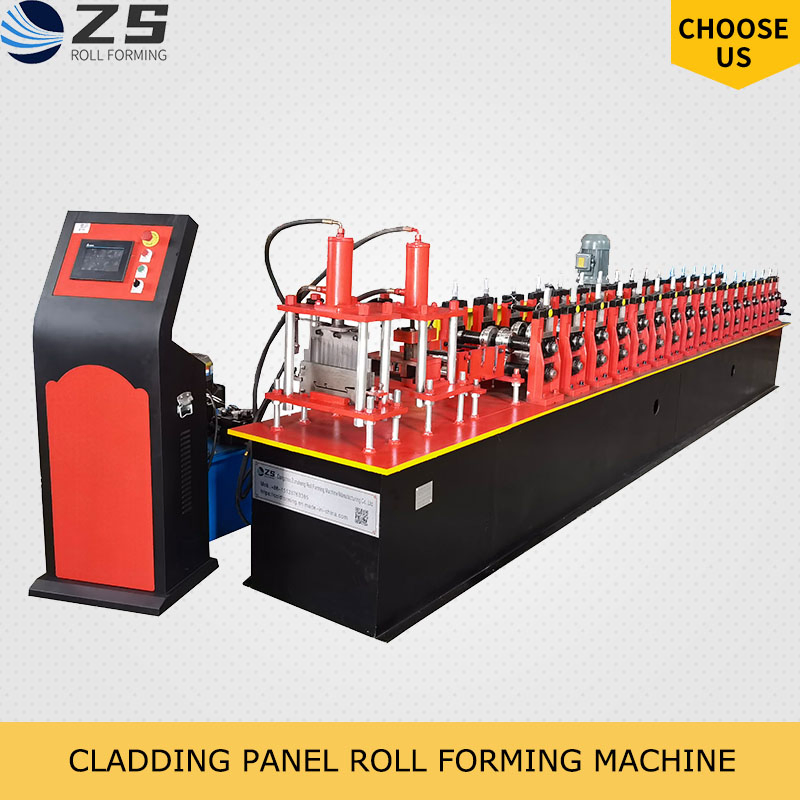

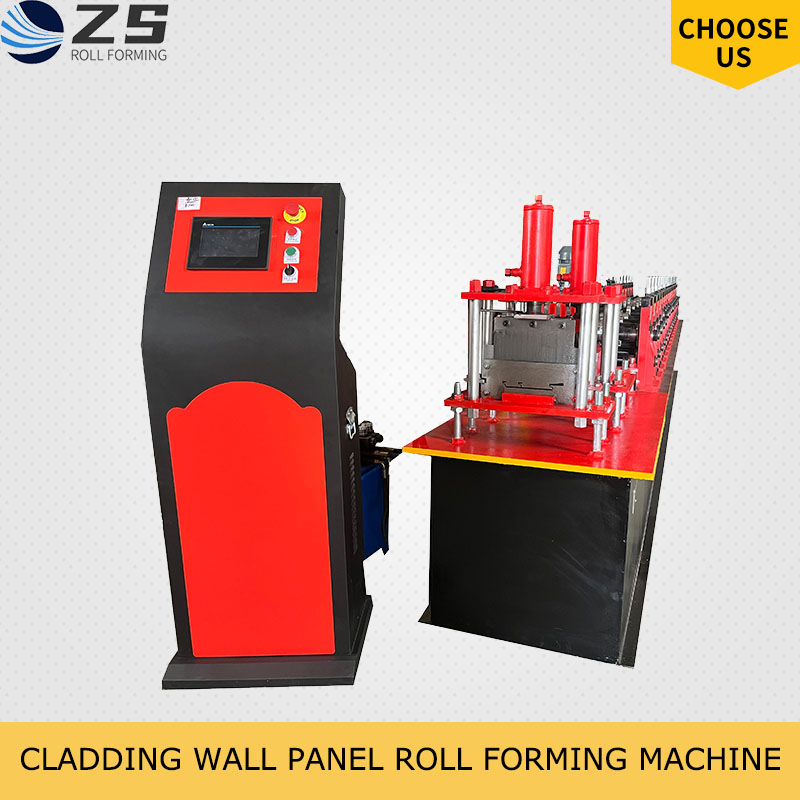

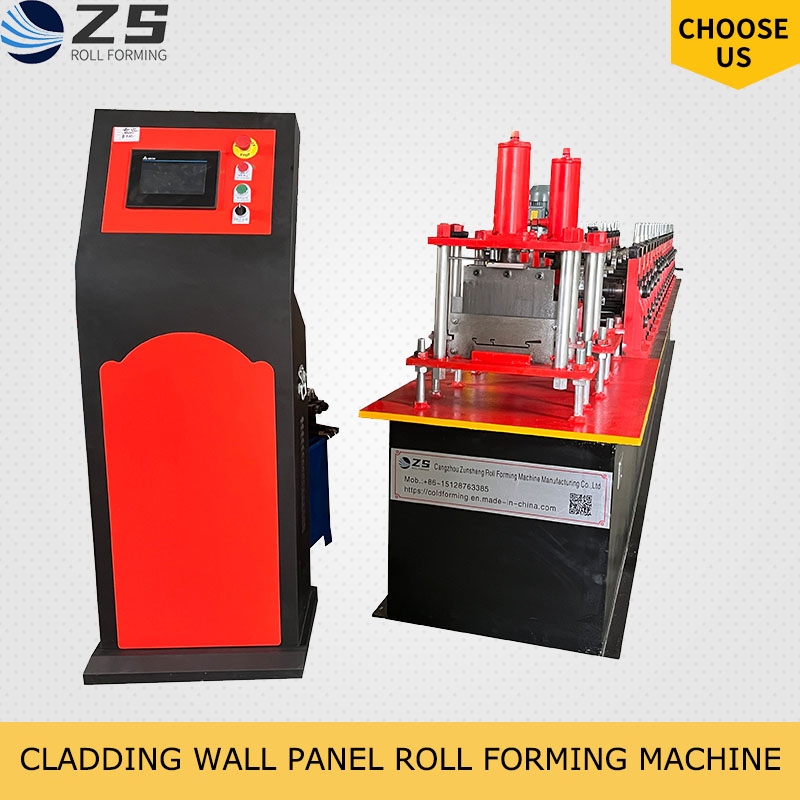

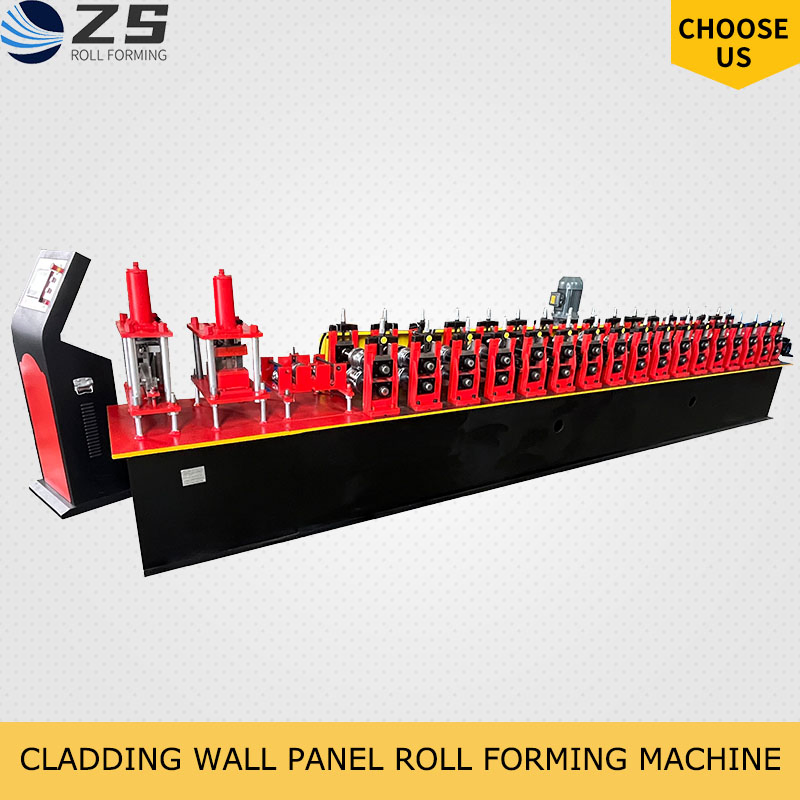

Exterior Wall Decoration Cladding Panel Selflock Making Roll Forming Machine

Our versatile machine is meticulously engineered to cater to all your needs, offering the capability to roll holes on surfaces and punch side holes. This single machine allows you to produce two different sizes effortlessly by adjusting the space and cutting blade, eliminating the need for additional modifications.

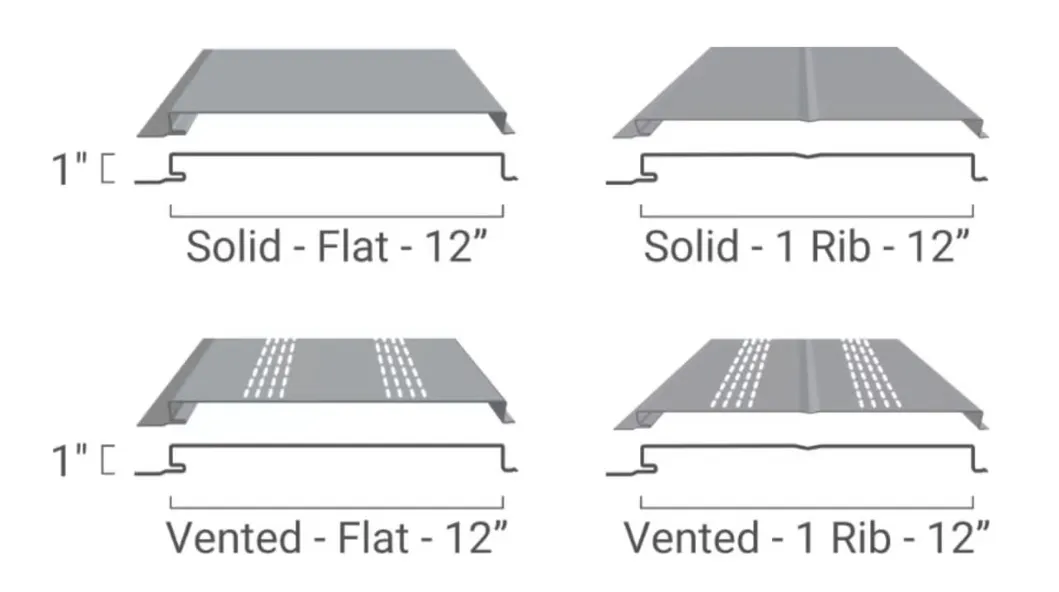

Profile Customization

We can customize the machine meticulously according to your unique design and requirements:

Main Components

No.	Component Name	Quantity
1	De-coiler	1 Set
2	Forming Machine	1 Set
3	Hydraulic Cutting Device	1 Set
4	PLC Control Box	1 Set
5	Hydraulic Pump Station	1 Set
6	Production Support Table	1 Set

Working Flow

Uncoiler

Feeder

Rolling Holes

Roll Forming

Punching Holes

PLC Control System

Cutting System

Receiving Tables

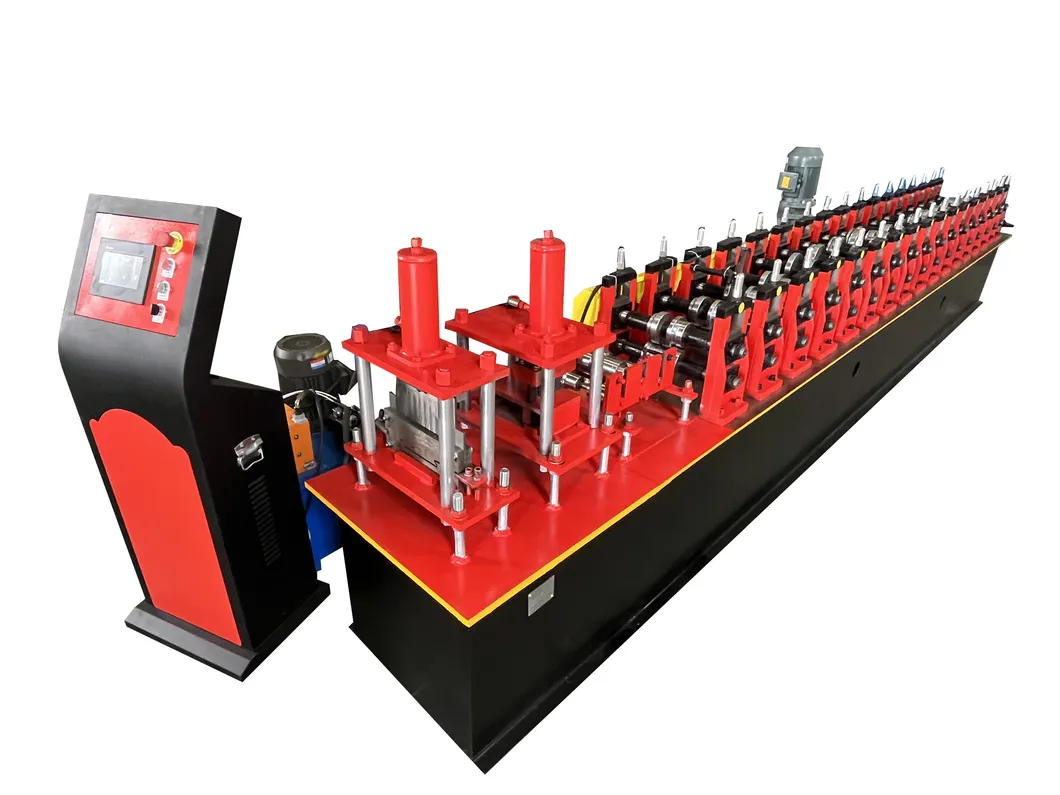

Detailed Technical Photos

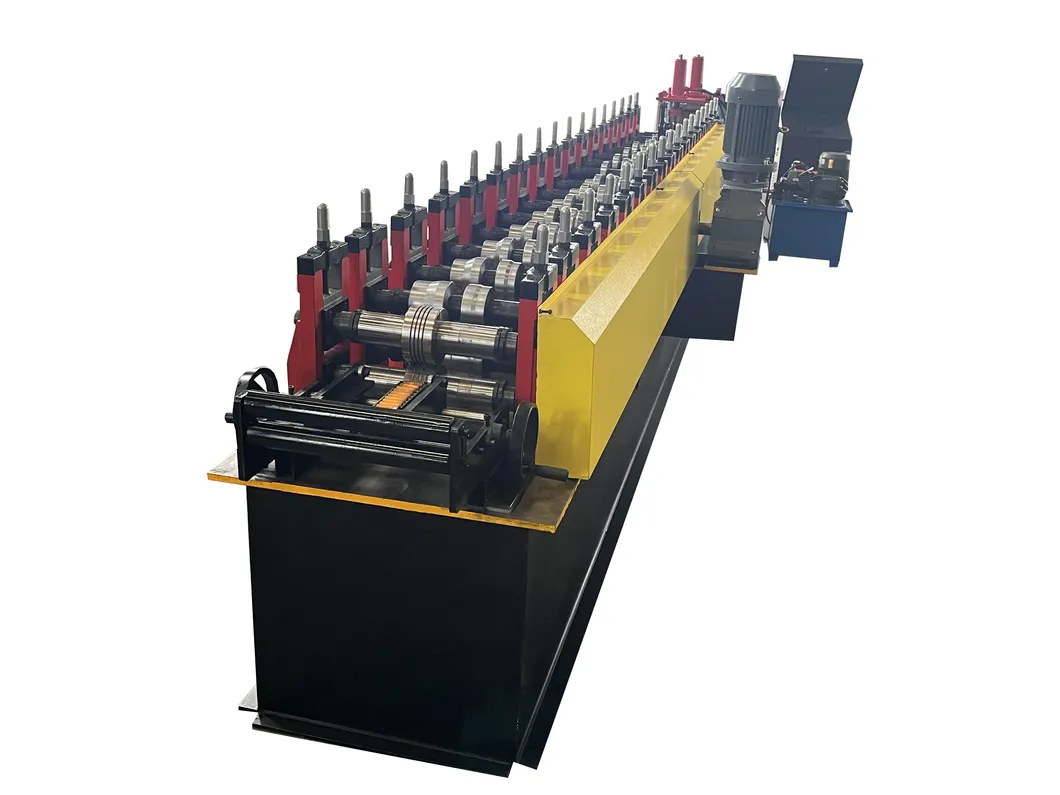

Feeder System
Ensures stable operation with no coil swing. Working width up to 600mm.

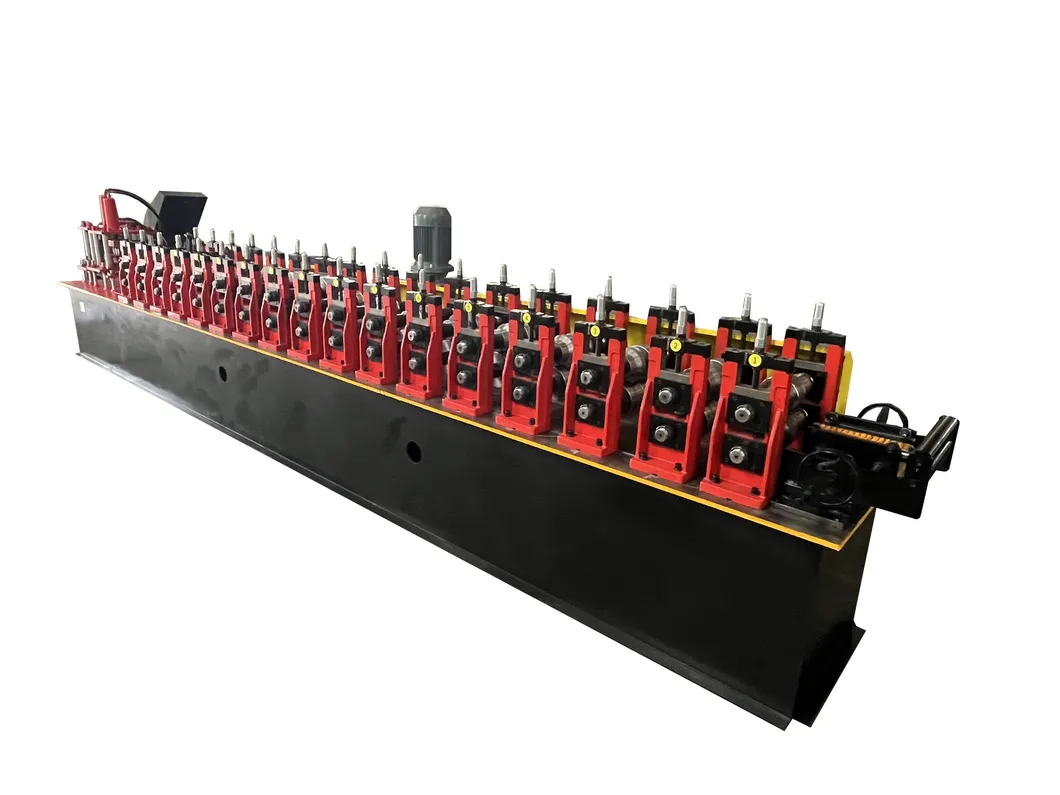

Main Roll Forming System
Casting steel structure for superior strength. Cr12 Rollers.

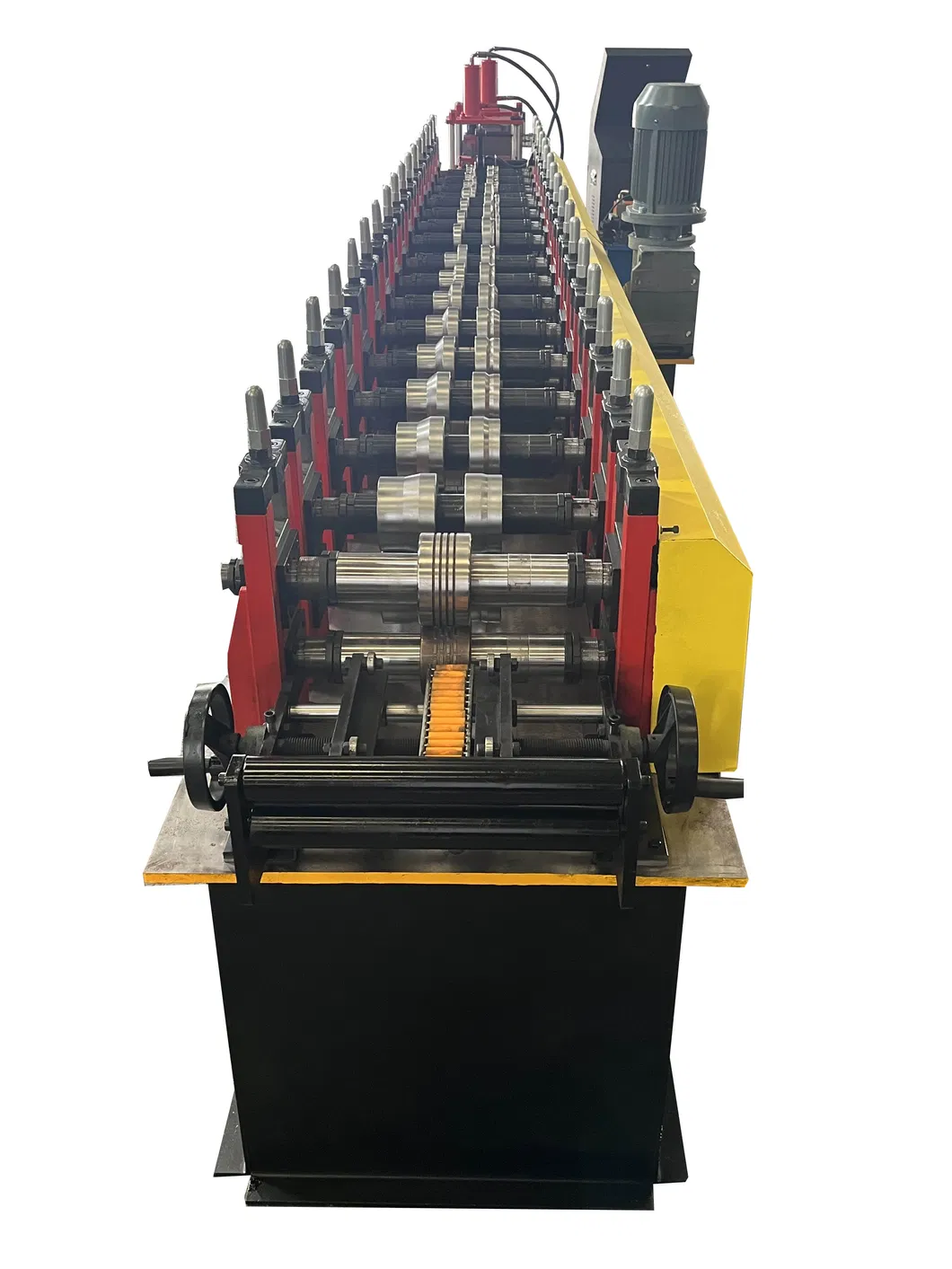

Roller Details
CNC-center processing for high accuracy and perfect finish.

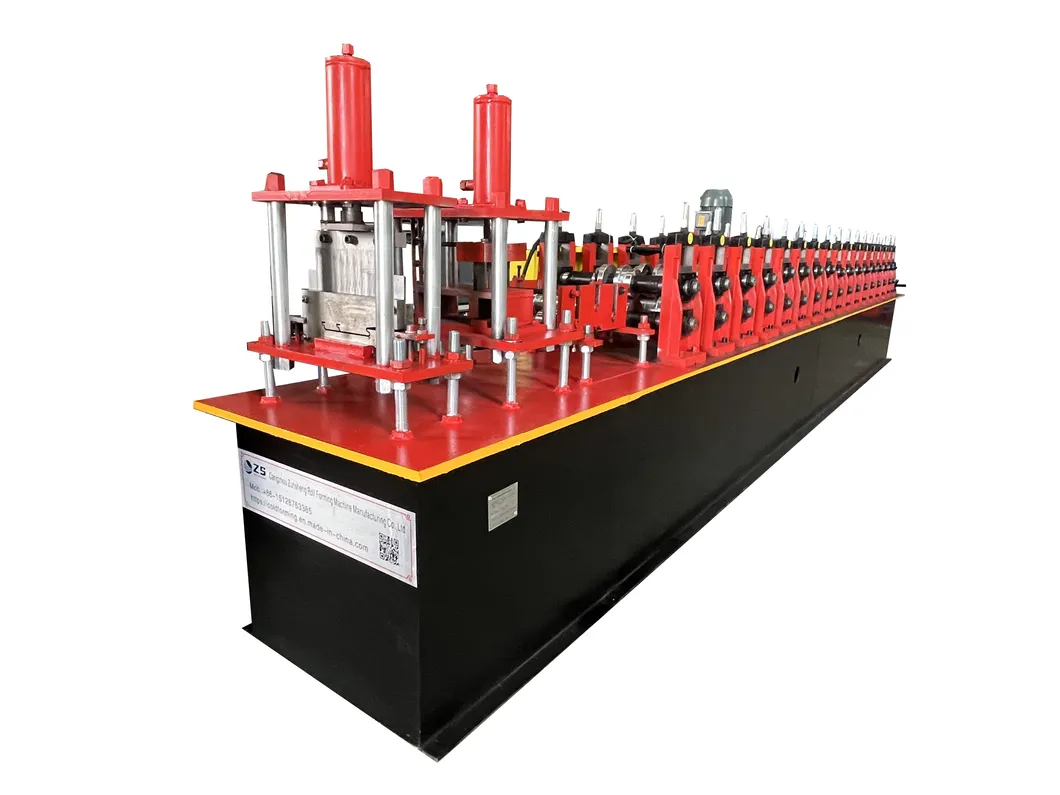

Hydraulic Punching & Cutting
Standard hydraulic cutter with high-quality Cr12 blade.

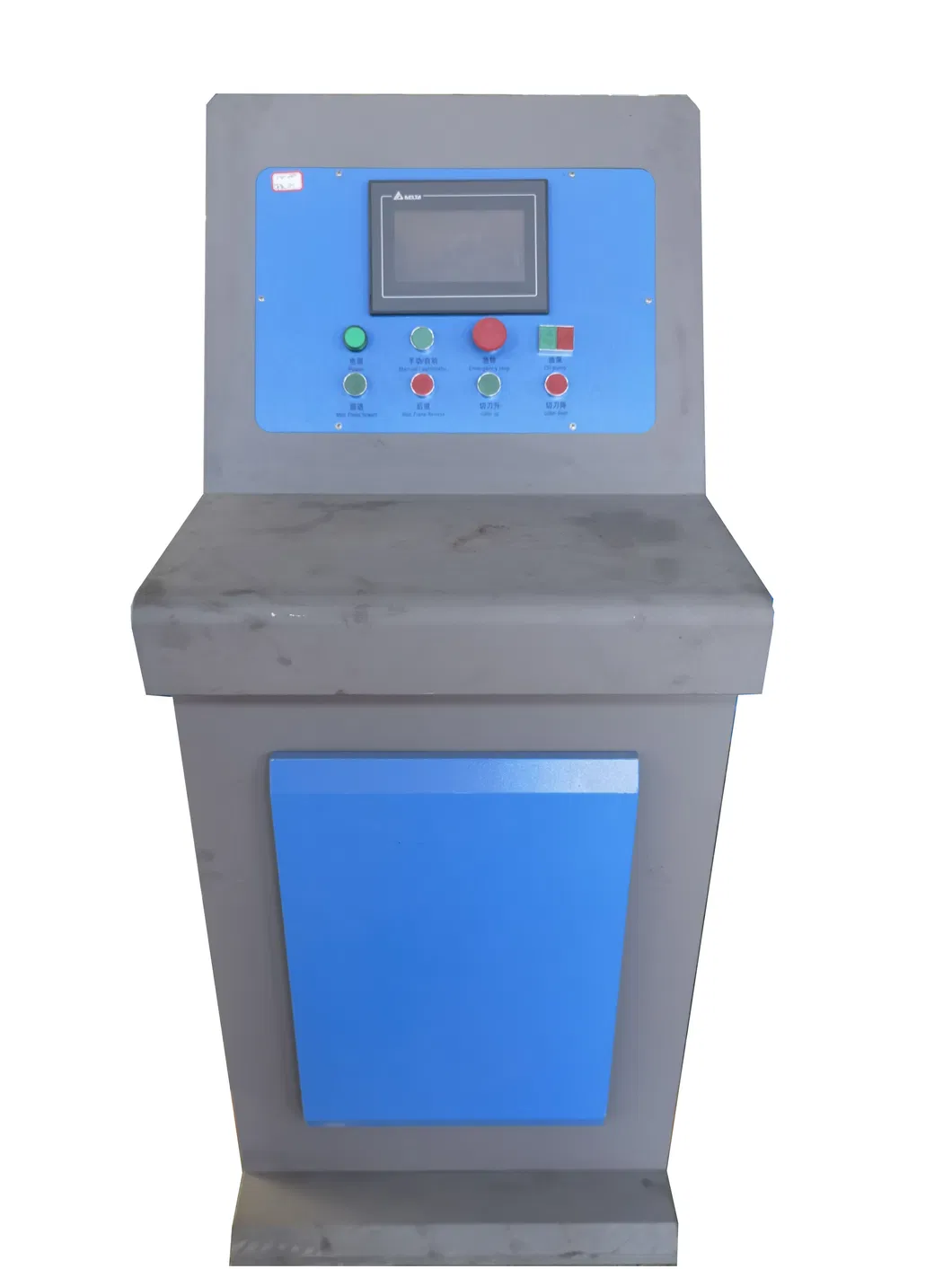

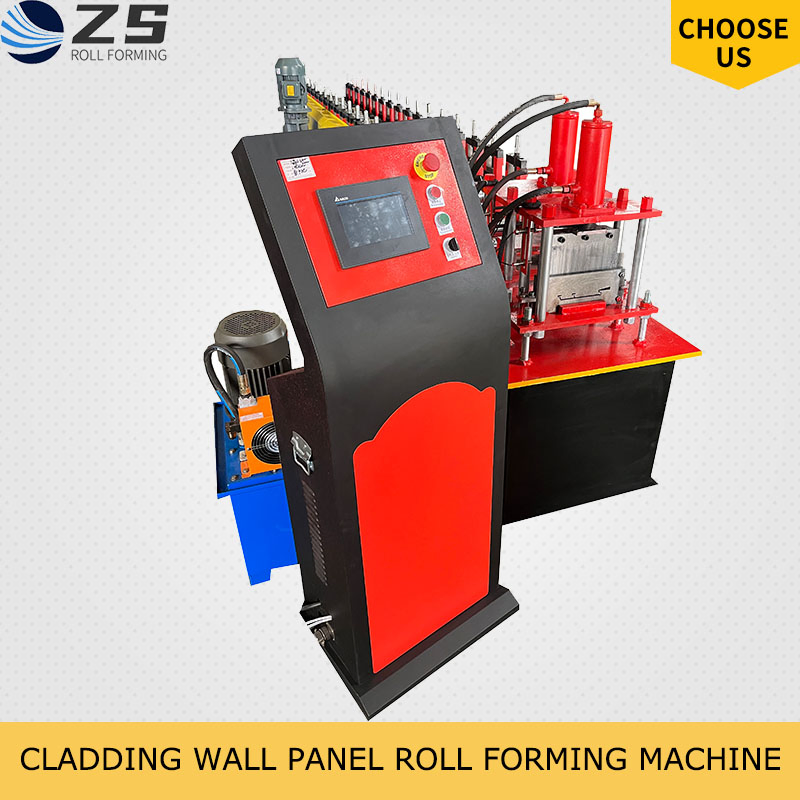

PLC Control System
Delta/Siemens brand with user-friendly touch screen interface.

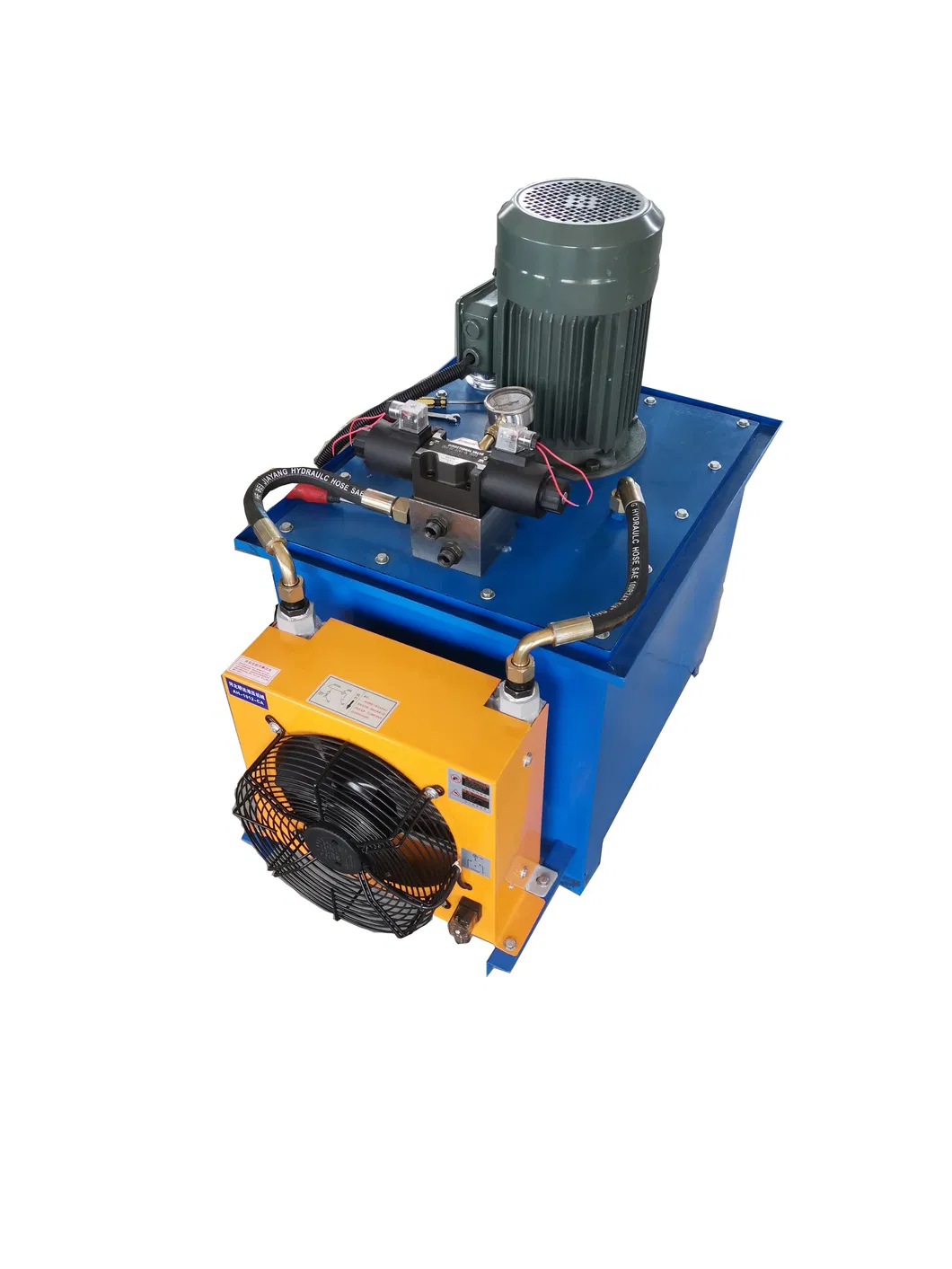

Hydraulic Oil Pump System
4kW power with integrated fan cooling system.

After-Sale Service & Trade Terms

Warranty: 18 months from the date of receipt. Free replacement parts provided during this period.

Technical Support: Lifetime technical assistance for all machines.

Delivery: Approximately 60 workdays.

MOQ: 1 Set.

Frequently Asked Questions

What materials can this roll forming machine process?

The machine is designed to work with PPGI and Gi (Galvanized Steel) with a thickness range of 0.4mm to 0.6mm.

Can I produce different panel sizes on the same machine?

Yes, our machine allows you to produce two different sizes by adjusting the space and cutting blade, without needing additional modifications.

What is the production speed of the ZS-Wall Panel machine?

The standard production speed is between 15 to 20 meters per minute, ensuring high efficiency.

What kind of control system is used?

We use high-end PLC control systems from reliable brands like Delta (Taiwan) or Siemens (Germany), featuring 7-inch color touch screens for easy operation.

How is the machine protected during international shipping?

The main body is covered by plastic film to protect it from dust and corrosion. It is then securely fixed inside the container using steel ropes and locks.

Do you provide installation services at the client's site?

Yes, technicians can be dispatched to your factory for installation and worker training for an additional charge, though we also provide lifetime technical support.
