Basic Information
Curtain Wall Kind
Aluminum Composite Panel
Supporting Construction
Frame Type
Usage
Exterior Wall, Interior Wall
Function
Intelligent Curtain Wall
Production Capacity
50000 Sqm

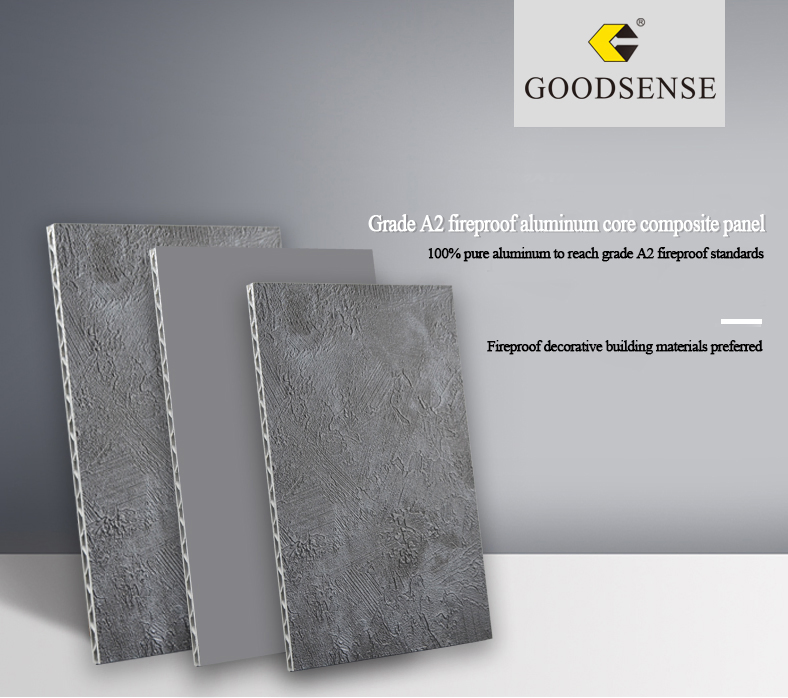

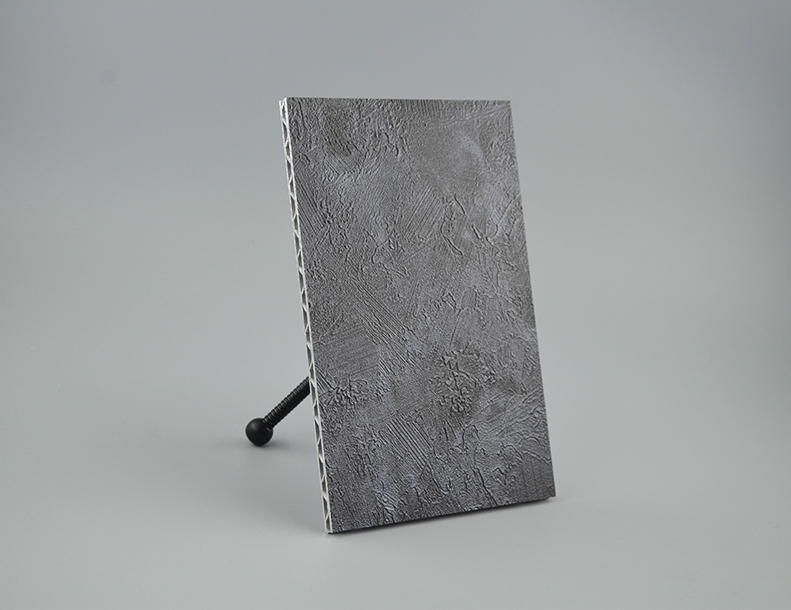

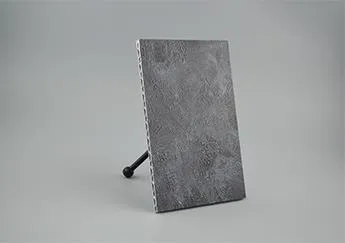

Product Description
The aluminum core composite board (ACCP) is an improved version of aluminum honeycomb board and aluminum Composite board. ACCP does not require the expensive unit price of aluminum honeycomb board, but is stronger and lighter. It features an all-aluminum structure, no polyethylene plastic components, and is 100% recyclable. It is environmentally friendly and reaches A2 level of fire retardant.

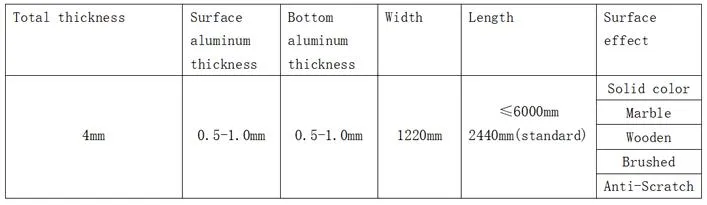

Product Specifications
- Standard size: 1220x2440mm (customizable)
- Thickness: 4mm
- Weight: 4.0kg / m2 (4mm)
Core Functions
- Light material / High rigidity
- High intensity / Corrosion resistance
- Rich colors / High flatness
- Fire prevention / Insulation
- Low cost / Environmental protection and energy saving
- Good processing performance

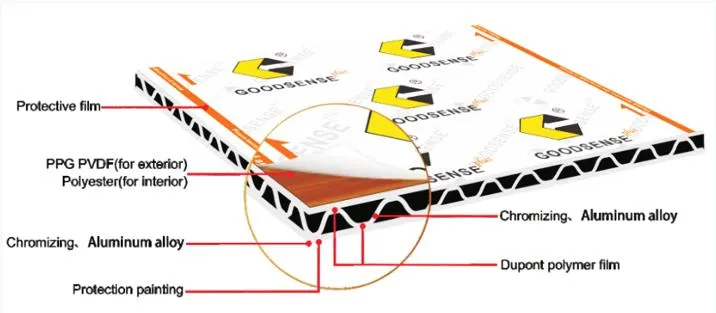

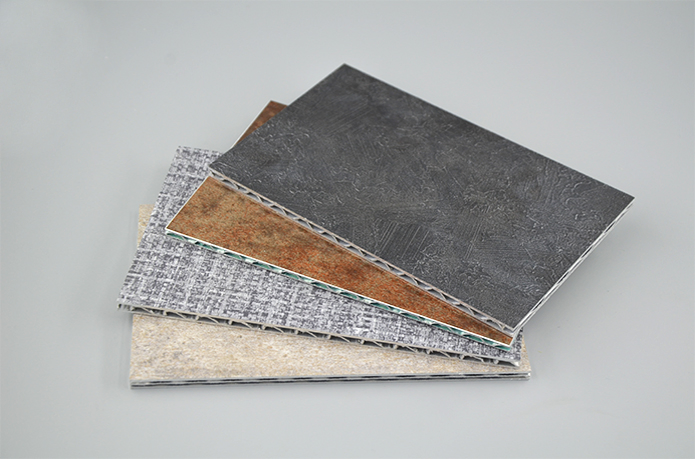

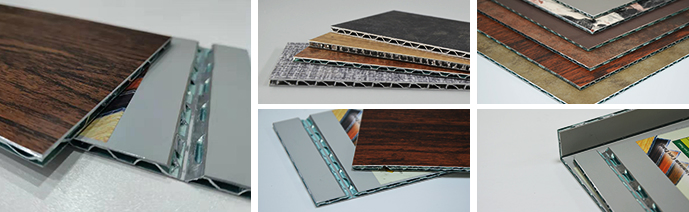

Product Mix & Colors
Key Features of ACCP
- Surface layer with rich colors; fluorocarbon coating guaranteed for 15 years.
- Lighter weight per unit area (only 4.0KG/m2).
- Affordable cost compared to solid aluminum panels with honeycomb-like performance.
- A2 level fire protection standard with 100% pure aluminum structure.
- Special reinforced core layer ensures perfect surface flatness.
- Pure metal material allows for easy recycling and zero environmental pollution.
- Compatible with various processing methods like grooving and folding.

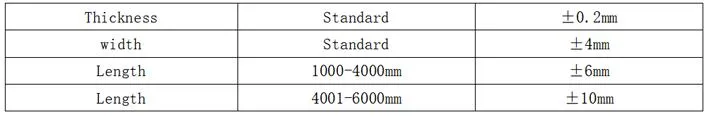

Technical Tolerances
Application Areas
- Exterior building curtain wall decoration
- Building interior wall decoration
- Renovation of old buildings
- Wall panel and ceiling decoration
- Identification plates and signage
- Ship, high-speed rail, and aircraft interiors
- Ultra-thin stone backing boards
- Modern furniture decoration

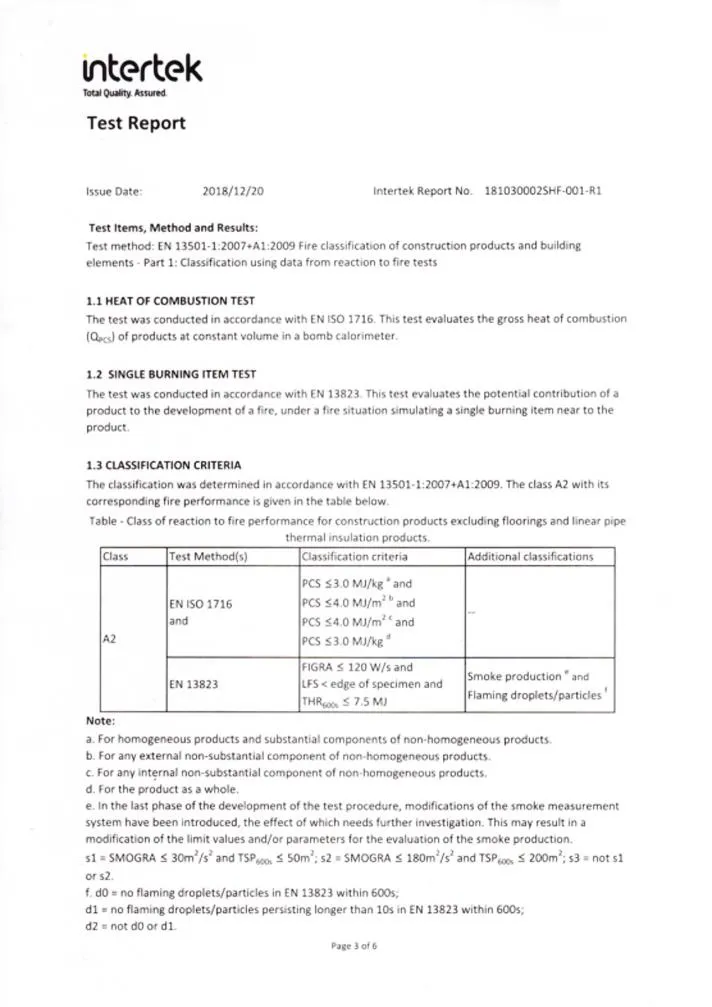

Fire Classification & Certification

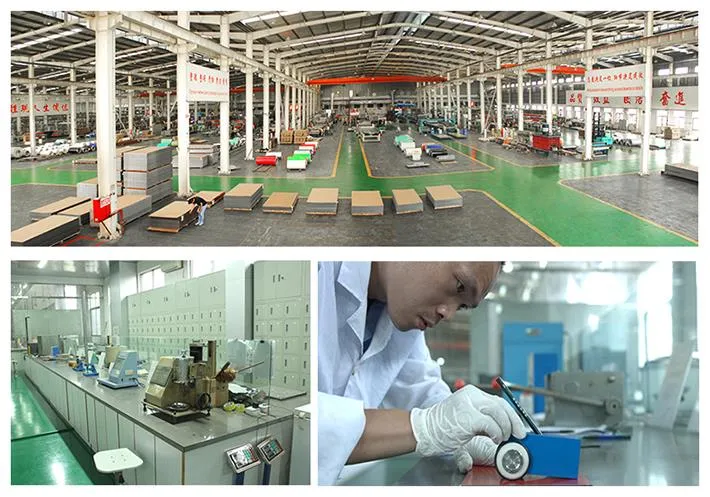

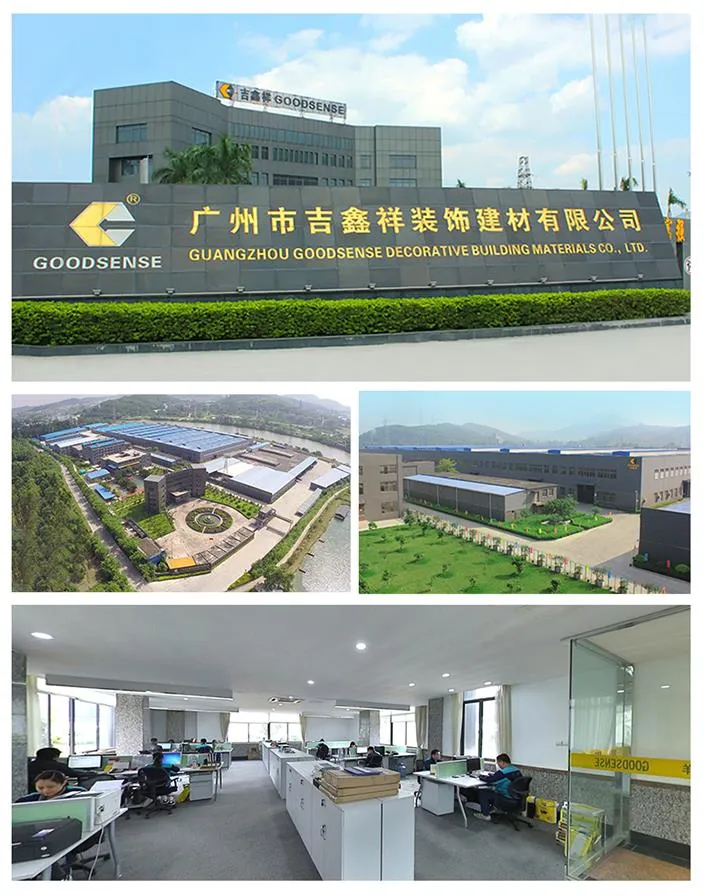

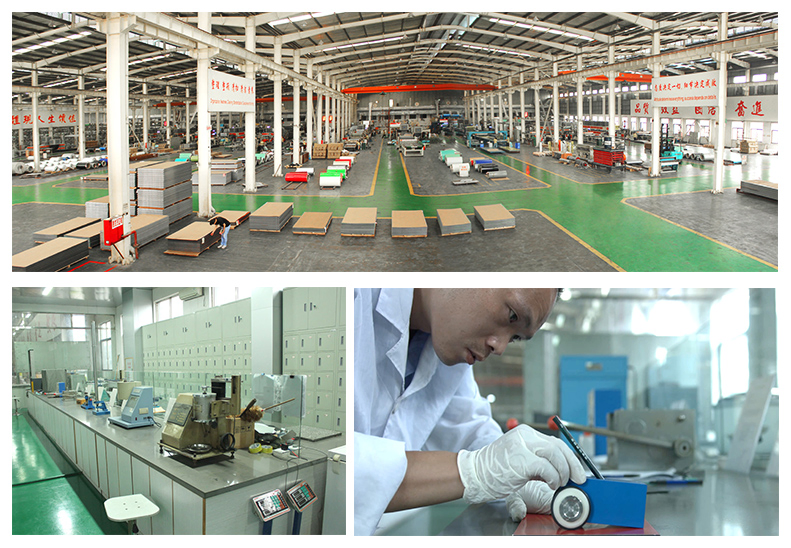

Manufacturing Excellence

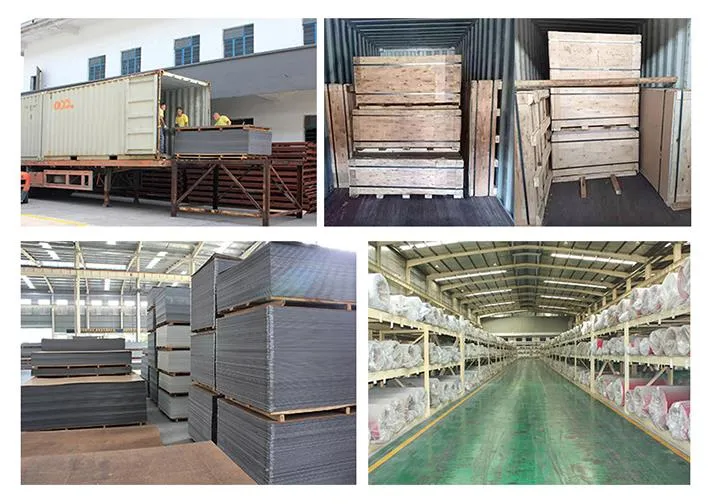

Packaging & Quality
Frequently Asked Questions
What is the fire rating of the Aluminum Core Composite Panel (ACCP)?
ACCP features a pure metal structure without polyethylene plastic, allowing it to meet the A2 level fire protection standard, which is a top choice for fireproof building materials.
How does ACCP compare to traditional aluminum honeycomb panels?
ACCP offers similar high-performance rigidity and flatness as honeycomb panels but at a significantly more affordable cost. It is also lighter, making it easier to install.
Is the material environmentally friendly?
Yes, ACCP is made of 100% pure metal materials. It is fully recyclable and reusable, contributing to environmental protection and sustainability.
What is the standard weight and size for these panels?
The standard size is 1220x2440mm with a thickness of 4mm. It is exceptionally lightweight at only 4.0kg per square meter.
Can these panels be used for interior decoration?
Absolutely. While widely used for exterior curtain walls, ACCP is also ideal for interior wall decoration, ceilings, furniture, and even specialized interiors like high-speed rails and aircraft.
How long does the surface coating last?
The panels are treated with high-quality fluorocarbon (PVDF) coating, which can be guaranteed for up to 15 years against fading and corrosion.
