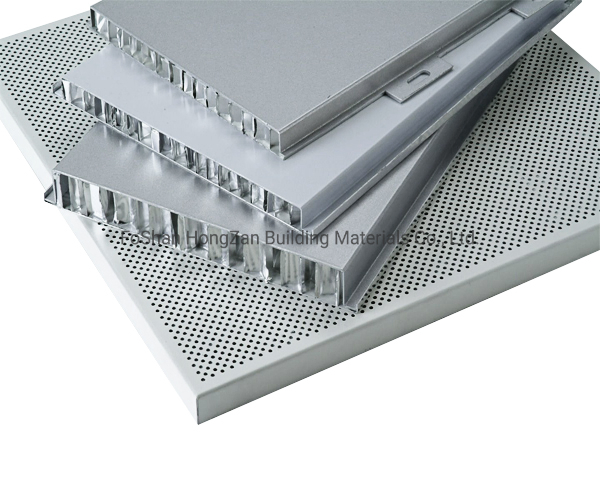

Aluminum Honeycomb Panel Aluminum Composite Panel for Wall Panel Facades Cladding
Aluminum Honeycomb Panel Aluminum Composite Panel for Wall Panel Facades Cladding
Aluminum Honeycomb Panel Aluminum Composite Panel for Wall Panel Facades Cladding
Aluminum Honeycomb Panel Aluminum Composite Panel for Wall Panel Facades Cladding
Aluminum Honeycomb Panel Aluminum Composite Panel for Wall Panel Facades Cladding
1 / 5
Aluminum Honeycomb Panel Aluminum Composite Panel for Wall Panel Facades Cladding
Aluminum Honeycomb Panel Aluminum Composite Panel for Wall Panel Facades Cladding
Aluminum Honeycomb Panel Aluminum Composite Panel for Wall Panel Facades Cladding
Aluminum Honeycomb Panel Aluminum Composite Panel for Wall Panel Facades Cladding
Aluminum Honeycomb Panel Aluminum Composite Panel for Wall Panel Facades Cladding

Aluminum Honeycomb Panel Aluminum Composite Panel for Wall Panel Facades Cladding

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
AHP-3
Function
Decoration; Construction for Wall, Ceiling
Aperture
5-0.05mm(Cell Size=1/3 Inch) or Customized
Level
A
Application
Wall Cladding, Ceiling, Partition, Ship, Door
Adhesive
Epoxy Resin
Fire Resistance
A Grade
Texture
Wood Veneer, Stone-Looking, Smooth, Anti-Slip
Surface Treatment
PVDF, PE/Polyester, Wooden, Brushed, Polished
Size
1220*2440mm, Max. 2000*12000mm
Thickness
5mm up to 300mm Optional
Color
Ral Colors or Customized Made
Edge Processing
Edge Sealed or Edge Open
Panel Shape
Flat, Curved, Column, Irregular
HS Code
76169990
Capacity
500,000 Sqm Annually

Aluminum Honeycomb Panel for Wall Panel

SMART MATERIALS, LEED SOLUTIONS !!!

🏗️ Applications
  • Architectural Building Cladding and decoration
  • Architectural Rainscreen Facades and canopies
  • Lightweight interior architectural panels
  • Lift and elevator flooring, walls & Partitions
  • Aerospace, Marine & Transport Flooring
  • Silk Screen Printing Tables and billboards
  • Furniture and tables & CNC Vacuum Bases
  • Lightweight Floors, Walls, Ceilings, roofings
⭐ Key Advantages
  • Ultra-Light weight & High rigid
  • Excellent fire rated (Meet A2 Standard)
  • Excellent Corrosion Resistance
  • High wind resistant & Durability
  • Super flatness and resistant surface
  • Easy to transport & install
  • Recyclable and environment-friendly
  • Minimal materials cost
Production Process & Projects

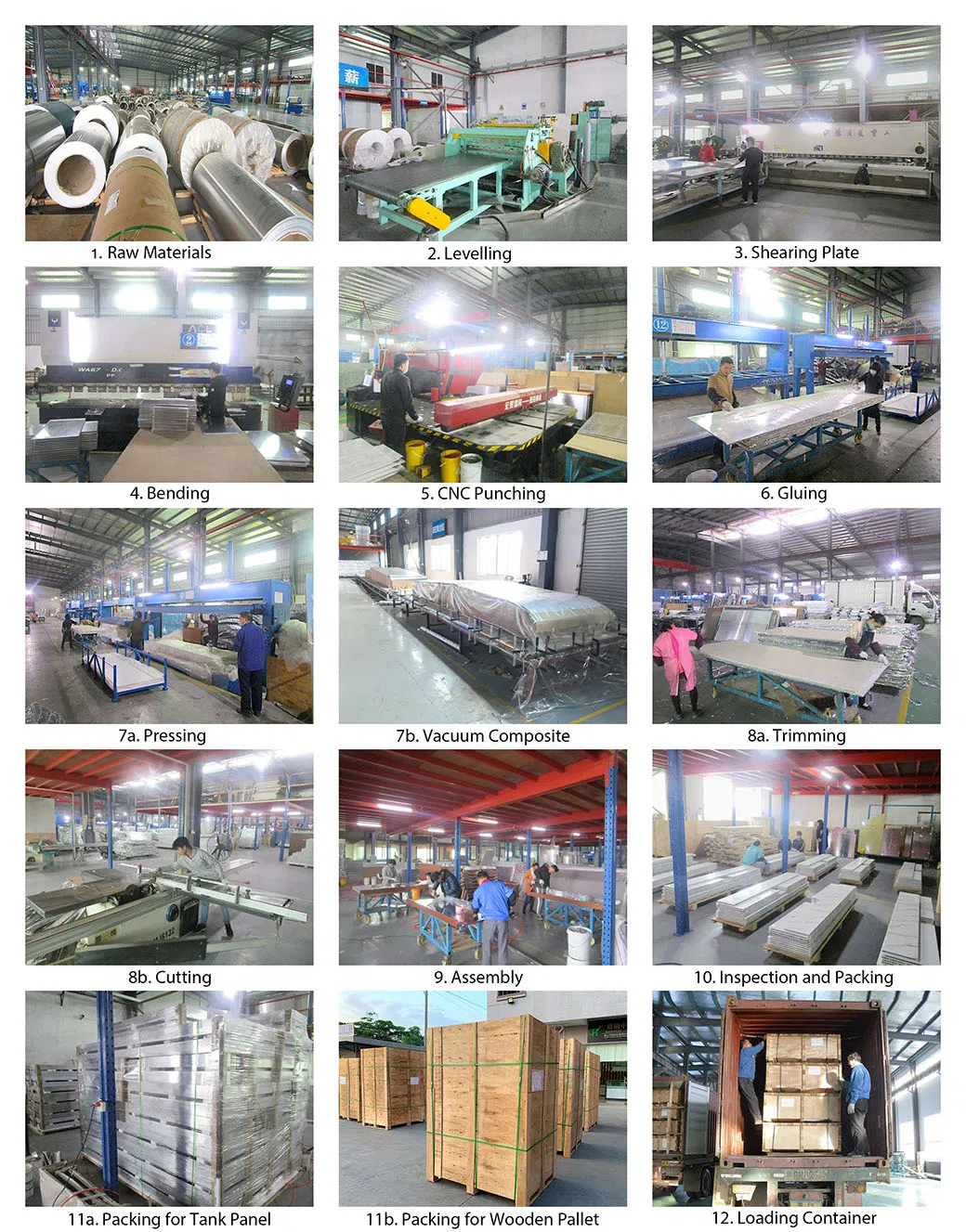

Processing Aluminum Honeycomb Panel

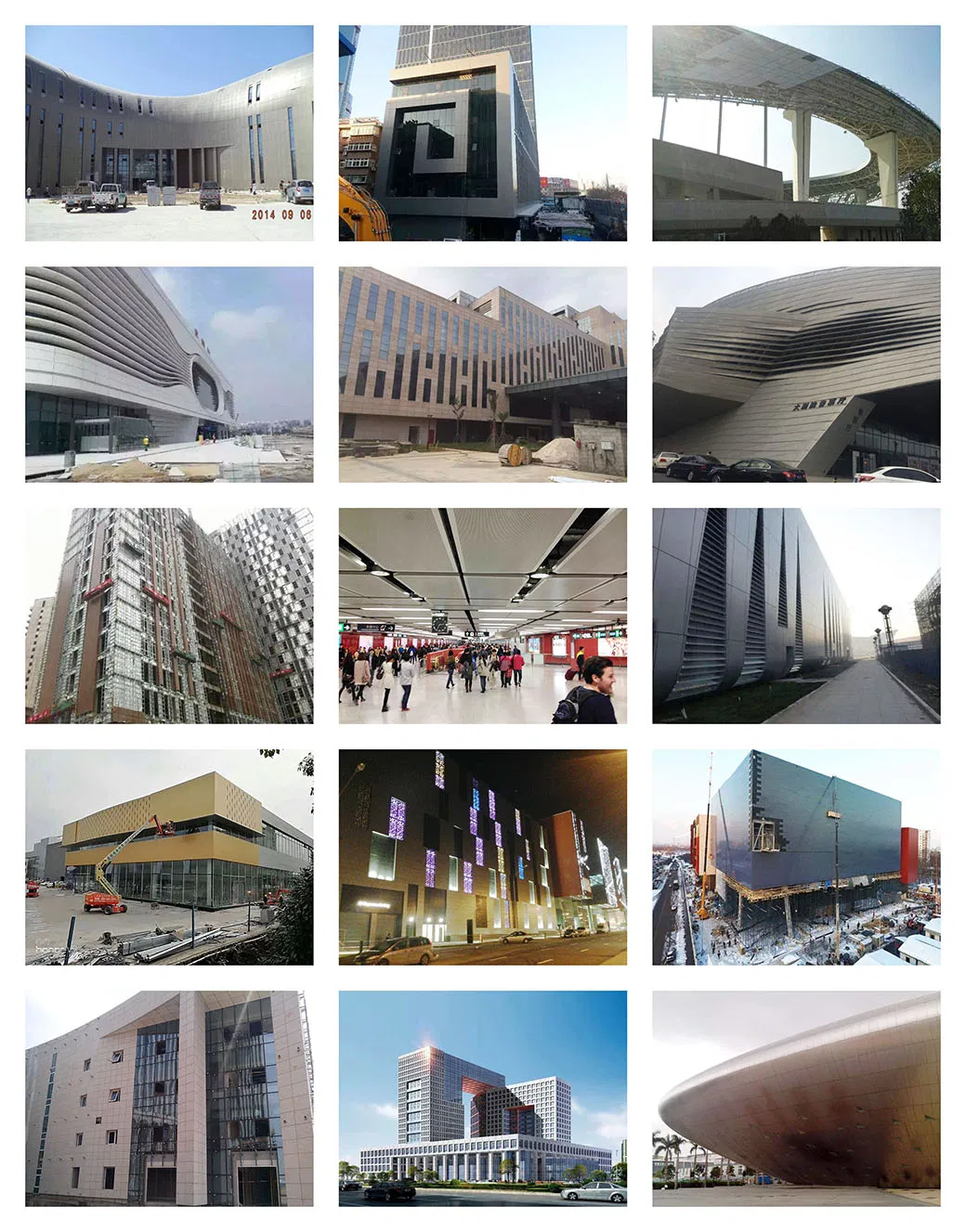

Aluminum Honeycomb Panel Projects

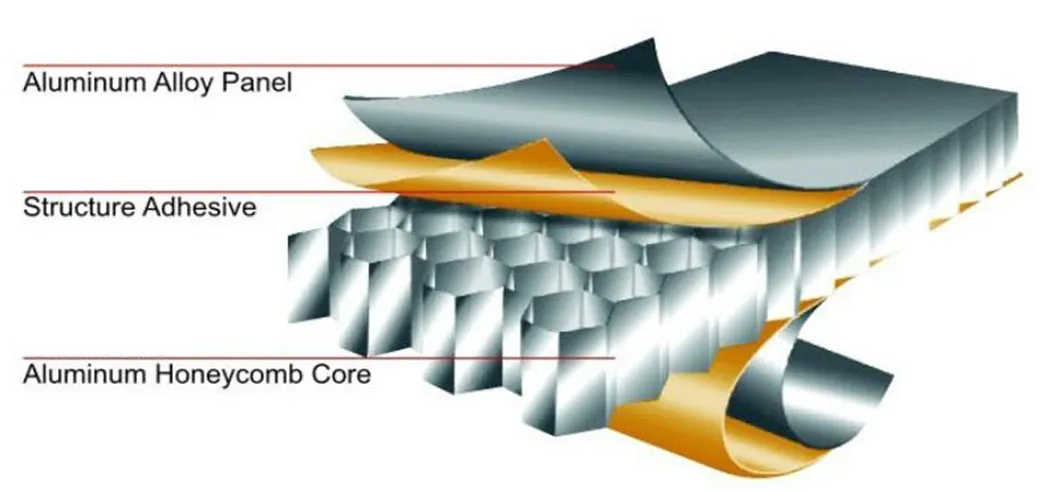

Structure of Aluminum Honeycomb Panel
Structure Diagram
Common Specifications
FeatureDetails
MaterialAluminum Alloy (3003/5052, etc.)
Regular Size (W*L)1220 * 2440 / 3000 mm
Max. Size (W*L*T)2000 * 12000 * 300 mm
Regular Thickness10/12/15/20/25 mm
Surface TreatmentPVDF, PE, Powder Coating, Anodized, etc.
ApplicationsWall cladding, ceiling, flooring, cleanroom, partitions, vehicles, etc.
CustomizationColor, surface texture, size, shape, pattern
Standard Installing Systems

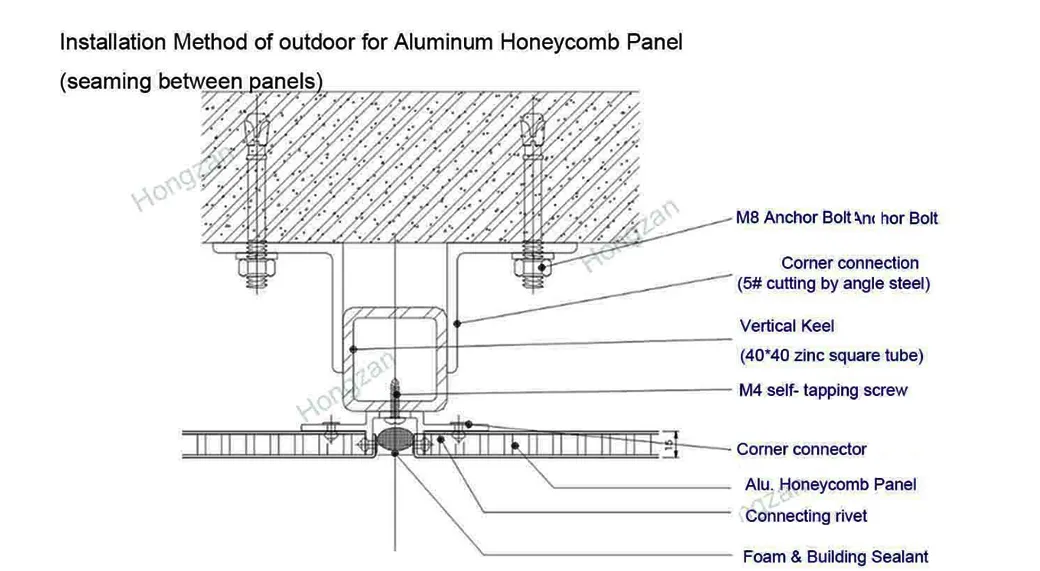

Type A: Standard Seaming Method

Installation Type A

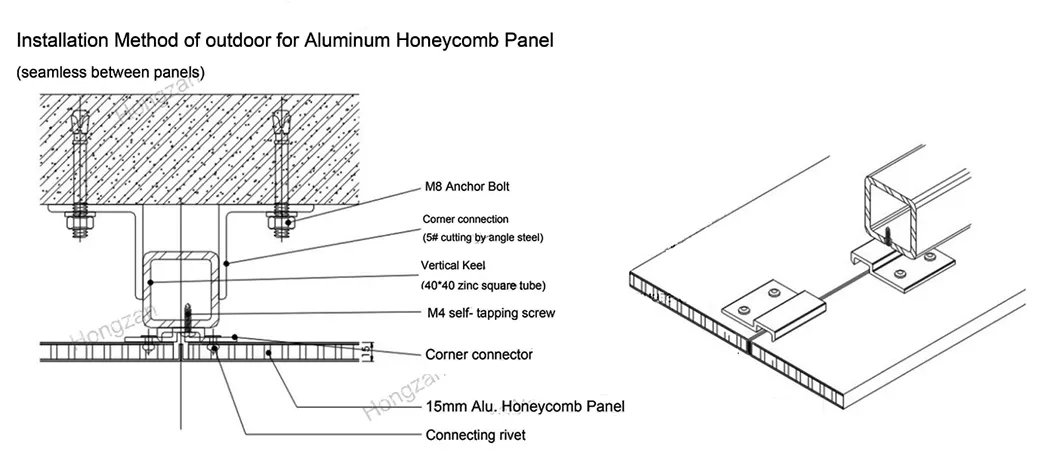

Type B: Standard Seamless Method

Installation Type B
Technical Data & Performance
Mechanical Properties (Sample 20mm/25mm)
Thickness20mm25mm
Weight (kg/m²)7.47.8
Section Modulus W (cm³/m)1924
Rigidity E.I (KN cm²/m)1390002217000
Tensile StrengthRm ≥ 220 N/mm²
Compression Strength4 N/mm²
Sound Insulation23 dB25 dB
International Certificates
  • ISO 9001:2008 by BV
  • Marine Certificates (Fire Rated A2) by LLOYDS
  • BS 476, 475 by TUV PSD Singapore
  • EN13501-1 by ITS
  • ASTM by ITS
Frequently Asked Questions
1. What are the primary benefits of using aluminum honeycomb panels?
Aluminum honeycomb panels offer an exceptional strength-to-weight ratio, being ultra-lightweight yet highly rigid. They provide excellent fire resistance (A2 grade), superior flatness, and high resistance to corrosion and wind pressure.
2. Can the panels be customized for specific project requirements?
Yes, we offer full customization (MTM). This includes a wide range of colors (RAL, stone, wood textures), various thicknesses from 5mm to 300mm, and custom shapes such as curved, column, or irregular panels based on your drawings.
3. What surface treatments are available for these panels?
Common surface treatments include PVDF coating for exterior durability, PE/Polyester for interior use, as well as anodized, brushed, polished, and special wood or stone-looking textures.
4. Are aluminum honeycomb panels fireproof?
Yes, our panels meet the A Grade fire resistance standard. They are widely used in marine and architectural applications where strict fire safety regulations (like BS 476 or EN13501-1) are required.
5. What is the maximum size available for a single panel?
While the regular size is 1220*2440mm, we can produce large-format panels with a maximum width of 2000mm and a maximum length of 12000mm.
6. How are these panels typically installed?
We provide standard installation systems, including Type A (seaming method) and Type B (seamless method). Customized installation systems can also be developed to meet specific architectural designs.
