Product Description

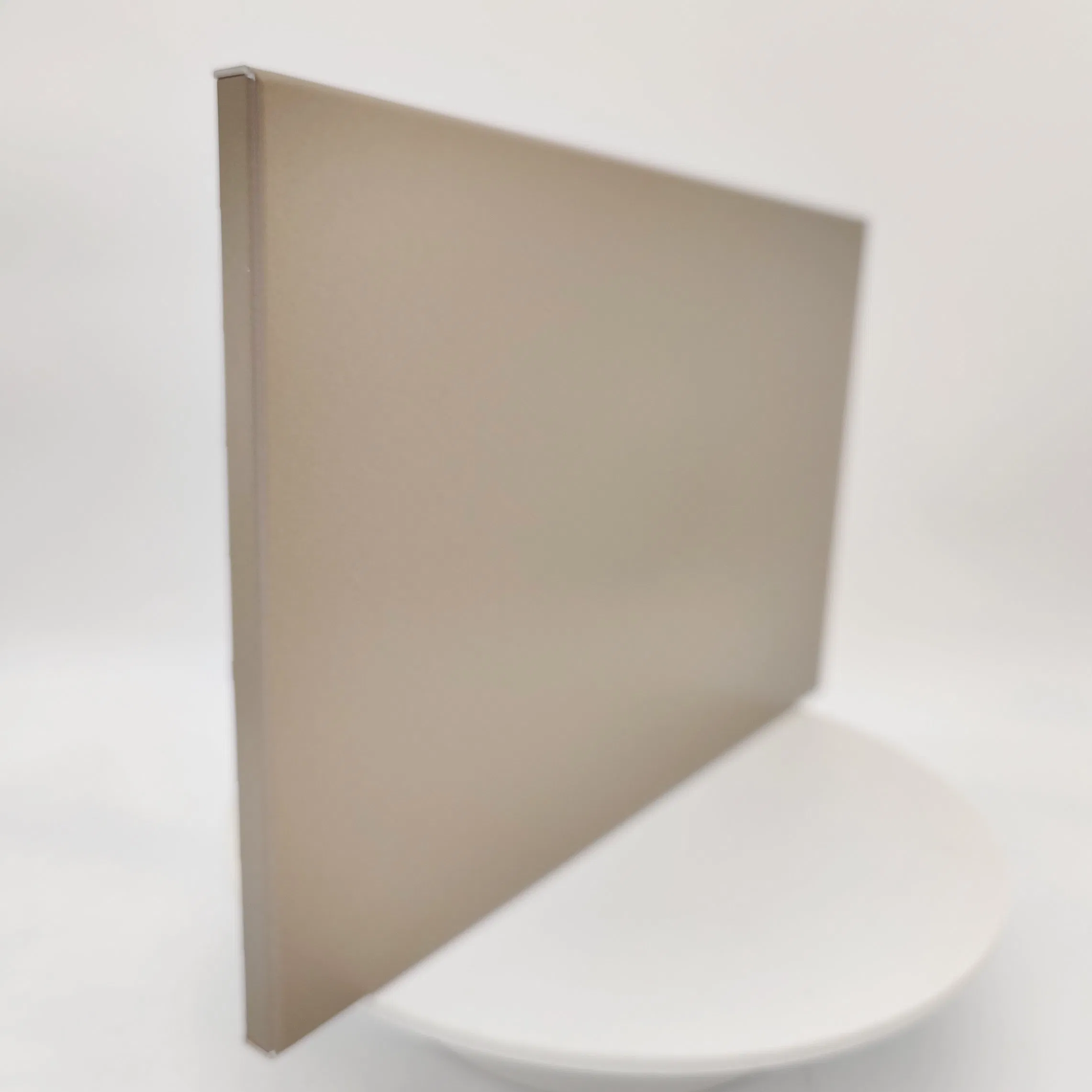

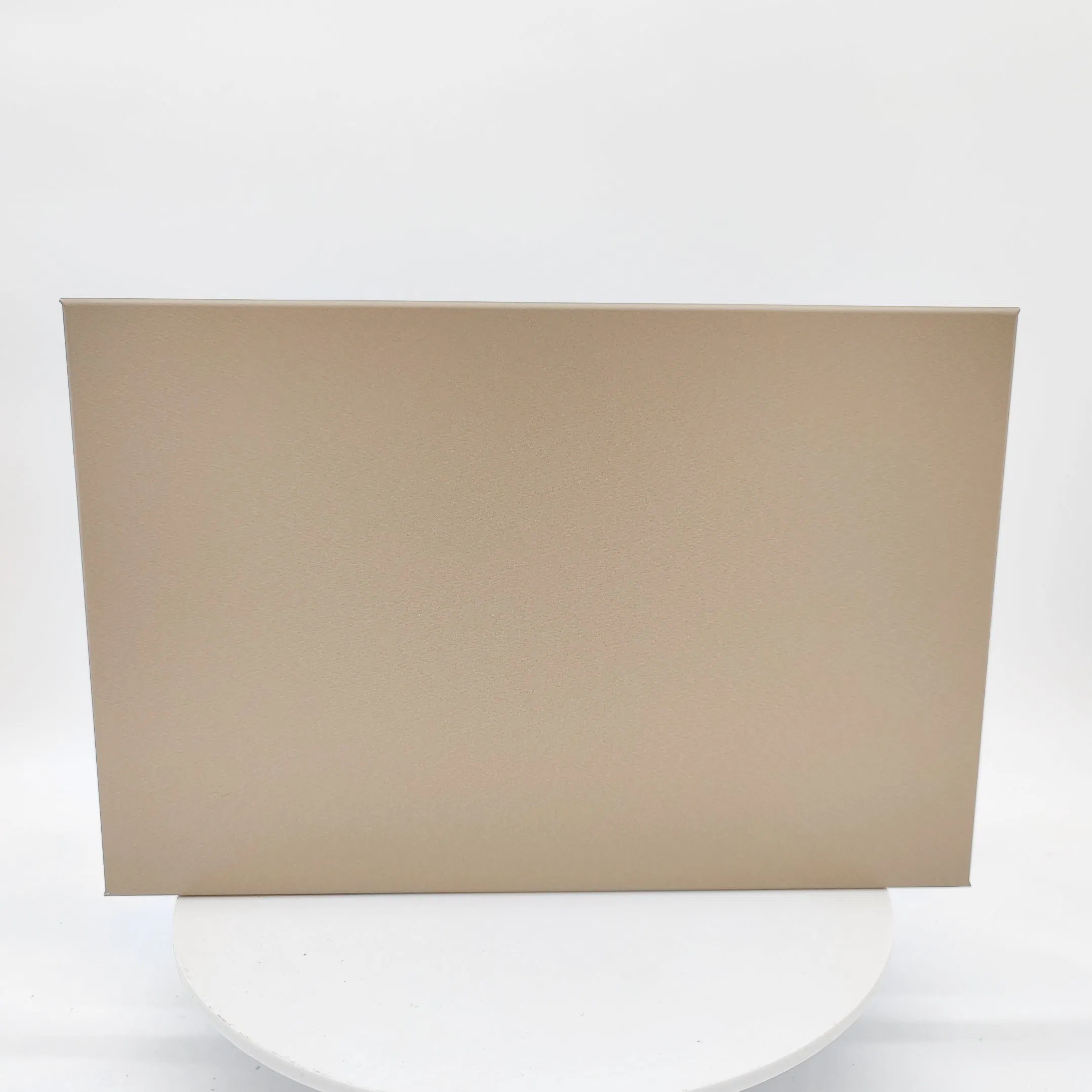

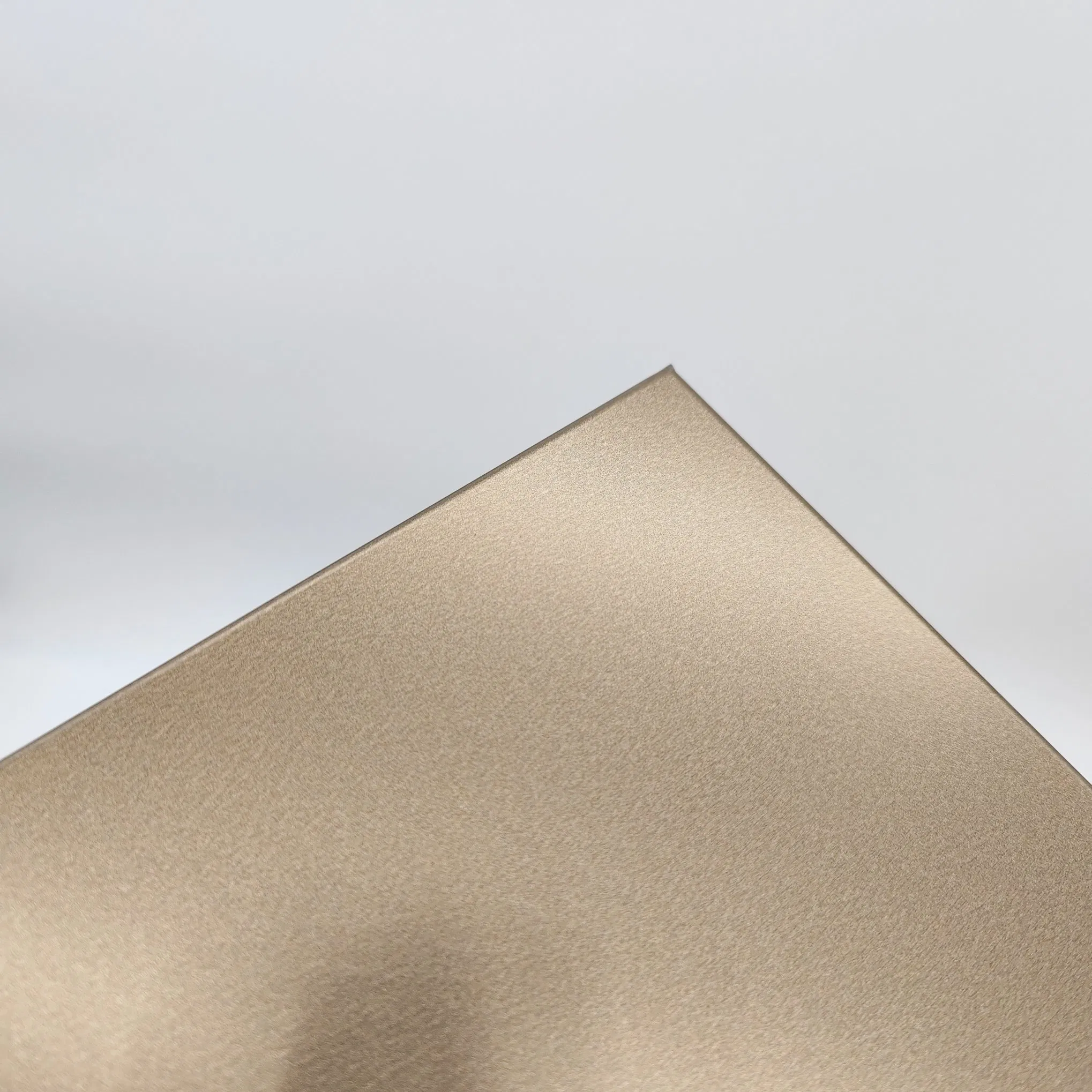

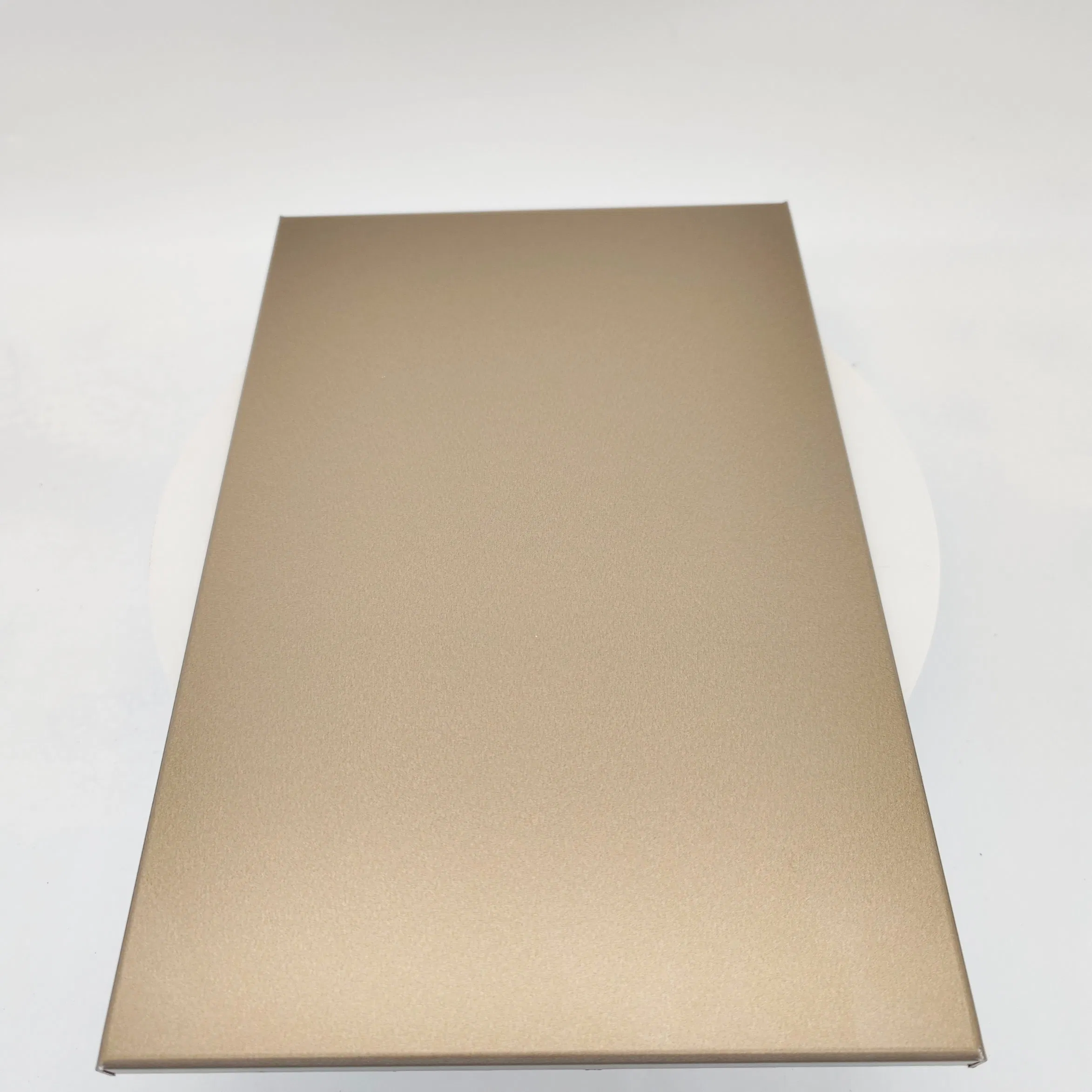

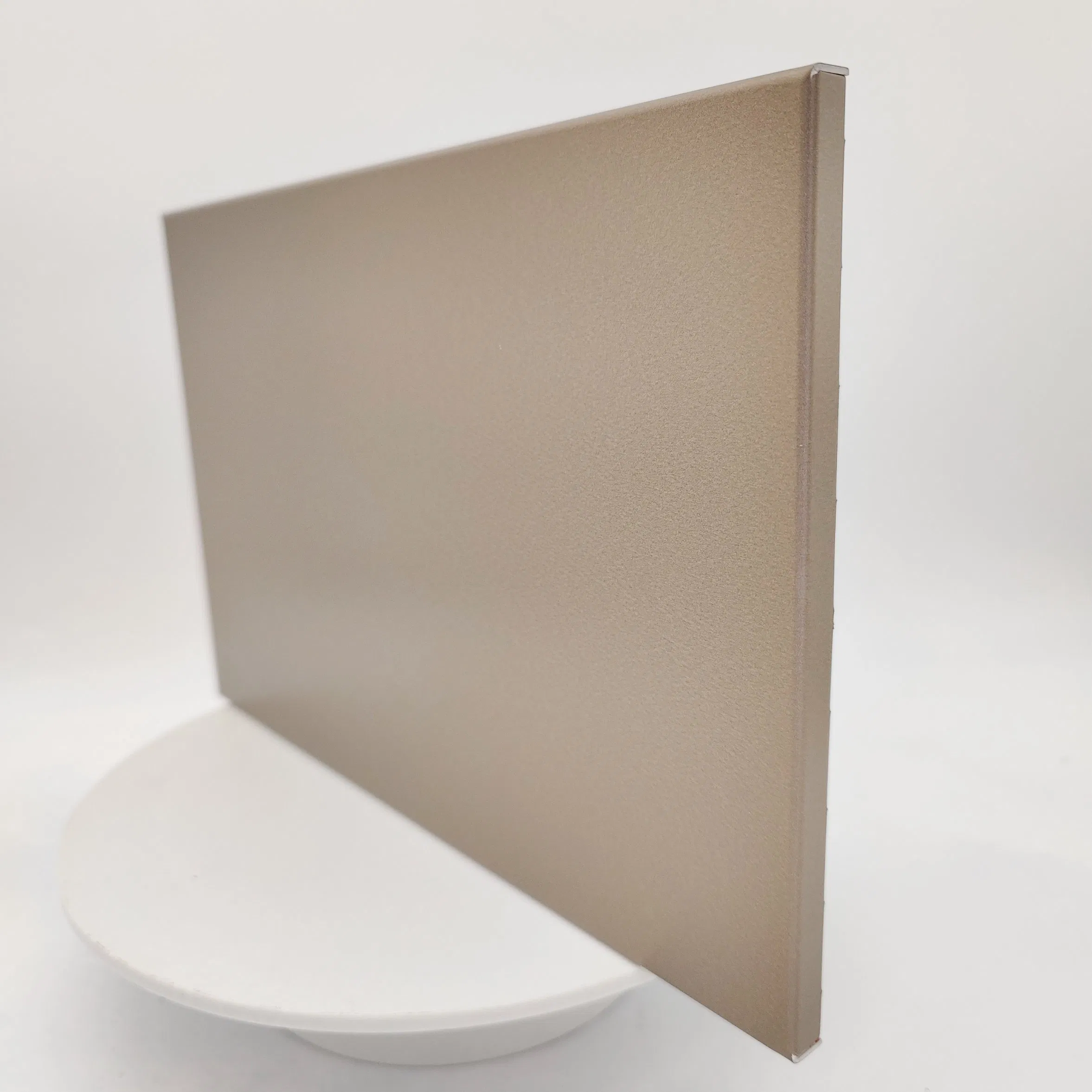

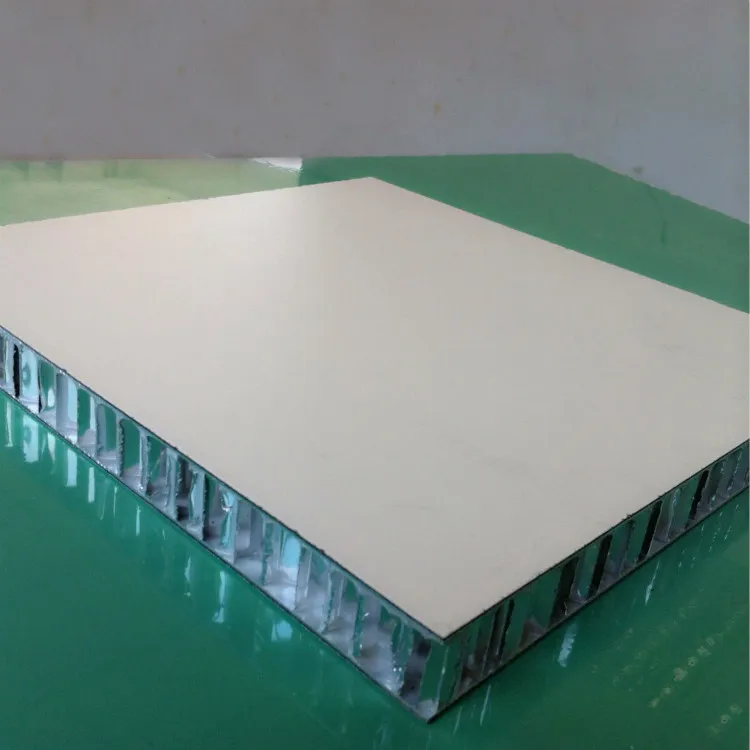

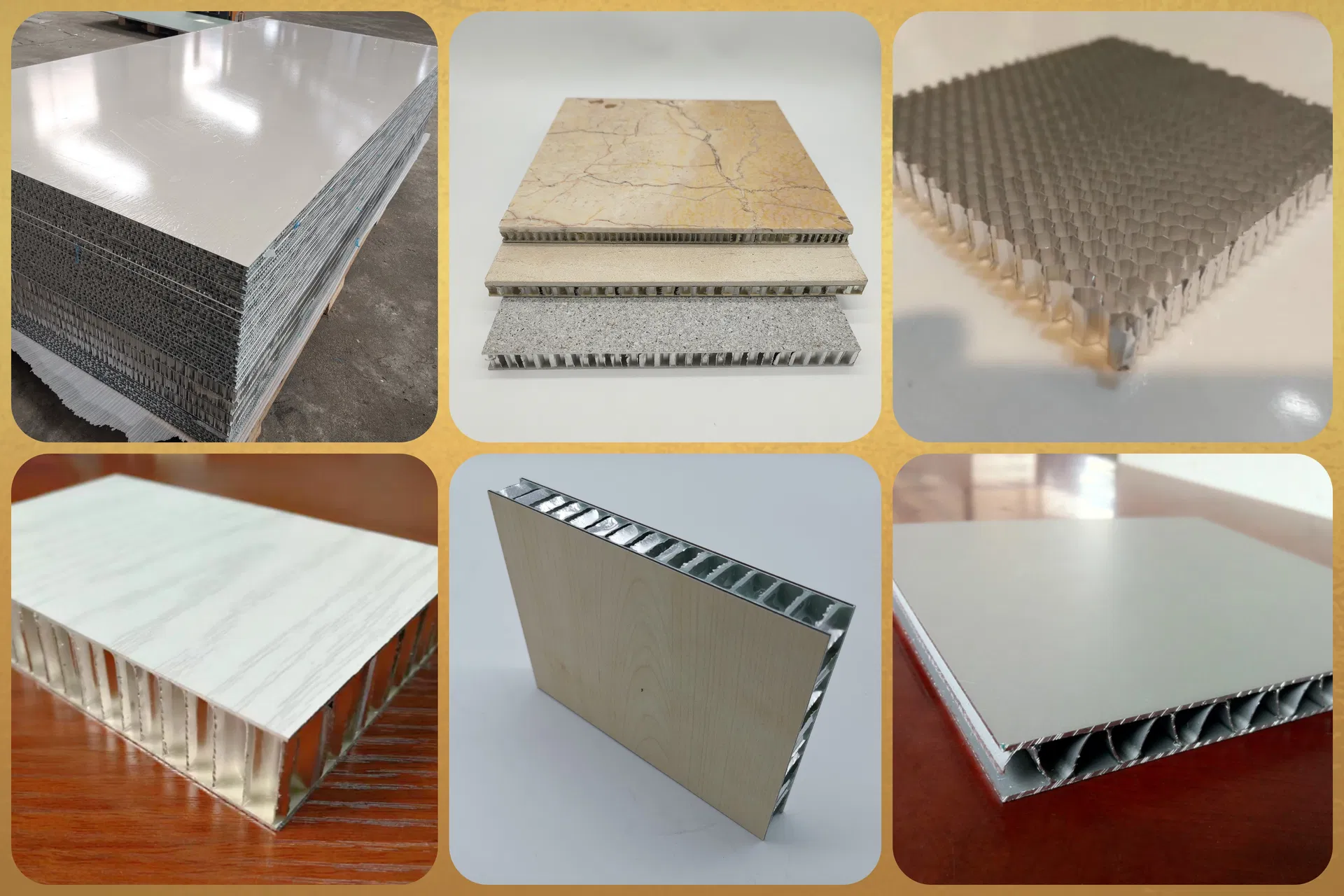

Aluminum honeycomb panels are lightweight composite materials made of two aluminum sheets bonded to a honeycomb-shaped core. They offer high strength-to-weight ratio, rigidity, and good thermal and acoustic insulation. Commonly used in architecture, transportation, and aerospace, they provide structural efficiency and aesthetic appeal.
| Item |
Parameter Description |
| Product Name | All-aluminum honeycomb panel |
| Regular size | 1220×2440mm, 1200×2800 (customization supported) |
| Thickness range | 7mm ~ 30mm |
| Panel thickness | 0.7mm ~ 2mm aluminum plate |
| Honeycomb core specifications | Side length 3mm~10mm |
| Aluminum foil thickness | 0.035mm ~ 0.1mm |
| Panel material | 3003/5052 aluminum alloy |
| Surface treatment | Film/fluorocarbon spraying/powder spraying/anodizing, etc. |
| Fireproof grade | A2/B1 (according to GB8624 standard) |

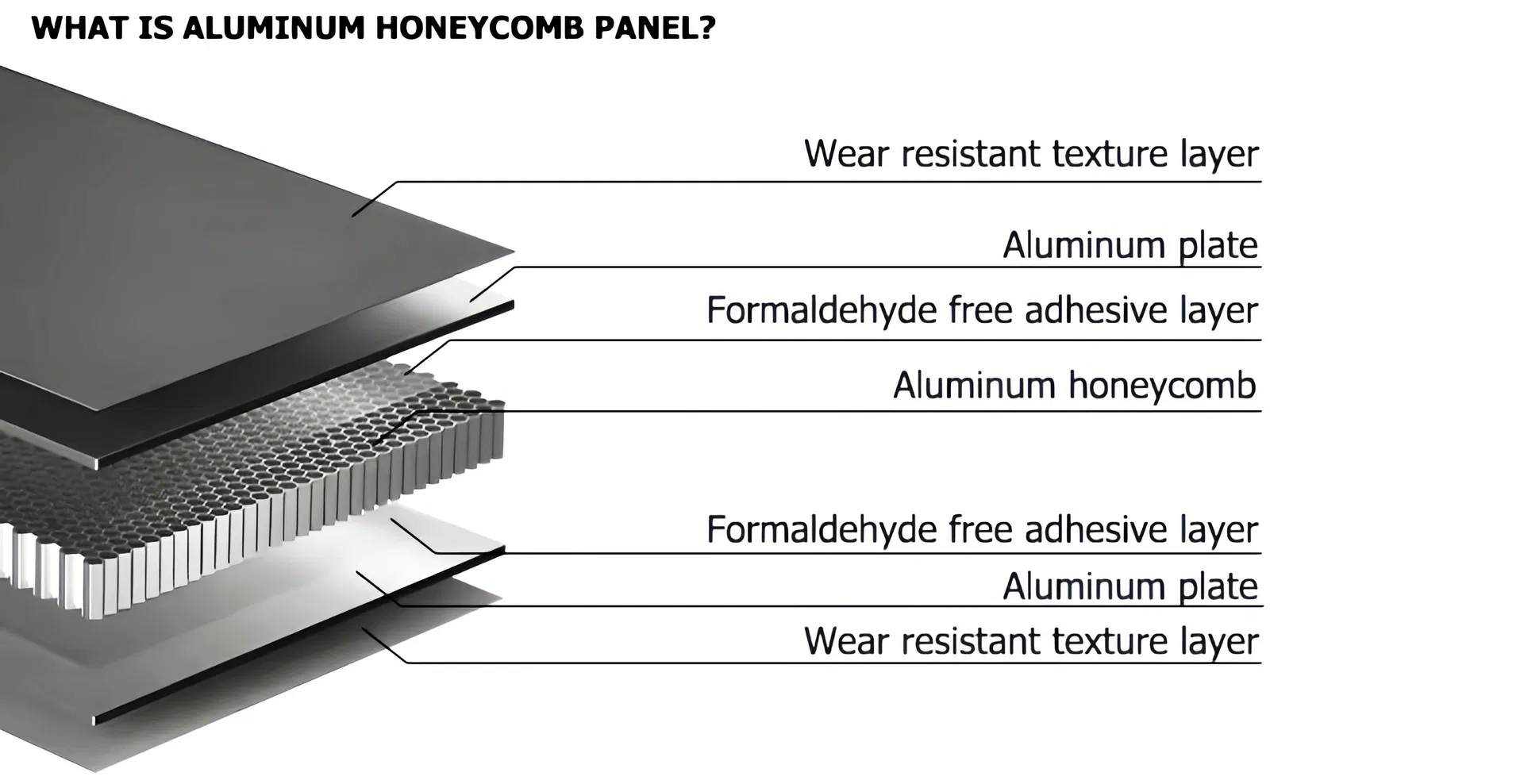

◈ Structural Composition
Surface technology: film lamination, spraying, roller coating
Panel material: aluminum plate (0.7mm ~ 2mm thick)
Core material: aluminum honeycomb core (hexagonal structure)
Backboard material: aluminum plate

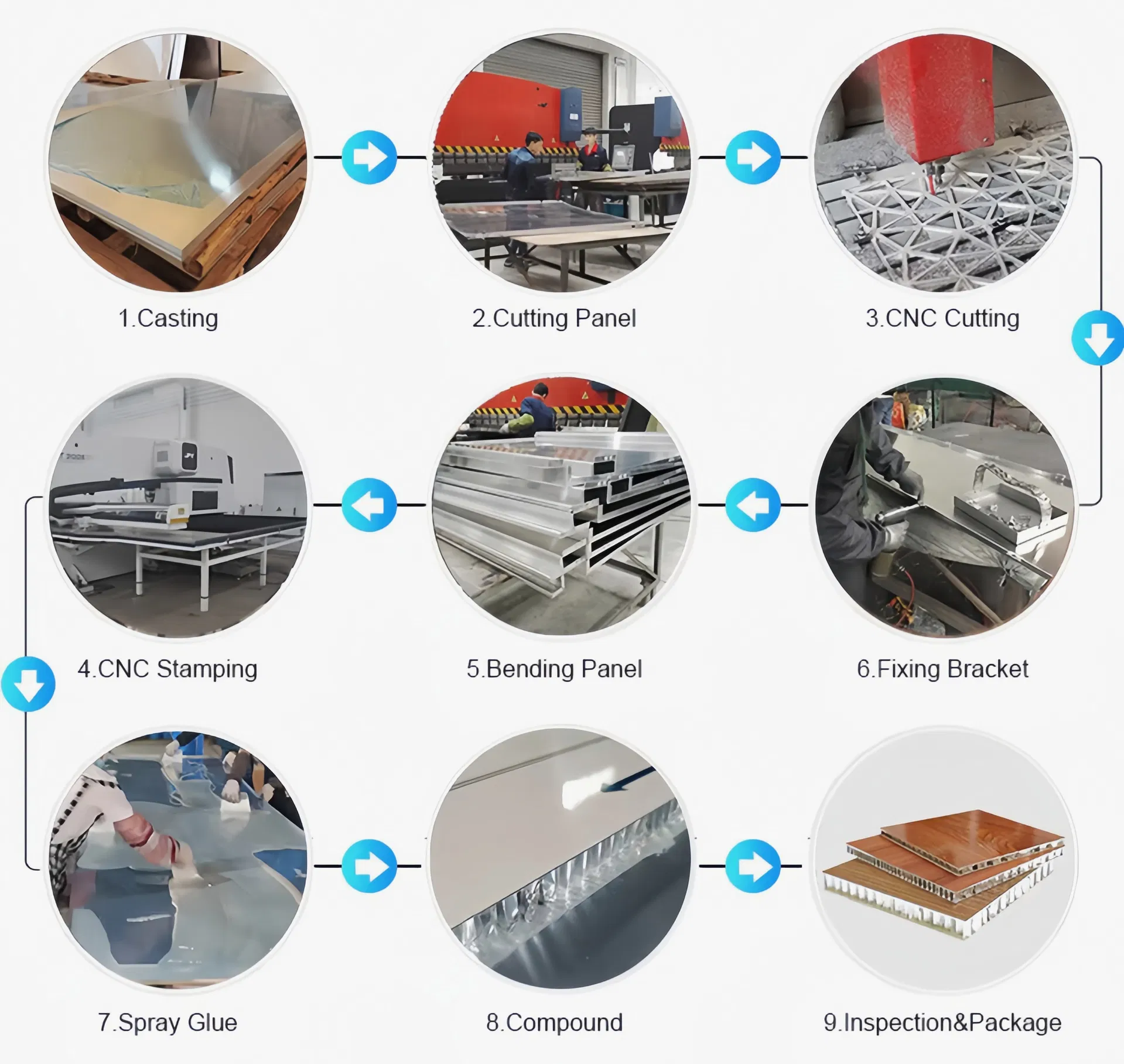

Bonding technology: aviation-grade adhesive, hot pressing composite technology
◈ Key Features
Lightweight and high strength
Fireproof and moisture-proof
Sound insulation and heat insulation
Smooth surface & Customizable
Environmentally friendly and healthy
High cost performance

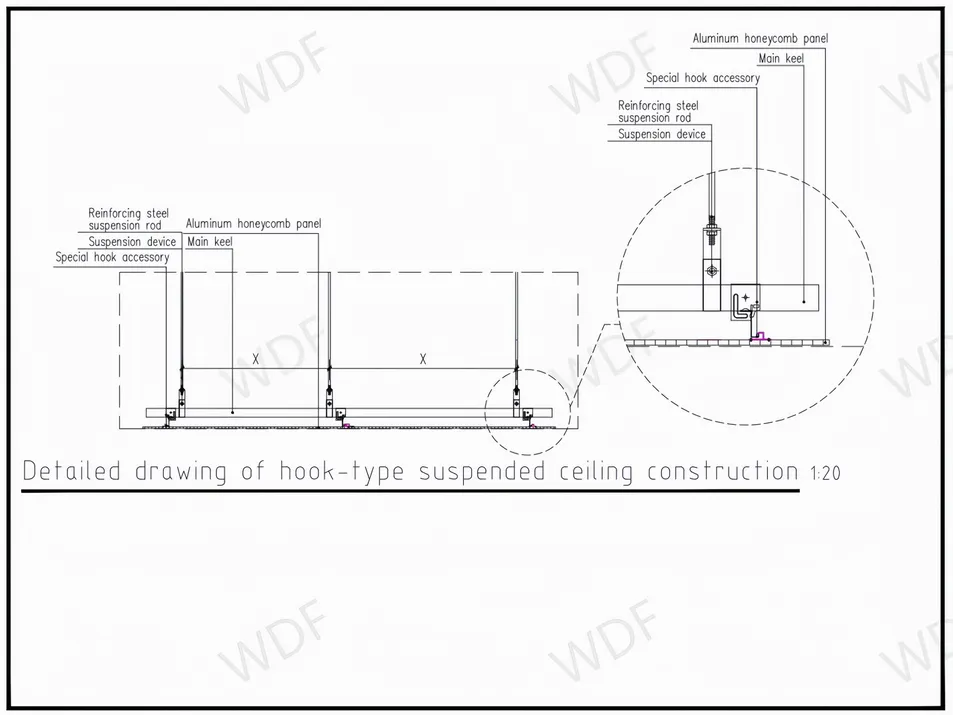

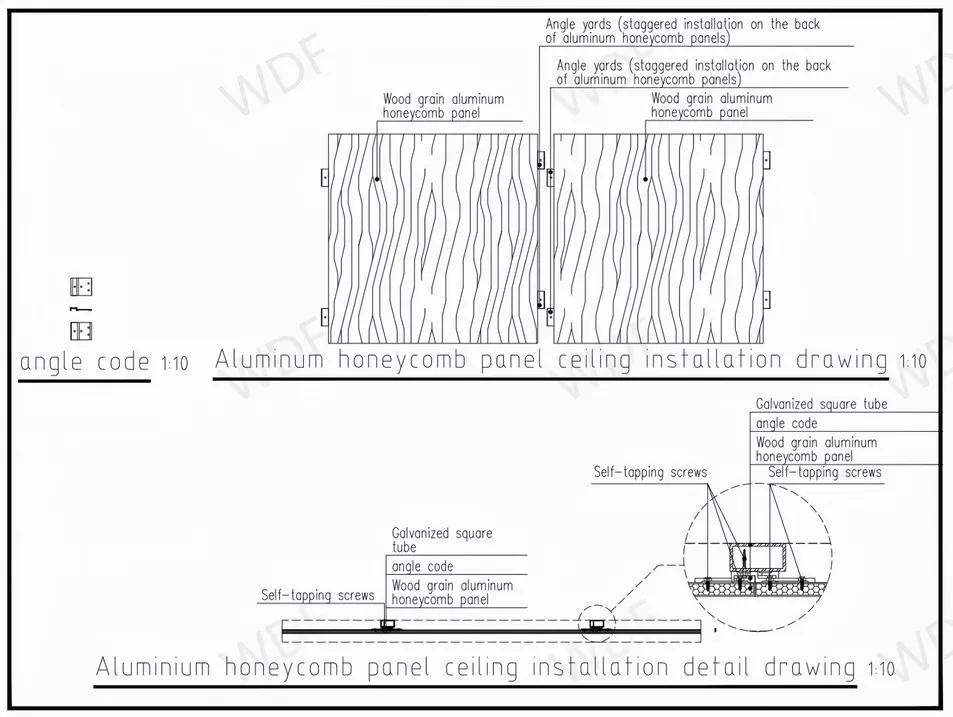

Installation Method
Aluminum honeycomb panels are suitable for installation in dry hanging systems and exposed/dark keel structures. Supporting aluminum alloy hangers, pressure strips, sealants and other auxiliary materials are provided. It can also be installed by leveling the steel structure and fixing the corner code; alternatively, direct gluing to the wall after leveling is possible.
Company Capabilities

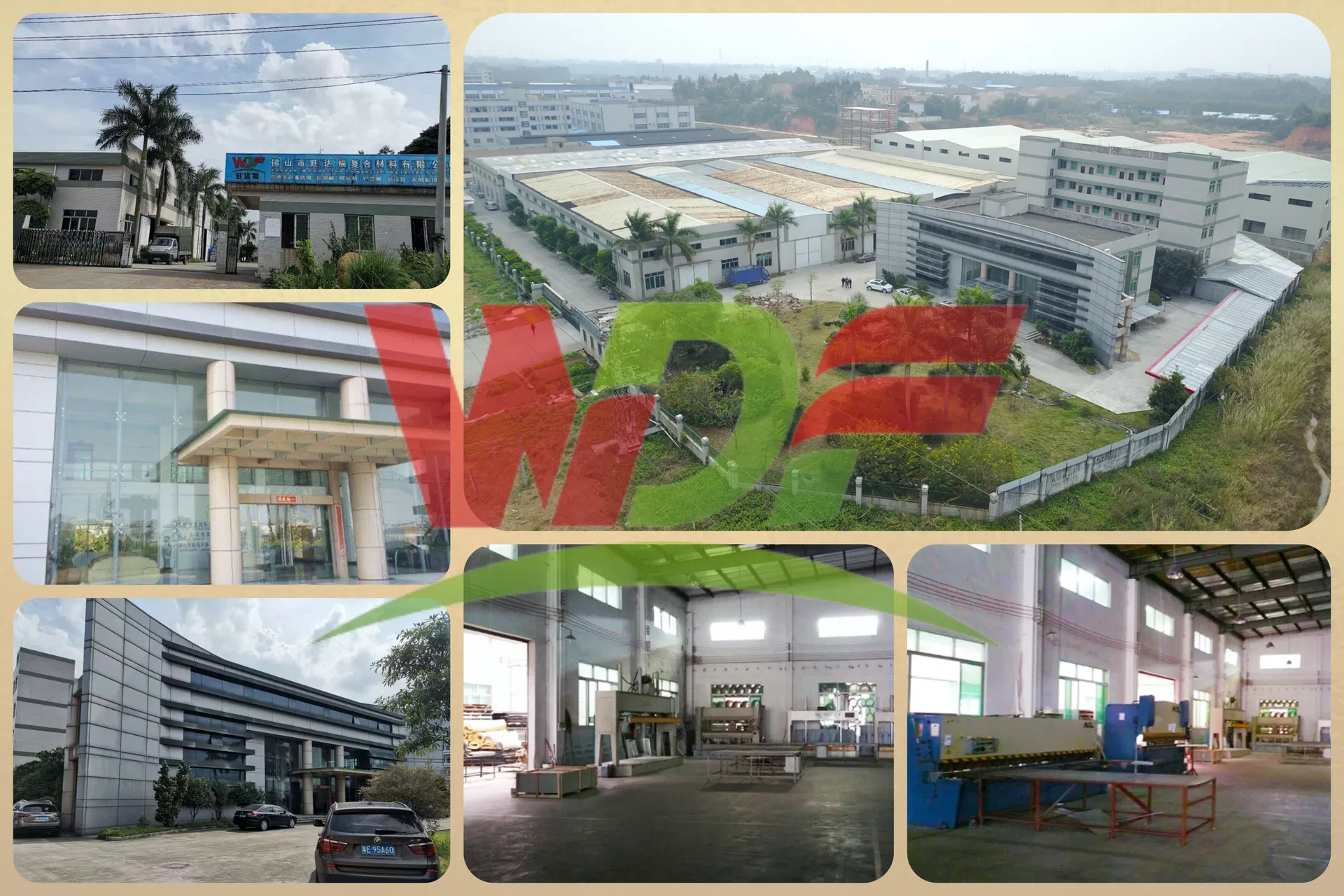

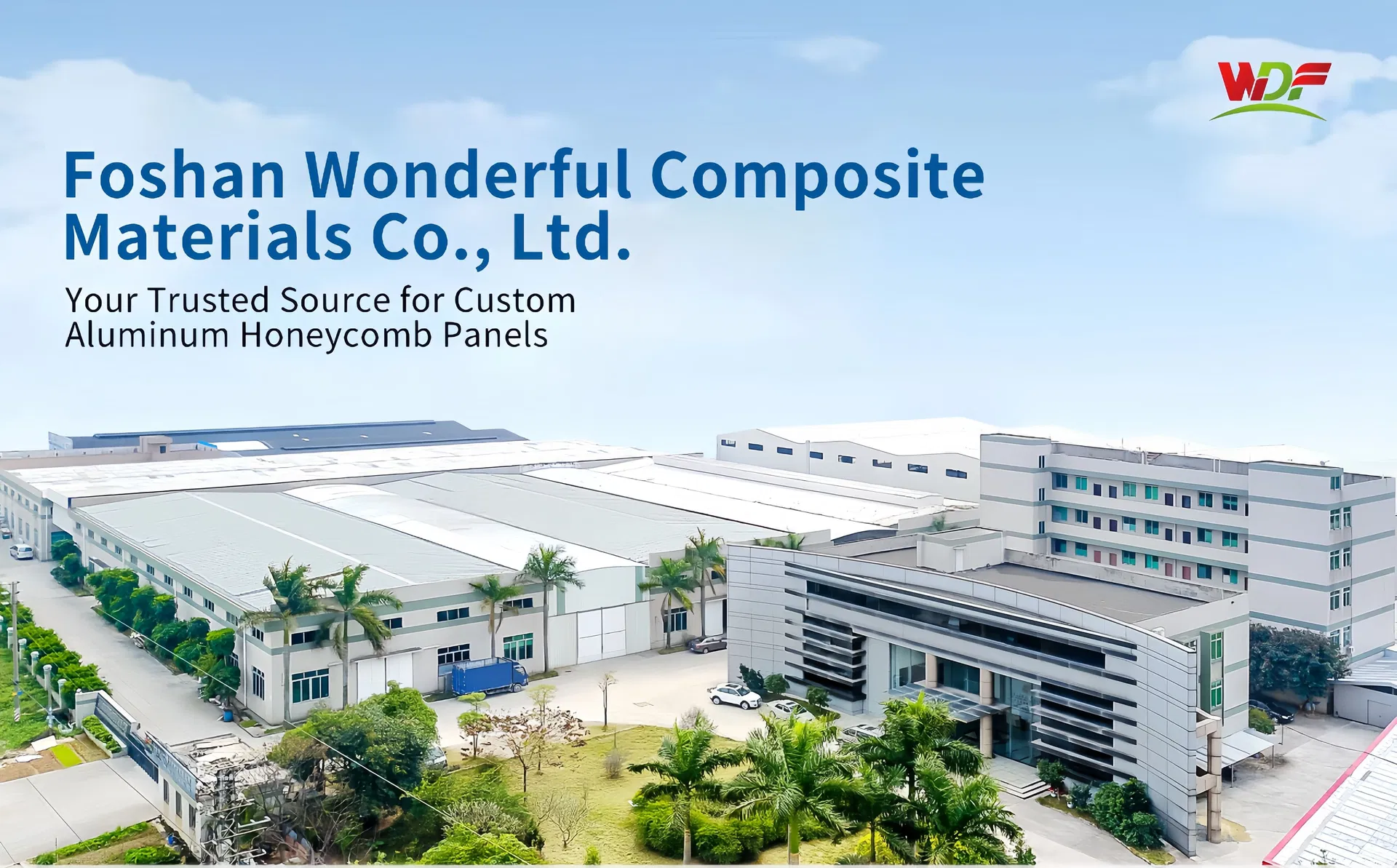

Specialized in new composite materials research, development, production, and sales. The factory covers an area of more than 30,000 square meters. Utilizing advanced composite equipment and technology, we produce aluminum honeycomb cores, panels, and stainless steel composite panels. Our products are widely used in building decoration, elevators, vehicles, and marine industries. We maintain a perfect scientific management system to ensure global quality standards.
Certifications
Exhibition Display
Frequently Asked Questions
What's the lead time for orders?
Standard models ship in 7-10 days; customized units require 15-20 days.
What are the common specifications? Can they be customized?
Standard thicknesses include 7mm, 9mm, 10mm, 15mm, and 20mm. Regular size is 1220x2440mm. Customization for dimensions, surface materials, and colors is fully supported.
What are the main applications of these panels?

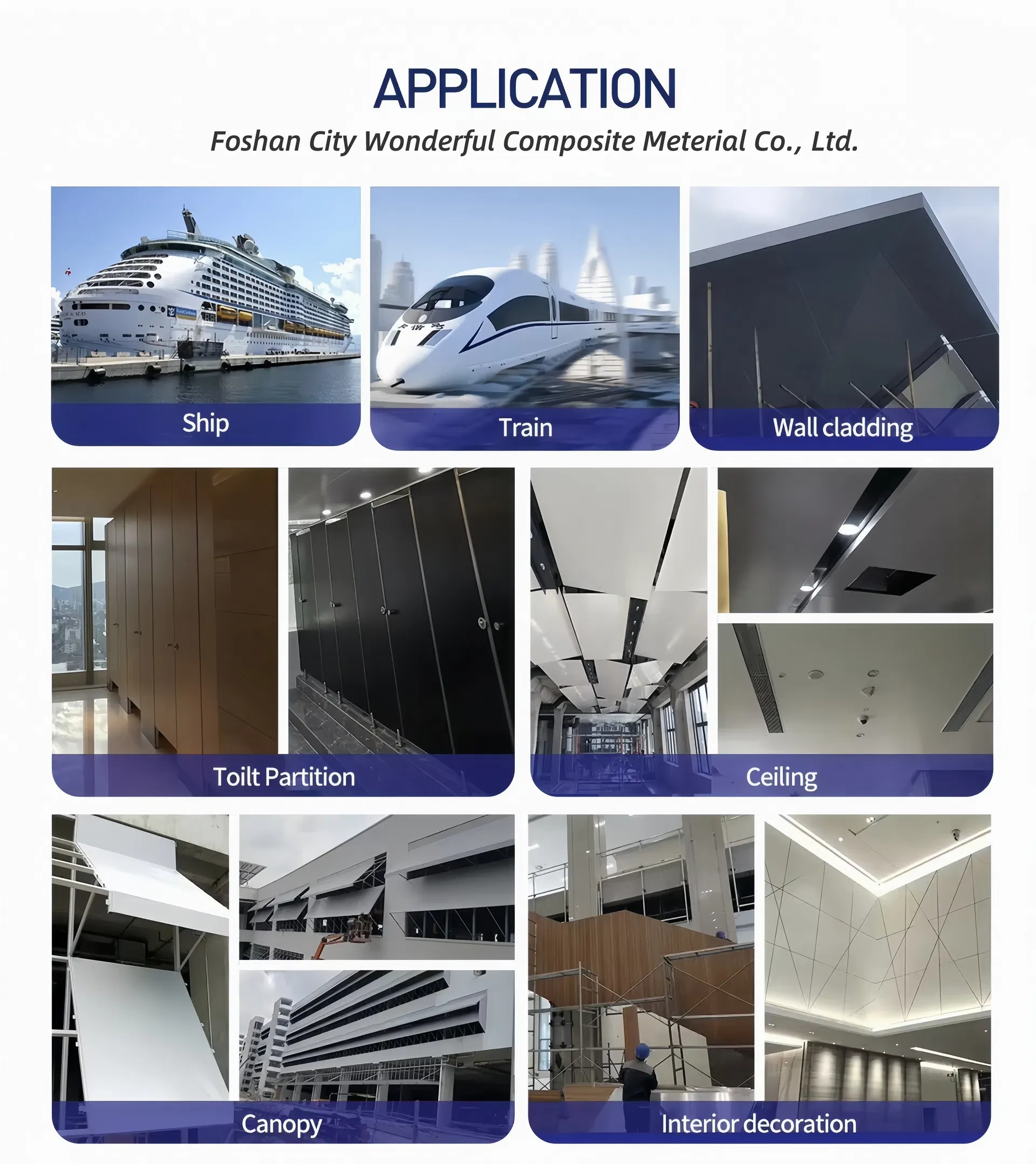

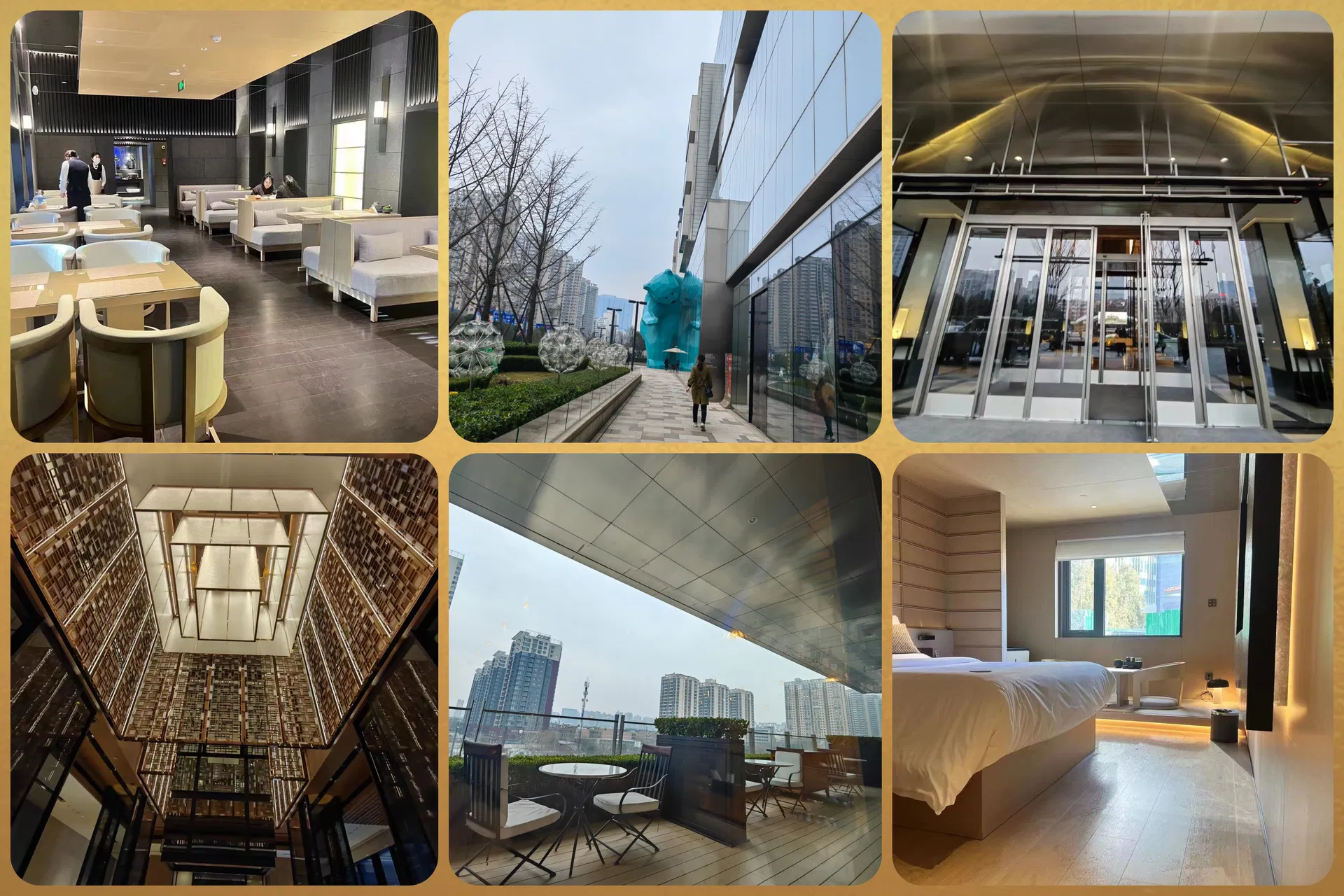

Widely used in building curtain walls, interior cladding, ceilings, ship interiors, rail transit, and furniture due to their lightweight and fire-resistant properties.
What is your Minimum Order Quantity (MOQ)?
The MOQ for standard products is 200 square meters. We can provide small samples for quality inspection.
Do you offer OEM or ODM services?
Yes, we provide full OEM/ODM support, manufacturing according to your specific drawings, specifications, or branding requirements.
Are the panels fireproof?
Yes, our aluminum honeycomb panels meet A2/B1 fireproof grades according to GB8624 standards.
