High-Efficiency Automated Cladding Panel Production System for PPGI

1 / 5

High-Efficiency Automated Cladding Panel Production System for PPGI

Customization:	Available
After-sales Service:	All Life Online Support
Warranty:	18 Months

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.

ZS-Wall Panel

Product Type

Exterior Wall Decoration Cladding Panel

Automatic Grade

Automatic

Power Source

Electric

Certification

CE, ISO

Application

Wall Panel

Working Material

PPGI, Gi

Thickness

0.4-0.6mm

Product Speed

15-20m/Min

Control System

PLC

Forming Station

18 Steps

Main Power

5.5kw

🛠️ Product Description

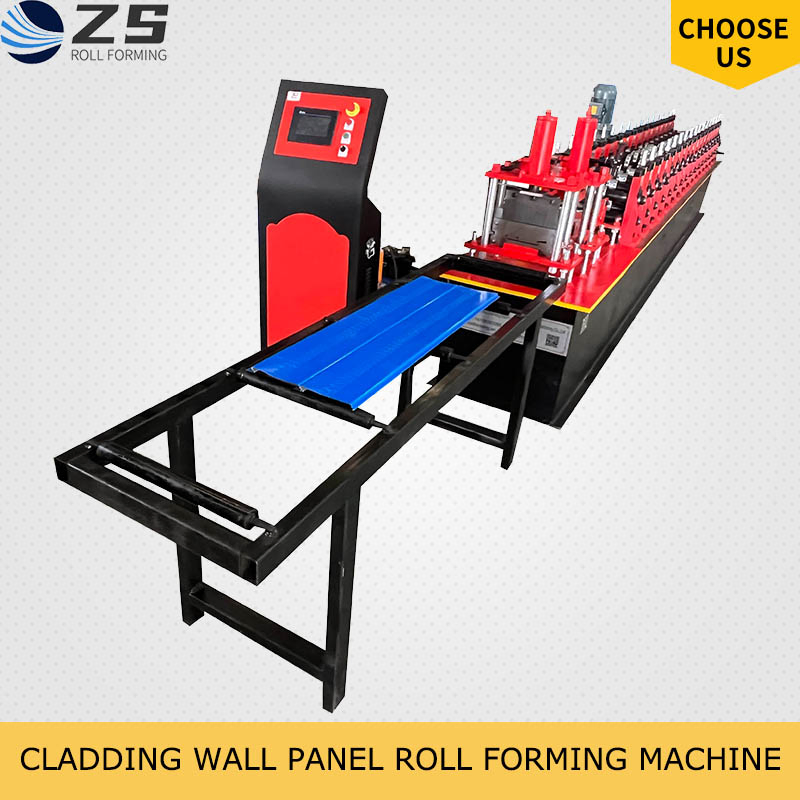

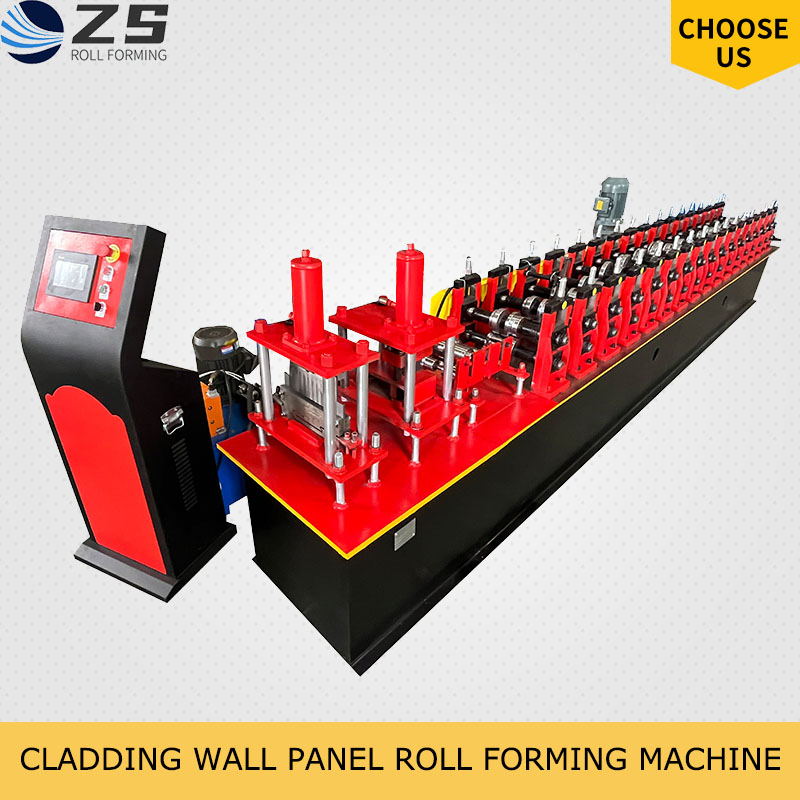

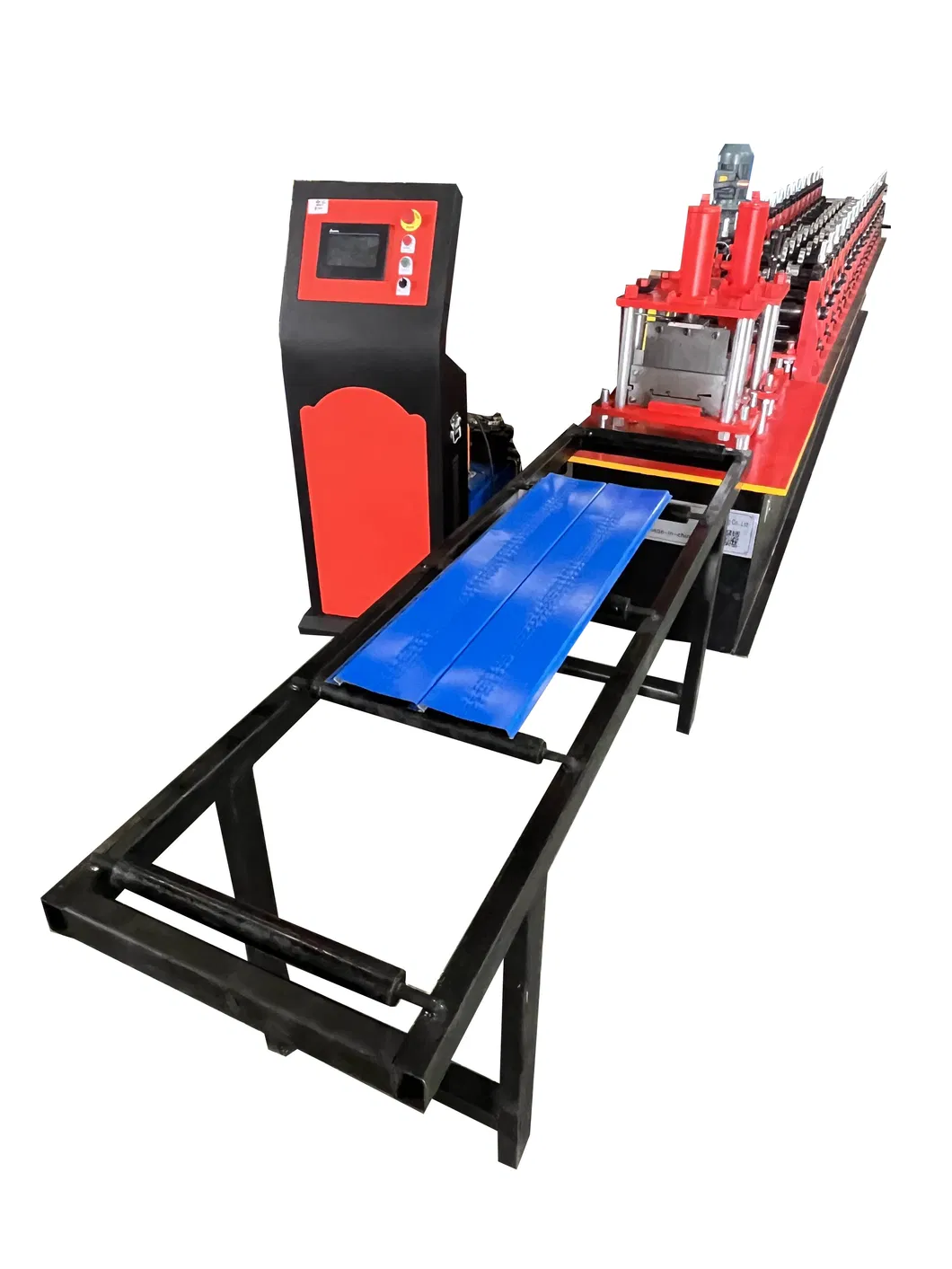

Exterior Wall Decoration Cladding Panel Selflock Making Roll Forming Machine

Our versatile machine is meticulously engineered to fulfill all your manufacturing needs. It rolls holes on surfaces and punches side holes effortlessly. With just one machine, you can produce two distinct sizes by merely adjusting the space and cutting blade—no extra modifications required.

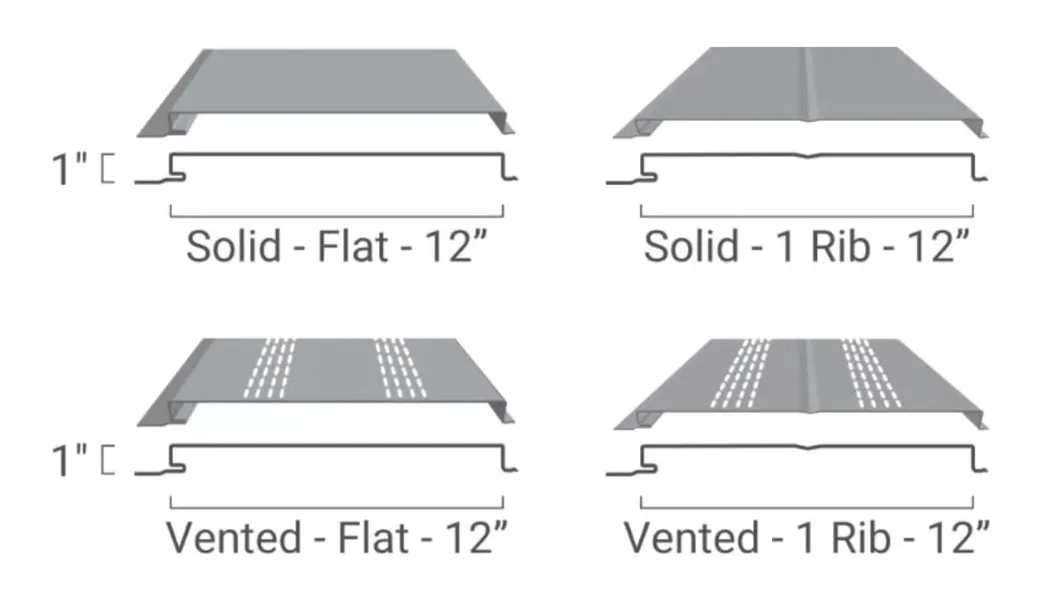

Profiles & Customization

We offer bespoke customization of the machine tailored to your design and specific requirements.

🔄 Working Flow

Uncoiler ➜ Feeder ➜ Rolling Holes ➜ Roll Forming ➜ Punching Holes ➜ PLC Control ➜ Automatic Cutting ➜ Products Receiving

📋 Machine Components

No.	Name	Quantity
1	De-coiler	1 Set
2	Forming Machine	1 Set
3	Hydraulic Cutting Device	1 Set
4	PLC Control Box	1 Set
5	Hydraulic Pump Station	1 Set
6	Production Support Table	1 Set

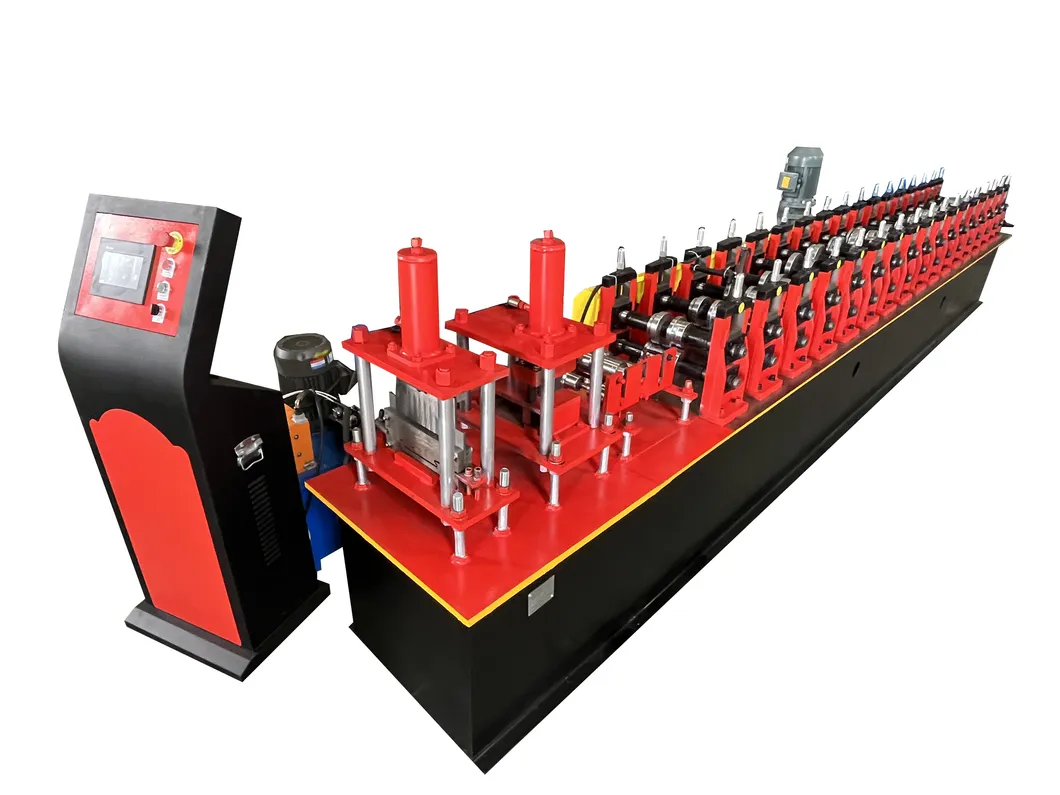

📸 Detailed Photos

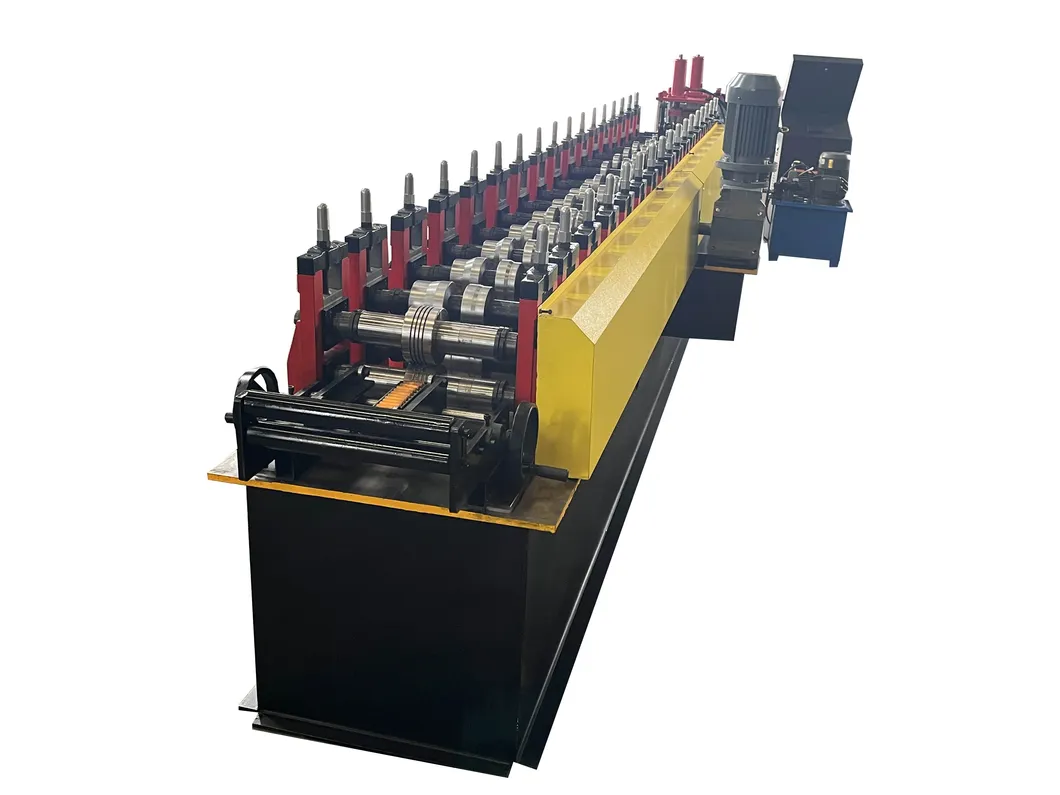

Feeder System: Ensures stable operation with minimal coil swing. Adjustable width up to 600mm.

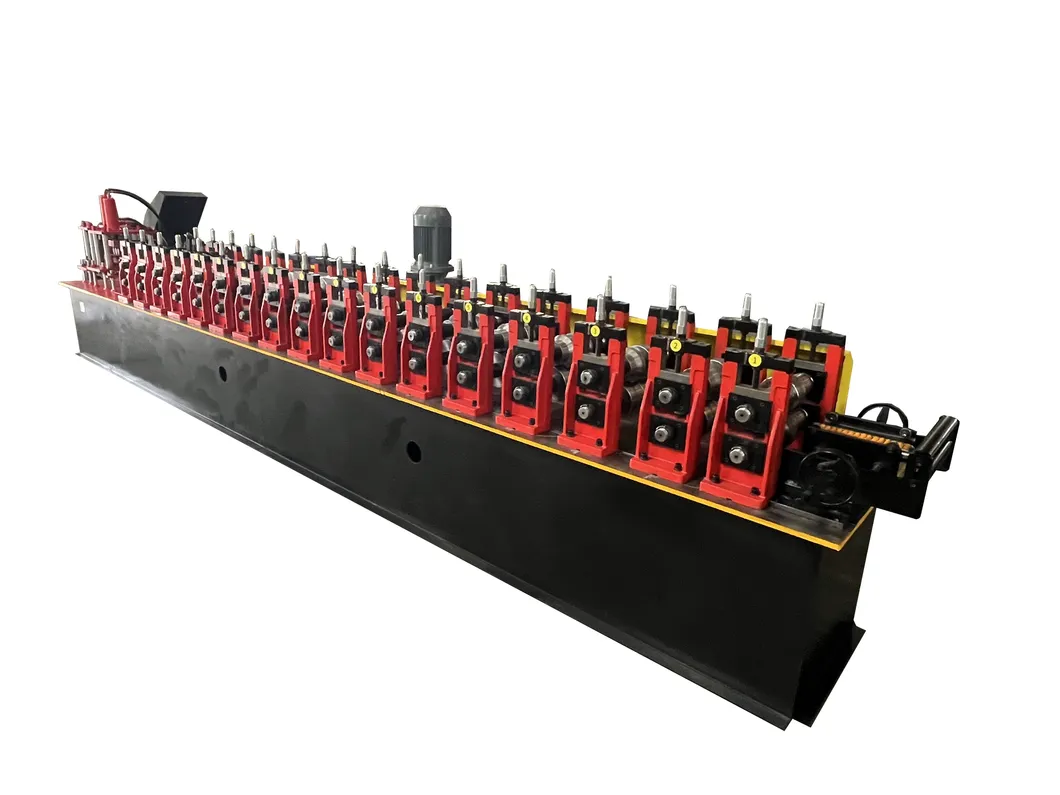

Forming System: Crafted from casting steel with Cr12 high-precision rollers.

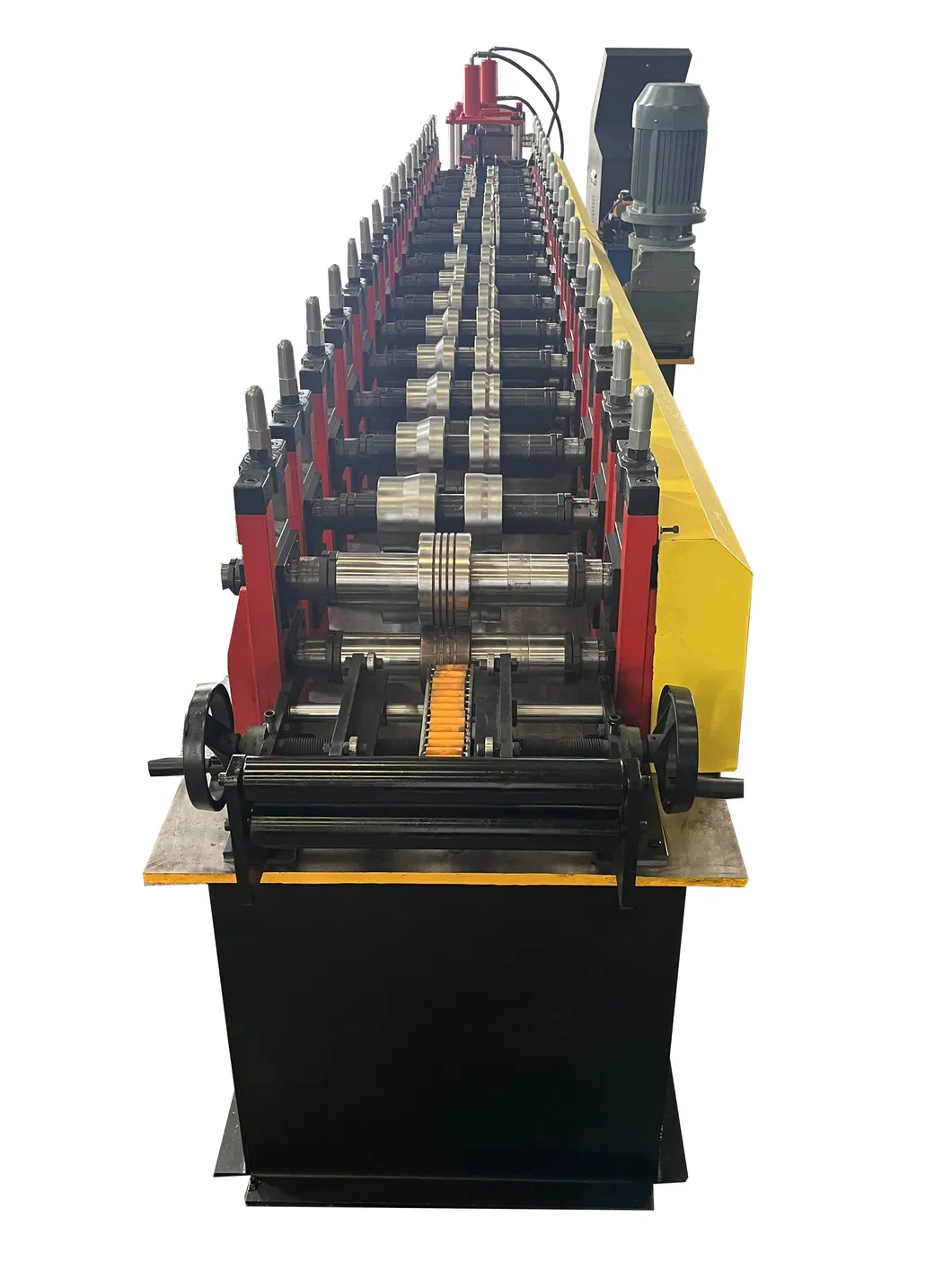

Roller Details: CNC-center processing ensures high accuracy for flawless products.

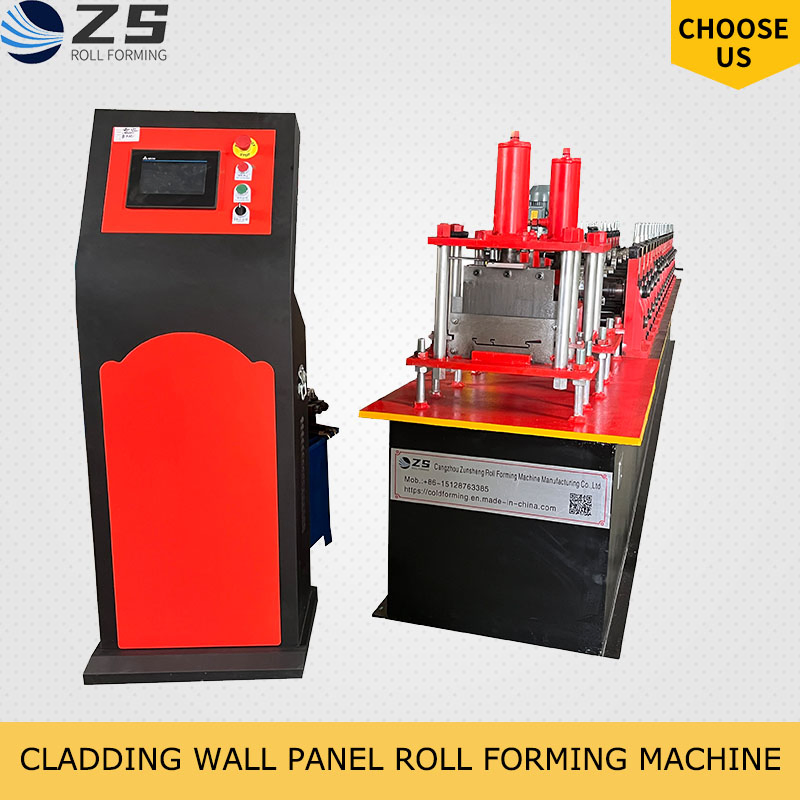

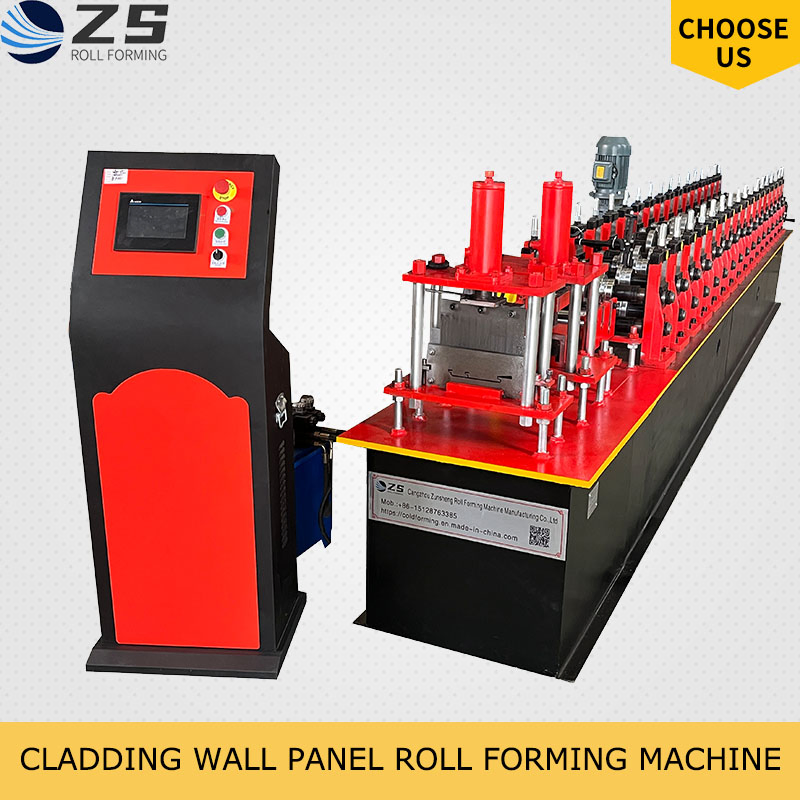

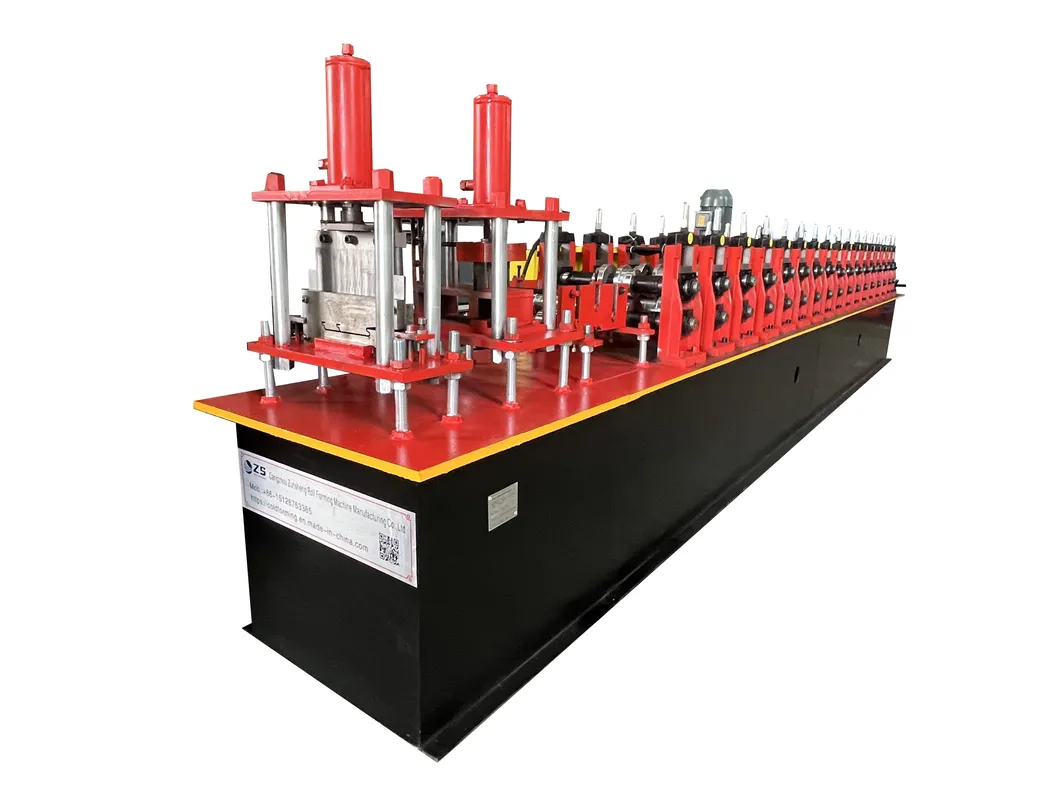

Punching & Cutting: Standard Hydraulic Cutter with Cr12 blades. Programmable punching.

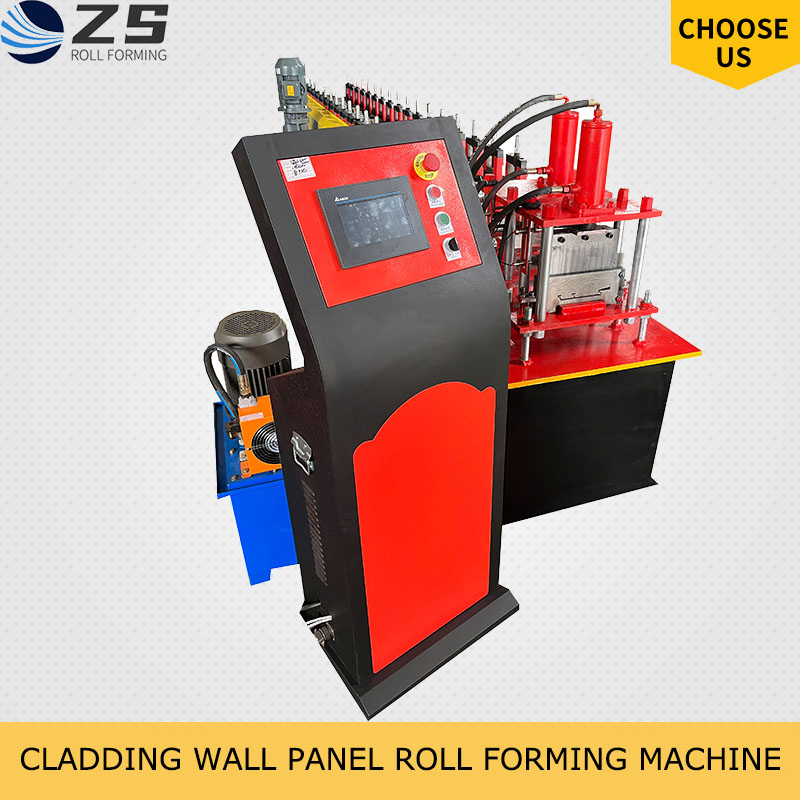

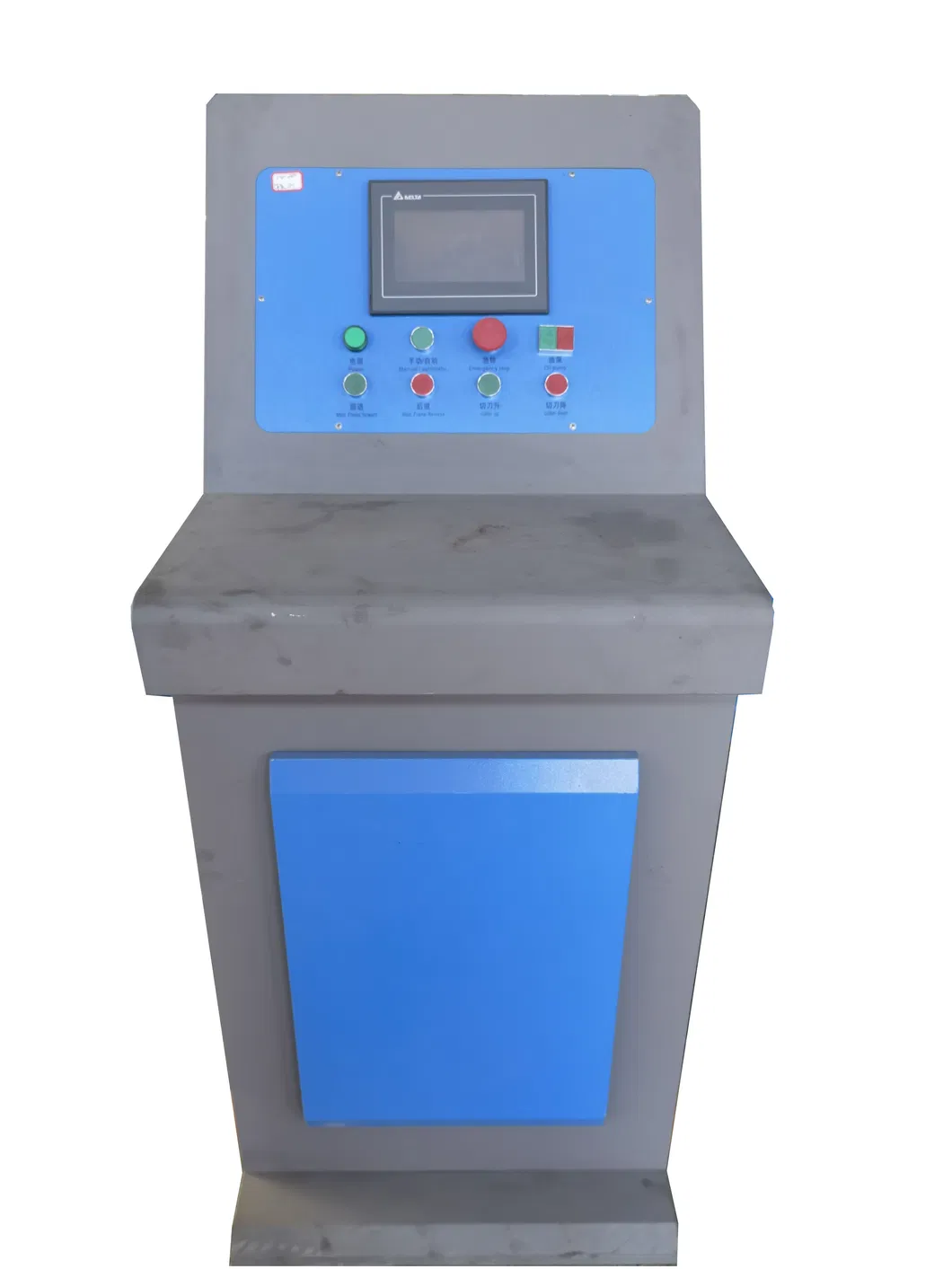

PLC Control: Delta/Siemens components for intuitive, user-friendly operation.

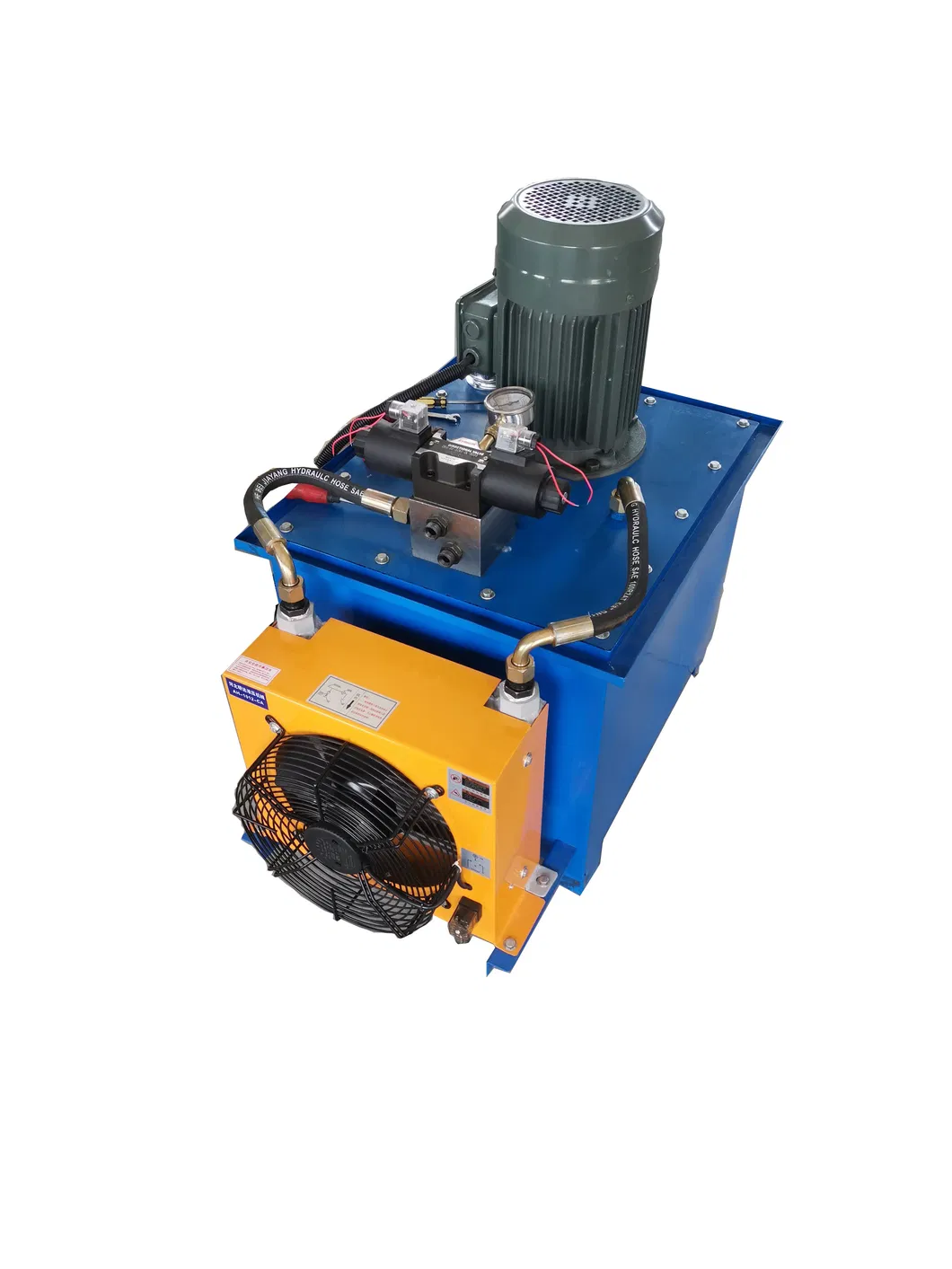

Hydraulic Pump: 4kW high-efficiency gear pump with advanced fan cooling.

💻 PLC Control Specifications

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC / Inverter	Siemens (Germany) or Delta (Taiwan)
Touch Screen	7-Inch Color Screen (Siemens or Delta)
Encoder	Omron (Japan)
Air Switch	LG-LS (Korea)
Precision	Cut-to-Length Tolerance ≤±1 mm

🤝 Service & Trade Terms

After-Sale Service

18 months comprehensive warranty from receipt.
Free replacement parts during warranty period.
Lifetime technical support.
Technician dispatch for installation/training available.

Trade Terms

MOQ: 1 Set

Delivery: Approx. 60 workdays

Payment: T/T or L/C

Export: Over 80 countries worldwide.

⭐ Our Advantages

❓ Frequently Asked Questions

What materials can this roll forming machine process?

The machine is designed to work with PPGI (Pre-painted Galvanized Iron) and Gi (Galvanized Iron) coils with thicknesses ranging from 0.4mm to 0.6mm.

Can one machine produce different sizes of panels?

Yes, our versatile design allows you to produce two distinct sizes by simply adjusting the space and the cutting blade without requiring extra machine modifications.

What is the production speed of the system?

The machine operates at a high-efficiency speed of 15 to 20 meters per minute, depending on the panel design and specifications.

What kind of control system and components are used?

We use high-end PLC control systems from Delta or Siemens, along with Omron encoders and LG-LS air switches to ensure precision and reliability.

What is the warranty and technical support policy?

We provide a comprehensive 18-month warranty period with free replacement parts and offer lifetime technical support for all our machines.

How is the machine packed for international shipping?

The main body is covered by plastic film for protection against dust and corrosion, then steadily fixed in the container using steel ropes and locks to ensure safety during long-distance transport.
