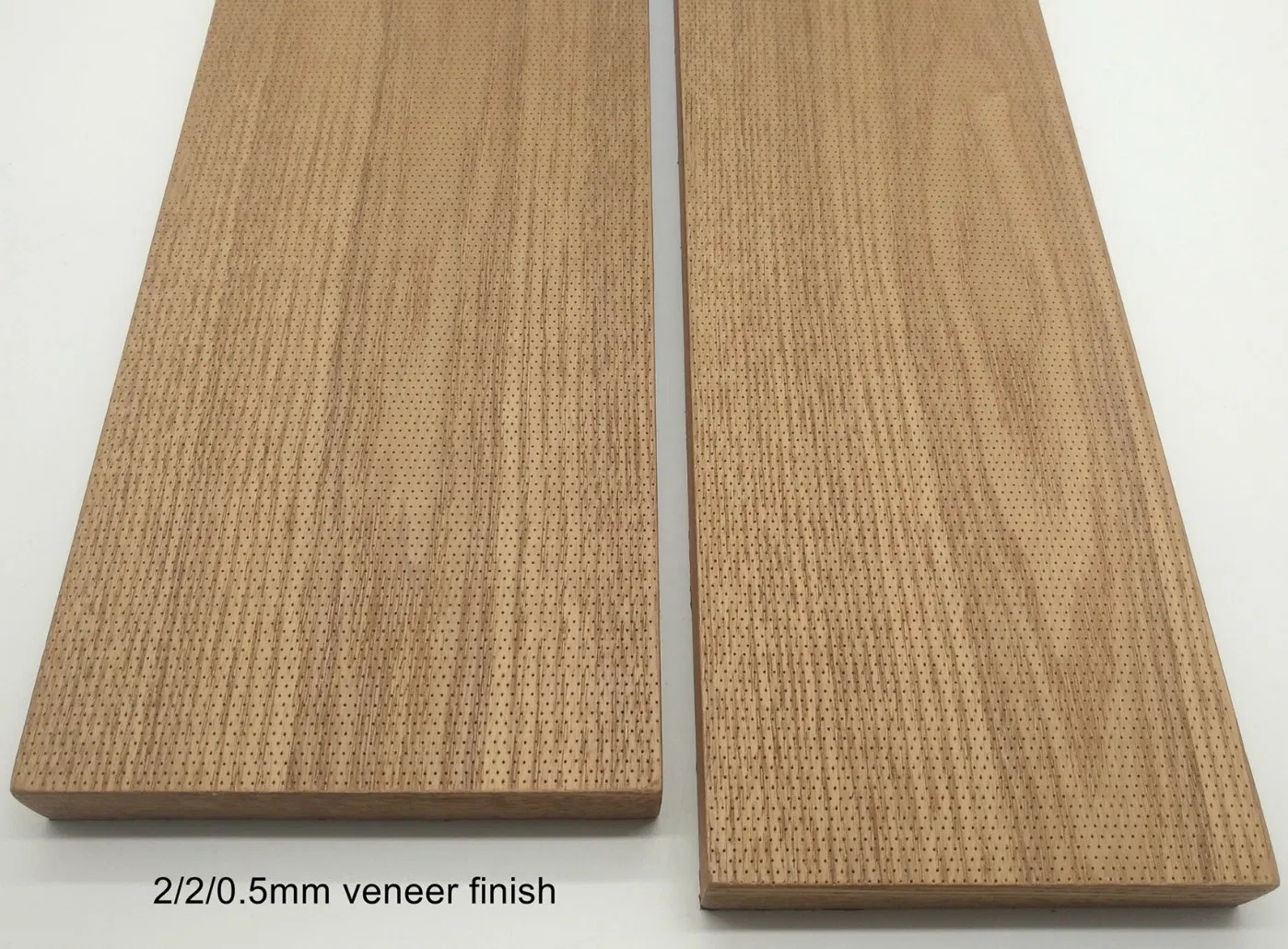

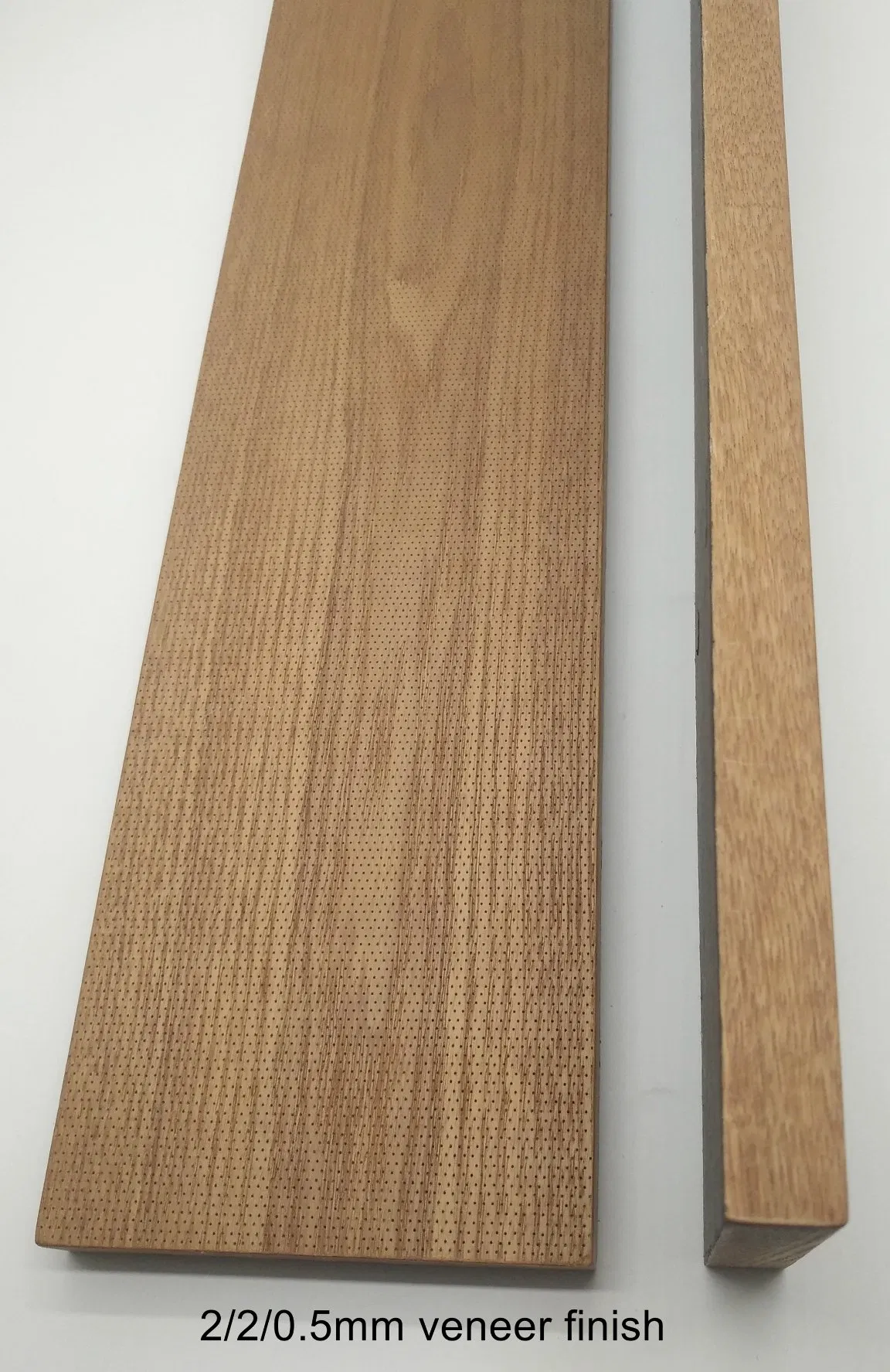

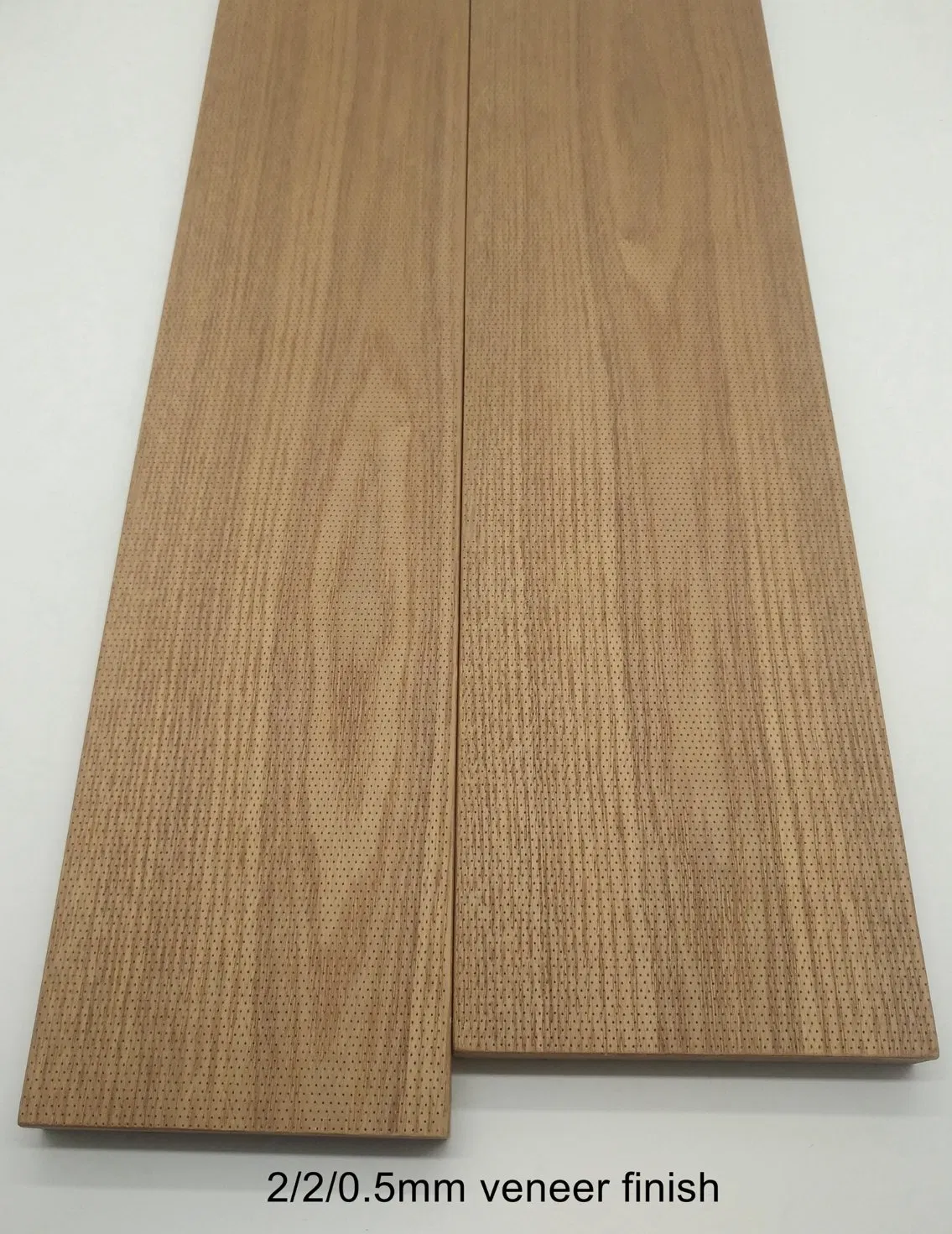

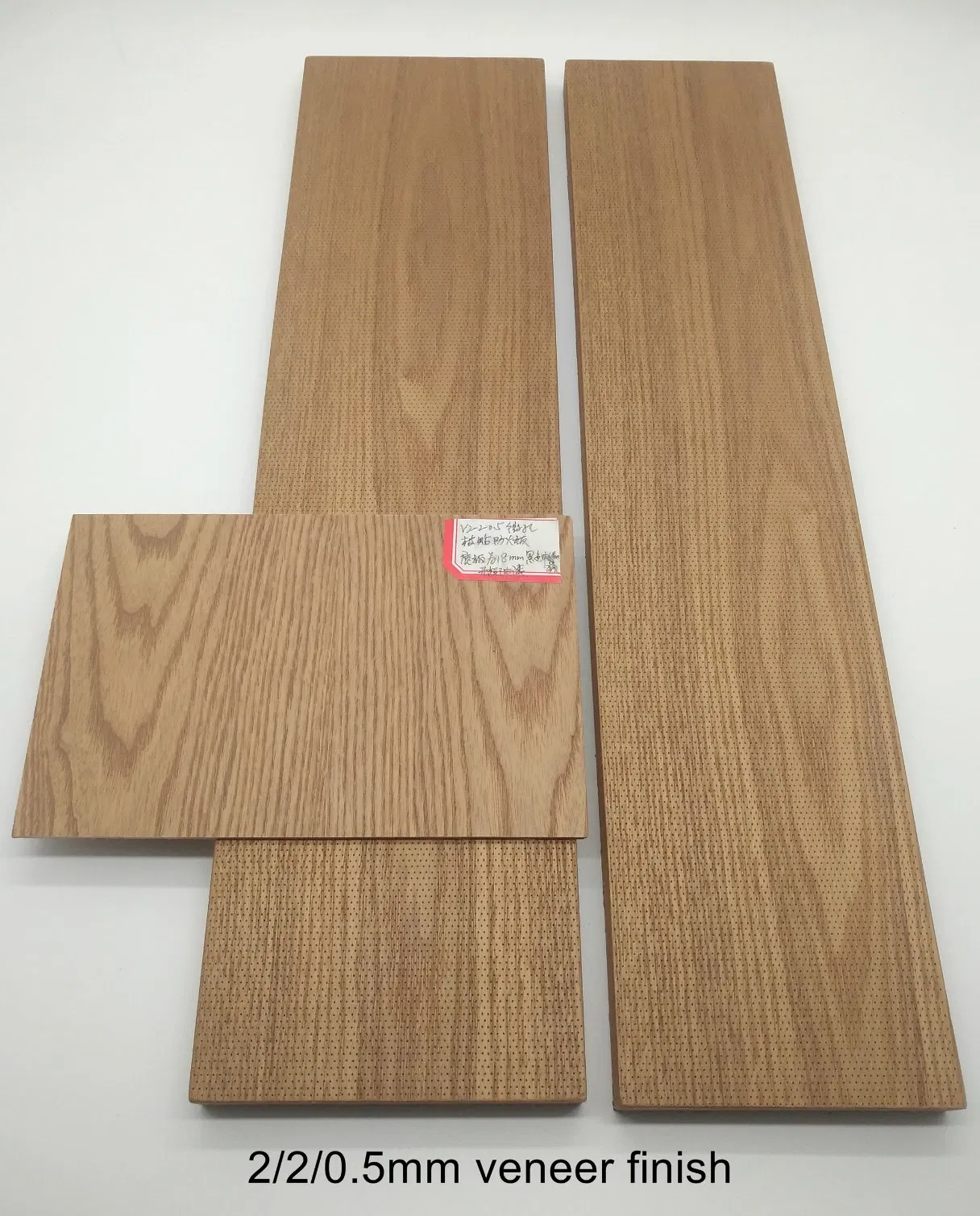

2/2/0.5mm micro perforated acoustic panel

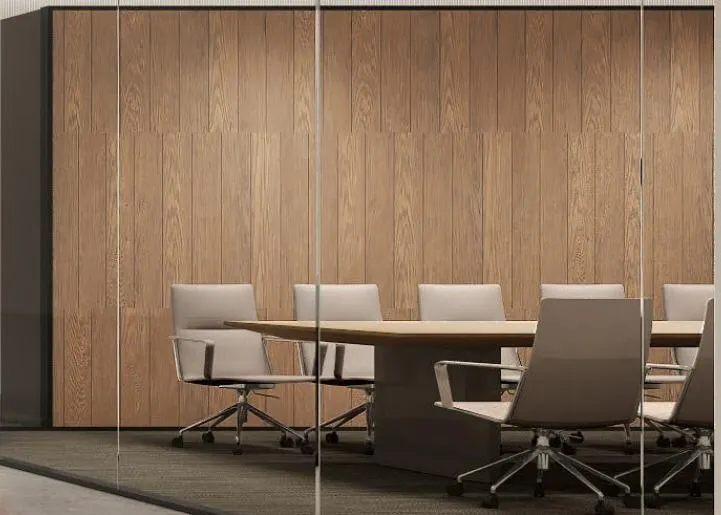

Featuring precision micro-perforation, the panels are designed with ultra-fine holes that are nearly invisible to the eye. This discreet detailing not only enhances the aesthetic appeal of any space but also delivers excellent sound absorption. Combining effective acoustic performance with a refined decorative finish, these panels are the ideal choice for modern interiors.

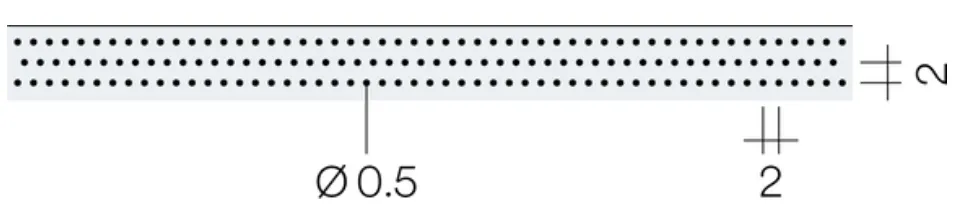

| Micro Hole Pattern | 2/2/0.5mm (Hole distance 2mm, hole diameter 0.5mm) |
| Perforation Arrangement | 1-staggered hole arrangement; 2-straight hole arrangement |
| Finish Options | Laminate, Veneer, or RAL colors |
| Core Thickness | 15mm, 18mm, 21mm MDF |
| Panel Size | Standard max 2400*1200mm; Custom max 3020*1220mm |

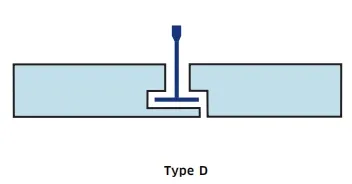

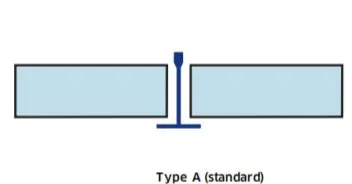

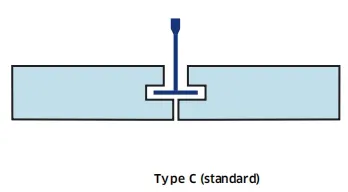

| Edge Types | Type A (90° clean cut), Type C (grooved), Type D (tongue & grooved) |
| Backing | Soundtex black fleece |

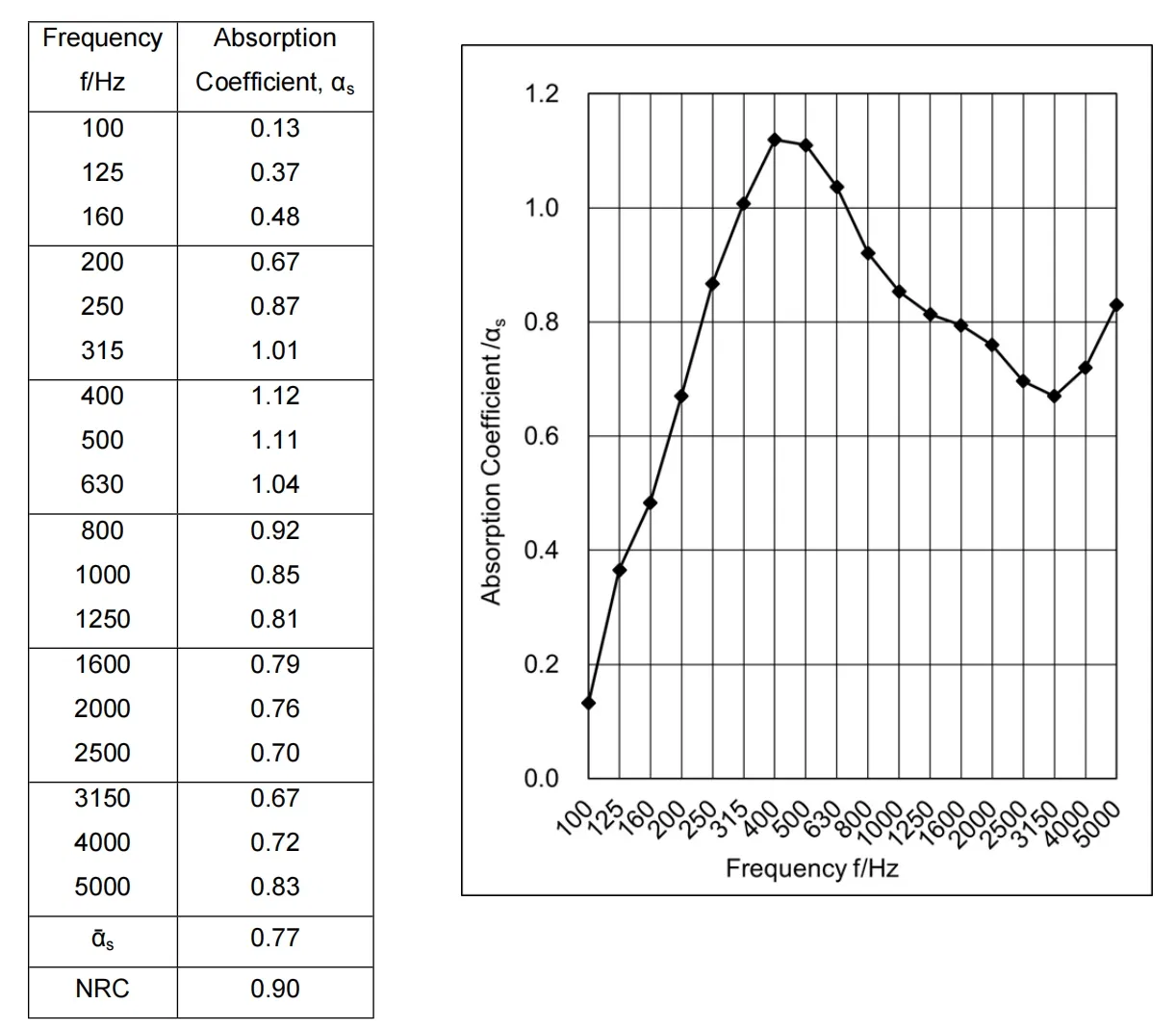

| NRC | 0.9 (ISO354-2003 test) |

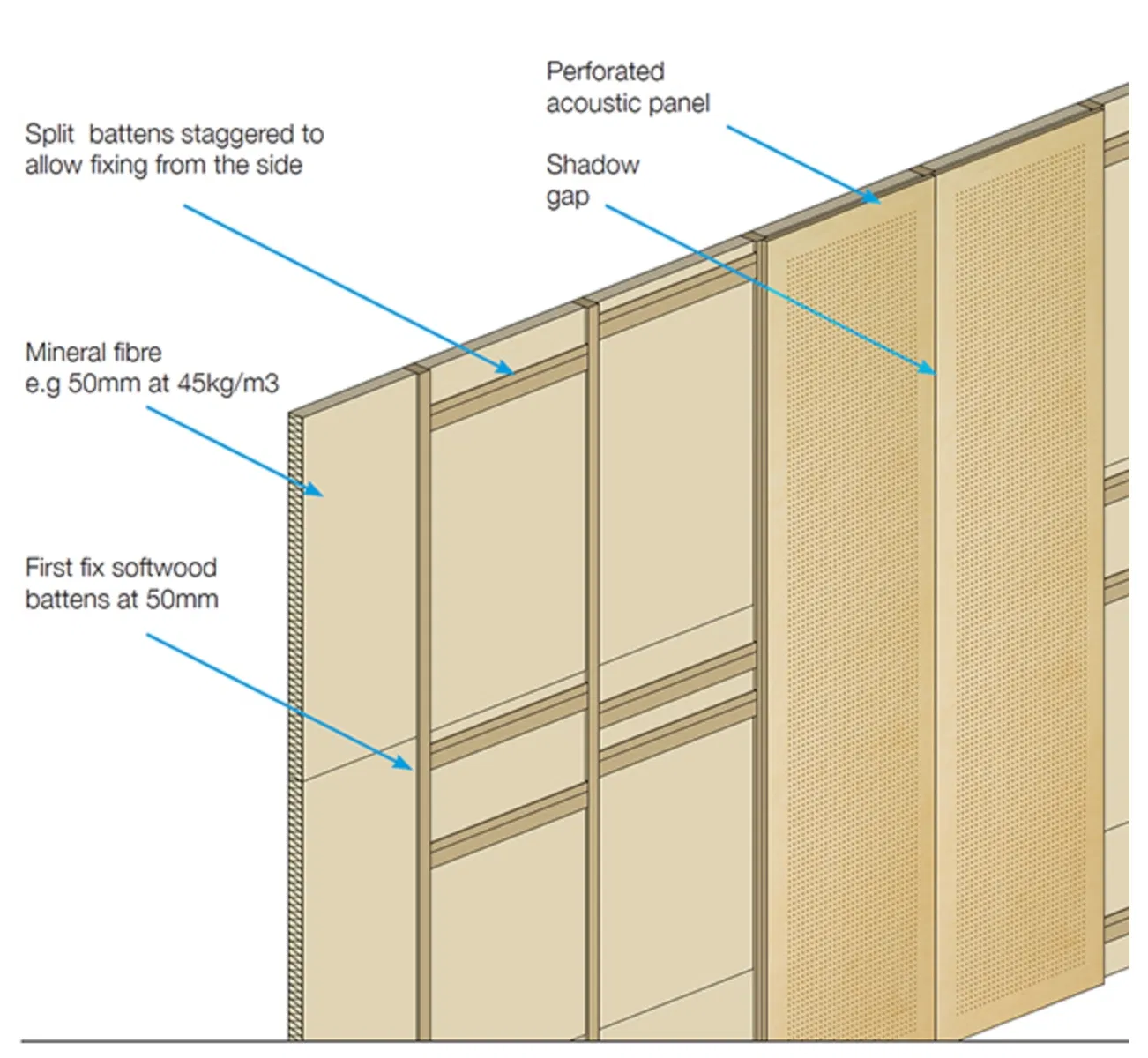

Typically mounted on a fireproofing wooden frame with invisible split battens. The frame is filled with sound absorbing material (e.g. Rockwood at 45kg/m3). We advise leaving a 2.5mm space per meter for panel expansion.

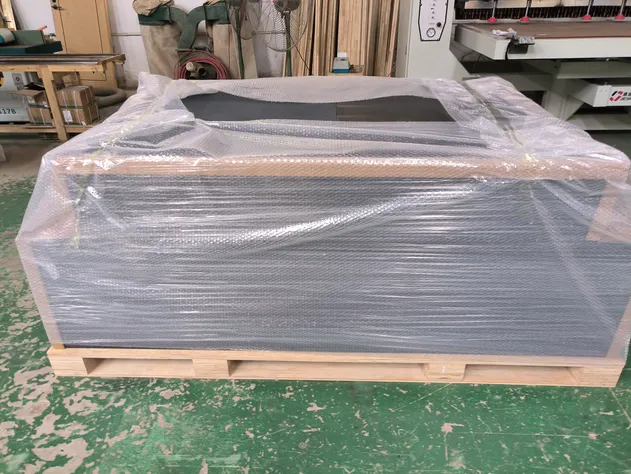

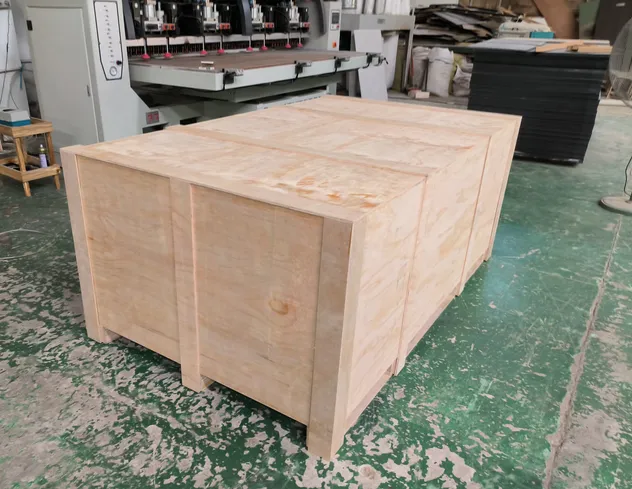

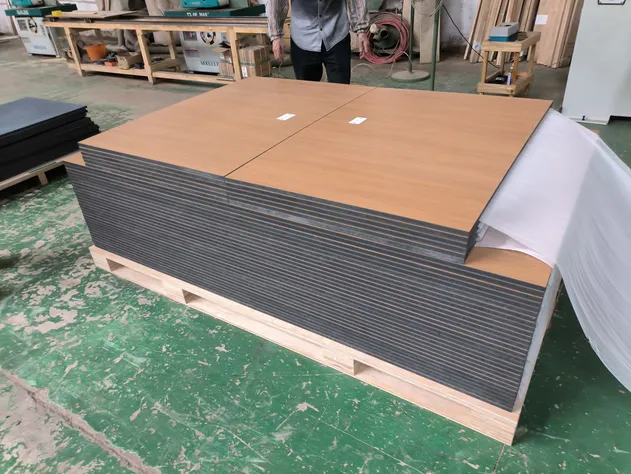

Wrapped in protective bubble film to shield from moisture and scratches, then securely placed inside high-strength wooden cartons designed to withstand transit handling.
