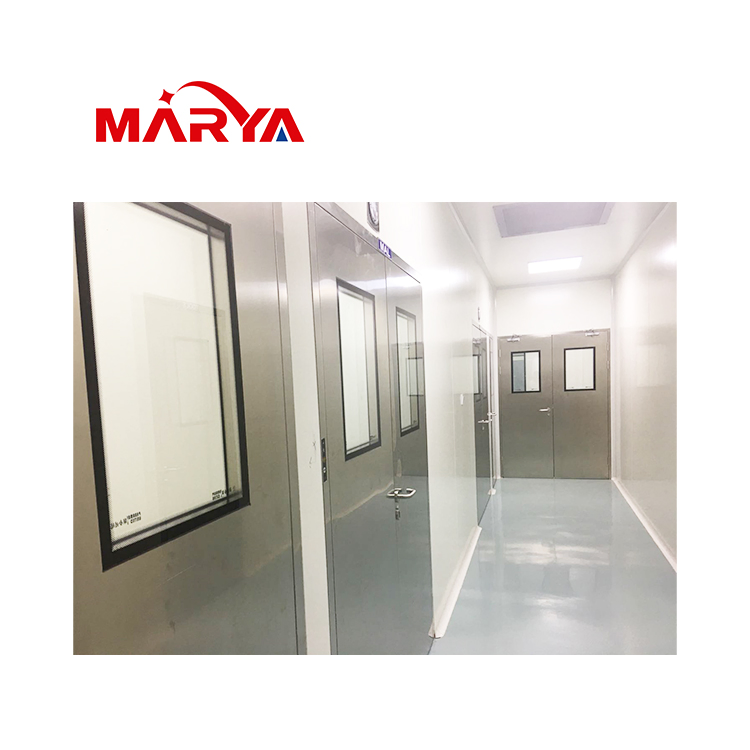

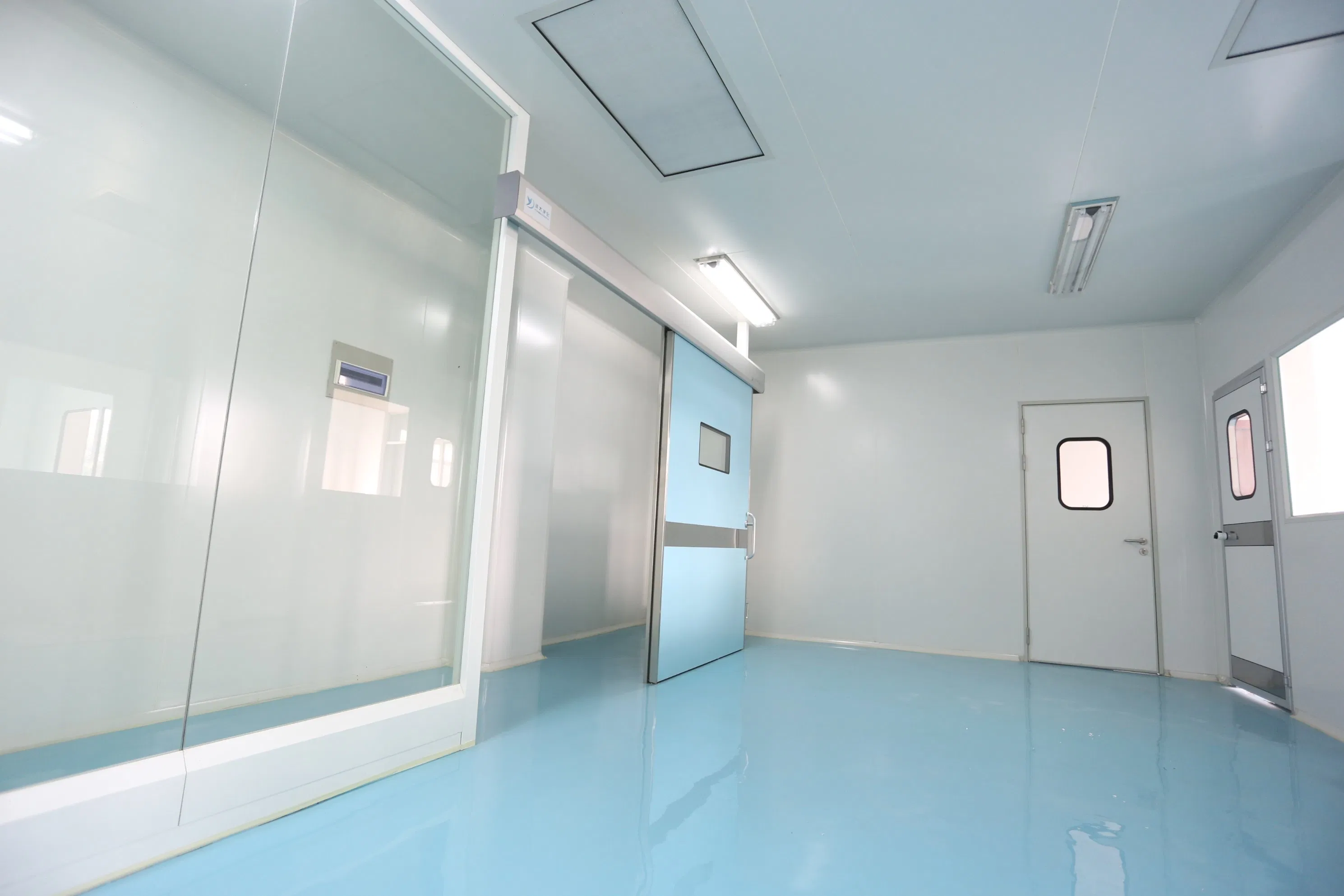

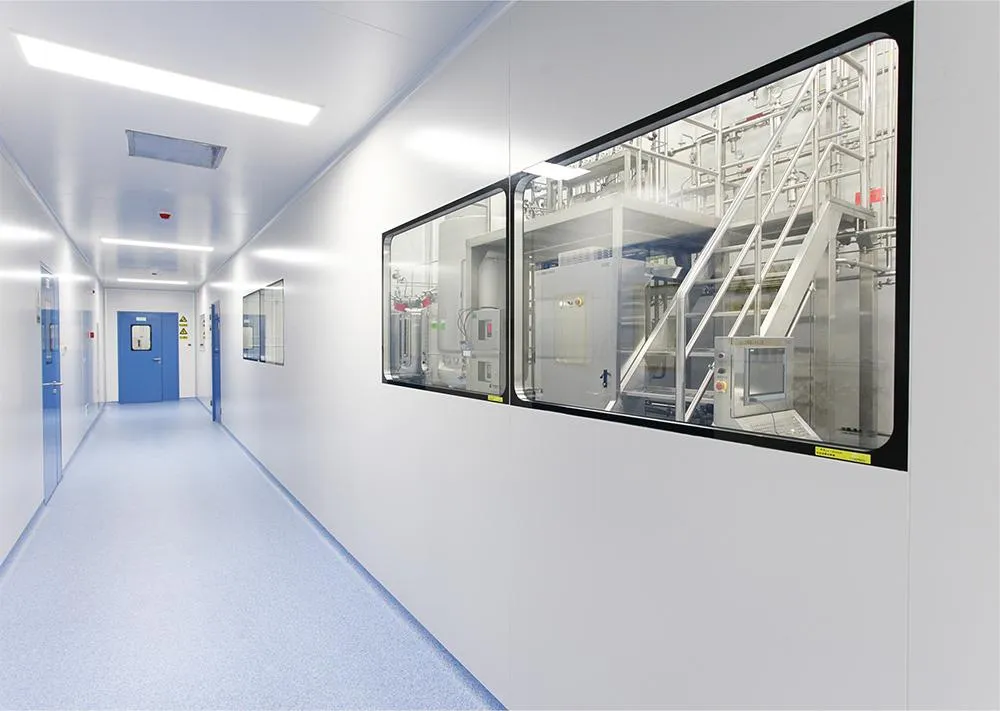

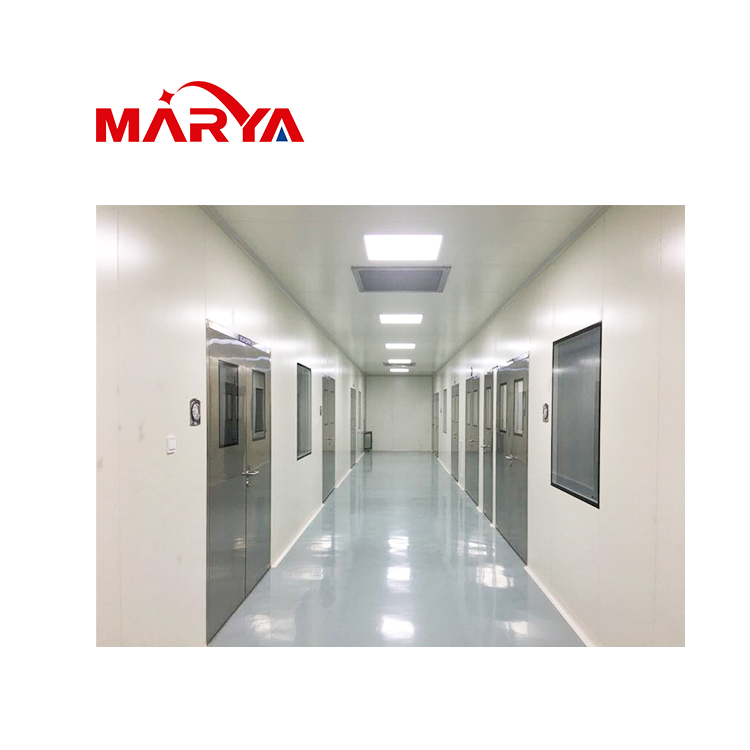

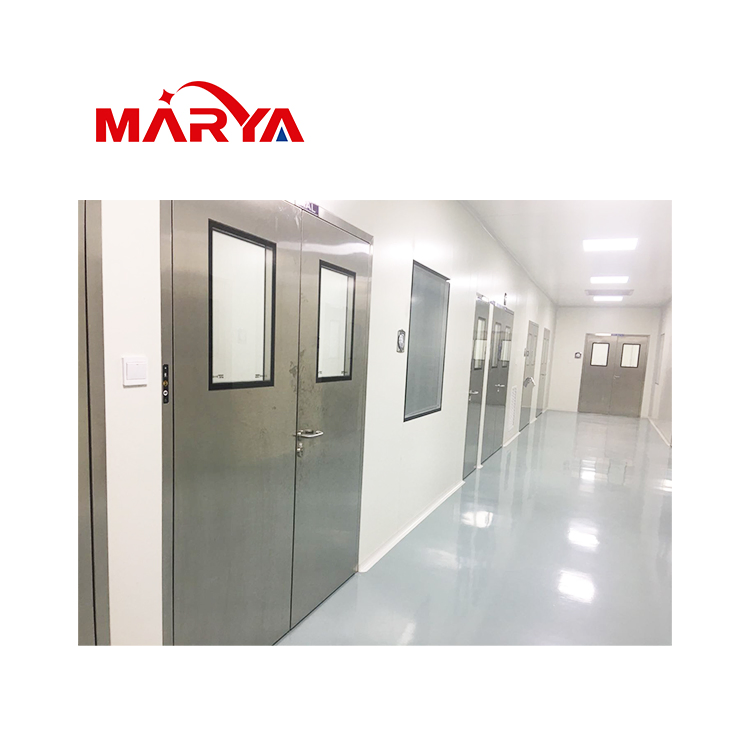

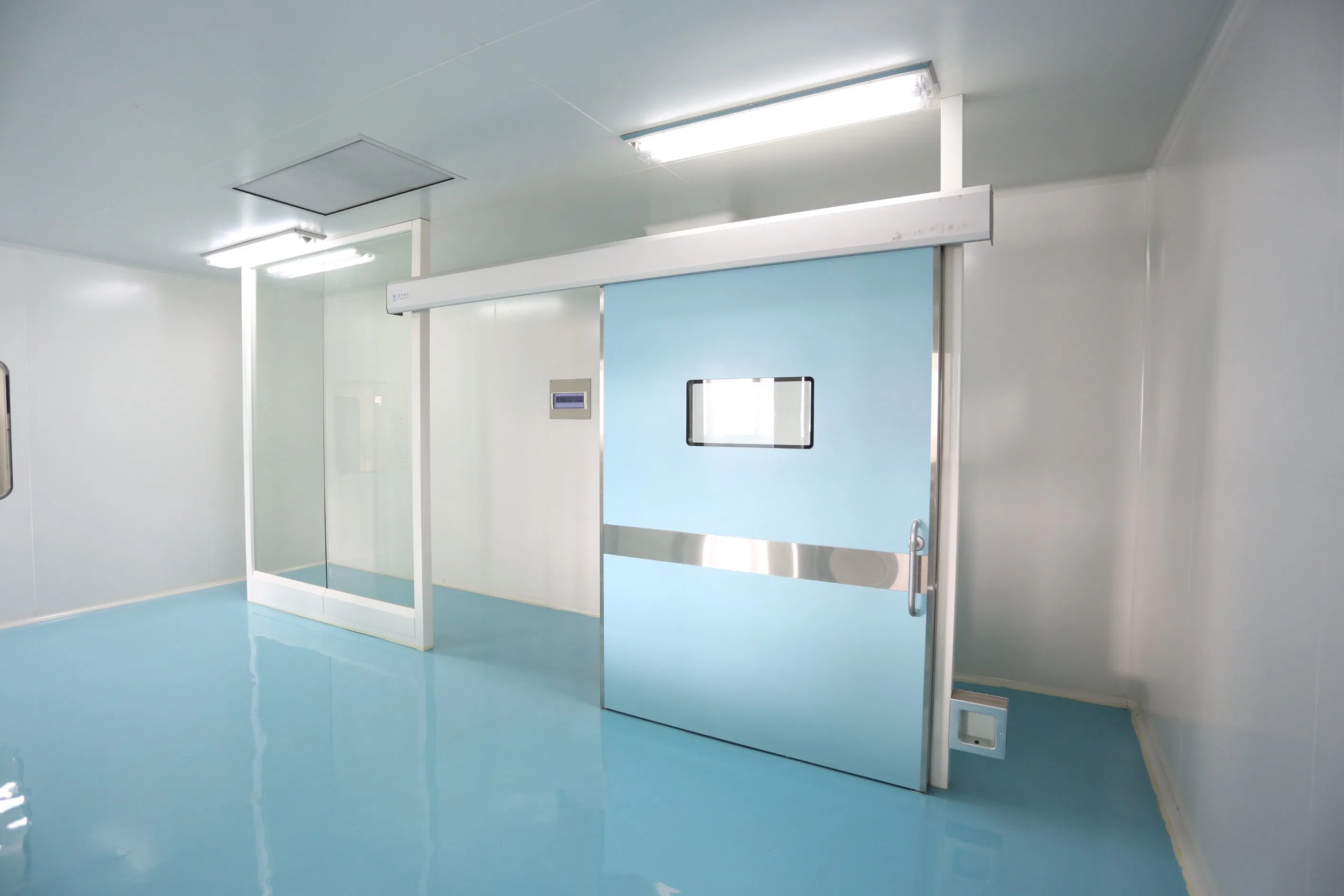

Cleanroom Modular Wall & Ceiling System Modular Cleanrooms and Cleanroom Wall Systems
The Cleanroom Modular Wall & Ceiling System is widely used for manufacturing facilities in pharmaceutical, food, beverage, cosmetic, and electronic industries. As Good Manufacturing Practice (GMP) requires, the production area environment needs to be controlled accordingly.
The cleanroom wall system has various core materials filled in to satisfy different requirements. Depending on the environment, options for fireproofing, heat preservation, noise reduction, and moisture resistance are selected to adapt to specific cleanroom needs.
Cleanroom modular wall panels can be used to reinforce holes, and line pipe boxes are assembled in the factory to effectively reduce secondary pollution during use.
| No | Name | Specification Details |
|---|---|---|
| 1 | Panel thickness | 50/75/100 mm |
| 2 | Width | 980/1180mm or customized |
| 3 | Height | Customized |

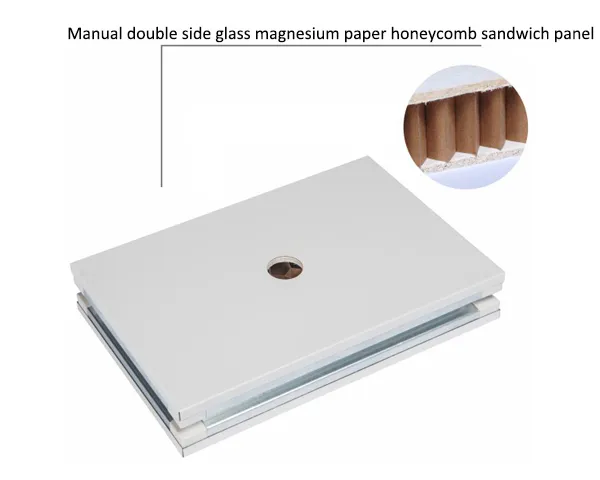

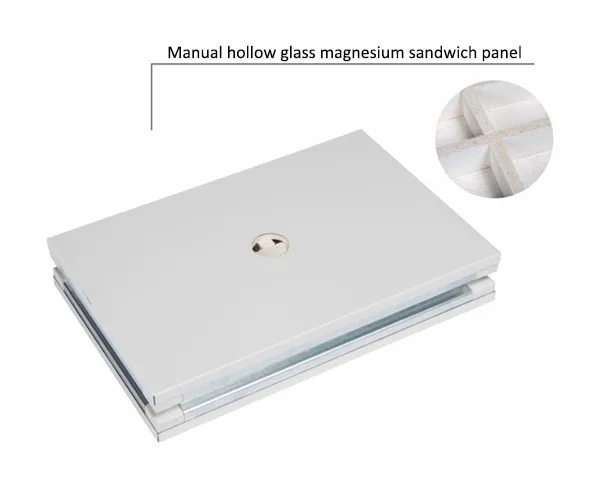

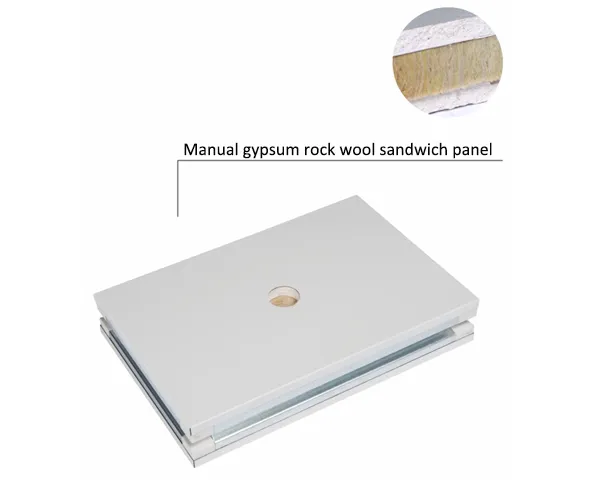

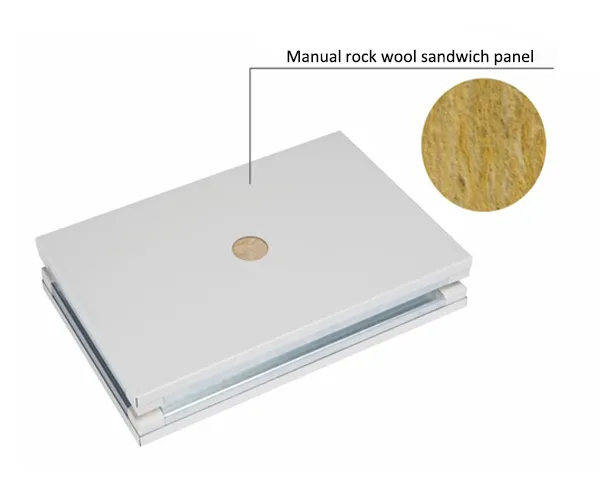

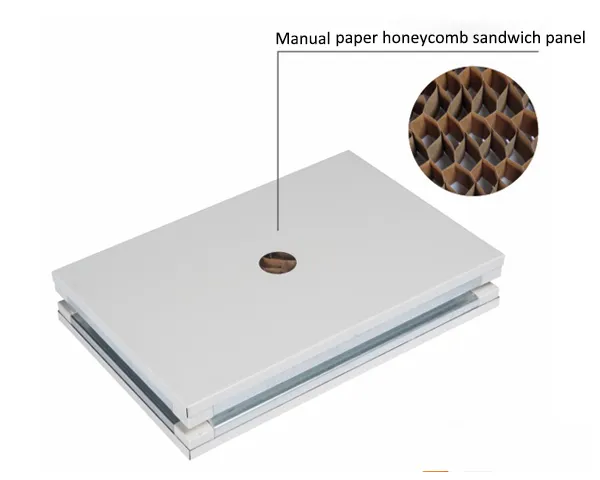

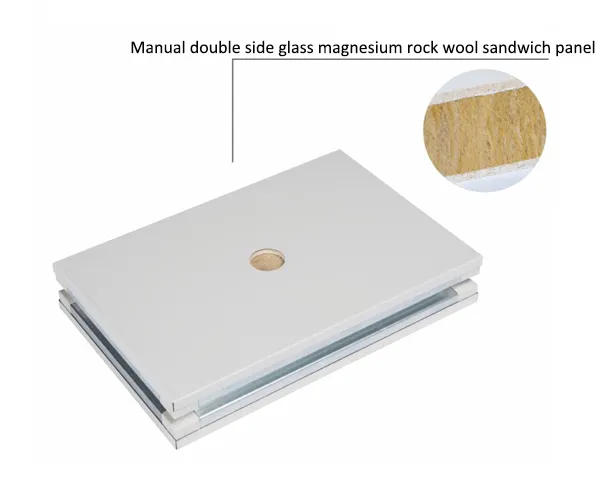

| 4 | Filling material | Mineral wool/ PU/EPS/paper honeycomb/aluminum honeycomb |
| 5 | Type | Handmade |
| 6 | Fireproof | A Rating |
| 7 | Panel material | Galvanized steel/ Stainless steel |
| 8 | Material thickness | 0.5-0.8mm |
| 9 | Certification | ISO9001, CE, SGS |
| 10 | Accessories | Aluminum alloy |
Cleanroom doors/ windows/ FFU/ AHU/ Chiller system/ Flooring System/ Lighting & Electricity System
Engineering Procurement Construction (EPC) services are provided for your production unit to ensure a complete and compliant cleanroom environment.
