Durable Aluminum Cladding Panel System for Elegant Wall Designs

1 / 5

Durable Aluminum Cladding Panel System for Elegant Wall Designs

Customization:	Available
After-sales Service:	All Life Online Support
Warranty:	18 Months

Send Inquiry

Product Description

📋 Basic Information

Model NO.

ZS-Wall Panel

Product Type

Exterior Wall Decoration Cladding Panel

Automatic Grade

Automatic

Power Source

Electric

Certification

CE, ISO

Thickness

0.4-0.6

Working Material

PPGI, Gi

Product Speed

15-20m/Min

Control System

PLC

Forming Station

18 Steps

🏗️ Product Description

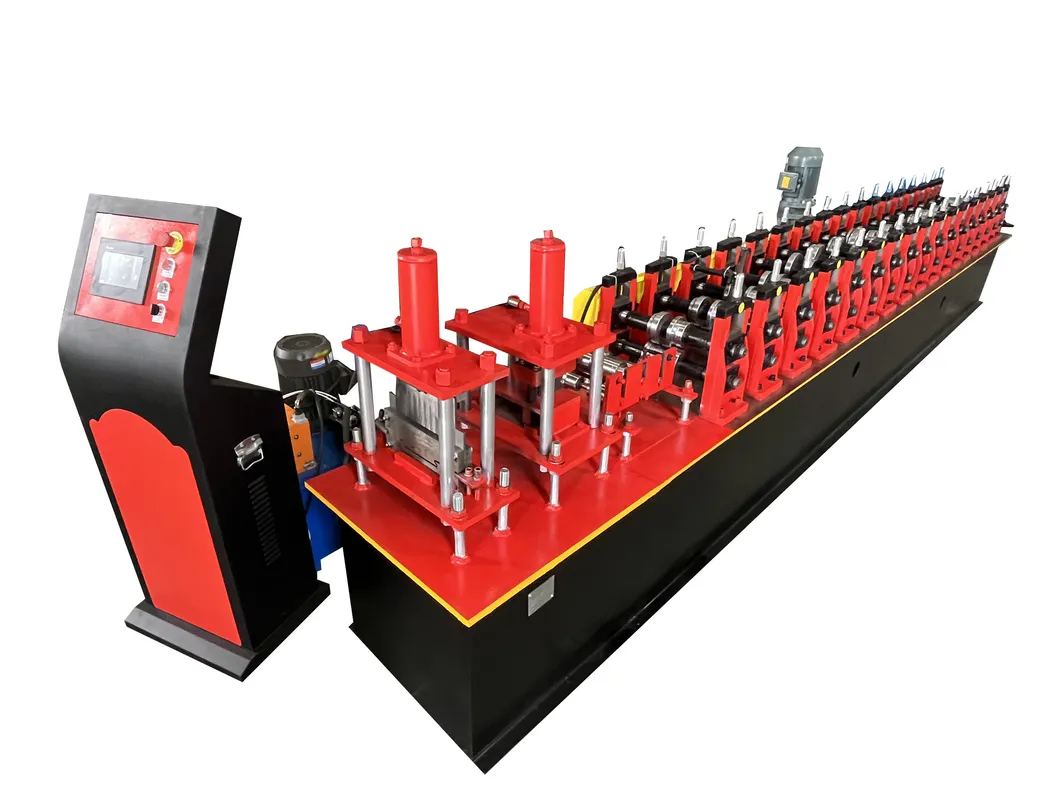

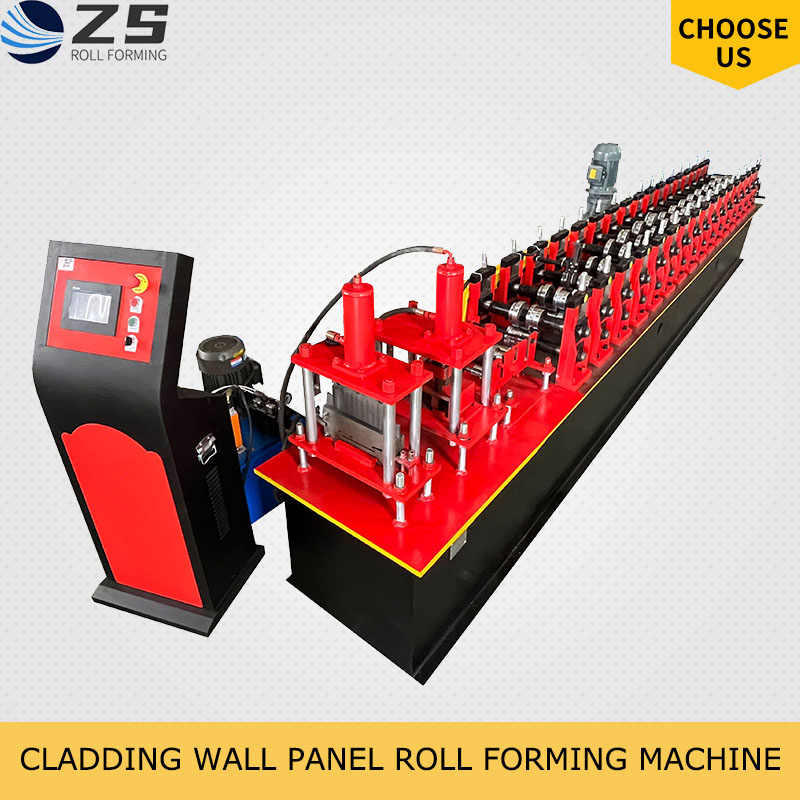

Exterior Wall Decoration Cladding Panel Selflock Making Roll Forming Machine

Our versatile machine is meticulously engineered to cater to all your needs. It is capable of rolling holes on surfaces and punching side holes effortlessly. With this single machine, you can produce two different sizes by simply adjusting the space and cutting blade—no additional adjustments required!

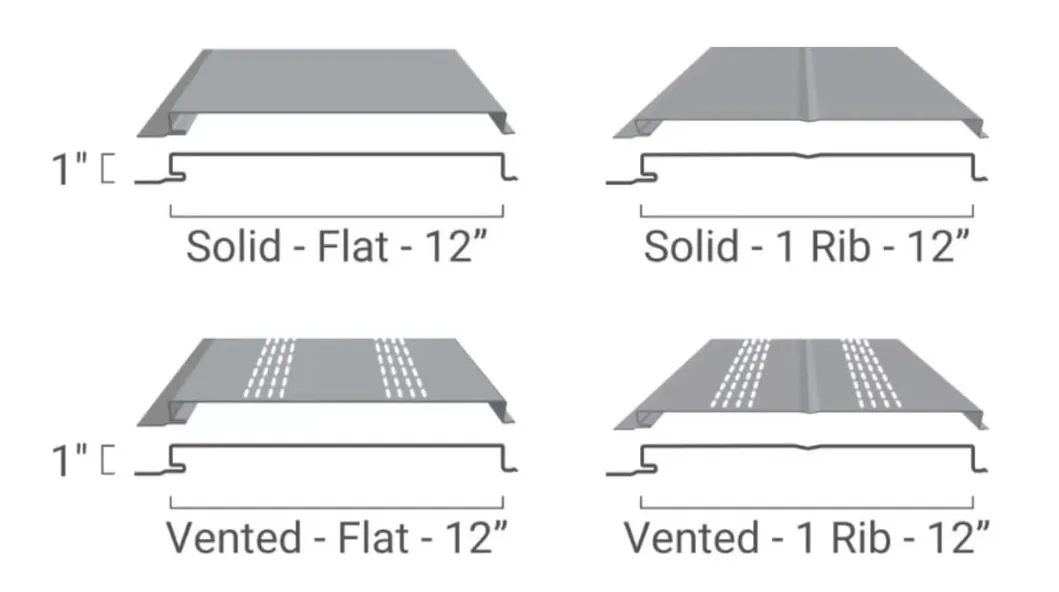

Profiles & Customization

We offer customization of the machine based on your unique design and requirements:

⚙️ Roll Forming Machine Components

No.	Name	Qty
1	De-coiler	1 Set
2	Forming Machine	1 Set
3	Hydraulic Cutting Device	1 Set
4	PLC Control Box	1 Set
5	Hydraulic Pump Station	1 Set
6	Production Support Table	1 Set

🔄 Working Flow

Uncoiler ➔ Feeder ➔ Rolling Holes ➔ Roll Forming ➔ Punching Holes ➔ Automatic Control System ➔ Automatic Cutting System ➔ Products Receiving Tables

📸 Detailed Photos

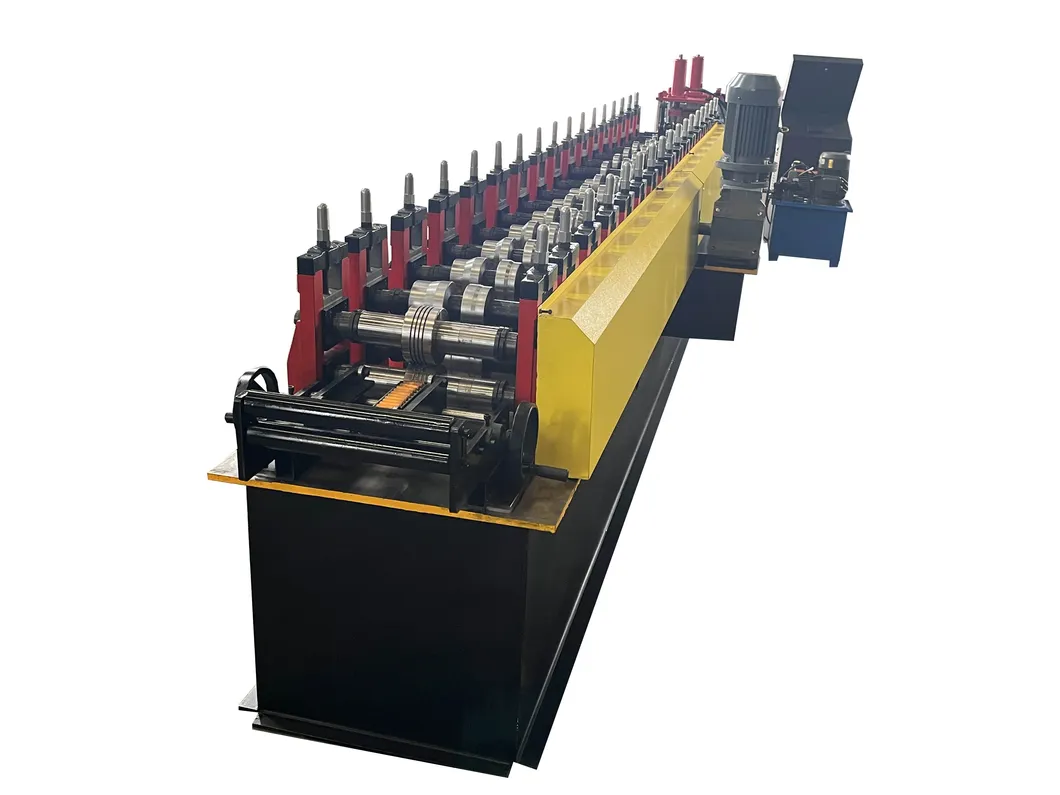

Feeder System: Stable operation with no coil swing. Working width up to 600mm.

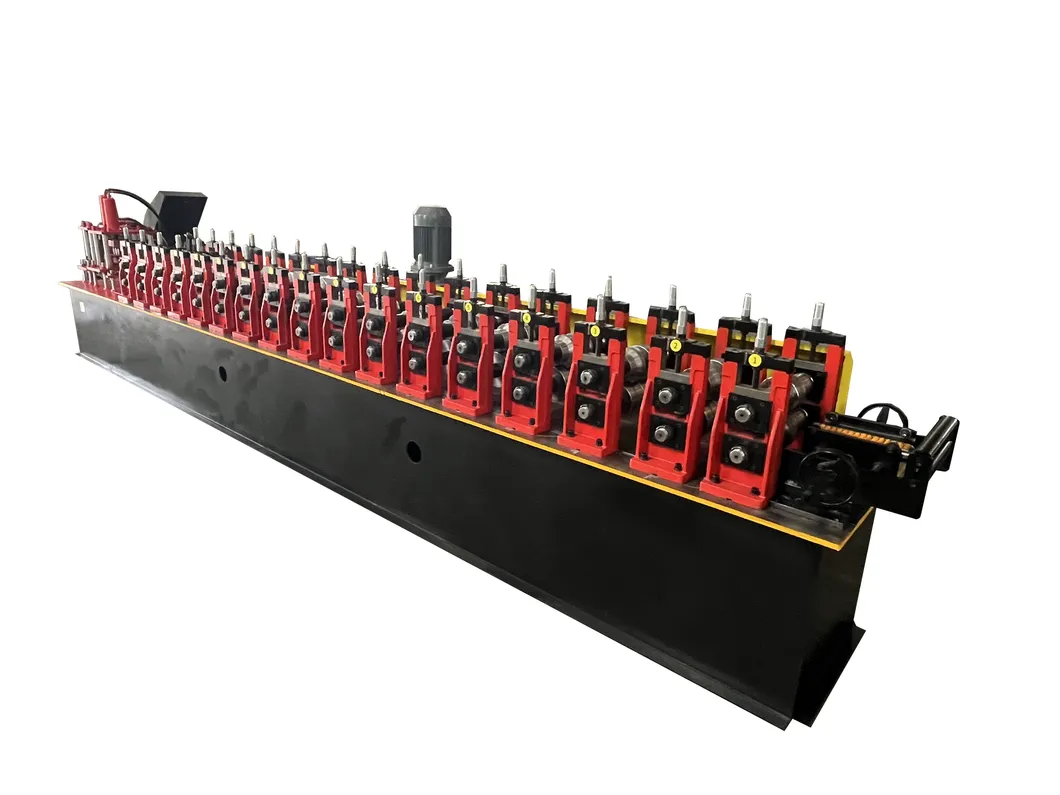

Main Roll Forming: Casting steel structure for greater strength.

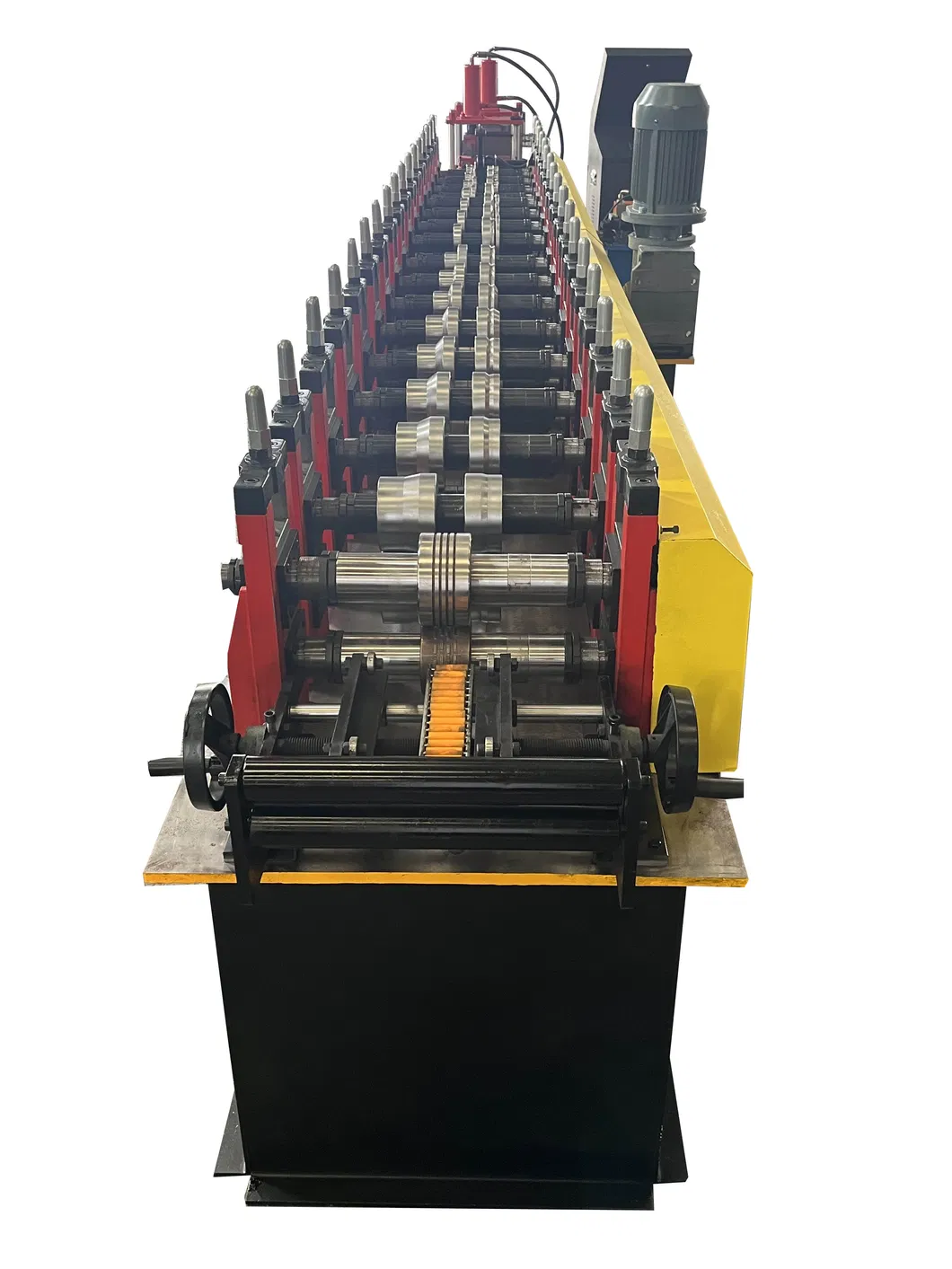

Roller Details: CNC-center processed for high accuracy.

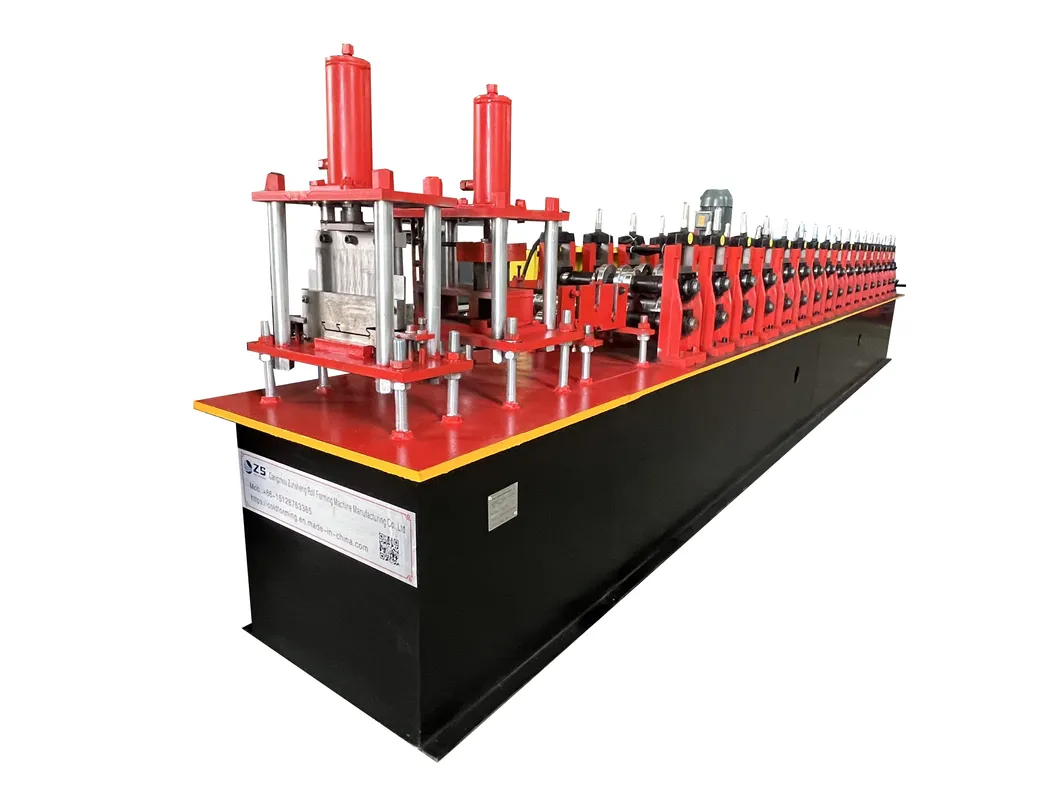

Hydraulic System: Cr12 blade material with side hole punching configuration.

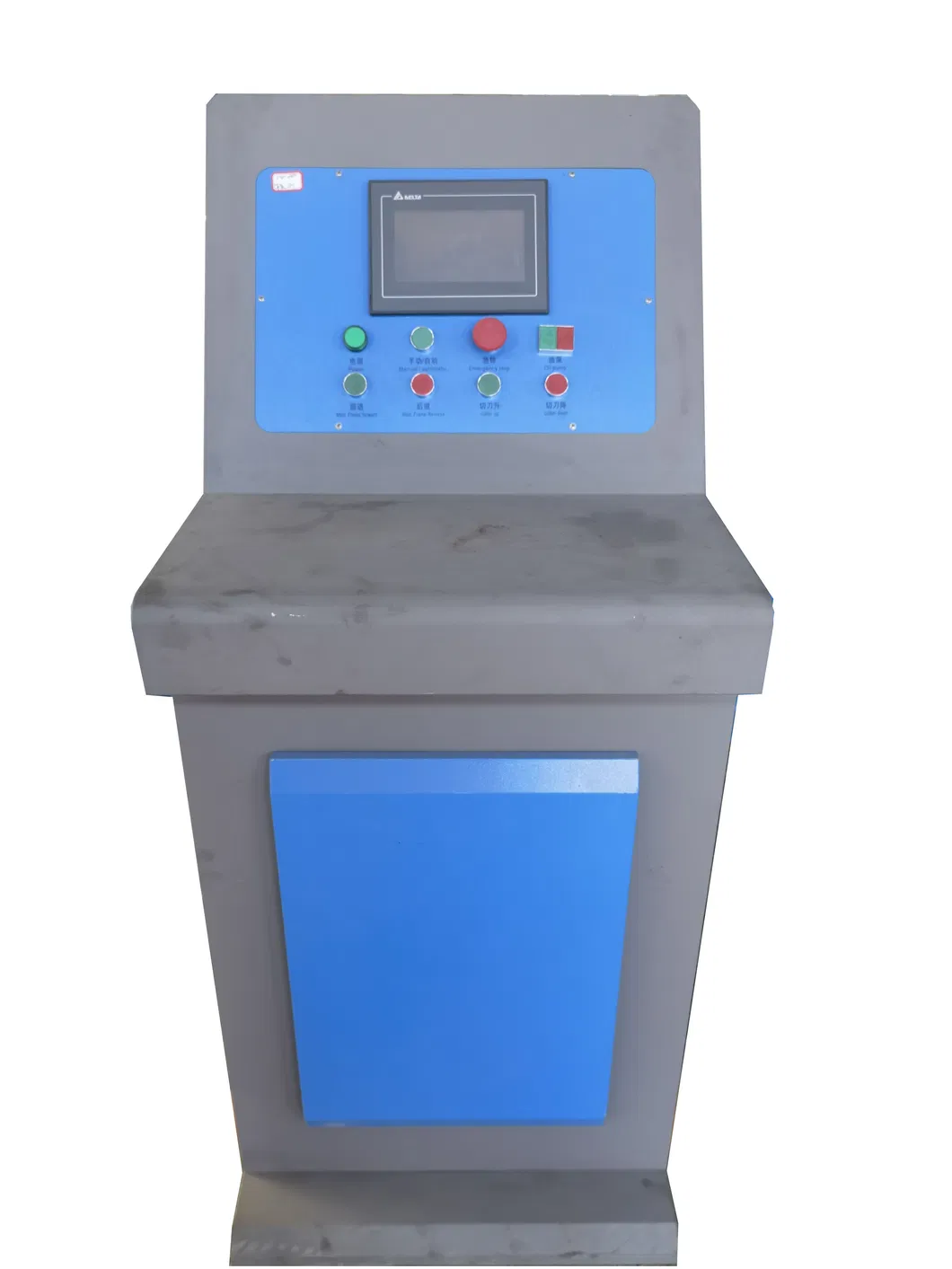

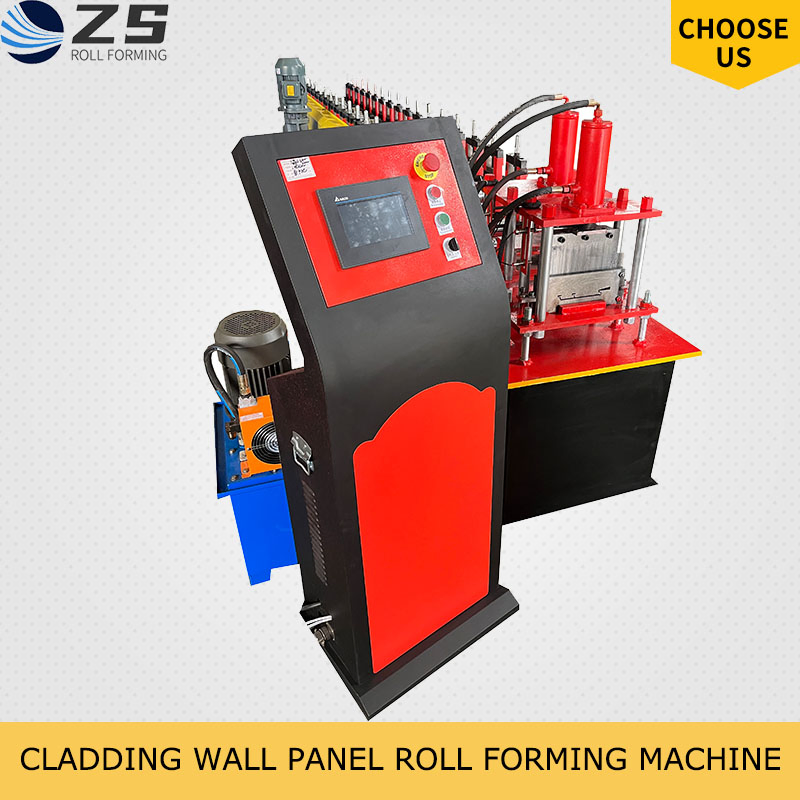

PLC Control: Delta brand touch screen for user-friendly operation.

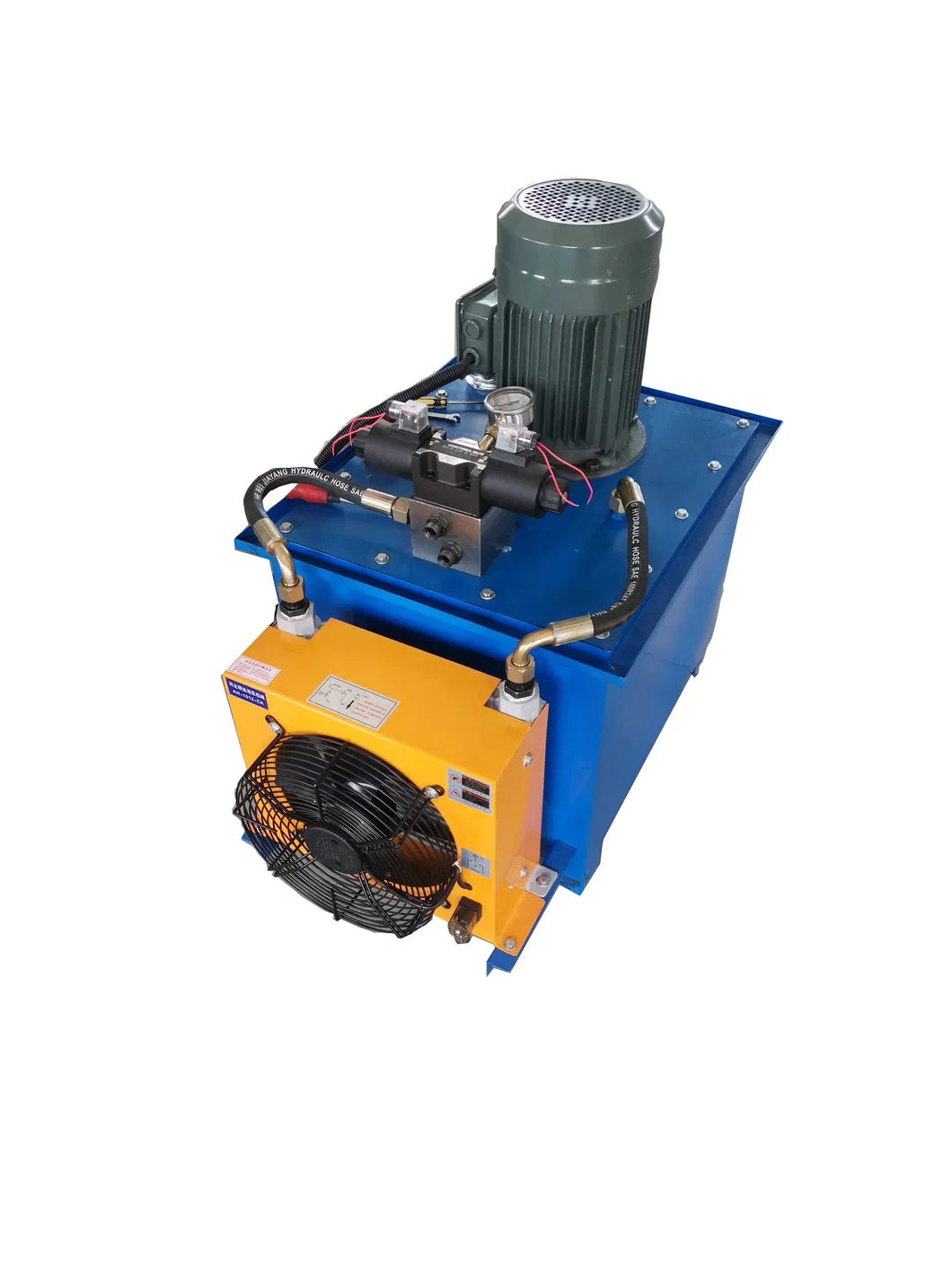

Oil Pump System: 4kW power with integrated fan cooling system.

💻 PLC Control System Specifications

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC Brand	Siemens (German) or Delta (Taiwan)
Inverter	Siemens (German) or Delta (Taiwan)
Touch Screen	7-Inch Color (Siemens or Delta)
Encoder	Omron (Japan)
Tolerance	Cut-to-Length Tolerance ≤ ±1 mm

🛠️ Service & Trade Terms

After-Sale Service:

18-month warranty from the date of receipt.
Free replacement parts during the warranty period.
Lifetime technical support.
Technician dispatch available for installation and training.

MOQ	1 Set
Delivery Time	About 60 workdays
Payment Type	T/T or L/C
Export Reach	More than 80 countries including USA, UK, Korea, Brazil, Russia, etc.

🌟 Our Advantages

Frequently Asked Questions

What is the warranty period for this machine?

We provide an 18-month warranty starting from the date the client receives the machine. During this period, replacement parts are provided free of charge.

What materials can the roll forming machine process?

The machine is designed to work with PPGI and Gi (Galvanized Iron) materials with a thickness range of 0.4-0.6mm.

How fast can the machine produce cladding panels?

The production speed is approximately 15-20 meters per minute, depending on the specific profile and hole configurations.

Can the machine be customized for specific designs?

Yes, we offer full customization based on your unique design requirements, including specific profiles and dimensions.

What kind of control system is used?

The machine is equipped with a high-quality PLC control system, typically using Delta or Siemens brands, featuring a user-friendly color touch screen.

Is technical support available after purchase?

Absolutely. We offer lifetime technical support for all our machines and can dispatch technicians for on-site installation and worker training if required.
