Customization: Available
After-sales Service: All Life Online Support
Warranty: 18 Months
Send Inquiry

Product Description

Basic Info.
Model NO.
ZS-Wall Panel
Product Type
Exterior Wall Decoration Cladding Panel
Automatic Grade
Automatic
Power Source
Electric
Certification
CE, ISO
Thickness
0.4-0.6
Working Material
PPGI, Gi
Forming Station
18 Steps
Control System
PLC
Product Speed
15-20m/Min
Diameter of Shaft
70mm
Power
5.5kw
Product Description

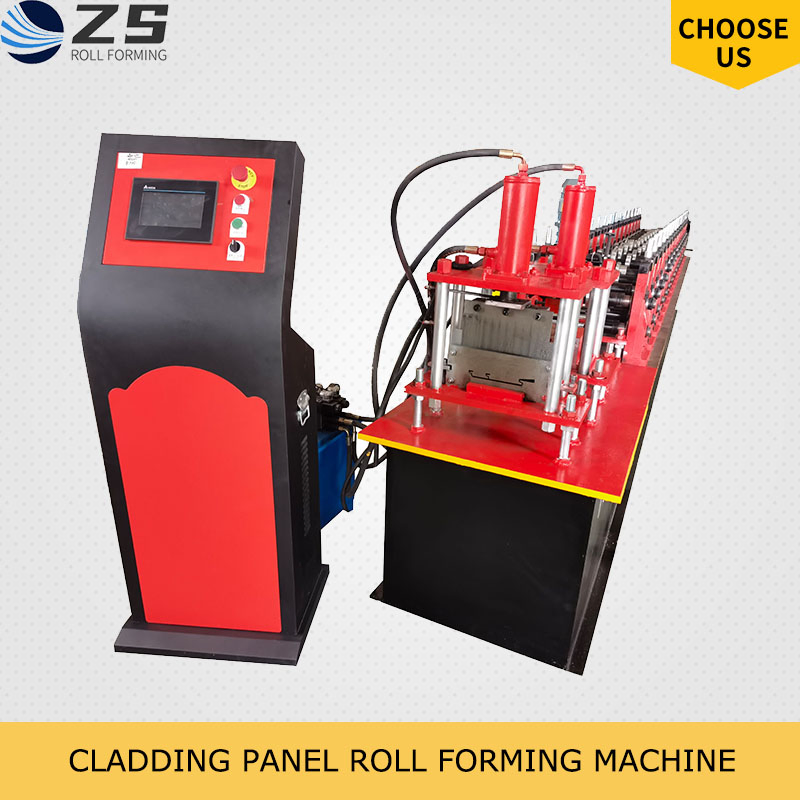

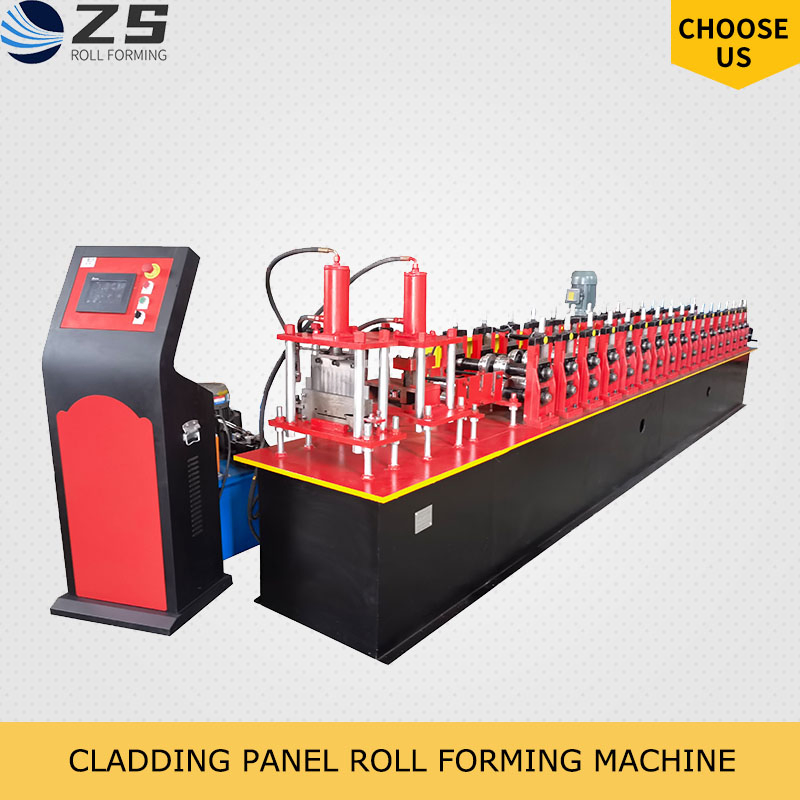

Exterior Wall Decoration Cladding Panel Self-locking Roll Forming Machine
Our state-of-the-art machine is meticulously crafted to satisfy all your production requirements. It adeptly rolls holes on surfaces and accurately punches side holes. Produce two distinct sizes by merely adjusting the space and cutting blade.

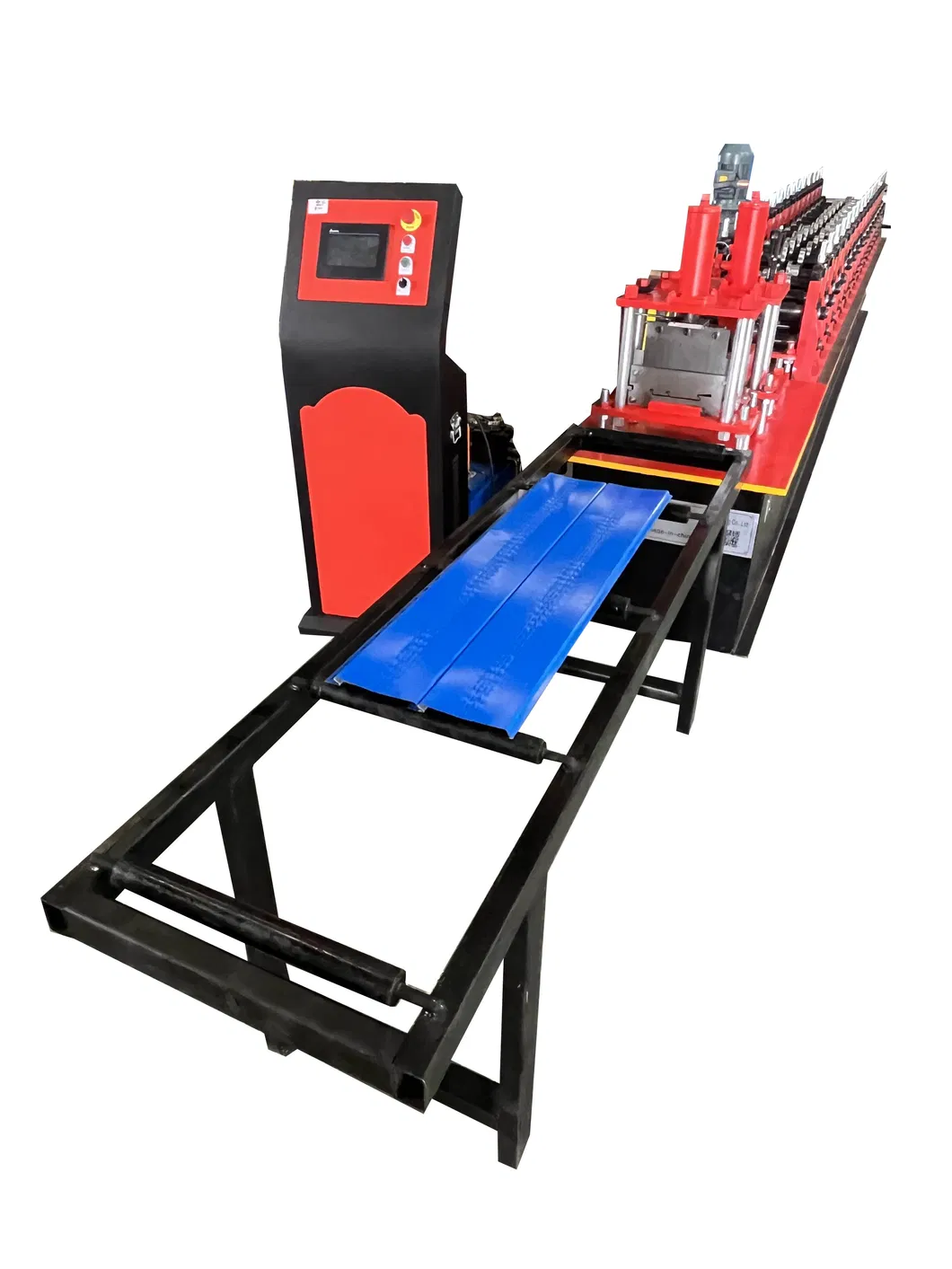

Roll Forming Machine

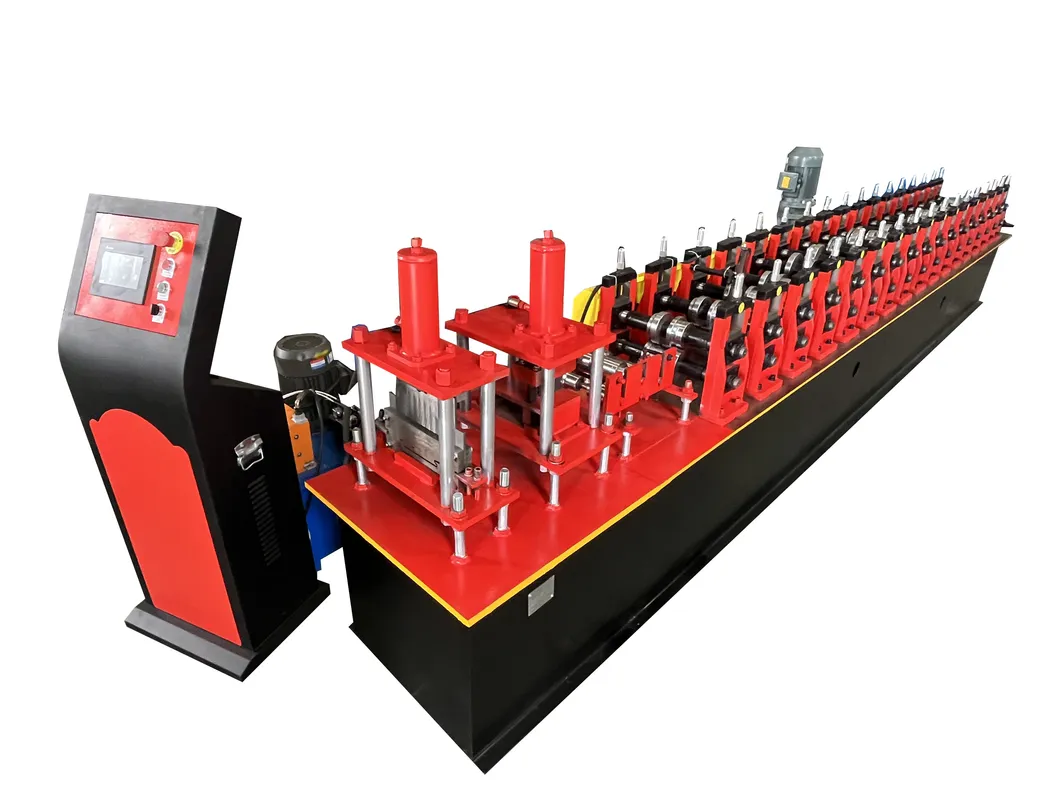

Machine Overview
🛠️ Profiles & Customization
We offer customization services, tailoring the machine to match your specific designs and requirements.

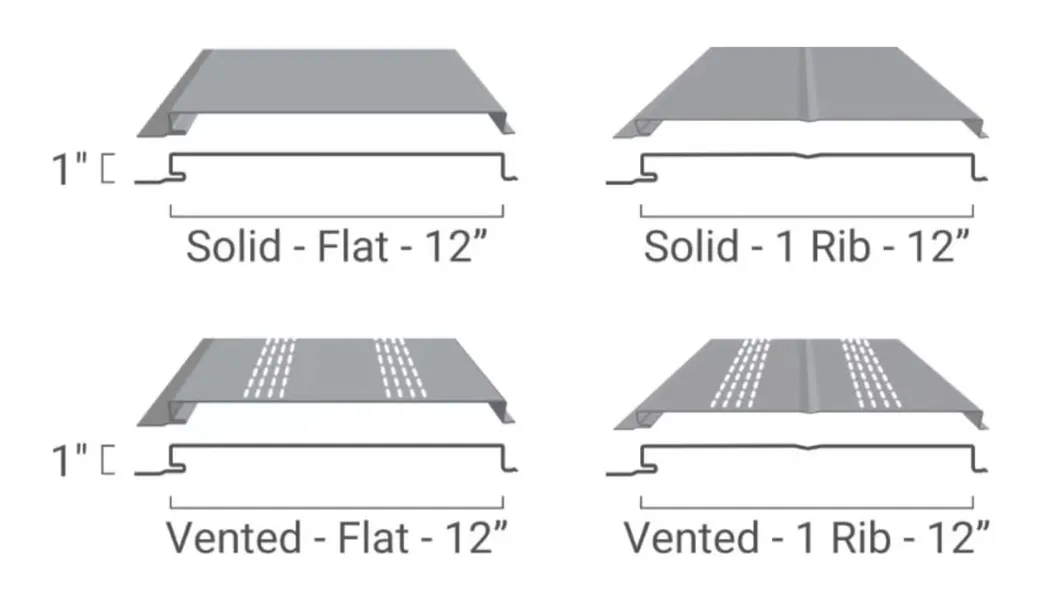

Profiles
Roll Forming Machine Components
No. Name Qty
1De-coiler1 Set
2Forming Machine1 Set
3Hydraulic Cutting Device1 Set
4PLC Control Box1 Set
5Hydraulic Pump Station1 Set
6Production Support Table1 Set
🔄 Working Flow:
Uncoiler ➜ Precision Feeder ➜ Rolling Holes ➜ Seamless Roll Forming ➜ Precision Punching ➜ Automatic Cutting ➜ Receiving Tables
Detailed Photos

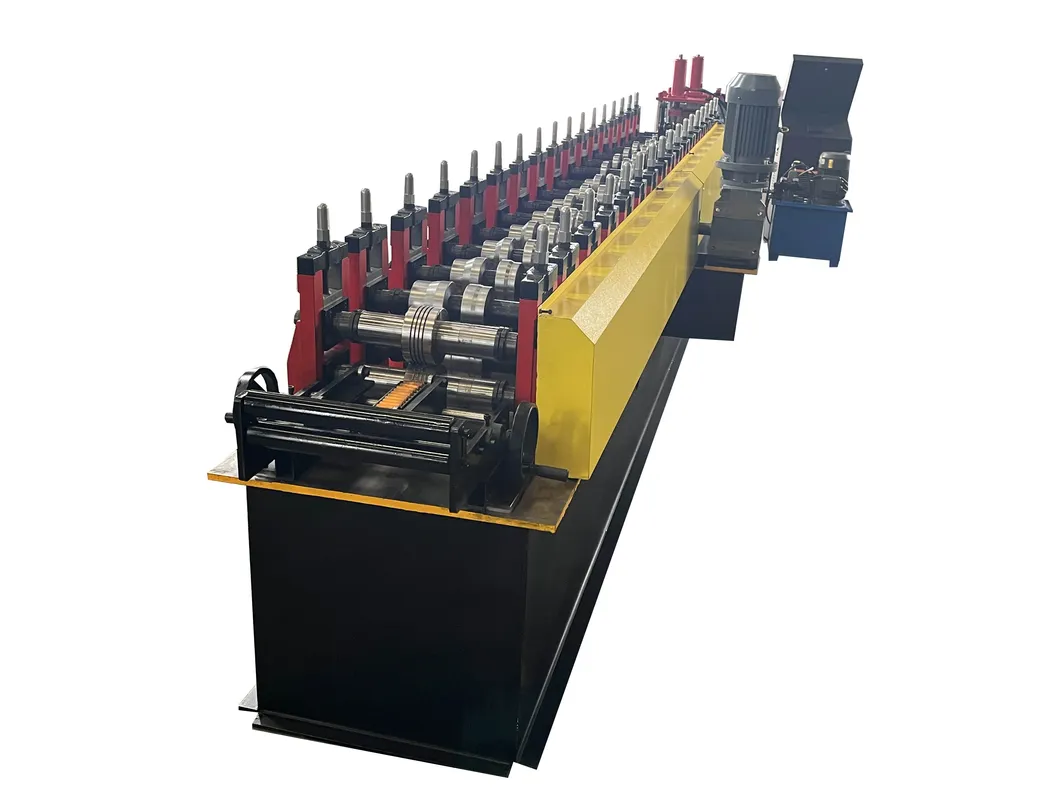

Feeder System

Feeder System: Stable operation with zero coil swing. Working width up to 600mm.

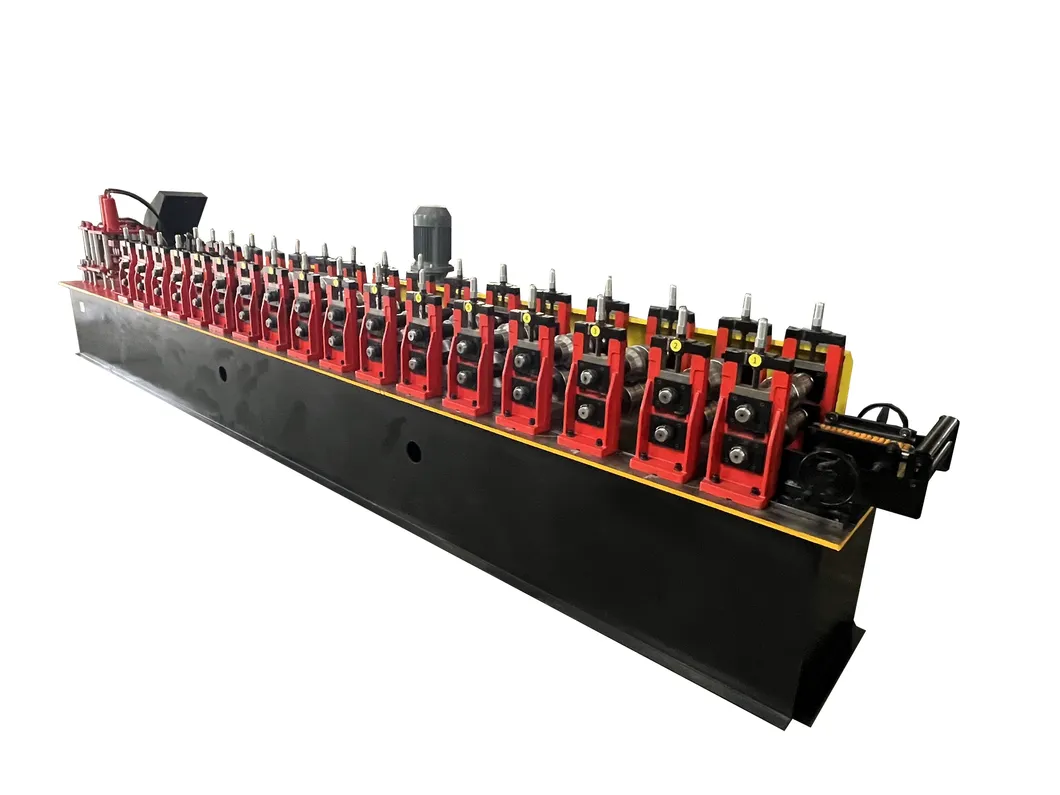

Forming System

Main Roll Forming: Robust casting steel structure. Cr12 Rollers with 70mm diameter shaft.

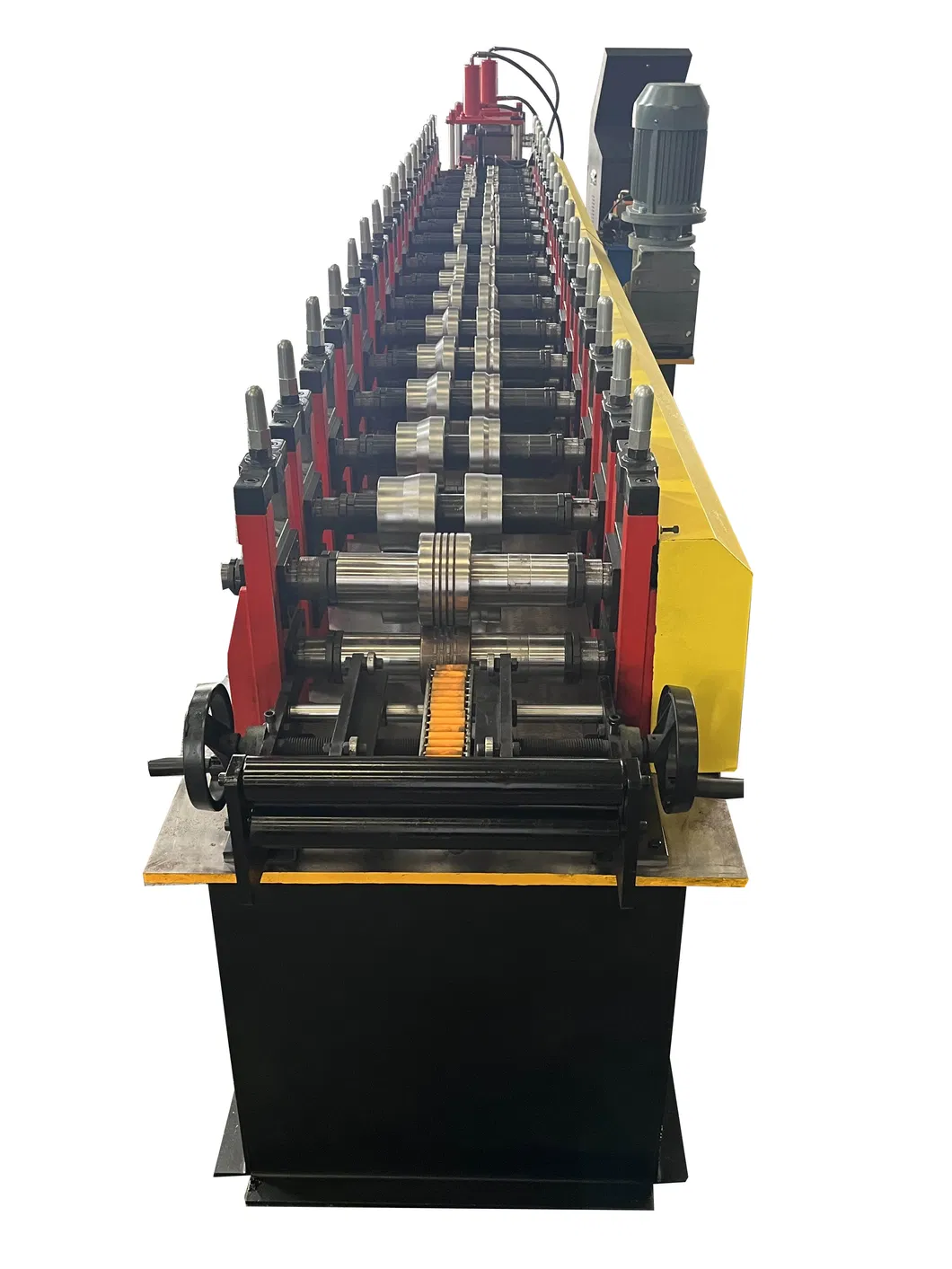

Roller Details

Roller Details: CNC-center processing for high accuracy and flawless surface finish.

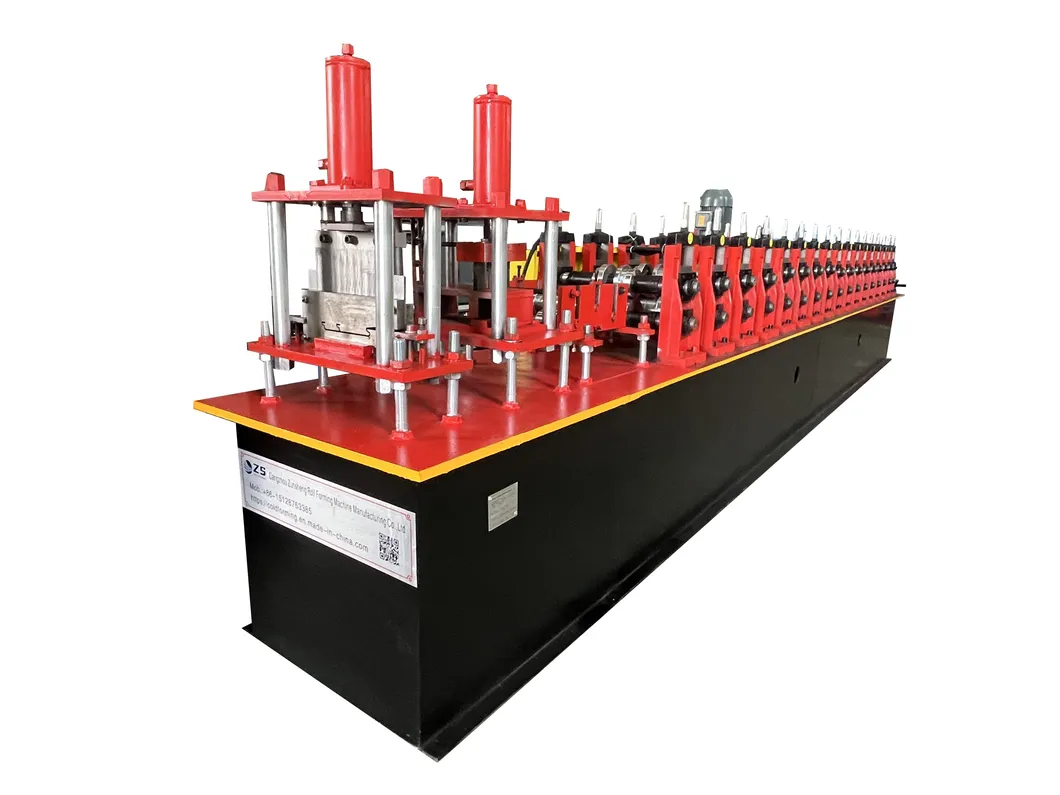

Cutting System

Hydraulic System: Standard hydraulic cutter with Cr12 blade and customizable punching.

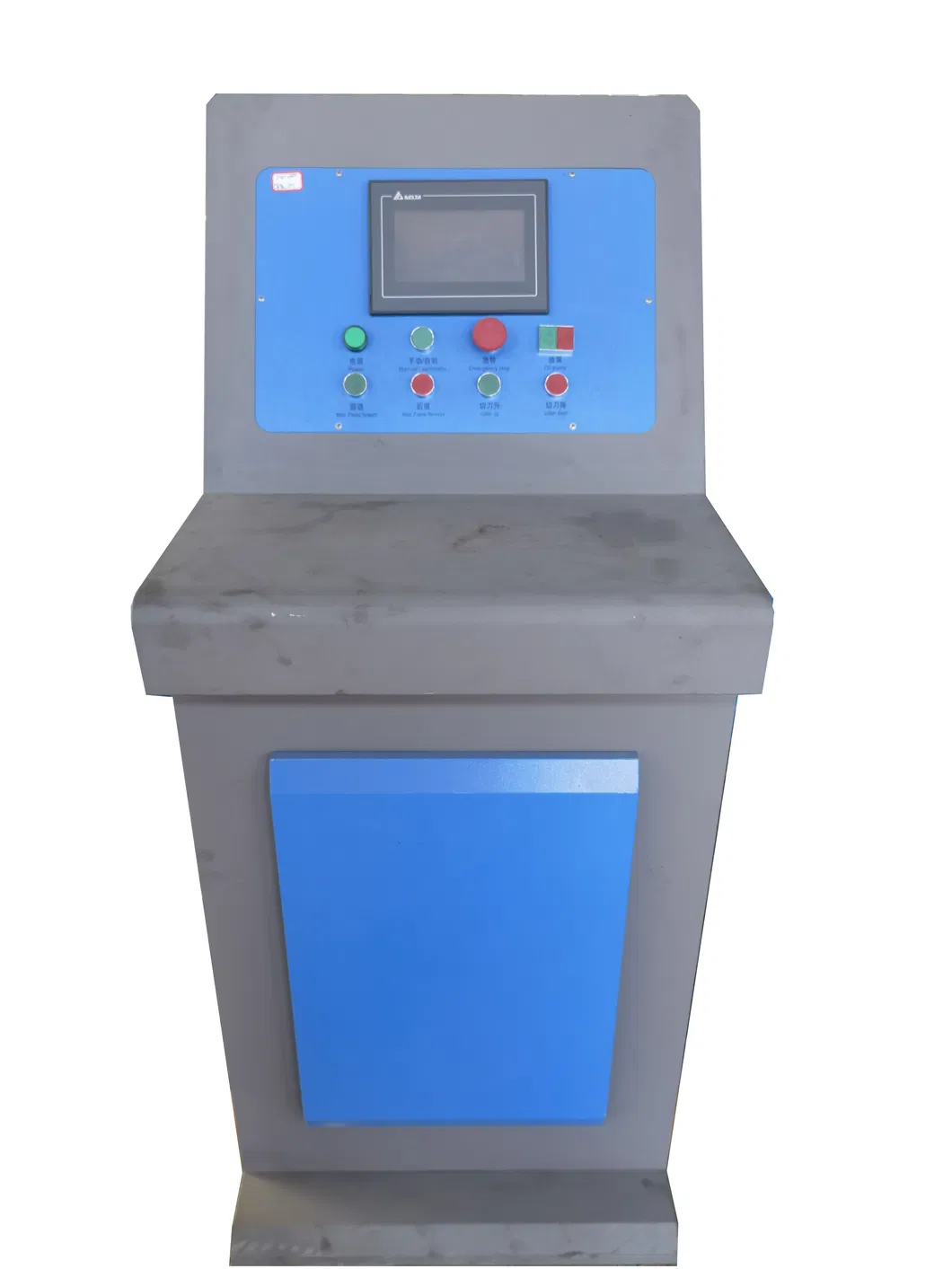

PLC Control

PLC Control: Delta brand touch screen, user-friendly operation with high precision.

Oil Pump

Hydraulic Oil Pump: 4kW power equipped with efficient fan cooling system.

Control System Specifications
PLC & InverterSiemens (German brand) Or Delta (Taiwan brand)
Touch Screen7-Inch Color Screen (Siemens or Delta)
EncoderOmron (Japan brand)
Air SwitchLG-LS (Korea brand)
ToleranceCut-to-Length ≤±1 mm
After-Sale Service & Trade Terms
✅ Service Guarantee:
  • 18-month warranty from receipt.
  • Free replacement parts shipment within warranty period.
  • Lifetime technical support.
  • Technicians available for onsite installation and training.
MOQ1 Set
Delivery TimeAbout 60 workdays
Payment TypeT/T or L/C
PackingPlastic film cover, fixed with steel rope in container

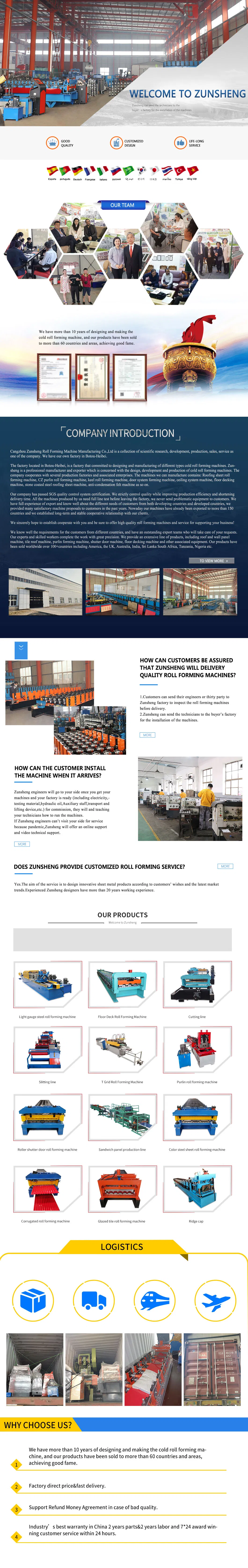

Our Advantages
Our Advantages
Frequently Asked Questions
What materials can this machine process?
The machine is designed to work with PPGI and Gi materials with a thickness range of 0.4-0.6mm.
What is the production speed of the roll forming machine?
The machine operates at a high-efficiency speed of 15-20 meters per minute.
Can the profile design be customized?
Yes, we provide full customization services to tailor the machine according to your specific profile designs and technical requirements.
What kind of control system is used?
We use high-quality PLC control systems from brands like Delta or Siemens, featuring user-friendly touch screens.
What is the warranty period for this equipment?
We provide a comprehensive 18-month warranty from the date of receipt, along with enduring lifetime technical support.
How many workers are required to operate the machine?
Due to the automatic PLC control system, only 1-2 persons are needed to operate the entire production line.
