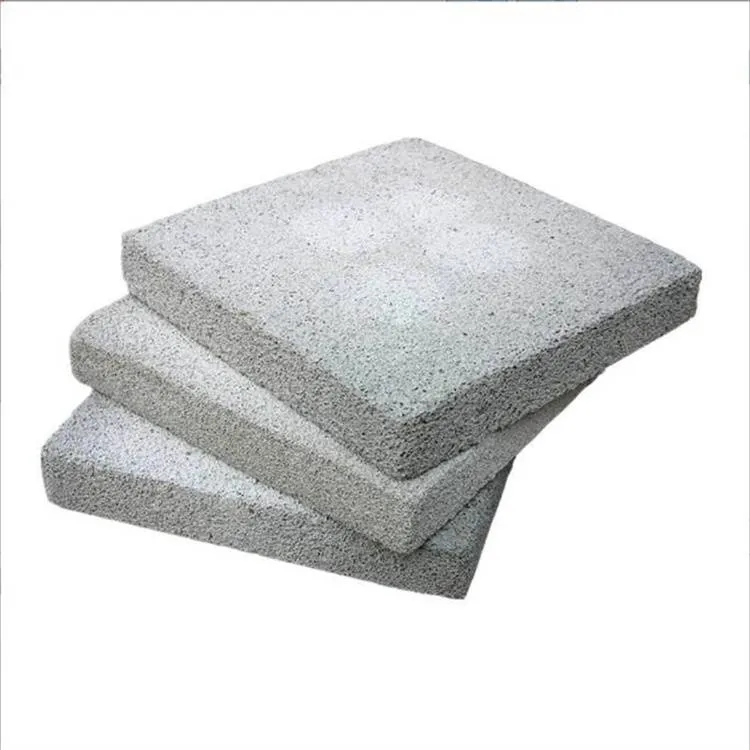

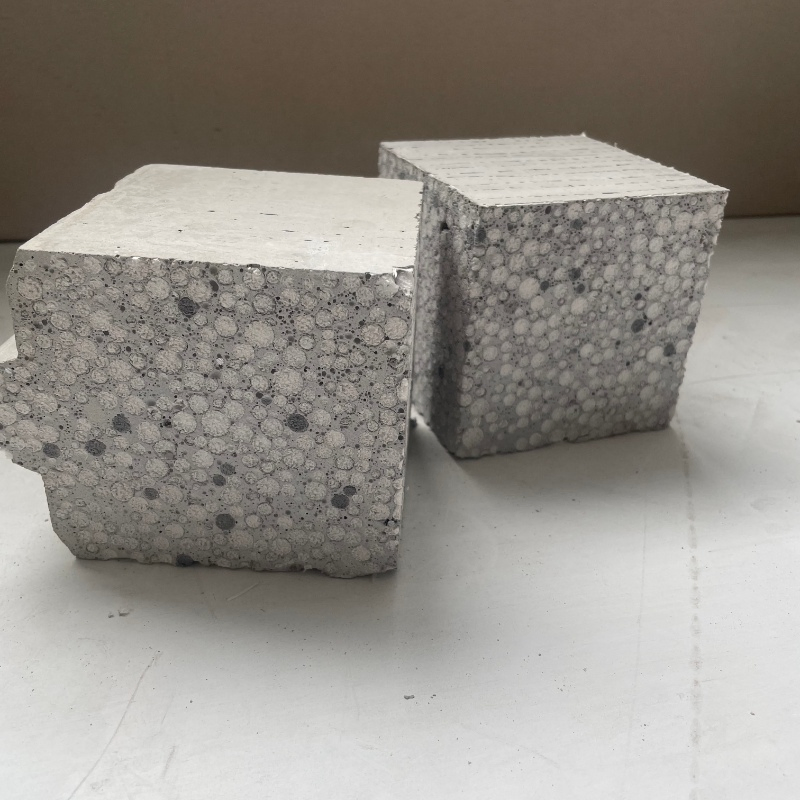

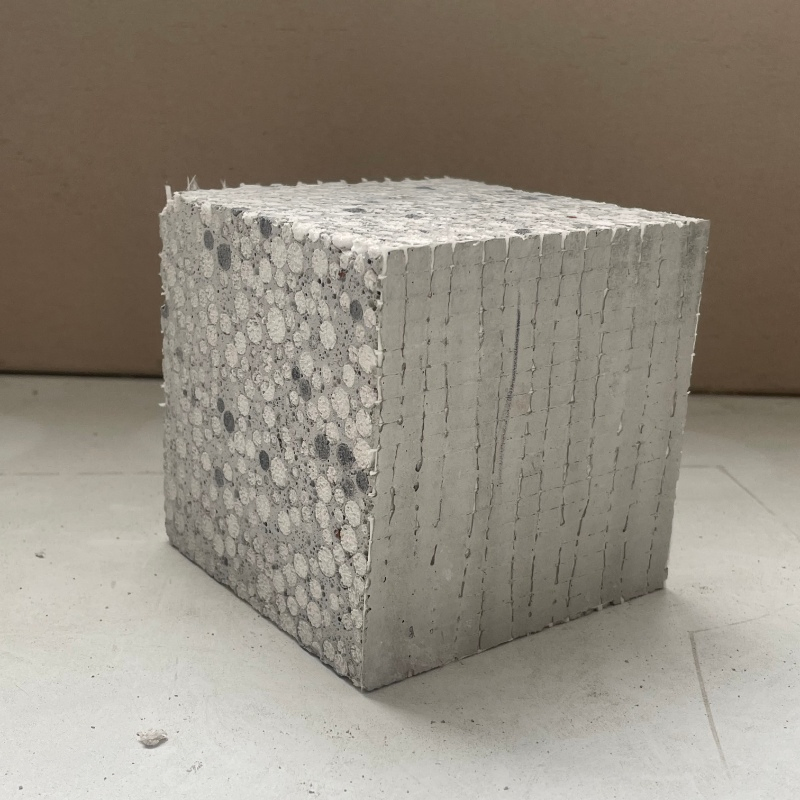

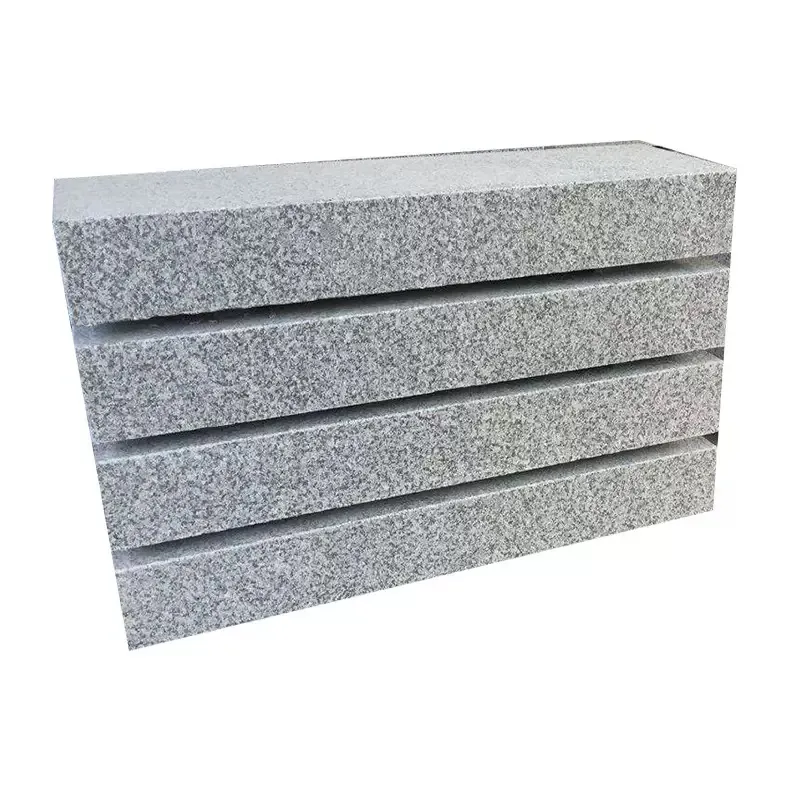

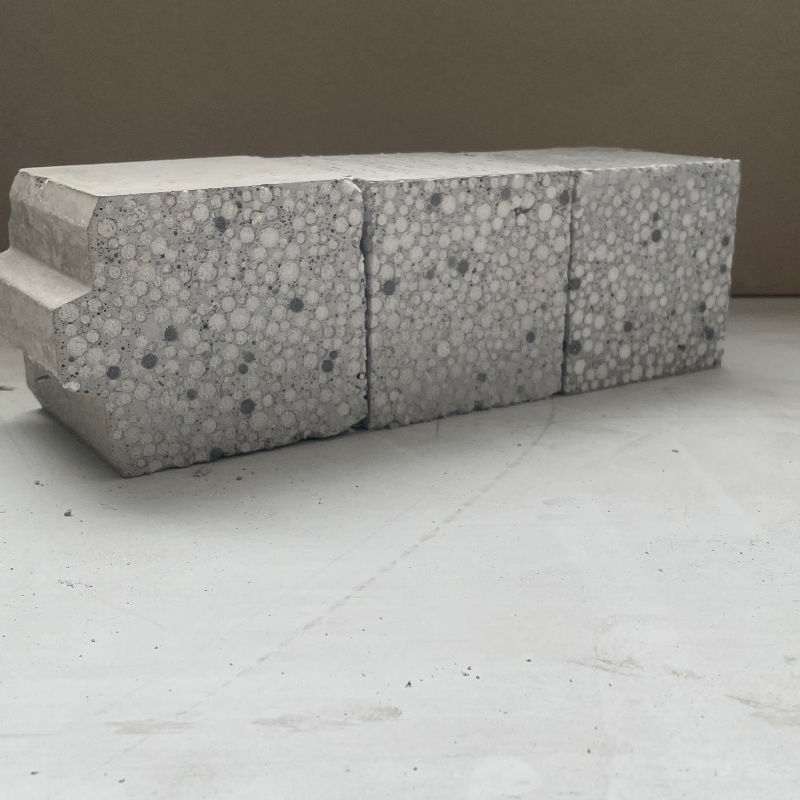

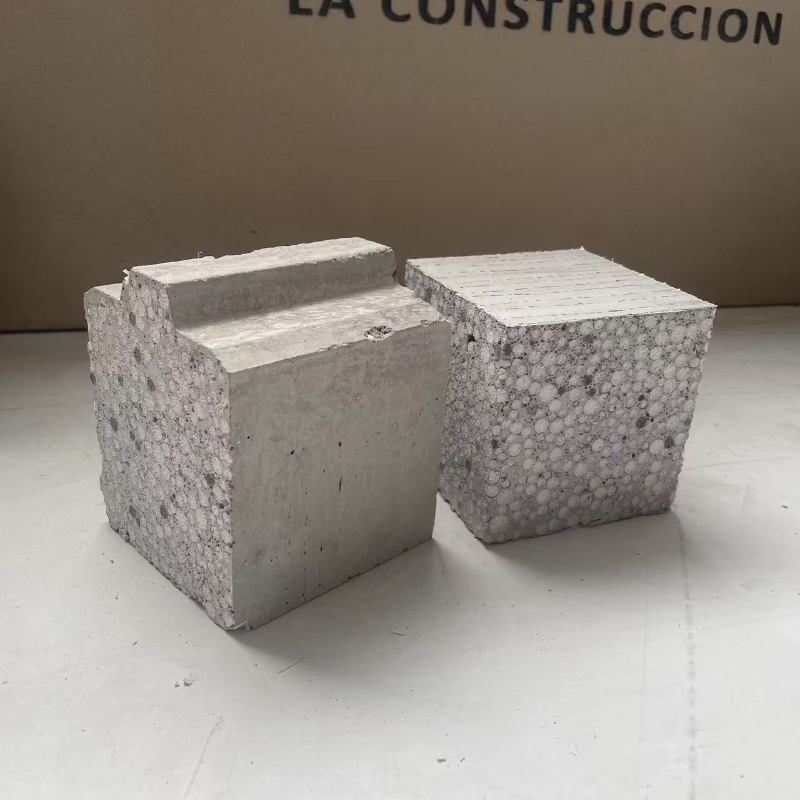

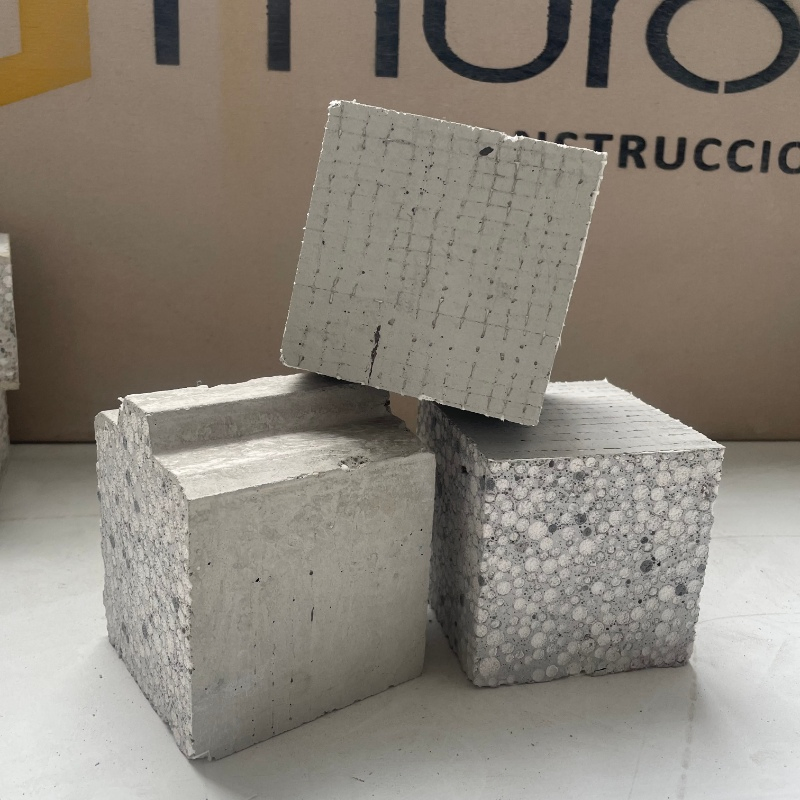

The HBC Prefabricated EPS Interior Partition Wall is a lightweight, modular, and non-load-bearing wall system designed for fast installation in residential, commercial, and industrial interiors. Unlike traditional panels, it uses pure EPS foam core combined with a reinforced polymer-cement coating for structural stability. This product excels in flexibility, sound insulation, and cost efficiency, making it ideal for modern drywall construction.
| Parameter | Specifications | Testing Standard |
|---|---|---|
| Standard Size | 610mm (W) × 3000mm (H) × 50-200mm (T) | ISO 8335 |
| Customizable Sizes | Length: ≤6000mm; Thickness: 50-300mm | ASTM C1289 |
| Tolerance | ±2mm (thickness), ±5mm (length/width) | EN 14509 |
| Parameter | Value | Standard |
|---|---|---|
| EPS Core Density | 18-30kg/m³ (standard), 45kg/m³ (high-strength) | ASTM D1622 |
| Compressive Strength | 110-140 kPa (at 10% deformation) | ISO 844 |
| Thermal Conductivity | 0.033-0.038 W/(m·K) | ASTM C518 |
| Sound Insulation | 35-45 dB (for 100mm thickness) | ISO 10140-2 |
| Fire Rating | Class B1 (EN 13501-1) / ASTM E84 Class 1 | EN 13501-1 |
| Water Absorption | ≤3% (by volume) | ASTM C272 |
Common Applications: Residential Buildings, Commercial Spaces, and Industrial Facilities.
Installation: Our standardized rapid installation system requires minimal tools and provides a step-by-step process for efficient wall construction.

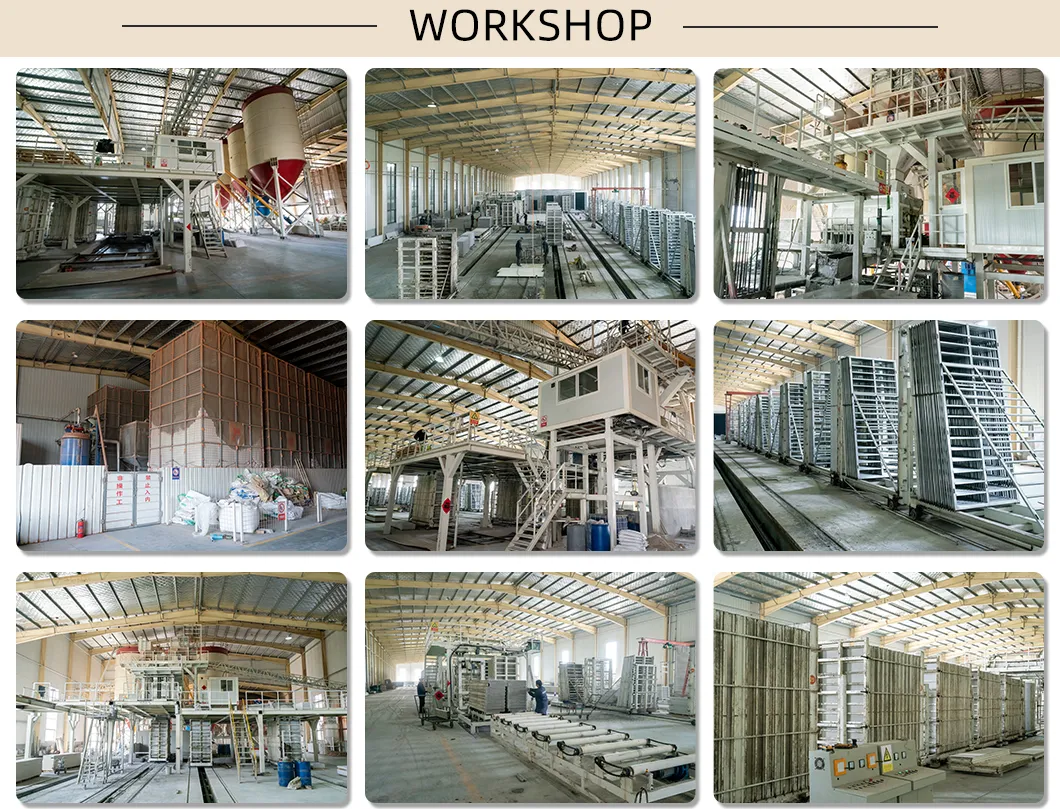

Operating a high-tech facility spanning 20,000 square meters with modern production lines, we focus on green, environmentally friendly, and energy-saving wall materials. Our annual capacity exceeds 1 million square meters of lightweight composite wall panels.
