Exterior Facade Panel Honeycomb Composite Panels, Used for Laboratory Wall Panels, Hotel Wall Cladding Panel, and Architectural Aluminum Composite Materials

1 / 5

Exterior Facade Panel Honeycomb Composite Panels, Used for Laboratory Wall Panels, Hotel Wall Cladding Panel, and Architectural Aluminum Composite Materials

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:76109000

Material:Stainless steel

Performance:High Intensity

Function:Exterior Walls, Walls, Ceilings, Partitions, Ships

Level:A

Application:Architecture, Marine/Transport, Hygienic Spaces

Surface Treatment:PVDF, PE/Polyester, Wood, Brushed, Polished

Thickness:6mm to 30mm or Customized

Service Life:25+ Years

Sound Insulation:RW 30 dB

Peel Strength:>8 MPa

Fire Prevention:Class A

Product Description

🛡️Stainless Steel Honeycomb Composite Panel

Ideal for architectural cladding, marine interiors, and high-end applications, our panels combine aesthetic excellence with structural integrity.

🚀Ultra-Lightweight

60% lighter than solid stainless steel plates. Bending rigidity up to 1.8×10(5) N·mm²/m.

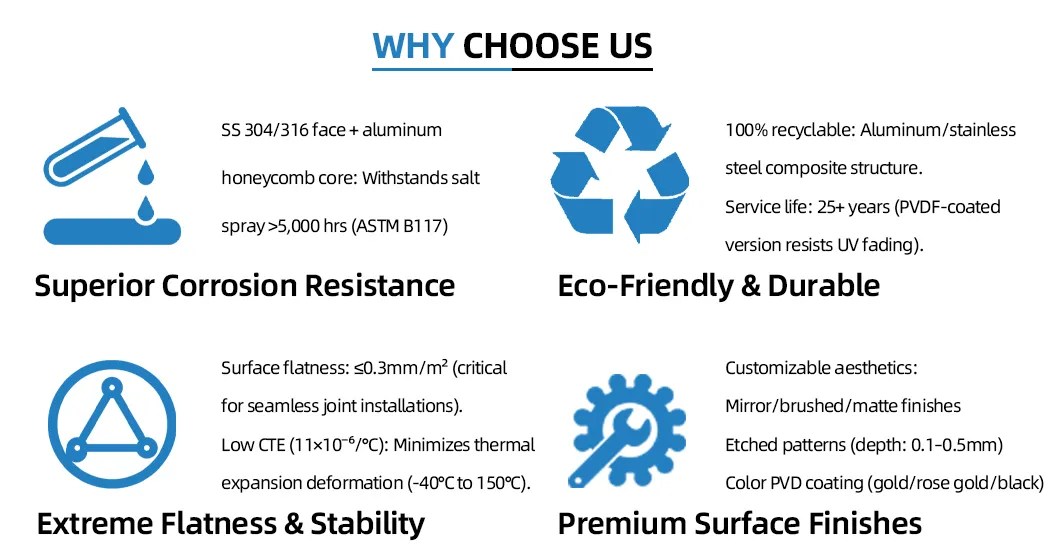

🌊Corrosion Resistance

SS 304/316 face + aluminum honeycomb core: Withstands salt spray >5,000 hrs.

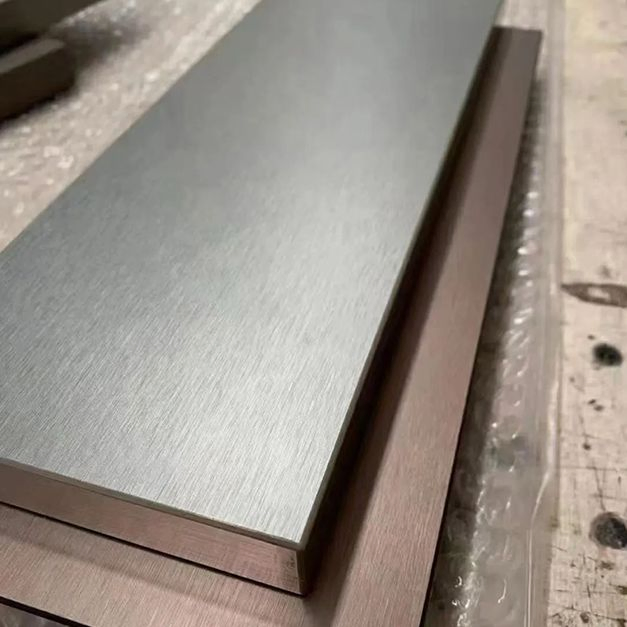

✨Premium Surface

Anti-fingerprint coating with customizable Mirror, Brushed, Matte, or PVD color finishes.

🔥Fire Safety & Hygiene

Class A fire rating (EN 13501-1). Optional Ag-ion antibacterial coating for medical labs.

Technical Specification

Certifications	EN 13501-1, ASTM C297/C365, LEED v4.1	Peel strength	>8 MPa (vacuum hot pressing)
Sound insulation	Rw 30 dB (20mm panel, ISO 10140)	Target Markets	Architecture, Marine, Hygienic Spaces, Commercial
Packaging	Export-grade plywood boxes	Fire Rating	Class A Non-combustible
Production Capacity	100,000 m²/year	Flatness	≤0.3mm/m²

Engineered Composite Solutions

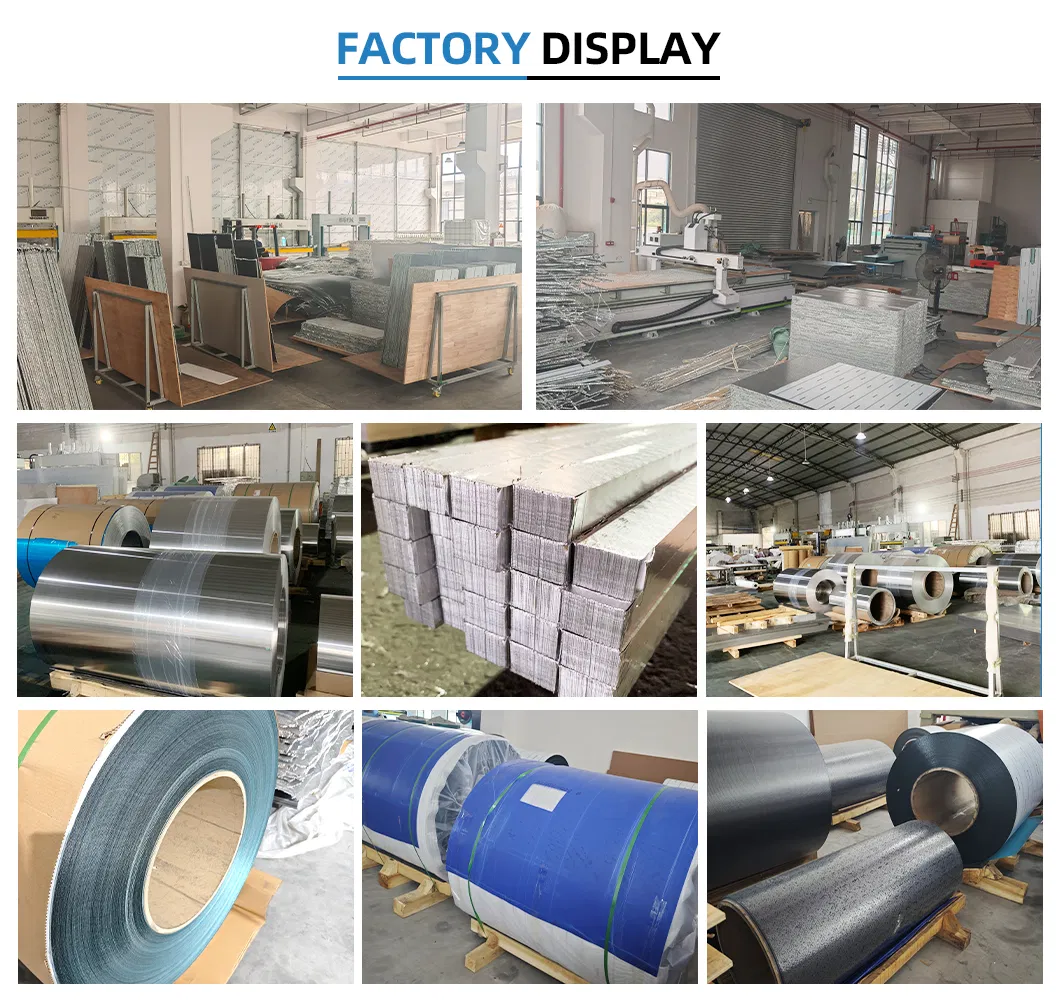

With 10 years of specialized expertise in advanced honeycomb composite panels, we deliver precision-engineered solutions for architectural facades and industrial applications worldwide. Our 15,000m² production base is equipped with automated cutting lines and CNC routers to ensure strict QC protocol adherence to GB, ASTM, and EN standards.

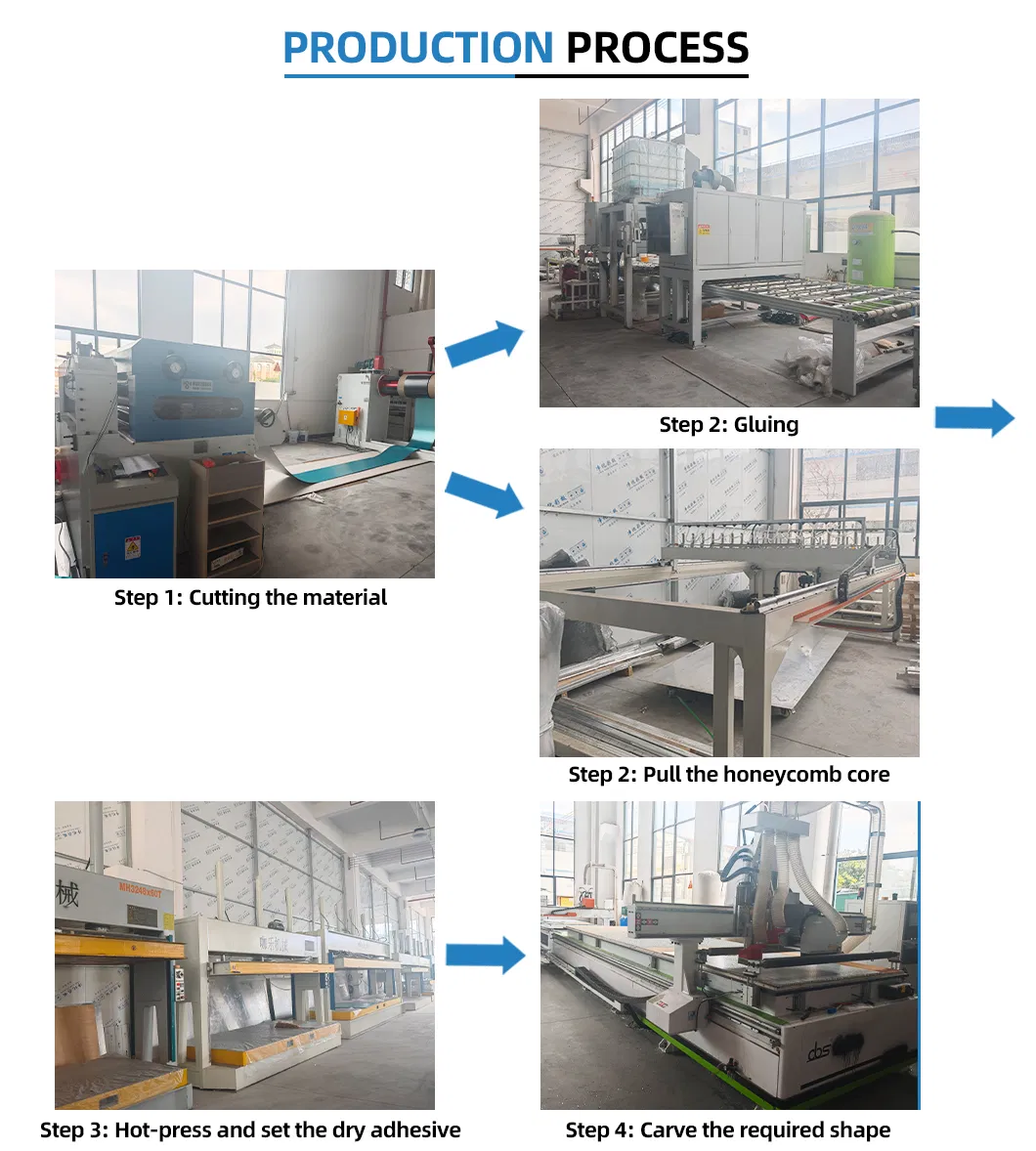

Production Process

Raw Material Prep: AA3003/AA5052 aluminum coils and foil are degreased and cleaned.

Pre-Treatment: Chemical conversion (chromating) and PVDF coating cured at 230℃.

Core Stabilization: Honeycomb core expanded to target cell size and density controlled.

Composite Bonding: Vacuum hot pressing at 120-140℃ under 0.8-1.2MPa pressure.

Post-Processing: CNC trimming, grooving, and edge sealing to tolerances of ±0.5mm.

Quality Control: Peel tests (≥7N/mm) and laser scanning for flatness.

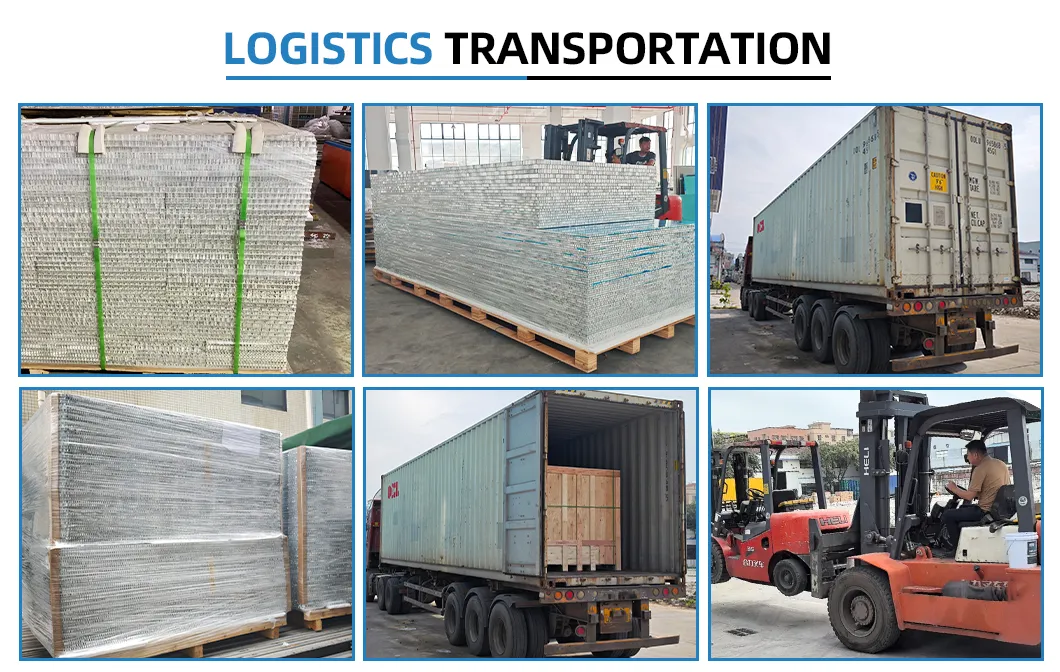

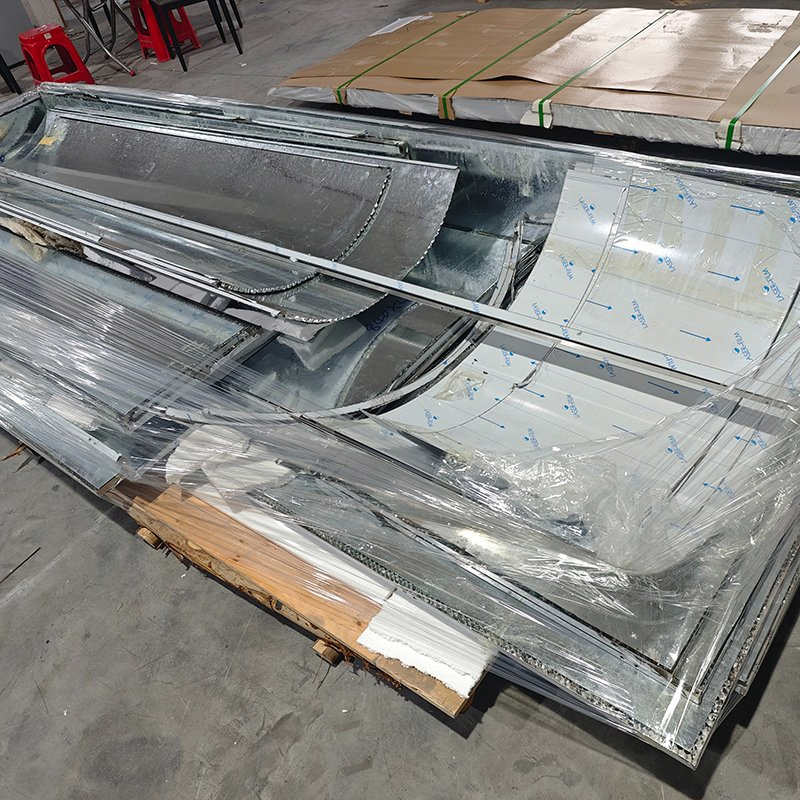

Packing & Logistics

Frequently Asked Questions

Q1: What are the main benefits of using a honeycomb core versus a solid plate? Honeycomb panels provide extreme lightweight properties (60% lighter) while maintaining higher bending rigidity and superior flatness, making them ideal for large-scale facade installations.

Q2: Are these panels fire resistant? Yes, our panels achieve a Class A fire rating according to EN 13501-1 standards, utilizing non-combustible cores and fire-retardant adhesives.

Q3: Can the surface be customized for marine environments? Absolutely. We use SS 316 grade faces for marine applications, which provide salt spray resistance for over 5,000 hours, ensuring durability in coastal or offshore settings.

Q4: What is the maximum size available for these panels? We support bespoke sizes up to 2000mm in width and 10000mm in length, with thicknesses ranging from 6mm to 50mm depending on structural requirements.

Q5: Is the material recyclable? Yes, the aluminum and stainless steel components are 100% recyclable, contributing to LEED v4.1 certifications for sustainable building projects.

Q6: How long is the expected service life? The panels are designed for longevity, with a service life of over 25 years, especially when treated with PVDF or anti-fingerprint coatings.
