Fiber Cement Board--En12467 Curtain Wall Color-Though Cladding CE Marking

1 / 5

Fiber Cement Board--En12467 Curtain Wall Color-Though Cladding CE Marking

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model:Kimbeck External Facade

Material:Fiber Cement Board

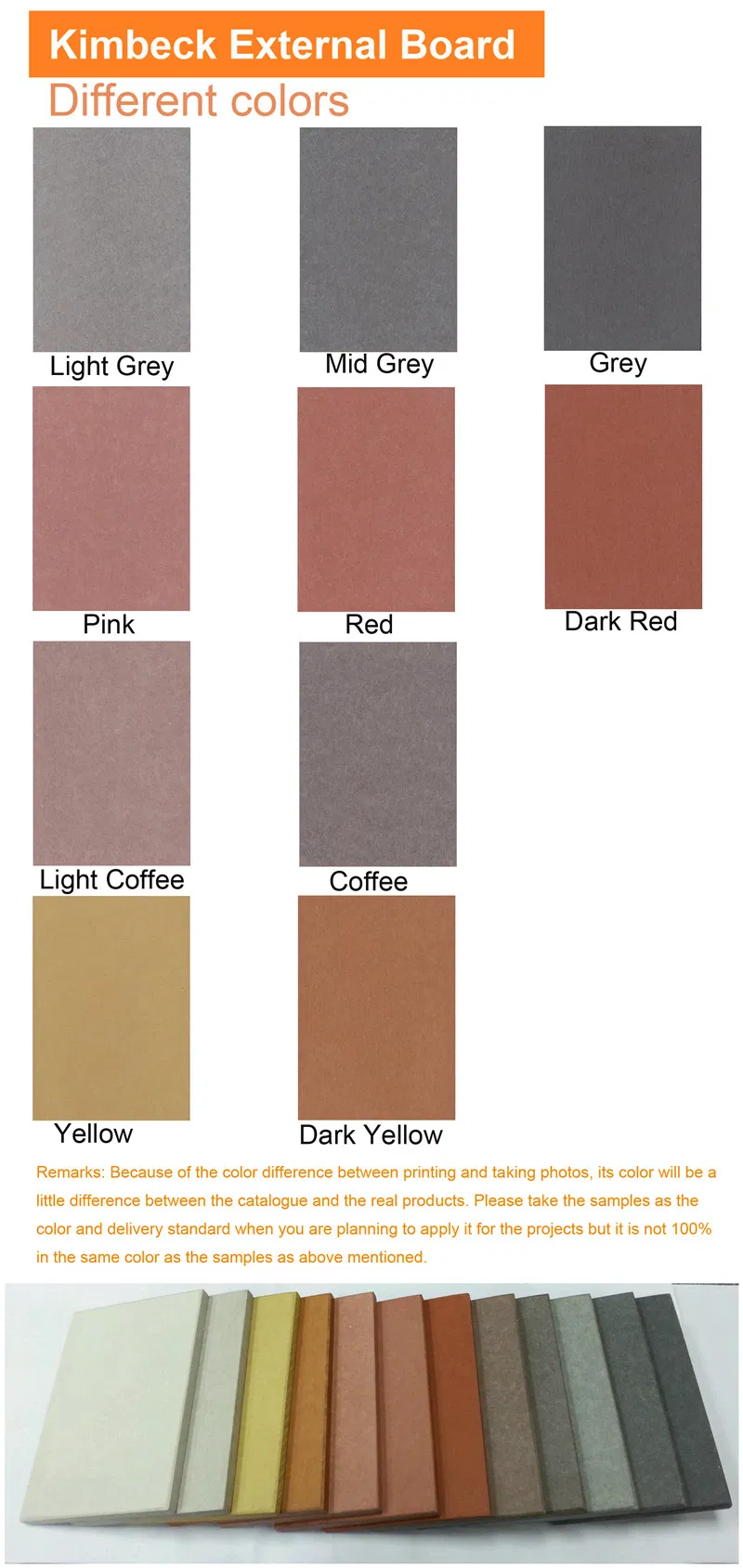

Standard Color:Grey, Red, Yellow, Coffee, White, Blue, etc.

Raw Material:Cellulose, Cement, Quartz Sand, Silica

Surface Finish:Un-Sanded / Sanded / Polished

Daily Capacity:30,000 sqm/Day

HS Code:6811820000

Specification:BS EN12467: 2012, Grade A1

Product Description

Kimbeck External Board is a premium fiber-reinforced cement board composed of Portland cement, sand, cellulose, and natural mineral substances. It is specifically designed for high-performance curtain walls and external cladding systems.

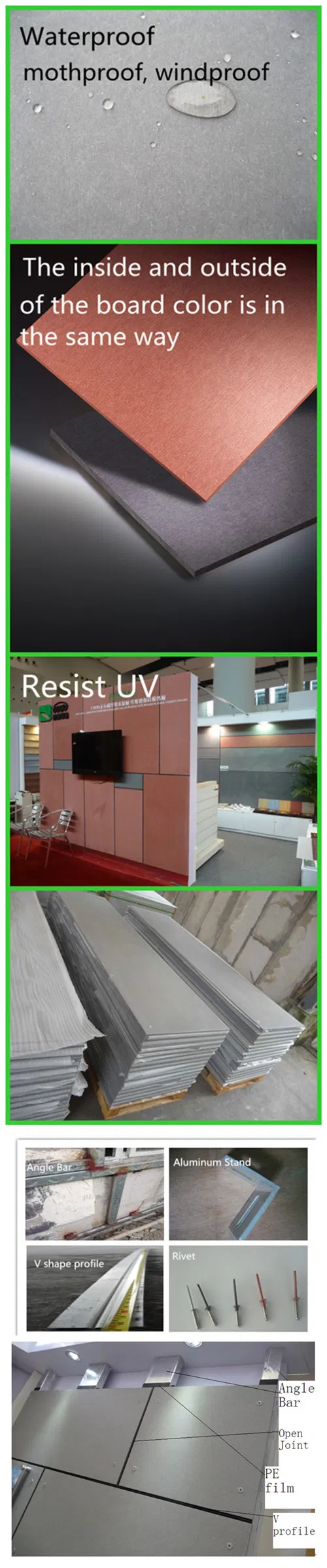

Key Characteristics & Benefits

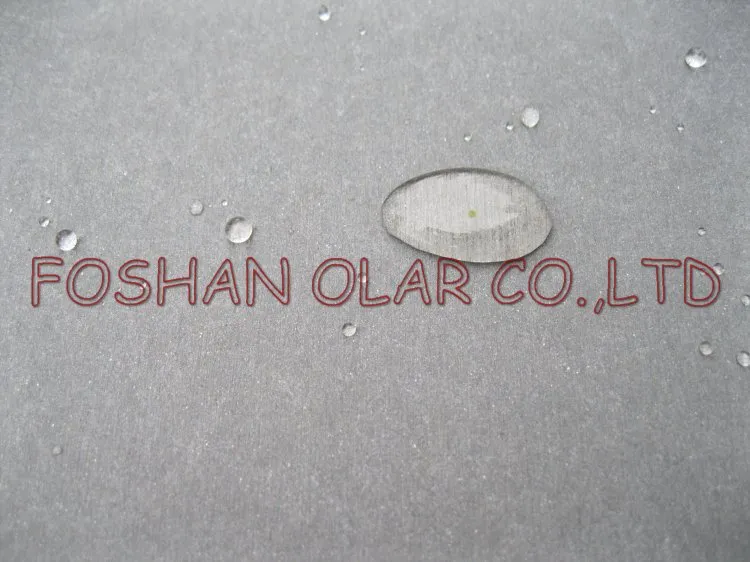

Superior Waterproofing: Specialized treatment prevents rain staining.
High Fire Resistance: Rated up to Grade A1 In-combustibility.
Durability: High anti-impact and bending strength for long-term use.
Eco-Friendly: 100% Non-Asbestos material.
Weather Resistance: Excellent performance in freezing-thawing cycles.
Energy Saving: Compatible with thermal insulation materials like Rock Wool.

Pro Tip: For enhanced thermal insulation, insulation materials (such as Rock Wool with density >80kg/m3) can be installed in the gap behind the panel. A minimum distance of 30mm is recommended between the panel and the insulation layer.

Technical Parameters

Kimbeck External Board Technical Data
Density	≥1400 KG/M³
Bending Strength	Cross: 13~20MPa; Parallel: 8~12MPa
Water Absorption	≤30%
Moisture Movement	≤ 0.20%
Thermal Conductivity	≤ 0.30w/(m·k)
Standard Size	122024409/12MM
Freeze-thaw	No cracking after 25 cycles
Warranty	More than 20 years

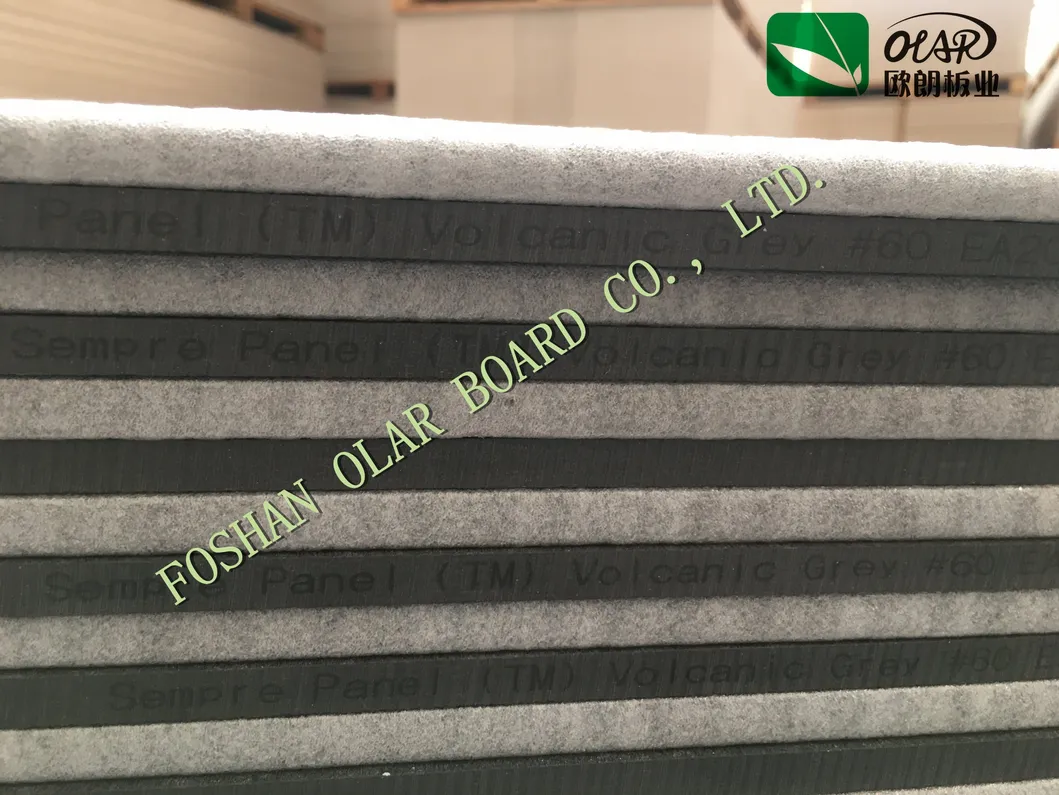

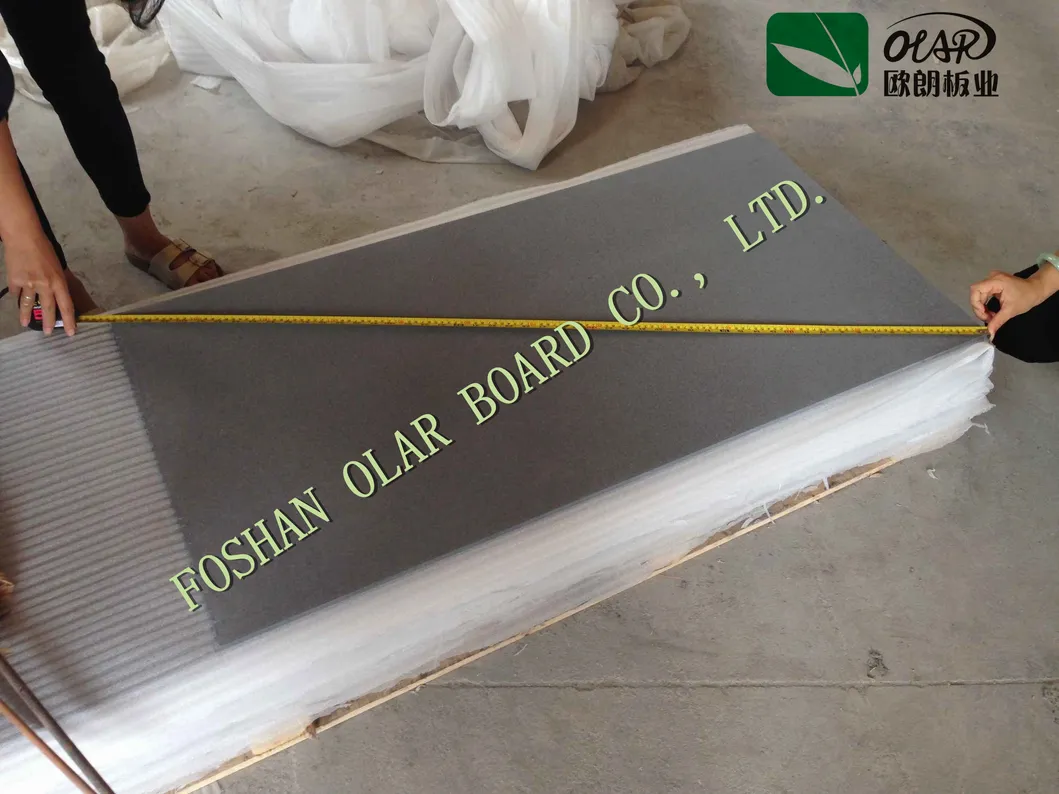

Quality Inspection & Certification

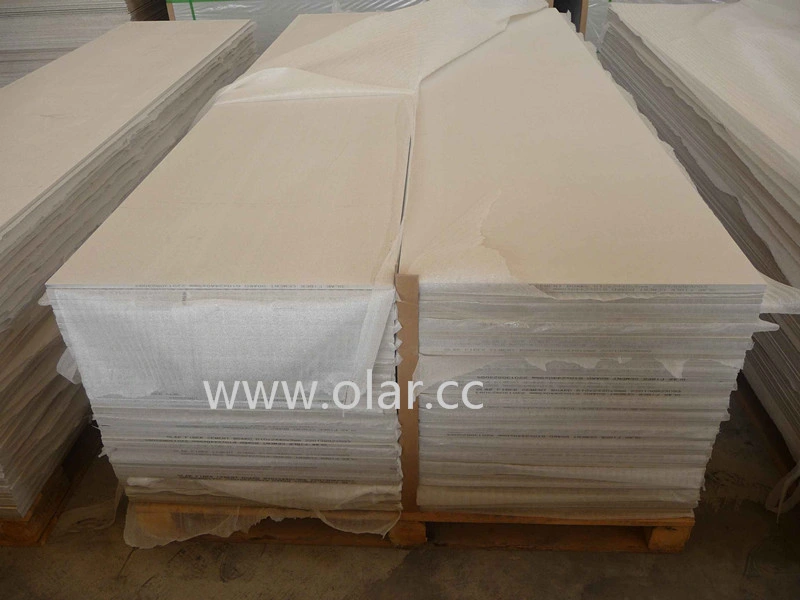

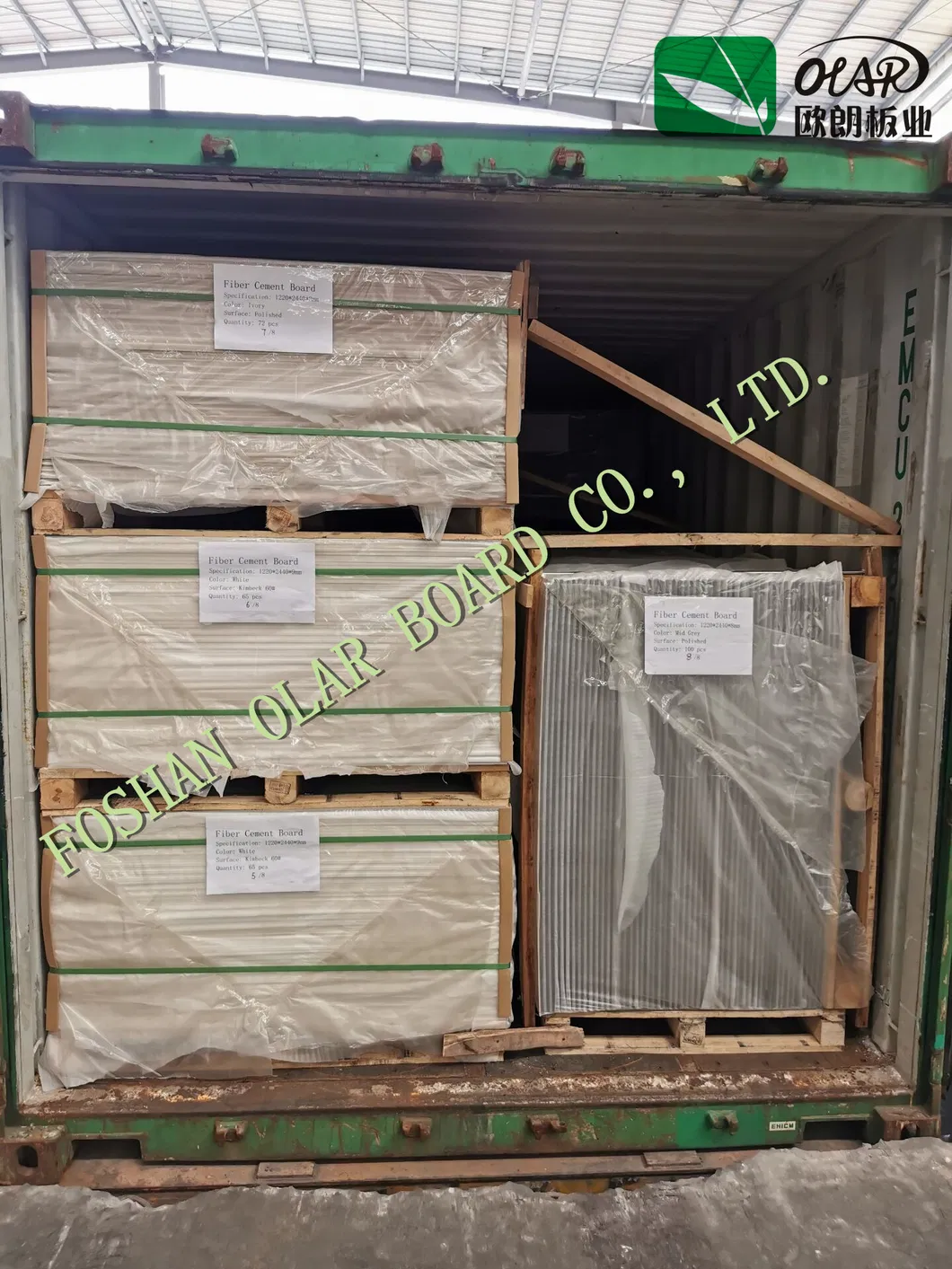

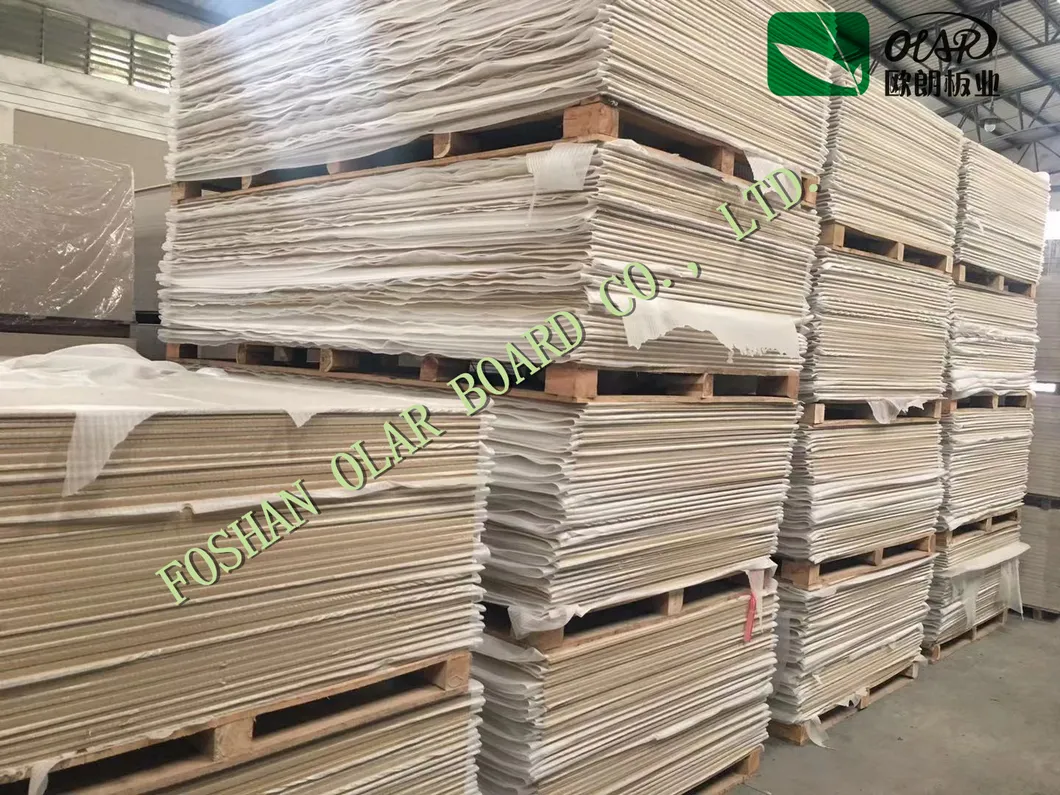

Packaging & Logistics

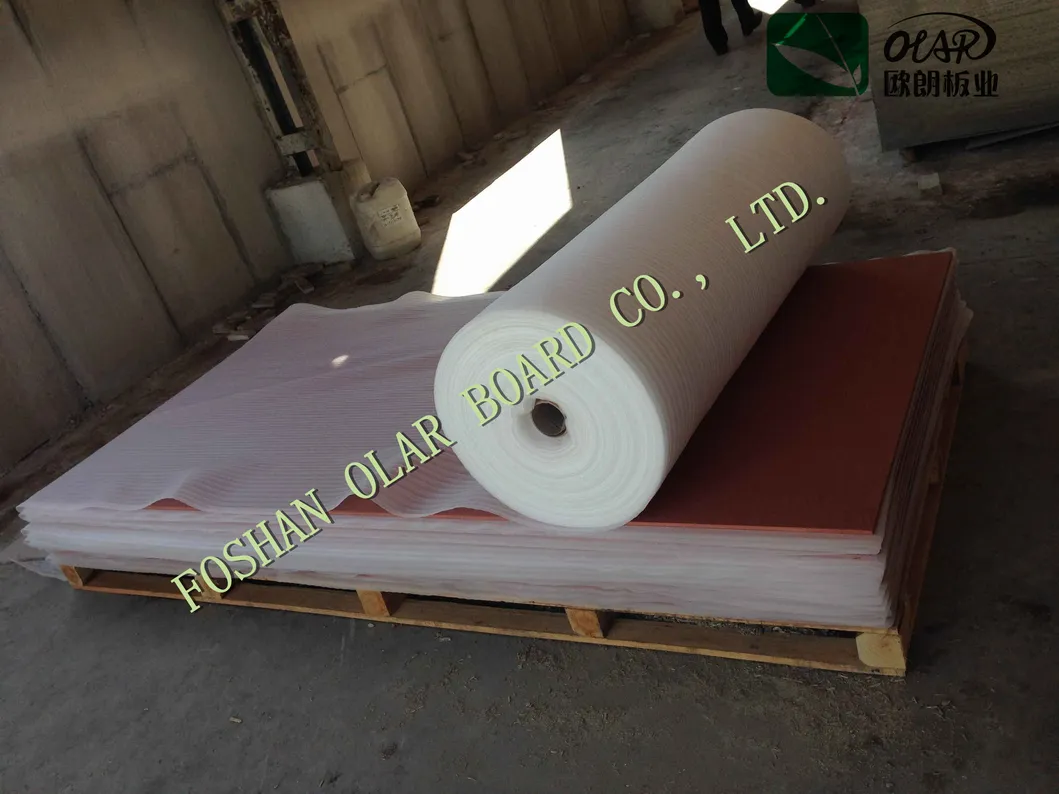

Packaging:Wooden Pallets with plastic belts and corner protection

Package Size:244cm * 122cm * 76cm

Gross Weight:3200.00kg per pallet

Lead Time:25-30 Working days (5 days for stock)

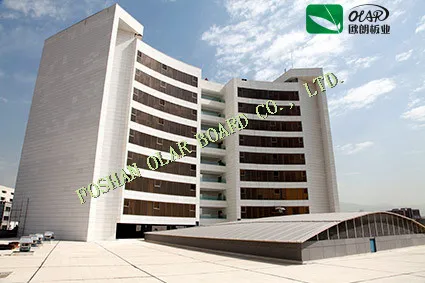

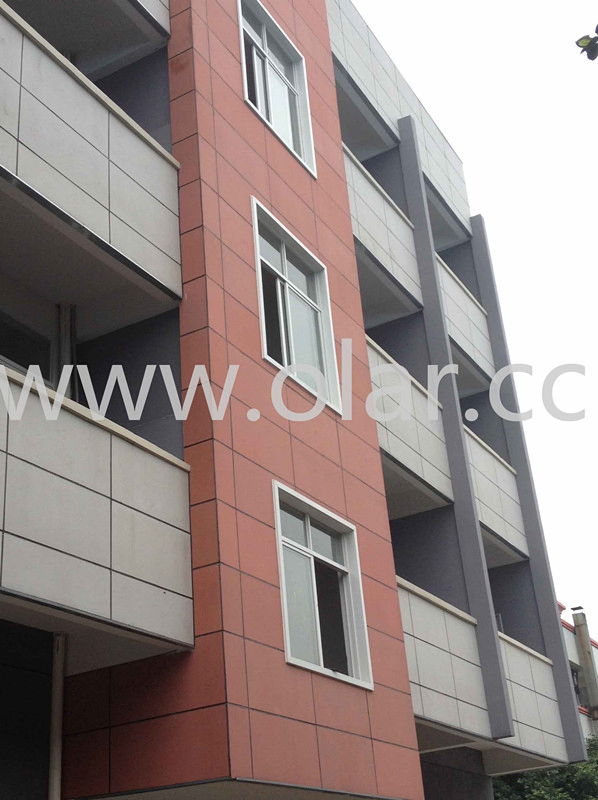

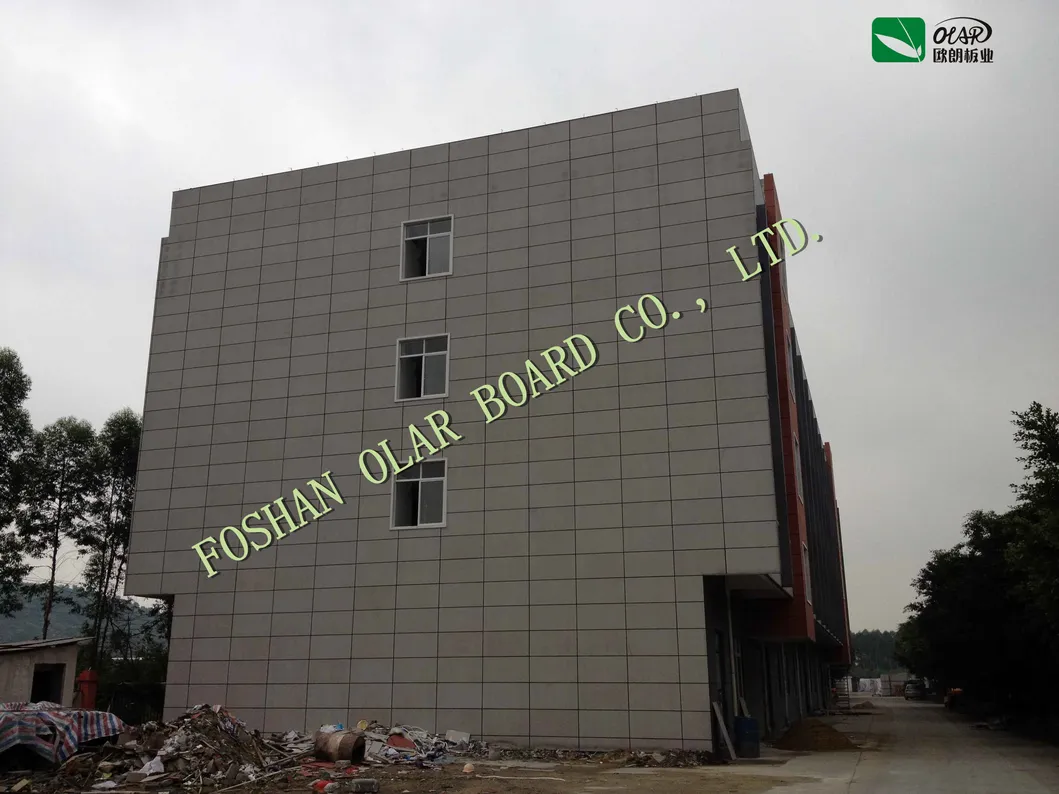

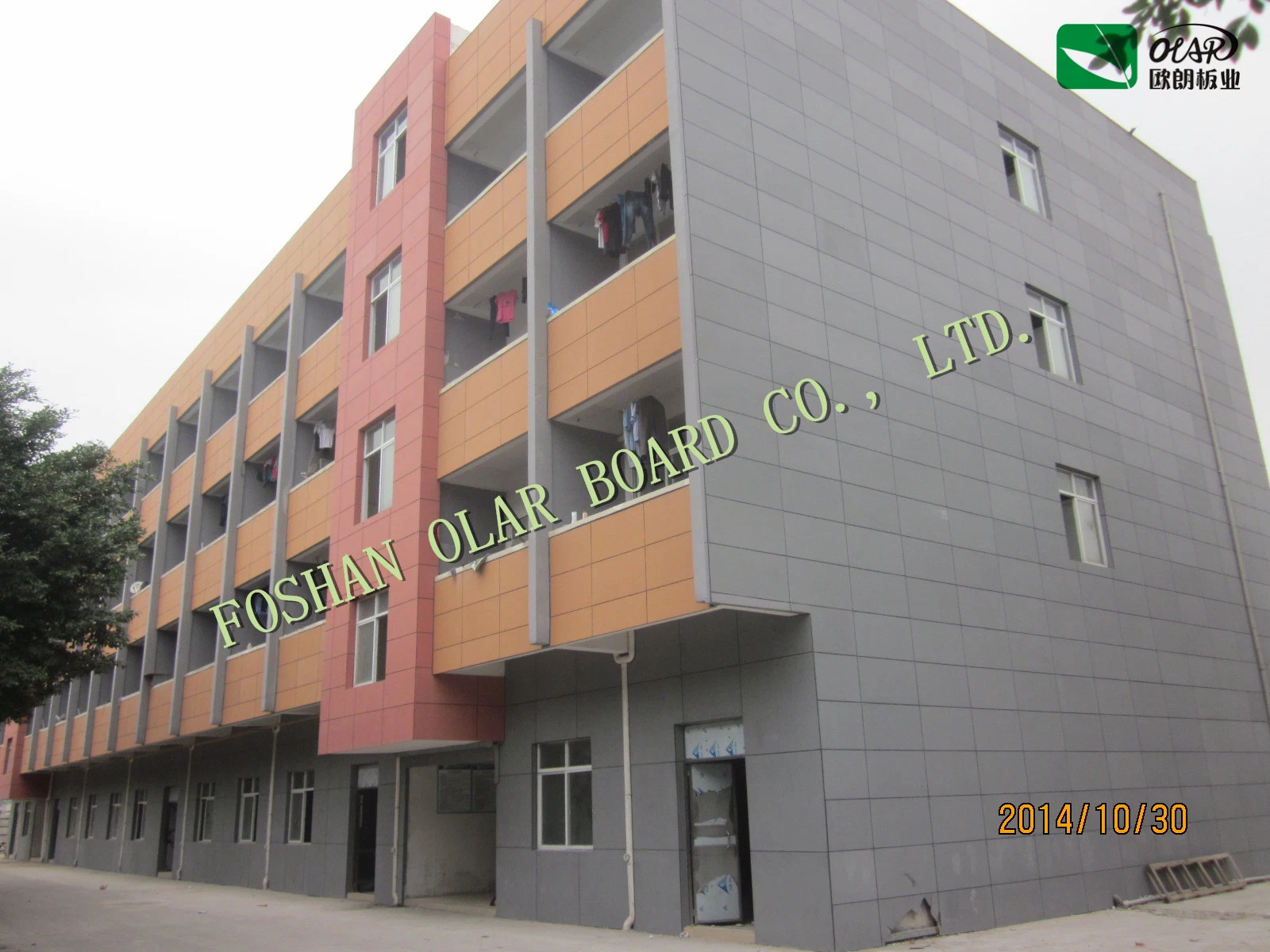

Project Global References

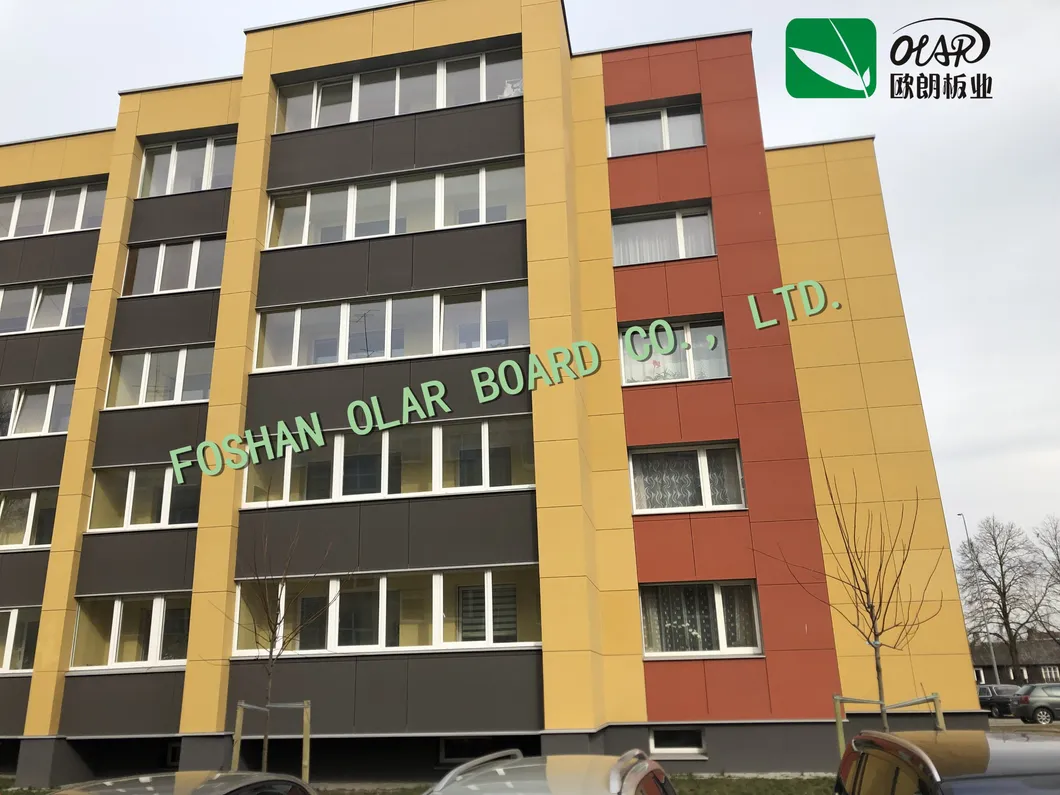

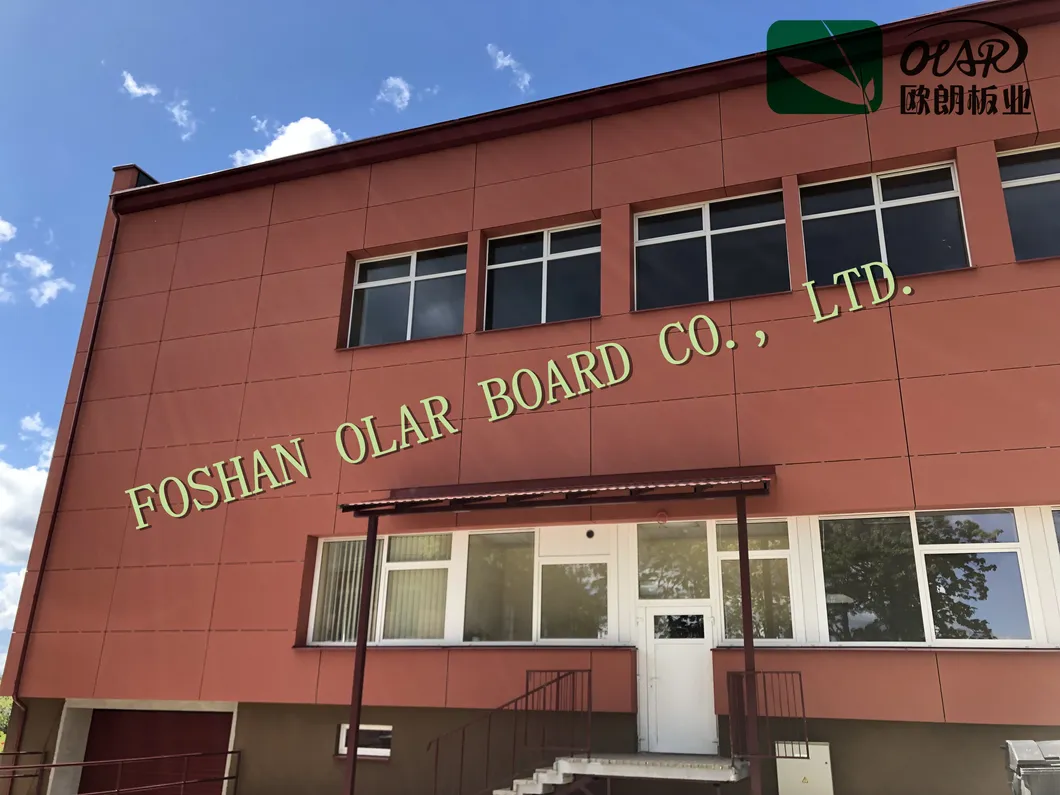

Our solutions are widely applied in commercial, residential, and industrial buildings across Europe (Italy, Sweden, Norway, Russia, UK), Southeast Asia, and the Middle East.

Frequently Asked Questions (FAQ)

1. What are the primary materials used in Kimbeck External Board? The board is a composite made of high-quality Portland cement, cellulose fibers, quartz sand, silica, and natural pigments, ensuring a durable and eco-friendly structure.

2. Is the fiber cement board fireproof? Yes, it achieves an In-combustibility Grade A1 rating according to BS EN12467 and GB 8624-2006 standards, making it extremely safe for external cladding.

3. Can the board withstand extreme weather like freezing temperatures? Absolutely. The board is designed for weather resistance and shows no cracking or layering after 25 freeze-thaw cycles.

4. What are the typical applications for this product? It is primarily used for external siding, cladding, and facades for commercial, industrial, and residential buildings, as well as indoor decoration in damp areas like subways or basements.

5. Does the board require additional waterproof treatment? The board comes with excellent waterproof properties during manufacturing, ensuring it does not get stained by rain and maintains its aesthetic appeal over time.

6. How long is the expected lifespan of the facade board? With proper installation, the products come with a warranty and service life of more than 20 years due to their high bending strength and durability.
