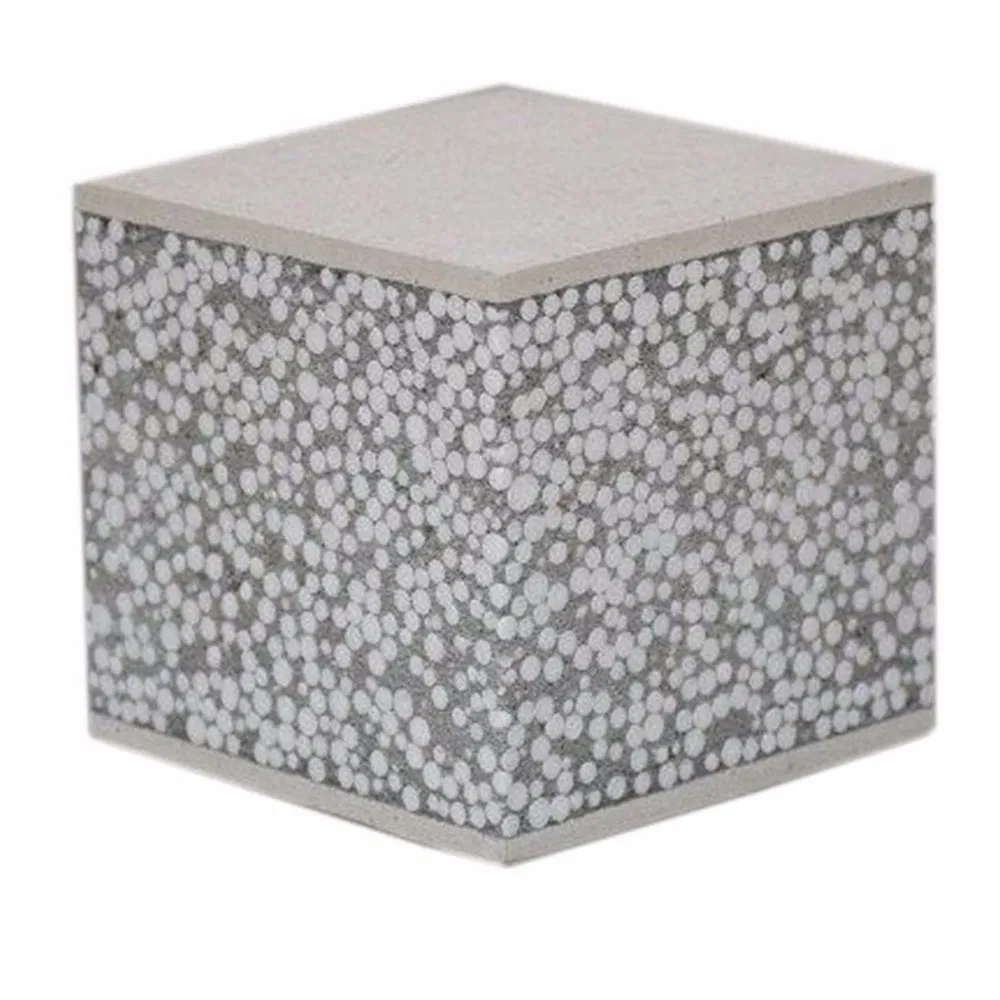

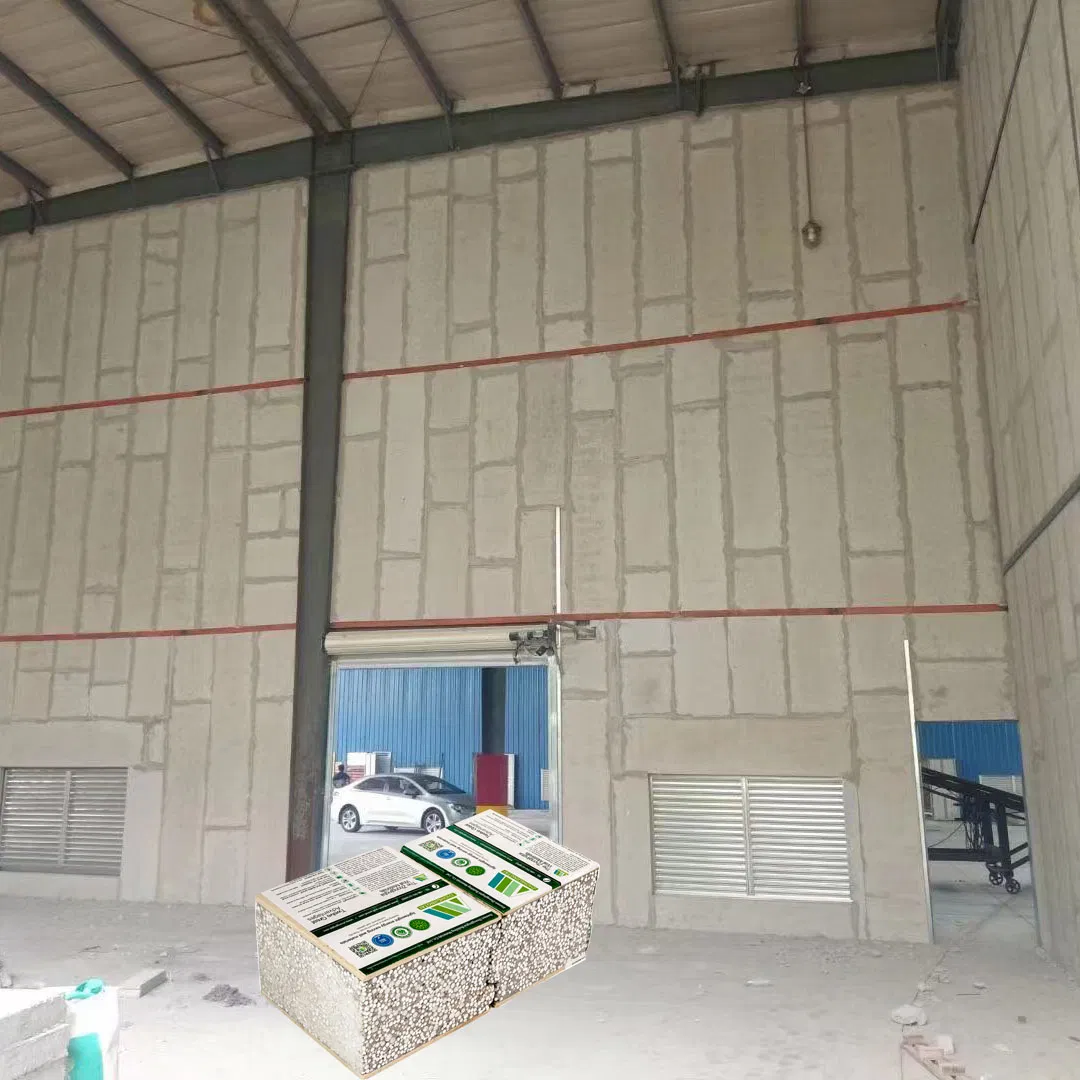

Composite EPS Sandwich Cement Wall Panel is a new type of energy-saving wall material. It is composed of a face panel (calcium silicate board) and an interior filling of cement, EPS foam particles, sand, and fly ash. This lightweight panel is designed to replace traditional bricks in modern construction projects.
| Item | Parameter Index | 60mm | 75mm | 100mm | 120mm | 150mm |
|---|---|---|---|---|---|---|
| 1 | Compressive strength (Mpa) | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 |
| 2 | Sound insulation (dB) | ≥35 | ≥35 | ≥40 | ≥45 | ≥50 |

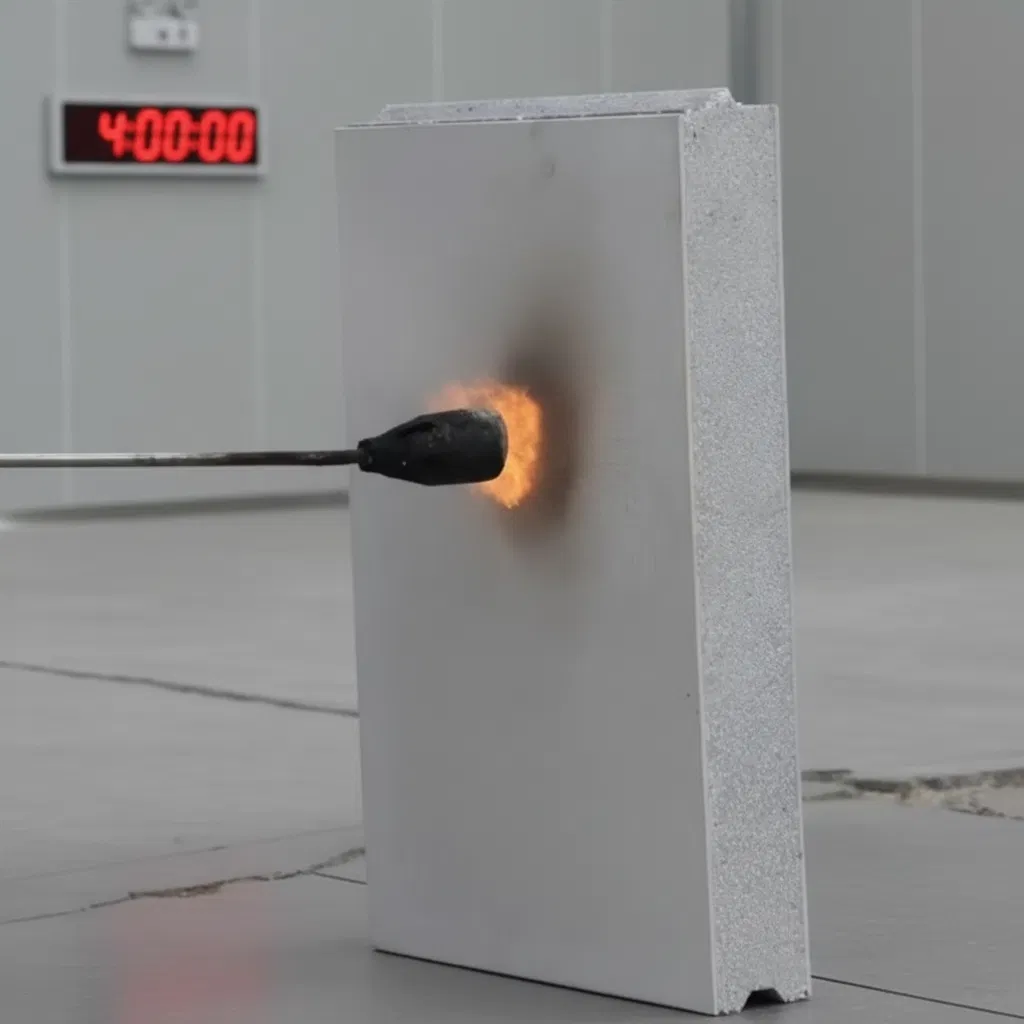

| 3 | Fire endurance (h) | ≥1.5 | ≥1.5 | ≥2.5 | ≥3.0 | ≥4.5 |
| 4 | Surface density (kg/m²) | ≤70 | ≤70 | ≤90 | ≤110 | ≤110 |

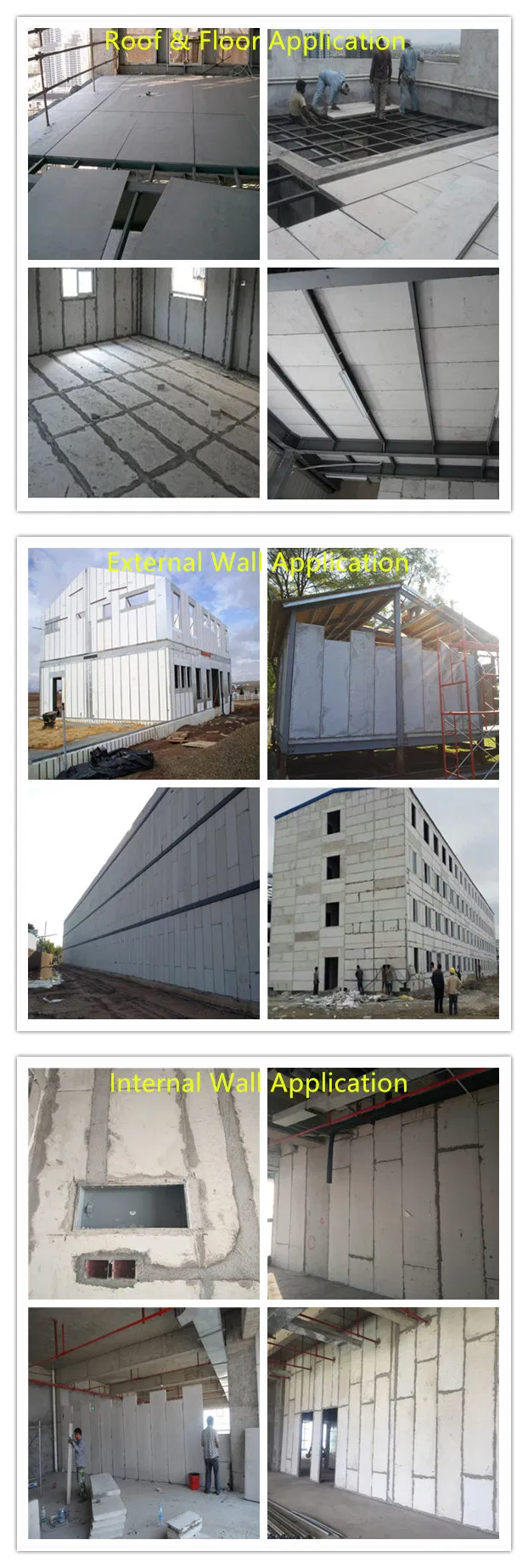

| Application Area | Description |
|---|---|
| Floor System | High load-bearing capacity, anti-static, friction resistance, and no deformation. |
| Exterior Wall | Automatically adjusts indoor air and water content based on climate changes. |

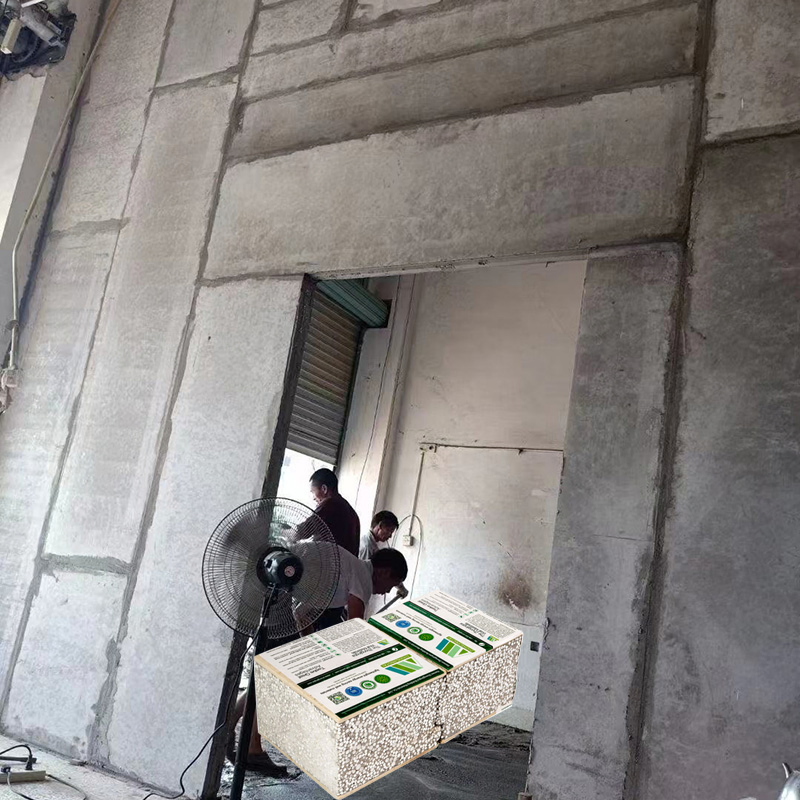

| Interior Partition | Widely used in high-rise and mega-high-rise buildings for space optimization. |
| Roof System | Lightweight structure improves safety and reduces construction time. |

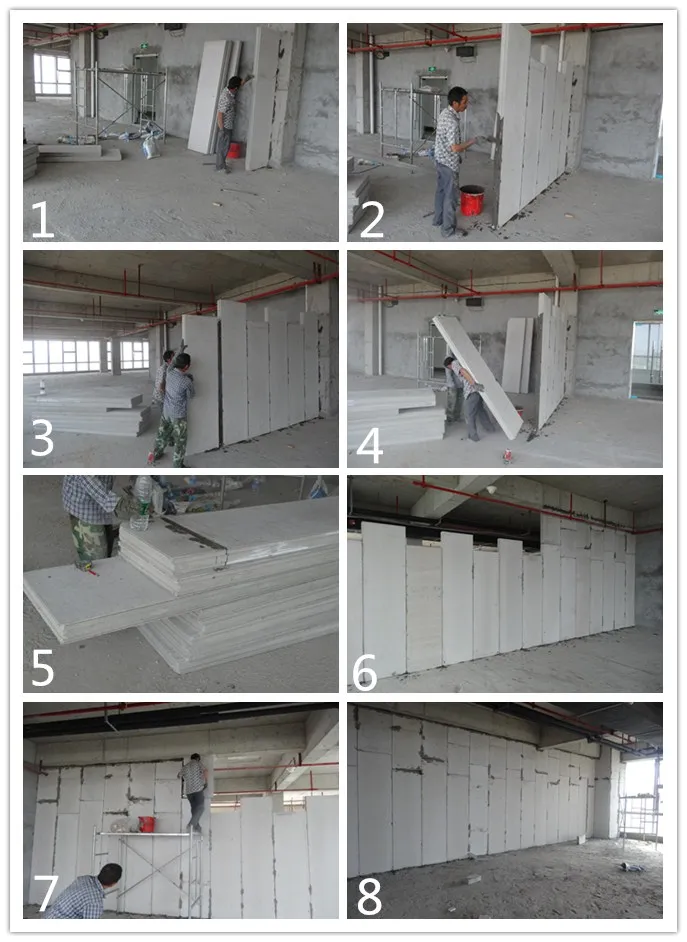

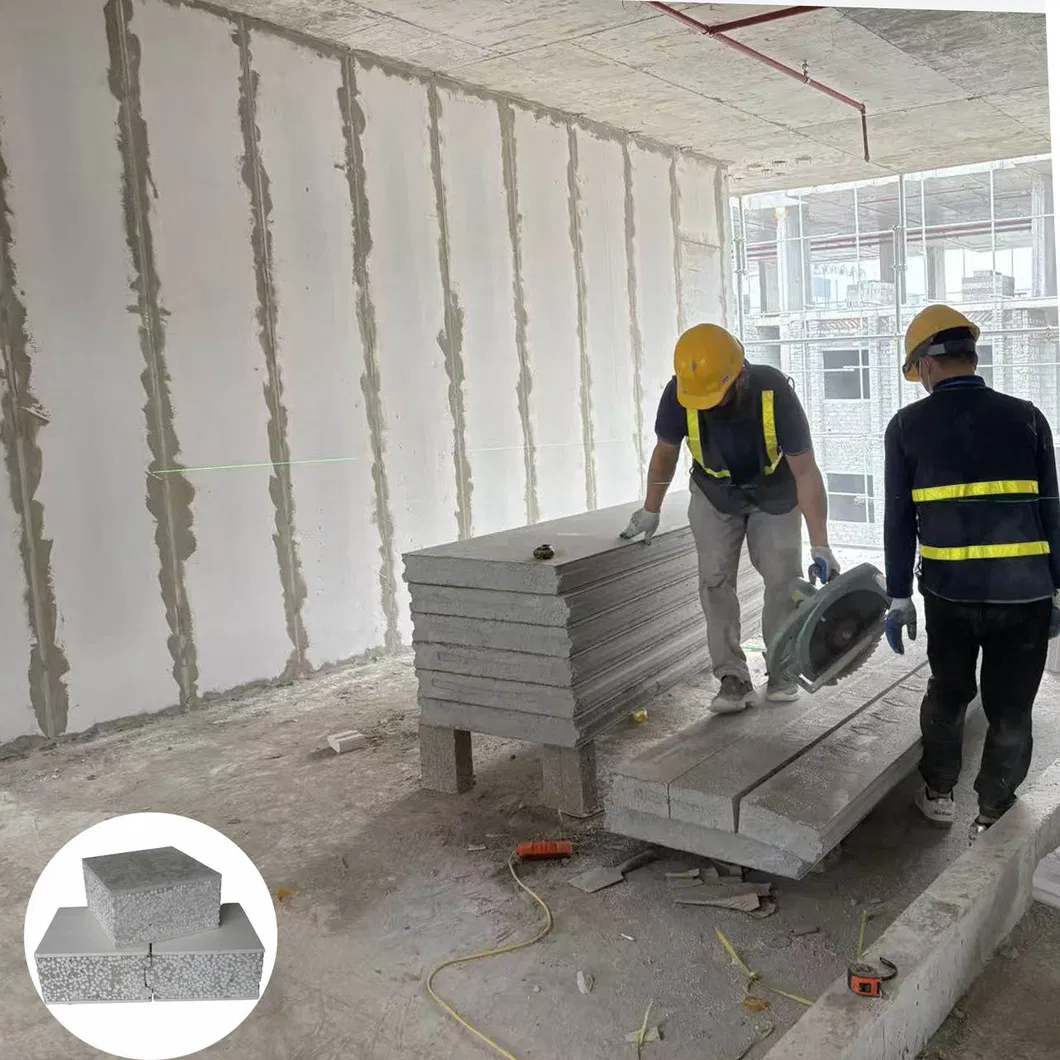

Steps: Alignment ➔ Sawing ➔ Sizing ➔ Fitting ➔ Placing ➔ Adjustment ➔ Filling Joints ➔ Crack-resistant material installation ➔ Insertion of wires ➔ Plastering/Painting.
| Size (mm) | Weight (kg/pcs) | Qty/20'GP (pcs) | m²/20'GP | Tons/20'GP |
|---|---|---|---|---|
| 2270×610×60 | 47 | 313 | 433 | 15 |
| 2270×610×75 | 67 | 252 | 349 | 17 |
| 2270×610×100 | 87 | 189 | 262 | 18 |
| 2270×610×120 | 98 | 162 | 224 | 16 |
| 2270×610×150 | 147 | 126 | 174 | 18 |
