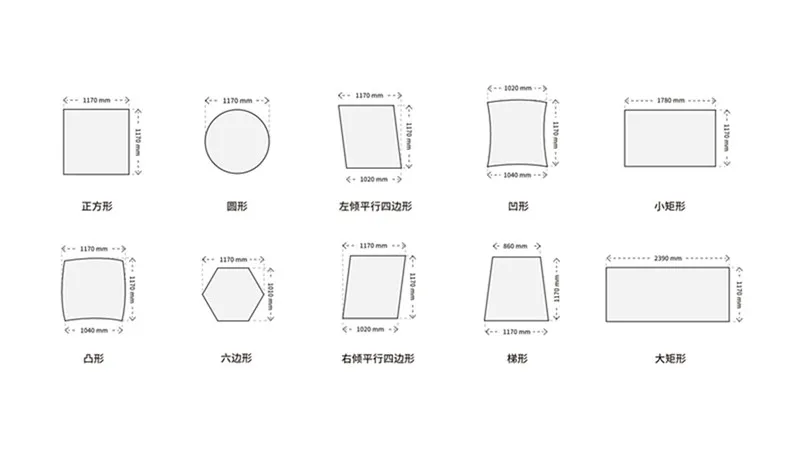

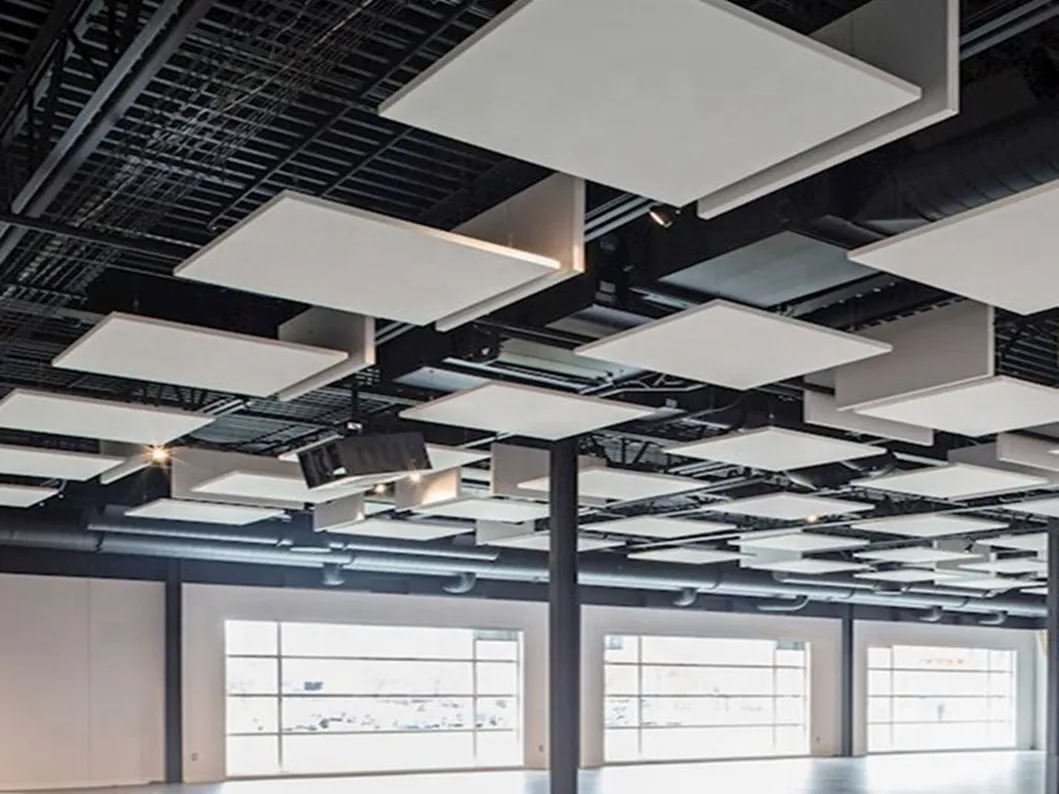

Square acoustic ceiling clouds are 1200x1200x40mm in size with a weight of 7kg/pcs. The clouds are manufactured from high-density glass wool, with fiberglass felt on all sides. The edges are straight-cut and wrapped by fiberglass felt.
These acoustical ceiling clouds are a tasteful option for reducing reverberations and improving intelligibility in any space. Designed to hang from the ceiling, they capture ambient energy by absorbing sound as it hits the face of the panel, while trapping powerful reflections on the back side.

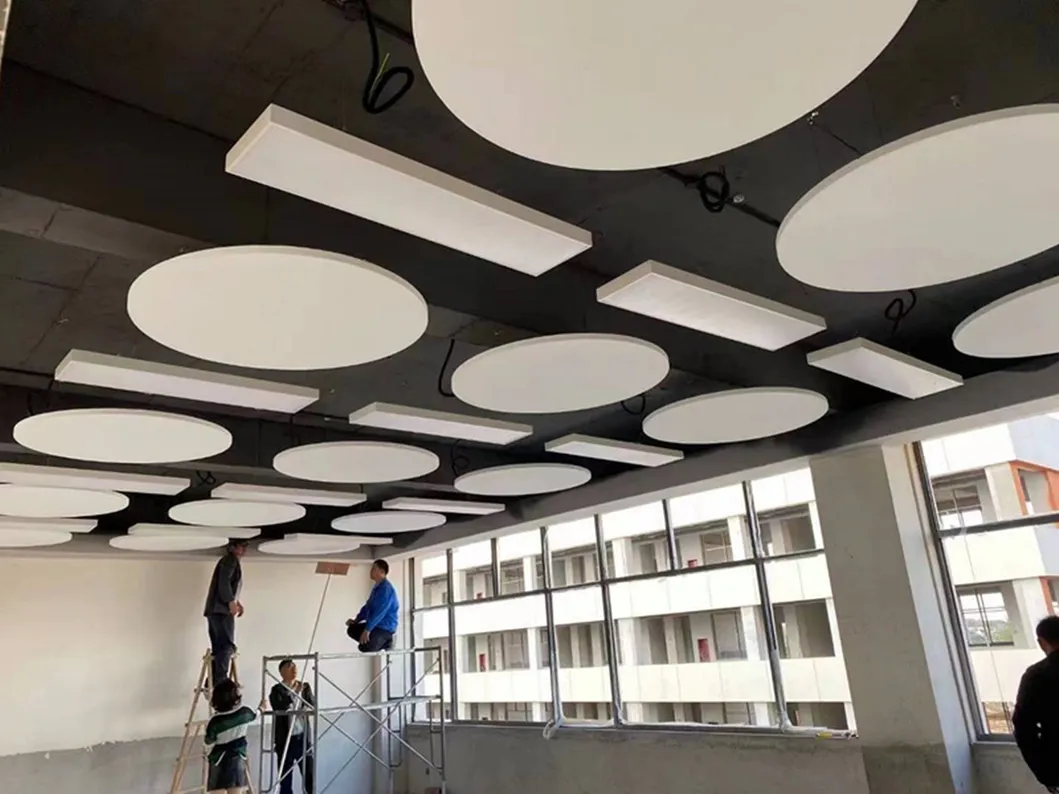

Round acoustic ceiling clouds are Φ1200x40mm in size with a weight of 5.5kg/pcs. Manufactured from high-density glass wool with fiberglass felt on all sides. The unique shapes and sizes open doors for architects and designers to create bold, architecturally pleasing creative solutions.

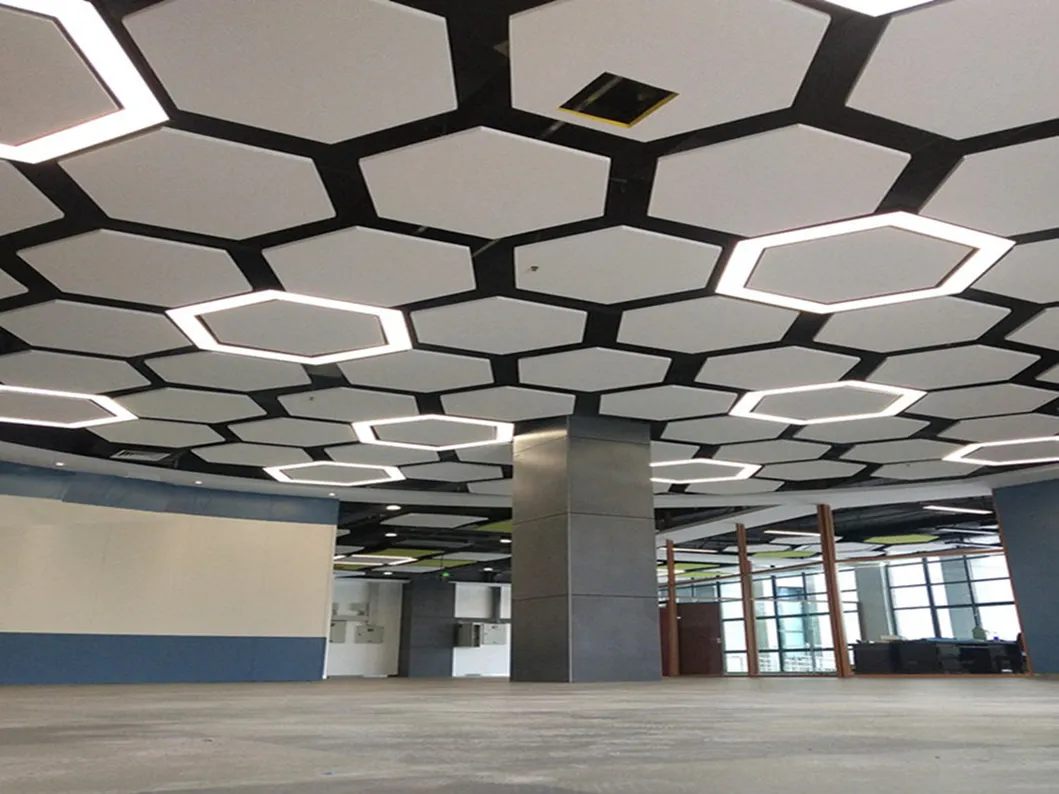

Hexagon acoustic ceiling clouds are Φ1200x40mm in size with a weight of 4.5kg/pcs. These clouds are laboratory tested for acoustic performance (NRC 0.9) and fire safety, achieving the stringent Class-A1 rating by SGS.

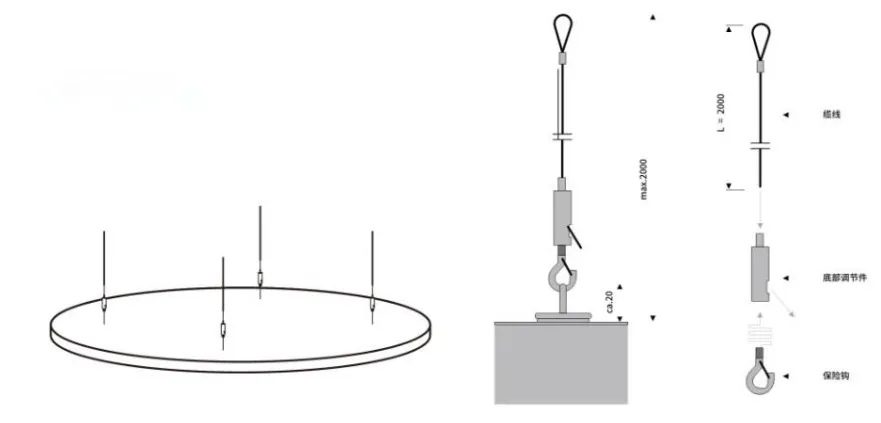

Installation: The suspension accessories are composed of a spiral spring, 2m cable, and an adjusting hook for easy setup.
| Main materials | High density glasswool and fiberglass tissue |
| Surface finishing | Special painted laminated with decorative fiberglass tissue |
| Surface designs | White plane / white point / black plane or other colors |
| NRC | 0.8-0.9 tested by SGS (ENISO354:2003 ENISO11654:1997) |
| Fire-Resistant | Class A1 tested by SGS (EN13501-1:2007+A1:2009) |
| Thermal-Resistant | ≥0.4(m².k)/W |
| Humidity | Dimensionally stable with RH up to 95% at 40°C |
| Moisture rate | ≤1% |
| Light Reflectivity | 0.85 |
| Size | 1200x1200mm, 1200x1800mm, 1200x2400mm, 1200x600mm etc |
| Thickness | 30mm, 40mm, 50mm, 60mm, 70mm etc |
| Certificates | SGS / CE / ISO9001:2008 |
| Density | 120-130kg/cbm |

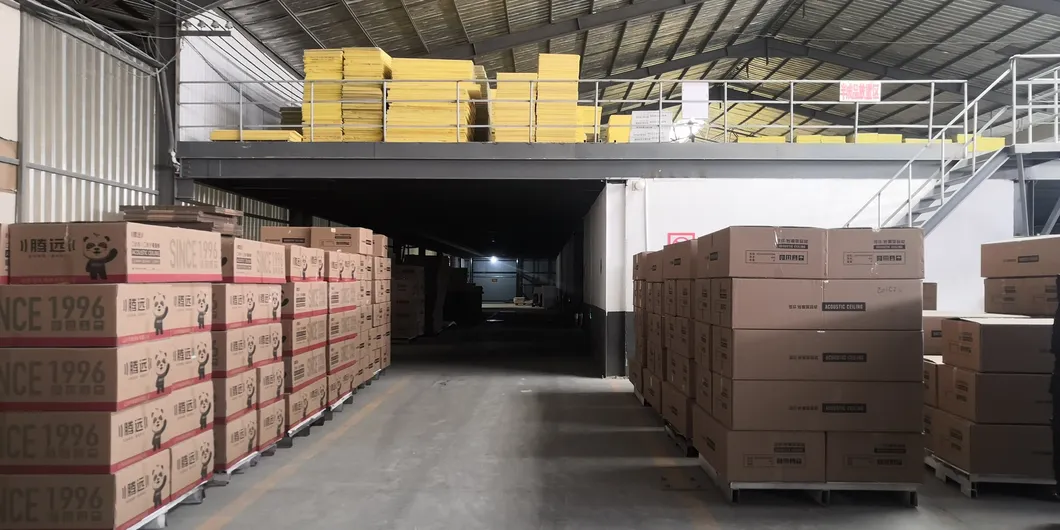

We are a specialized factory integrating research, development, production, and sales of ceiling and wall decoration products. With nearly 20 years of production history, we maintain an annual production capacity of 5 million square meters, serving markets across Europe, America, the Middle East, Africa, and Southeast Asia.
