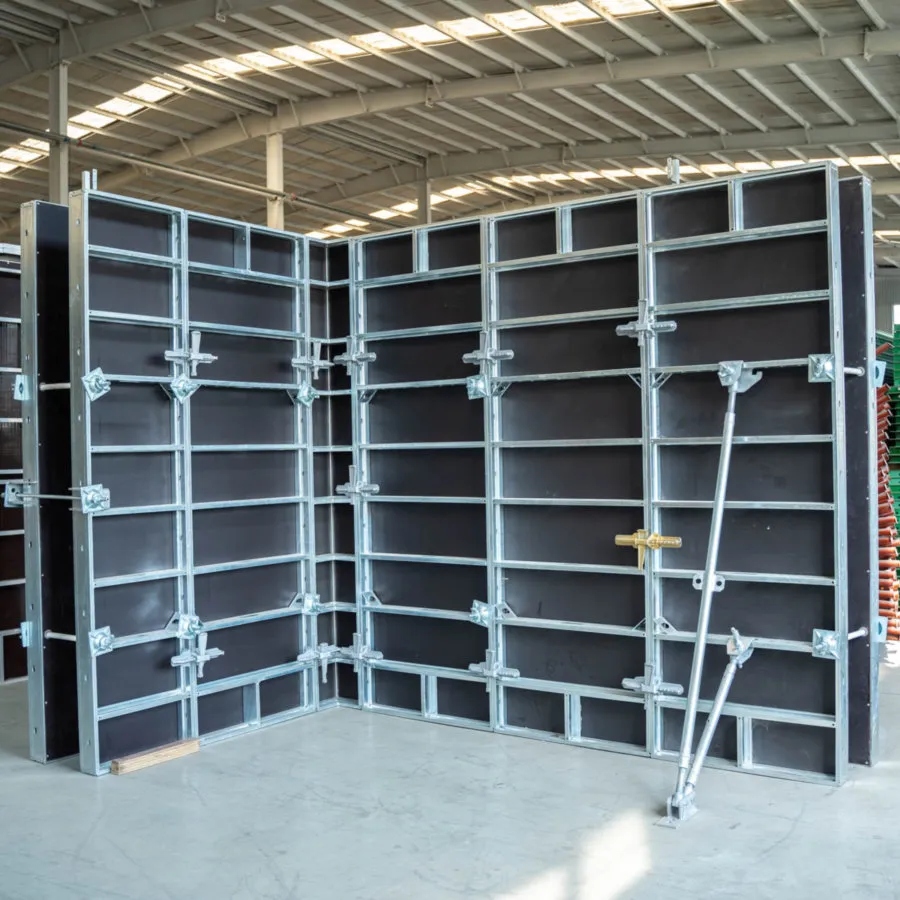

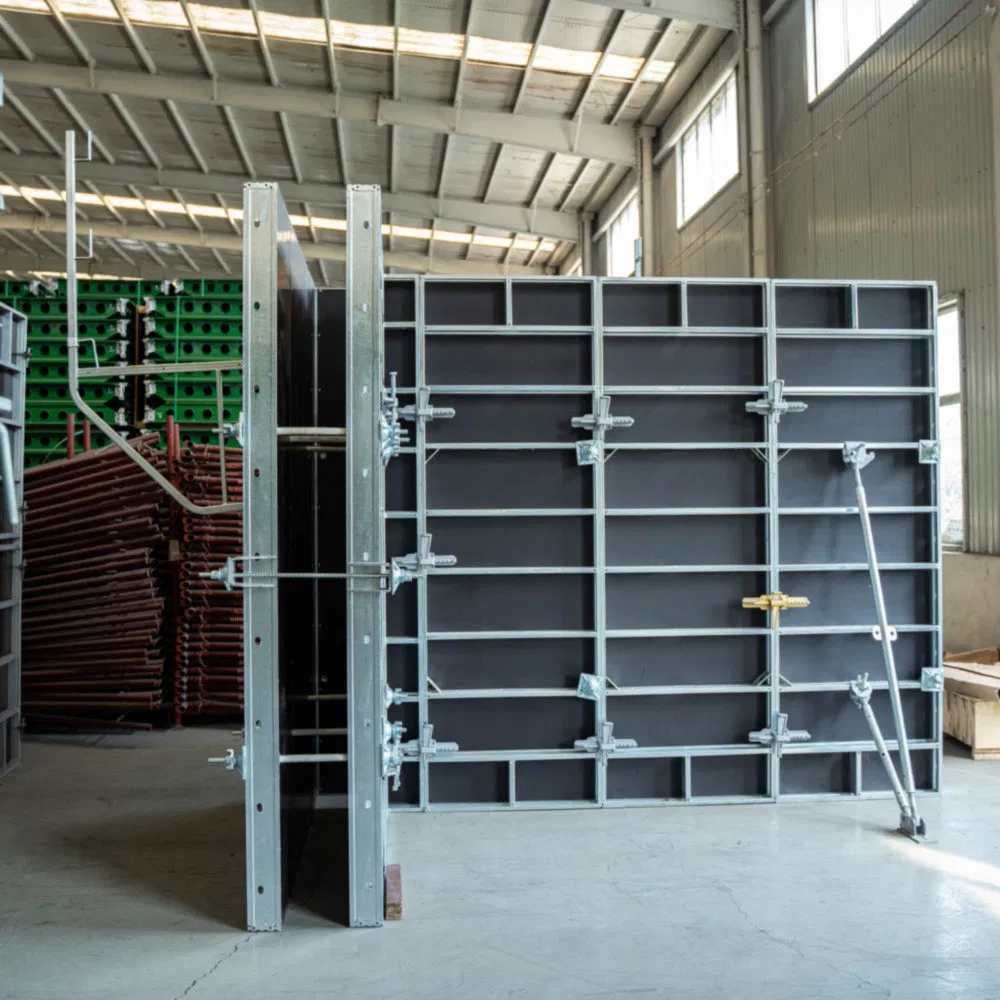

MODULAR WALL FORMWORK SYSTEM
This modular wall formwork system with easy panel combination is a versatile and high-performance wall forming solution engineered for efficient vertical concrete construction. It features a standardized panel design available in both steel and aluminium configurations.
The system handles heavy concrete pressures while maintaining dimensional accuracy and superior surface finish. Standardized panel modules can be rapidly assembled into any wall configuration, adapting seamlessly to different wall heights and thicknesses.
| TECHNICAL PARAMETERS | ||||
|---|---|---|---|---|
| Bracket Frame Side Wall Series | ||||
| Specifications 01 | SB-A | SB-B | SB-1 | SB-2 |
| Specifications 02 | SB-A0 | SB-A, C | SB-B, C | SB-A, B, C |
Modular Design
Standardized modules allow quick and flexible assembly into any wall configuration.
Heavy-Duty Load Capacity
Engineered to withstand high lateral concrete pressures during pouring operations.

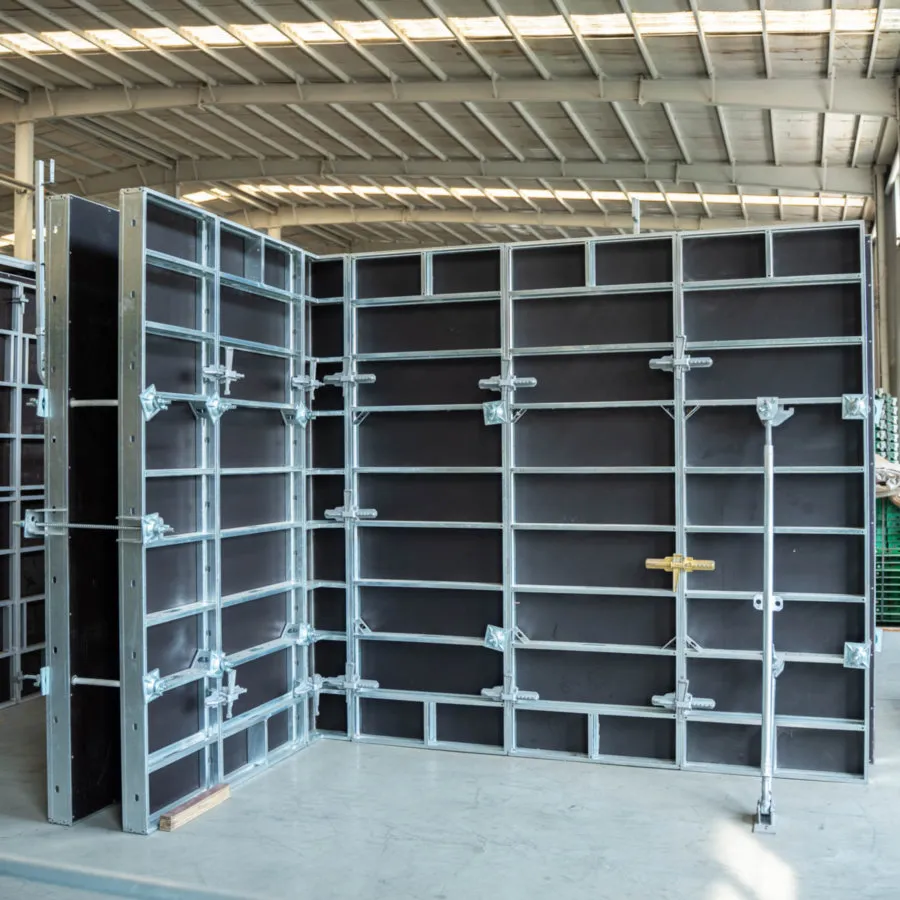

High Reusability
Premium materials ensure extended life with hundreds of reuse cycles.

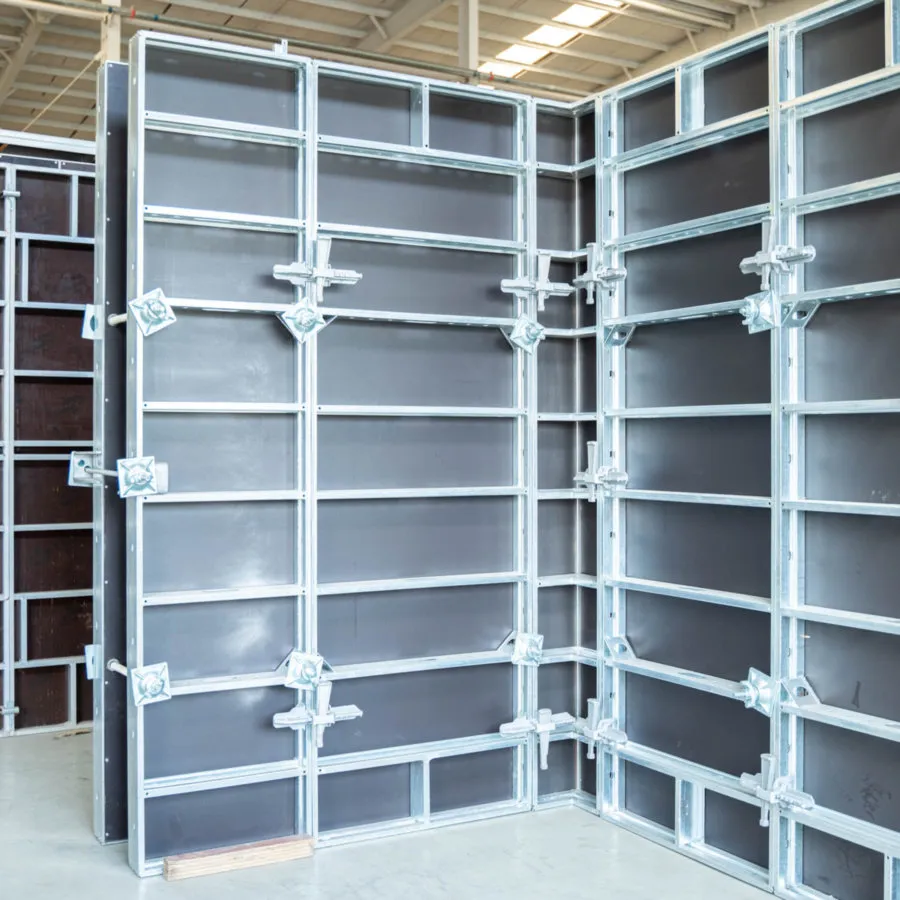

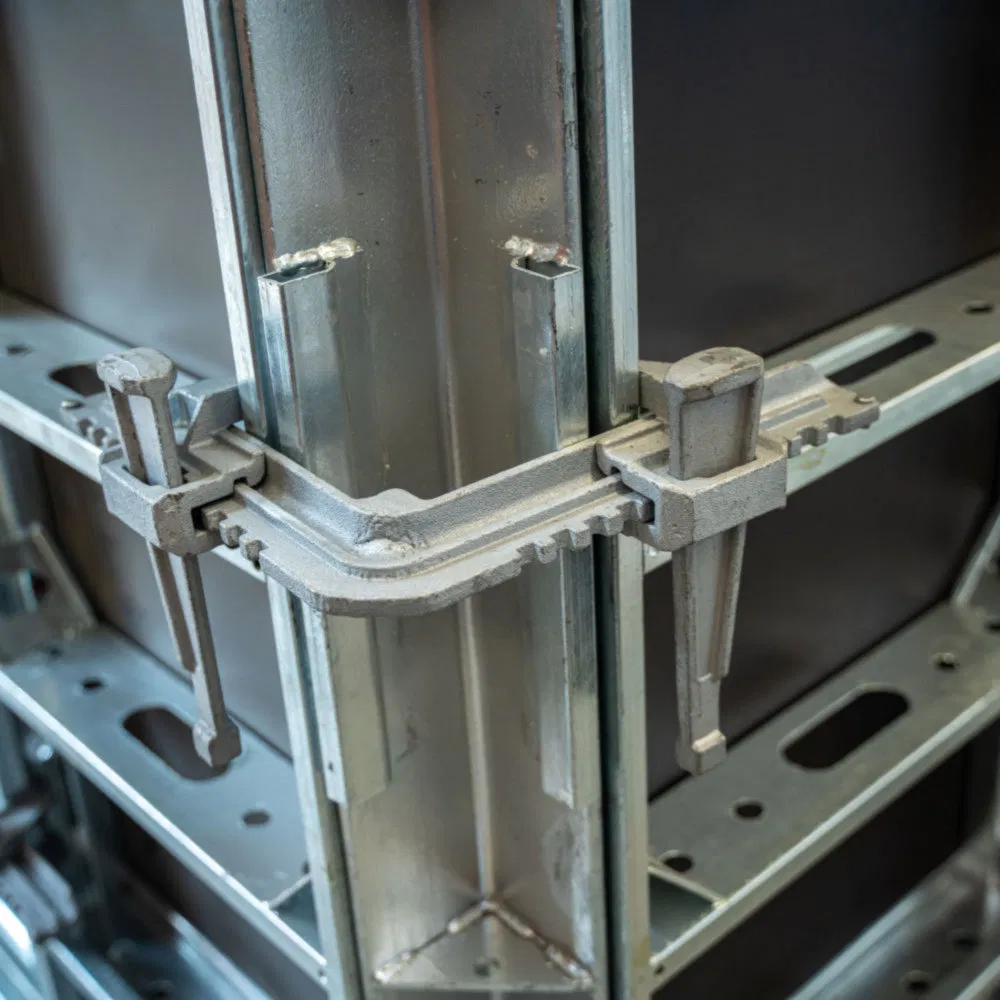

Fast Assembly & Dismantling
Quick-connect coupling system enables rapid installation with minimal crew requirements.
