RefDura Panle
1 / 5
| Model NO. | NO. 51 | Size | 60/75/80/90/100/120/150/180mm |
| Width | 610mm | Length | 2270mm-3000mm |
| Board | Calcium Silicon Board / Fibre Cement Board | Main Features | Fireproof, Waterproof, Soundproof |
| Sound Insulation | 32~56 dB | Heat Insulation | 4 Hours Under 1000 Celsius Degree |
| Fire Rating | 4 Hours | Certification | ISO9001, CE, SGS |
| Production Capacity | 200000 Square Meters/Month | Origin | Fujian, China |

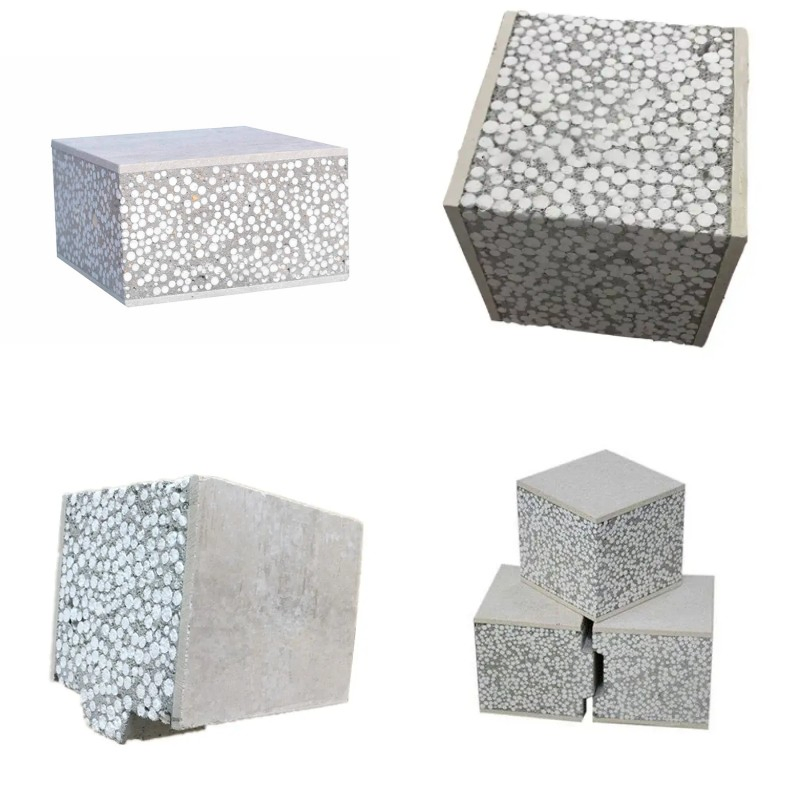

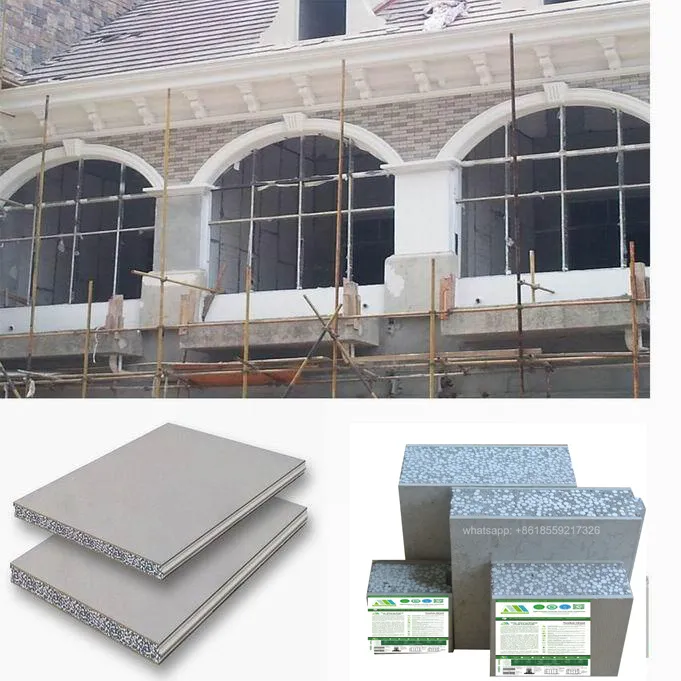

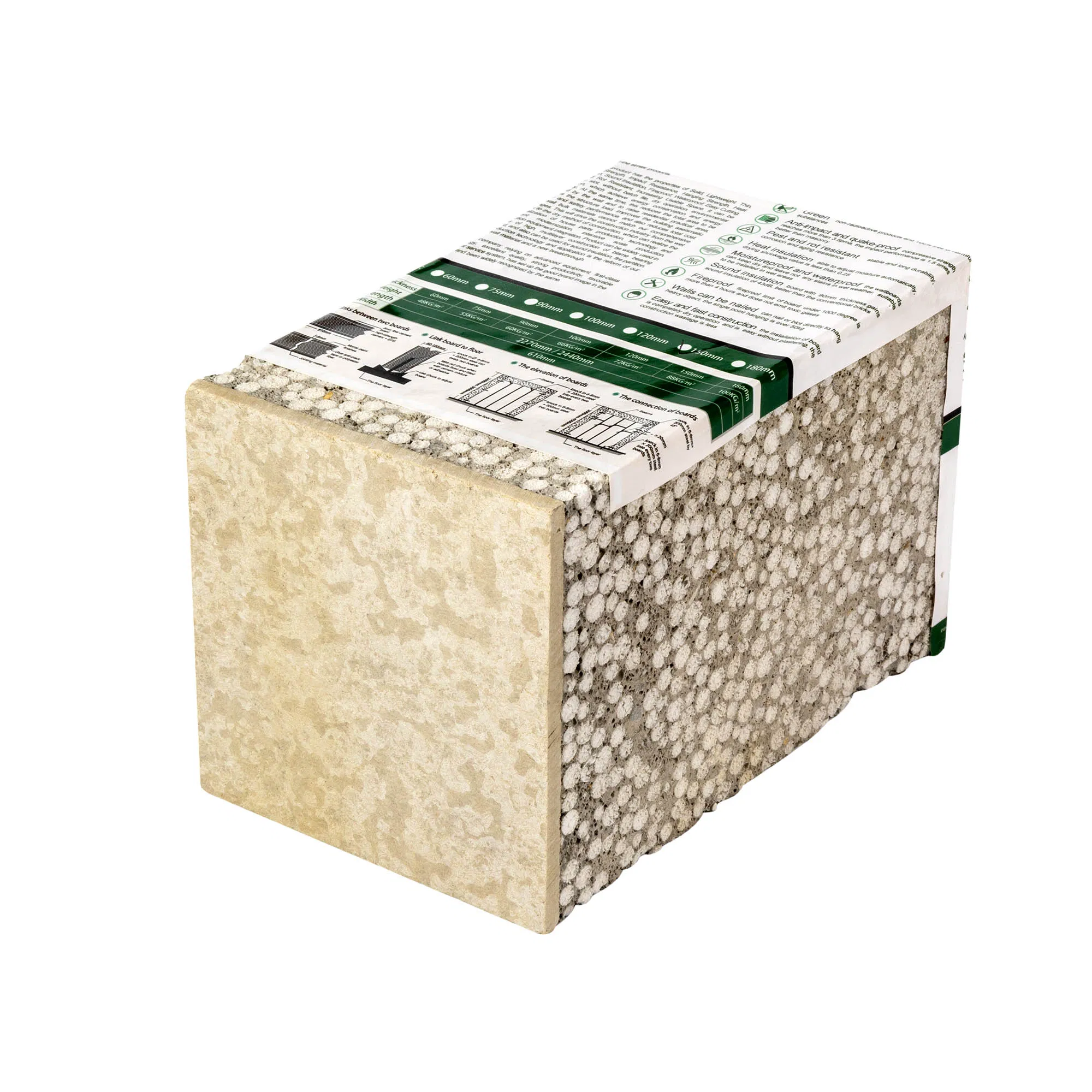

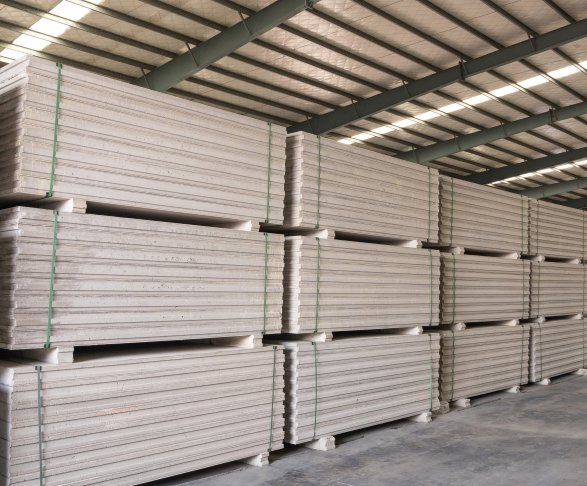

EPS sandwich panel is a kind of light weight energy saving wall material taking reinforced fiber cement board as face panel, within cement, EPS, fly ash as core material and forming by one time compound. Our product has features of light weight, high intensity, thin, water & fire proof, heat preservation, sound insulation, quakeproof, low cost and space-saving. EPS & Cement sandwich panel are widely applied to interior wall partition, exterior wall and roof for all kind of constructions.
| Length | Width | Thickness | Usage |
|---|---|---|---|
| 2270mm / 2440mm | 610mm | 60mm | Roof |
| 75mm | Internal/Partition Wall | ||
| 90mm | |||
| 100mm | |||
| 120mm | External Wall/Floor | ||
| 150mm | External Wall |
| Item | 60mm | 75mm | 90mm | 120mm | 150mm |
|---|---|---|---|---|---|
| Anti-impact Capacity (times) | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 |
| Compressive Strength (Mpa) | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 |
| Sound Insulation (dB) | ≥35 | ≥35 | ≥40 | ≥45 | ≥50 |
| Fire Endurance (Hours) | ≥1.5 | ≥1.5 | ≥2.5 | ≥3.0 | ≥4.5 |
ZJT lightweight energy-saving composite wall panel is especially suitable for factory, workshop, warehouse, store, temporary buildings, building floors, etc. When used as a floor and roof, it can be used with steel structure and the stability is very outstanding.

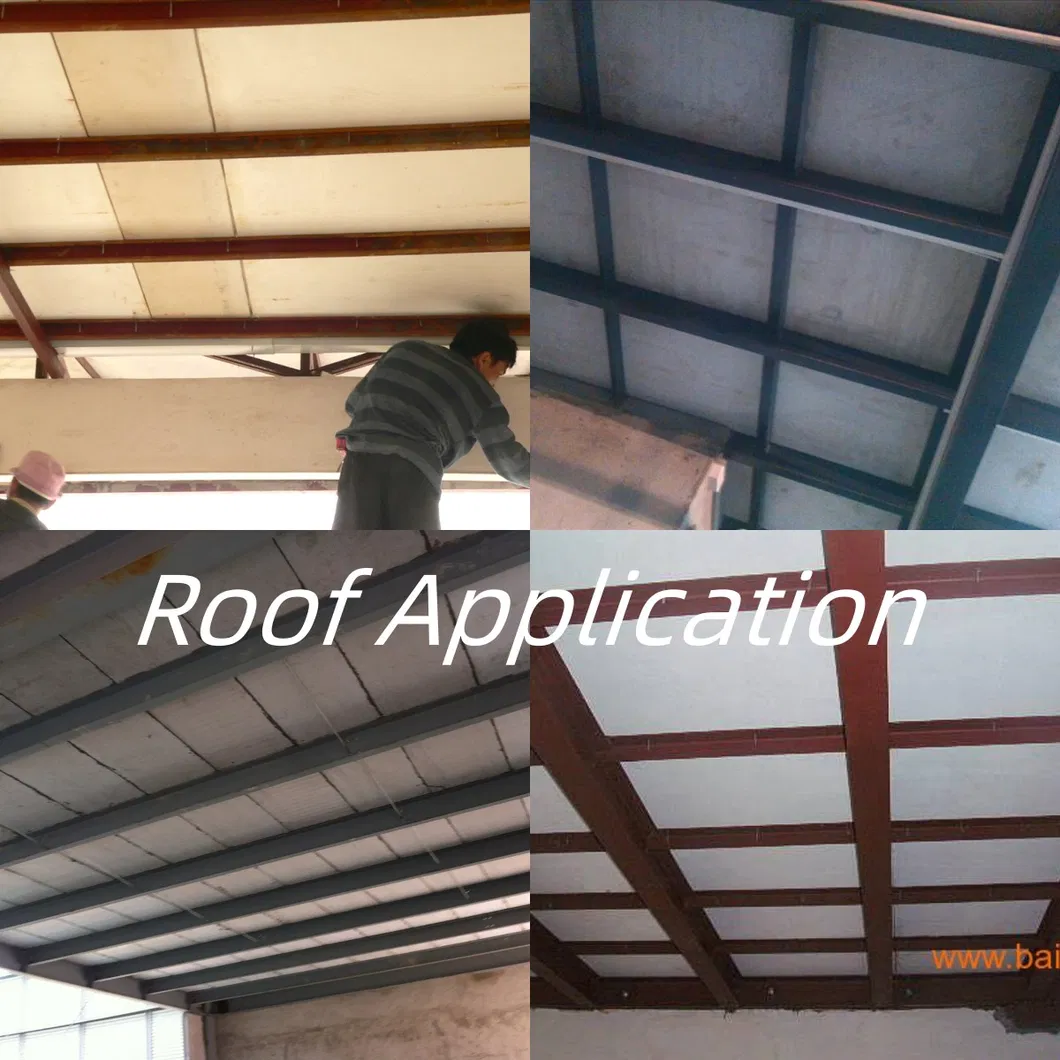

Roof Application

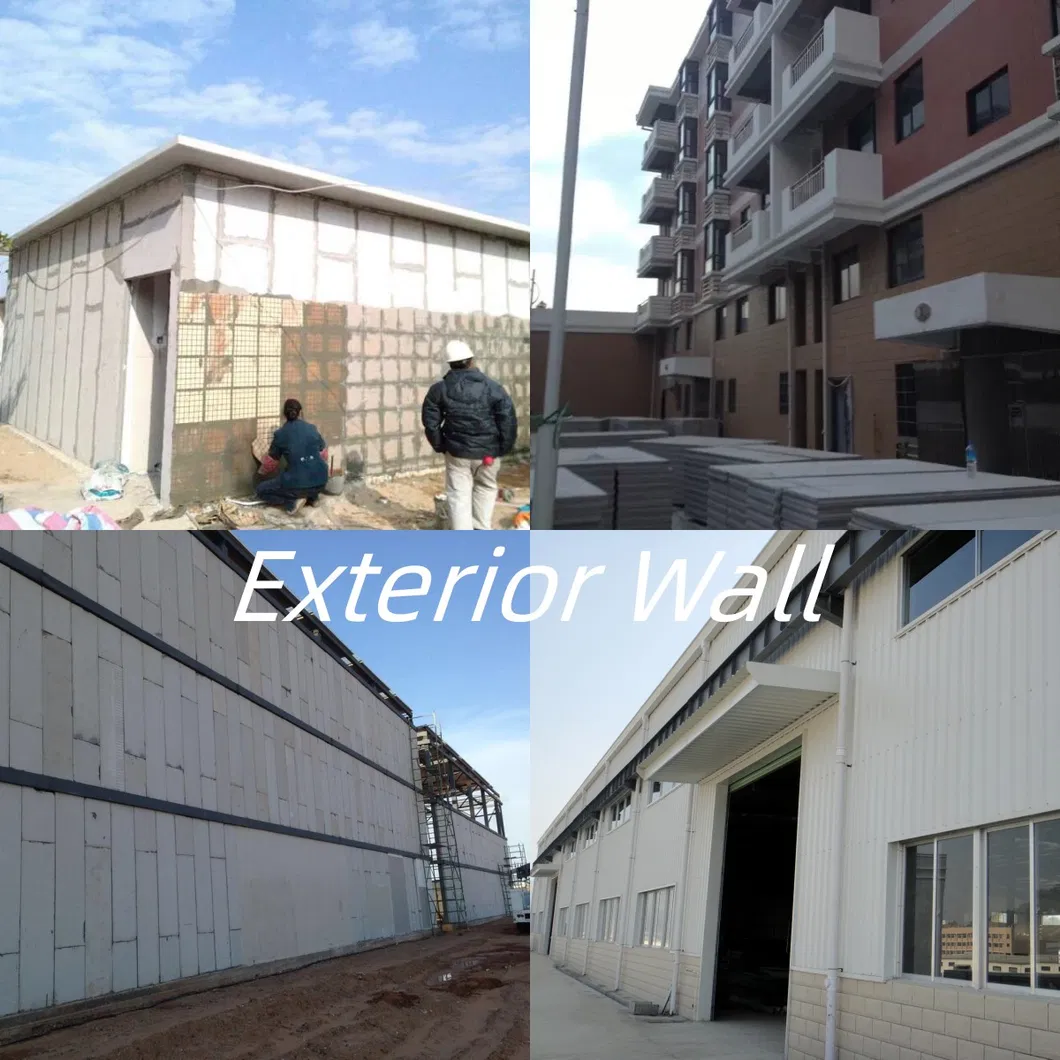

Exterior Wall Application

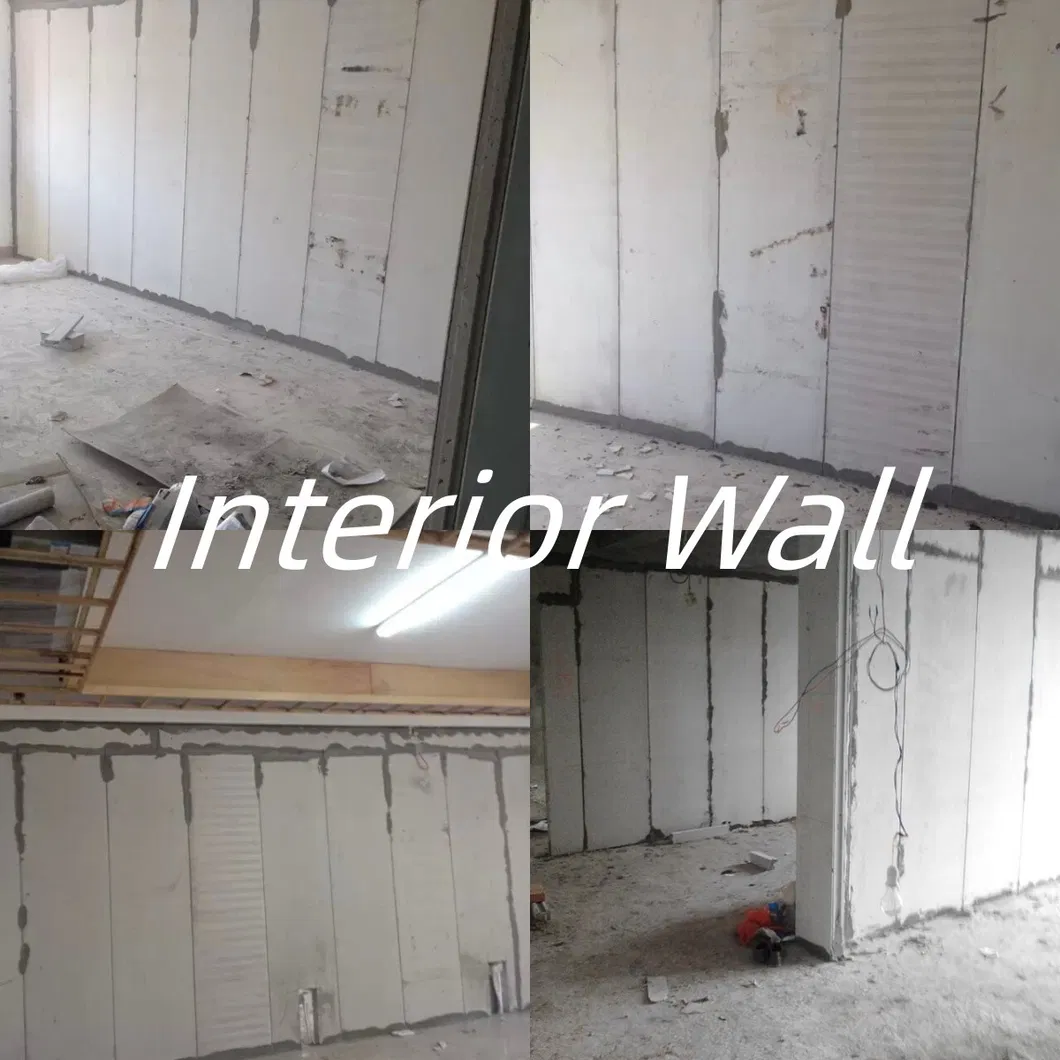

Interior Wall Application
