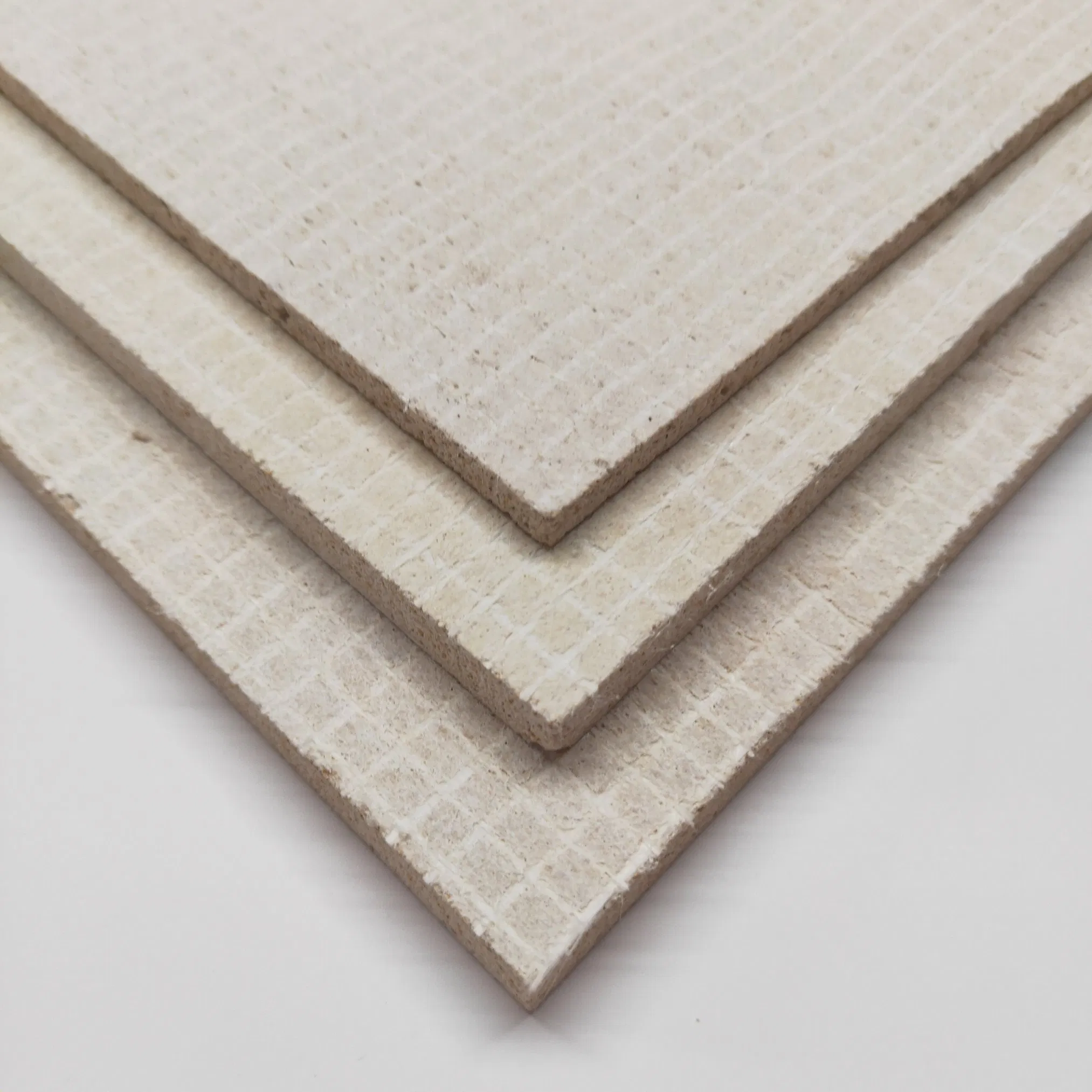

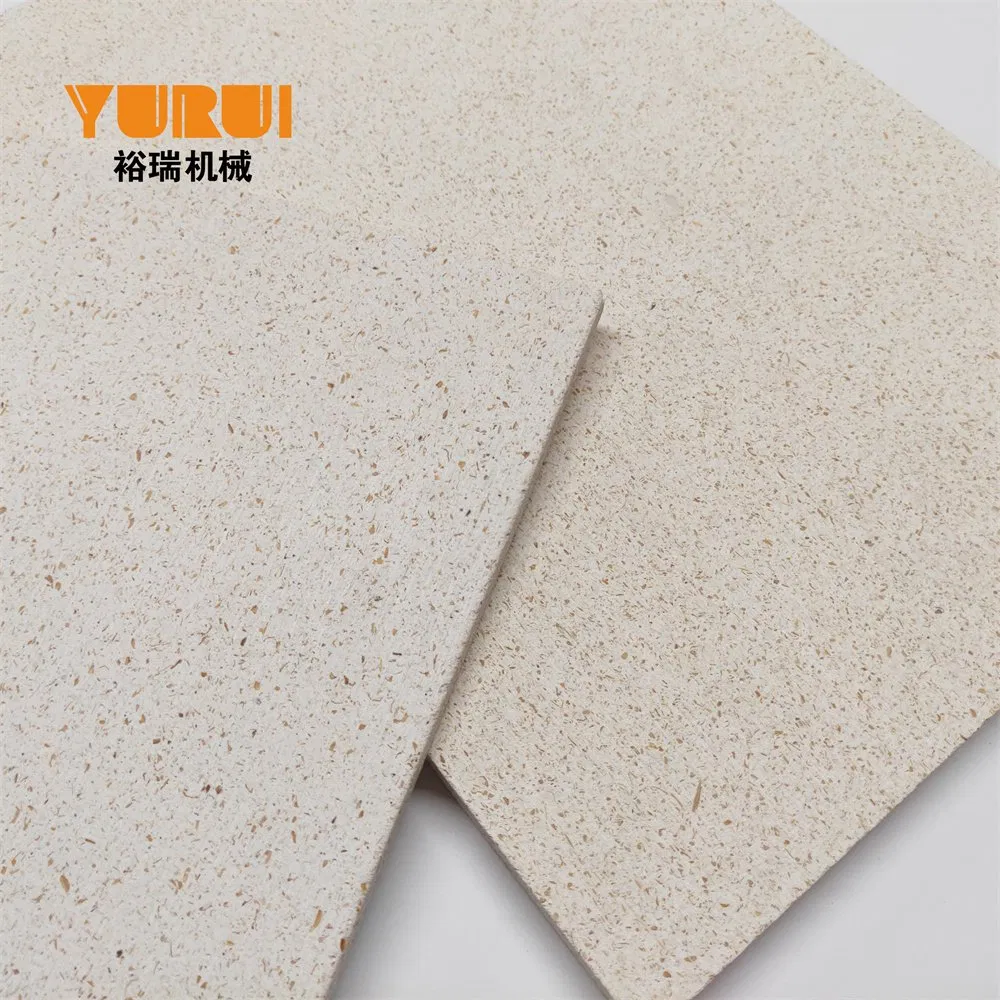

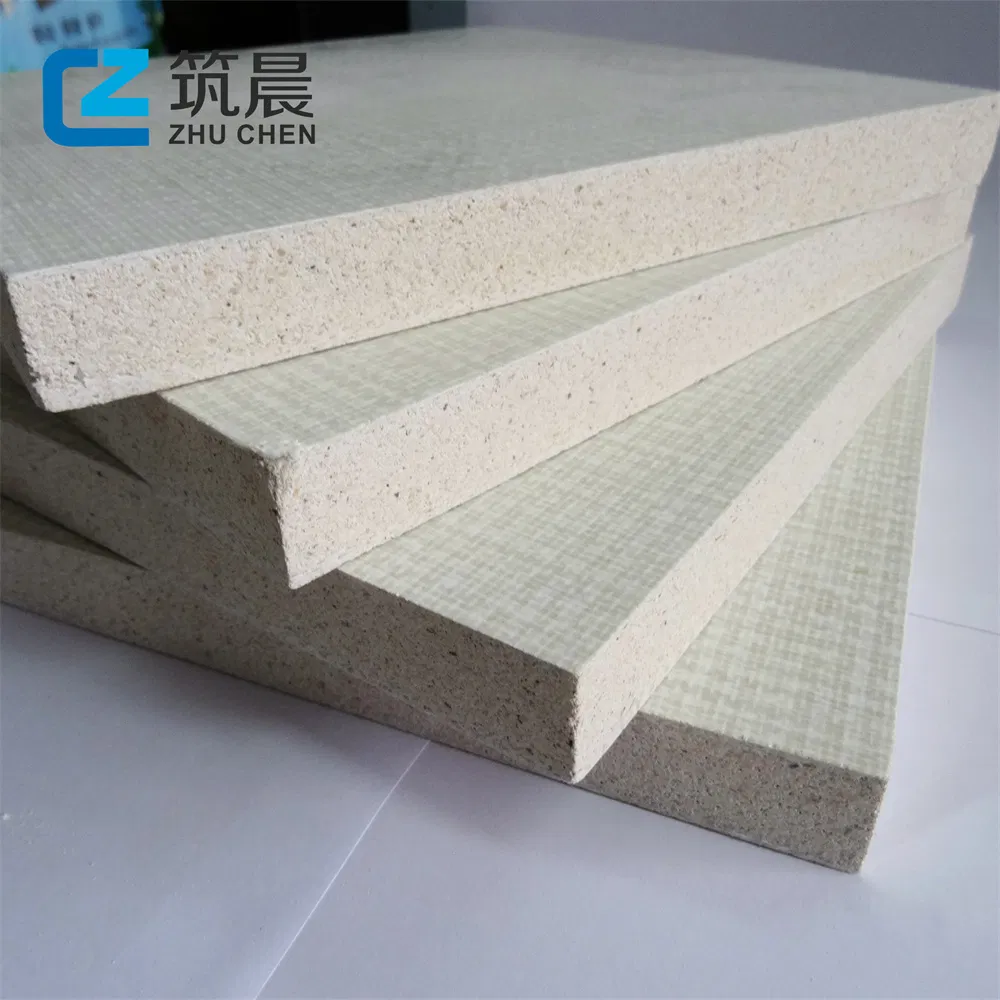

MGO Board /Magnesium Oxide Board Fireproof Floor Ceiling Fiber Cement Magnesium Oxide Sulfate 12mm Wall Panel

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
ZC-MB-01
Material
Non-Asbestos
Density
1000-1100kg/M3
Feature
Fireproof
Bending Strength
10-25MPa
Fireproof Rating
Grade A1
Application
Interior Wall, SIP
Raw Material
Mgso4
Capacity
2000pieces /Day
Package
Strong Wood Pallet
Product Description

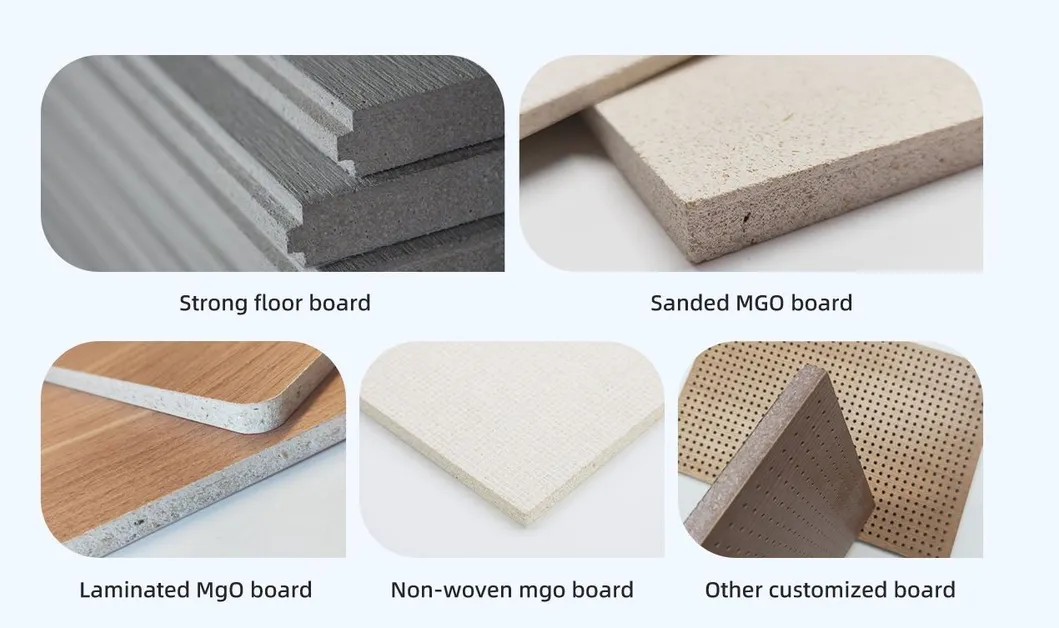

MGO Board Overview

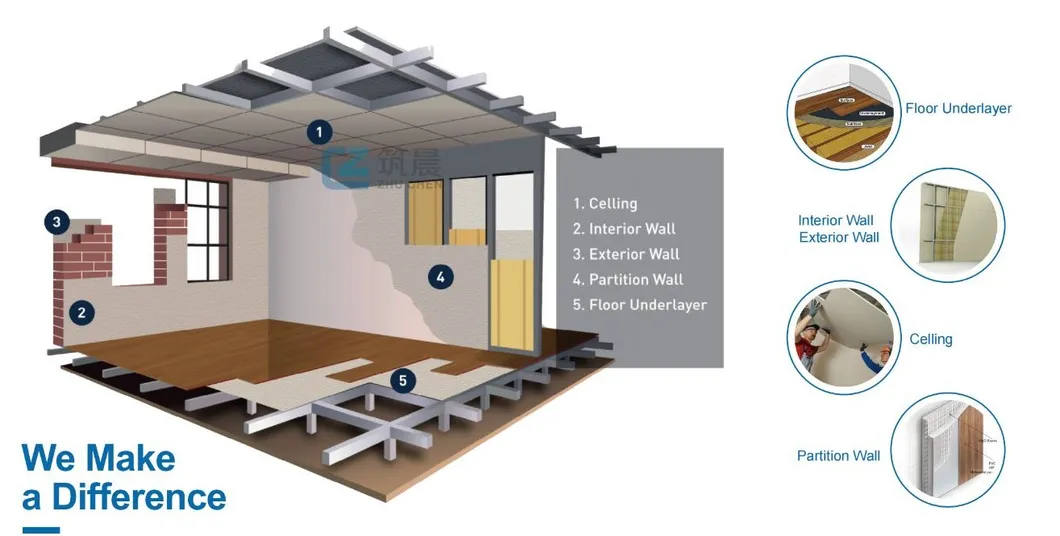

MGO Board Features
Fireproof & Insulation

Mgo board has excellent fire performance, up to non-combustible grade A1, flame spread and smoke generation is zero, no flame at 1200 C high temperature, fire resistance limit of more than 3 hours.

Stronger

Compared with gypsum board, plywood, and fiber cement board, MgO Board is extremely strong with great impact resistance, impress resistance, and better flexural, and higher loading.

Light weight

Mgo board light weight, low density, convenient installation, reduce transportation costs, save labor and material costs, improve project efficiency.

Water resistant

MgO Board maintains its structural stability when slightly bent and will not warp, swell or daleminate when exposed to moisture for short periods of time.

Technical Specifications
Product nameMagnesium Oxide board fireproof light weight Sanding Mgo board
Width600/900/1200/1220, and special width
LengthStandard is 2400-3050mm, special size design available
Thickness3mm - 50mm
ColorWhite; Pink; Purple; Green; Grey; Blue; Black; Brown, etc.
EdgeSquare; tapered ; T&G; L - ship lap, Tongue & Groove, Beveled
Density800-1250 kg/CBM based on application
Raw MaterialClass A MGO powder (Mg ≥ 85%), Class A MgSo4 (99% purity), Bamboo & saw dust, Closed-cell perlite
Product Raw Materials & Application

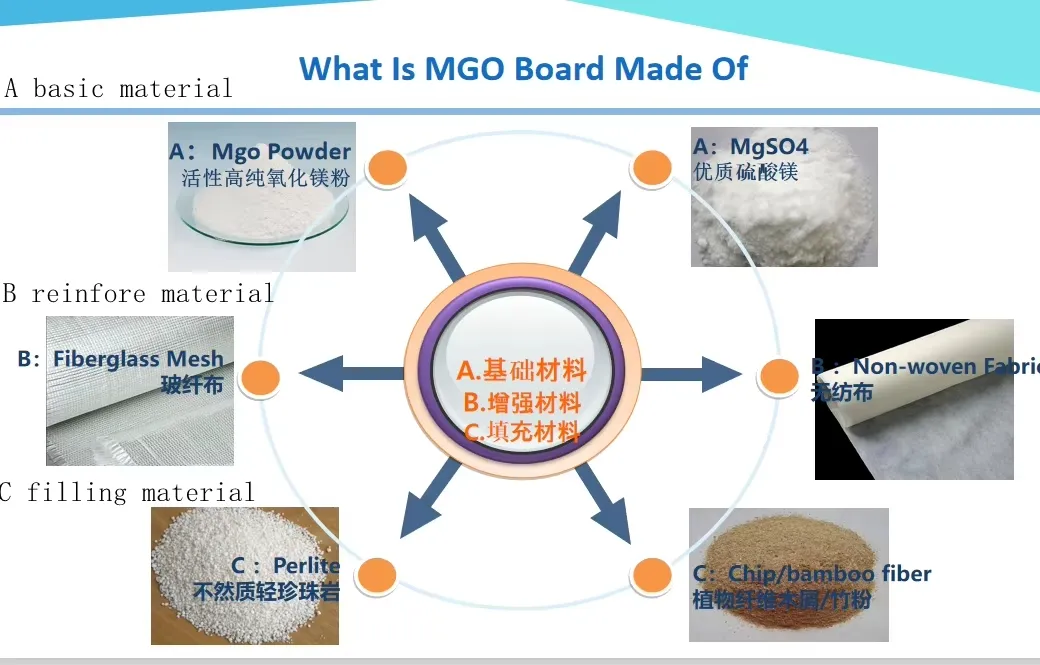

Raw Materials

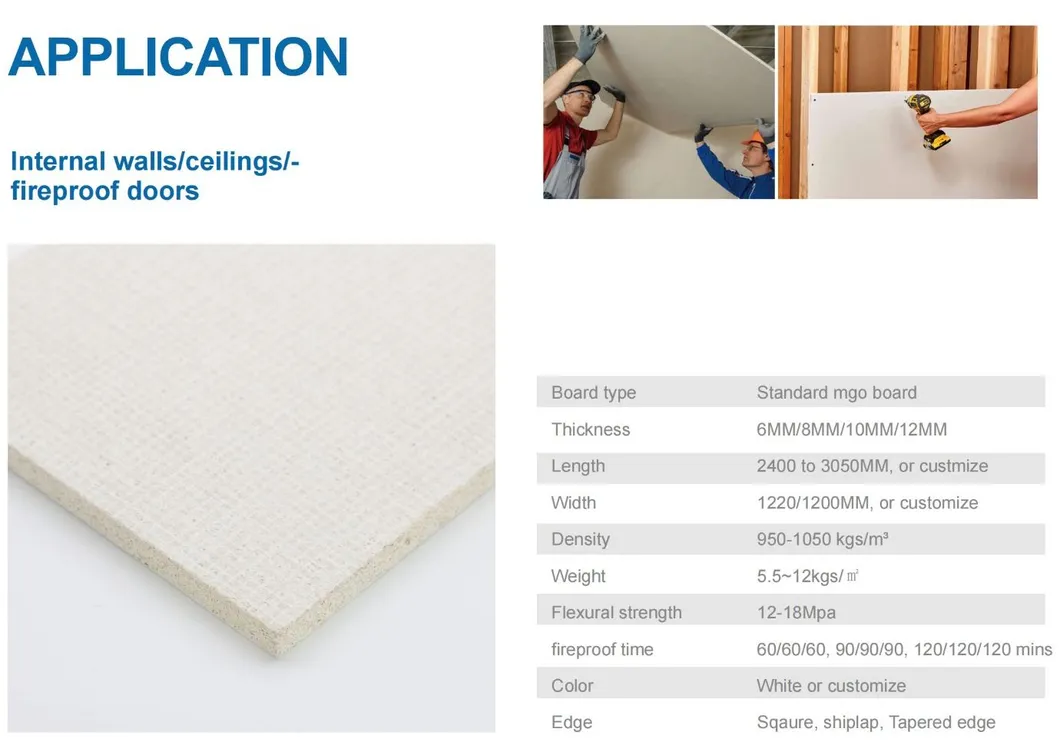

Application 1

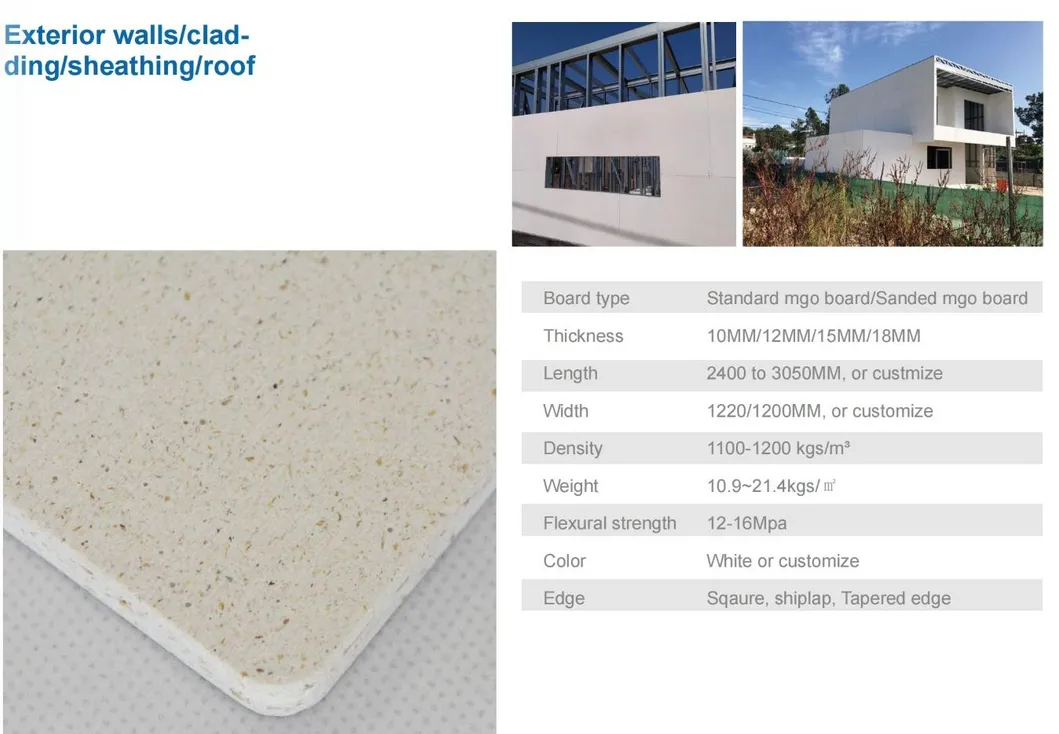

Application 2

MgO boards can be used in the same ways as gypsum and Portland cement sheathings. The possible uses are vast, including: Firewalls, Partitions, Structural sheathing for wood or metal stud walls, Shower stall tile backer board, Shaft liners, Ceilings, Soffits, Fascia, and Substrates for coatings and insulated systems.

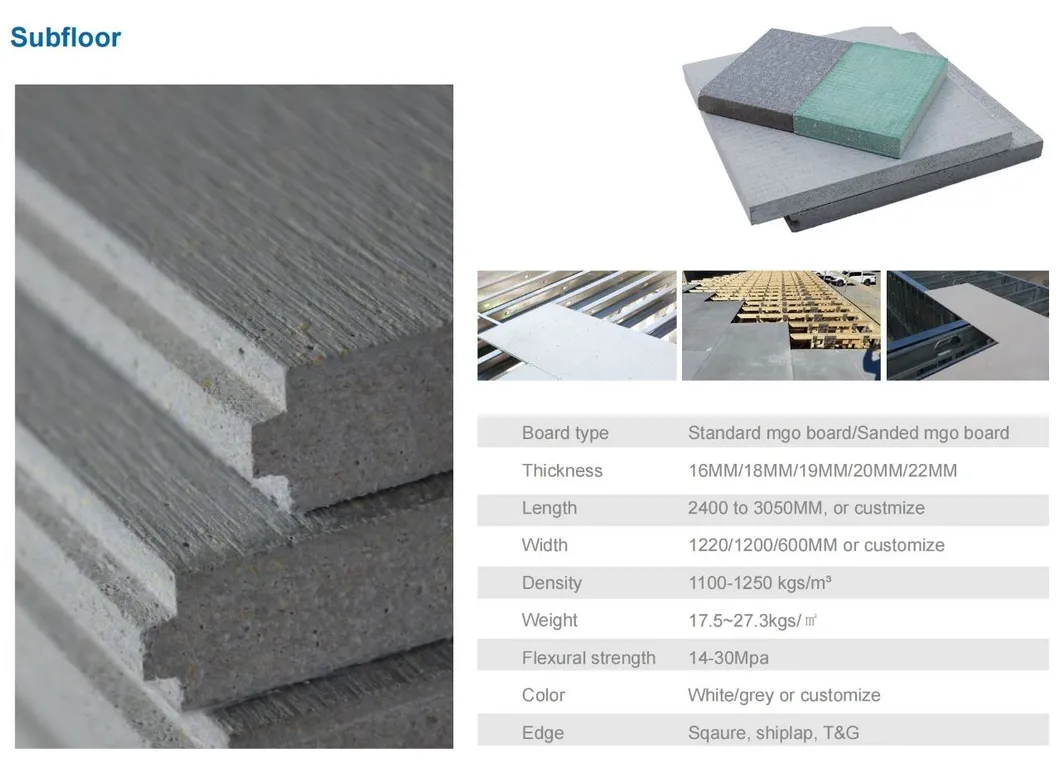

Application 3

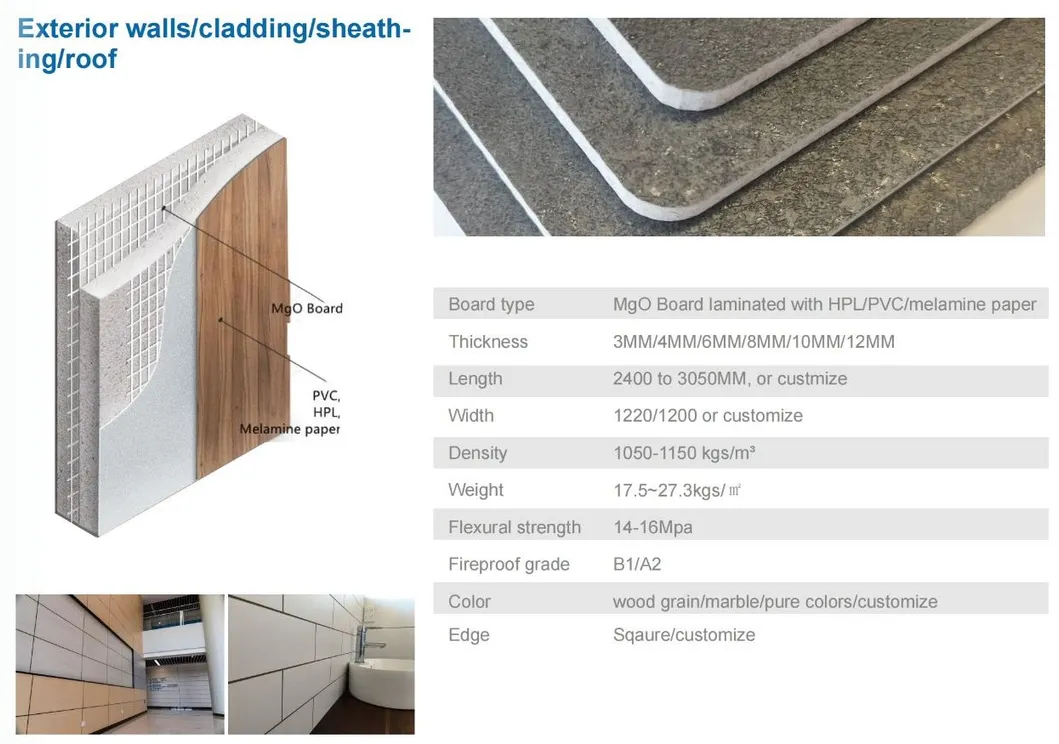

Application 4

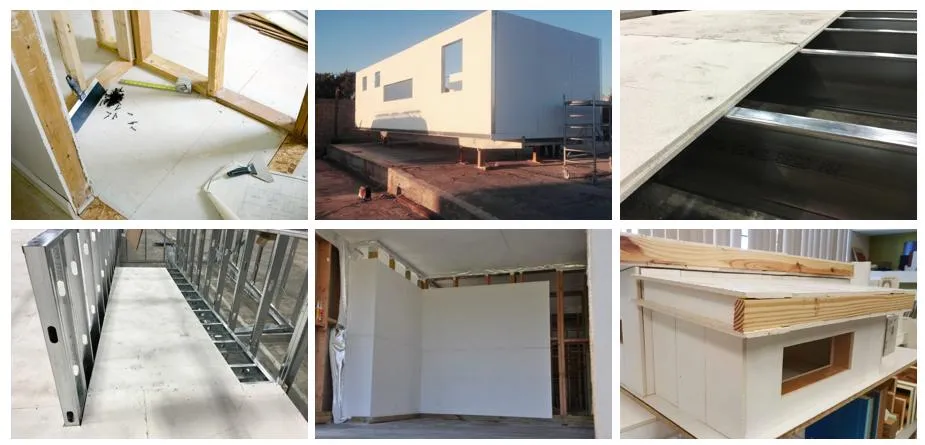

Application 5
Manufacturing Excellence

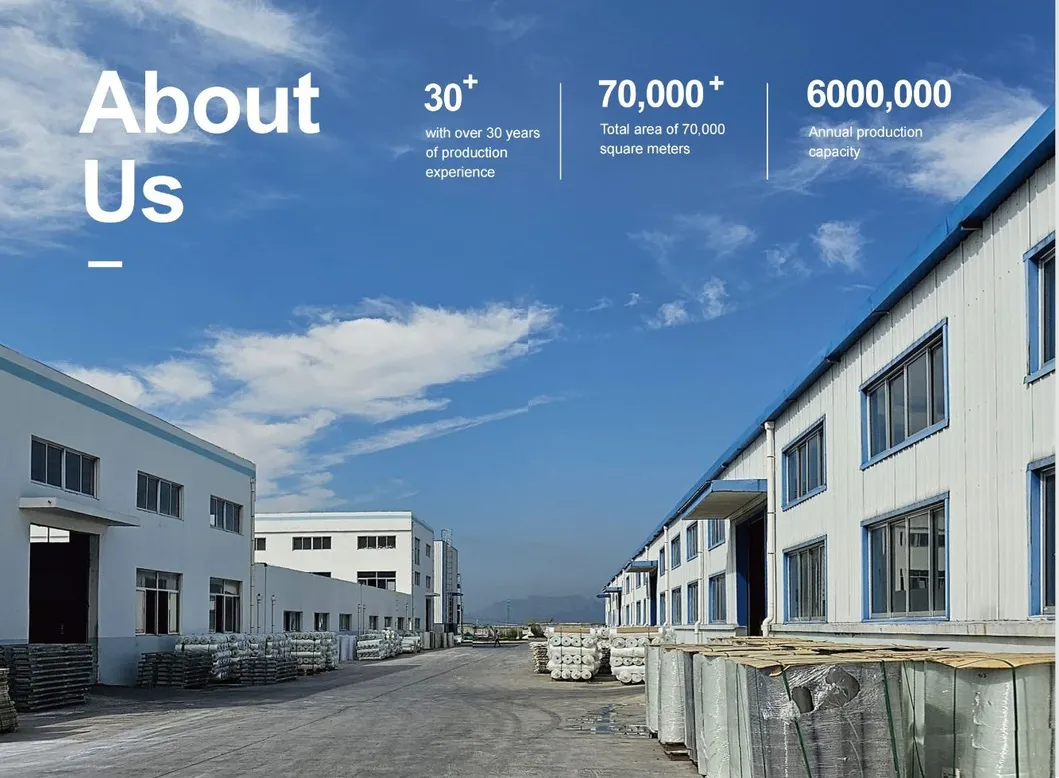

Factory View

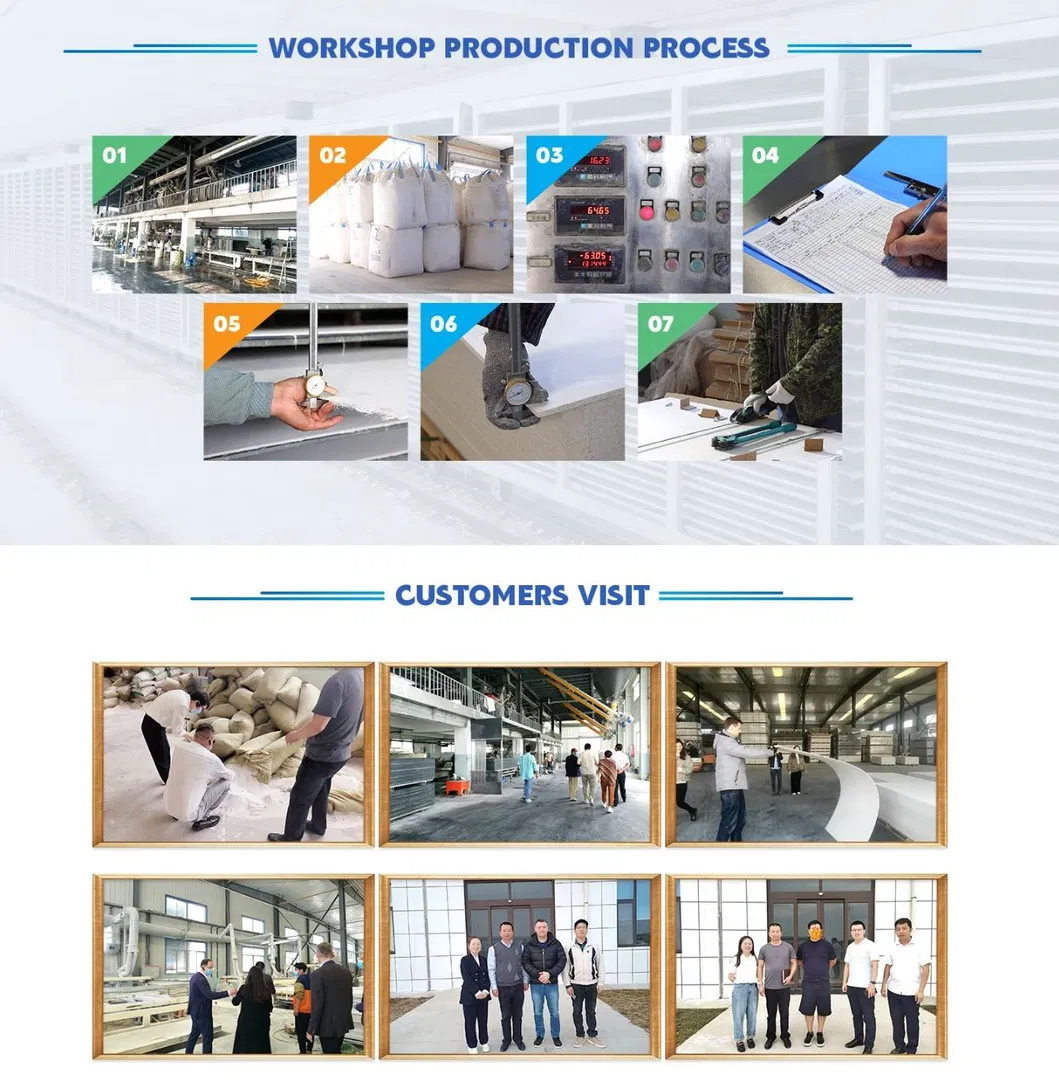

Production Line

With over 30 years of dedication to MgO board research and production, the manufacturer has pioneered pure sulfate formulas to eliminate the "crying board" issue. Operating two factories with a total area exceeding 70,000 square meters and an annual capacity of 6 million square meters, the products comply with international standards such as AS1530, ASTM E119, and Code Mark certification.

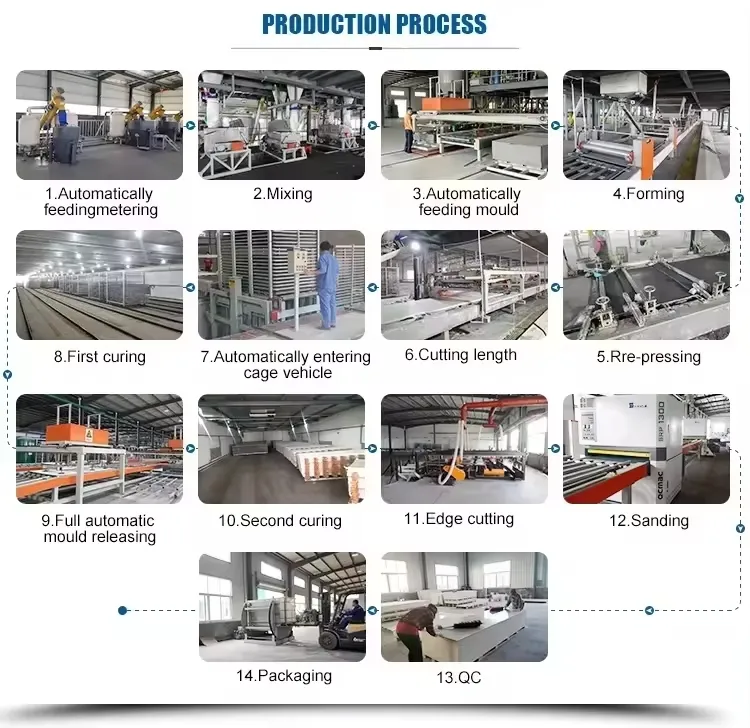

Quality Control
Key Figures:
  • 25+ years experience in MgO Board production.
  • 1st manufacturer of pure sulfate MgO board.
  • 4 production lines focusing on different requirements.
  • Supplying to over 50 countries with reliable quality.
Packaging & Shipping

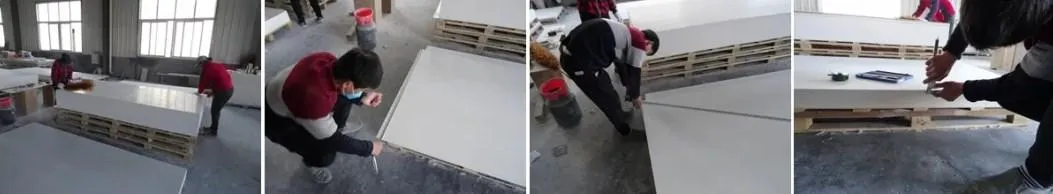

Packaging Process

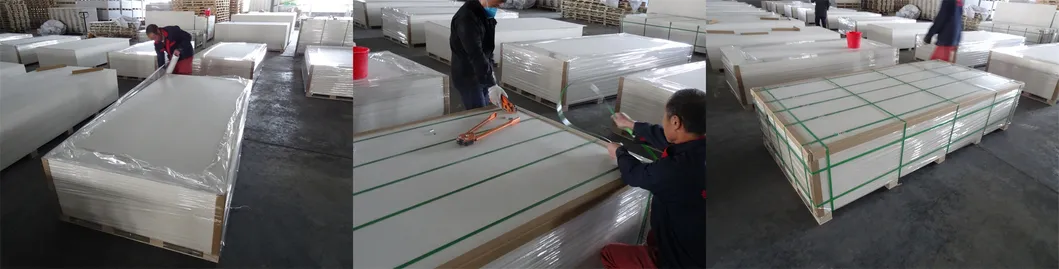

Quality Inspection

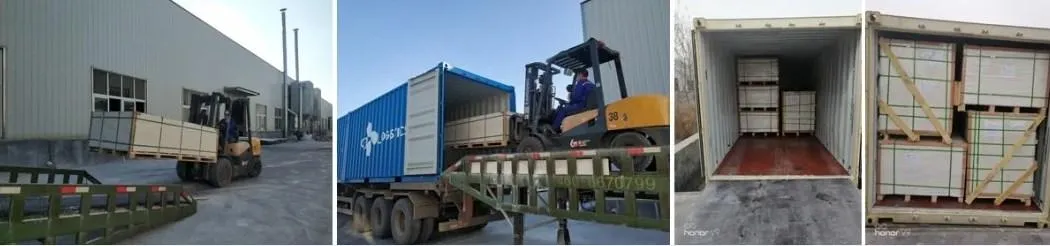

Final Pallets

Before Package: Every board is tested, inspected, and cleaned by our lab and workers to ensure zero defects.

During Package: We use film to cover pallets to avoid moisture. Green PET strapping is used to reinforce the pallets, along with corner protection and dunnage bags for container safety.

Frequently Asked Questions
What makes your MGO board different from traditional ones?
Traditional MGO boards are magnesium chloride-based, which can "cry" and corrode metal fittings. Our boards are Pure Sulfate Magnesium boards with Chloride Content ≤ 0.01%, ensuring no moisture issues.
Are you a manufacturer?
Yes, we are a specialized factory with three production lines and over 28 years of production experience in the field.
How do you ensure the safety of the boards during transport?
We pack goods in strong wood pallets, use corner protection, film wrapping to prevent moisture, and dunnage bags to fill container gaps.
Do you provide free samples?
Yes, we offer free samples. The customer only needs to cover the postage costs. We can also produce according to specific sample requirements.
What are your payment and delivery terms?
We typically accept T/T (30% deposit, 70% against BL copy). Delivery terms include FOB, CFR, CIF, DDP, and EXW.
What is the typical lead time for an order?
Generally, it takes about 15 days after receiving the advance payment, depending on the specific items and order quantity.
