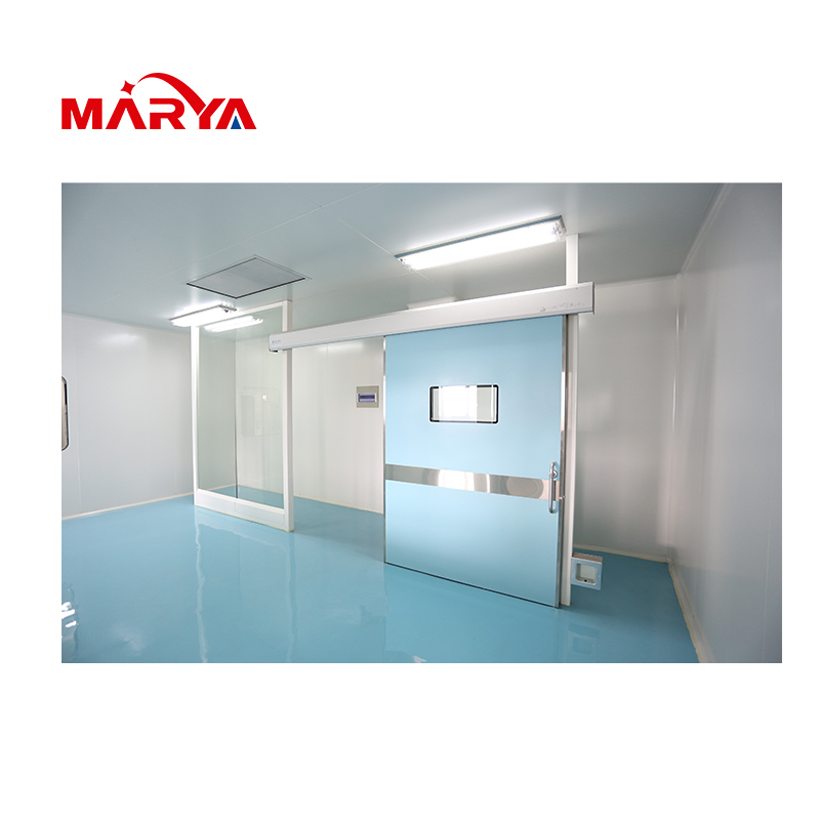

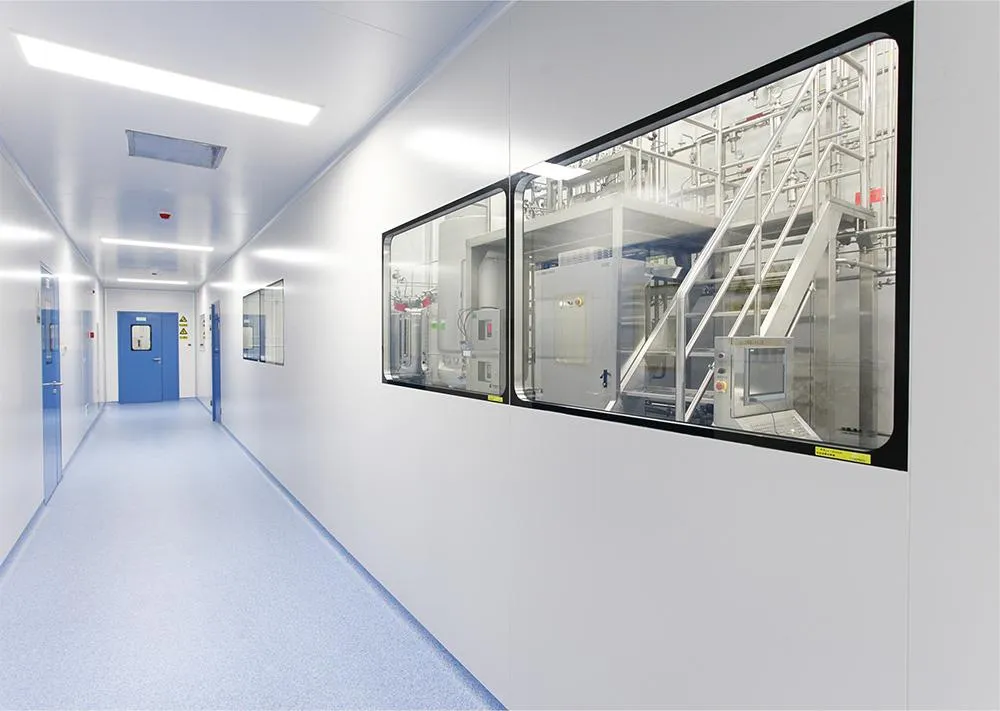

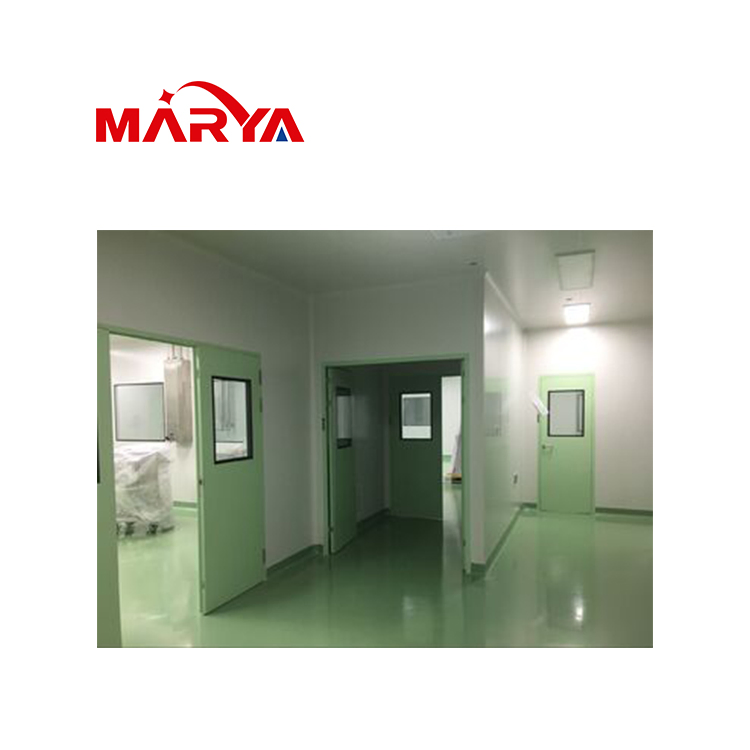

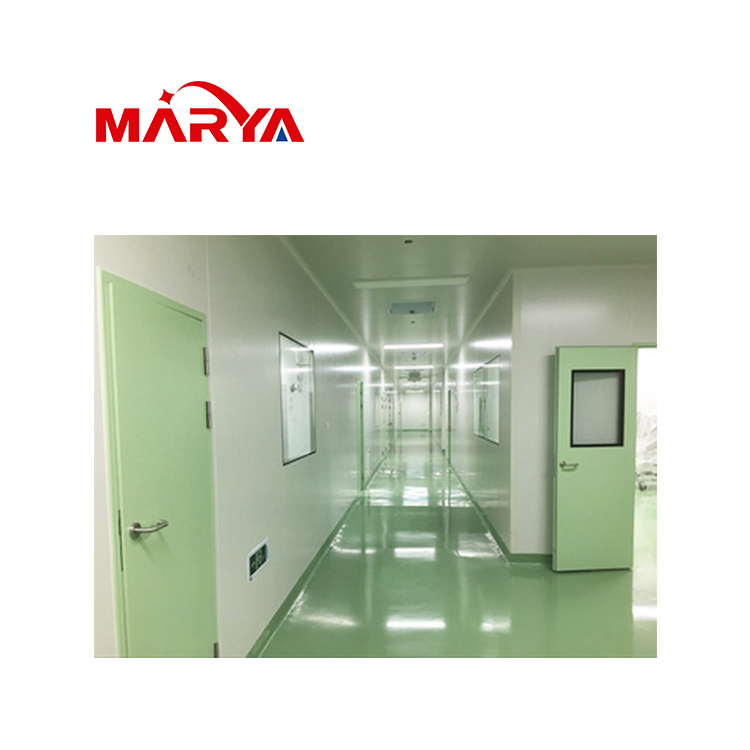

The Modular Wall Panel System Design is an essential component for manufacturing facilities in pharmaceutical, food, beverage, cosmetic, and electronic industries. Following Good Manufacturing Practice (GMP) requirements, these panels help control production environments effectively.

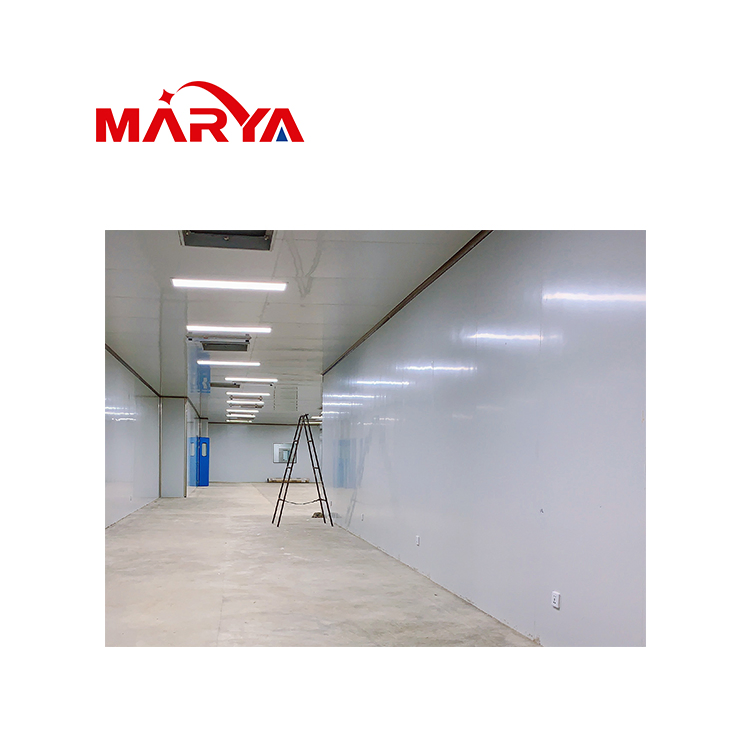

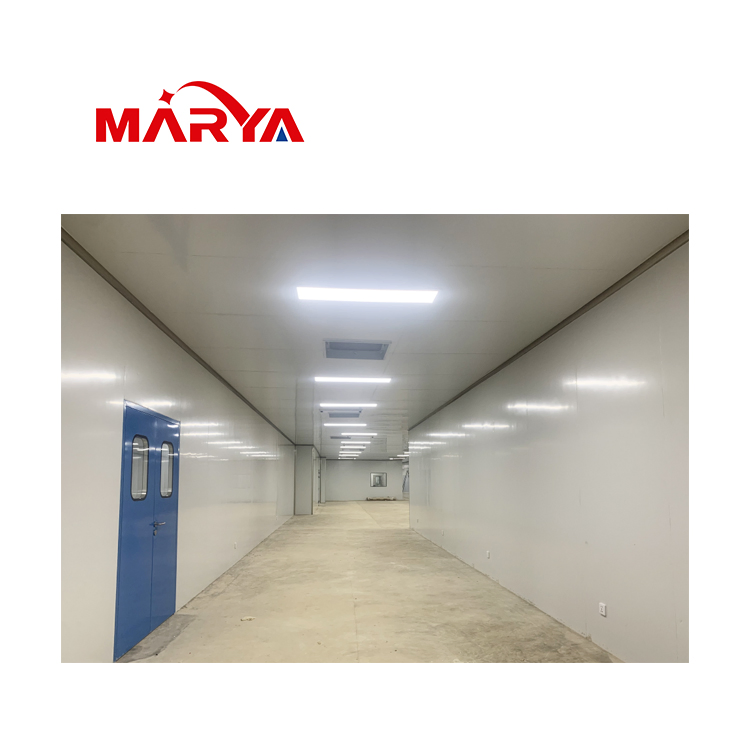

This cleanroom wall system offers various core materials to meet diverse needs such as fireproofing, heat preservation, noise reduction, and moisture protection. The panels can be pre-reinforced for holes and electrical boxes in the factory, significantly reducing secondary pollution during installation.
| No | Name | Specification |
|---|---|---|
| 1 | Panel thickness | 50/75/100 mm |
| 2 | Width | 980/1180mm or customized |
| 3 | Height | Customized |

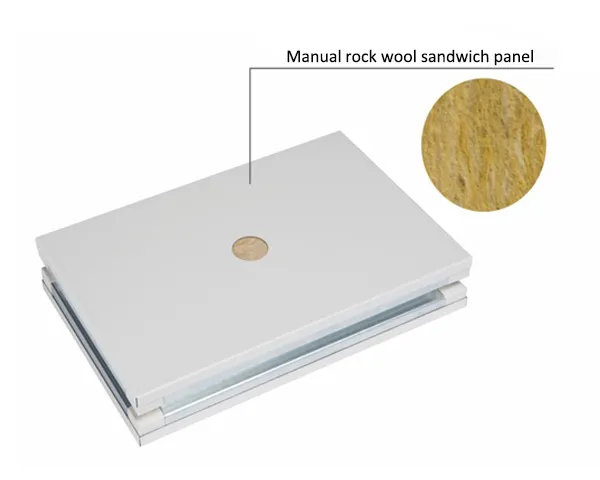

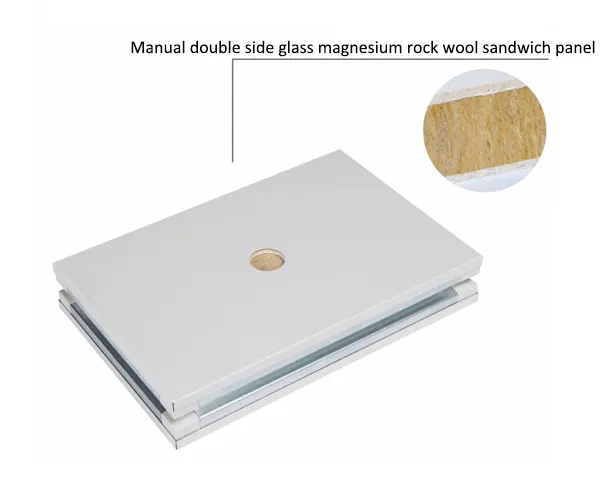

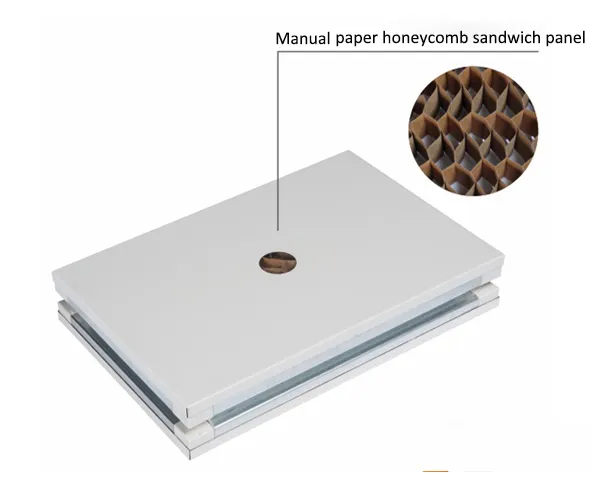

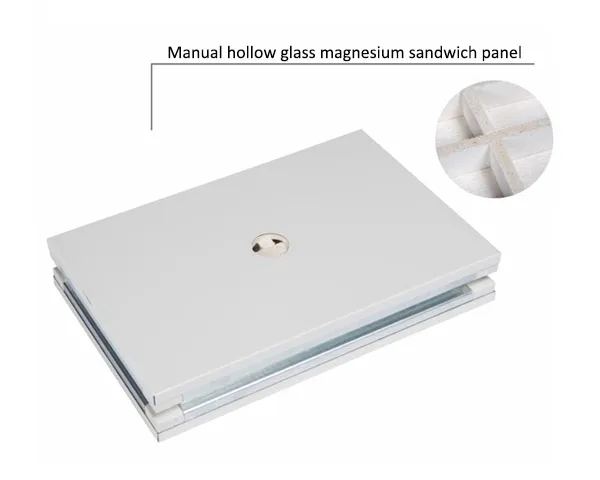

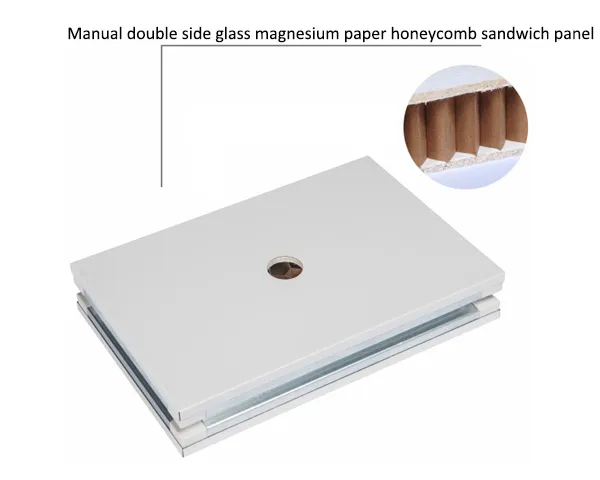

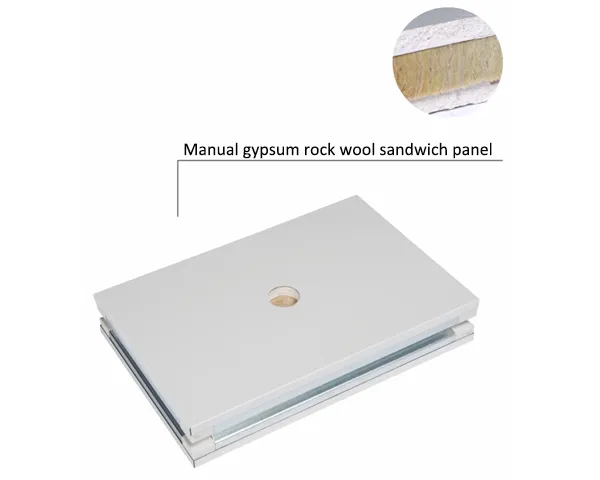

| 4 | Filling material | Mineral wool/ PU/EPS/paper honeycomb/aluminum honeycomb |
| 5 | Type | Handmade |
| 6 | Fireproof | Class A |
| 7 | Panel material | Galvanized steel/ Stainless steel |
| 8 | Panel material thickness | 0.5-0.8mm |
| 9 | Certification | ISO9001, CE, SGS |
| 10 | Accessories | Aluminum alloy |

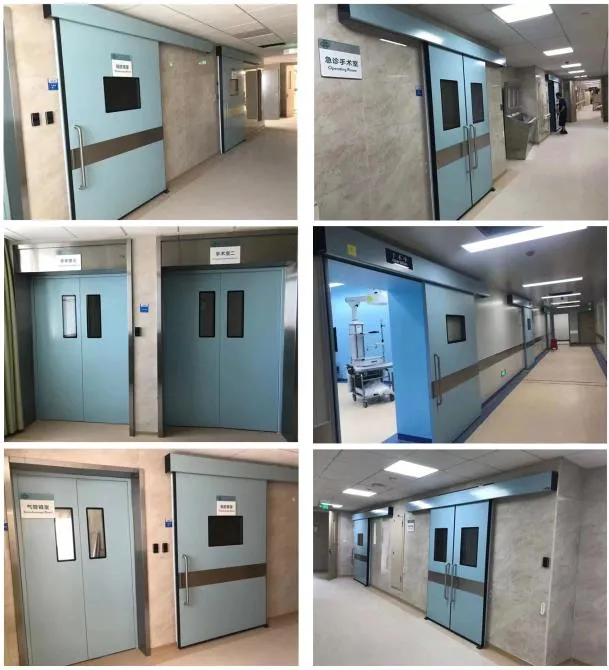

Comprehensive solutions for Cleanroom doors, windows, FFU, AHU, Chiller systems, Flooring, and Lighting & Electricity systems. We provide Engineering Procurement Construction (EPC) services for your production units.
