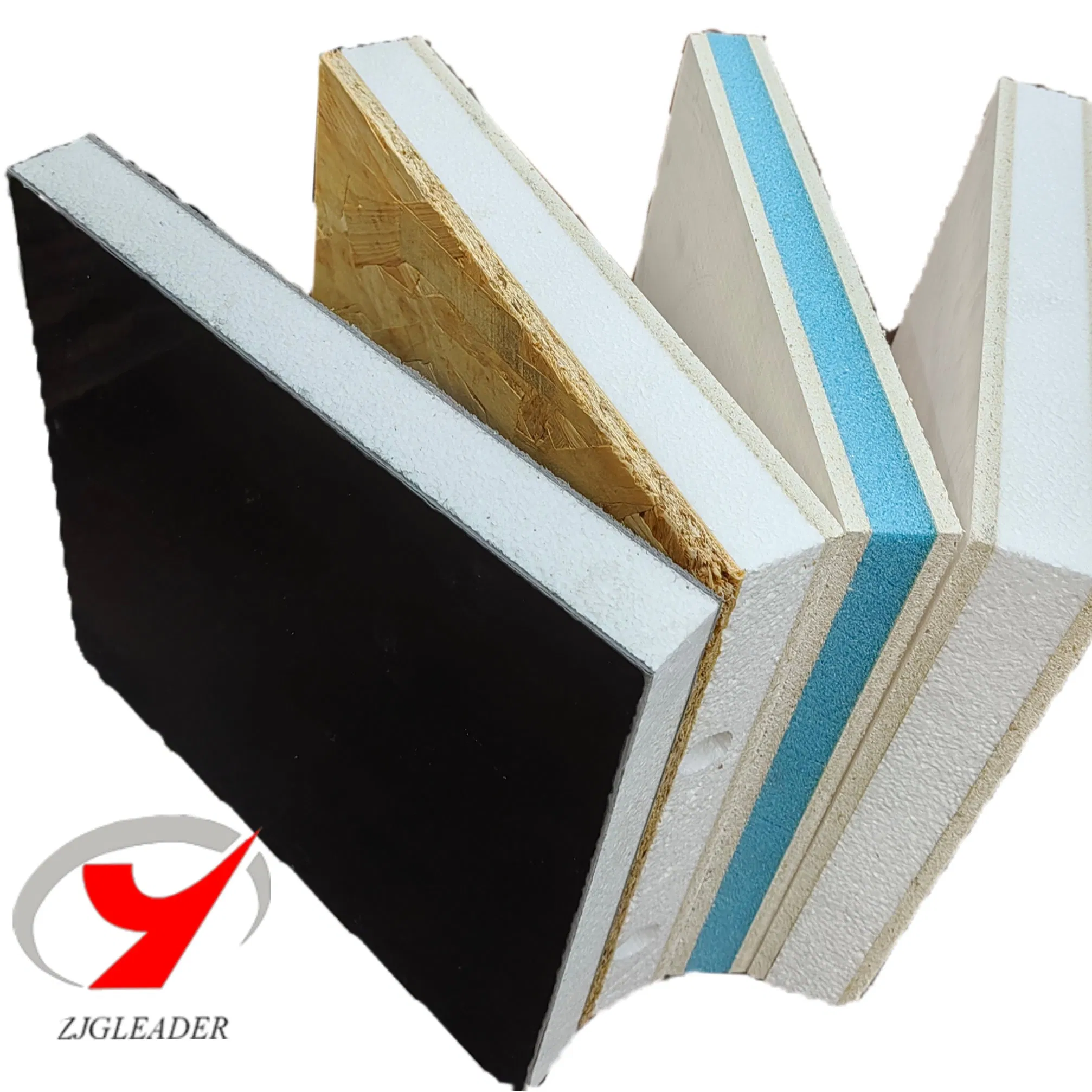

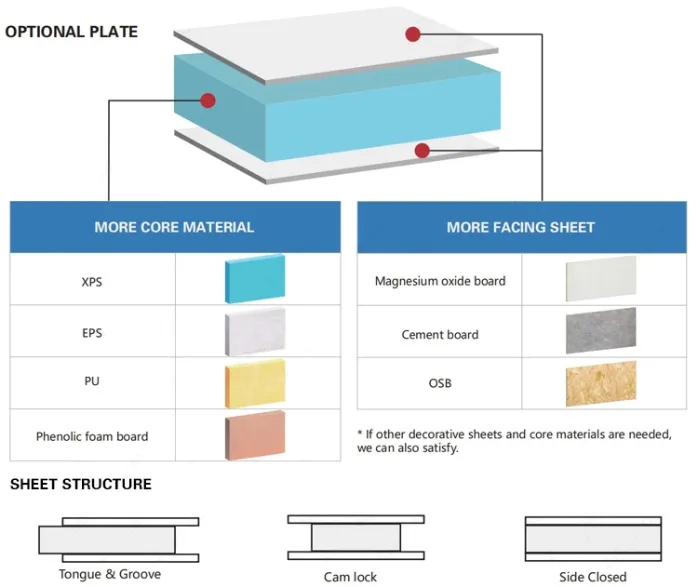

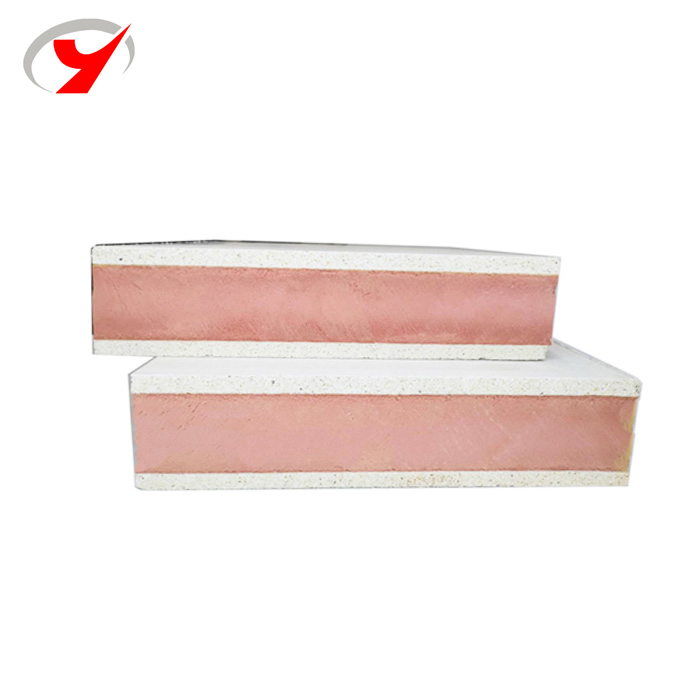

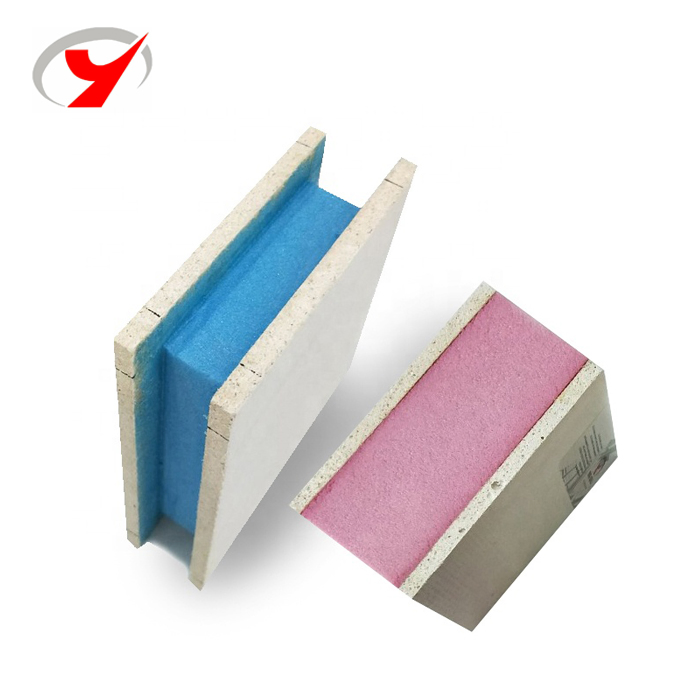

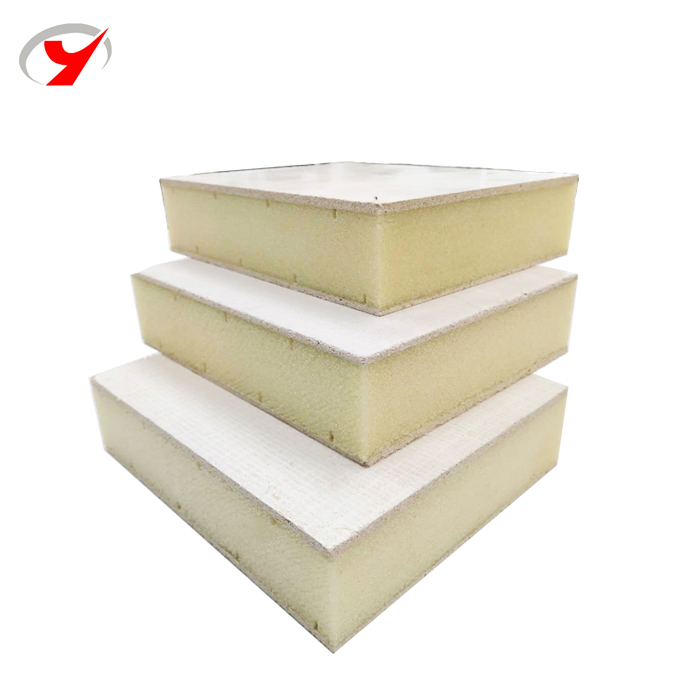

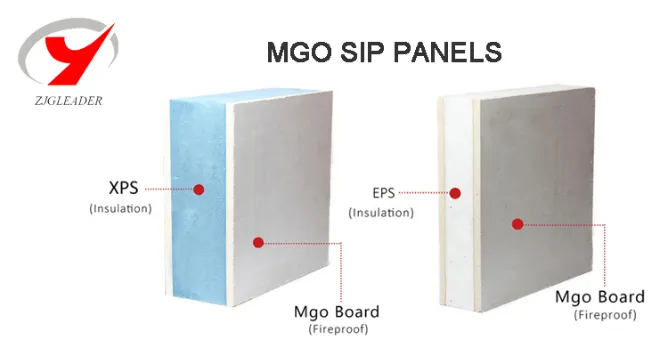

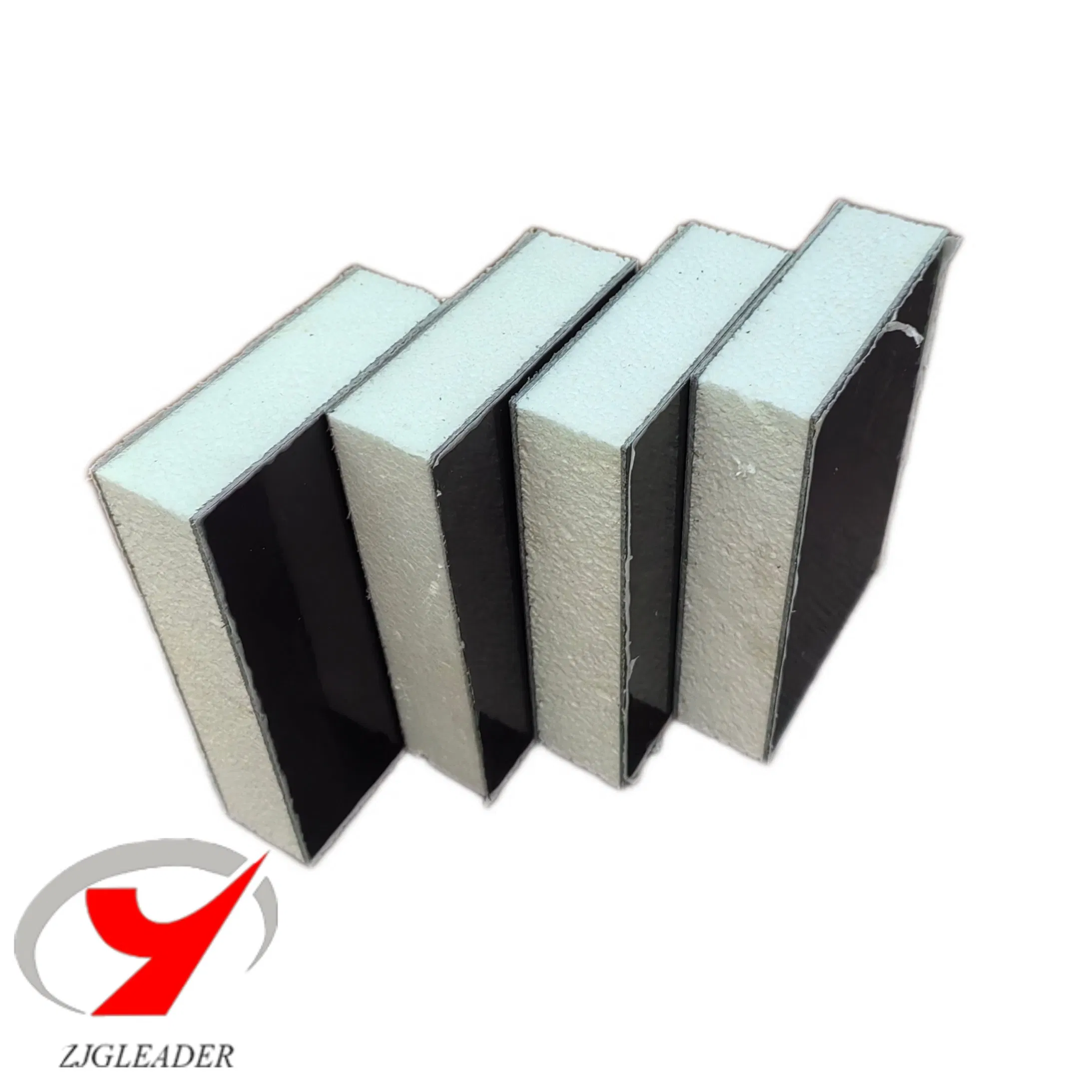

MGO SIP PANELS (Magnesium Oxide Structural Insulated Panel) is a high-performance composite building material. It consists of a sandwich structure with two layers of structural magnesium oxide boards and an insulating foam core (EPS or XPS) in between.
Excellent heat-insulation and preservation, maintaining constant temperature levels.
Convenient for wire grooves and water pipe integration; easy for decoration.
Significantly faster than traditional brickwork (3 workers vs 12 workers for the same output).
Superior anti-seismic and anti-impact performance compared to traditional materials.
A-class fire resistance and excellent moisture-proof characteristics.
Effective noise reduction for quiet living and working environments.
| Details/Core materials | EPS | XPS | PU | Phenolic foam |
|---|---|---|---|---|
| Thickness | 30-200mm | 20-100mm | 10-160mm | 20-120mm |
| Density | 15-32kg/m³ | 35-47kg/m³ | 36-68kg/m³ | 60-75kg/m³ |
| Thermal conductivity | 0.024-0.041W/m.k | 0.027-0.036W/m.k | 0.02-0.024W/m.k | 0.023-0.038W/m.k |
| Fire classification | B3,B2,B1 | B3,B2,B1 | B2,B1 | A |
| Life time | - | - | - | 15-30 years |

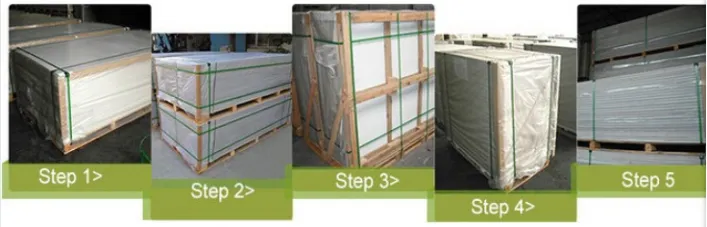

Professional handling at every step: Raw material selection, Warming, Precision Cutting, Sanding, and Secure Loading.
