MODULAR WALL FORMWORK SYSTEM

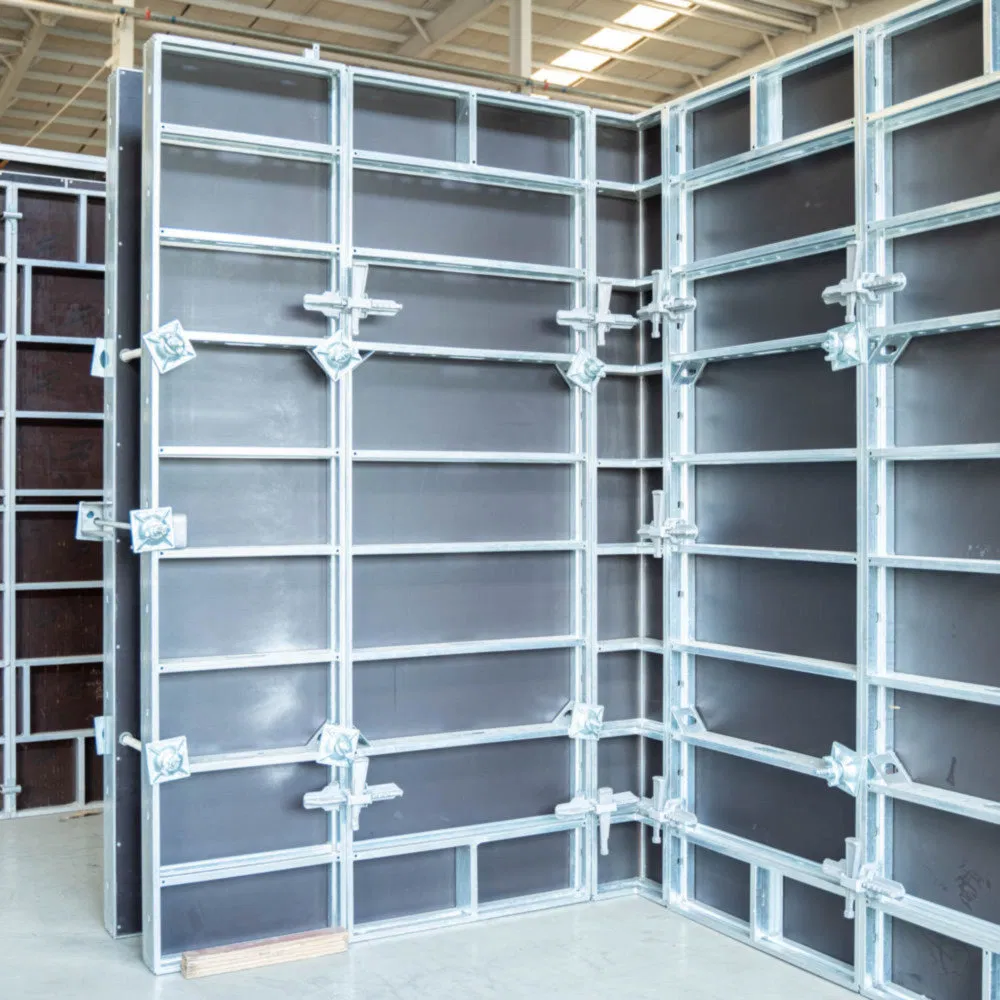

The modular wall formwork system with easy panel combination is a versatile and high-performance solution engineered for efficient vertical concrete construction. This advanced system features a modular design with quick-connect panel combinations, available in both steel and aluminium configurations to suit diverse project requirements.

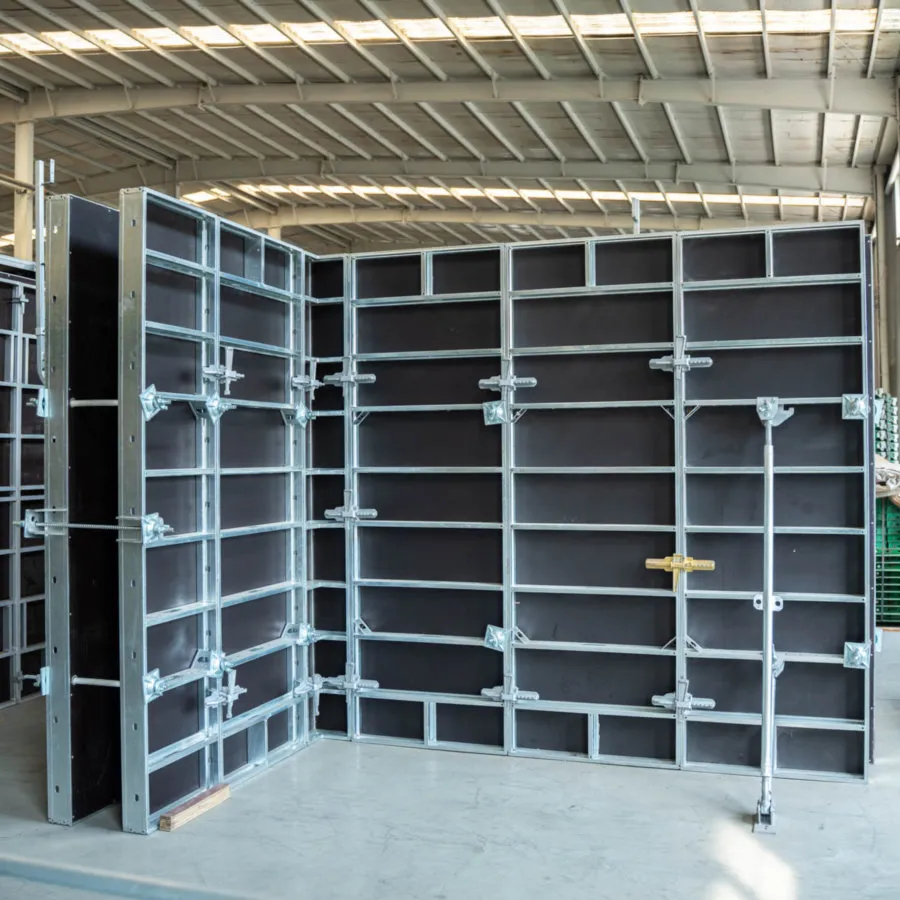

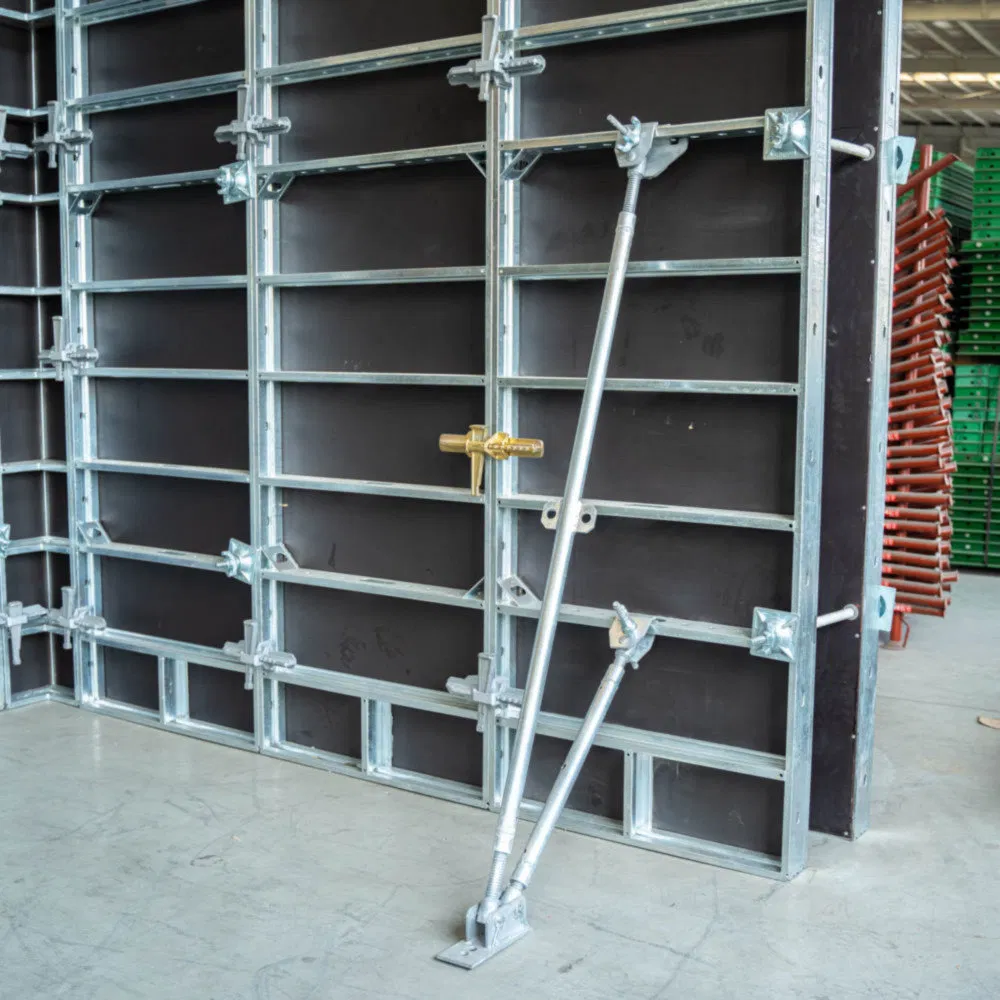

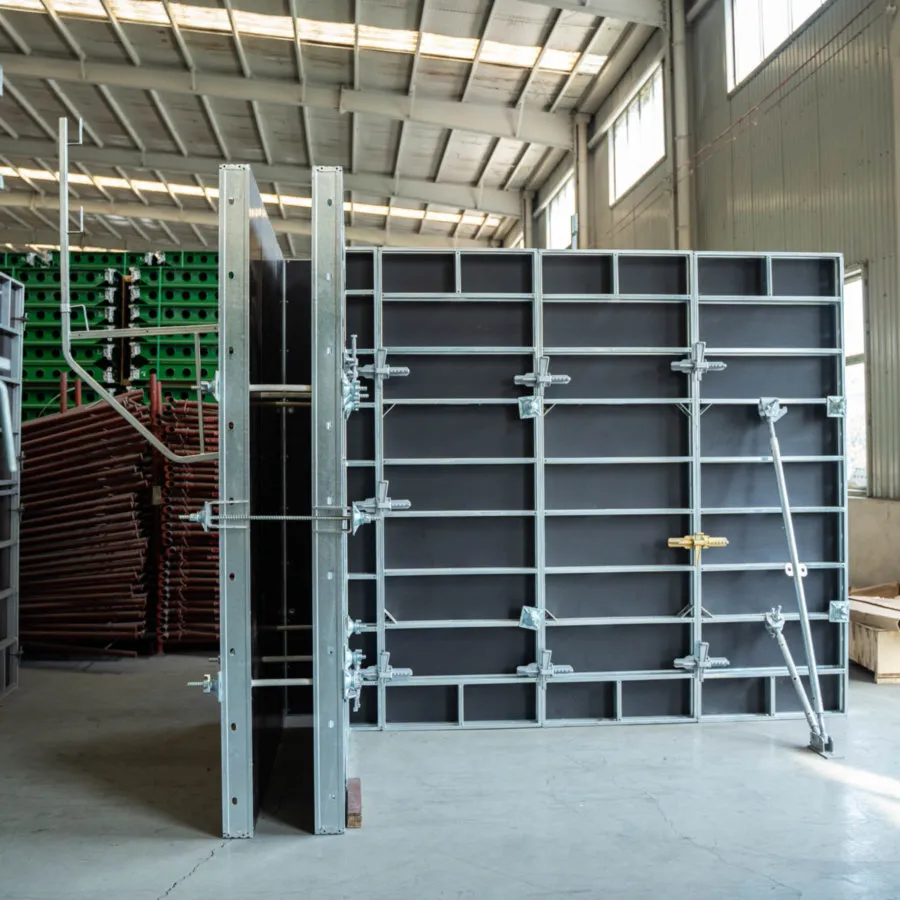

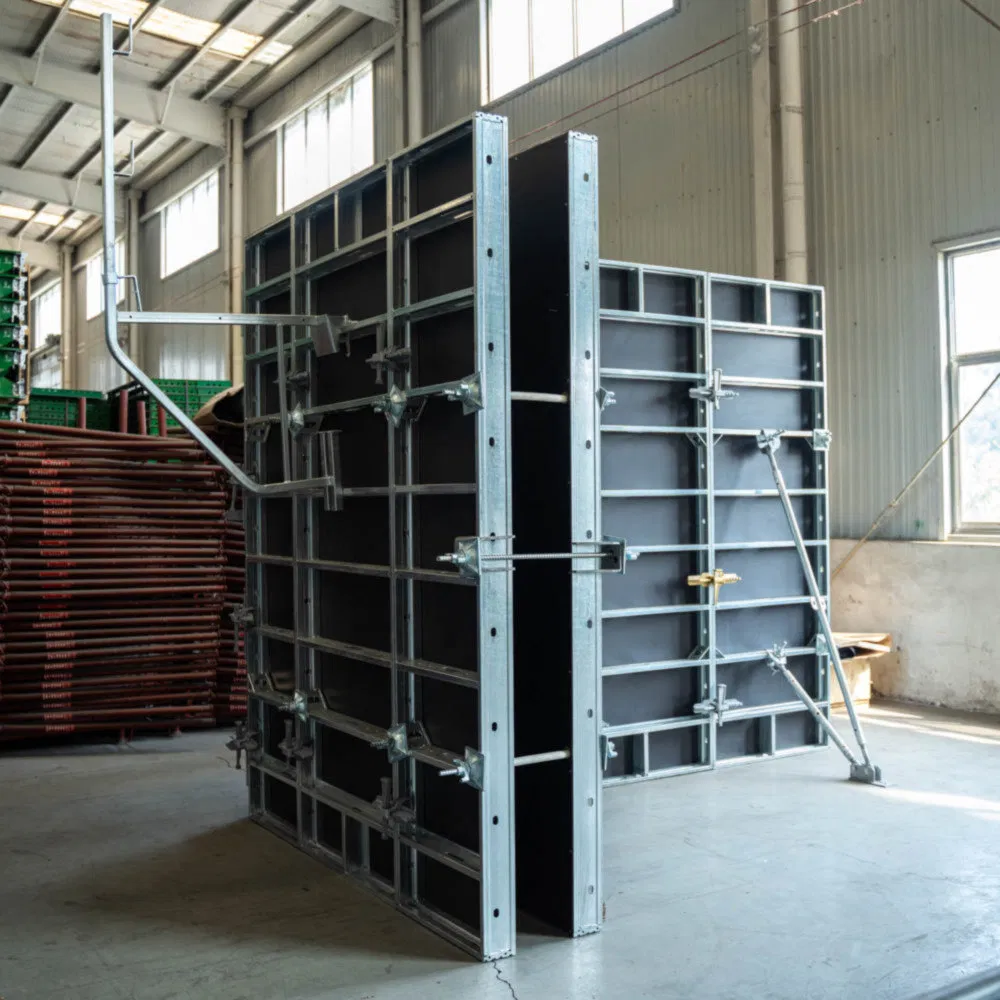

Built as a heavy-duty system, it handles high concrete pressures while maintaining dimensional accuracy and superior surface finish quality. Standardized panel modules can be rapidly assembled into any configuration, from simple straight walls to complex architectural geometries.
| GF Trio SB Bracket Frame Technical Data | ||||
|---|---|---|---|---|
| Specifications 01 | SB-A | SB-B | SB-1 | SB-2 |
| Specifications 02 | SB-A0 | SB-A, C | SB-B, C | SB-A, B, C |

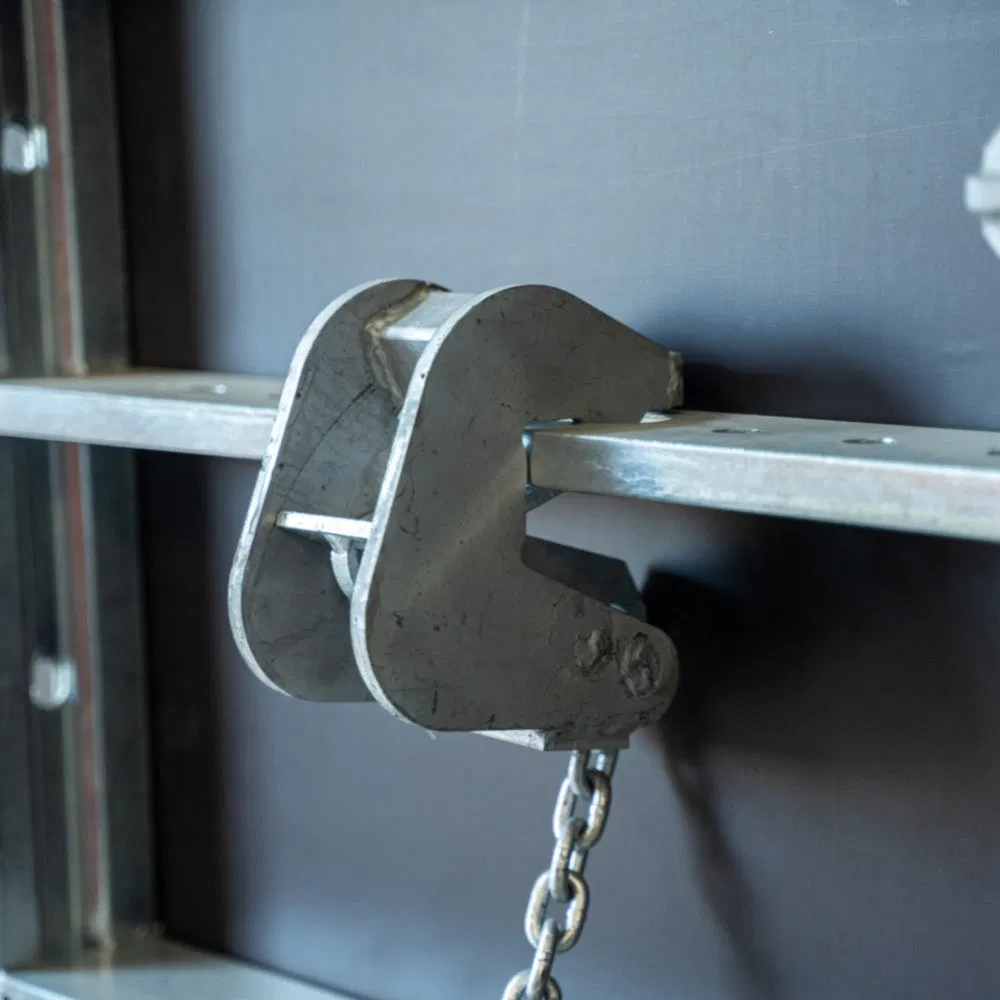

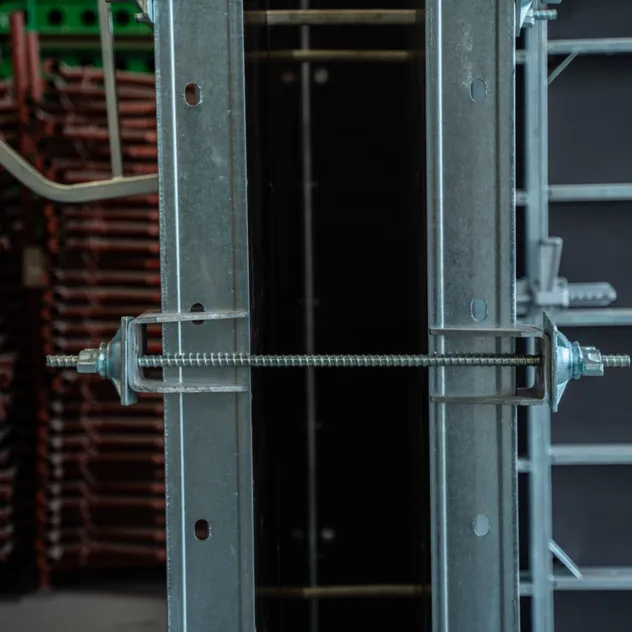

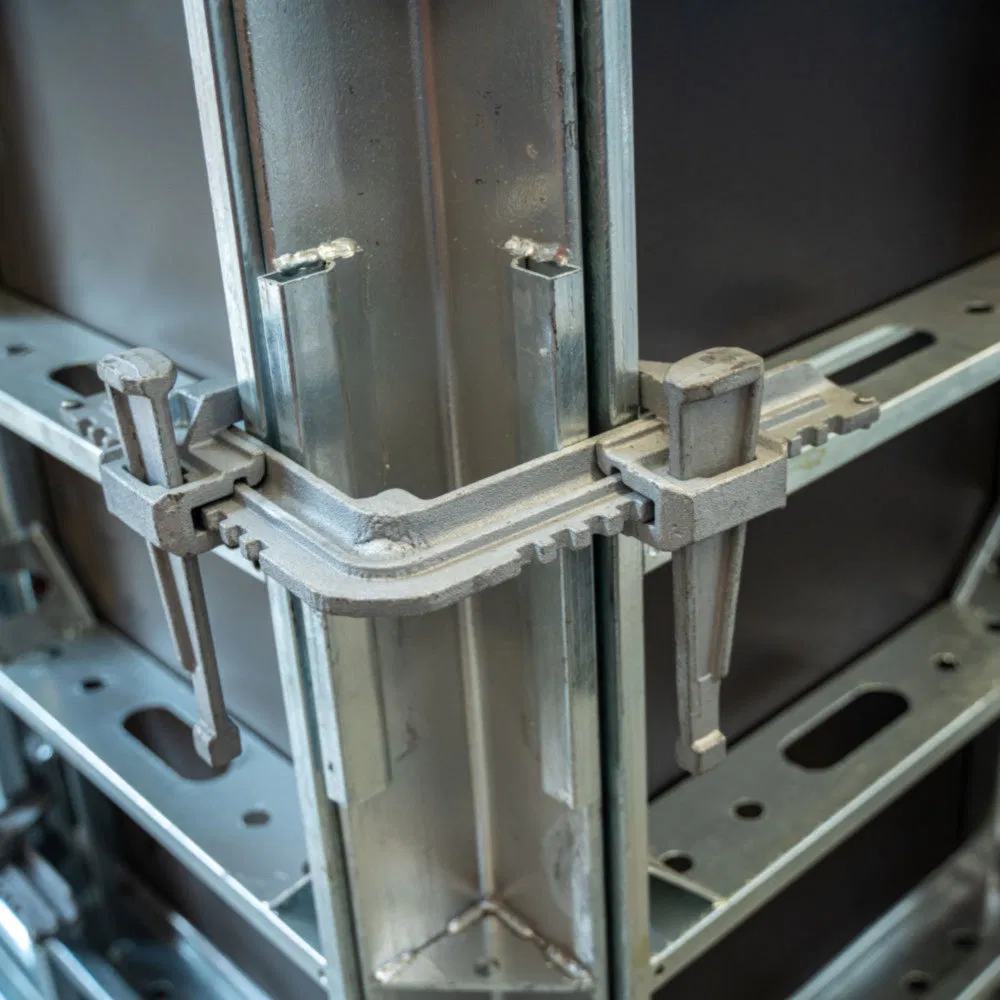

Modular Design & Easy Combination: Standardized panel modules enable quick assembly. The interlocking connection system allows rapid panel combination without specialized tools, ensuring versatility across multiple projects.
High Reusability & Durability: Premium steel or lightweight aluminium materials ensure extended service life with hundreds of reuse cycles. Corrosion-resistant surface treatments protect components from harsh job site conditions.
