| Model NO. | Modular Wall Formwork |
| Certification | ISO, ROHS, CE |
| Material | Steel, Aluminium |
| Type | Wall Formwork |
| Feature | Modular Panel Design, High Load Bearing Capacity |
| Application | Forming Vertical Concrete Walls |
| OEM/ODM | Available |
| Package | Steel Pallet |
| Production Capacity | 15000 tons/Year |
| HS Code | 84806000 |

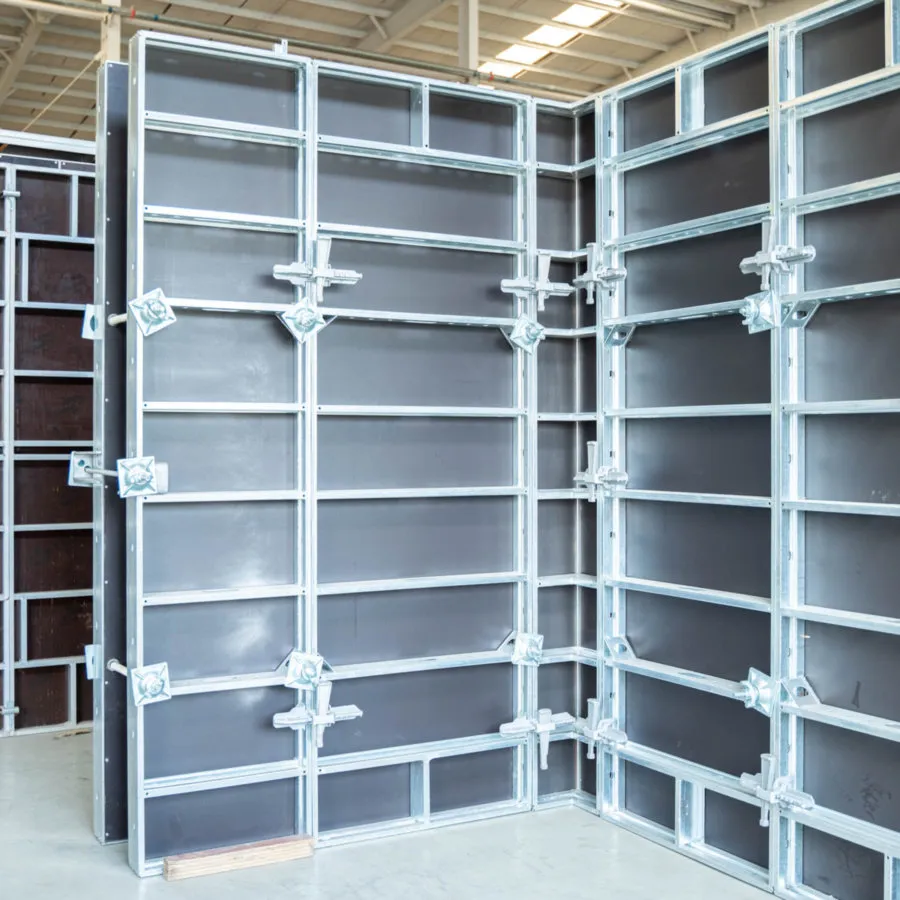

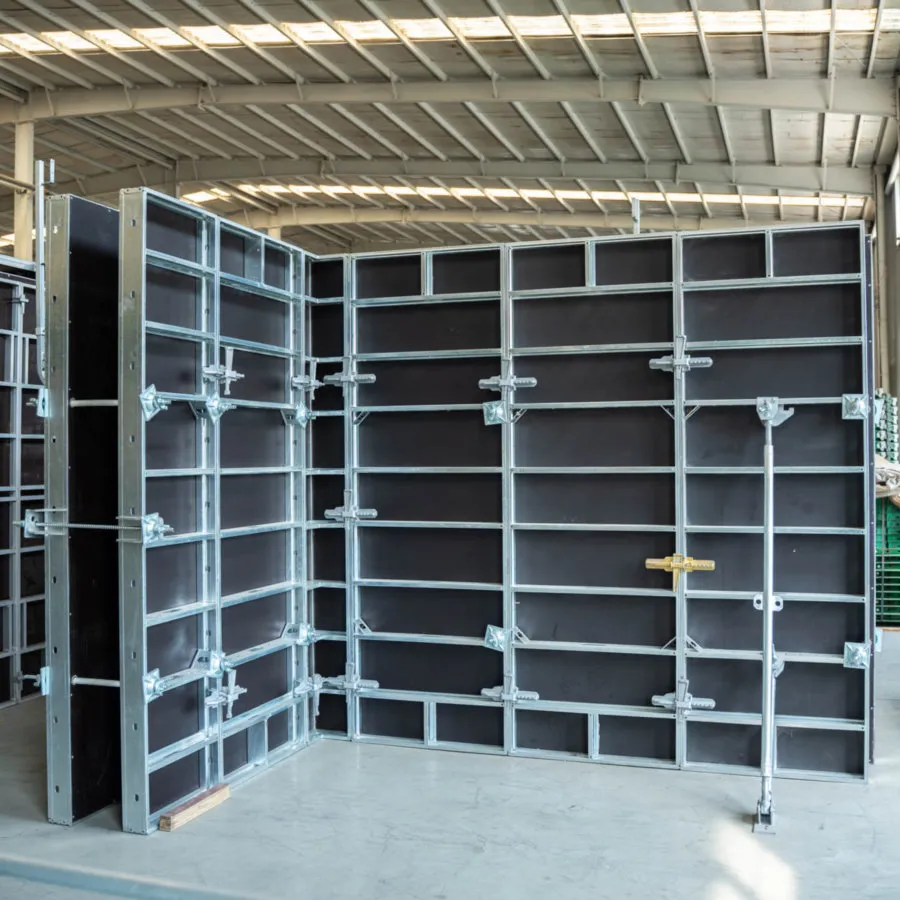

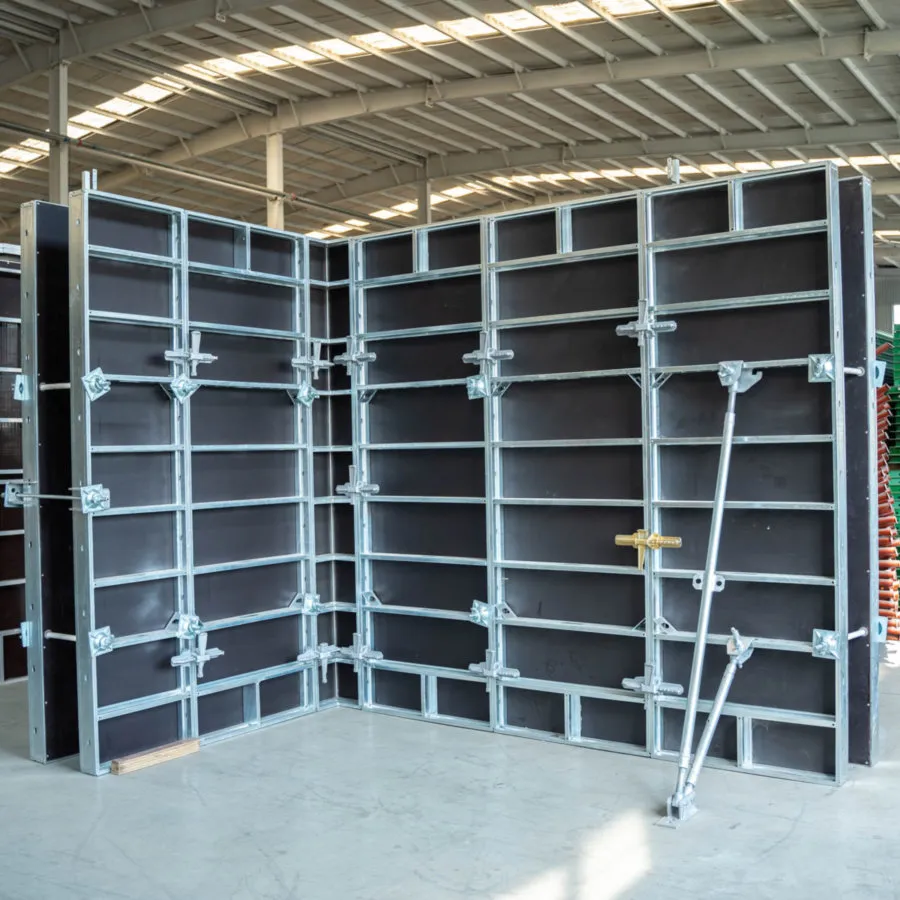

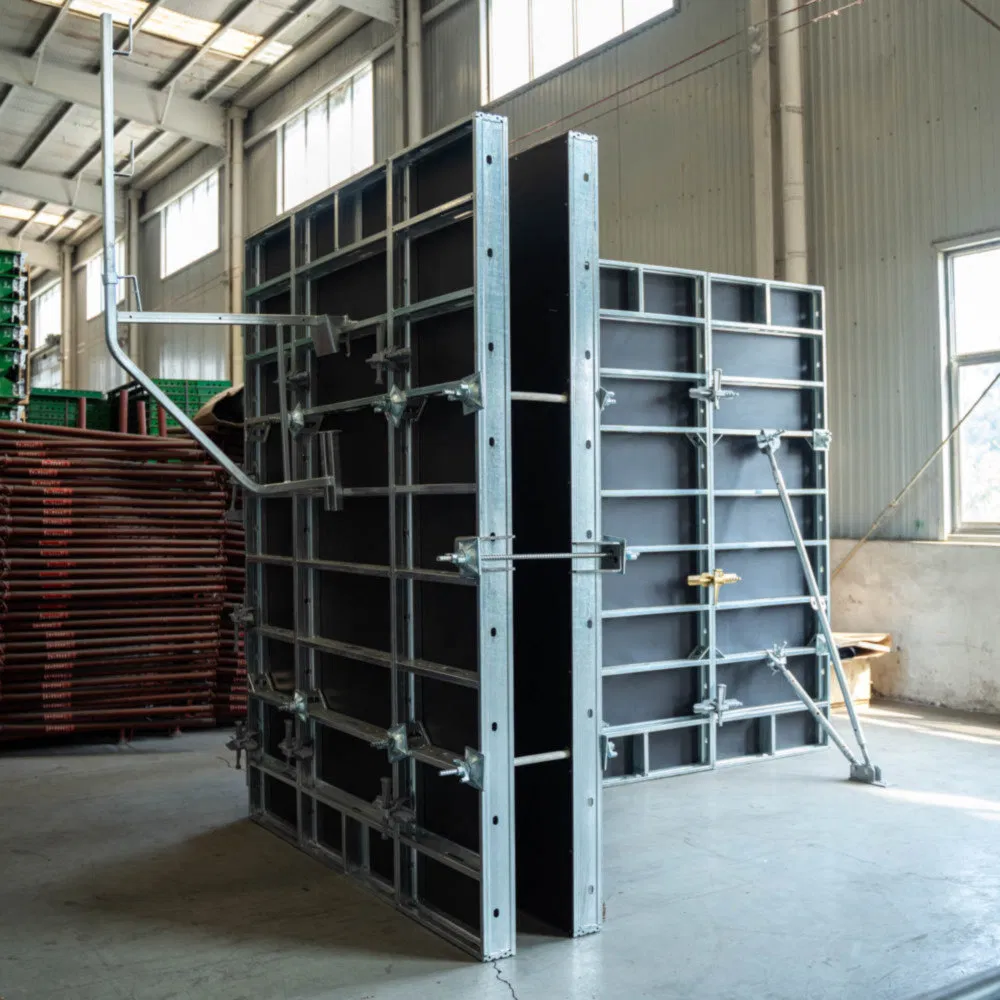

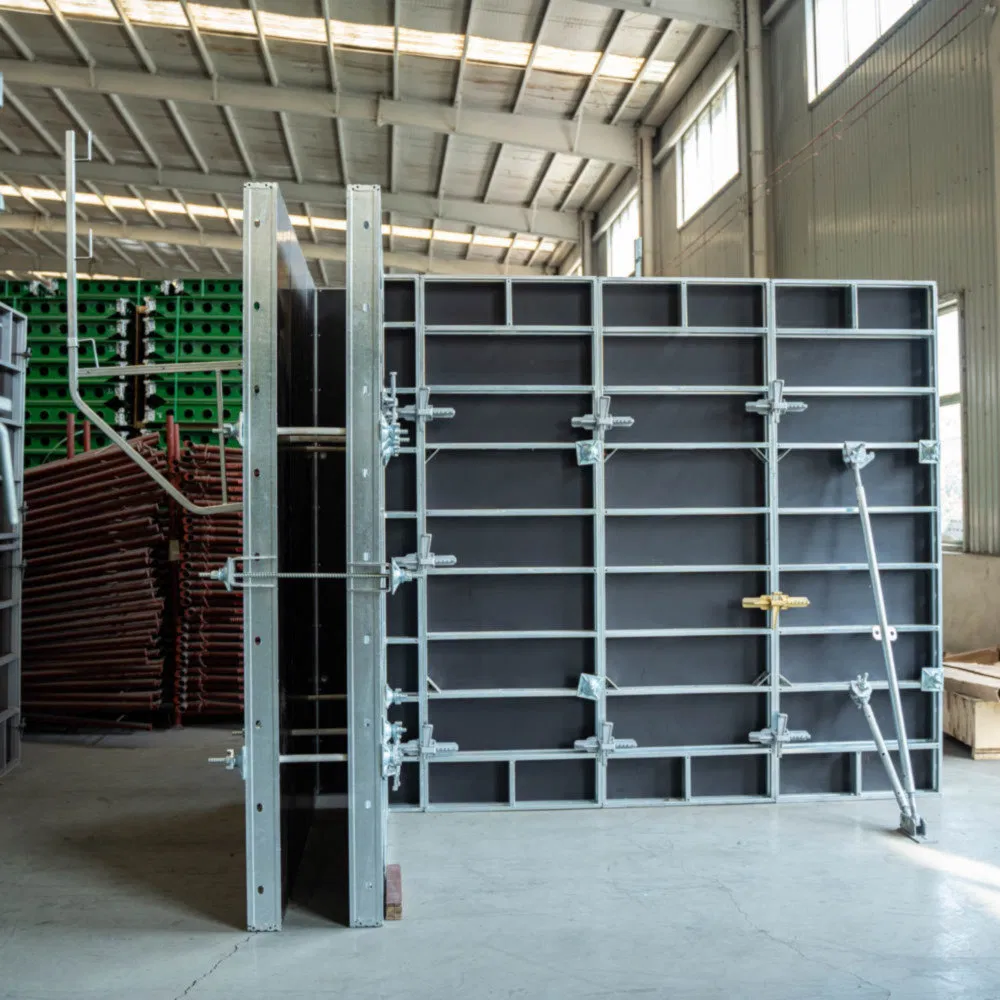

MODULAR WALL FORMWORK SYSTEM
The modular wall formwork system with easy panel combination is a versatile and high-performance wall forming solution engineered for efficient vertical concrete construction. This advanced system features modular design with quick-connect panel combinations, available in both steel and aluminium configurations to suit diverse project requirements.
The reusable wall formwork system delivers exceptional flexibility through its standardized panel modules that can be rapidly assembled into any wall configuration, from simple straight walls to complex architectural geometries. Built as a heavy-duty system, it handles high concrete pressures while maintaining dimensional accuracy and superior surface finish quality.
• Vertical concrete wall construction for residential, commercial, and industrial buildings.
• Load-bearing structural walls and shear walls in high-rise developments.
• Basement walls, retaining walls, and foundation walls requiring high-quality finish.
• Core walls, elevator shafts, and stairwell enclosures.
• Residential apartment buildings and condominiums with repetitive layouts.
• Commercial office buildings, retail centers, and mixed-use developments.
| GF Trio SB Bracket Frame Side Wall | ||||
| Specifications 01 | SB-A | SB-B | SB-1 | SB-2 |
| Specifications 02 | SB-A0 | SB-A, C | SB-B, C | SB-A, B, C |

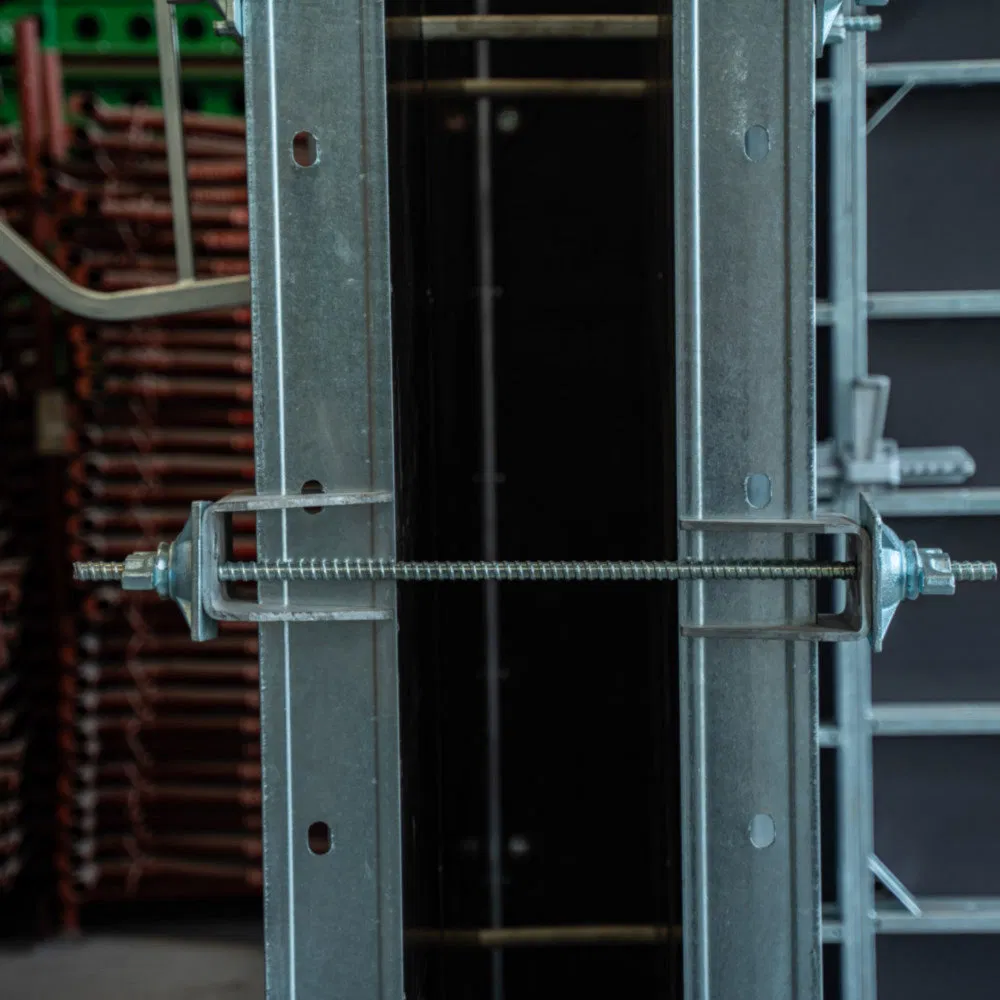

Standardized panel modules enable quick and flexible assembly into any wall configuration. Interlocking connection system allows rapid panel combination without specialized tools.
Engineered to withstand high concrete pressures and lateral loads. Robust steel or aluminium frame construction provides exceptional structural strength and stability.
Premium materials ensure extended service life with hundreds of reuse cycles. Corrosion-resistant surface treatments protect components from job site conditions.

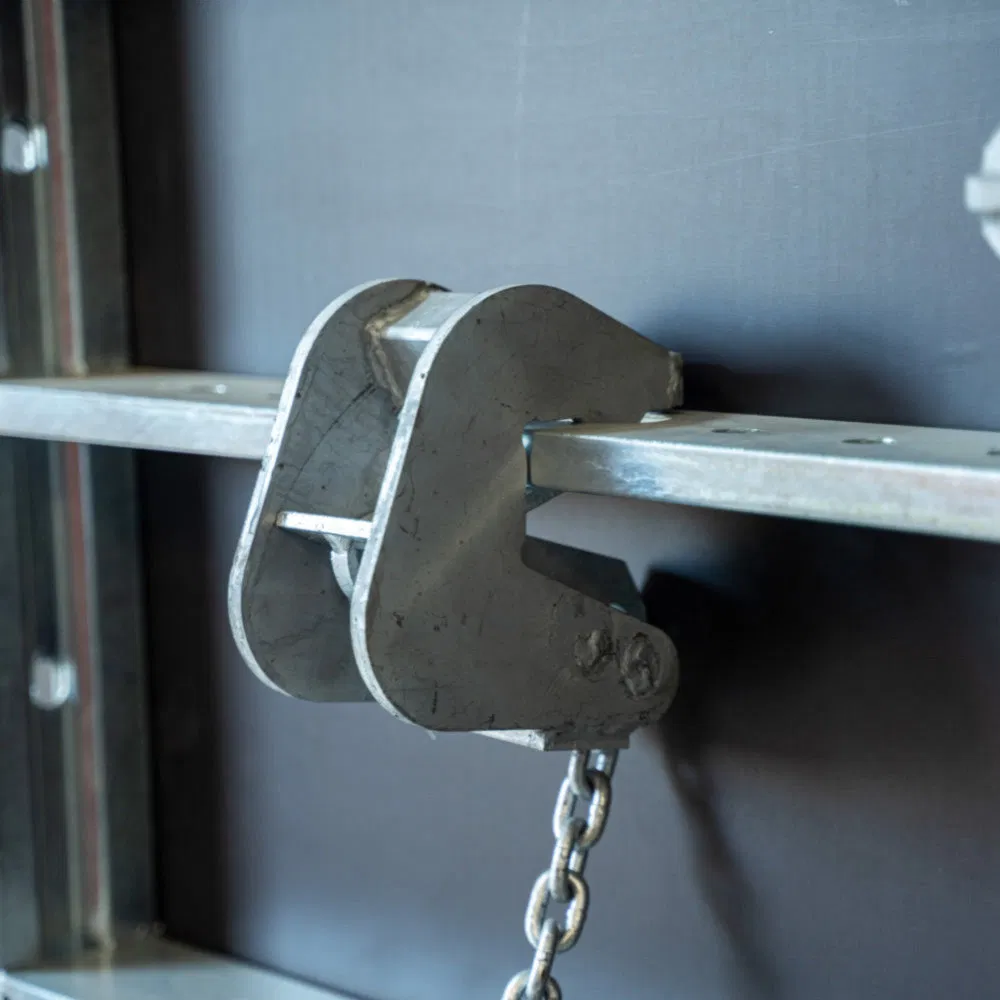

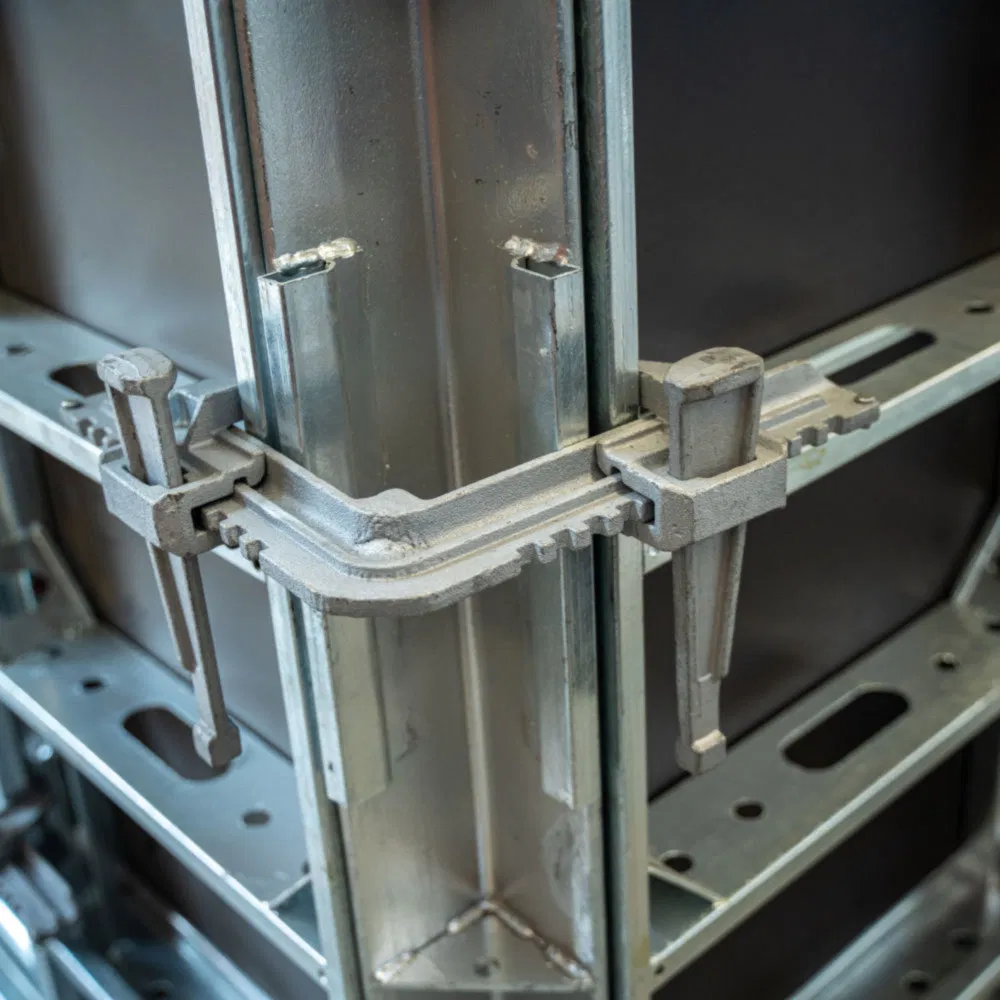

Quick-connect coupling system enables rapid panel installation with minimal crew requirements. Simple locking mechanisms allow for efficient workflow.
