Product Description

i

Basic Information

Model NO.
Cement board
Color
Gray
Thickness
4.5-30mm
Raw Material
Cellulose Fiber; Cement, Quartz Powder, Wood Pulp
Asbestos
100% Non-Asbestos
Fire Rating
Class A
Size
1220*2440
Application
Wall Partition, Exterior Wall Cladding, Flooring
Density
1.2-1.6g/cm3
Bending Strength
>10 MPa
P

Product Description

Fiber Cement Board
Property Specification / Value
Thickness (mm)5-30
Width (mm)1220
Length (mm)2440, 3000
Density1.2-1.6g/cm3
Thermal conductivity≤0.29 W/(m.k)
Water absorption≤28%
Bending strength (Oven dry)≥16 Mpa
Non-combustibilityClass A
Key FeaturesWaterproof, Fireproof, Moisture proof, Sound insulation, Easy installation

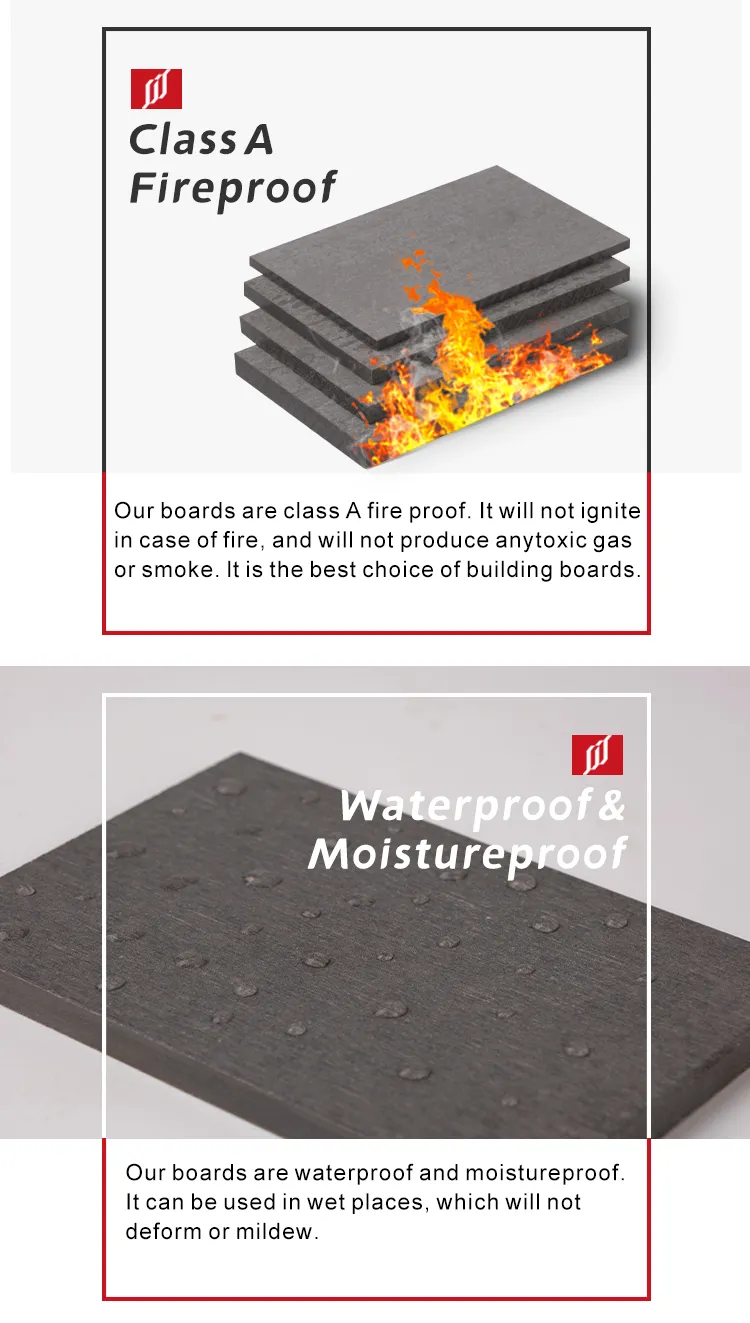

Board Details
Board Application
S

Product Installation

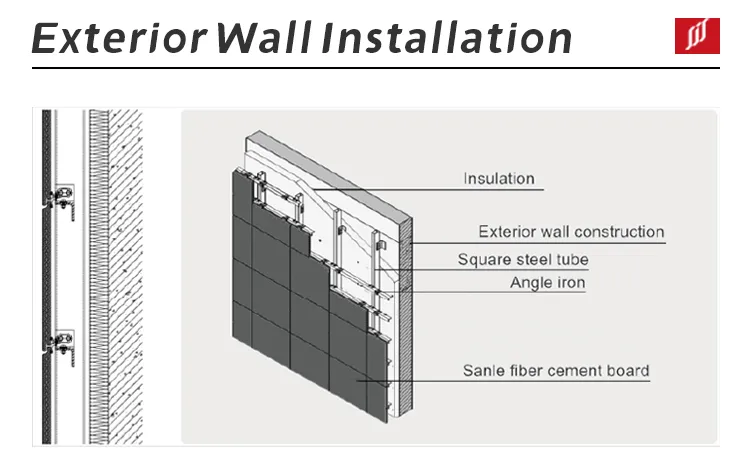

Installation Guide
Preparation: Install supporting aluminum accessories on the back of the board based on design requirements.
Wall Preparation: Clean wall surface and mark position lines for the steel frame.
Keel Installation: Fix angle iron and vertical square steel tubes. Ensure perpendicularity using steel wire.
Board Installation: Mount processed boards on the keel using aluminum accessories. Adjust horizontal and vertical alignment.
Joint Treatment: Fill seams with fiber cement powder mixing glue and apply special coating twice.

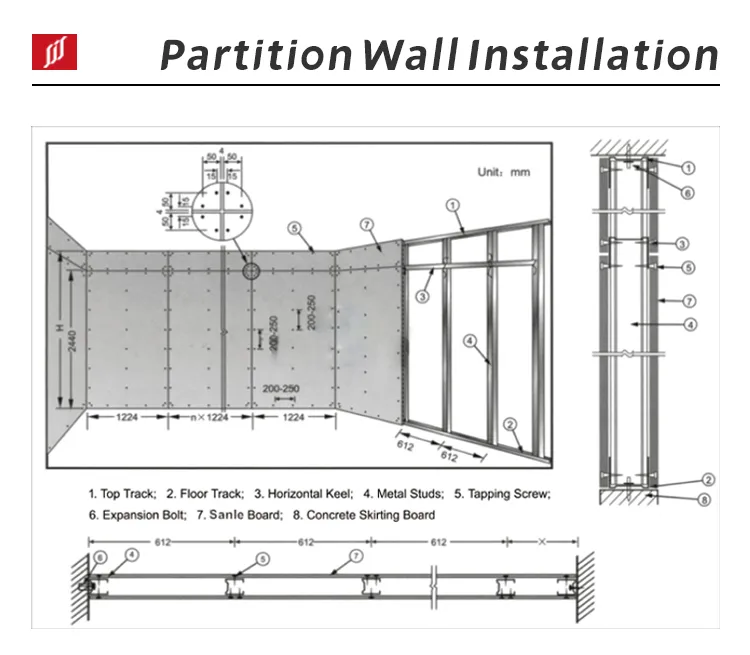

Wall Installation

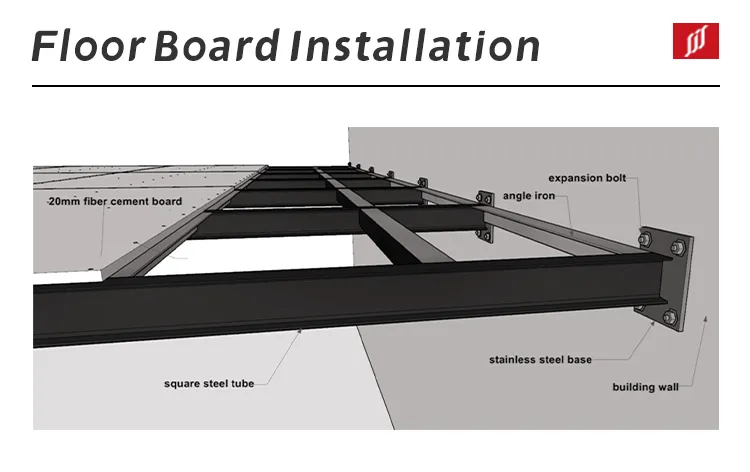

Floor Installation
E

Engineering Case

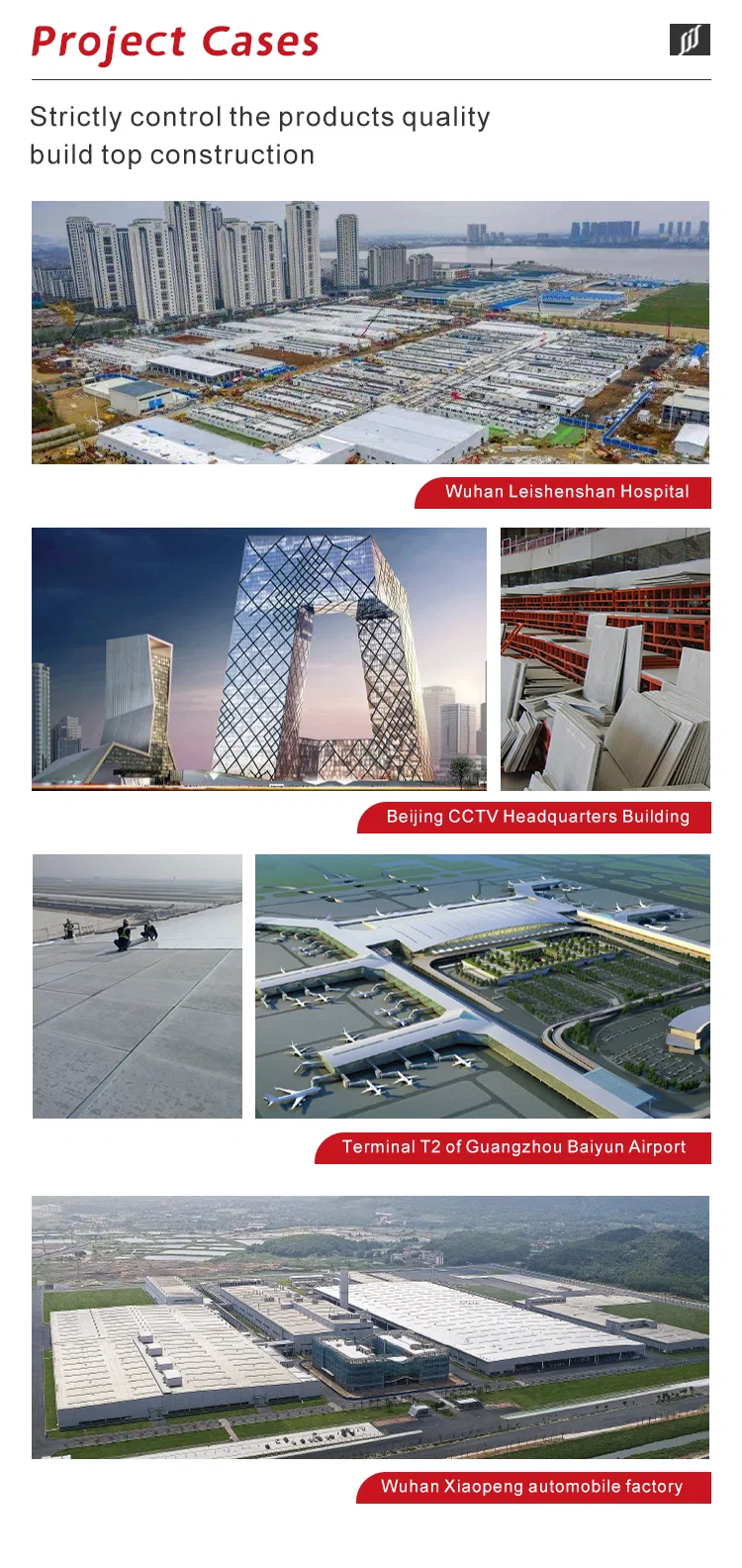

Project Showcase
L

Packaging & Shipping

Packaging 1
Packaging 2
C

Company Introduction

Our group is one of the largest building materials company groups in China, enjoying a well-known brand globally. Established in 1998, we are a professional comprehensive group engaging in the research, development, production, and sale of fiber cement boards, calcium silicate boards, EPS cement panels, and decorative cement panels. Our R&D team brings over 20 years of experience to the industry.

Currently, we operate 4 production bases covering more than 220,000 sqm of factory area. With a workforce of 800 employees, including over 10% dedicated to R&D, we utilize advanced technologies and integrated testing procedures to ensure all products meet national and international standards. We provide a one-stop service for building materials to save time and costs for our clients.

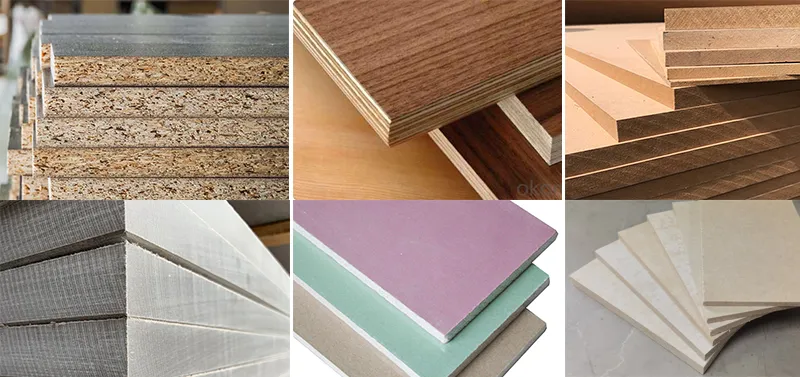

Factory View
Production Line
?

Frequently Asked Questions

What are your terms of packing?
Generally, we pack our goods in bundles or wood pallets. We can also provide custom packaging according to customer requests.
What are your terms of payment?
We accept 30% T/T in advance and 70% during the shipment period, or L/C at sight.
What are your terms of delivery?
Our standard delivery terms include EXW, FOB, CFR, and CIF.
How about your delivery time?
For stock items, we can ship within 15 days. For new production, it typically takes 20-25 days after receiving the deposit.
Can you produce according to samples?
Yes, we can produce based on your samples or technical drawings, including the creation of custom molds and fixtures.
Do you provide samples for free?
We provide samples free of charge, though customers are responsible for the shipping costs.
