It is considered one of the most durable decorative surface materials and is available with unique performance properties, including chemical, fire, and wear resistance. HPL is produced by saturating multiple layers of kraft paper with phenolic resin. Before pressing, a layer of printed decor paper is placed on top of the kraft paper. The resulting sandwich is fused under heat and pressure (over 1,000 PSI). The curing process transforms the resin into plastic by a cross-linking process that converts the paper sheets into a single, rigid, laminated sheet.

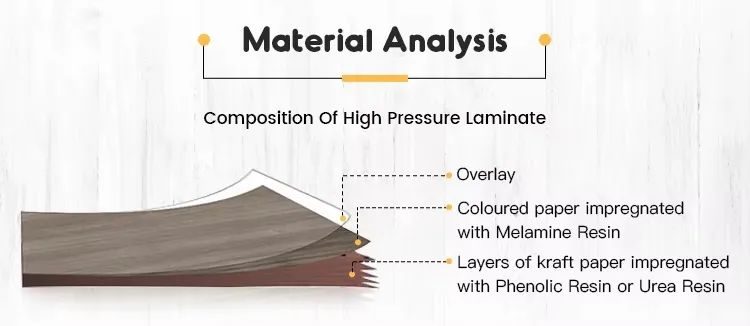

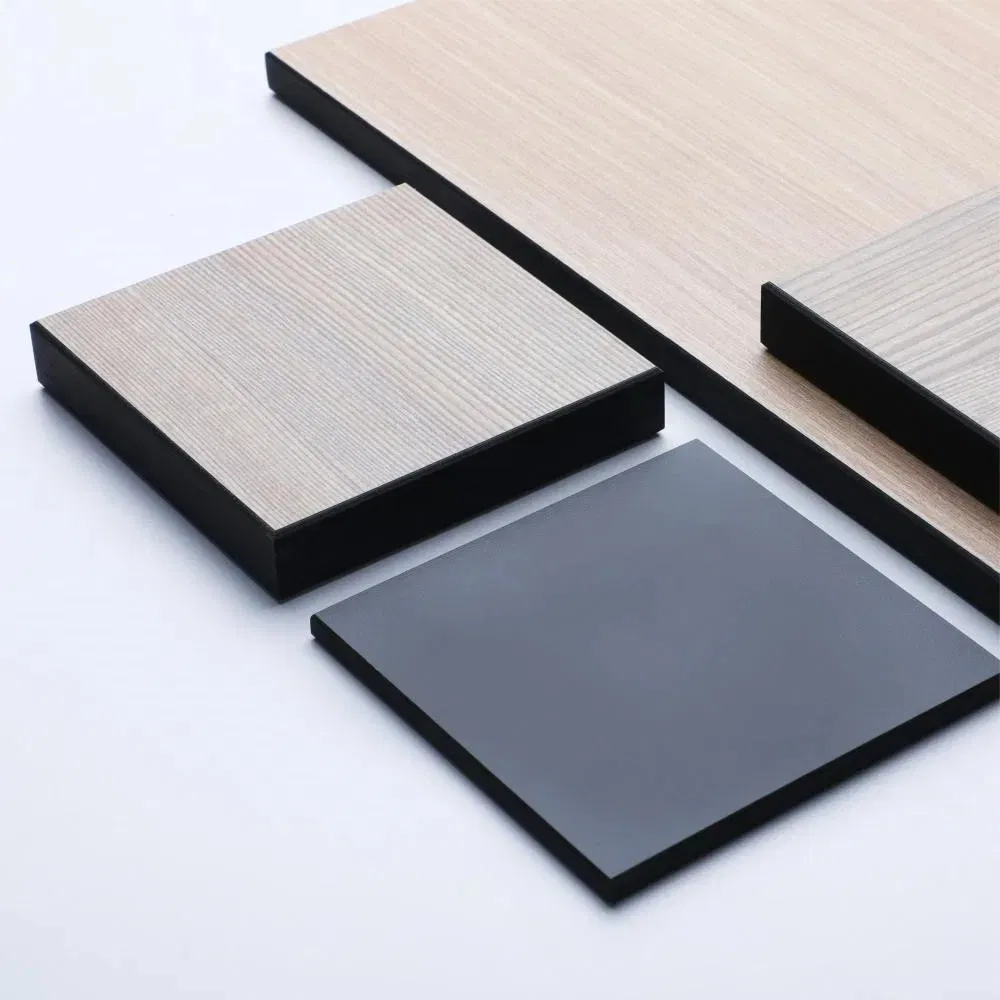

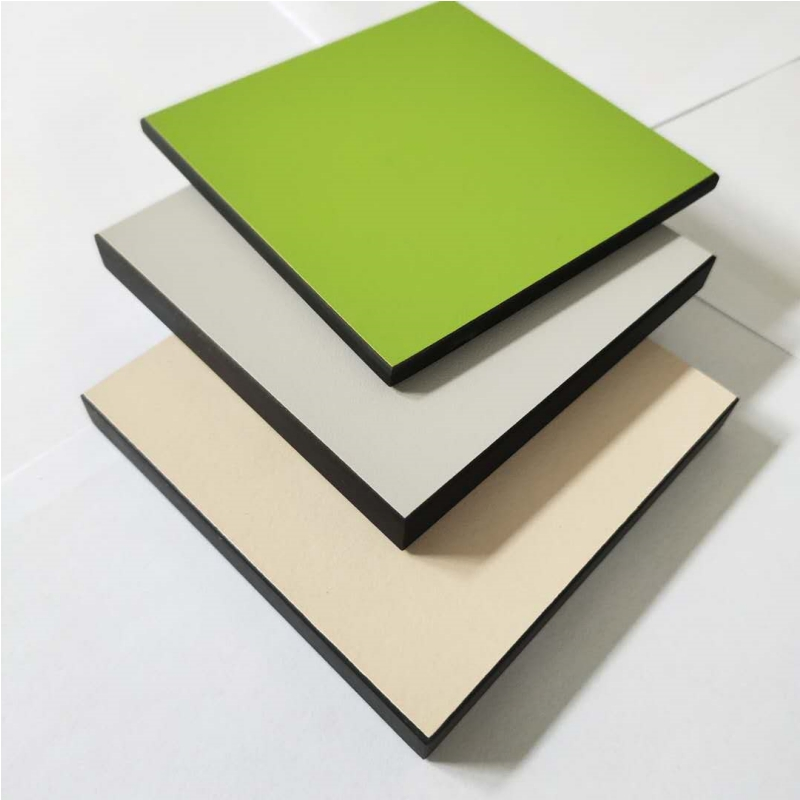

Compact laminate HPL panels typically consist of 60% to 70% paper and 30% to 40% thermosetting resin. They consist of three layers: overlay paper, decorative paper, and vellum paper. Overlay paper helps improve the abrasion and scratch resistance. The decorative paper increases aesthetic appeal through design, and the kraft paper is the core material to control thickness.

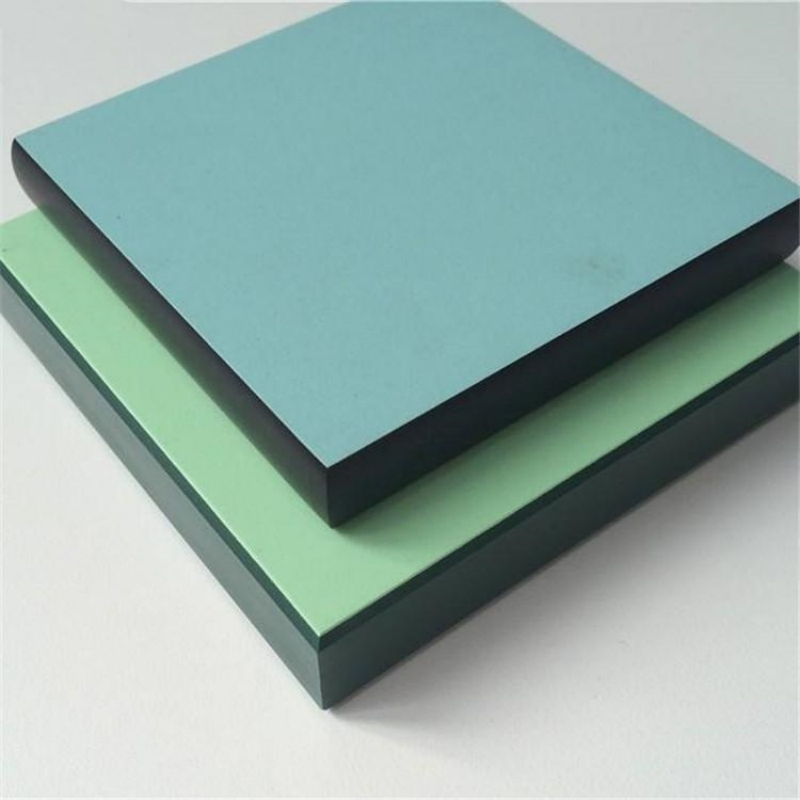

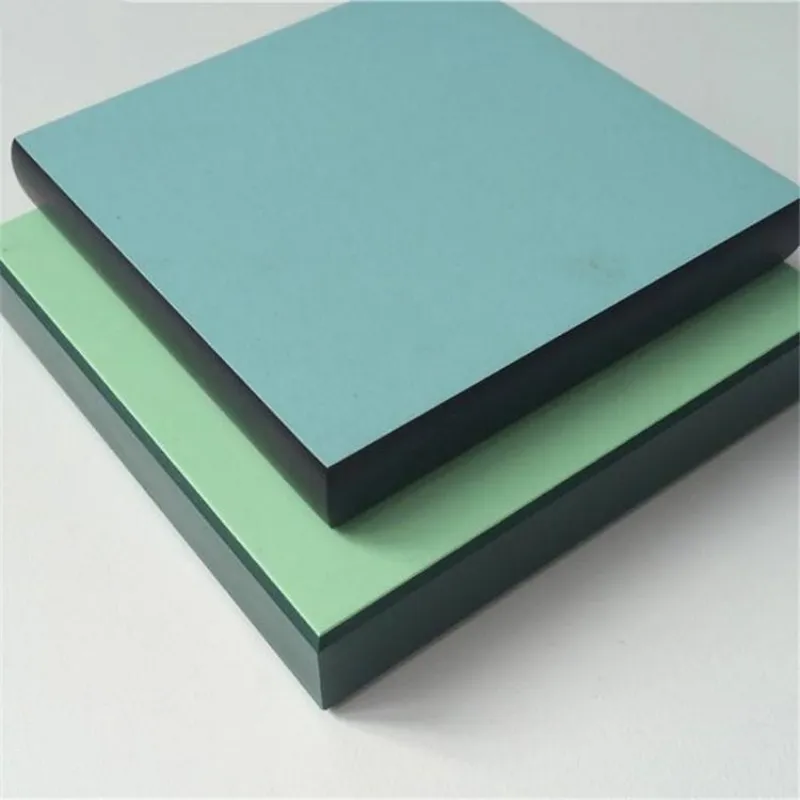

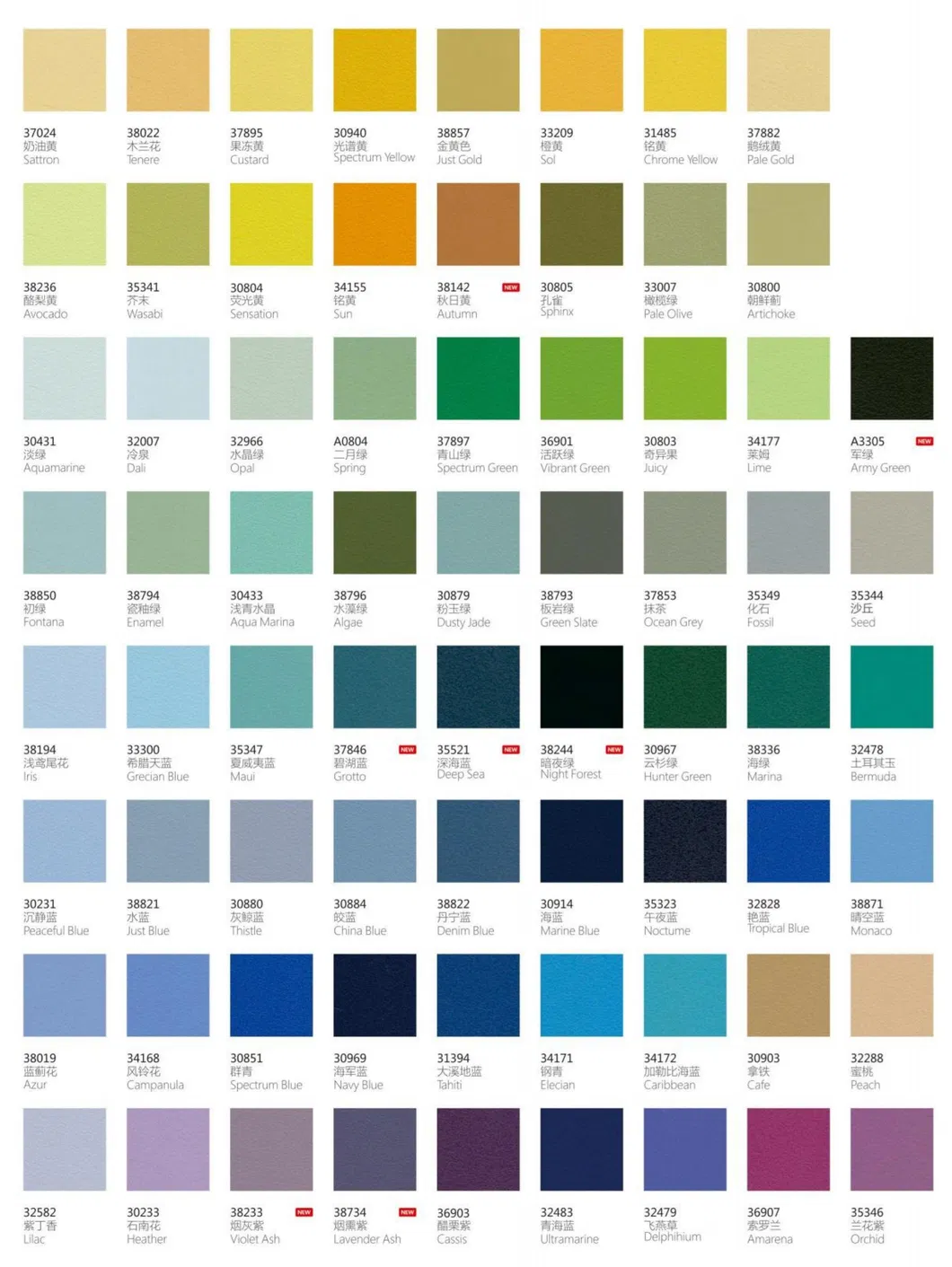

Solid Color HPL Panels

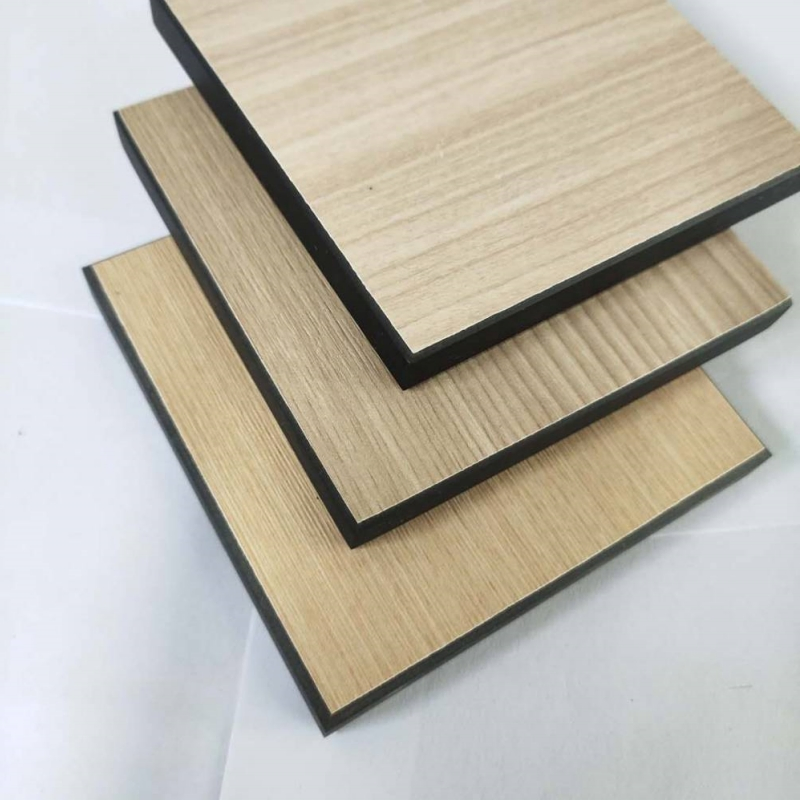

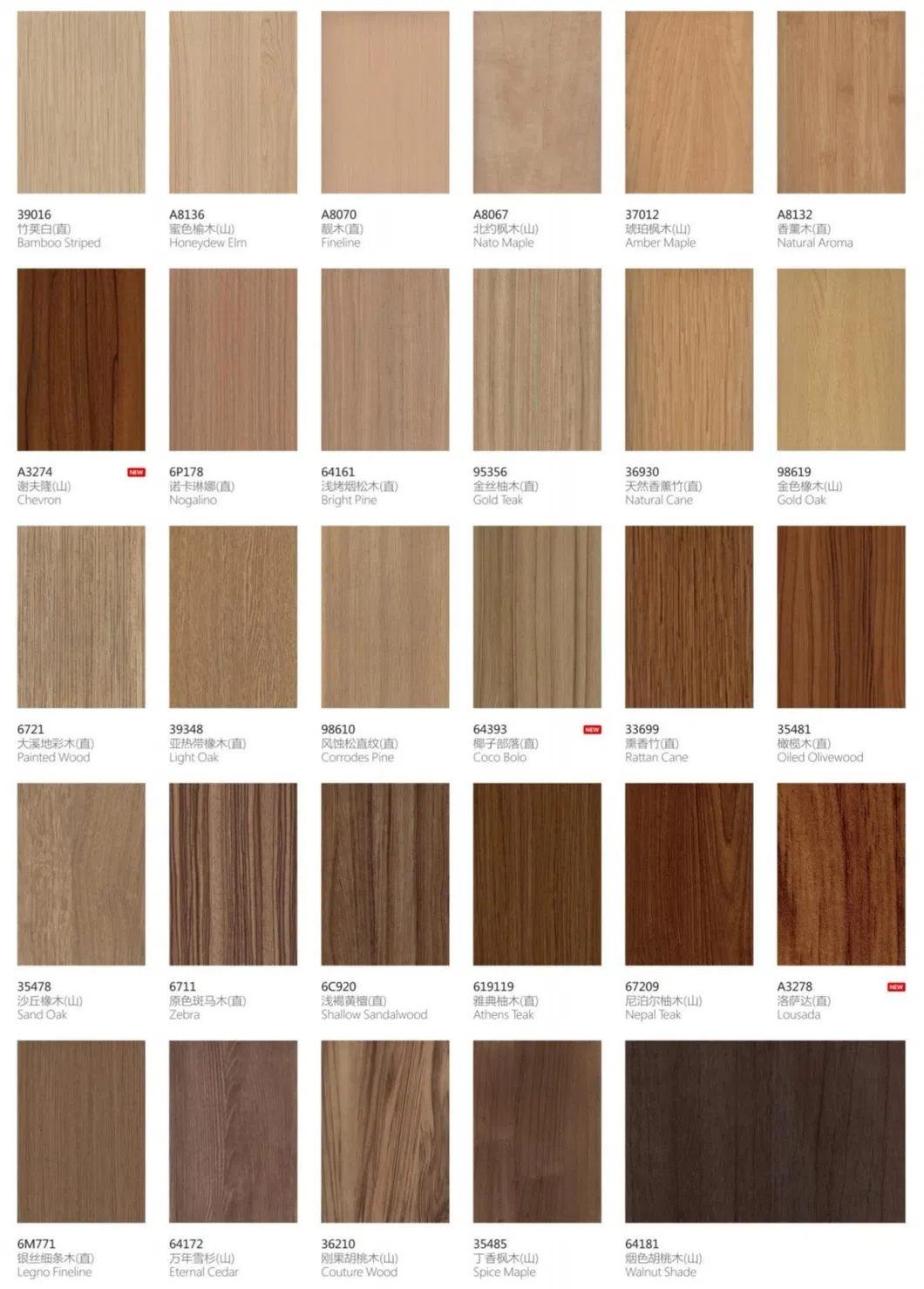

Wood Grain HPL Panels
| Feature | Description |
|---|---|
| Material | Phenolic resin + craft paper |

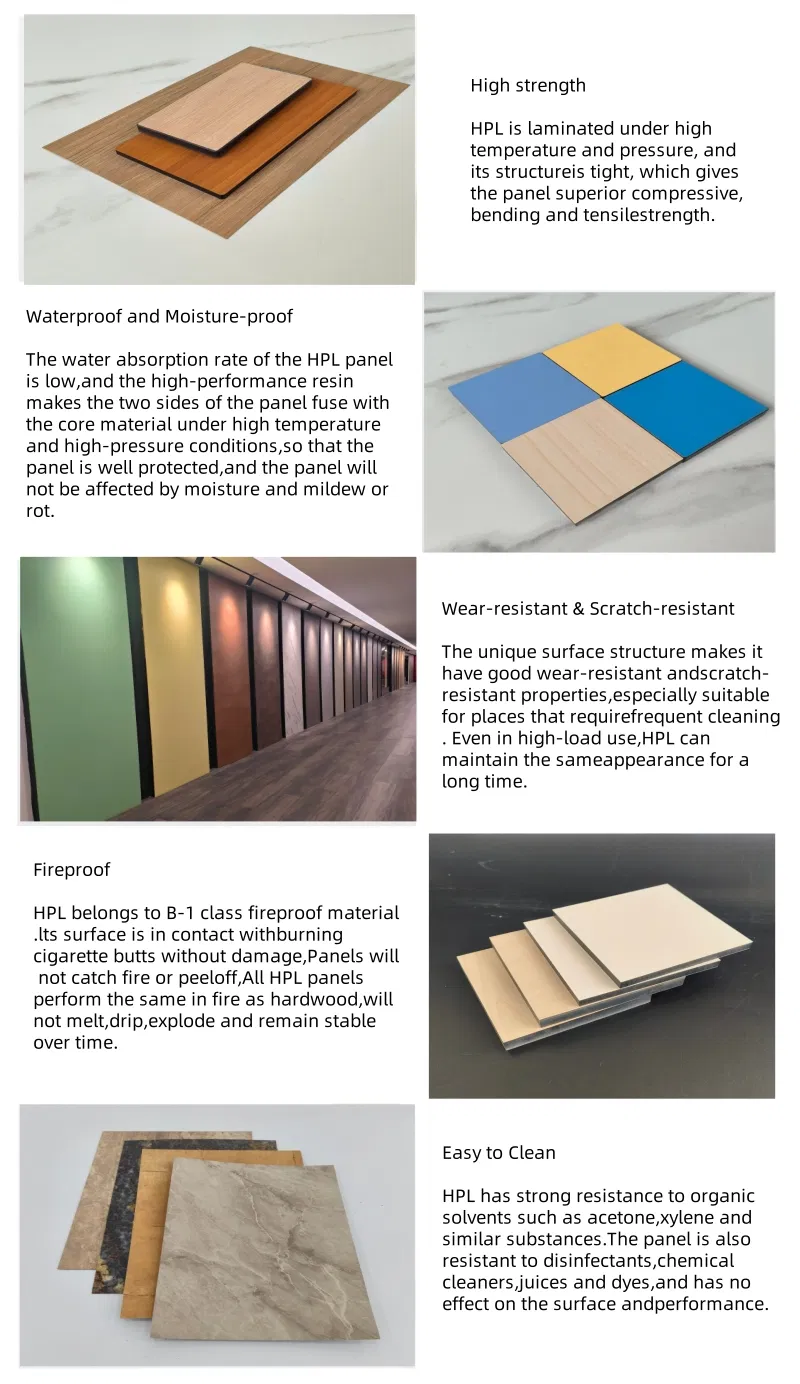

| Core Properties | Water-resistant, impact-resistant, damp-resistant, fire-resistant |
| Durability | Cigarette burn resistant, strong and easy to clean |
| Protection | Waterproof anti exposure, anti rain, anti UV |

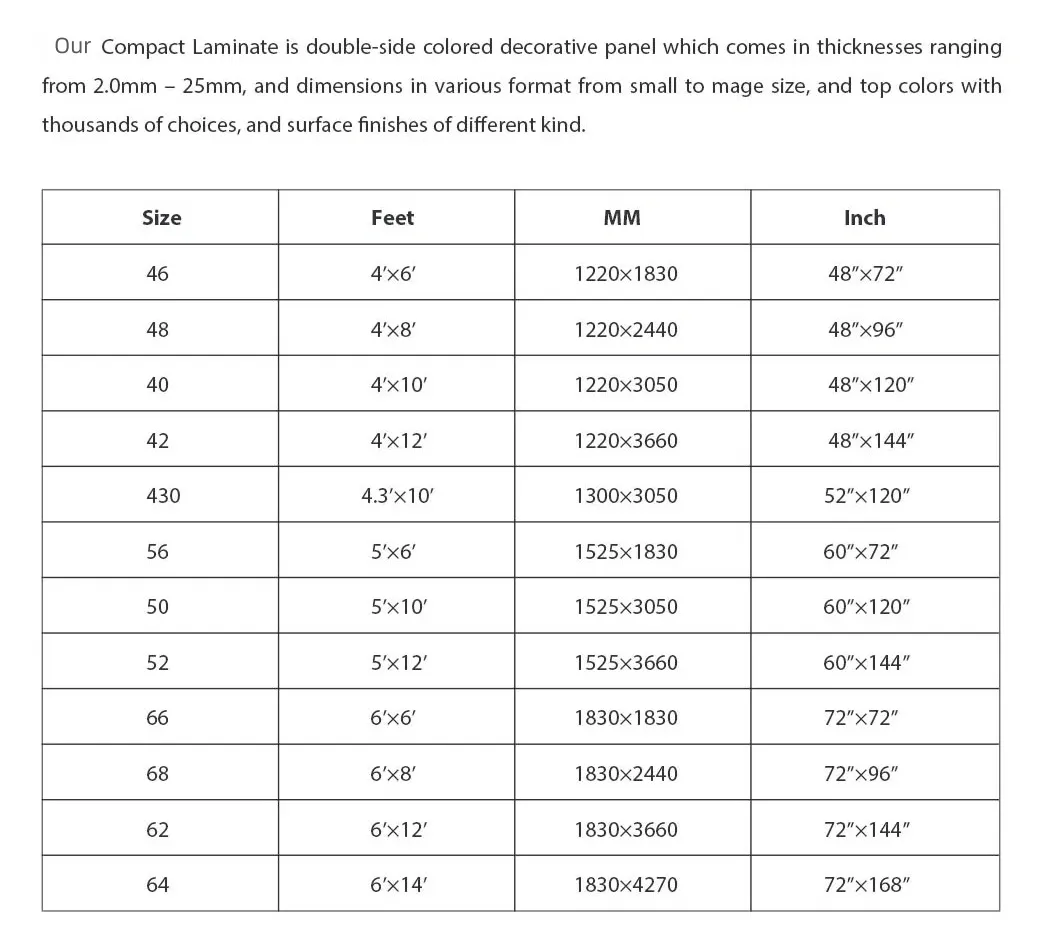

| Thickness Range | 2.0mm - 25mm |

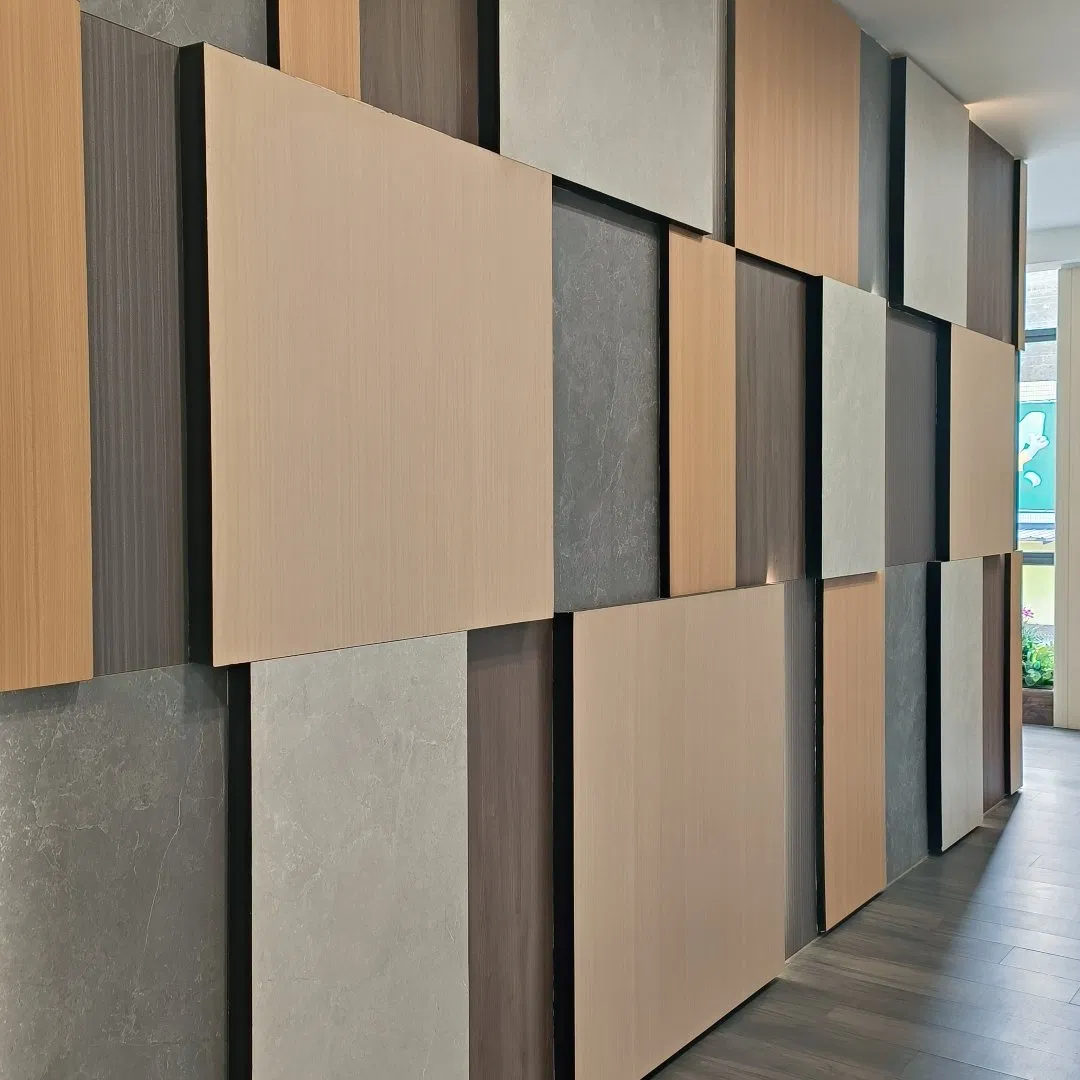

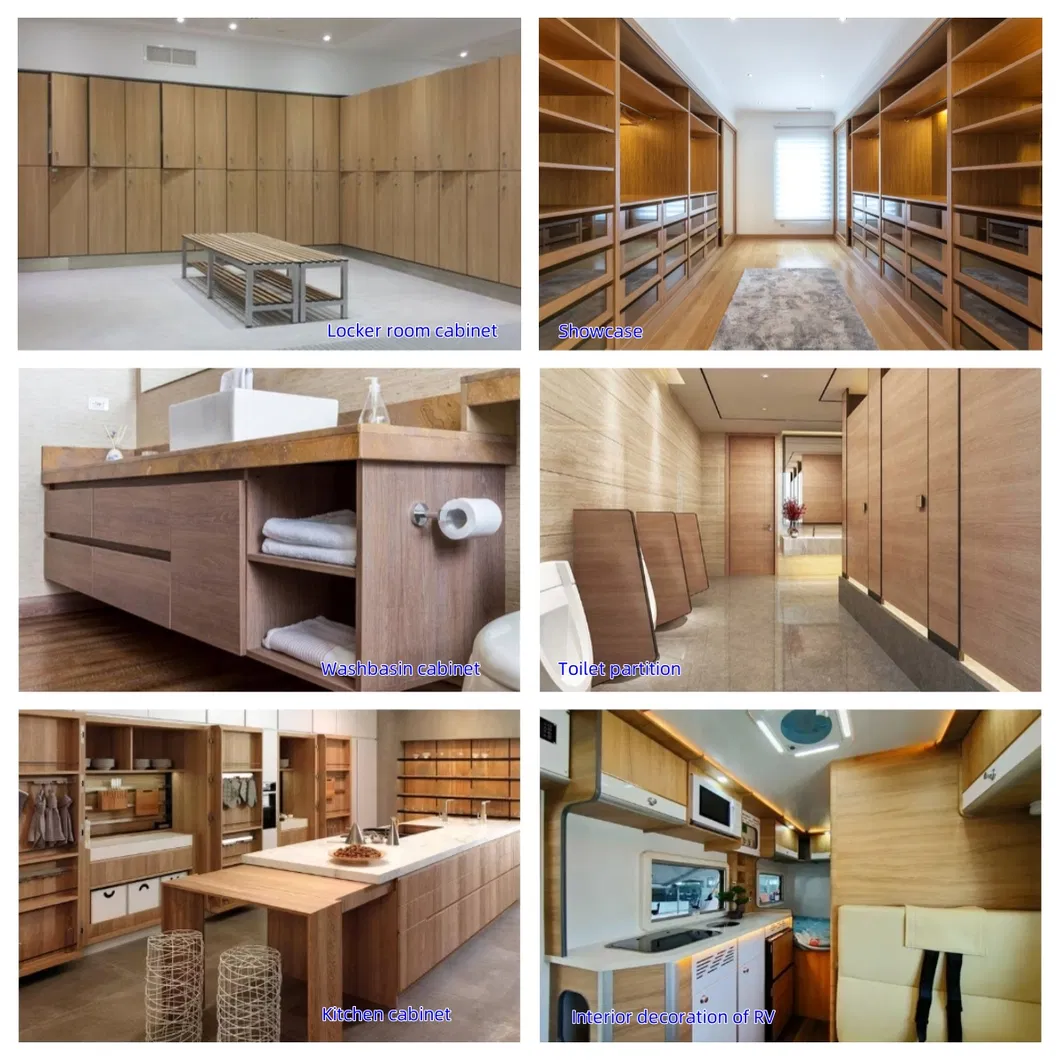

This material has achieved great success due to its dual advantages of aesthetics and functionality. Unlike traditional composite panels, its plasticity and insulation allow it to have a wider range of applications in indoor and outdoor decorative environments.
HPL surfaces can be cleaned with water or any mild household detergent. Avoid heavily chlorinated, acidic, or alkaline products. After cleaning, wipe down with a dry cloth. Wax polishing is not recommended as it may attract dust and grime.

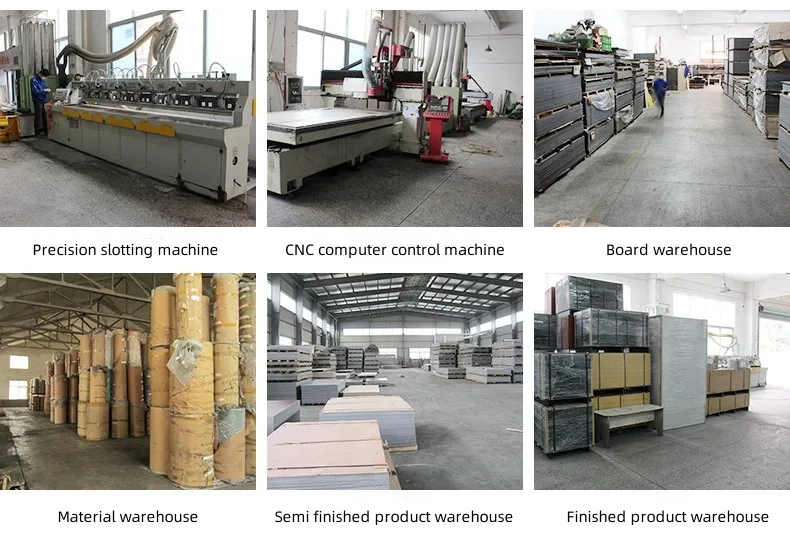

We are a professional manufacturer of fiberglass plastics products and wall protection products. With two specialized factories, we utilize international advanced equipment and technologies for high-quality production.
Our product range includes FRP sheets, composite panels, roof tiles, and wall protection series such as crashworthy handrails and corner guards. These products are widely used in automotive, marine, construction, hospitals, and nursing homes.
By insisting on the principle of "professional, efficient and credible," we have expanded our market presence across Europe, the Americas, the Middle East, and Australia, receiving unanimous praise from global users.
