Fabricated Prefabricated Solid Aluminum Aluminium Wall Cladding Systems

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
Solid Aluminium Panel
Type
Elevation
Open
Closed
Material
Aluminum
Curtain Wall Kind
Frame Glass / Aluminum Panel
Number of Layers
Single
Shape
Standard Plane & Customized
Usage
Exterior Wall, Interior Wall
Specification
1220x2440mm
HS Code
7610900000
Production Capacity
1000m2/Day

Packaging & Delivery

Package Size
130.00cm * 250.00cm * 50.00cm
Gross Weight
1500.000kg
Transport Package
Wooden Crate

Product Overview

Solid Aluminium Panel is a non-combustible single layer aluminium panel. It is pre-finished with high-quality colors and pre-fabricated into cassettes as per required shapes. It meets high façade cladding standards regarding fireproof performance and material strength.

This material offers high formability; it can be manufactured into regular flat cassette panels, curved panels, hyperboloid panels, perforated panels, or laser-cut panels with intricate patterns. Almost any shape required for architectural cladding designs can be achieved. We utilize turret punching technology for perforated designs and laser cutting for customized surface patterns. After fabrication, the panel surface is finished with powder coating or liquid paint spray for a superior decorative finish.

Common applications include facade cladding, ceilings, and interior wall cladding for office buildings, shopping malls, airports, train stations, hospitals, and stadiums. Available thicknesses range from 2mm to 4mm to suit various project requirements and budgets.

Key Benefits

🛡️ Non-combustible
Made of full aluminium, it cannot be ignited or burnt, meeting strict building safety codes.
🌦️ Weather Proof
Pre-painted with durable PVDF outdoor grade paints, providing 10 to 20 years of color warranty.
🚀 Quick Installation
Pre-fabricated into cassettes in our workshop, ready for immediate installation on-site.
🎨 Unlimited Design
Available in unlimited metallic, solid, wood, and stone colors with flexible shape options.
♻️ Fully Recyclable
The aluminium panel is 100% recyclable, ensuring environmental sustainability.

Patterns & Shapes

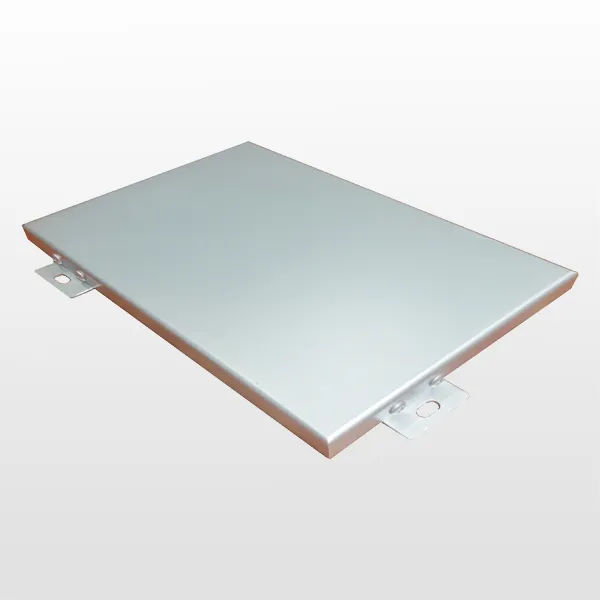

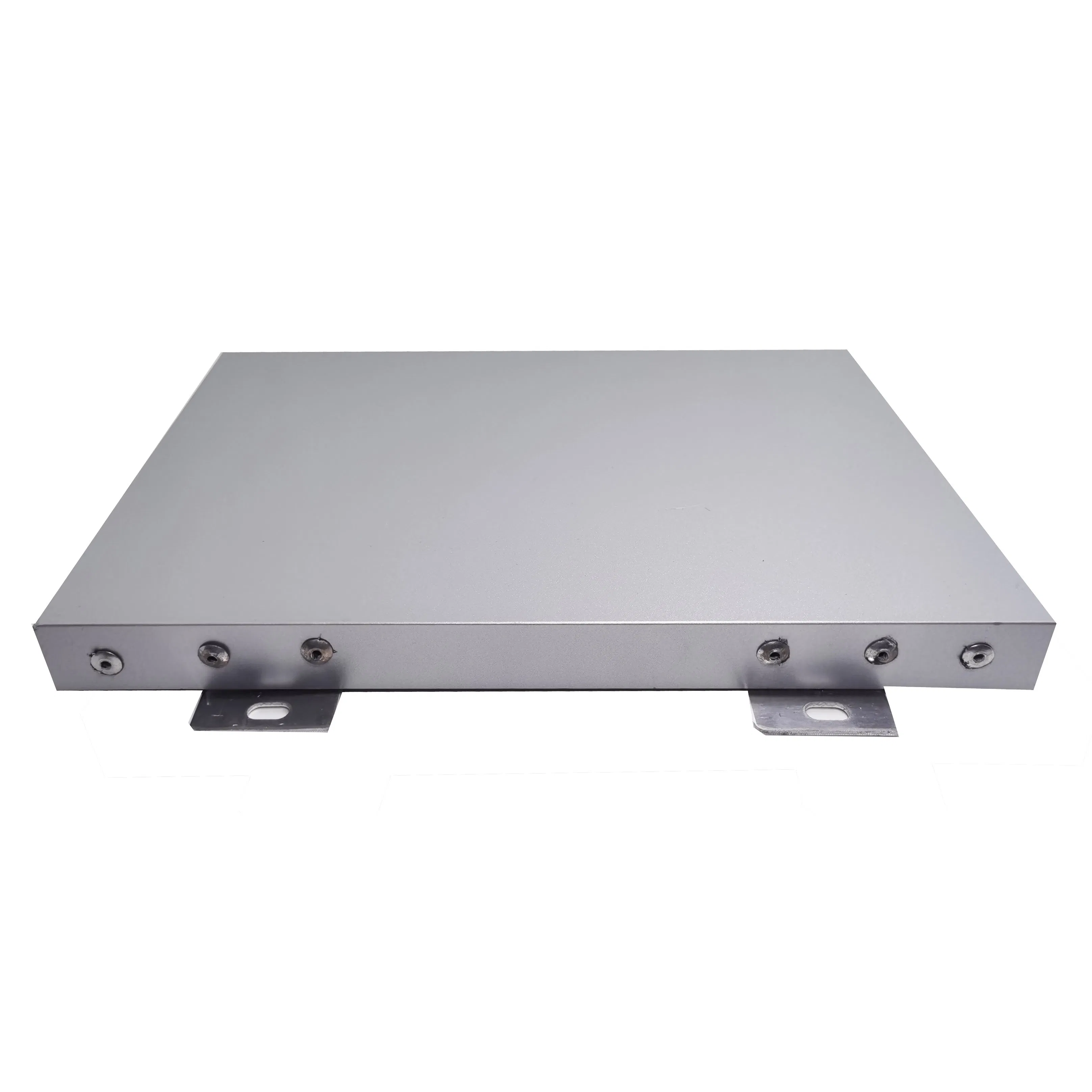

Regular Shape
Regular Shape

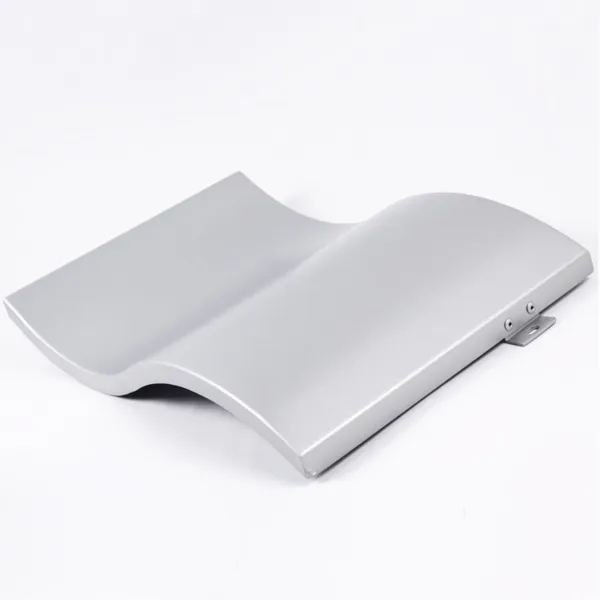

Single Curved
Single Curved

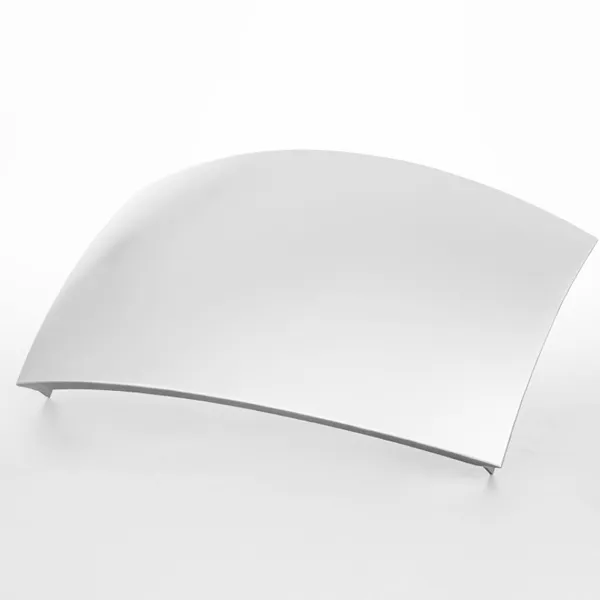

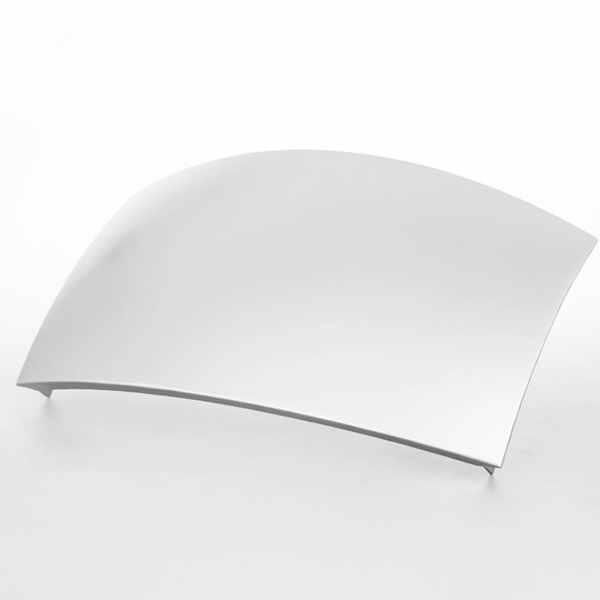

Hyperboloid Curved
Hyperboloid Curved

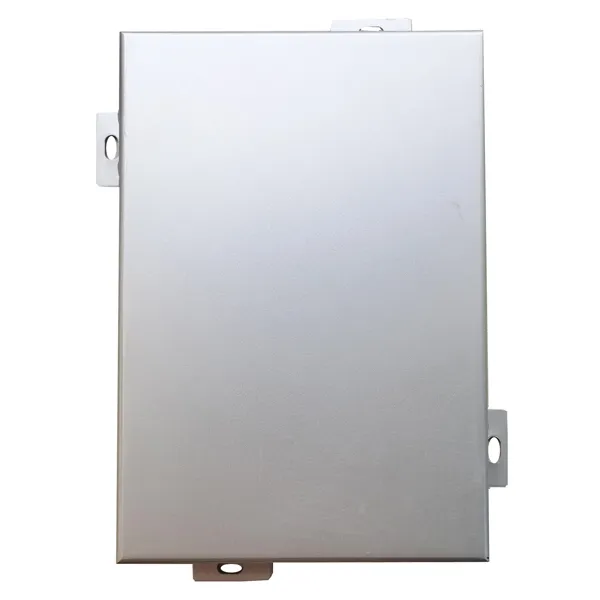

Plain Surface
Plain Surface

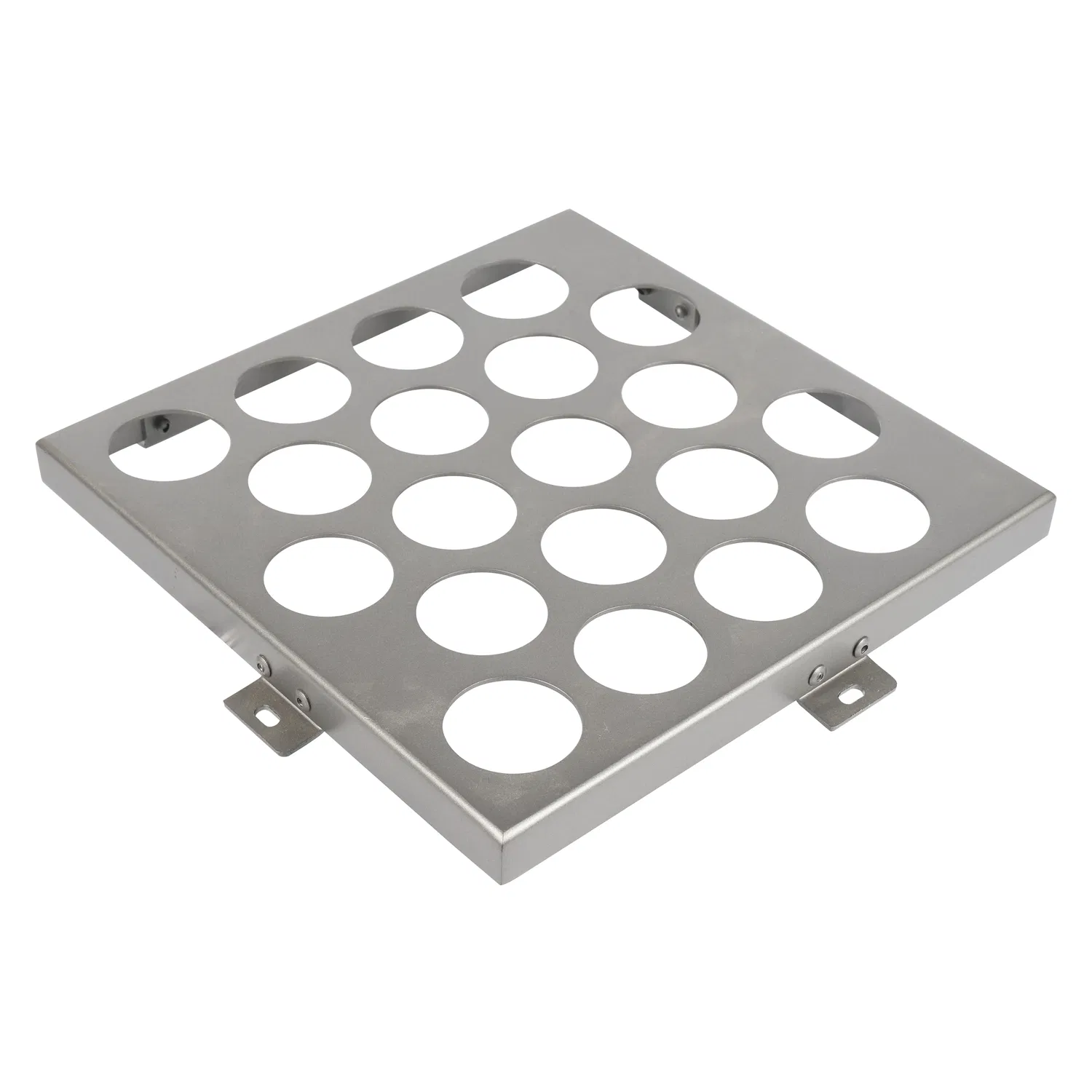

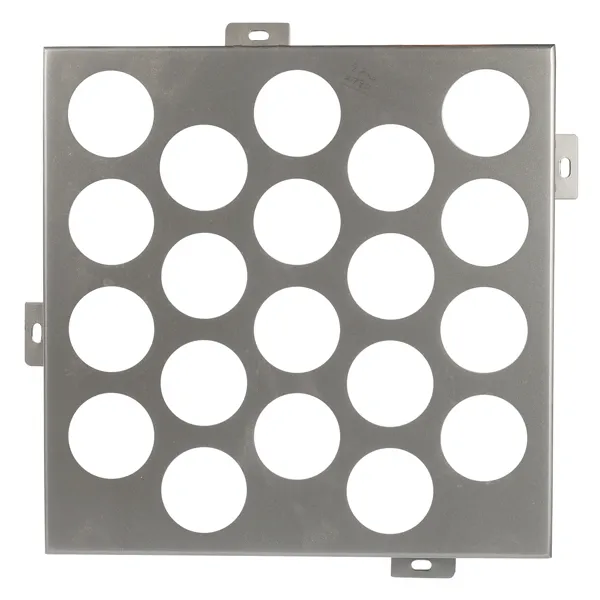

Customized Perforation
Customized Perforation

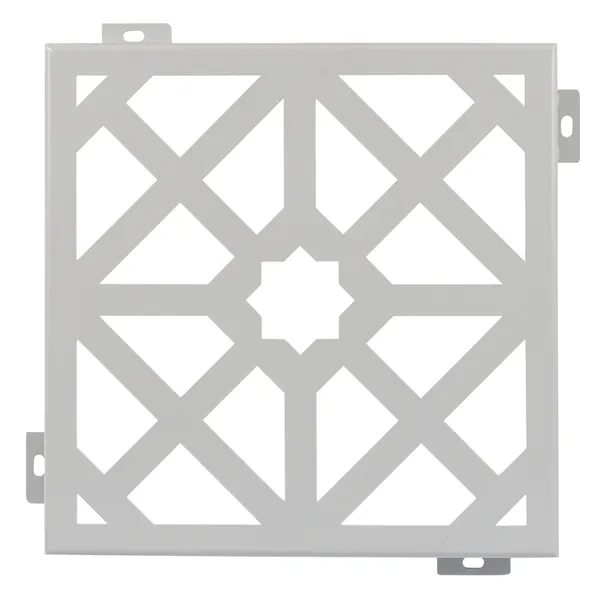

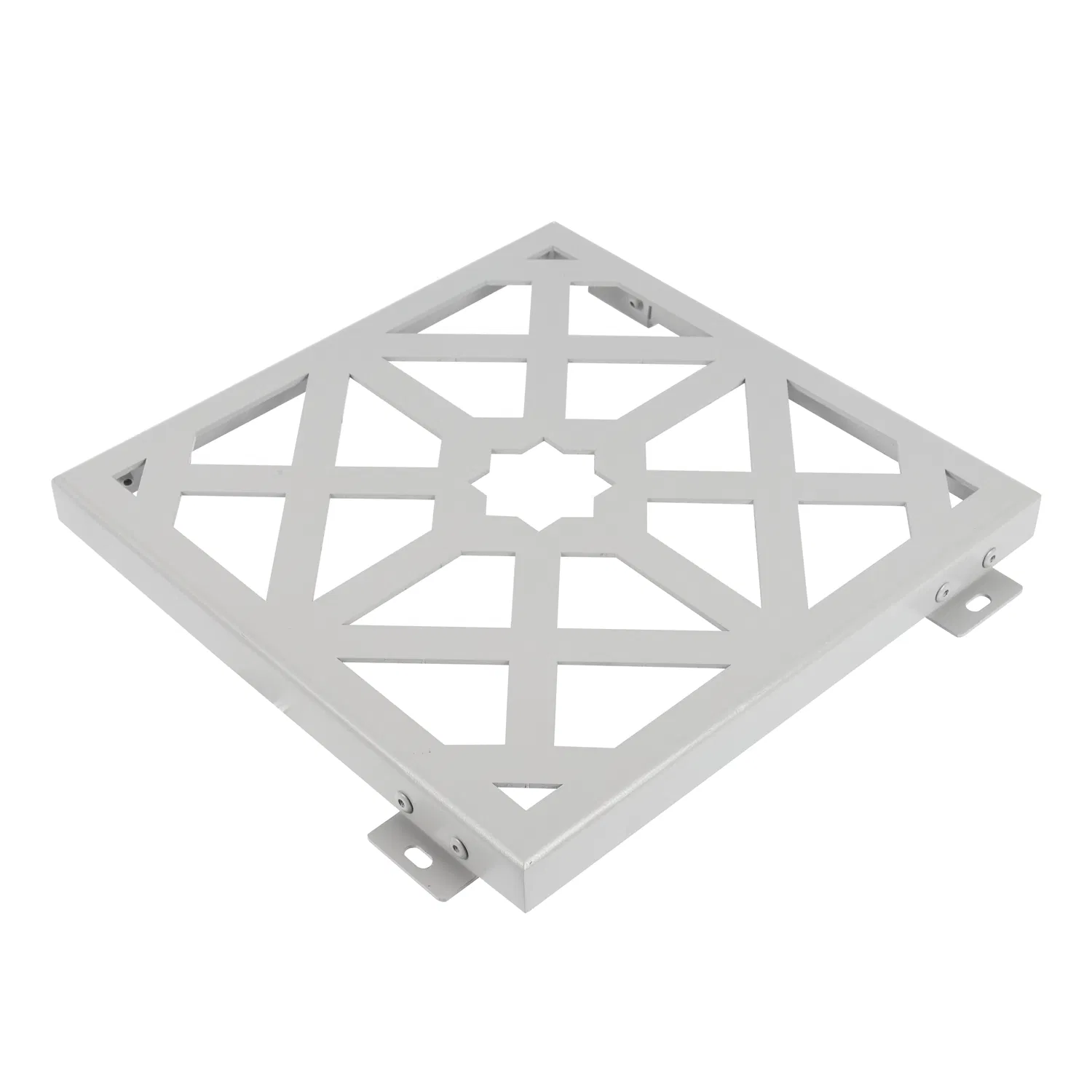

Laser Cutting Design
Laser Cutting Design

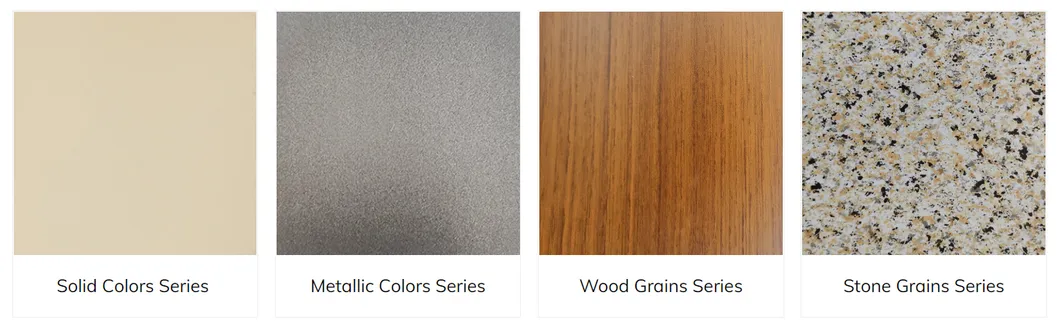

Color Options

Colors of Solid Aluminium Panel

Applications & References

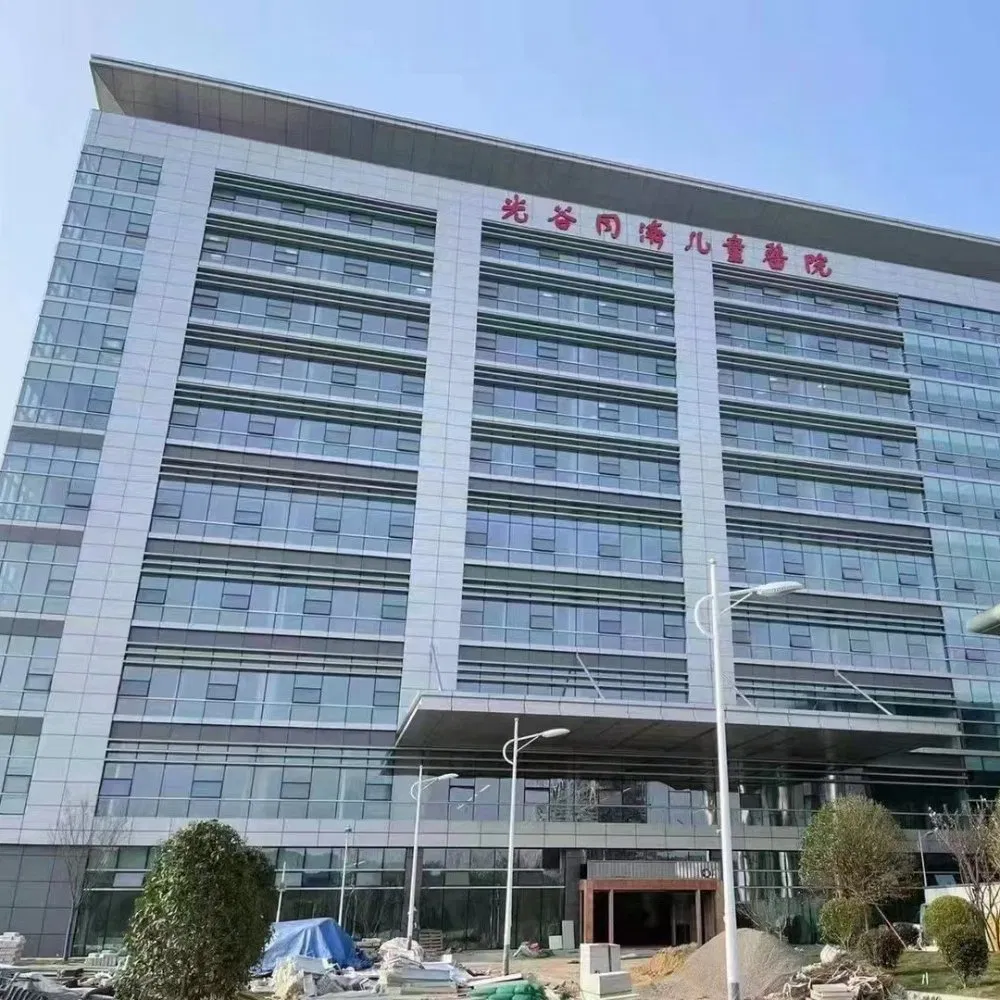

Facade Cladding
Facade Cladding

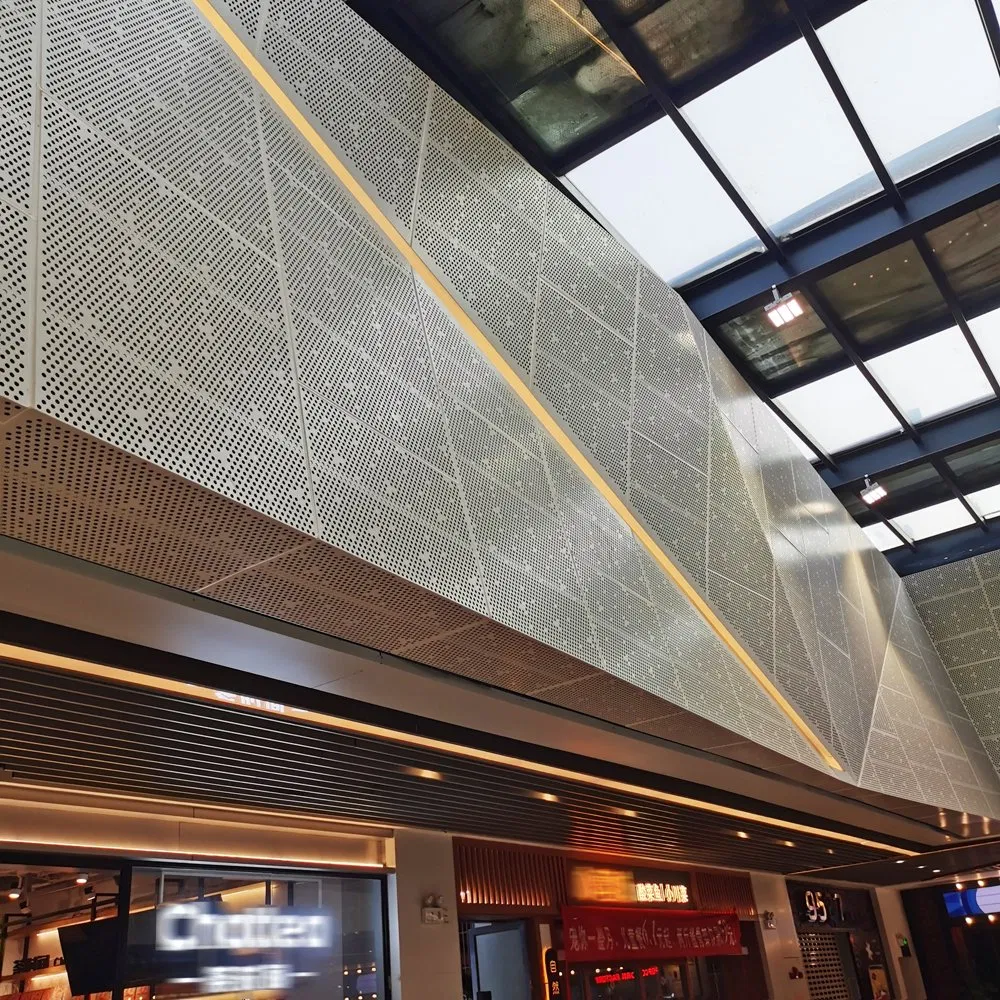

Interior Decoration
Interior Wall Decoration

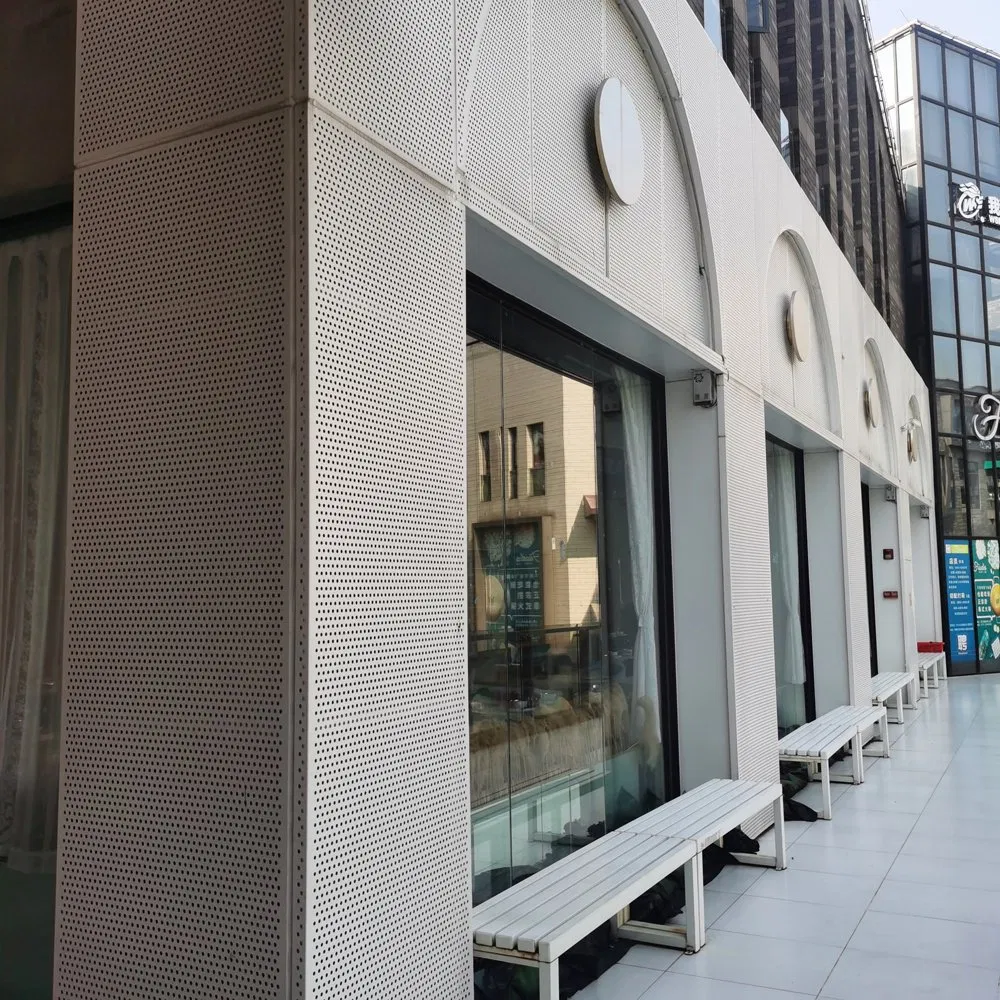

Shopfront
Shopfront Decoration

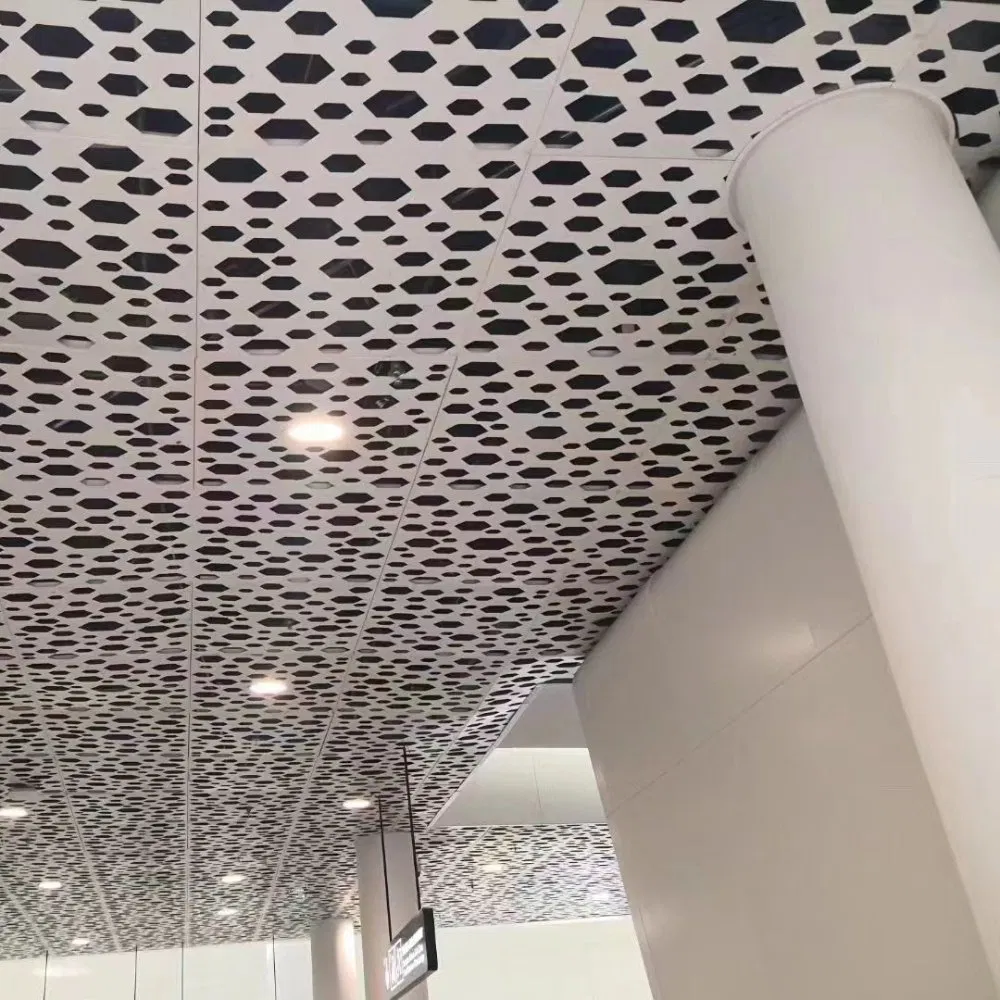

Ceiling
Ceiling Application

Technical Parameters

Basic Property Value Tolerance
Panel Thickness 3mm (2mm-4mm optional) ±0.2mm
Aluminium Alloy 3003 / 1100 / 5005 N/A
Panel Weight 8.16kgs/sq.m (for 3mm) ±5%
Yield Strength 150MPa N/A
Tensile Strength 155MPa N/A
Painting Dry Film Properties
PVDF Coating (2 coats) 25μm (±5) Gloss Value 20-70
Powder Coating 60μm (min 50) Hardness 2H

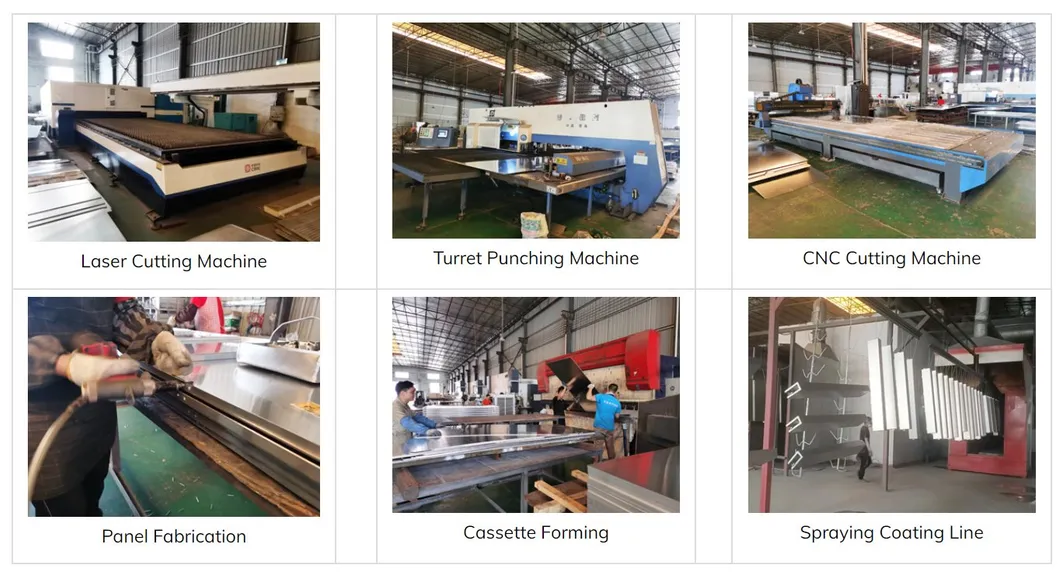

Workshop View

Workshop

Frequently Asked Questions

Is the Solid Aluminium Panel fireproof?
Yes, it is a non-combustible material made of a single layer of aluminium, ensuring it cannot be ignited or burnt.
What types of coatings are available?
We offer high-performance PVDF liquid spray painting for outdoor use and PE coating or powder coating for indoor/budget-friendly applications.
Can the panels be customized into complex shapes?
Absolutely. Our technology allows for single curved, hyperboloid curved, perforated, and laser-cut patterns to match any architectural design.
What is the standard thickness of the panels?
The standard thickness is 3mm, but we also offer 2mm, 2.5mm, and 4mm options depending on the project requirements.
Is the color durable for outdoor use?
Yes, with our PVDF coating, we provide a 10 to 20-year outdoor color warranty against fading and weathering.
Are these panels environmentally friendly?
Yes, aluminium is a sustainable metal and the panels are 100% recyclable when no longer needed.
