Product Description

📋

Basic Specifications

Model:Thaibeck Sandwich Board
Feature:Environmental, Fireproof, Light Weight
Fire Rating:Grade 1
Certification:ISO9001, EN 12467:2012, ISO 14001
Standard Size:610*2440 / 610*3000mm
Thickness:50, 75, 100, 125, 150mm
Surface Panel:Calcium Silicate or Fiber Cement Board
Core Material:EPS, Port-land Cement, Additives
Application:Warehouse, Villa, Office, Dormitories
Life Span:70+ Years
🏗️

Product Overview

Thaibeck Sandwich Board is a high-performance construction material made from 100% Non-Asbestos Calcium Silicate Boards or Fiber Cement Boards. The core consists of a specialized mixture of foam particles (EPS), light-weight Portland cement, and various additives, ensuring a perfect balance between strength and weight.

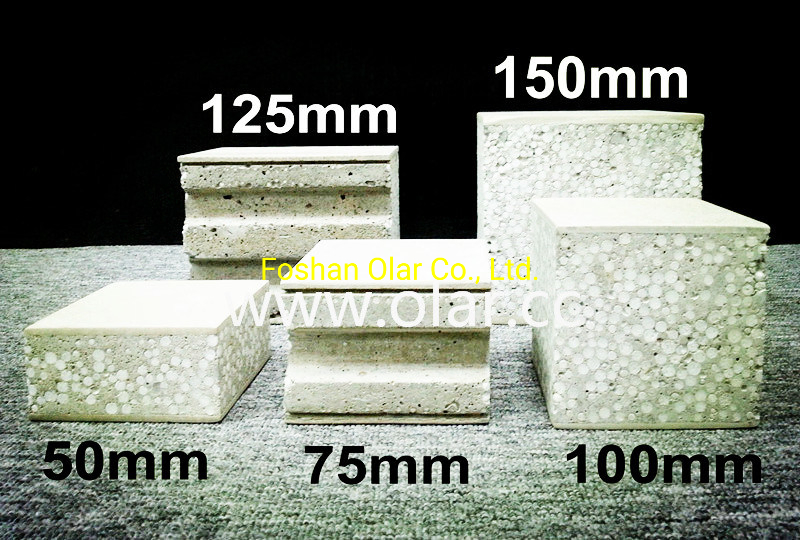

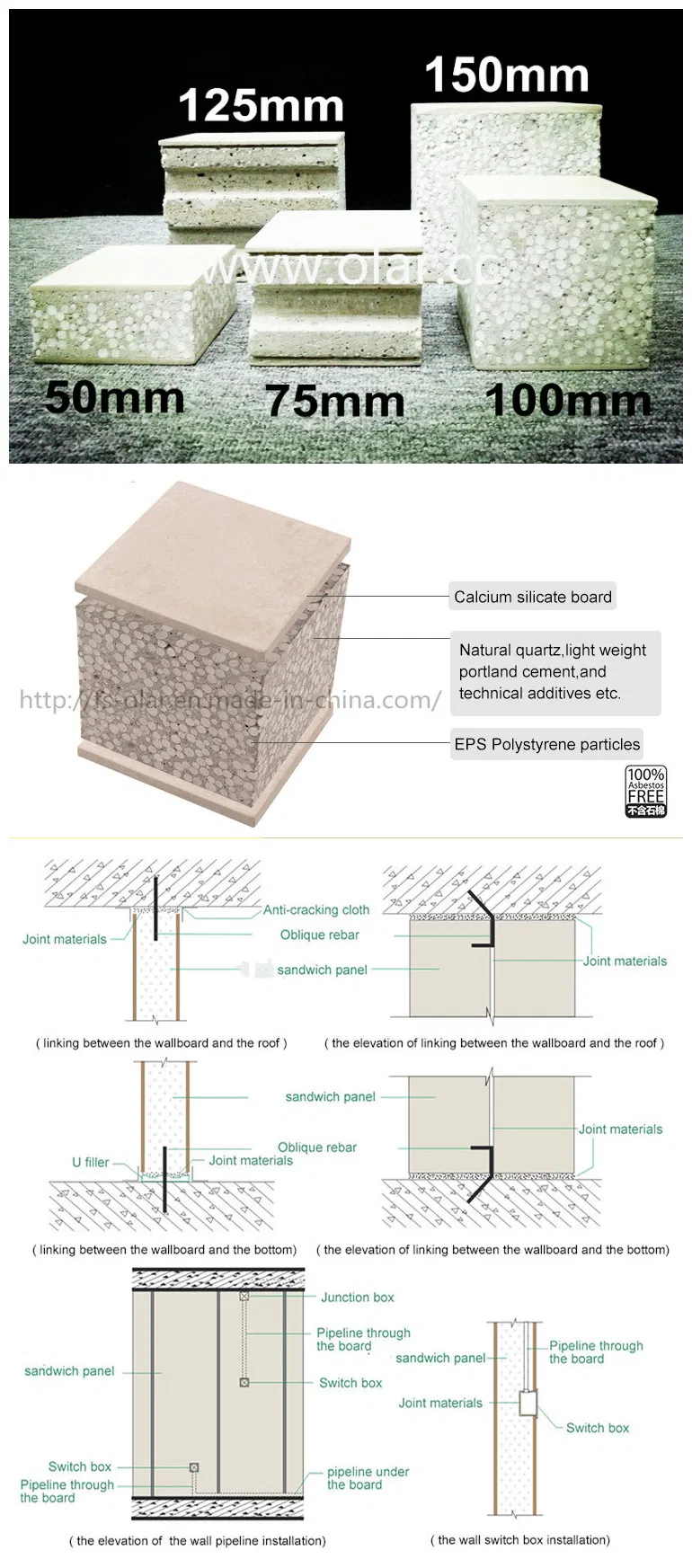

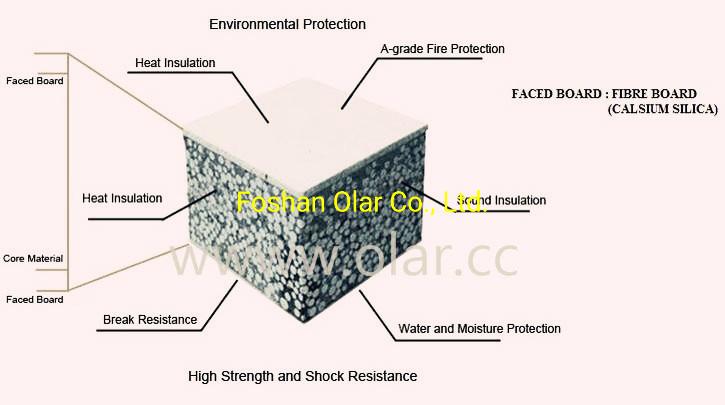

Sandwich Panel Structure
⚖️ Light Weight & Strong

Single spot hanging strength reaches 100kg. Supports nailing and tile affixing.

🔇 Sound Insulation

Capacity of 35-45db according to National Standard GBJ121-88.

🌱 Energy Saving

Raw materials are eco-friendly and do not include harmful substances.

🔥 Durable & Fireproof

70+ years life span with high fire resistance rating (Grade A1).

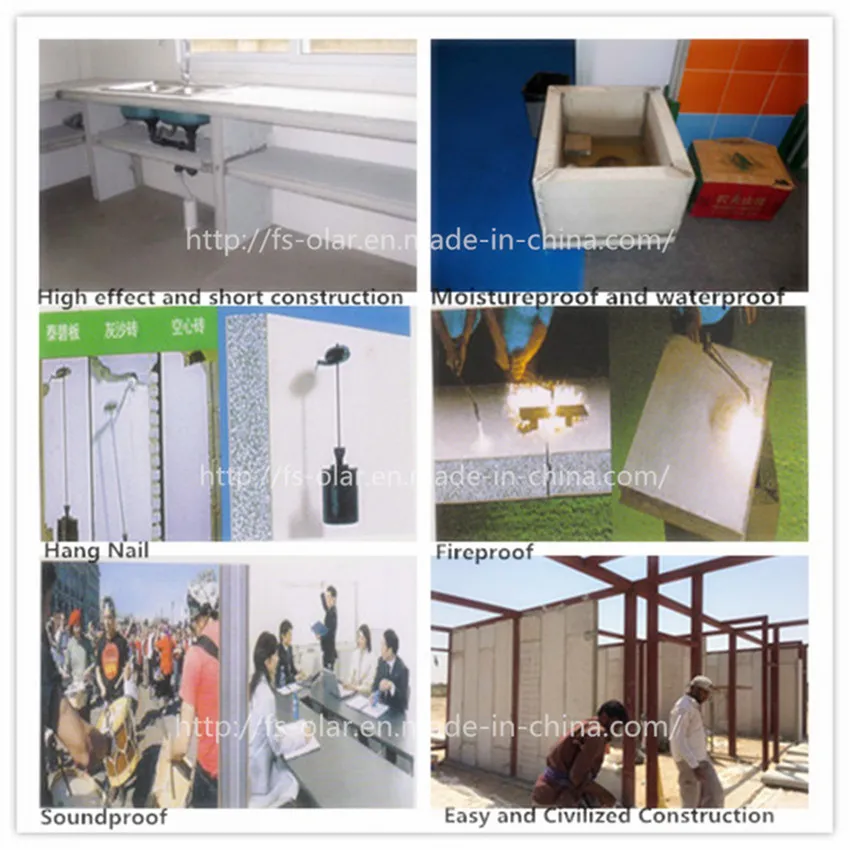

Fiber Cement Wall Board
📊

Technical Specification

Series Thickness Length Width Weight (m²) Sound Insul. Fire Rating
50 Series50mm2440mm610mm40kg/1H
75 Series75mm2440/3000mm610mm60kg≥43dB≥2H
100 Series100mm2440/3000mm610mm78kg≥46dB≥3H
125 Series125mm2440/3000mm610mm90kg≥50dB≥3H
150 Series150mm2440/3000mm610mm105kg≥52dB≥3H
Certification and Testing
📦

Packaging & Logistics

Package Method:Wooden Pallet or Non-Pallet with Plastic Belts
Gross Weight:Approx. 260.00kg per unit
Lead Time:25-30 Working Days (Stock items in 5 days)
Payment Terms:T/T or L/C at sight

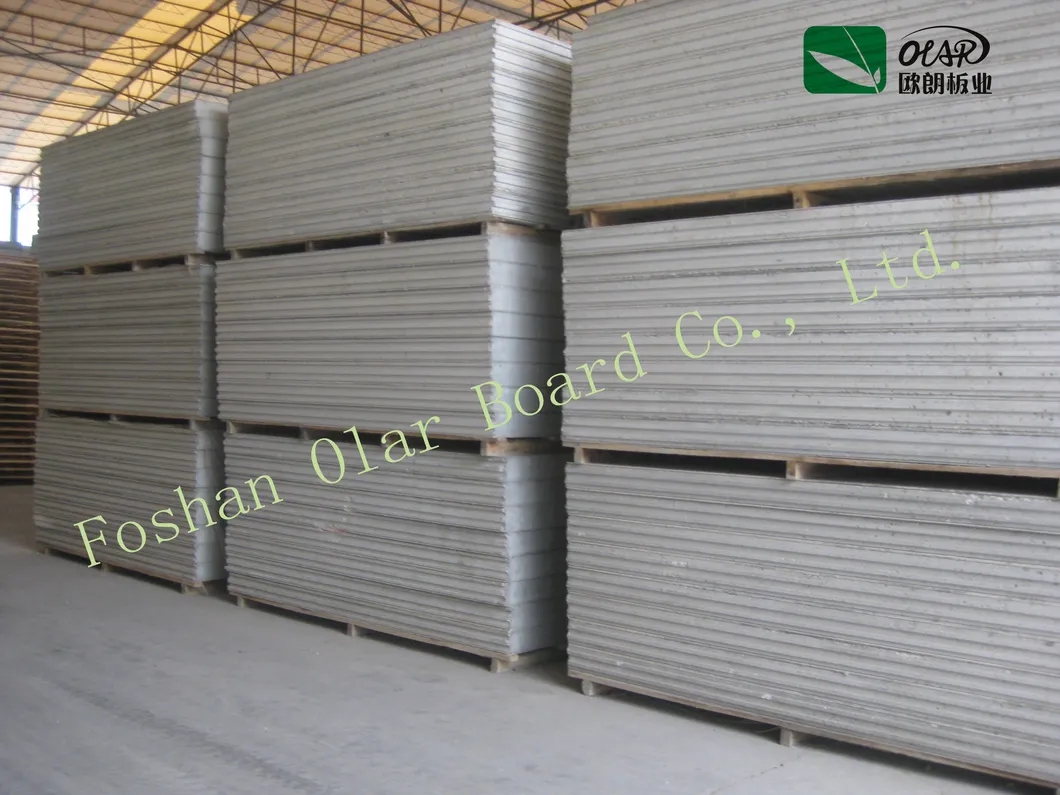

Stock Display

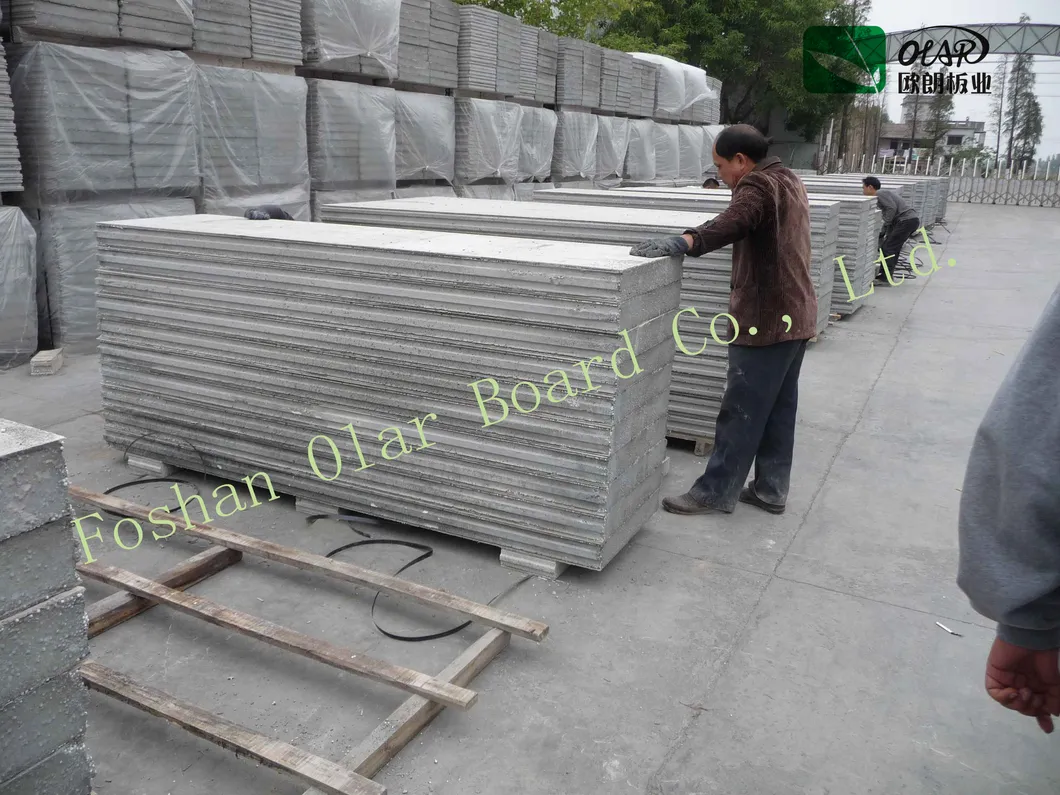

Pallet Packing

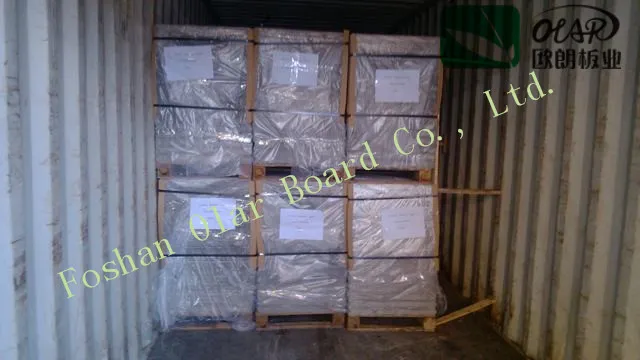

Pallet Loading

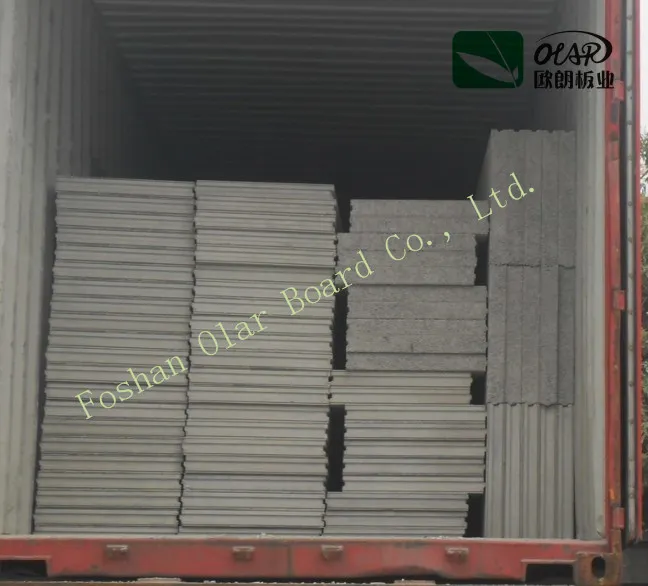

No Pallet Loading
🏠

Project Reference

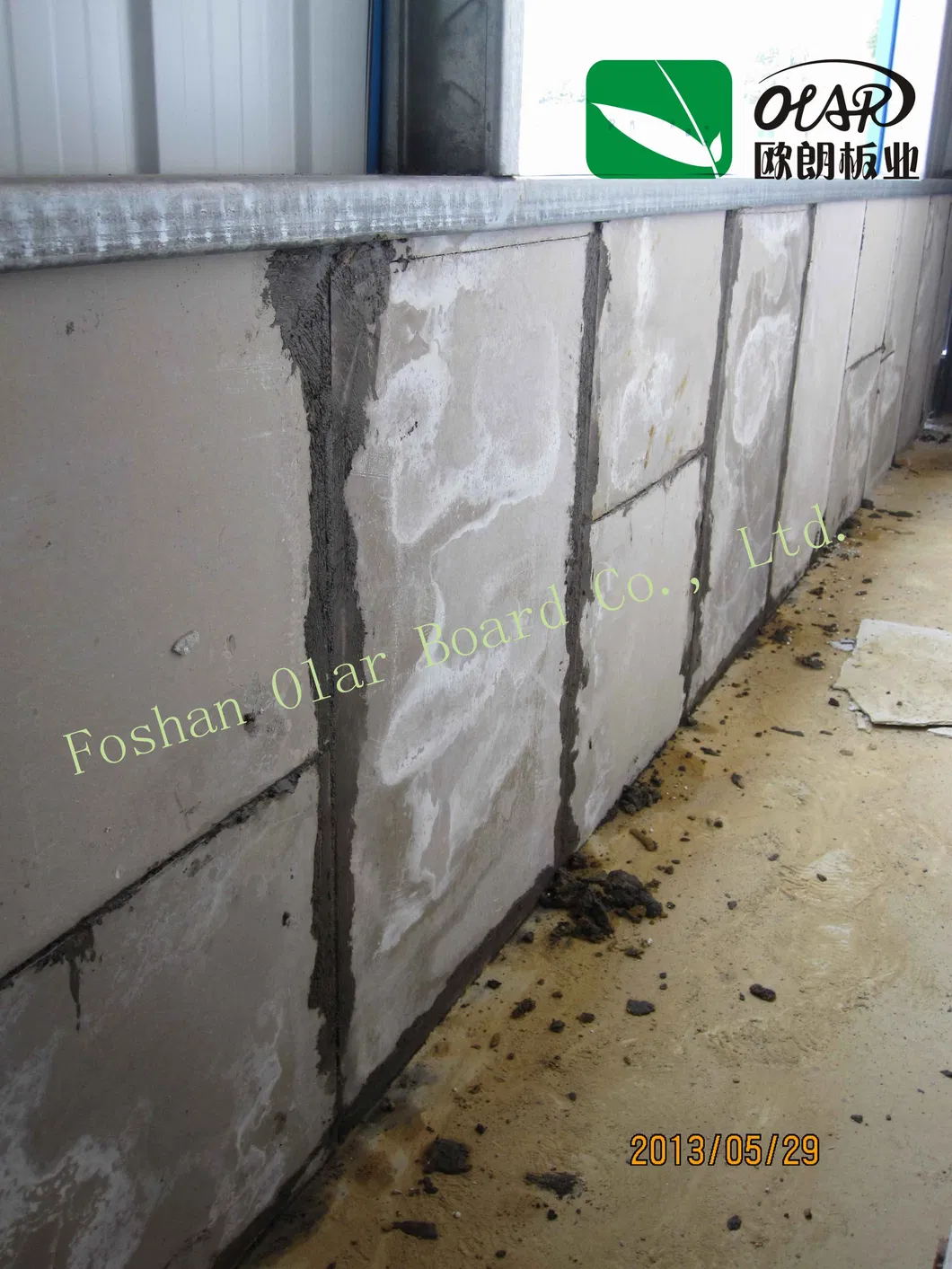

Project 1

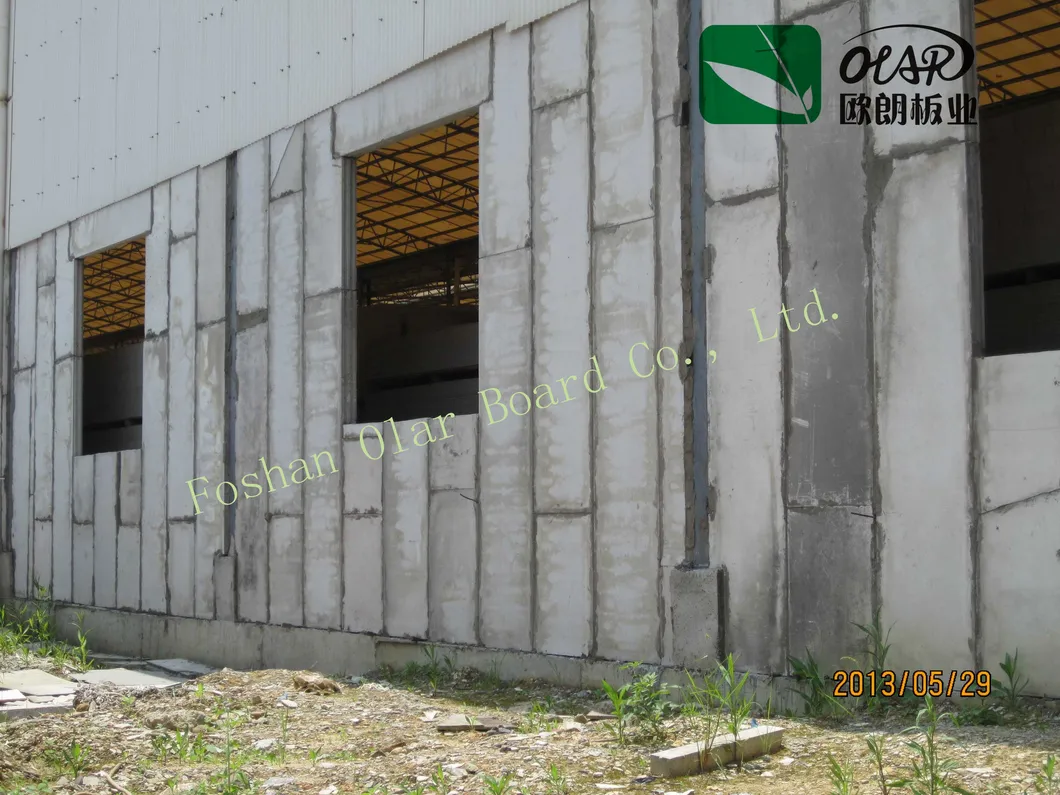

Project 2

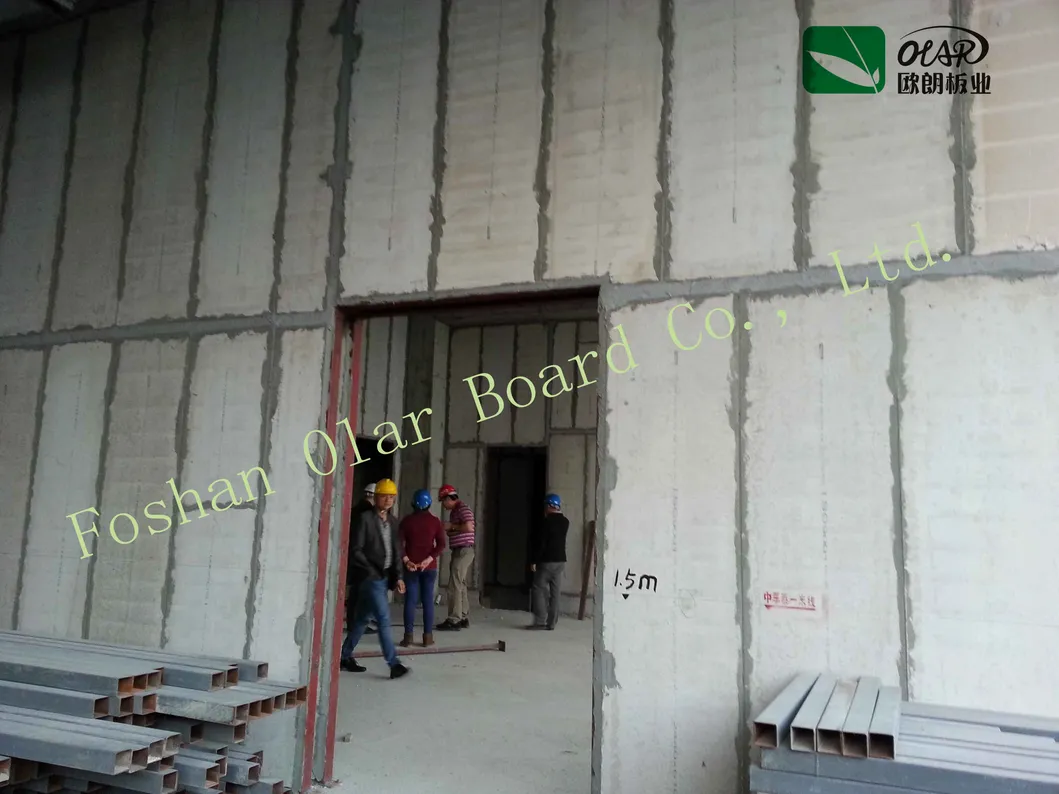

Project 3

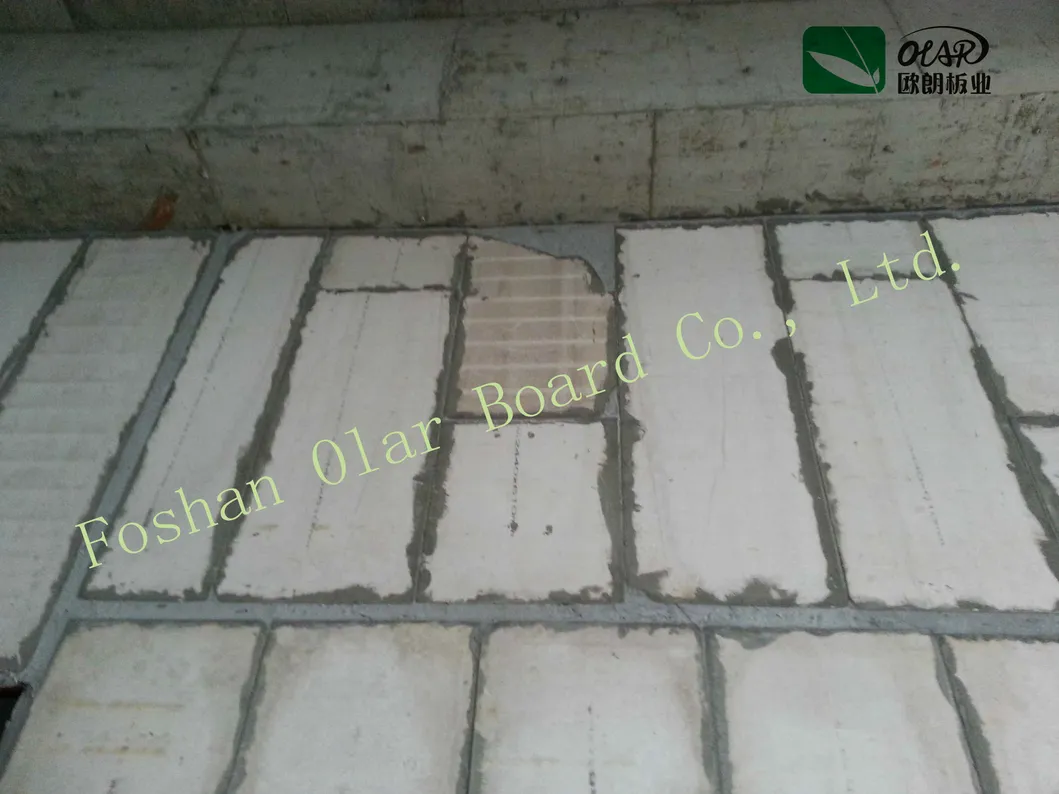

Project 4

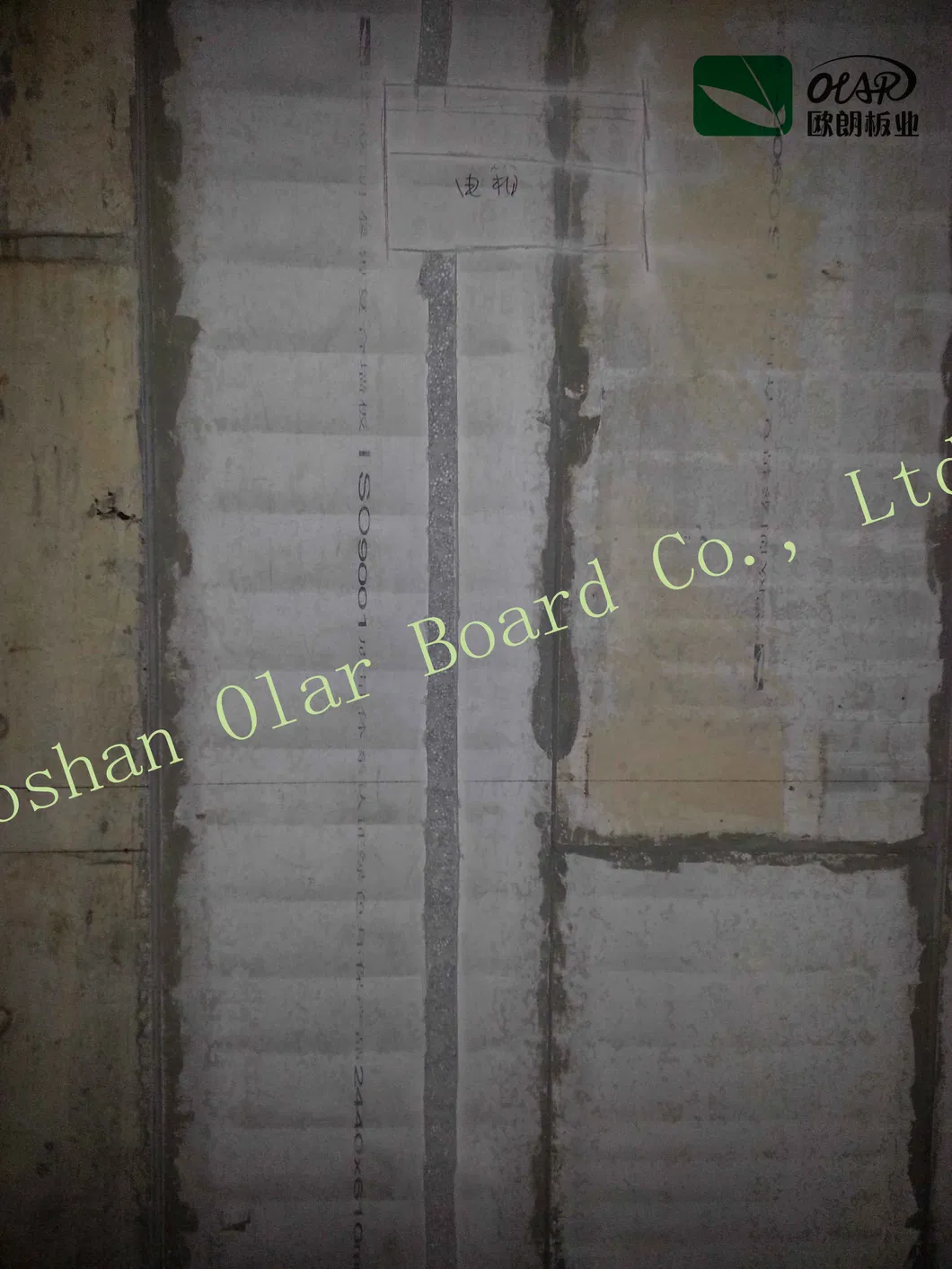

Project 5
❓

Frequently Asked Questions

Q: What are the main materials of the sandwich panel?
A: The surfaces are made of non-asbestos calcium silicate or fiber cement boards, and the core is a mixture of EPS foam particles and Portland cement.
Q: Can I hang heavy objects like air conditioners on these walls?
A: Yes, the single-spot hanging strength is 100kg, which allows for nailing and mounting heavy equipment or tiles easily.
Q: Is the panel fireproof?
A: Absolutely. It has an In-combustibility rating of Grade A1 (GB8624-2006) and a fire rating of up to 3 hours depending on the thickness.
Q: How does this panel help with sound insulation?
A: The internal EPS and cement structure provides excellent soundproofing, with insulation capacities ranging from 35dB to over 52dB.
Q: What is the expected lifespan of this construction material?
A: The panels are highly durable and designed to last for 70+ years, matching the typical lifespan of the building itself.
Q: Are these panels eco-friendly?
A: Yes, they are 100% asbestos-free, moisture-proof, and halide-resistant, making them safe for various ecological residences.
