Basic Specifications
Model NO.
Olar Sandwich Board for Internal & External Wall
Feature
Environmental, Fireproof, Light Weight
Certification
ISO9001, Se En 12467:2012, ISO 14001
Size 1
610*2440*50, 75, 100, 125, 150mm
Size 2
610*3000*75, 100, 125mm
Production Capacity
600 Square Meter/Day
Why choose Thaibeck Sandwich Board

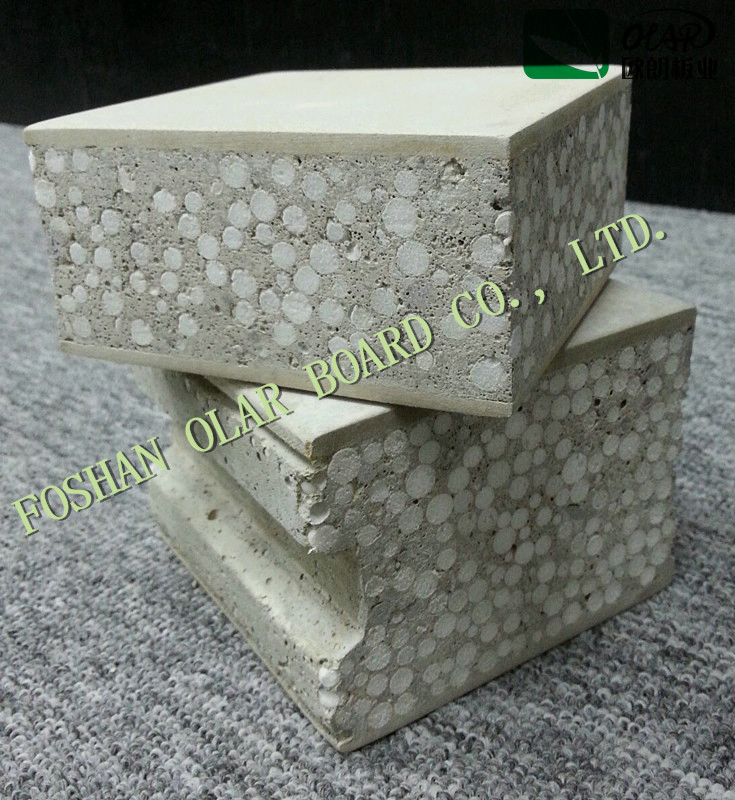

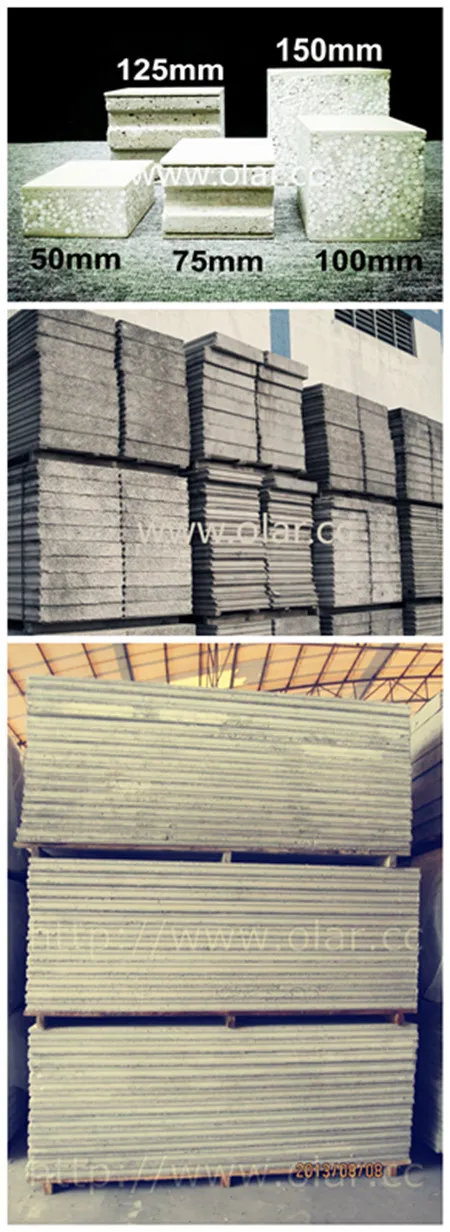

Detailed description: Made from both surfaces with 100% Non-Asbestos Calcium Silicate Boards. The core consists of mixing foam particles, light weight Portland cement, and specialized additives.
Core Characteristics
🛡️Moisture-proof & Water resistant
🌿Environmental protection & Non-asbestos
🔥Fire-resistance & Thermal insulation
⚡Convenient construction (replaces brick walls)
🔇Sound insulation for quiet spaces
🏗️High Strength & Light weight
Application Scope
Suitable for modern high-rise buildings, ecological residences, and various structures:
Interior Partition: 50mm, 75mm, 100mm, 125mm
Exterior Wall: 125mm, 150mm
Technical Specification
| Standard |
Thickness |
Length |
Width |
Ref. Weight |
Fire Rating (H) |
Sound Insulation |
| 50 Series | 50mm | 2440mm | 610mm | 40kg/m2 | 1 | / |
| 75 Series | 75mm | 2440/3000mm | 610mm | 60kg/m2 | ≥2 | ≥43dB |
| 100 Series | 100mm | 2440/3000mm | 610mm | 78kg/m2 | ≥3 | ≥46dB |
| 125 Series | 125mm | 2440/3000mm | 610mm | 90kg/m2 | ≥3 | ≥50dB |
| 150 Series | 150mm | 2440mm | 610mm | 105kg/m2 | ≥3 | ≥52dB |
Certificates & Quality Control

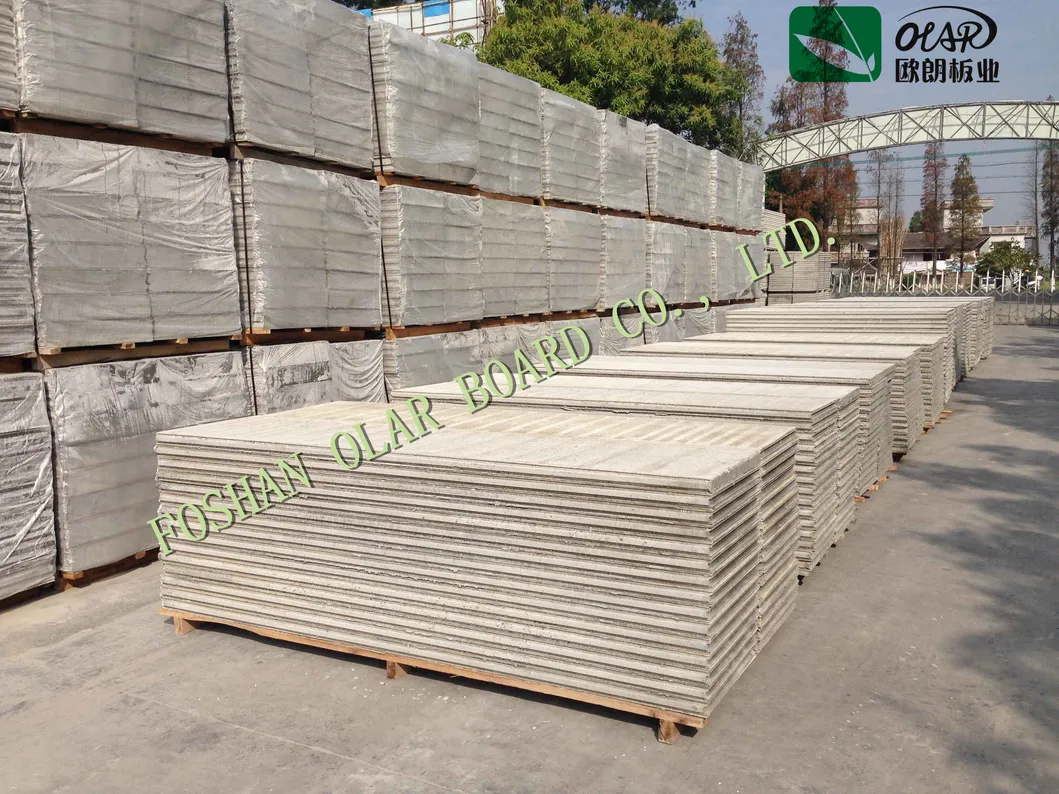

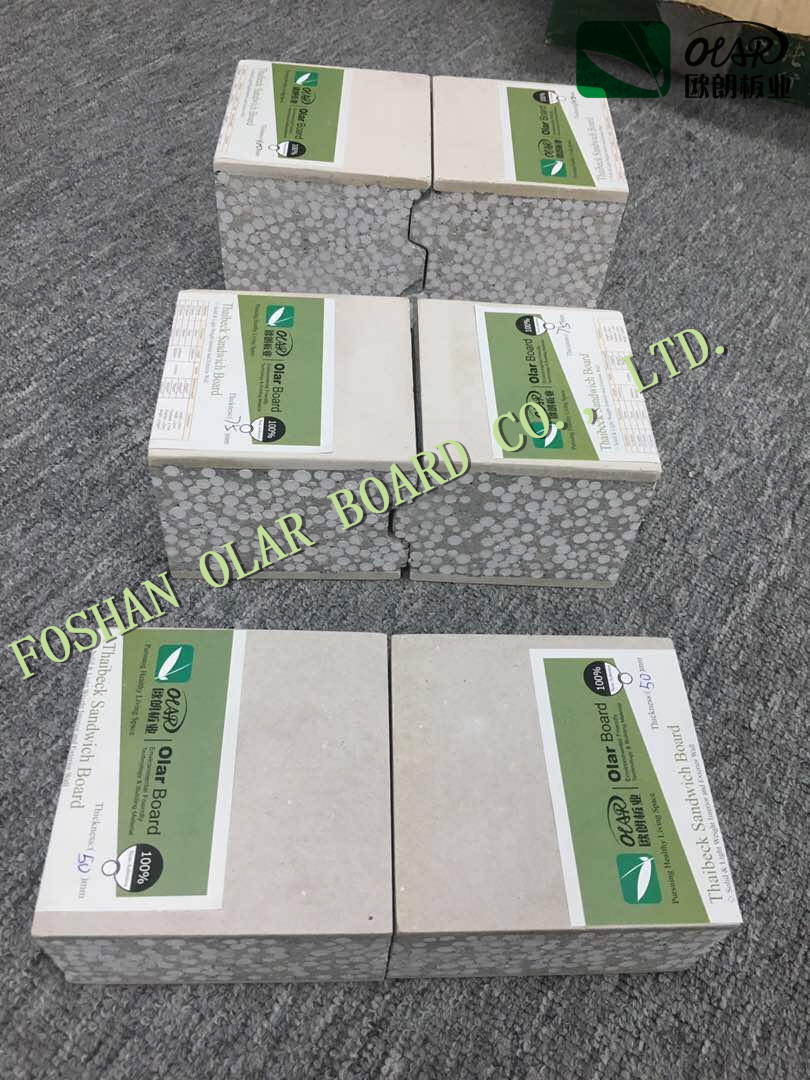

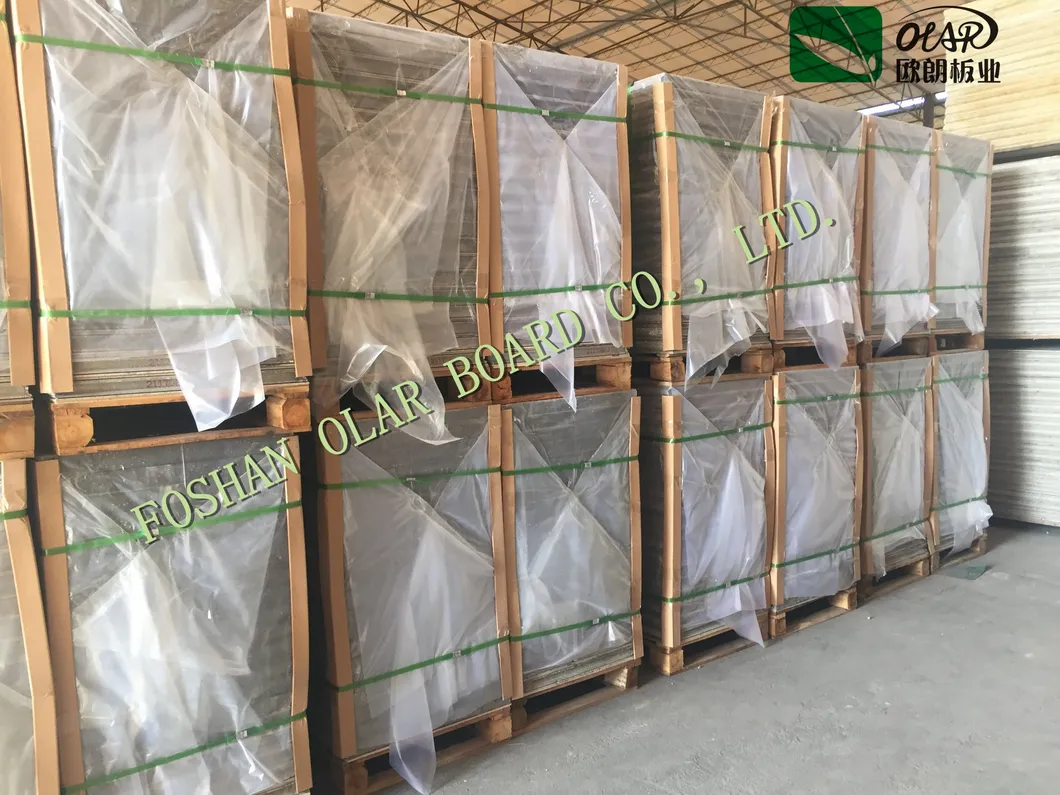

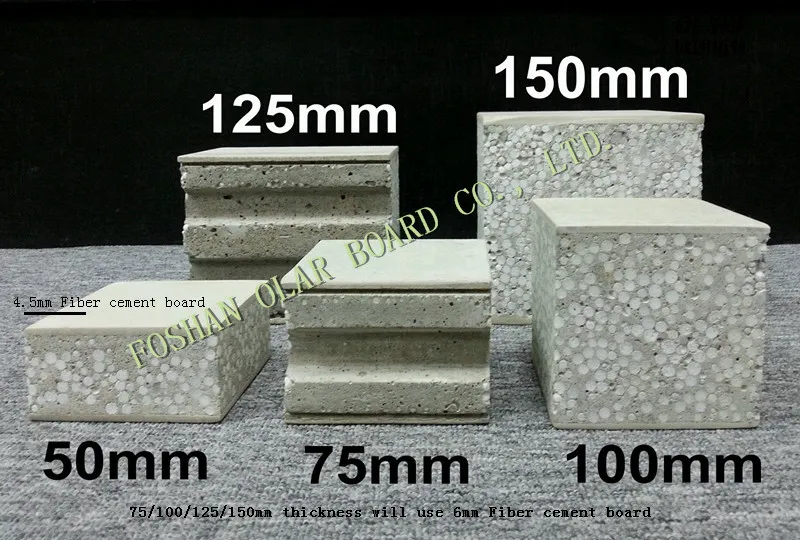

Thickness & Packaging

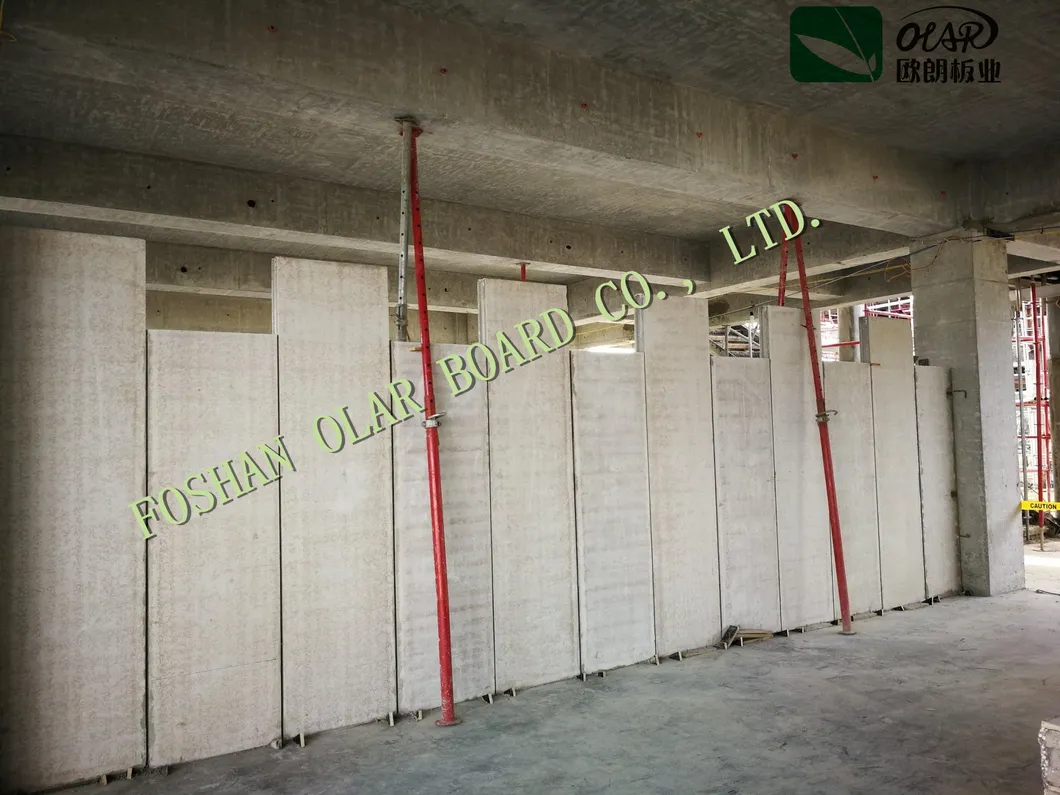

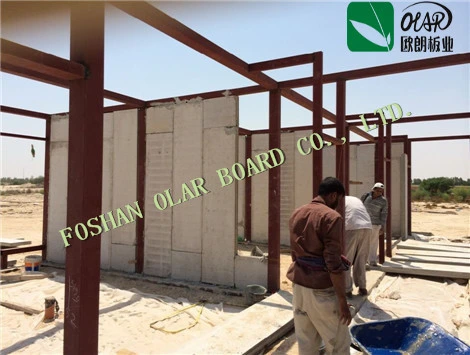

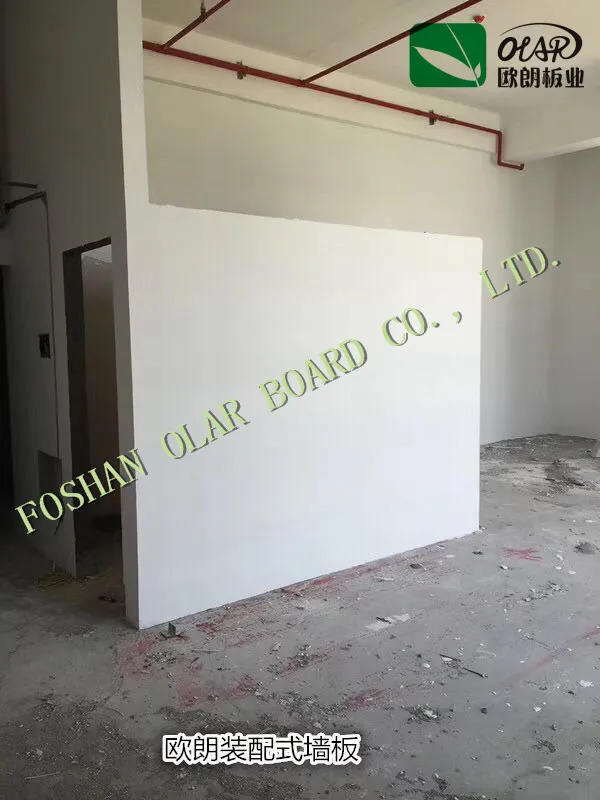

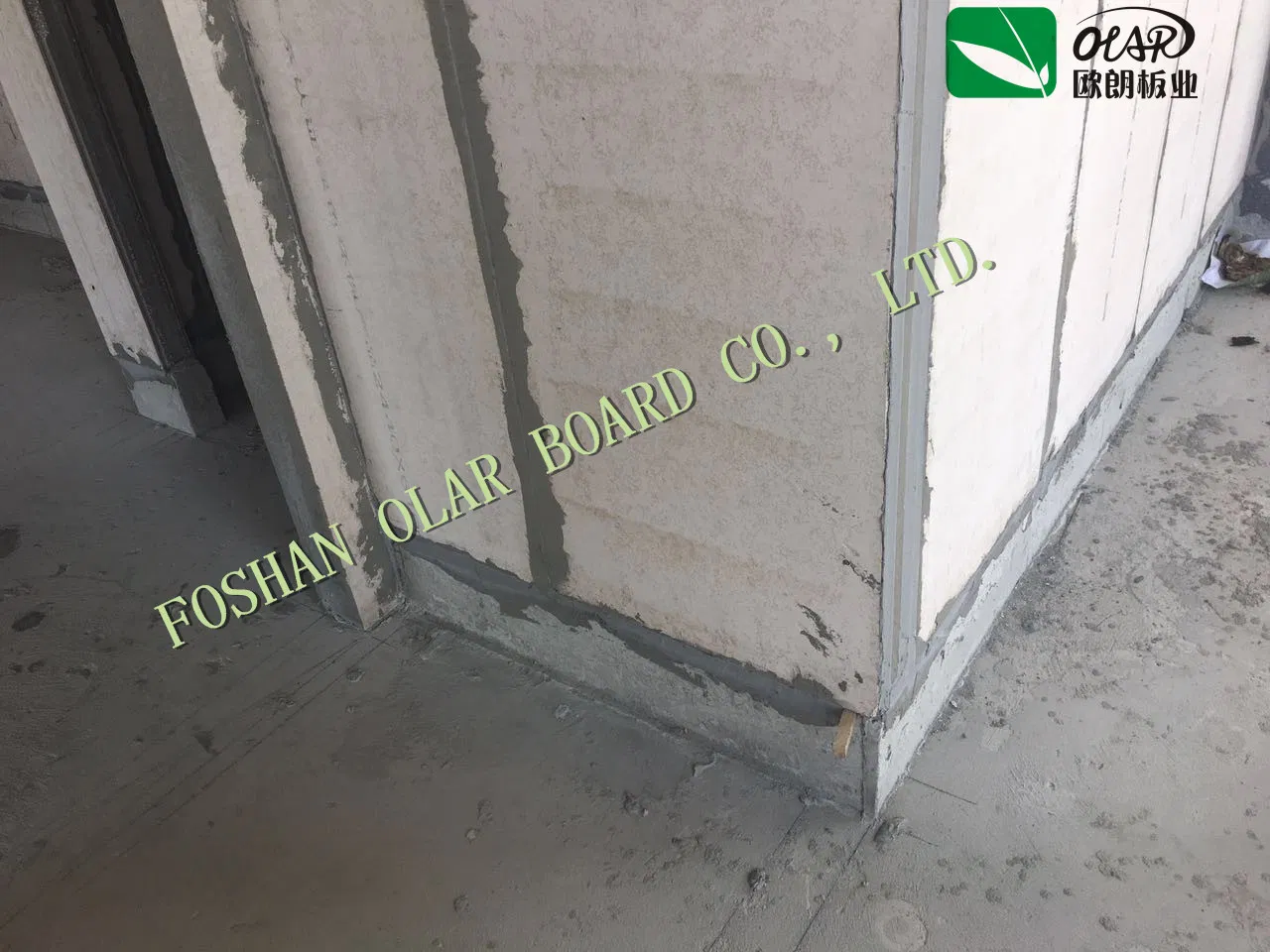

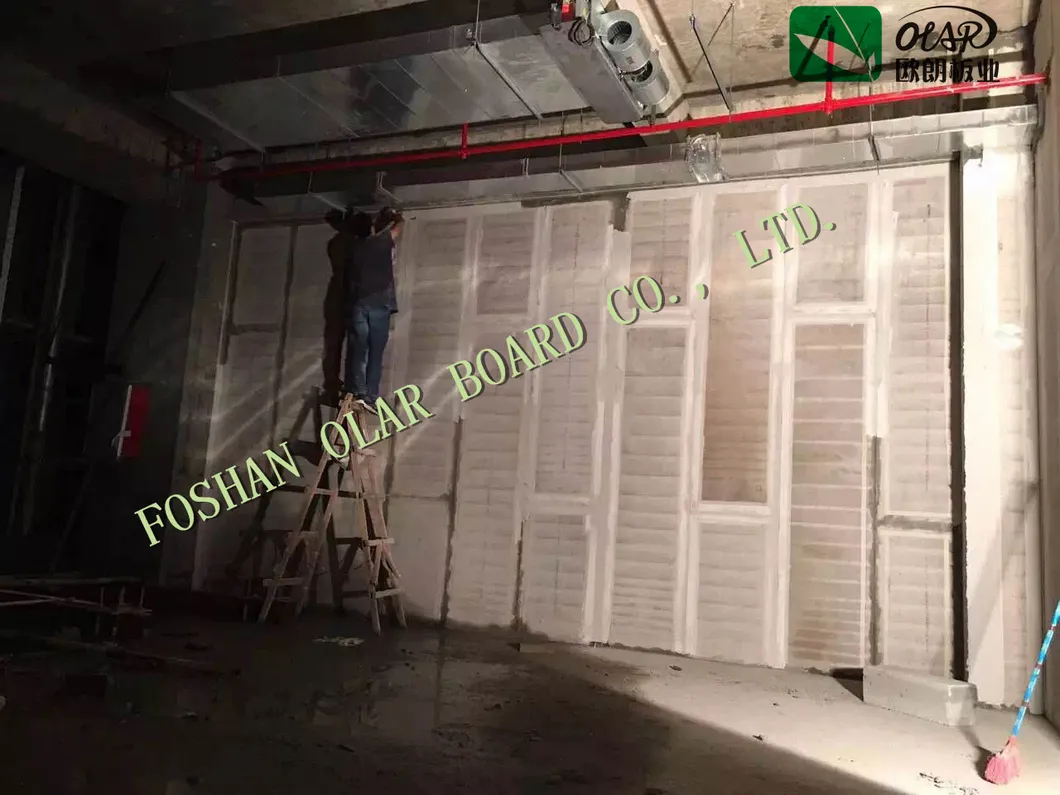

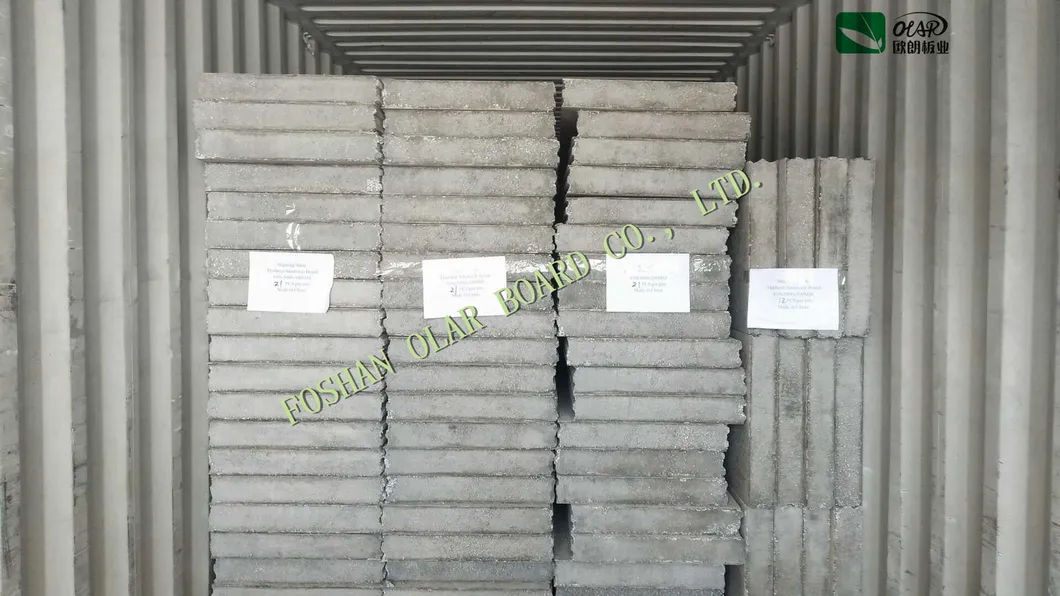

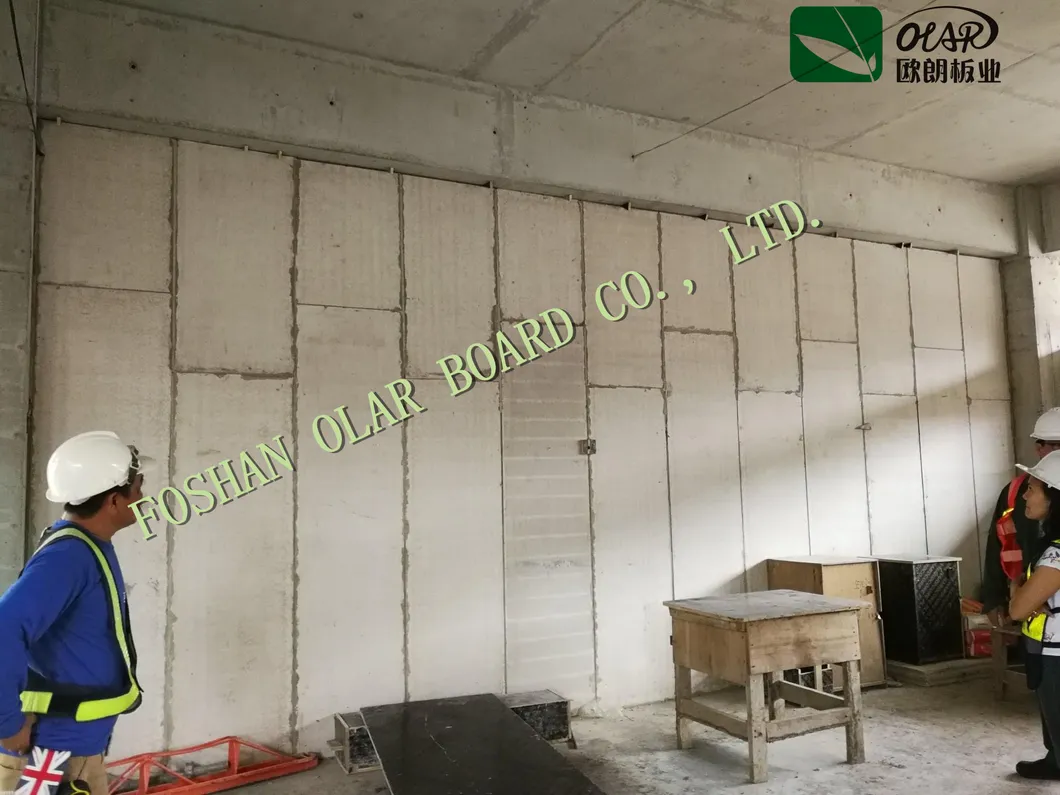

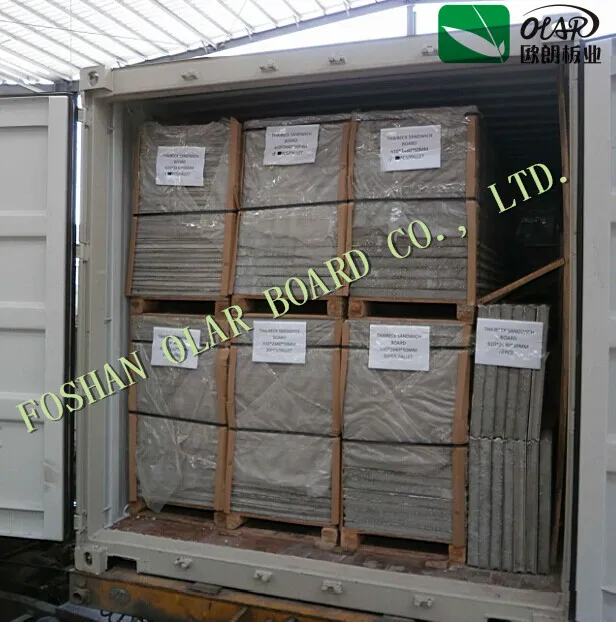

Loading & Project Reference
Frequently Asked Questions
What materials are used in the Sandwich Board?
The surfaces are made of 100% Non-Asbestos Calcium Silicate Boards, and the core is a mixture of foam particles, light-weight Portland cement, and specific additives.
Is the board fireproof?
Yes, it has an In-Combustibility rating of GB8624-2006 Grade A1. Depending on the thickness, it offers fire resistance from 1 to over 3 hours.
What are the standard sizes and thicknesses available?
Standard lengths are 2440mm and 3000mm with a width of 610mm. Available thicknesses include 50mm, 75mm, 100mm, 125mm, and 150mm.
Can this board be used for exterior walls?
Absolutely. While thinner boards (50-100mm) are common for interior partitions, the 125mm and 150mm series are designed for exterior wall applications.
How does the board perform in terms of sound insulation?
It provides excellent sound insulation, ranging from ≥43dB for the 75mm series up to ≥52dB for the 150mm series.
What are the main advantages over traditional brick walls?
The Sandwich Board is much lighter, faster to install, provides better thermal and sound insulation, and is moisture-proof, significantly shortening the construction period.
