Shanghai Marya Customized CE Modular Wall Panel System for Pharmaceutical Cleanroom
Shanghai Marya Customized CE Modular Wall Panel System for Pharmaceutical Cleanroom
Shanghai Marya Customized CE Modular Wall Panel System for Pharmaceutical Cleanroom
Shanghai Marya Customized CE Modular Wall Panel System for Pharmaceutical Cleanroom
Shanghai Marya Customized CE Modular Wall Panel System for Pharmaceutical Cleanroom
1 / 5
Shanghai Marya Customized CE Modular Wall Panel System for Pharmaceutical Cleanroom
Shanghai Marya Customized CE Modular Wall Panel System for Pharmaceutical Cleanroom
Shanghai Marya Customized CE Modular Wall Panel System for Pharmaceutical Cleanroom
Shanghai Marya Customized CE Modular Wall Panel System for Pharmaceutical Cleanroom
Shanghai Marya Customized CE Modular Wall Panel System for Pharmaceutical Cleanroom

Shanghai Marya Customized CE Modular Wall Panel System for Pharmaceutical Cleanroom

Customization: Available
Certification: GS, RoHS, CE
Feature: Cold-Resistant, Corrosion-Resistant, Heat-Resistant
Send Inquiry

Product Description

Basic Information

Model NO.
MY-12
Standard
Standard
Material
Honeycomb
Package
Wooden Package
Specification
Customized
Capacity
1000 Square Meter/Month

Customized CE Modular Wall Panel System

This high-quality modular wall panel system is designed specifically for pharmaceutical cleanrooms, ensuring strict adherence to environmental control standards.

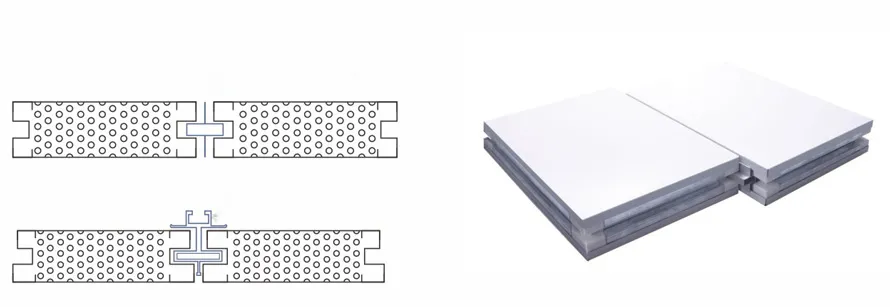

Modular Wall Panel System for Pharmaceutical Cleanroom

Key Characteristics

  • Standard Thickness: 50mm, 75mm, 100mm options available.
  • Premium Materials: Choice of color steel plate, stainless steel plate, or HPL plate.
  • Structural Integrity: Panels are connected with built-in aluminum keel and PVC square tubes for a self-supporting structure.
  • High Resistance: Excellent performance in chemical, wear, and scratch resistance.
  • Versatile Filling: Options include Rockwool, PU, EPS, Paper Honeycomb, and Aluminum Honeycomb.
  • Maintenance Friendly: Roof panels are reinforced (Mgo/Gypsum) to support maintenance personnel weight (up to 100kg).

Technical Parameters

Parameter Specification Details
Effective WidthWall: 950/1150mm; Ceiling: 950mm
LengthCustomized (Up to 7500mm)
Core MaterialsPU / Rock Wool / Glass Magnesium / Honeycomb
Steel Thickness0.3mm - 0.8mm
Density (Rock Wool)40kg/m3 - 120kg/m3
ColorRAL Standard Colors
ApplicationPharmaceutical, Electronic Clean Rooms, Operating Rooms

Workshop & Quality Control

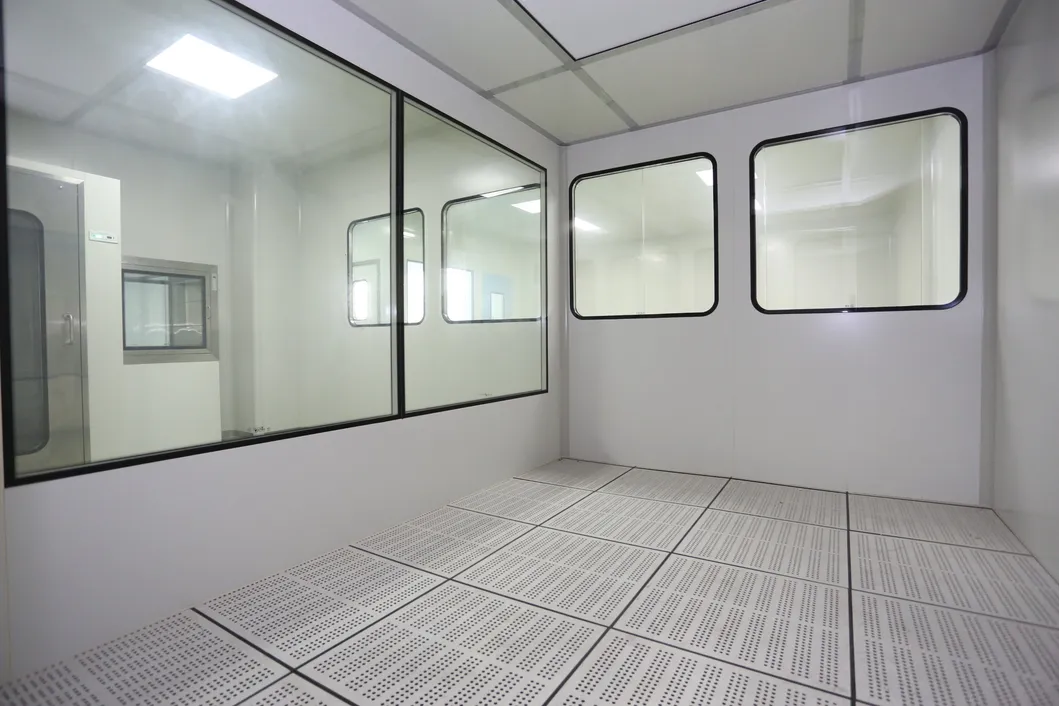

Product Detail 1

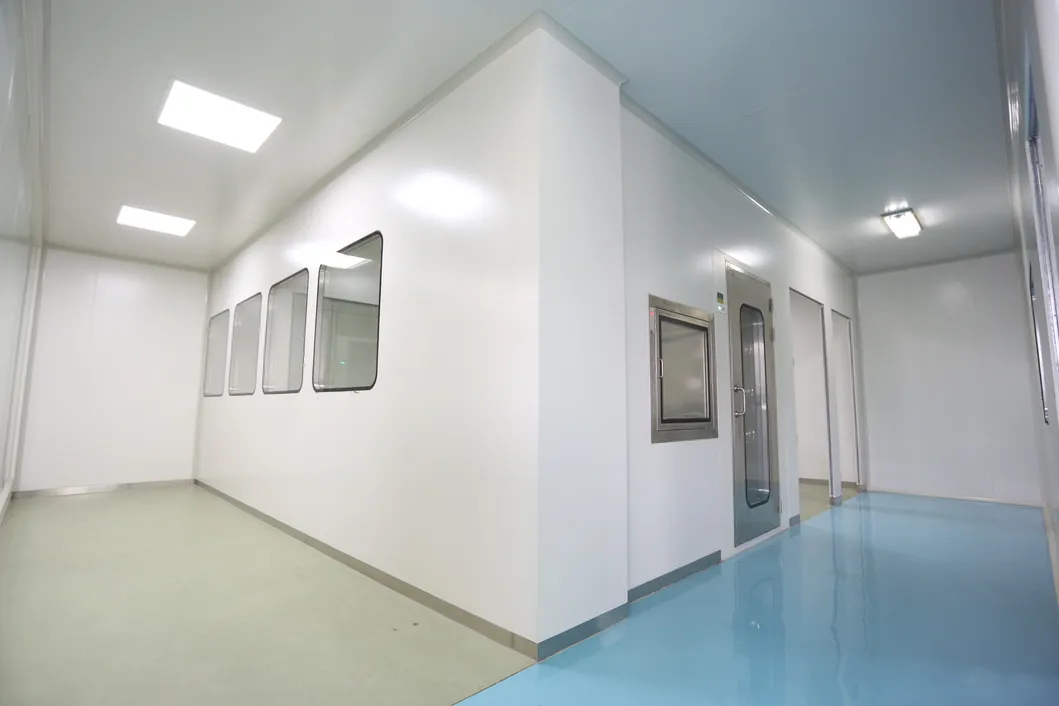

Product Detail 2

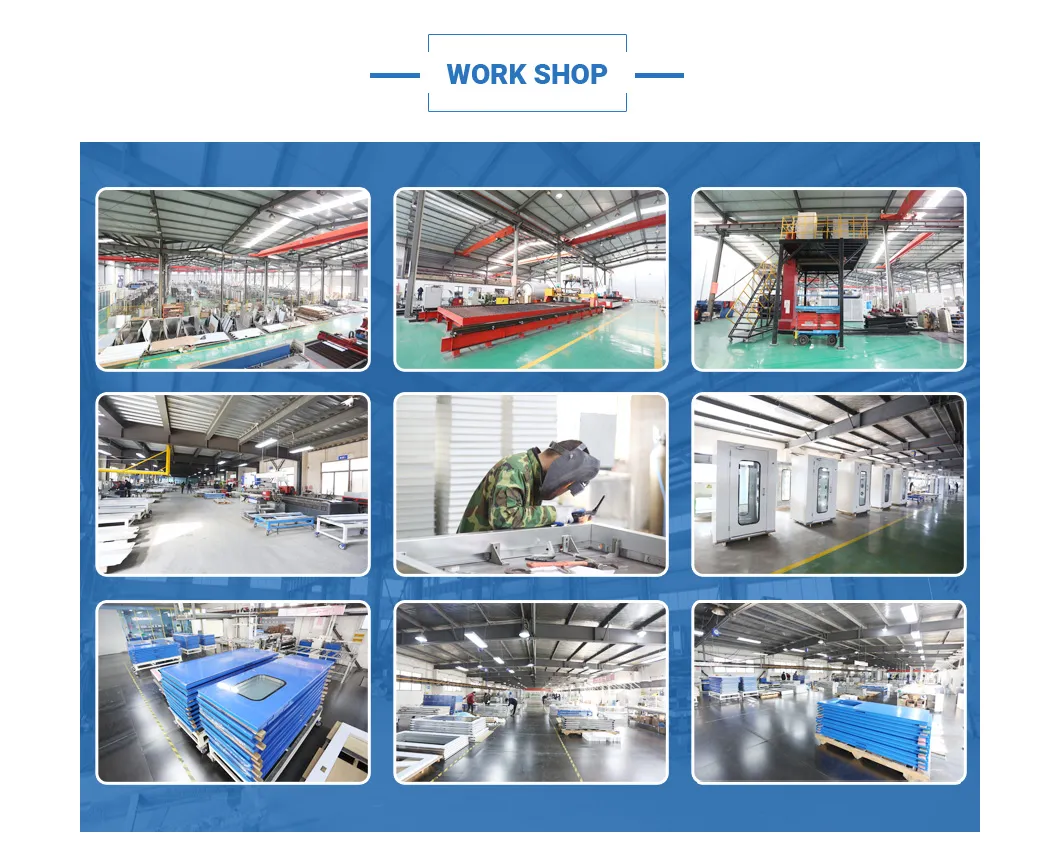

Cleanroom Workshop

Project Cases & Certificates

Certificate

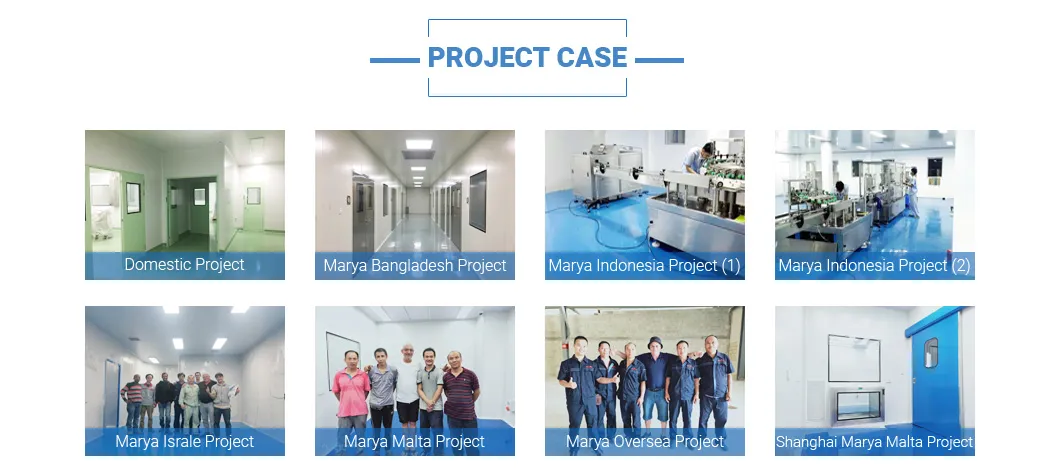

Project Case

Our Customers & Exhibition

Global Customers
Team Exhibition

Packaging & Shipping

Packaging and Shipping

Frequently Asked Questions

What are the standard thicknesses for cleanroom panels?
The panels come in standard thicknesses of 50mm, 75mm, and 100mm to meet different insulation and structural requirements.
What materials are available for the face panels?
You can choose from color steel plates, stainless steel plates, or HPL (High-Pressure Laminate) plates depending on your cleanroom's chemical resistance needs.
What types of filling materials can be used?
We offer a variety of cores including Rockwool, Glass Magnesium, Aluminum Honeycomb, Paper Honeycomb, PU, and EPS.
Are the modular panels fireproof?
Yes, materials like Rockwool and Glass Magnesium provide excellent fireproof and heat insulation properties for safety compliance.
Can these panels be used for ceiling applications?
Absolutely. Our panels are designed for both walls and ceilings. Ceiling panels can be reinforced so that they are walkable for maintenance purposes.
How are the panels connected during installation?
Panels are connected using built-in aluminum keels and PVC square tubes, with seams sealed by silica gel to ensure a completely airtight environment.
