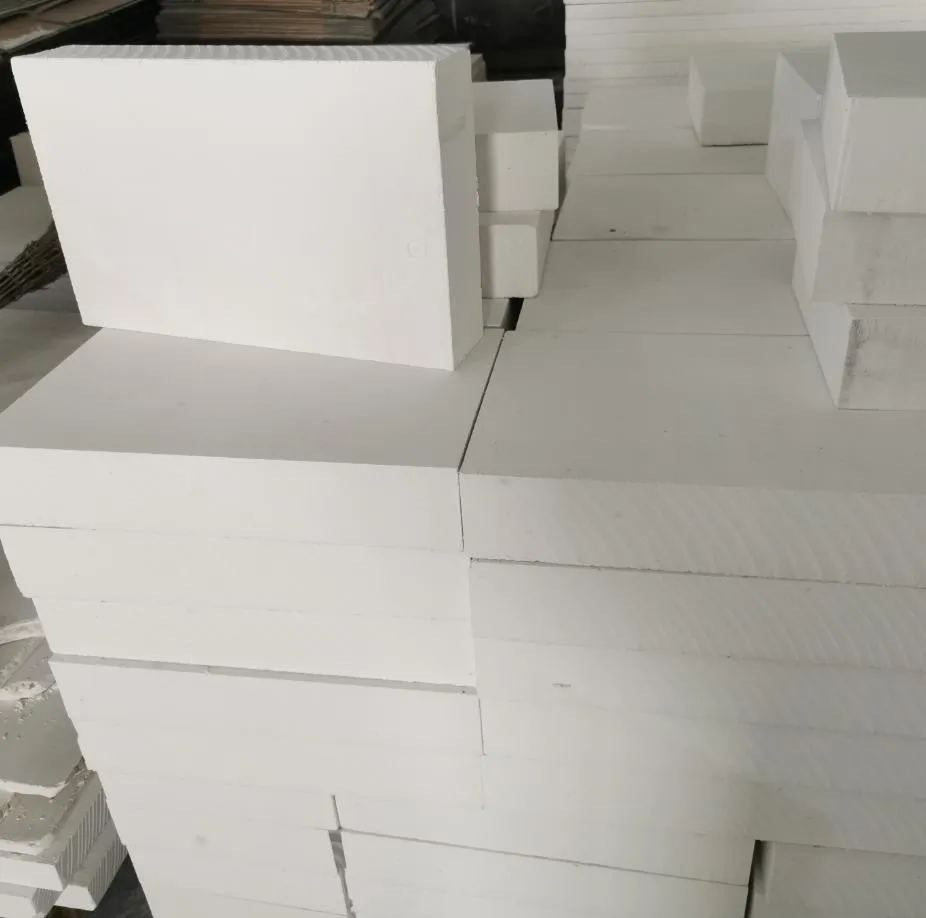

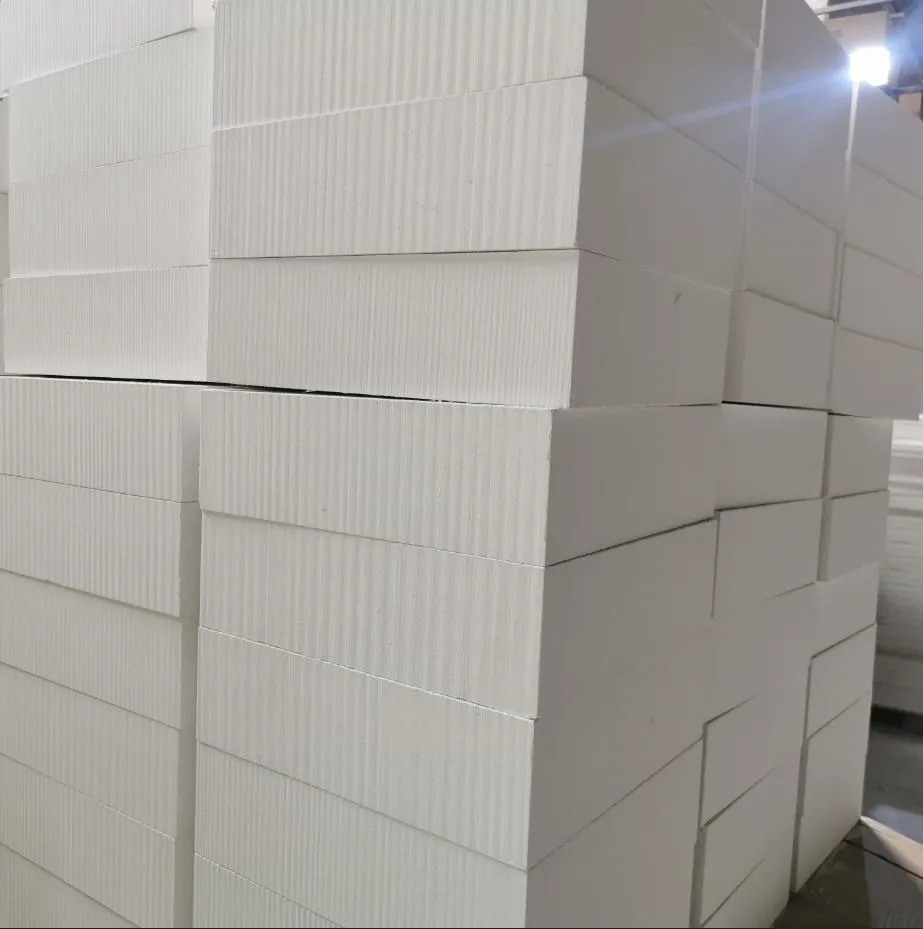

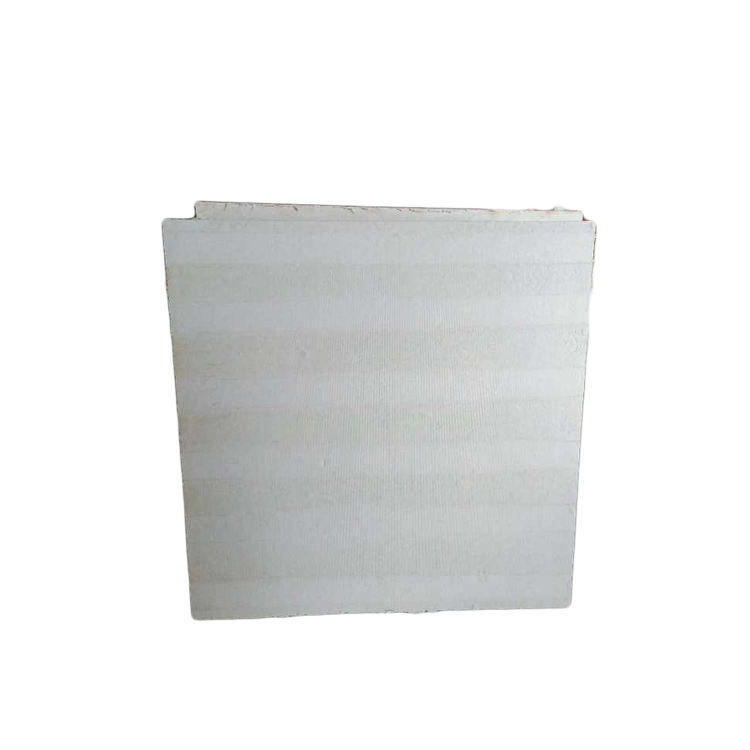

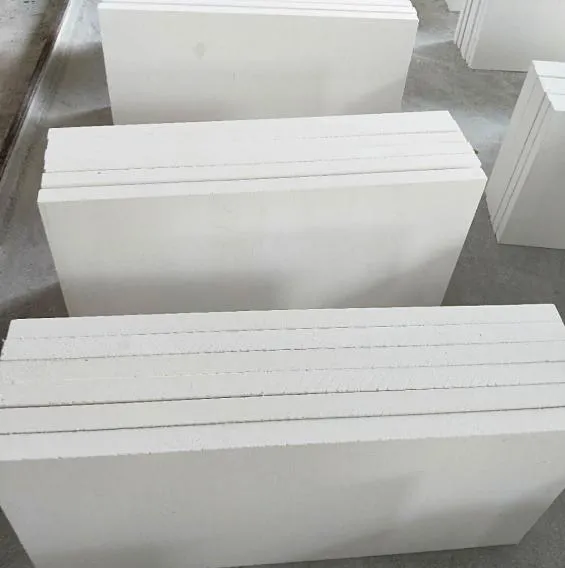

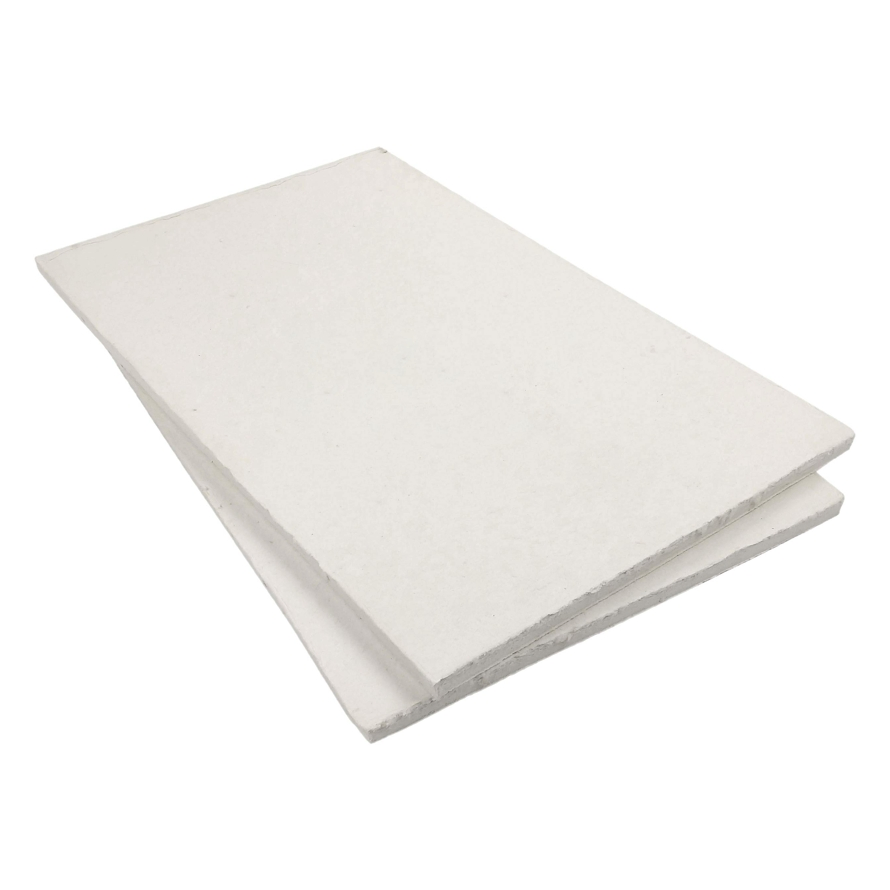

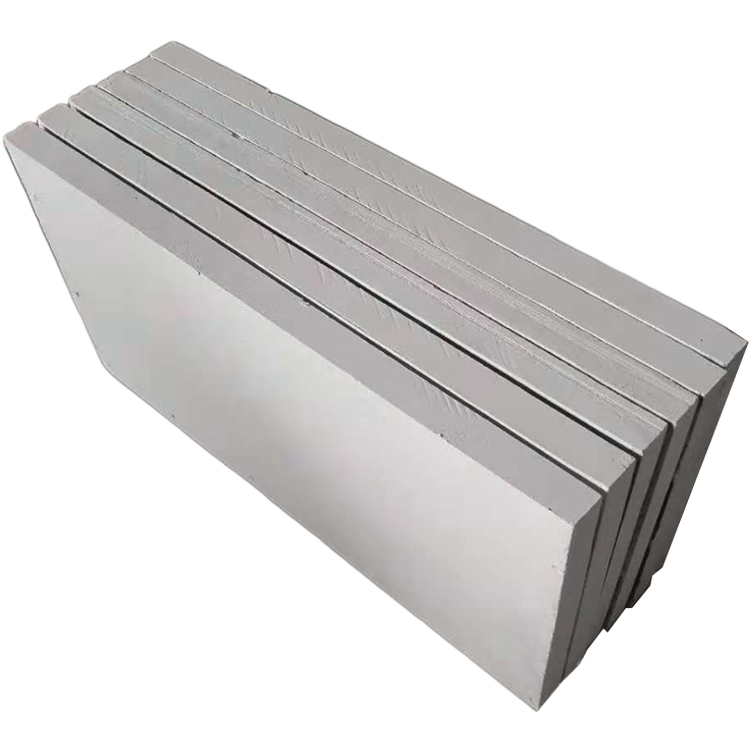

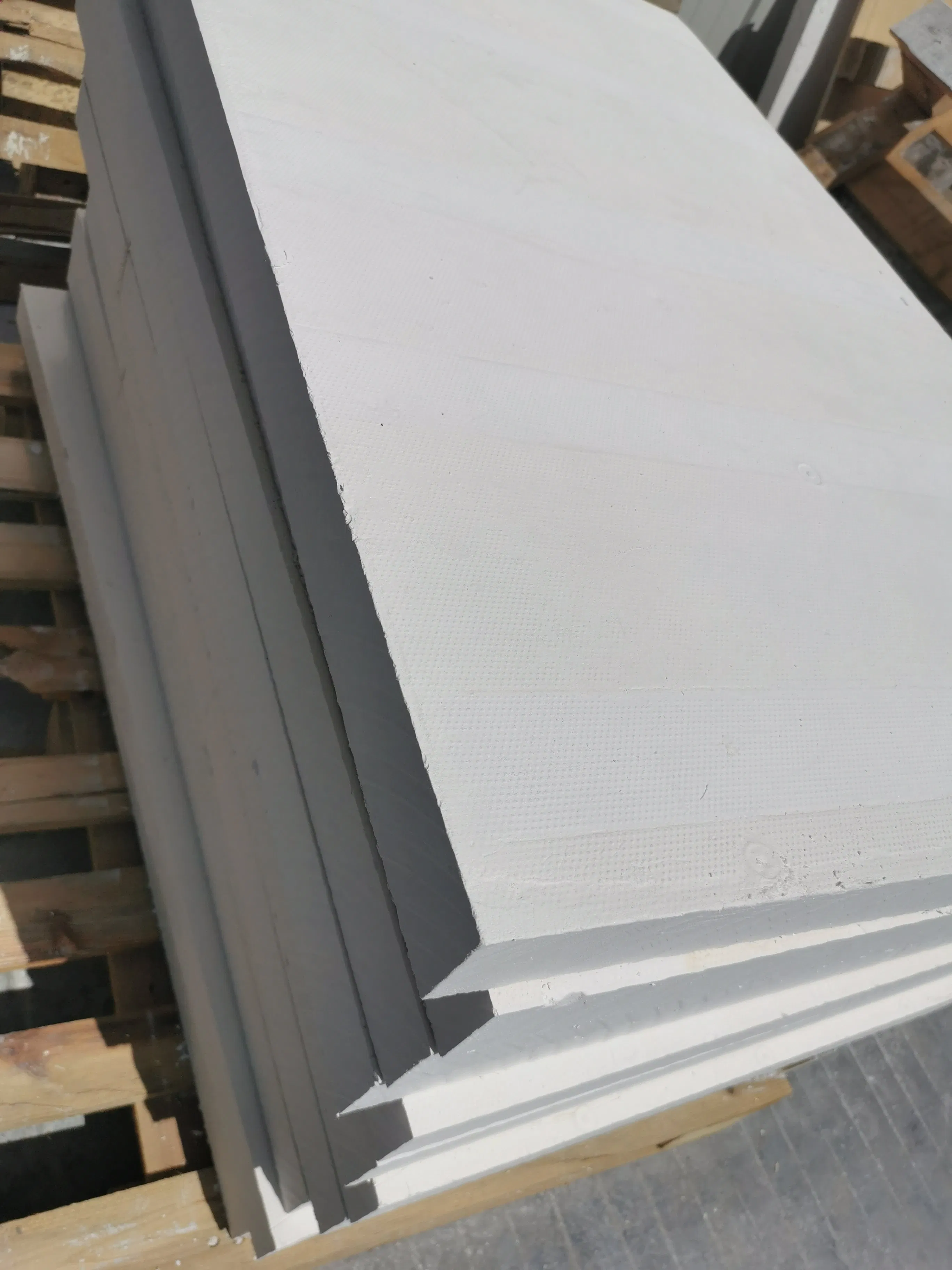

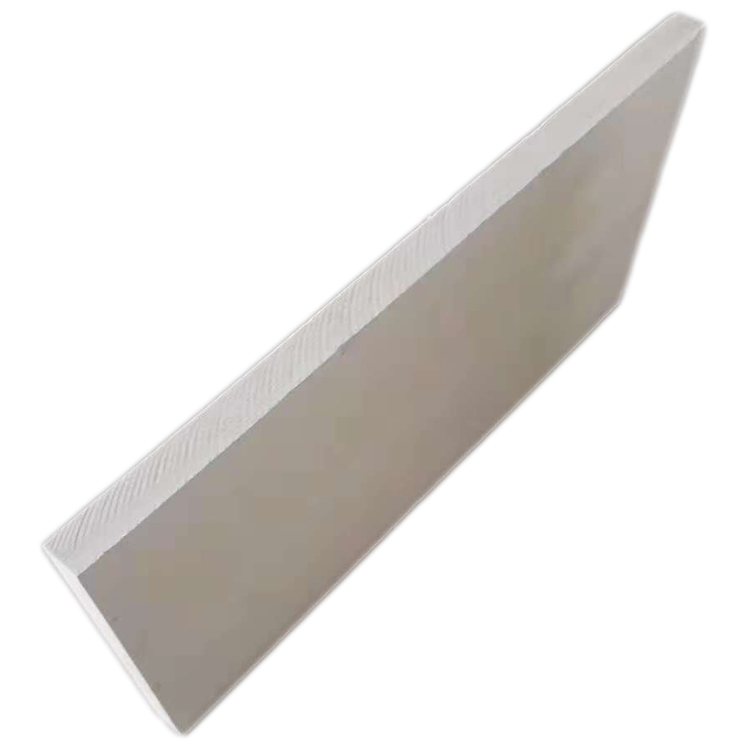

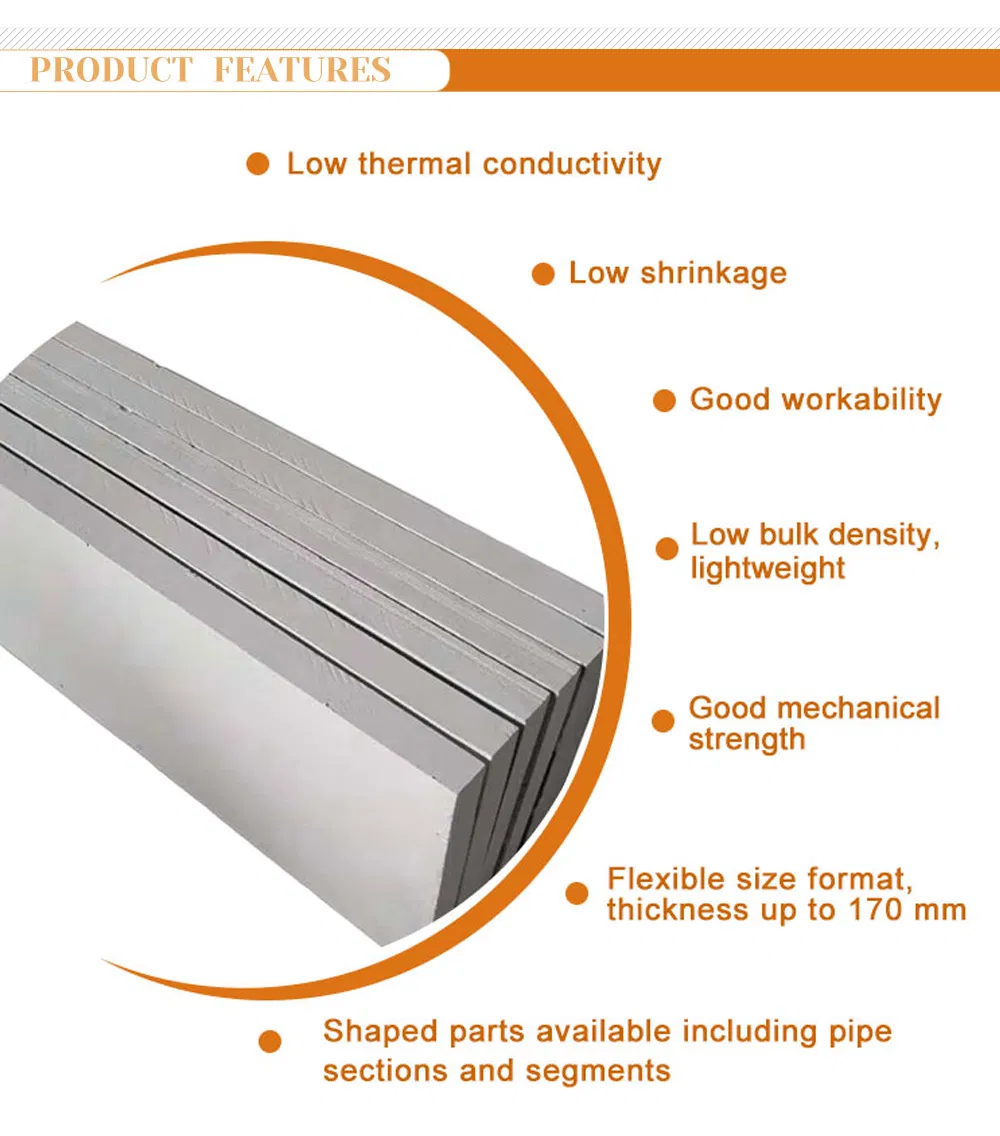

Calcium silicate board is an asbestos-free thermal insulation product that can withstand continuous operating temperatures up to 1000 ºC. It is lightweight, has low thermal conductivity and high strength, and is easy to install.
Calcium silicate boards are commonly used as furnace backup insulation in the steel, petrochemical, ceramic, cement & glass industry or fire protection in building construction. It saves energy, increases production efficiency, and protects personnel in industrial safety.
| Item | Calcium silicate board | |||
|---|---|---|---|---|
| Chemical Composition | SiO2≥55; CaO≥36; Al2O3≤0.5; Fe2O3≤1.0 | |||
| Bulk Density (Kg/m3) | 250(±10%) | 270(±10%) | 300(±10%) | |
| Flexural Strength (Mpa) | ≥0.55 | ≥1.0 | ≥1.2 | |
| Max service temperature (ºC) | 1000 | 1000 | 1000 | |
| Compressive Strength (Mpa) | ≥1.0 | ≥1.5 | ≥2.0 | |
| Thermal Conductivity 200ºC | 0.080 | 0.078 | 0.087 | |
| Thermal Conductivity 400ºC | 0.106 | 0.099 | 0.114 | |
| Linear Shrinkage | ≤2 (1000ºC, 16 hrs) | |||

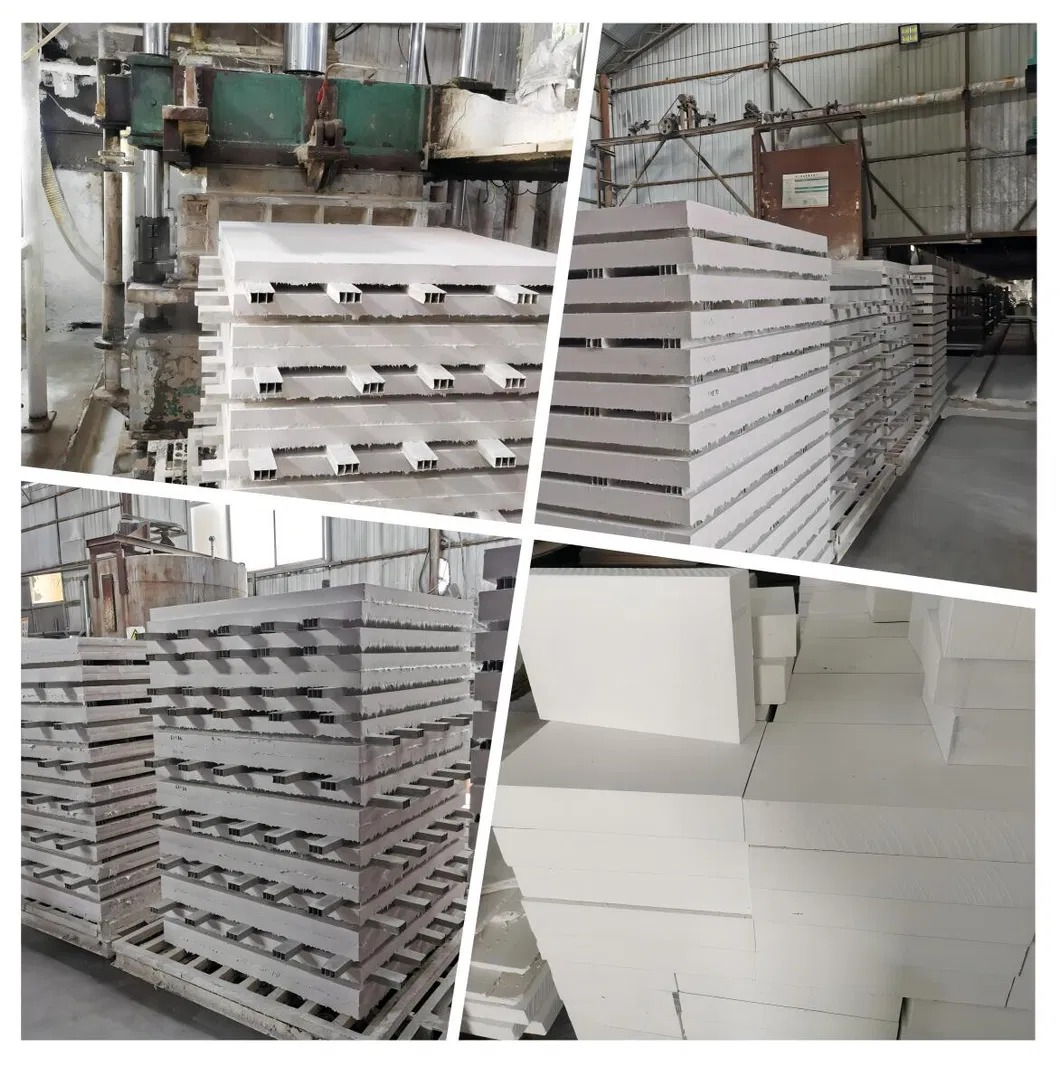

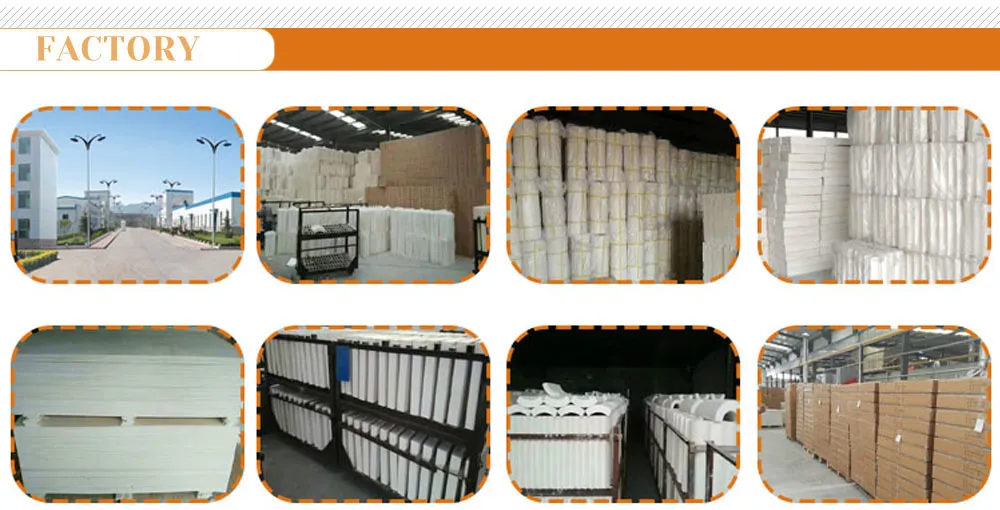

With over 20 years of production and trading experience, the group is professionally engaged in the research, development, and sales of all types of refractory and insulation materials.
Refractory materials include alumina series bricks, magnesia series bricks, corundum series bricks, mullite bricks, and alusite bricks. Insulation materials include ceramic fiber products, calcium silicate products, insulating brick, and rock wool insulation for the metallurgy, glass, ceramics, petrochemical, machinery, steel, cement, lime, construction, and other industries.
OEM and ODM services are available. We provide a global one-stop purchasing platform for refractory and insulation materials to offer professional advice, qualified products, and good service. Materials have been exported to over 50 countries, building firm business relations with more than 200 foreign companies.
