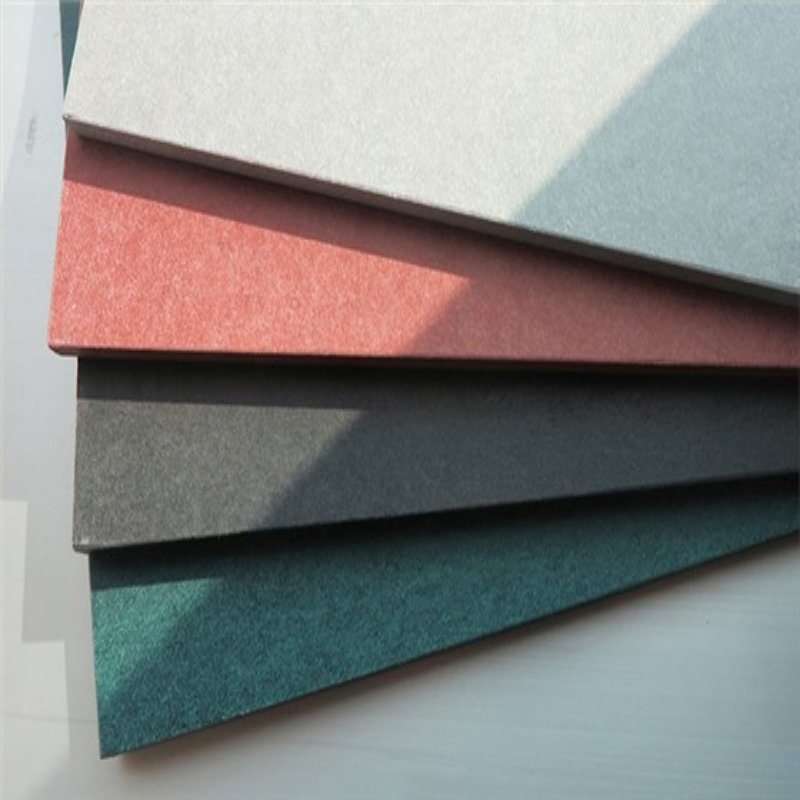

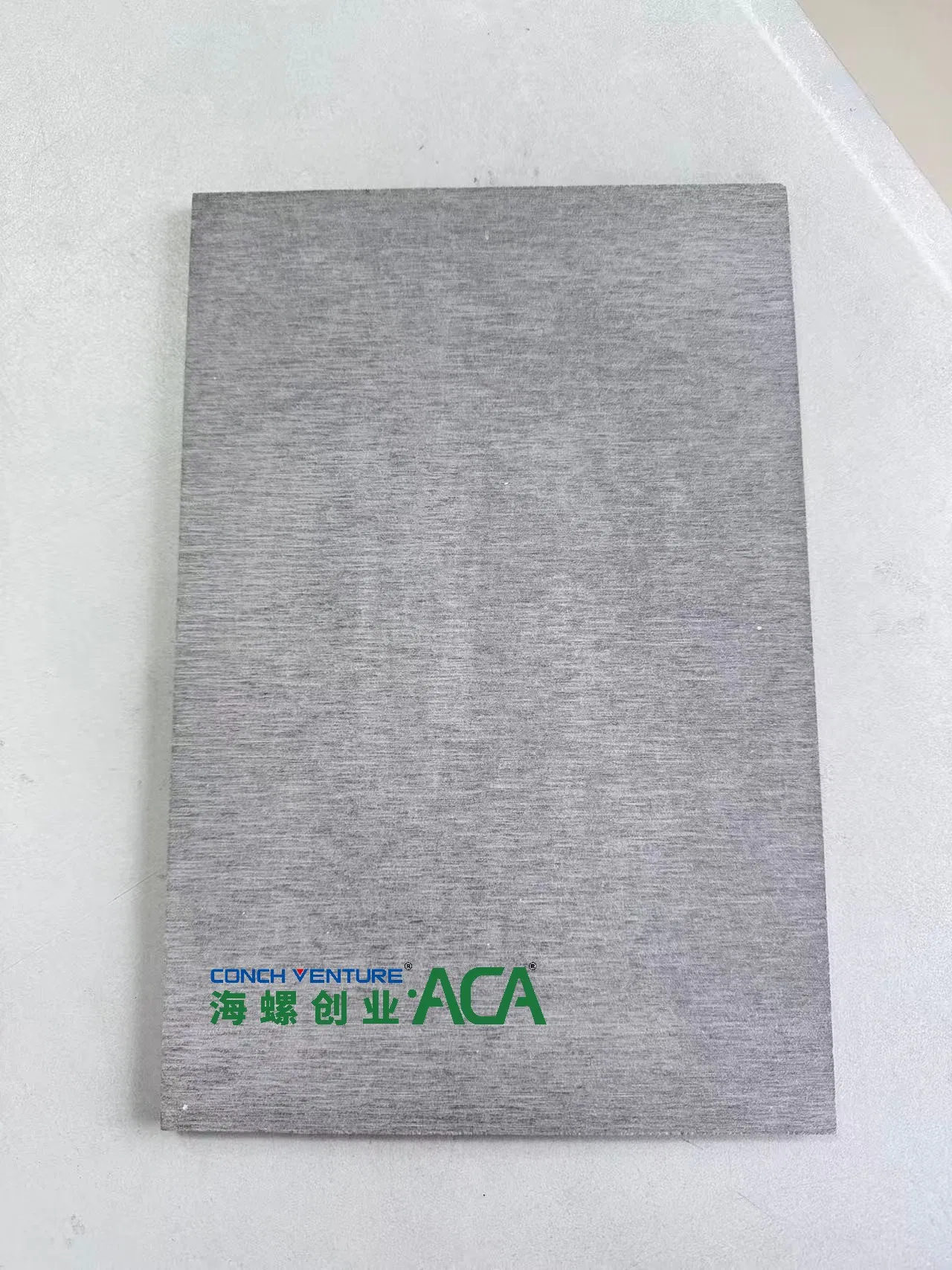

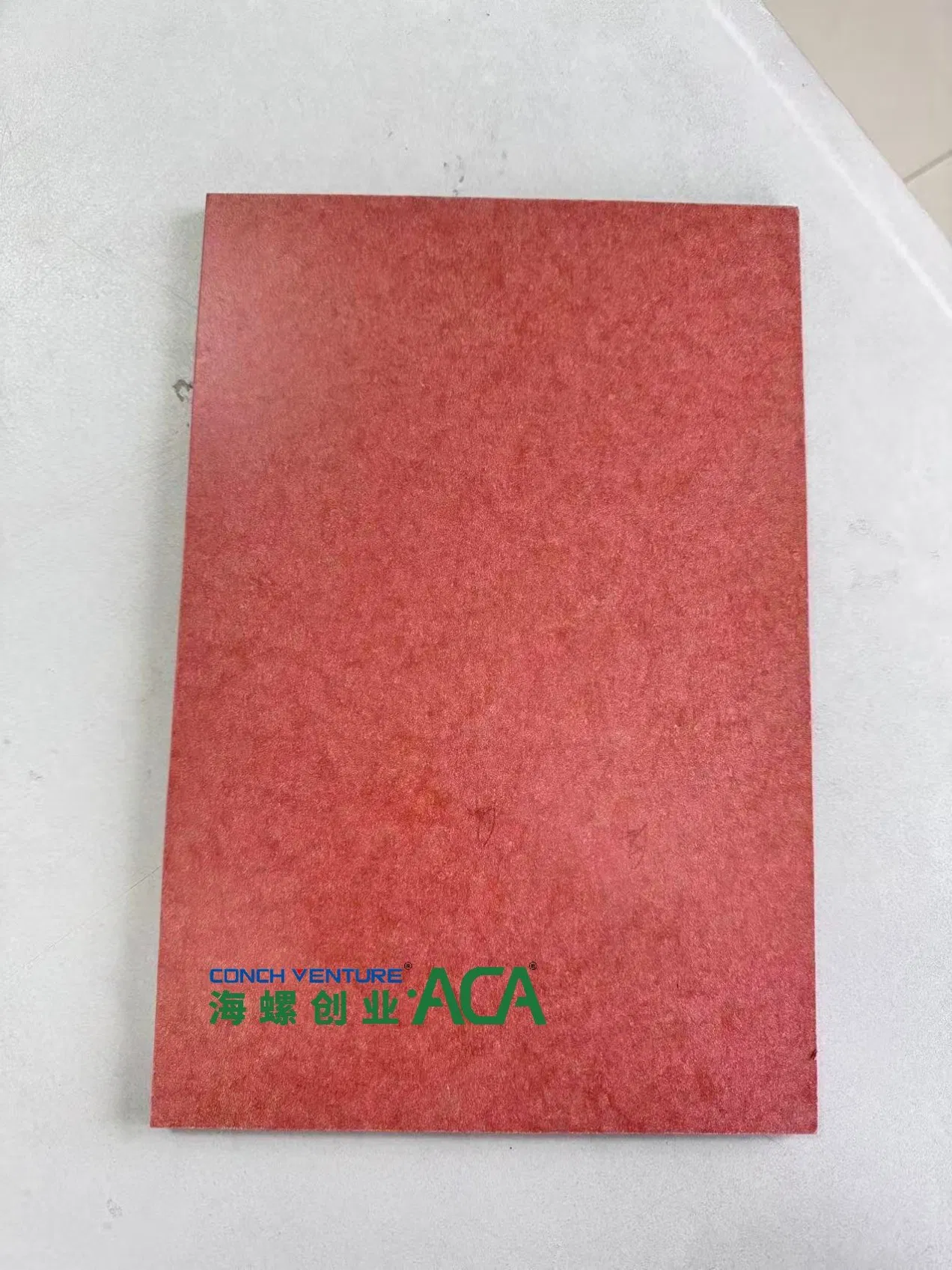

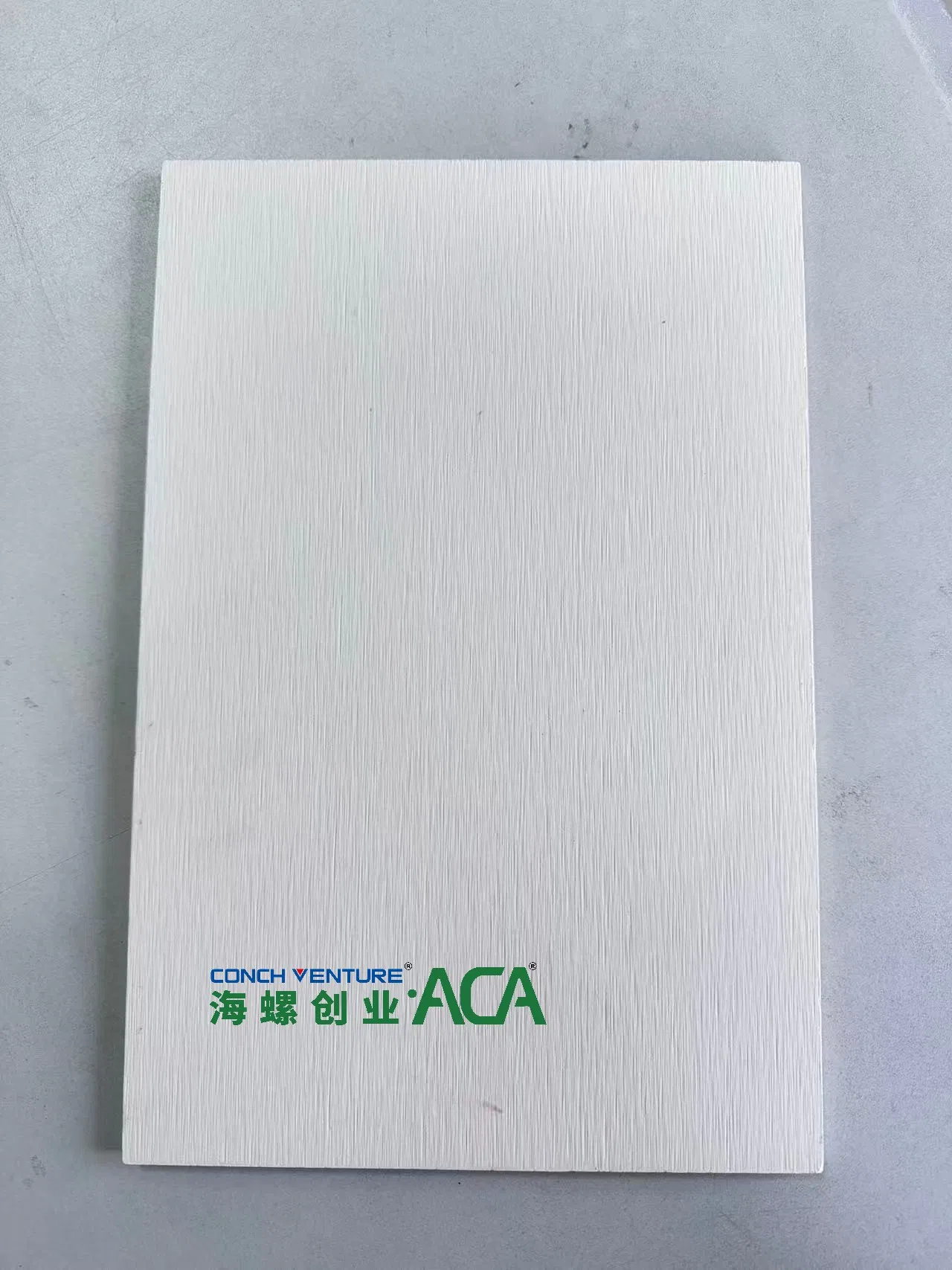

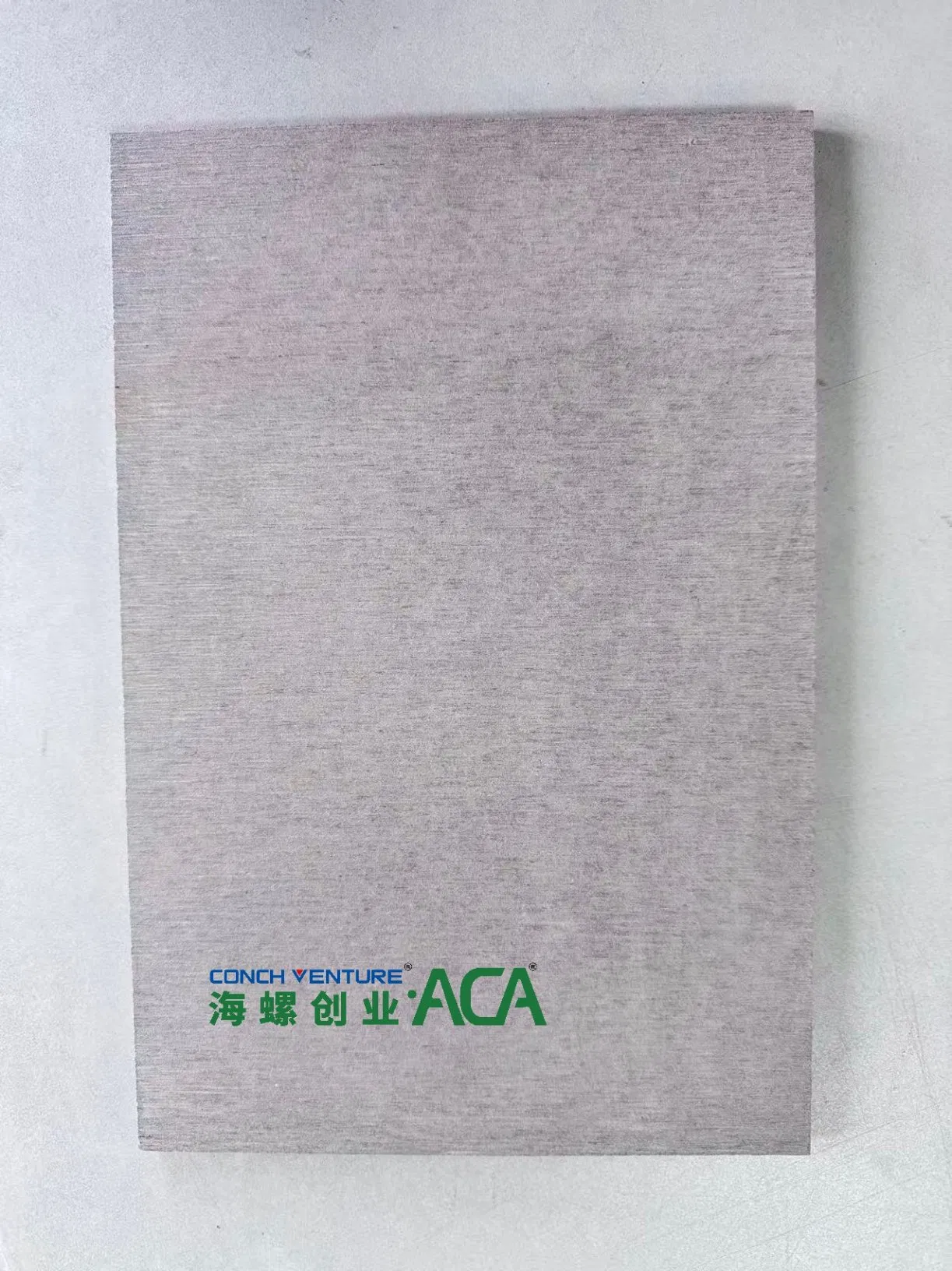

Through-Colored Fiber Cement Board for Exterior Wall Clad Rainscreen with Customized Colors

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Specifications

Model NO.
ACA-UC
Material
Virgin Pulp Fibers, Portland Cement, Quartz Sand
Usage
Building Decoration
Color
Grey, Green, White, Red, Yellow, Customized
Thickness
8, 10, 12mm
Density
High Density
Finish
Texture, Polished
Specification
1220*2440/3050/4880mm
P

Product Description

The Through-Colored Fiber Cement Board is an innovative marvel in modern architecture, offering a sophisticated and versatile solution for enhancing the aesthetic appeal of varied structures. Its application system is extensively embraced in upgrading the exteriors of commercial, industrial, and civil edifices, as well as rejuvenating the facades of aging buildings.
Crafted from a premium blend of high-grade cement, plant fibers, quartz sand, mineral pigments, and other natural minerals, this board is a testament to quality and elegance. Its surface is impeccably smooth, with a delicate texture and a sophisticated matte finish, ensuring a consistent and rich color throughout the board.

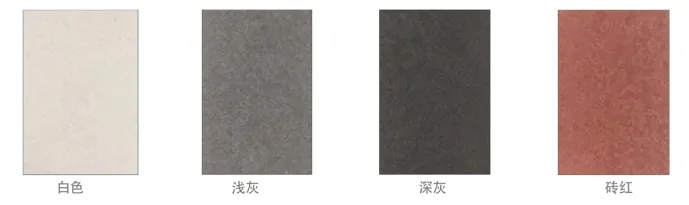

Through-Colored Fiber Cement Board Cladding

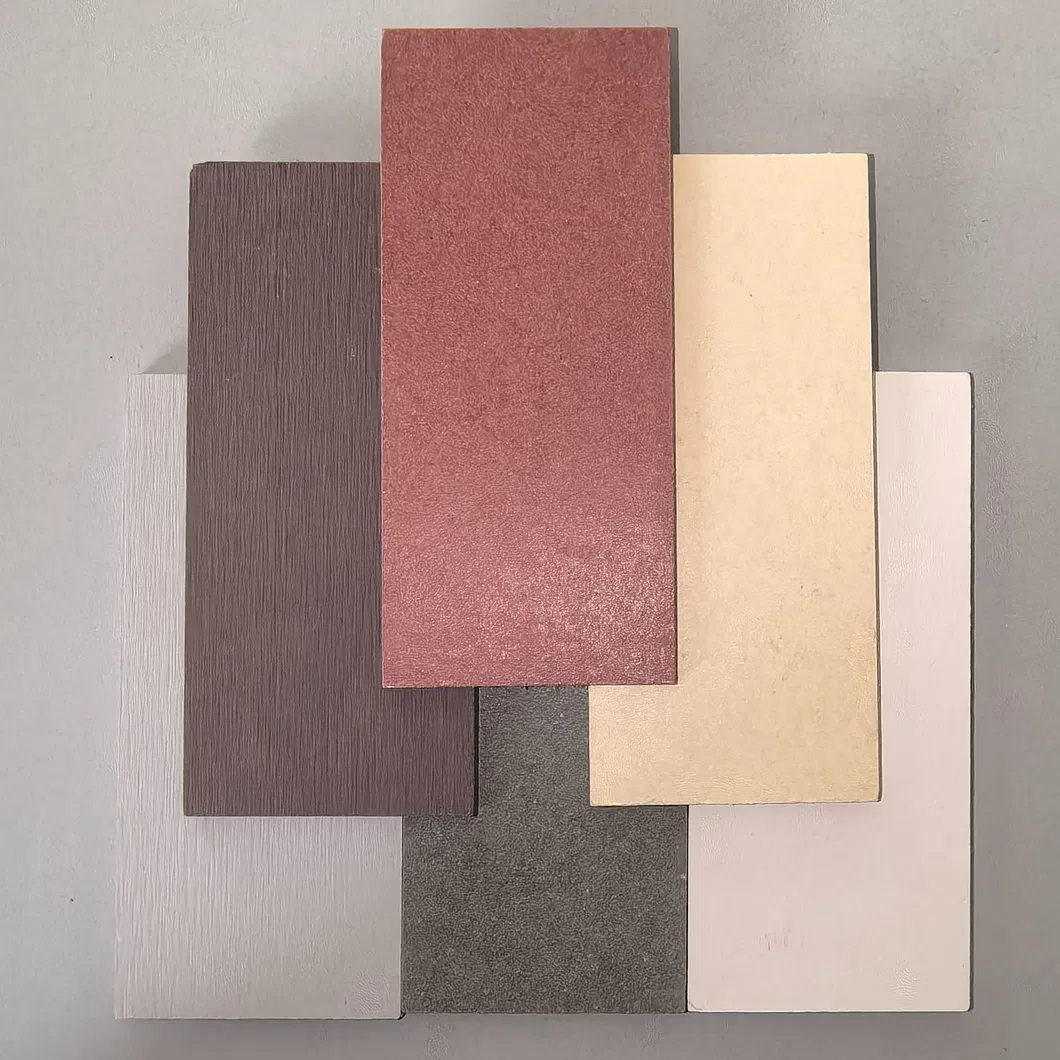

Fiber Cement Board Texture 1

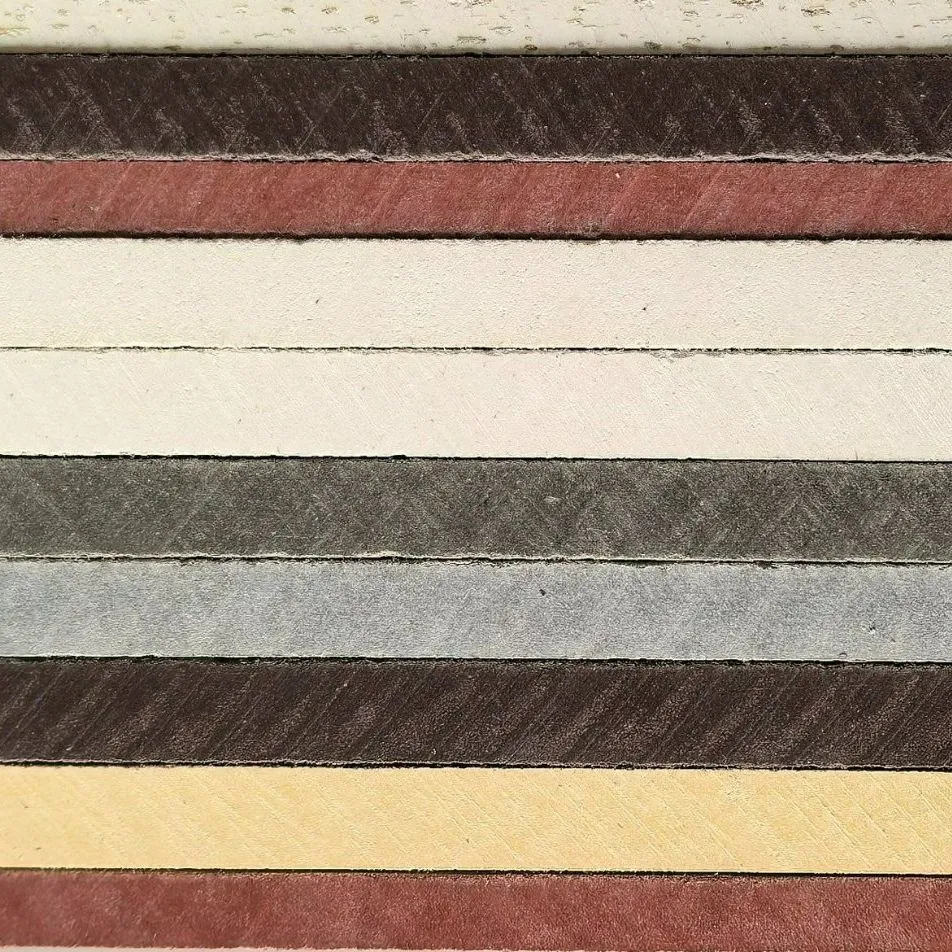

Fiber Cement Board Texture 2
T

Technical Parameters

Item Industry Standard Test Data
Density1.4 - 1.6g/cm³1.51g/cm³
Thermal Conductivity≤0.35w/(m - k)0.17w/(m - k)
Moisture Content≤10%8%
Wet Expansion Rate≤0.25%0.16%
Water ImpermeabilityNo cracking/delamination (24h)Complies
Flexural Strength (Saturated)≥13MPa14.5Mpa
A

Application Areas

  • Commercial & Residential: Office buildings, hotels, commercial plazas, and luxury villas.
  • Public Venues: Advanced gymnasiums, schools, convention centers, and exhibition halls.
  • Infrastructure: Ideal for moisture-prone zones such as subways, tunnels, and basements.
  • Renovation: Perfect for exterior wall renovations to modernize aging structures.

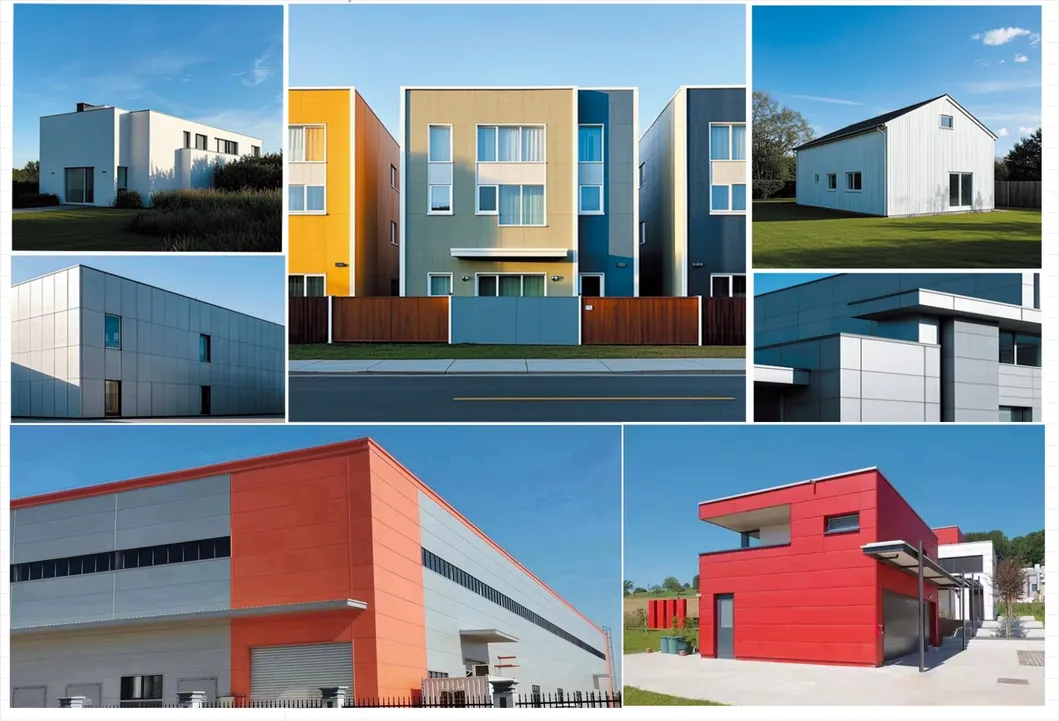

Application Project Case
Q

Manufacturing & Quality Control

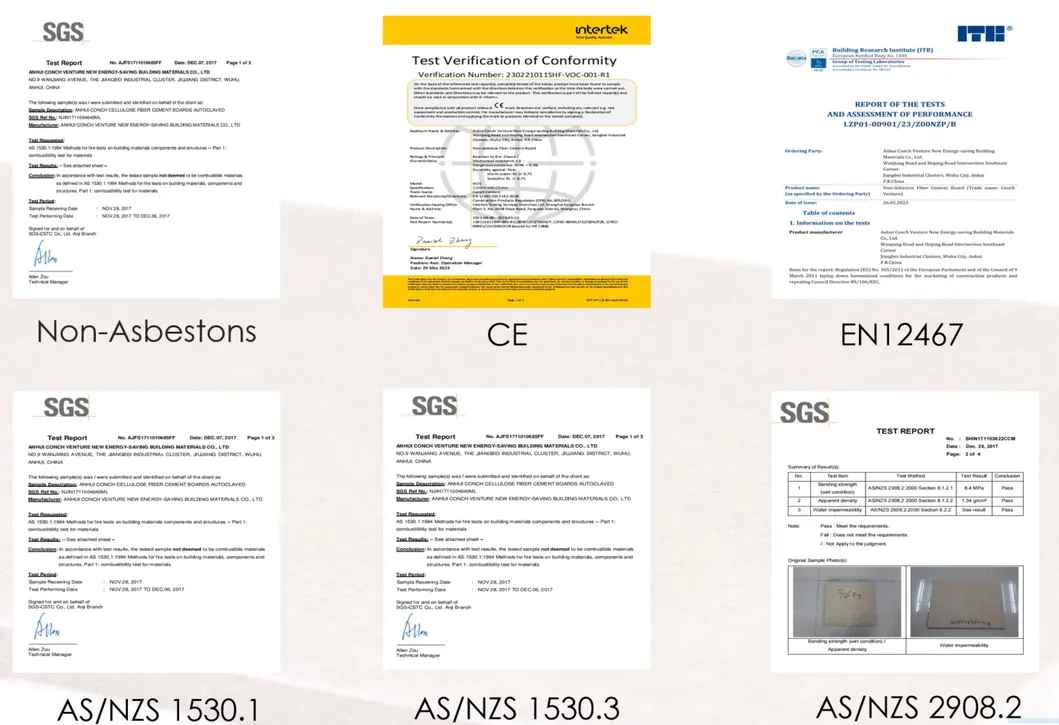

Quality Certificate

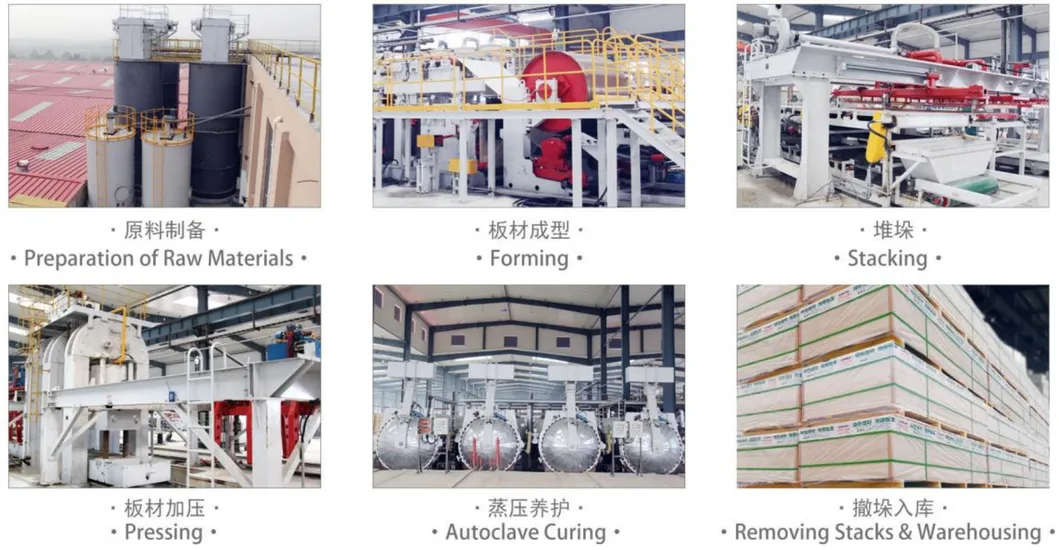

Production Procedure

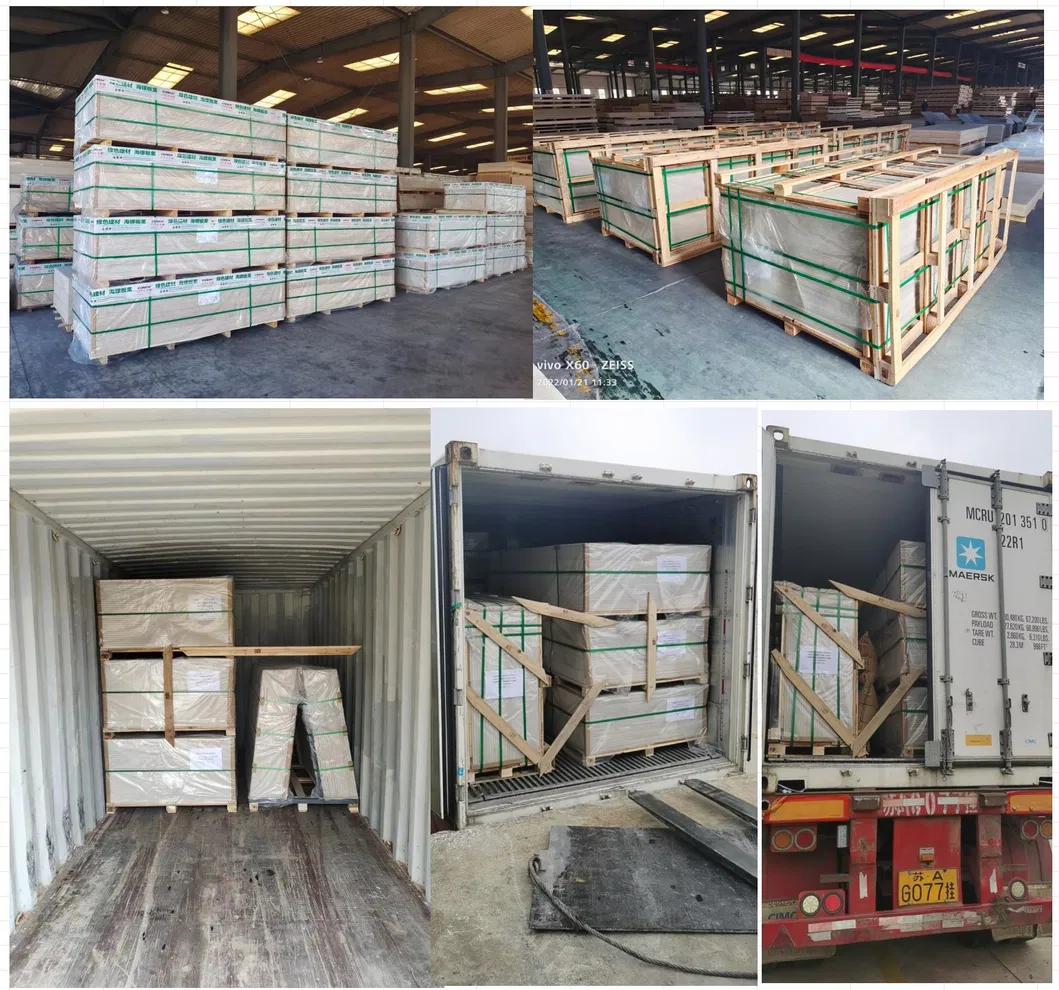

Package and Loading

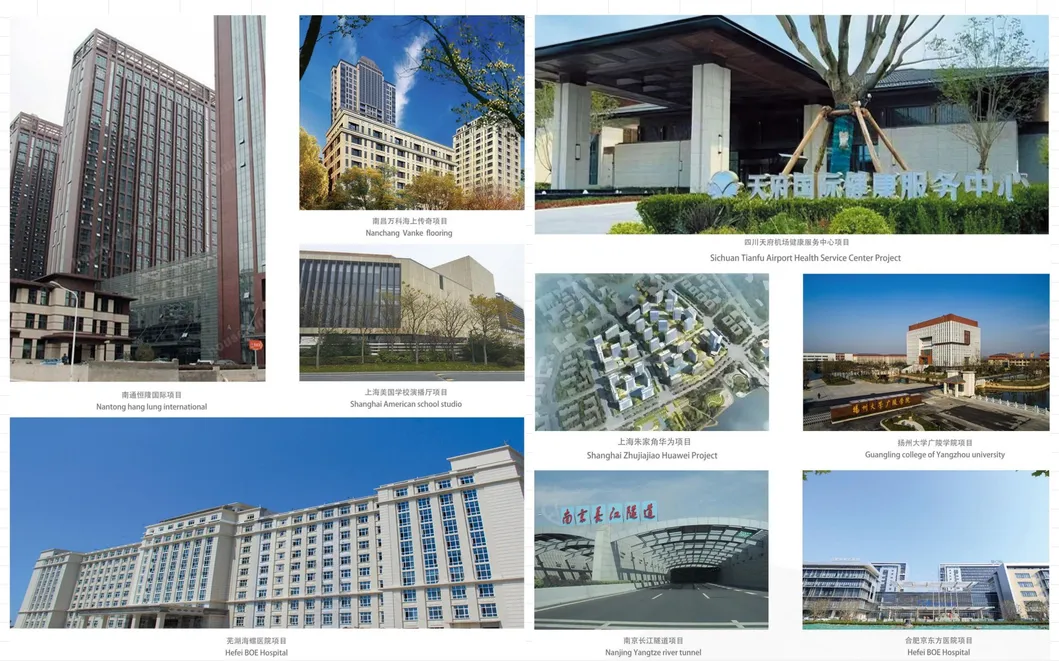

Success Project Case
F

Key Features

  • 100% non-asbestos fiber cement board for safety and longevity.
  • Superior weather resistance and exceptional impact resistance.
  • Anti-corrosion, moth-proof, and highly resistant to water/moisture.
  • Simplified installation process for cost-efficiency.
  • Consistent through-body color that maintains appearance over time.
?

Frequently Asked Questions

What is a Through-Colored Fiber Cement Board?
It is a high-density architectural board where the pigment is integrated throughout the entire material, ensuring the color remains consistent even if the surface is scratched or cut.
Is the board environmentally friendly?
Yes, our boards are 100% non-asbestos and formaldehyde-free, made from natural minerals and plant fibers, making them safe for both interior and exterior use.
How does it perform in extreme weather?
The board features excellent frost resistance (tested up to 100 cycles at -20°C) and superior water impermeability, making it ideal for harsh outdoor environments.
Can the sizes and colors be customized?
Absolutely. While standard sizes are 1220*2440mm, we offer various thicknesses (6mm to 20mm) and a wide range of colors including grey, green, white, red, and yellow to meet specific design needs.
What are the primary maintenance requirements?
Due to its anti-corrosion and moth-proof properties, the board requires very low maintenance. Its through-colored nature means it does not need frequent repainting.
What is the typical application for these boards?
They are widely used for exterior wall cladding, rainscreens, interior decorative walls, subways, tunnels, and high-end commercial or residential facades.
