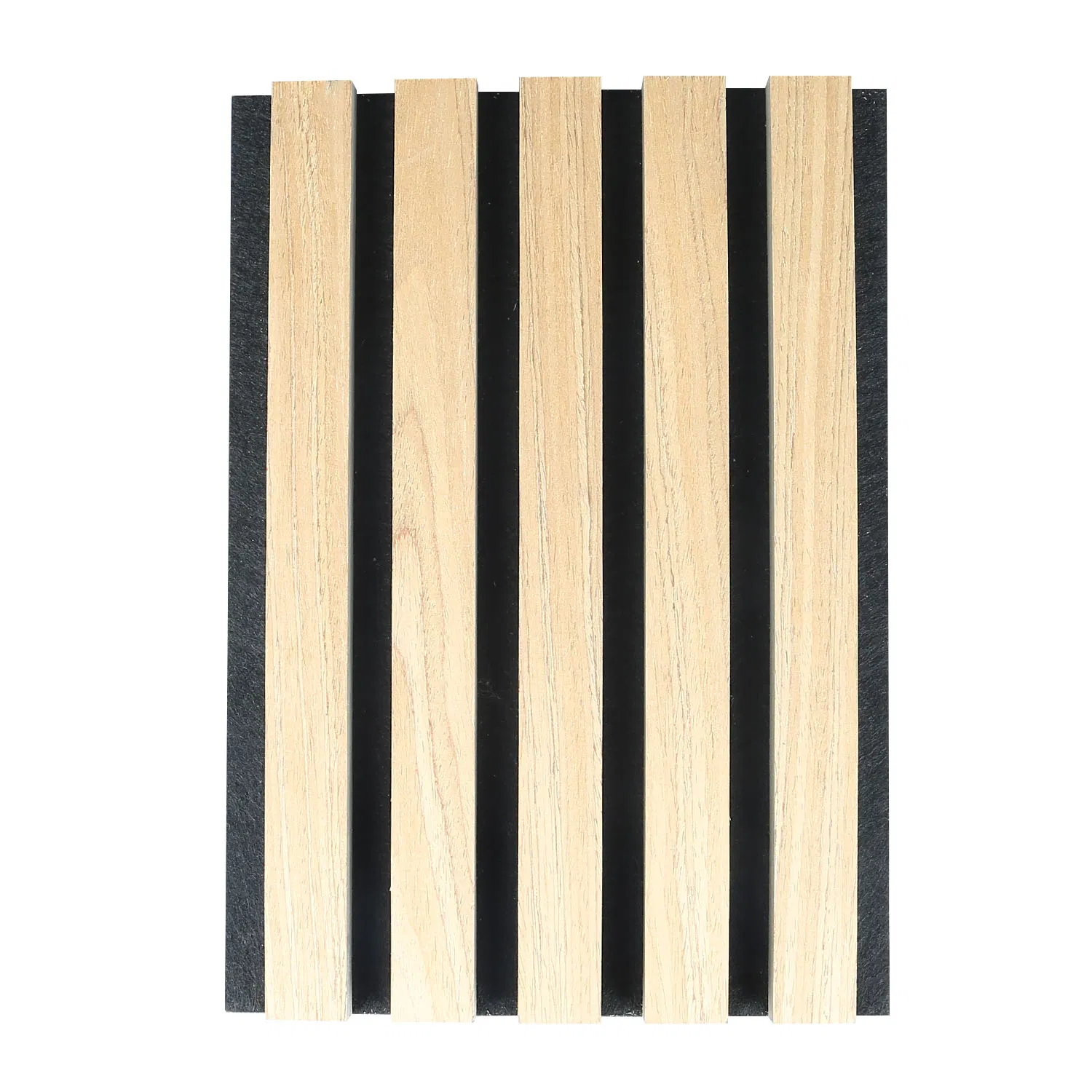

Vertical Wooden Wall Slat Partition Panel Wood Wall Cladding Interior Slated Wood Slatted Wall Panels
Vertical Wooden Wall Slat Partition Panel Wood Wall Cladding Interior Slated Wood Slatted Wall Panels
Vertical Wooden Wall Slat Partition Panel Wood Wall Cladding Interior Slated Wood Slatted Wall Panels
Vertical Wooden Wall Slat Partition Panel Wood Wall Cladding Interior Slated Wood Slatted Wall Panels
Vertical Wooden Wall Slat Partition Panel Wood Wall Cladding Interior Slated Wood Slatted Wall Panels
1 / 5
Vertical Wooden Wall Slat Partition Panel Wood Wall Cladding Interior Slated Wood Slatted Wall Panels
Vertical Wooden Wall Slat Partition Panel Wood Wall Cladding Interior Slated Wood Slatted Wall Panels
Vertical Wooden Wall Slat Partition Panel Wood Wall Cladding Interior Slated Wood Slatted Wall Panels
Vertical Wooden Wall Slat Partition Panel Wood Wall Cladding Interior Slated Wood Slatted Wall Panels
Vertical Wooden Wall Slat Partition Panel Wood Wall Cladding Interior Slated Wood Slatted Wall Panels

Vertical Wooden Wall Slat Partition Panel Wood Wall Cladding Interior Slated Wood Slatted Wall Panels

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
600*2440mm
NRC
0.8-1.1
Formaldehyde
0 (E0 Grade)
Fireproof Grade
B1
Composition
60% Polyester; 30% MDF; 10% Veneer
Thickness
21mm
Installation
Glue or Gun Nail
Certification
CE, ISO
Acoustic Slat Wood Panel
★

Product Introduction

We are a professional factory specializing in Acoustic Panels, 3D Panels, and Polyester Acoustic Foam. Our products provide competitive sound dampening solutions with excellent performance in low-frequency sound absorption.

Widely used in meeting rooms, studios, theaters, audiovisual rooms, schools, hotels, conference halls, and gyms, our panels achieve an NRC of 0.8-1.1, ensuring a high-quality acoustic environment.

✔

Key Features

Eco-Friendly: Zero formaldehyde and environmentally safe.
Fire Safety: Passed fire tests to reach B1 class standards.
Durability: Moisture-proof, anti-mildew, and heat insulating.
User Friendly: Easy cutting and no harm to the human body.
📋

Technical Parameters

ModelAcoustic Slat Wood Panel
Slat SpecificationGroove 26mm, Edge to edge 14mm
Standard Size2440*600*21mm or customized
Structure12/15/18mm MDF + 9mm PET acoustic panels
Surface FinishMelamine / Wooden Veneer / Painting / HPL
Core MaterialE0 MDF / B1 MDF / Black MDF
InstallationGlue, wood frame, or gun nail
📏

Size & Design Display

Each panel measures 2440mm x 600mm, formed from 12mm deep and 26mm wide lamellas with a 15mm gap.
Size Display

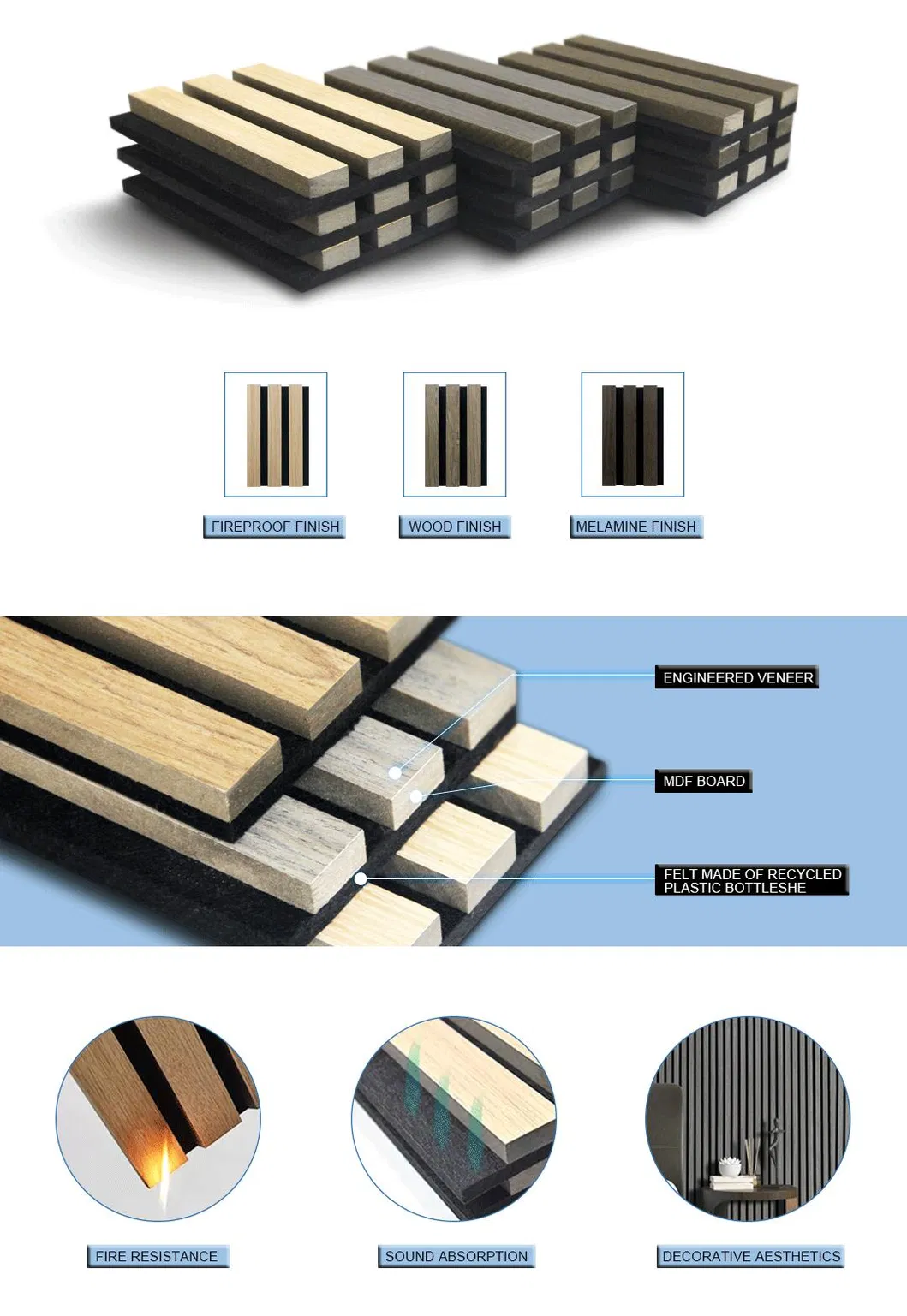

Product Display
🎨

Natural Finishes

Our panels feature real walnut wood veneers with a natural warm glow. The wood comes with unique grain patterns and minor natural flaws, creating a rustic and authentic look.

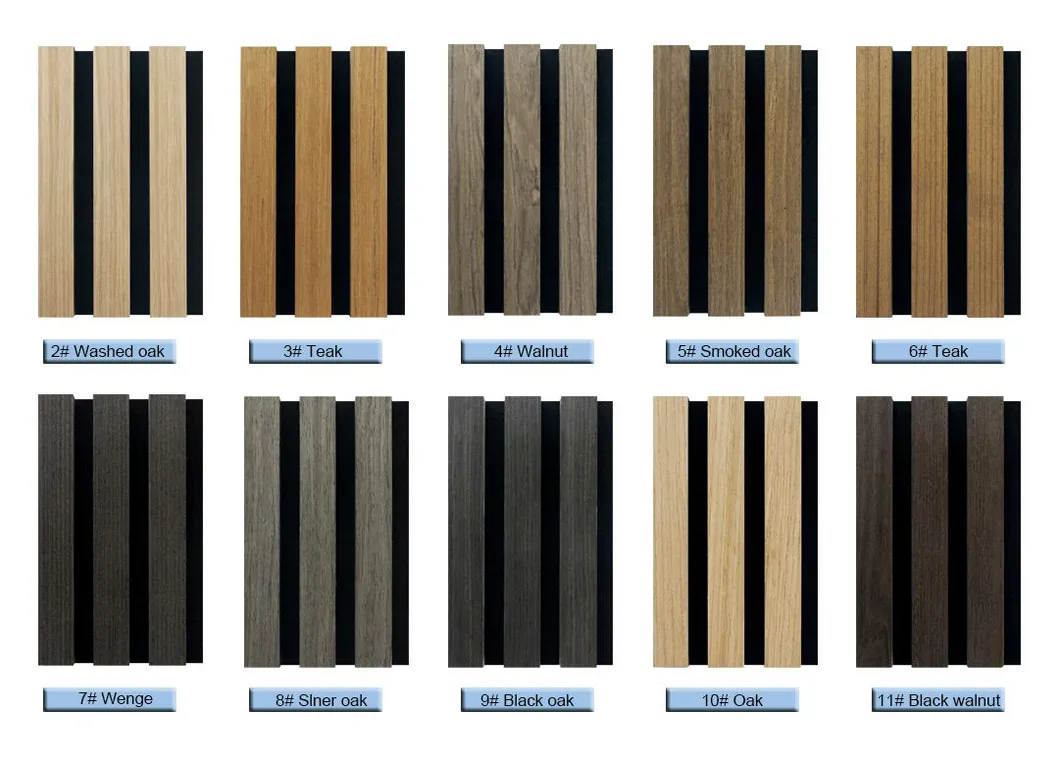

Color Swatches
🏠

Project Showcase & Installation

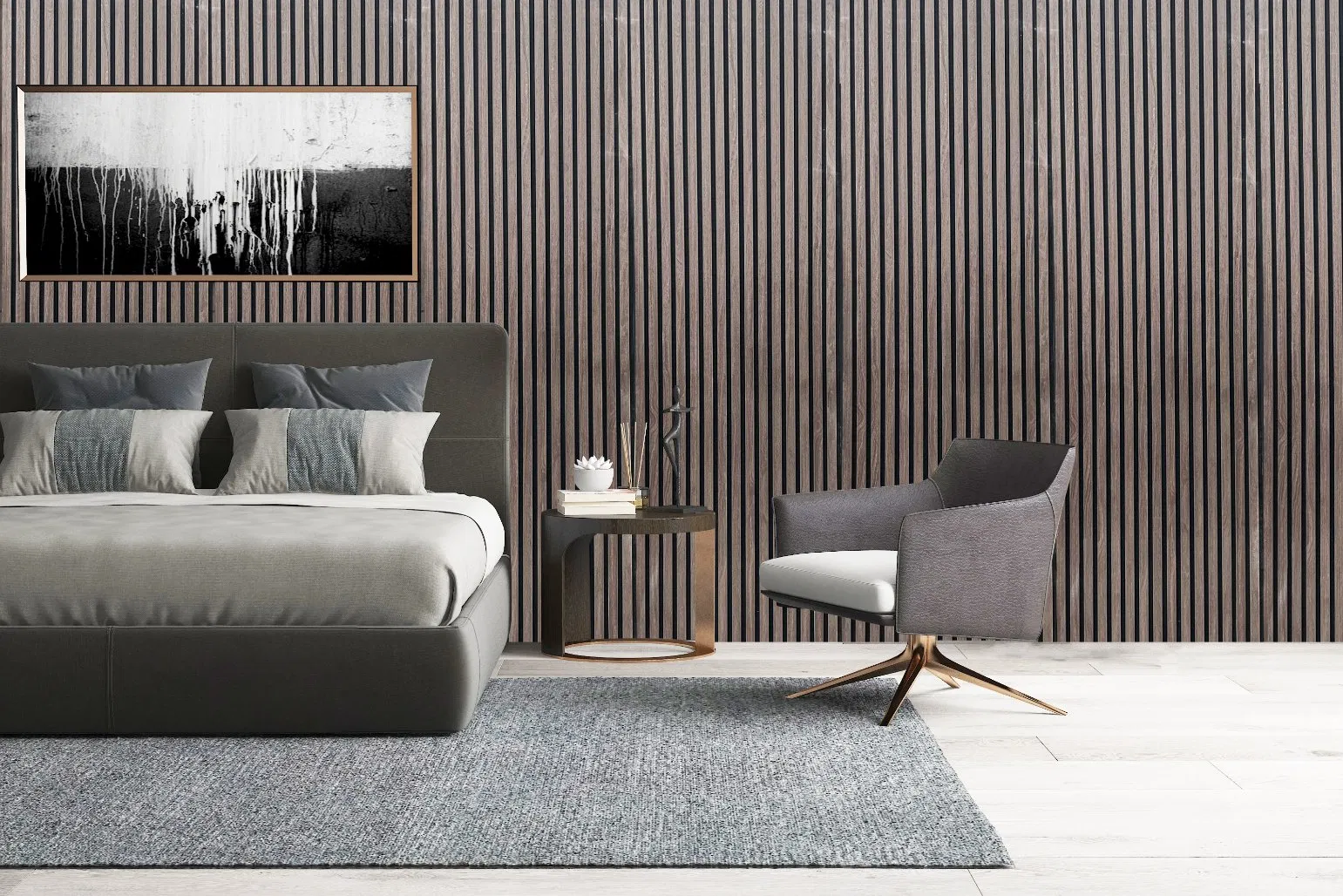

Instantly transform your bedroom, living room, or office. Our veneered lamella strips are mounted on acoustic felt backing for easy DIY installation.

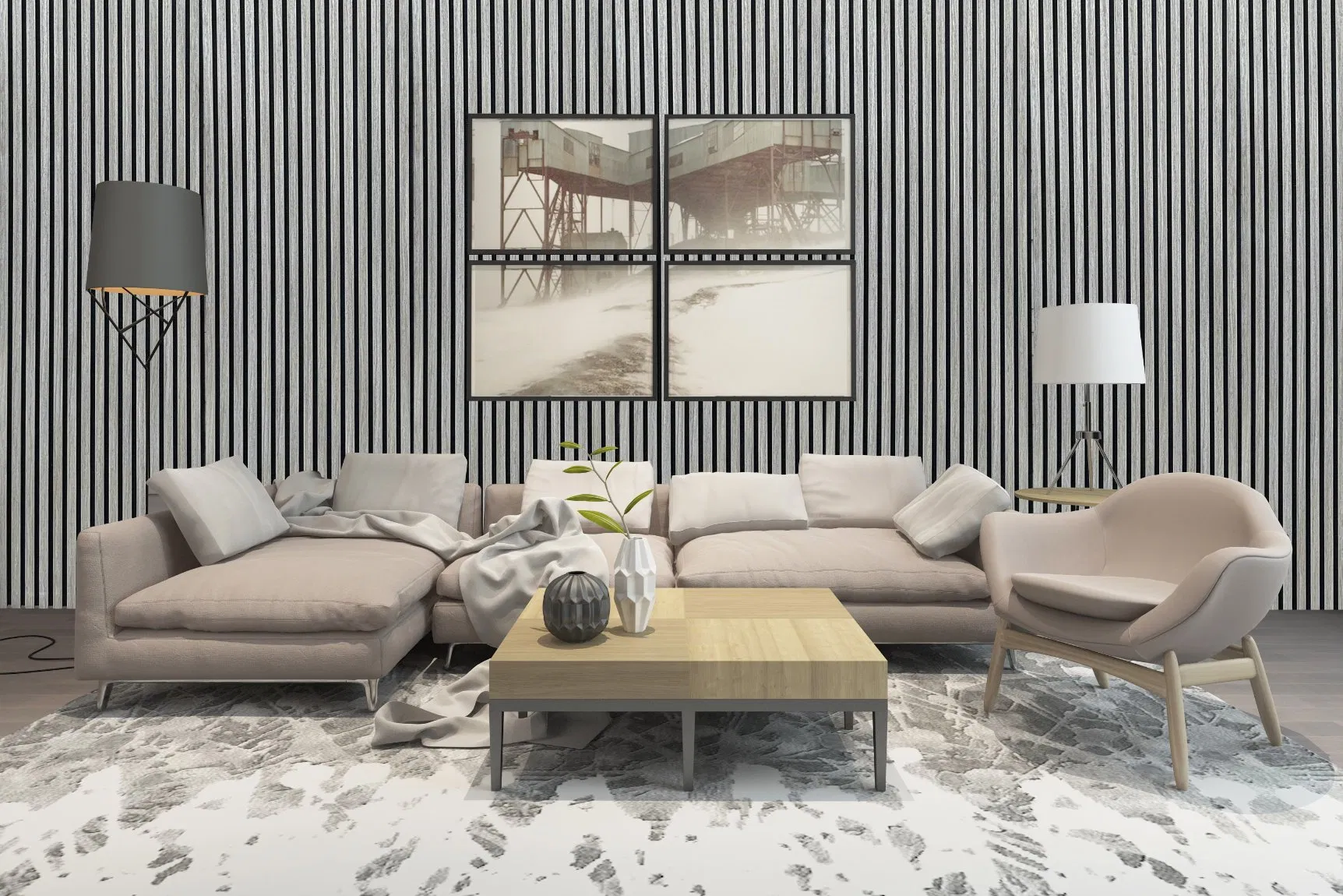

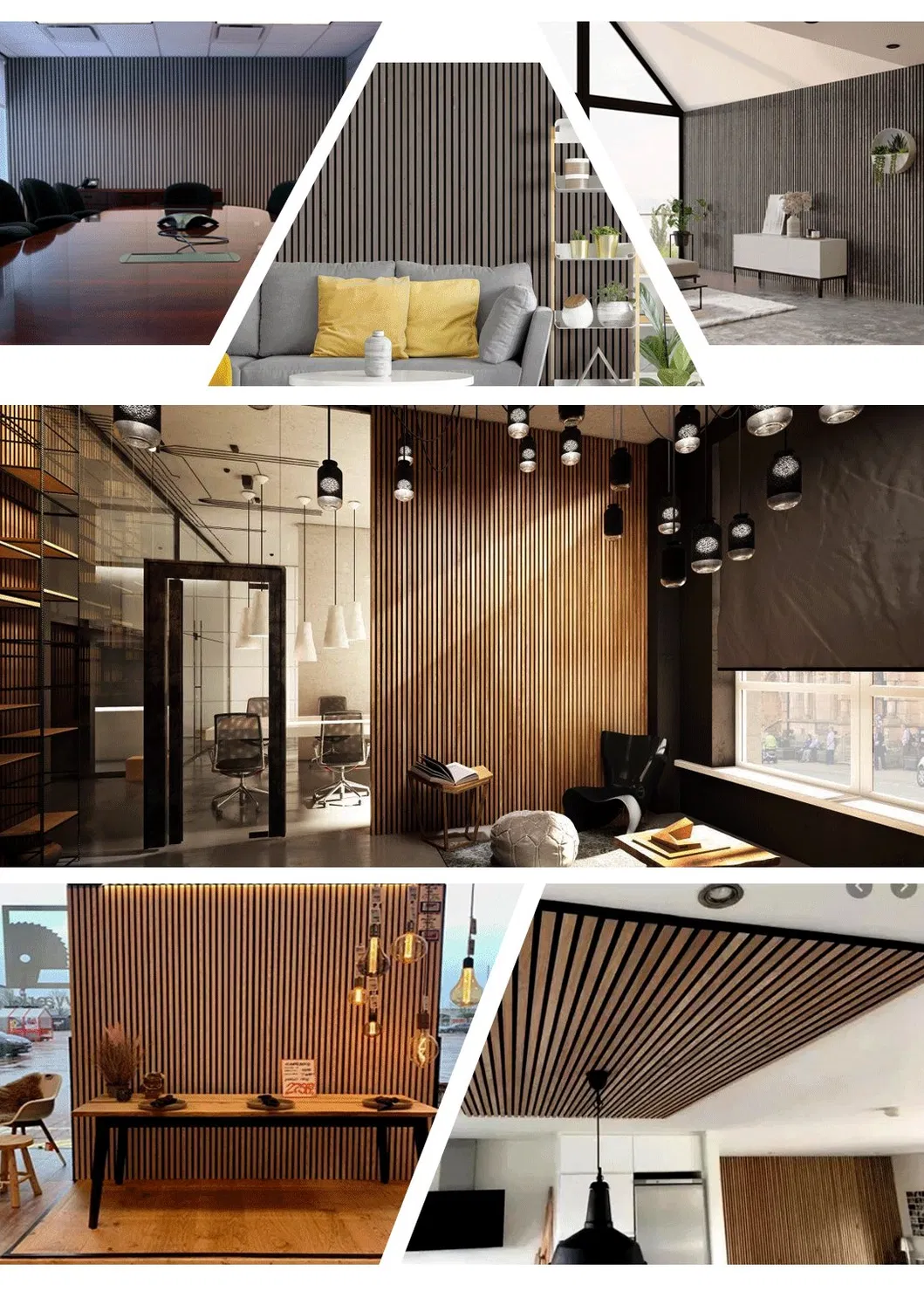

Project Example

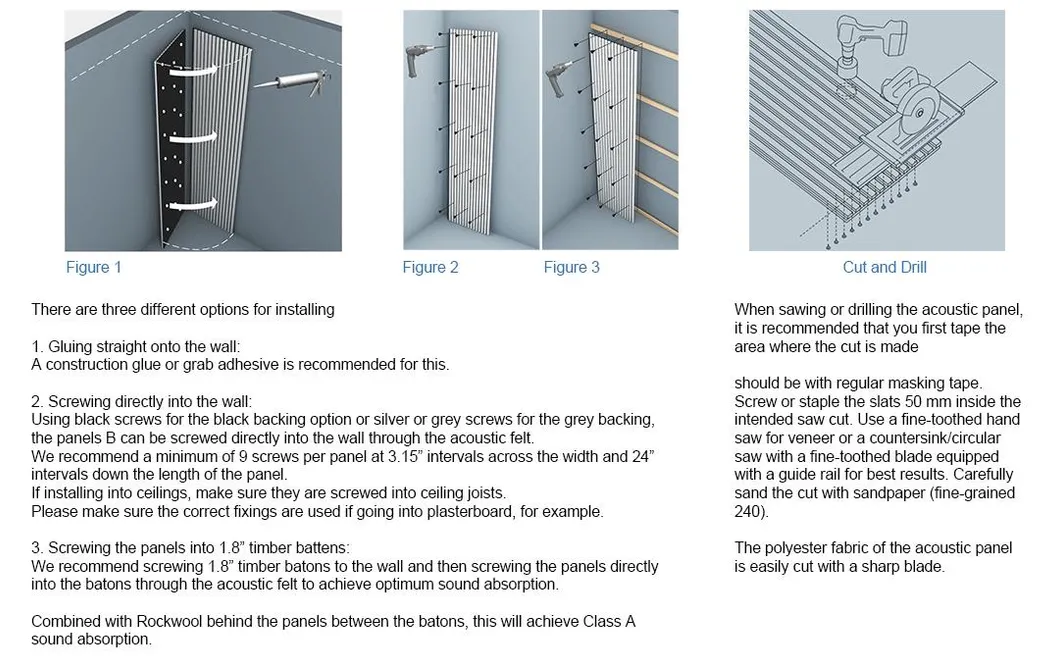

Installation Step 1

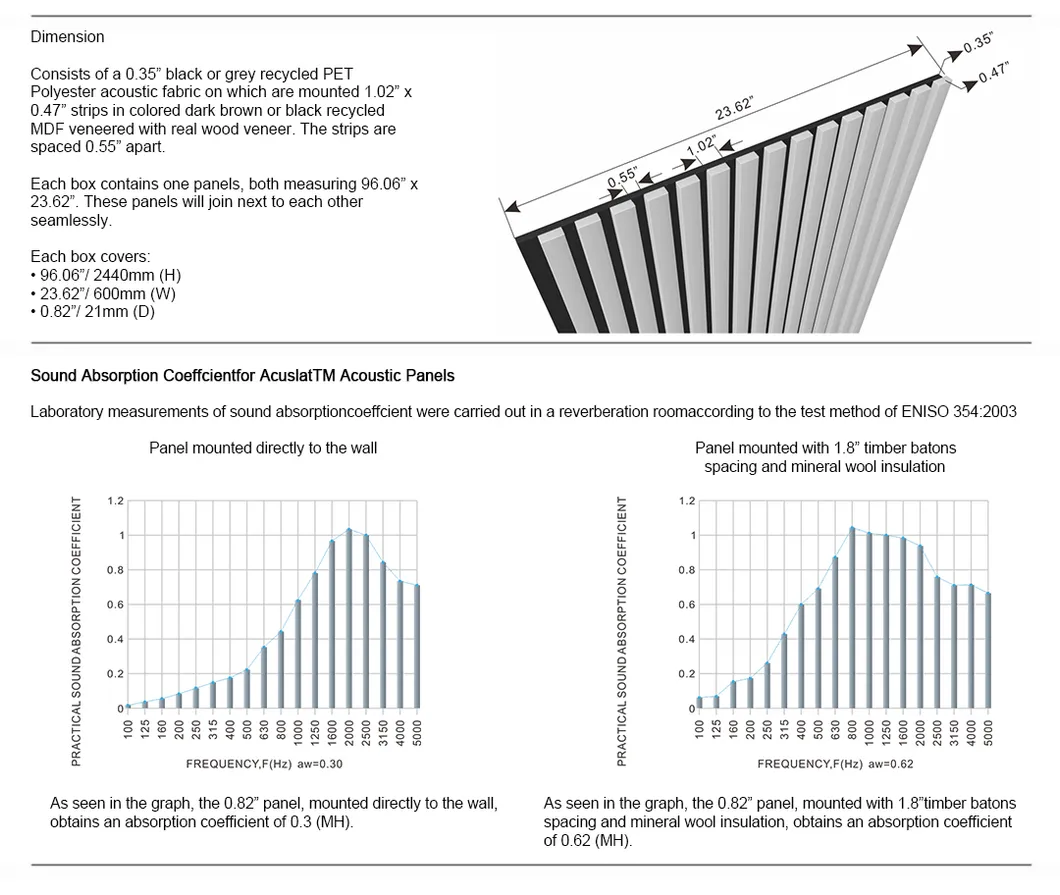

Installation Step 2
✈

Packaging & Advantages

We ensure precision in thickness, density, and dimensions to meet specific requirements. Our production reaches EU B-s1d0 and USA ASTM-E84 Class A fire ratings.
Packaging

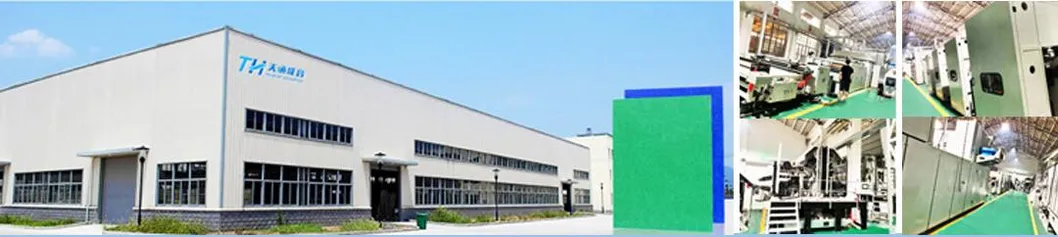

Factory Overview
Exhibition
?

Frequently Asked Questions

What is the sound absorption capability of these panels?
The panels have an excellent Noise Reduction Coefficient (NRC) ranging from 0.8 to 1.1, making them highly effective at dampening low-frequency sounds.
Are the materials safe for indoor residential use?
Yes, the panels are E0 grade, meaning they are formaldehyde-free and environmentally friendly, ensuring they are safe for homes, offices, and schools.
Do the panels provide fire protection?
Absolutely. Our panels can pass fire tests to reach B1 class (EU B-s1d0) and USA ASTM-E84 Class A standards.
How are the acoustic slat panels installed?
Installation is simple and can be done using adhesive glue, a wooden frame, or gun nails directly onto the wall.
Can I customize the size of the panels?
While our standard size is 2440*600*21mm, we offer customization options for thickness and dimensions to meet your specific project needs.
What surface finishes are available?
We offer a variety of finishes including Real Wood Veneer (like Walnut), Melamine, HPL, and custom painting.
