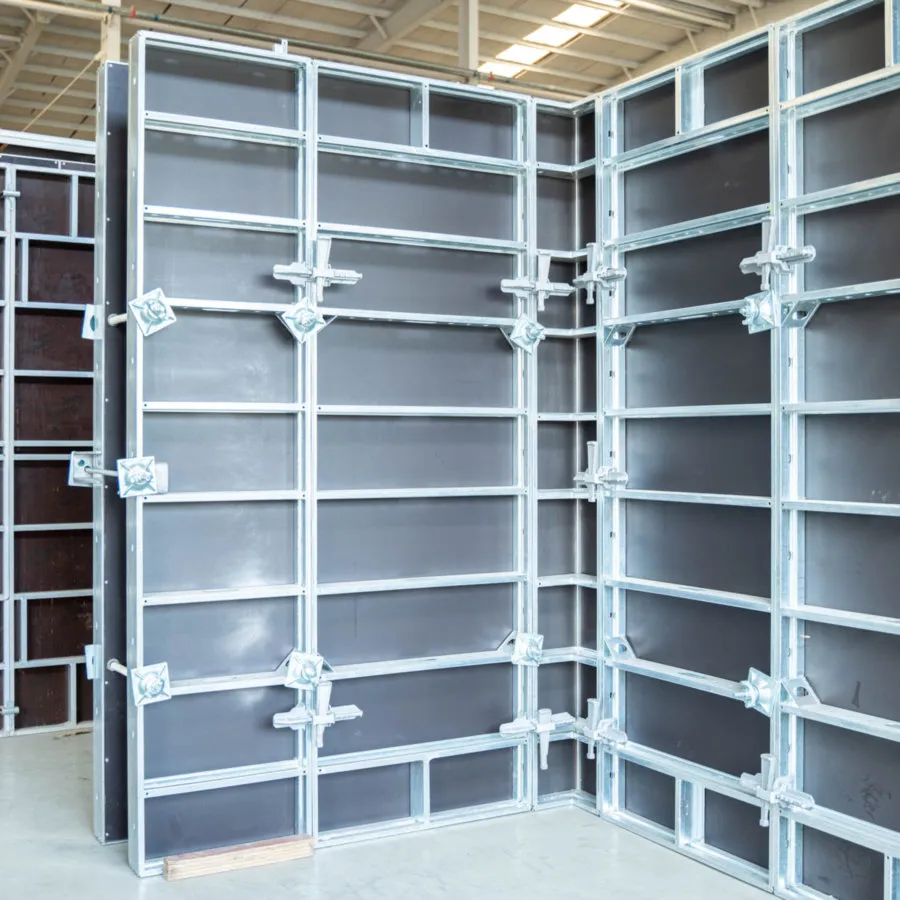

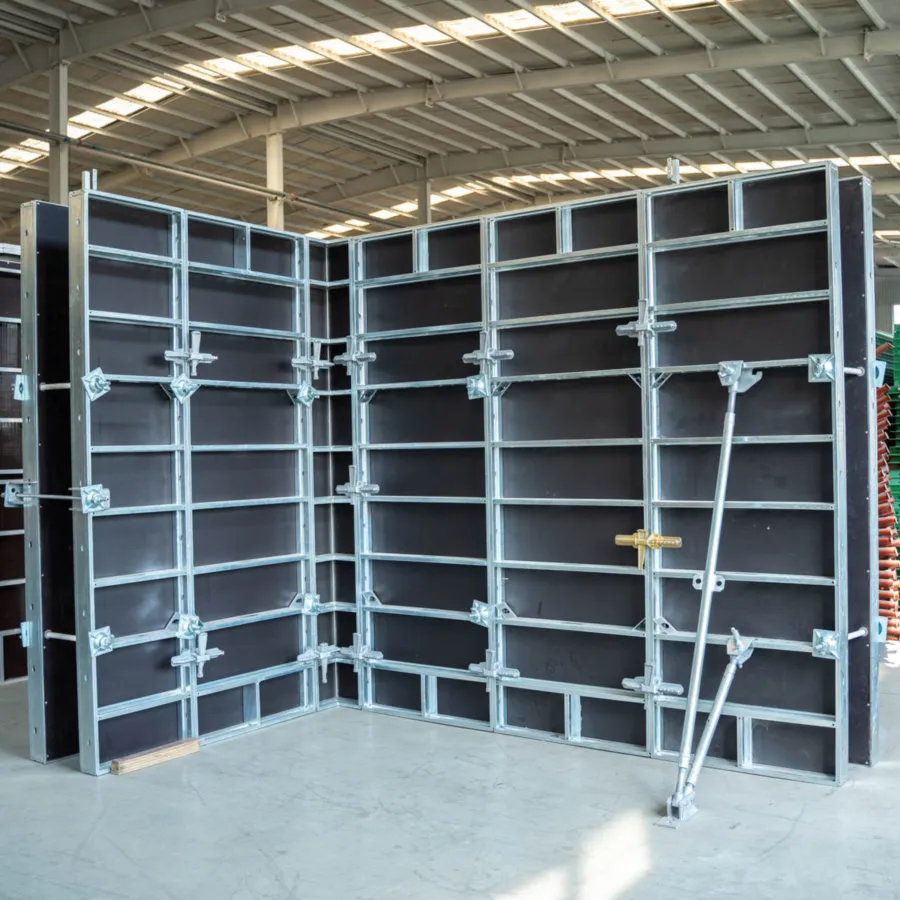

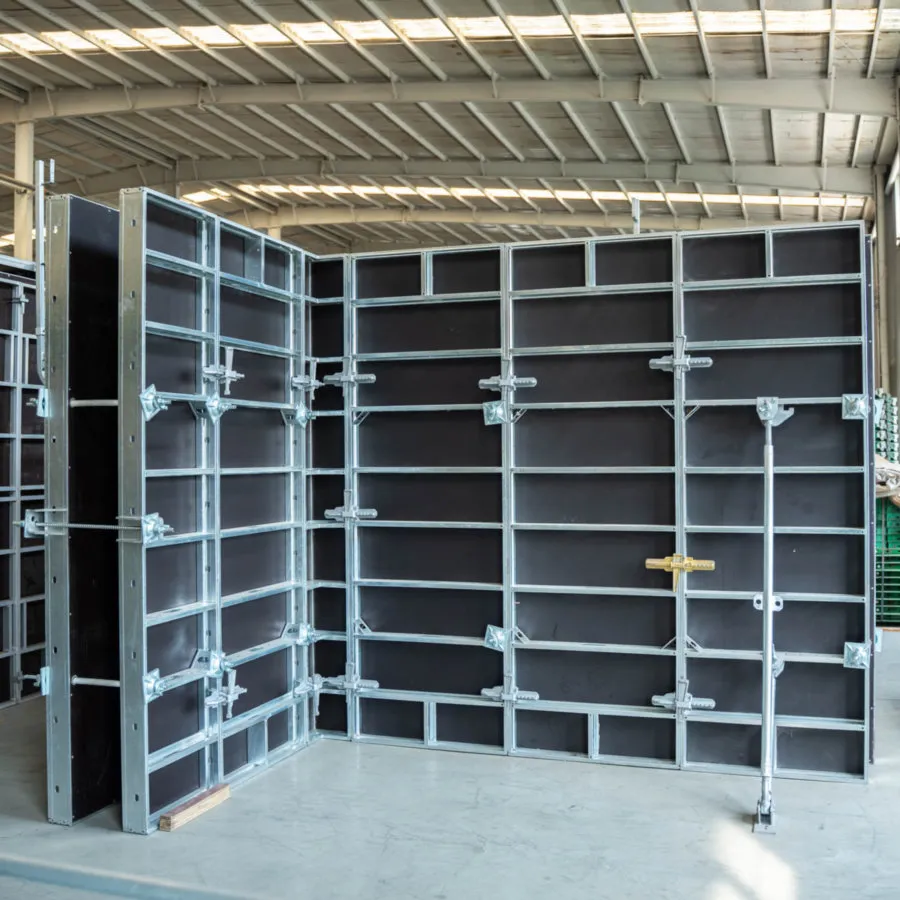

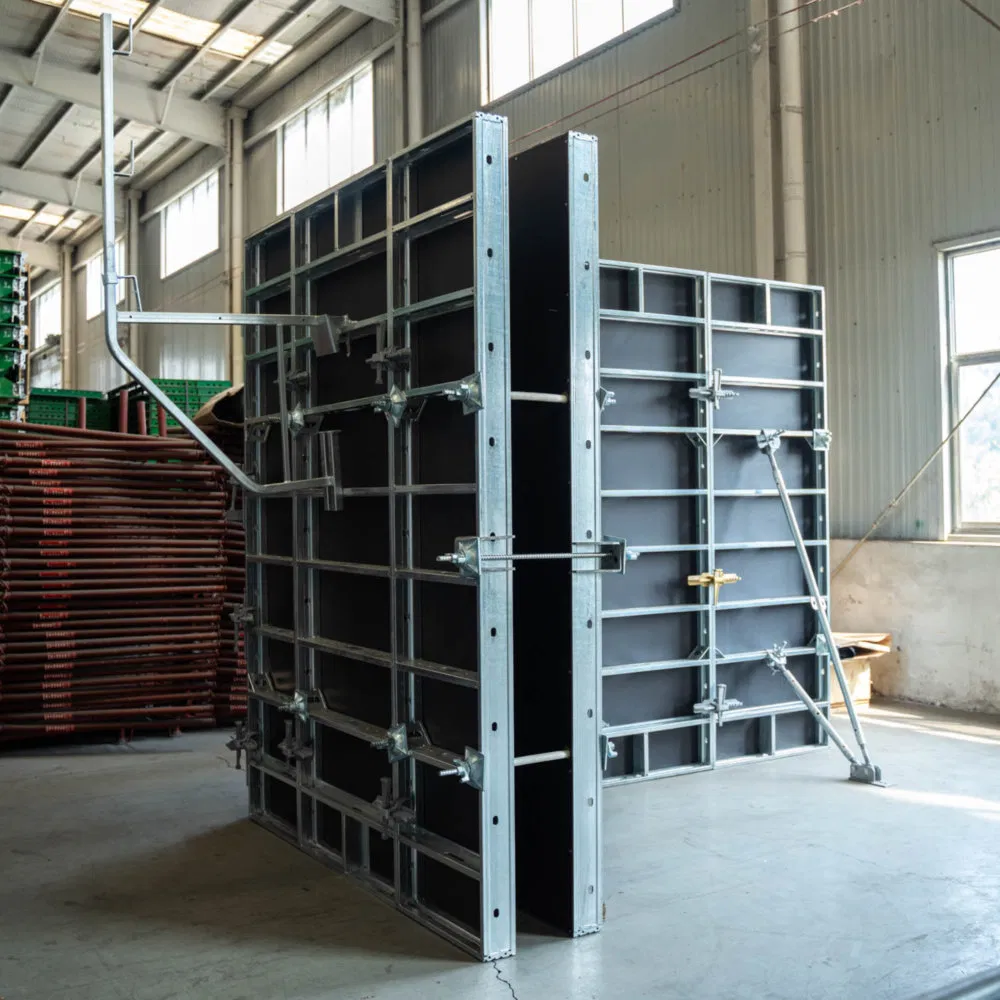

MODULAR WALL FORMWORK

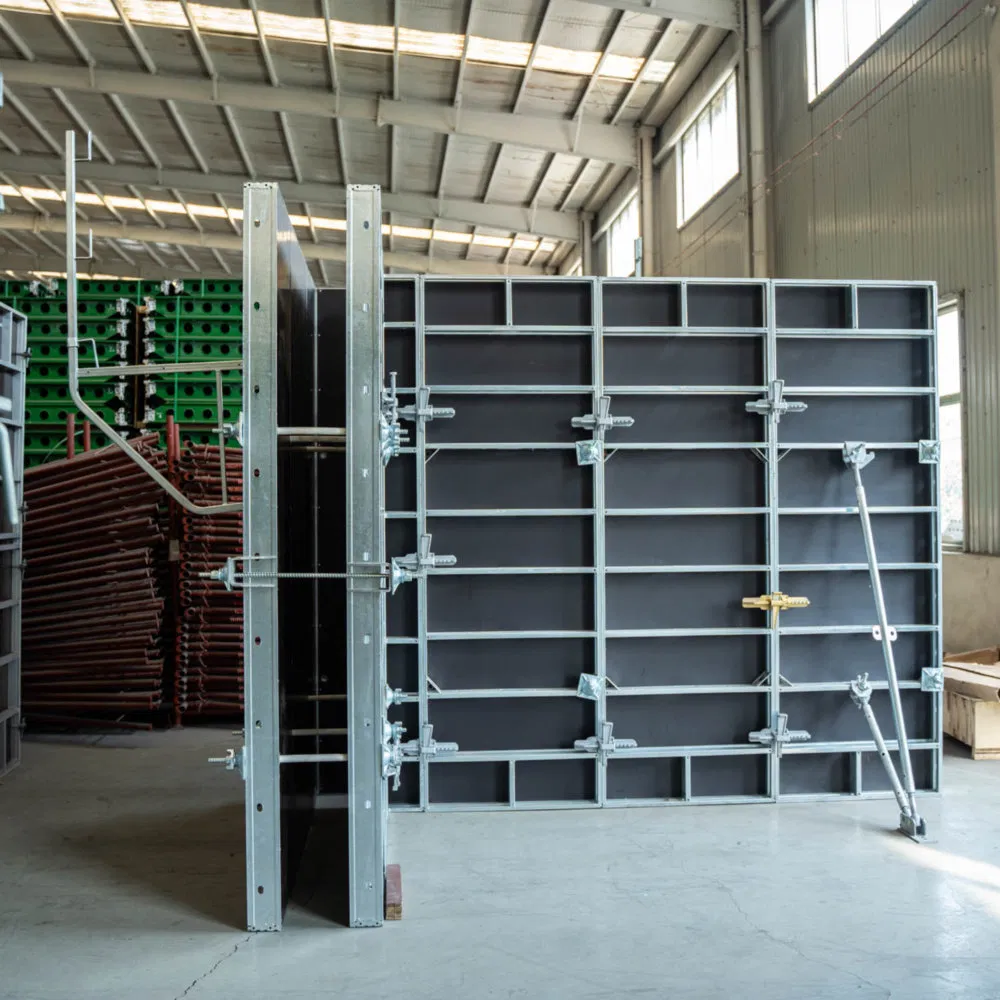

Modular wall formwork system with easy panel combination is a versatile and high-performance wall forming solution engineered for efficient vertical concrete construction.
This advanced wall panel formwork system features modular design with quick-connect panel combinations, available in both steel wall formwork and aluminium wall formwork configurations to suit diverse project requirements.
The reusable wall formwork system delivers exceptional flexibility through its standardized panel modules that can be rapidly assembled into any wall configuration, from simple straight walls to complex architectural geometries.
Built as a heavy-duty wall formwork system, it handles high concrete pressures while maintaining dimensional accuracy and superior surface finish quality.
| TECHNICAL PARAMETERS (Side Wall Bracket Frame) | ||||
|---|---|---|---|---|
| Specifications 01 | SB-A | SB-B | SB-1 | SB-2 |
| Specifications 02 | SB-A0 | SB-A, C | SB-B, C | SB-A, B, C |
MODULAR DESIGN

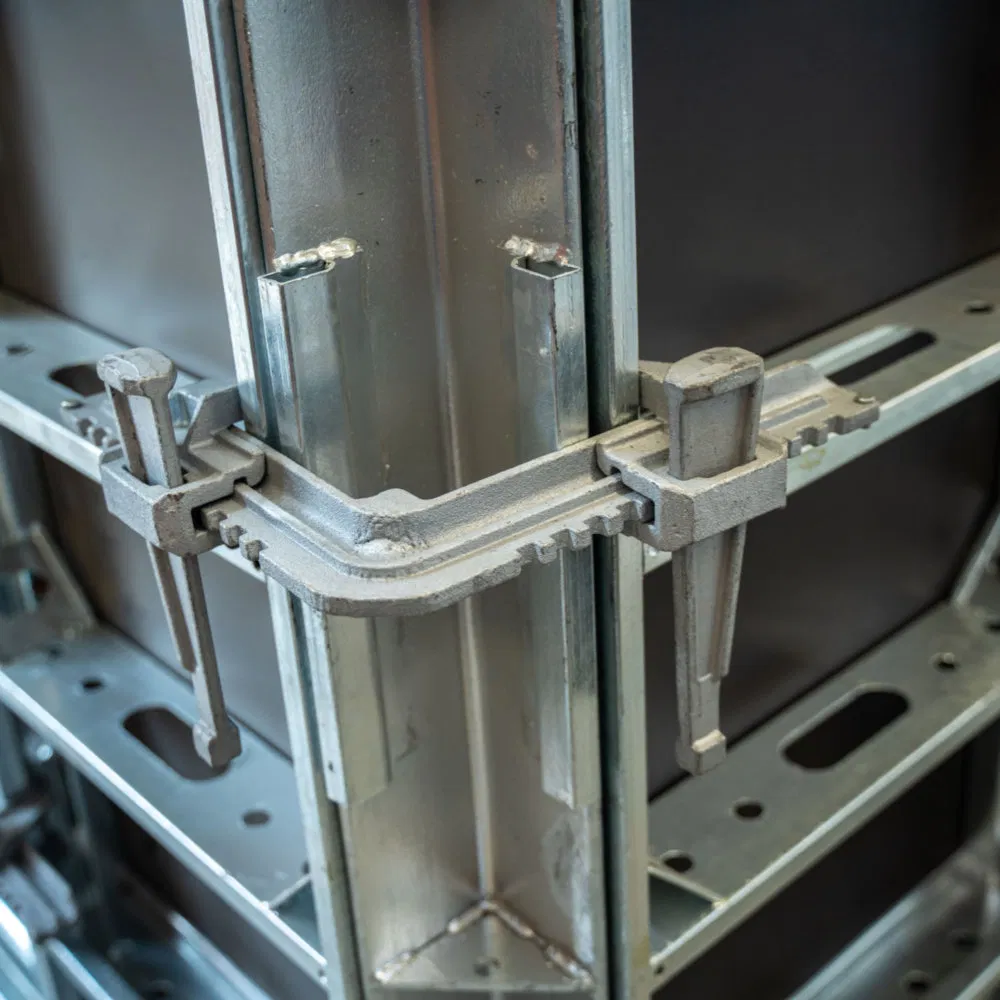

Standardized panel modules enable quick and flexible assembly into any wall configuration. Interlocking connection system allows rapid panel combination.
HEAVY-DUTY LOAD CAPACITY
Engineered to withstand high concrete pressures and lateral loads. Robust steel or aluminium frame construction provides structural stability.
HIGH REUSABILITY
Premium materials ensure extended service life with hundreds of reuse cycles. Corrosion-resistant surface treatments protect components.
FAST ASSEMBLY

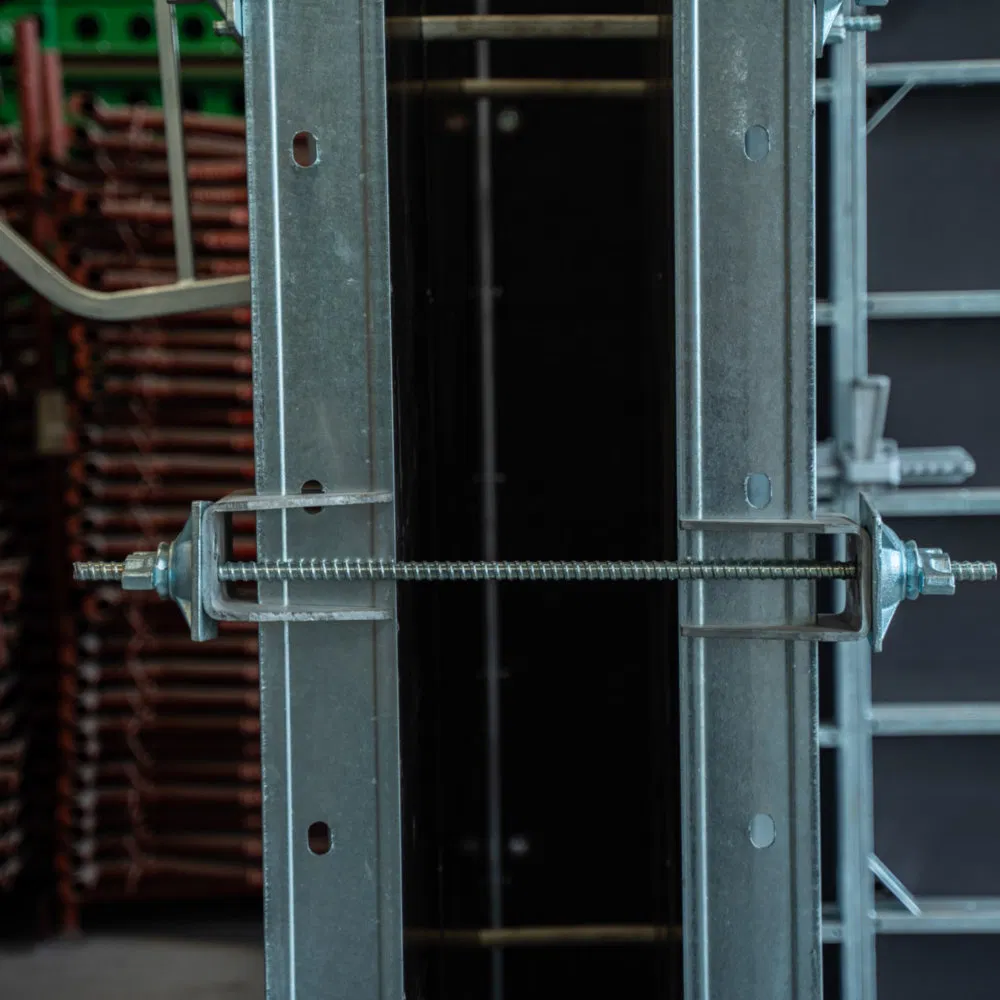

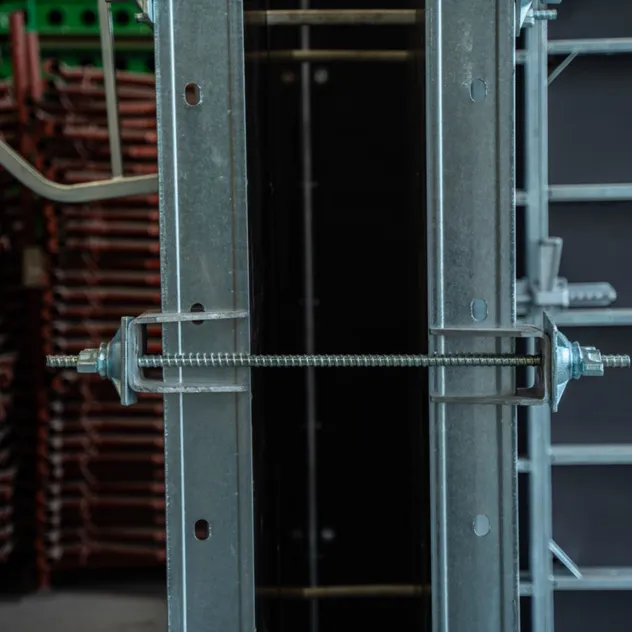

Quick-connect coupling system enables rapid installation. Simple locking mechanisms allow efficient workflow and reduced labor costs.
